Oldsmobile Silhouette 2004 Owner's Manuals

Lock either sliding door from inside the vehicle by moving
the manual lever down. Unlock it by moving the lever up.
With the power door locks, the sliding door lock has a
delay feature. See
Power Door Locks on page 2-11andVehicle Personalization on page 2-60.
Sliding Door Security Lock
Your vehicle is equipped with a sliding door security
lock that helps prevent young children or other
passengers from opening the sliding door(s) using
the inside door handle. To use one of these locks,
do the following:
1. Open the sliding door.
2. On the inside of
the sliding door(s),
on the front edge of
the door will be a lock.
Push the lever up to
engage the lock.
3. Close the door.
4. Repeat Steps 1 through 3 for the other door.
2-15

If your vehicle has the power sliding door(s), you can
override the security lock by pressing either power door
lock switch while the power sliding door override
switch(es) is turned off. If the power sliding door override
switch(es) is turned on, the power sliding door(s)
cannot be opened from the inside while the sliding door
security lock is in use.
If you want to open the sliding door while the security
lock is on, unlock and open the door from the outside.
You should let adults and older children know how
the security lock works, and how to cancel the lock.
If you don't, adults or older children who ride in the rear
won't be able to open the sliding door from the inside
while the security lock feature is in use.Canceling the Sliding Door
Security Lock
1. Unlock the sliding door and open the door from
the outside.
2. Push the security lock lever all the way down.
3. Close the door.
4. Repeat Steps 1 through 3 for the other door.
The sliding door lock will now work normally.
2-16

Power Sliding Door (PSD)
If your vehicle has this feature, you can open and close
the sliding door(s) using the switches inside of your
vehicle. You can also operate the power sliding door(s)
with your remote keyless entry transmitter. See
Remote Keyless Entry System on page 2-4.
{CAUTION:
Leaving your children or pets unattended in
your vehicle can be dangerous. They could
operate the power sliding door. A child or
others could be injured. Do not leave children
or pets unattended in your vehicle.
To help avoid accidental operation of the sliding door(s),
press the part of the power sliding door override
switch(es) with the don't symbol.To open or close the sliding door(s), press and release
one of the following power door switches.
If you have the one power sliding door, these switches
are located in the overhead console switchbank.Power Sliding Door
Power Sliding Door
Override
2-17

If you have the dual sliding
doors, your vehicle has
these switches. The left
switch is for the driver's
side power sliding door and
the right switch is for the
passenger's side sliding
door. The power sliding
door and the power sliding
door override is one switch.
Press the part of the switch(es) with the ªdon'tº symbol
to turn the power to the sliding door(s) off. When
the power sliding door(s) is off, you will not be able to
open the door(s) by using the power sliding door
switch(es) located on the overhead console switchbank,
the switch in front of the driver's or the passenger's
side sliding door, or the remote keyless entry transmitter.
Notice:If you leave the power sliding door on when
you go through an automatic car wash, the door may
accidentally open. Be sure the power sliding door is
turned off when going through a car wash.This switch is in front
of the driver's or the
passenger's side
sliding door.
The power sliding door override switch(es) will also stop
the door(s) immediately, while the door(s) is opening
or closing, when the override switch(es) is turned on.
The power sliding door(s) will only open if the transaxle
is in PARK (P). The transaxle does not have to be in
PARK (P) to close the door(s).
If the power sliding door(s) is open or in the process of
closing when you shift out of PARK (P), a buzzer
will sound. This is a warning that the sliding door(s) is
not completely closed.
If the power to the sliding door(s) is turned off, the
buzzer will not sound indicating the door(s) is not
completely closed.
2-18

{CAUTION:
If you shift the transaxle out of PARK (P) and
accelerate before the power sliding door
latches closed, the door may reverse to the
open position. A child or others could fall out
of the vehicle and be injured. Always make
sure the power sliding door is closed and
latched before you drive away.If an object obstructs the power sliding door(s) while it is
closing, the door will automatically reverse to the
open position, provided it meets sufficient resistance.
Resistance must be as strong as the force of the closing
door, or stronger. The force of the closing door
increases signi®cantly as the door approaches the
latched position.
The driver's side sliding door is designed to open only a
little if the fuel door is open. If this ever happens, do
not try to force the sliding door. When the fuel ®ller door
is closed, the driver's side sliding door can be opened
normally.
{CAUTION:
You or others could be injured if caught in the
path of the sliding door. Make sure the door
path is clear before closing the door.
If you want to open the power sliding door(s) when the
override switch(es) is turned off, pull the inside or
outside handle and let go. The door will open fully.
To open the power sliding door(s) when the power
sliding door override switch(es) is on, pull the inside or
outside handle and slide the door all the way back.
2-19

{CAUTION:
If your vehicle is facing downward on a steep
grade (15 percent or more), the door may not
stay open and could slam shut, possibly
injuring someone. To make sure the door does
not slam shut, turn on the power sliding door
feature. Then if the door closes, it will close
under the control of the power door system.
If you want to close the power sliding door(s) when the
override switch(es) is turned off, pull the inside or outside
handle or the edge of the door. Move the door about
4 inches (10 cm) toward the closed position and release
it. The door will close completely and latch for you.
To close the power sliding door(s) when the override
switch(es) is turned on, pull the inside or outside handle
and slide the door all the way forward to the latched
position.
2-20

Resetting the Power Sliding Door
The power sliding door may operate incorrectly or not
at all because of the following conditions:
·A low voltage or dead battery
·A disconnected battery
·If the instrument panel PWR/HEATED SEAT PSD
fuse or the underhood fuse 8, 27, or 29 are
removed or blown.
See
Fuses and Circuit Breakers on page 5-101for more
information about your fuse panel.
If any of these conditions occur, the power sliding door
will need to be reset. If your vehicle has the dual
power sliding doors, both doors will have to be reset.
To reset a door, do the following:
1. Check to be sure the power sliding door is unlocked
and securely closed.
2. Turn the ignition key to OFF.
3. If the power sliding door override is on, press the
textured end of the power sliding door override
switch to turn it off.
4. Remove fuse 29 from the underhood fuse block.
Leave it out for 30 seconds.
5. Reinstall the fuse and wait 10 seconds.6. Turn the power sliding door override on by pressing
the end of the switch with the override symbol on it.
7. Press the power sliding door switch(es) to open the
power sliding door.
8. Open the door all of the way.
9. Wait ®ve seconds and close the door by pressing
the power sliding door switch(es).
10. Wait ®ve seconds and repeat Steps 7 through 9.
If the door does not rest in the fully open position after
repeating Step 7, repeat Steps 7 through 9 again. If
the door still does not operate correctly, see your dealer
for service.
Liftgate
To unlock or lock the liftgate from the outside, use the
remote keyless entry transmitter. For more information,
see
Remote Keyless Entry System Operation on
page 2-5.
Open the liftgate using the handle located above the
license plate. Once slightly opened, the liftgate will rise
by itself. Lamps in the rear of the vehicle will come
on, illuminating the rear cargo area. See
Interior Lamps
on page 3-18.
2-21

Notice:If you open the liftgate without checking
for overhead obstructions such as a garage
door, you could break the liftgate glass. Always
check to make sure the area above the liftgate
is clear before opening it.
{CAUTION:
It can be dangerous to drive with the liftgate
open because carbon monoxide (CO) gas can
come into your vehicle. You can't see or smell
CO. It can cause unconsciousness and even
death. If you must drive with the liftgate open
or if electrical wiring or other cable
connections must pass through the seal
between the body and the liftgate:
·Make sure all other windows are shut.
·Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See
Climate Control
System on page 3-28.
·If you have air outlets on or under the
instrument panel, open them all the way.
See
Engine Exhaust on page 2-42.To close the liftgate, pull down on the handle, then
®rmly shut the liftgate. Don't drive with the liftgate open,
even slightly. See
Engine Exhaust on page 2-42.
A message in your instrument panel cluster will warn
you if the liftgate is not completely closed. See
Rear Hatch Ajar Warning Message on page 3-58.
2-22

Windows
{CAUTION:
Leaving children, helpless adults, or pets in a
vehicle with the windows closed is dangerous.
They can be overcome by the extreme heat
and suffer permanent injuries or even death
from heat stroke. Never leave a child, a
helpless adult, or a pet alone in a vehicle,
especially with the windows closed in warm
or hot weather.
2-23

Power Windows
The switches on the driver's door armrest control the
front windows when the ignition is in RUN, ACCESSORY
or when Retained Accessory Power (RAP) is active.
See ªRetained Accessory Power (RAP)º under
Ignition

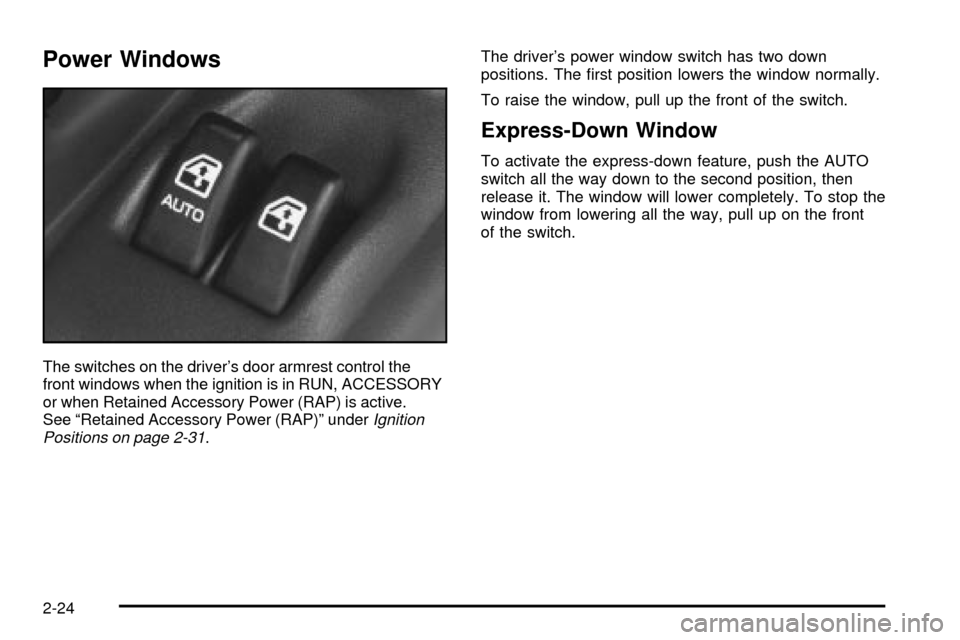

Positions on page 2-31.The driver's power window switch has two down
positions. The ®rst position lowers the window normally.
To raise the window, pull up the front of the switch.
Express-Down Window
To activate the express-down feature, push the AUTO
switch all the way down to the second position, then
release it. The window will lower completely. To stop the
window from lowering all the way, pull up on the front
of the switch.
2-24
