OPEL ASTRA SALOON 2014 Owners Manual

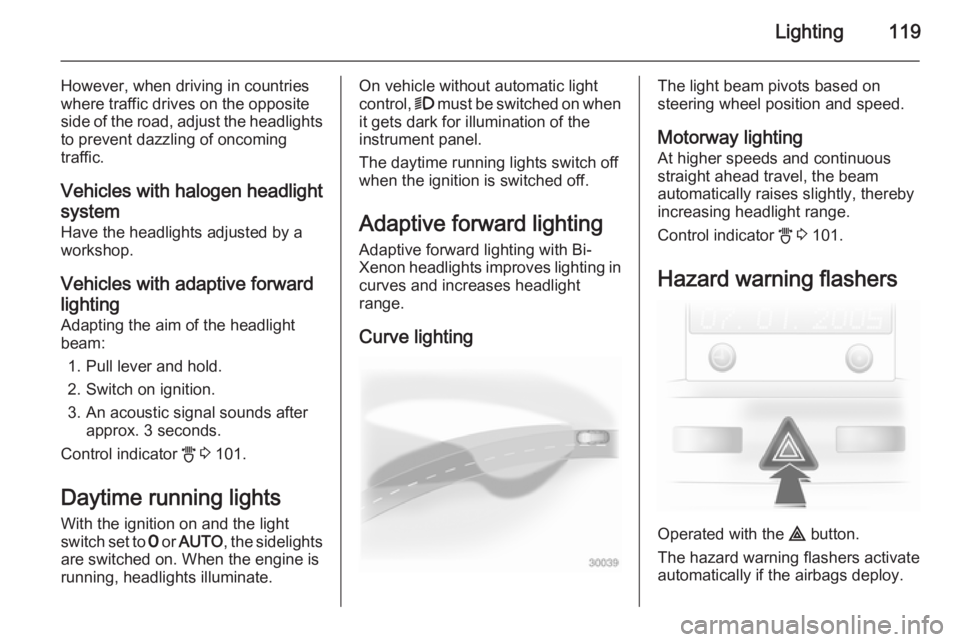

Lighting119
However, when driving in countries
where traffic drives on the opposite
side of the road, adjust the headlights to prevent dazzling of oncoming
traffic.
Vehicles with halogen headlight
system
Have the headlights adjusted by a
workshop.
Vehicles with adaptive forward
lighting
Adapting the aim of the headlight
beam:
1. Pull lever and hold.
2. Switch on ignition.
3. An acoustic signal sounds after approx. 3 seconds.
Control indicator B 3 101.
Daytime running lights
With the ignition on and the light
switch set to 7 or AUTO , the sidelights
are switched on. When the engine is
running, headlights illuminate.On vehicle without automatic light
control, 9 must be switched on when
it gets dark for illumination of the
instrument panel.
The daytime running lights switch off
when the ignition is switched off.
Adaptive forward lighting
Adaptive forward lighting with Bi-
Xenon headlights improves lighting in
curves and increases headlight
range.
Curve lightingThe light beam pivots based on
steering wheel position and speed.
Motorway lighting
At higher speeds and continuous
straight ahead travel, the beam
automatically raises slightly, thereby
increasing headlight range.
Control indicator B 3 101.
Hazard warning flashers
Operated with the ¨ button.
The hazard warning flashers activate
automatically if the airbags deploy.

120LightingTurn and lane-change
signalsLever up=right turn signalLever down=left turn signal
The lever always springs back to its
original position.
If the lever is moved past the
resistance point, the turn signal is
switched on constantly. When the
steering wheel moves back, the turn
signal is automatically deactivated.
For three flashes, e.g. when changing lanes, press the lever until resistance
is felt and then release.
Move the lever to the resistance point
and hold for longer indication.
Switch the turn signal off manually by moving the lever slightly.
Front fog lights
The front fog lights can only be
switched on when both the ignition and headlights or sidelights are on.
Operated with the > button.
Rear fog lights
The rear fog light can only be
switched on when both the ignition
and headlights or sidelights (with front fog lights) are on.
Operated with the r button.
The vehicle rear fog light is
deactivated when towing.
Parking lights

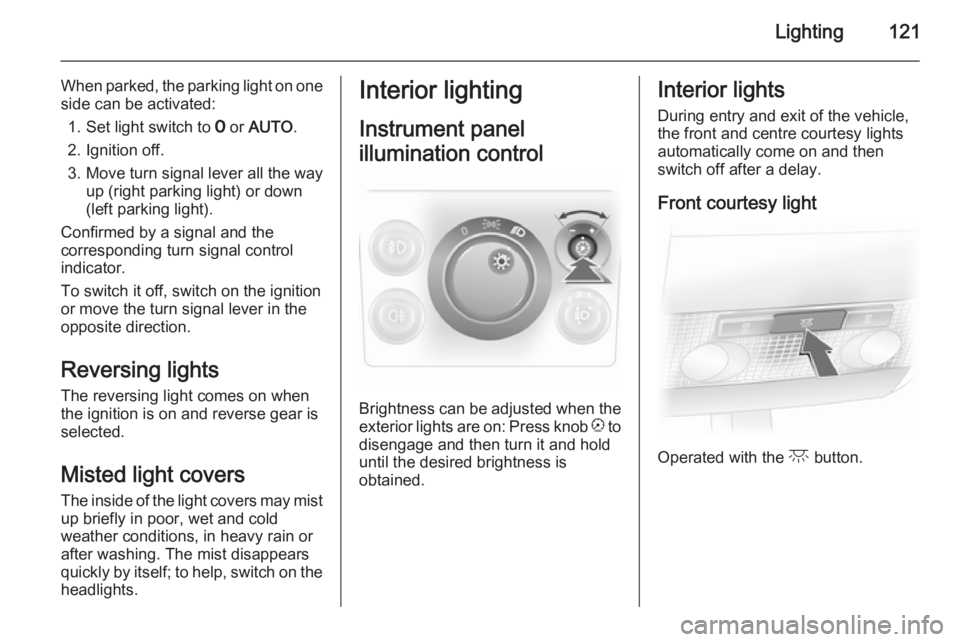

Lighting121
When parked, the parking light on oneside can be activated:
1. Set light switch to 7 or AUTO .
2. Ignition off.
3. Move turn signal lever all the way up (right parking light) or down
(left parking light).
Confirmed by a signal and the
corresponding turn signal control
indicator.
To switch it off, switch on the ignition
or move the turn signal lever in the
opposite direction.
Reversing lights The reversing light comes on when
the ignition is on and reverse gear is
selected.
Misted light covers
The inside of the light covers may mist up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help, switch on the headlights.Interior lighting
Instrument panel
illumination control
Brightness can be adjusted when the exterior lights are on: Press knob k to
disengage and then turn it and hold
until the desired brightness is
obtained.
Interior lights
During entry and exit of the vehicle,
the front and centre courtesy lights
automatically come on and then
switch off after a delay.
Front courtesy light
Operated with the c button.

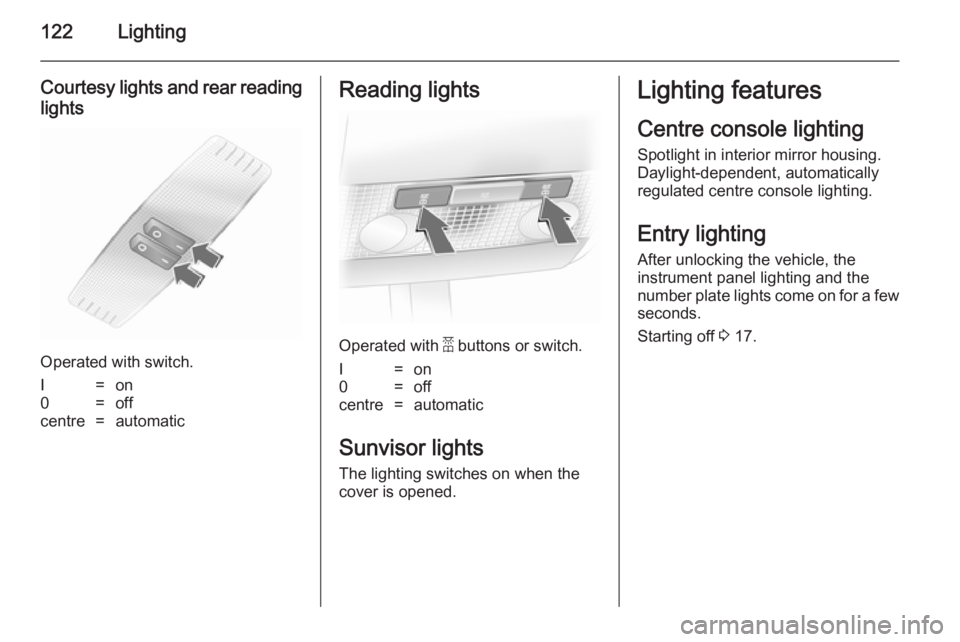

122Lighting
Courtesy lights and rear readinglights
Operated with switch.
I=on0=offcentre=automaticReading lights
Operated with a buttons or switch.
I=on0=offcentre=automatic
Sunvisor lights
The lighting switches on when the
cover is opened.
Lighting features
Centre console lighting Spotlight in interior mirror housing.
Daylight-dependent, automatically
regulated centre console lighting.
Entry lighting
After unlocking the vehicle, the
instrument panel lighting and the
number plate lights come on for a few
seconds.
Starting off 3 17.

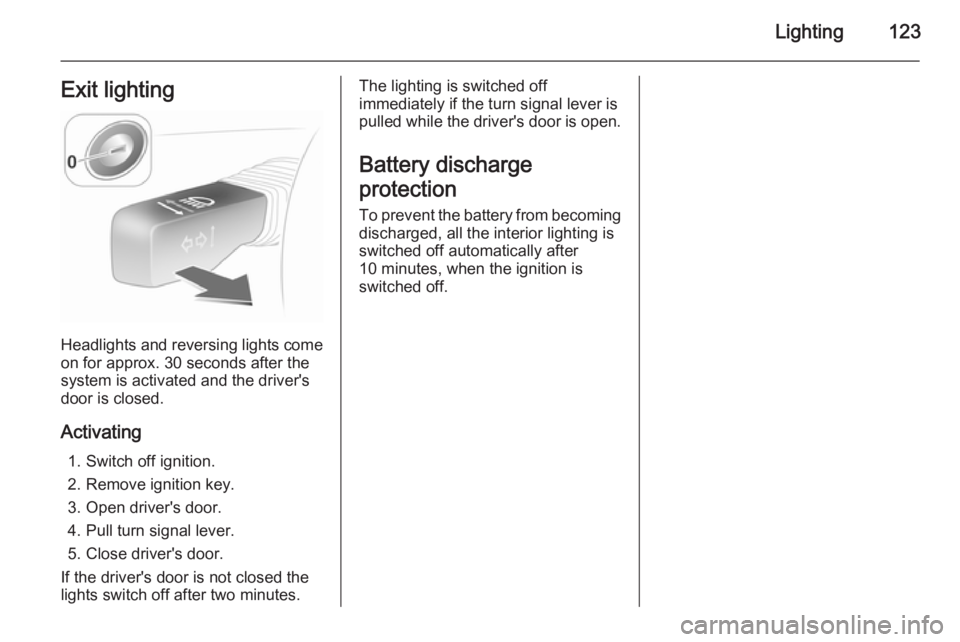

Lighting123Exit lighting
Headlights and reversing lights comeon for approx. 30 seconds after the
system is activated and the driver's
door is closed.
Activating 1. Switch off ignition.
2. Remove ignition key.
3. Open driver's door.
4. Pull turn signal lever.
5. Close driver's door.
If the driver's door is not closed the
lights switch off after two minutes.
The lighting is switched off
immediately if the turn signal lever is pulled while the driver's door is open.
Battery discharge
protection To prevent the battery from becomingdischarged, all the interior lighting is
switched off automatically after
10 minutes, when the ignition is
switched off.

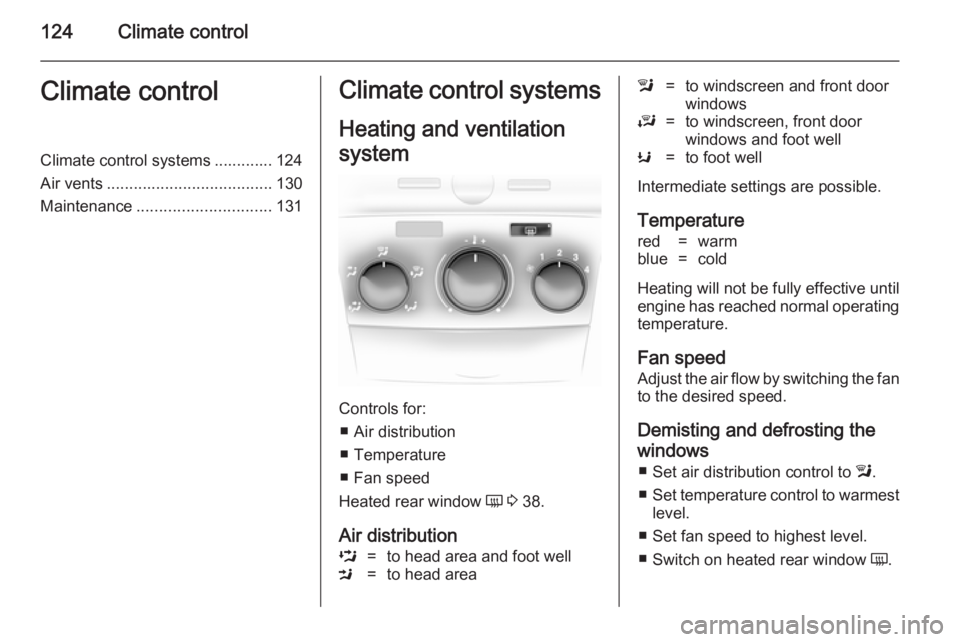

124Climate controlClimate controlClimate control systems ............. 124
Air vents ..................................... 130
Maintenance .............................. 131Climate control systems
Heating and ventilation
system
Controls for: ■ Air distribution
■ Temperature
■ Fan speed
Heated rear window Ü 3 38.
Air distribution
L=to head area and foot wellM=to head areal=to windscreen and front door
windowsJ=to windscreen, front door
windows and foot wellK=to foot well
Intermediate settings are possible.
Temperature
red=warmblue=cold
Heating will not be fully effective untilengine has reached normal operating temperature.
Fan speed Adjust the air flow by switching the fan
to the desired speed.
Demisting and defrosting the
windows ■ Set air distribution control to l.
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Switch on heated rear window Ü.

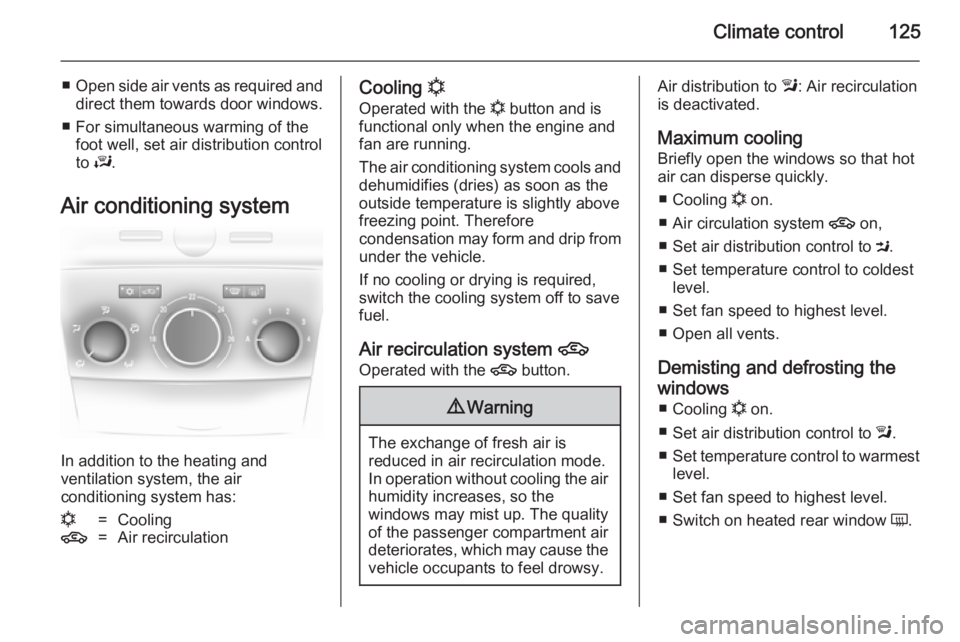

Climate control125
■Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control
to J.
Air conditioning system
In addition to the heating and
ventilation system, the air
conditioning system has:
n=Cooling4=Air recirculationCooling n
Operated with the n button and is
functional only when the engine and
fan are running.
The air conditioning system cools and
dehumidifies (dries) as soon as the
outside temperature is slightly above
freezing point. Therefore
condensation may form and drip from under the vehicle.
If no cooling or drying is required,
switch the cooling system off to save
fuel.
Air recirculation system 4
Operated with the 4 button.9Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air humidity increases, so the
windows may mist up. The quality
of the passenger compartment air
deteriorates, which may cause the vehicle occupants to feel drowsy.
Air distribution to l: Air recirculation
is deactivated.
Maximum cooling Briefly open the windows so that hot
air can disperse quickly.
■ Cooling n on.
■ Air circulation system 4 on,
■ Set air distribution control to M.
■ Set temperature control to coldest level.
■ Set fan speed to highest level.
■ Open all vents.
Demisting and defrosting the
windows ■ Cooling n on.
■ Set air distribution control to l.
■ Set temperature control to warmest
level.
■ Set fan speed to highest level.
■ Switch on heated rear window Ü.

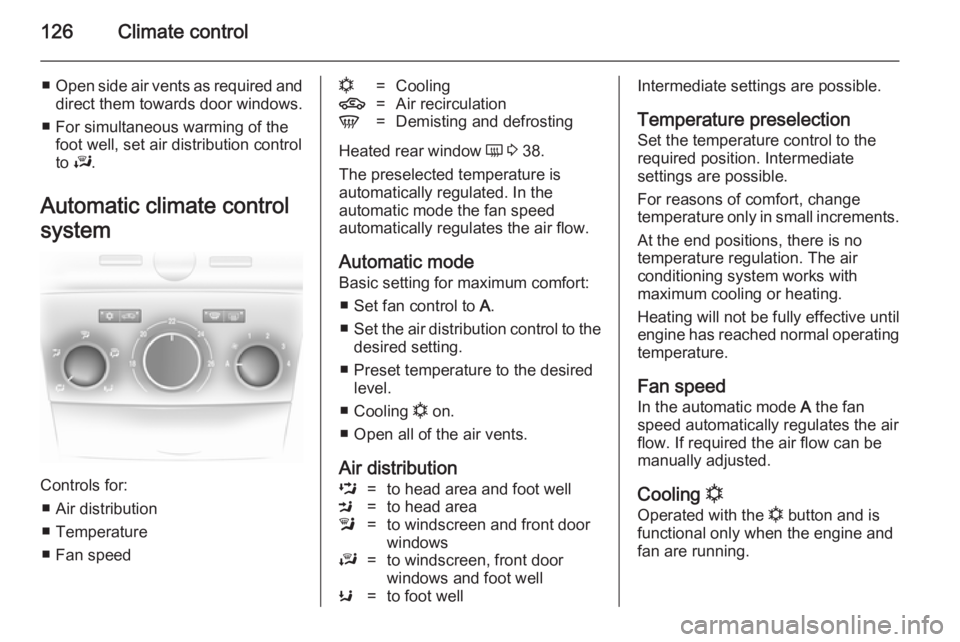

126Climate control
■Open side air vents as required and
direct them towards door windows.
■ For simultaneous warming of the foot well, set air distribution control
to J.
Automatic climate control
system
Controls for: ■ Air distribution
■ Temperature
■ Fan speed
n=Cooling4=Air recirculationV=Demisting and defrosting
Heated rear window Ü 3 38.
The preselected temperature is
automatically regulated. In the
automatic mode the fan speed
automatically regulates the air flow.
Automatic mode Basic setting for maximum comfort:
■ Set fan control to A.
■ Set the air distribution control to the
desired setting.
■ Preset temperature to the desired level.
■ Cooling n on.
■ Open all of the air vents.
Air distribution
L=to head area and foot wellM=to head areal=to windscreen and front door
windowsJ=to windscreen, front door
windows and foot wellK=to foot wellIntermediate settings are possible.
Temperature preselection
Set the temperature control to the
required position. Intermediate
settings are possible.
For reasons of comfort, change
temperature only in small increments.
At the end positions, there is no
temperature regulation. The air
conditioning system works with
maximum cooling or heating.
Heating will not be fully effective until
engine has reached normal operating temperature.
Fan speed In the automatic mode A the fan
speed automatically regulates the air
flow. If required the air flow can be
manually adjusted.
Cooling n
Operated with the n button and is
functional only when the engine and
fan are running.

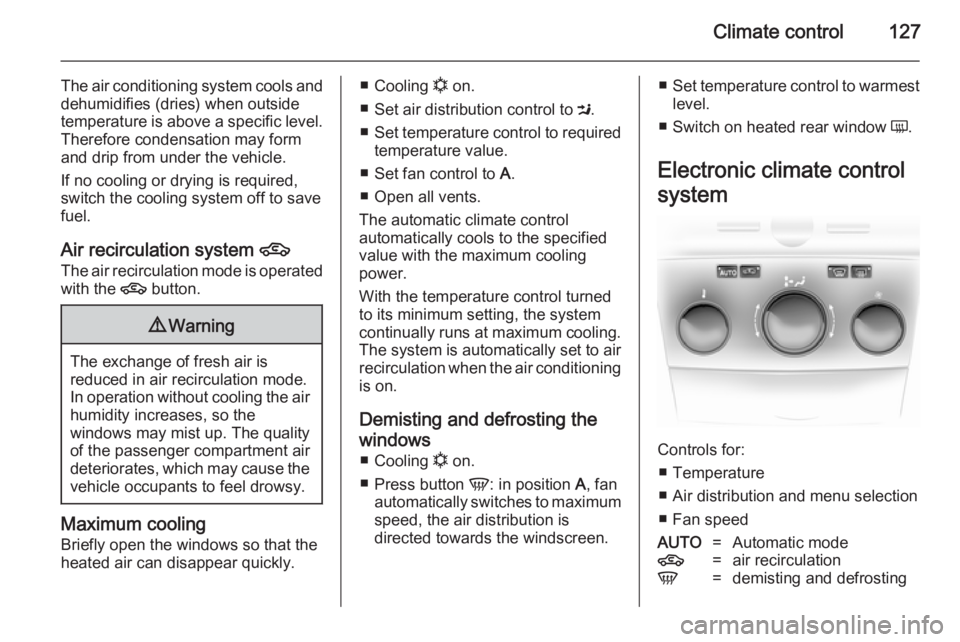

Climate control127
The air conditioning system cools and
dehumidifies (dries) when outside
temperature is above a specific level. Therefore condensation may form
and drip from under the vehicle.
If no cooling or drying is required,
switch the cooling system off to save
fuel.
Air recirculation system 4
The air recirculation mode is operated
with the 4 button.9Warning
The exchange of fresh air is
reduced in air recirculation mode.
In operation without cooling the air humidity increases, so the
windows may mist up. The quality
of the passenger compartment air
deteriorates, which may cause the vehicle occupants to feel drowsy.
Maximum cooling
Briefly open the windows so that the heated air can disappear quickly.
■ Cooling n on.
■ Set air distribution control to M.
■ Set temperature control to required
temperature value.
■ Set fan control to A.
■ Open all vents.
The automatic climate control
automatically cools to the specified
value with the maximum cooling
power.
With the temperature control turned
to its minimum setting, the system
continually runs at maximum cooling. The system is automatically set to air
recirculation when the air conditioning
is on.
Demisting and defrosting the
windows ■ Cooling n on.
■ Press button V: in position A, fan
automatically switches to maximum speed, the air distribution is
directed towards the windscreen.■ Set temperature control to warmest
level.
■ Switch on heated rear window Ü.
Electronic climate control
system
Controls for: ■ Temperature
■ Air distribution and menu selection
■ Fan speed
AUTO=Automatic mode4=air recirculationV=demisting and defrosting

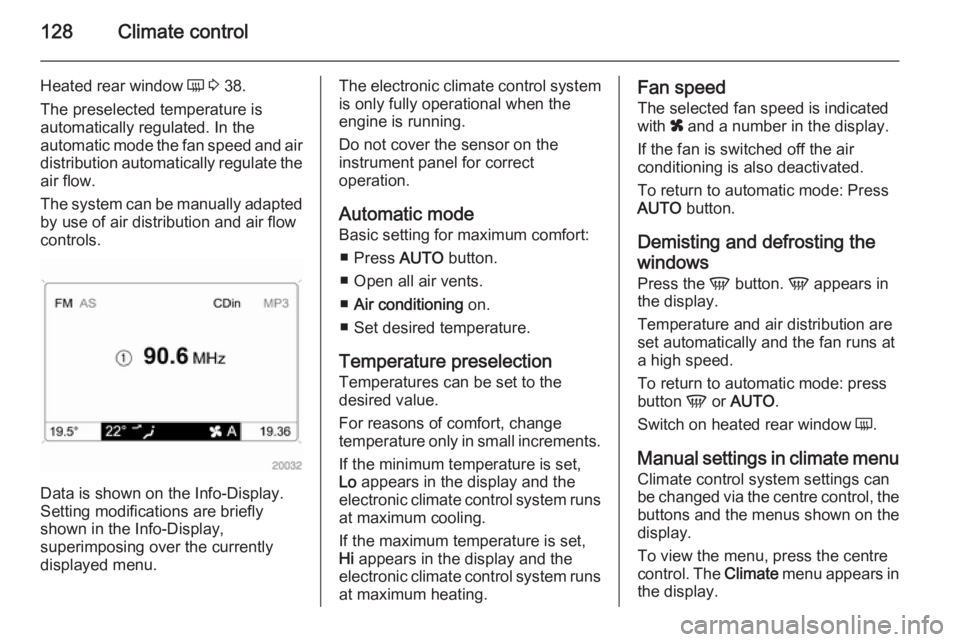

128Climate control
Heated rear window Ü 3 38.
The preselected temperature is
automatically regulated. In the
automatic mode the fan speed and air distribution automatically regulate the
air flow.
The system can be manually adapted by use of air distribution and air flow
controls.
Data is shown on the Info-Display.
Setting modifications are briefly
shown in the Info-Display,
superimposing over the currently
displayed menu.
The electronic climate control system
is only fully operational when the
engine is running.
Do not cover the sensor on the
instrument panel for correct
operation.
Automatic mode
Basic setting for maximum comfort:
■ Press AUTO button.
■ Open all air vents.
■ Air conditioning on.
■ Set desired temperature.
Temperature preselection Temperatures can be set to the
desired value.
For reasons of comfort, change
temperature only in small increments.
If the minimum temperature is set,
Lo appears in the display and the
electronic climate control system runs at maximum cooling.
If the maximum temperature is set,
Hi appears in the display and the
electronic climate control system runs
at maximum heating.Fan speed
The selected fan speed is indicated
with x and a number in the display.
If the fan is switched off the air
conditioning is also deactivated.
To return to automatic mode: Press
AUTO button.
Demisting and defrosting the
windows
Press the V button. V appears in
the display.
Temperature and air distribution are
set automatically and the fan runs at
a high speed.
To return to automatic mode: press
button V or AUTO .
Switch on heated rear window Ü.
Manual settings in climate menu
Climate control system settings can
be changed via the centre control, the
buttons and the menus shown on the display.
To view the menu, press the centre
control. The Climate menu appears in
the display.
