86Instruments and controlsOdometer
The bottom line displays the recordeddistance in km.
Trip odometer
W displays the recorded distance
since the last reset.
Two trip odometer are selectable for
different trips. Select between page
W 1 and page W2 by turning the
adjuster wheel on turn signal lever.
Both trip odometer can be reset
separately when ignition is on: select
respective page, hold the reset knob
depressed for a few seconds or press
the SET/CLR button on the turn signal
lever.
Trip odometer counts up to a distance of 2000 km and then restarts at 0.
Driver Information Centre 3 96.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible for
fuel saving reasons.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded. Engine at risk.

98Instruments and controls
Page 1:■ Trip odometer 1
■ Average consumption 1
■ Average speed 1Page 2: ■ Trip odometer 2
■ Average consumption 2
■ Average speed 2Page 3: ■ Digital speed
■ Range
■ Instantaneous consumption
The information of page 1 and
page 2 can be reset separately for
odometer, average consumption and
average speed, making it possible to
display different trip information.
Select pages by turning the adjuster
wheel on the turn signal lever.

Instruments and controls99
Trip odometer 1 or 2
Trip odometer displays the recorded
distance since a certain reset.
Trip odometer counts up to a distance
of 2,000 km and then restarts at 0.

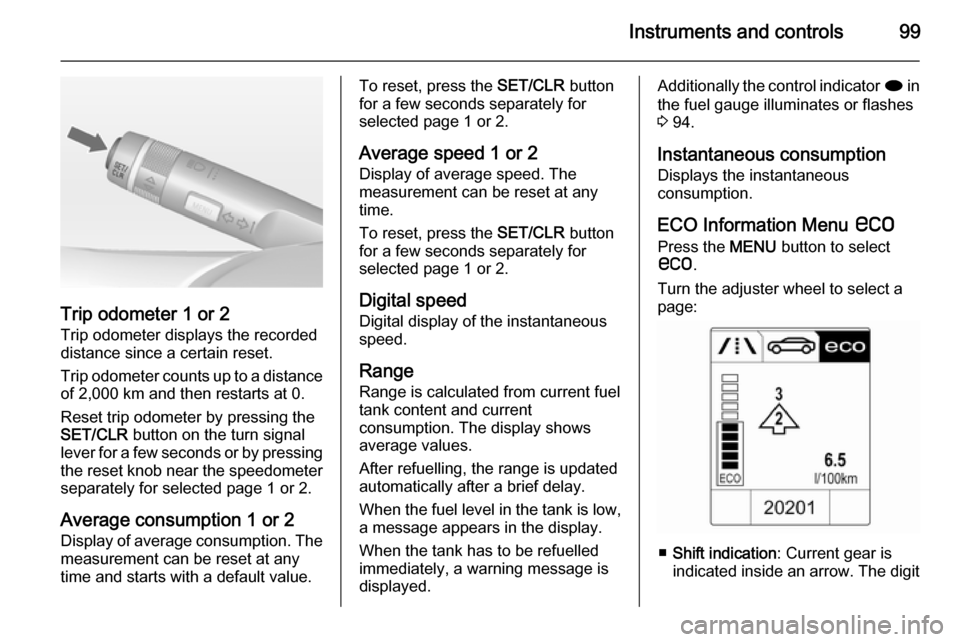

Reset trip odometer by pressing the
SET/CLR button on the turn signal
lever for a few seconds or by pressing the reset knob near the speedometer
separately for selected page 1 or 2.
Average consumption 1 or 2 Display of average consumption. Themeasurement can be reset at any
time and starts with a default value.
To reset, press the SET/CLR button
for a few seconds separately for
selected page 1 or 2.
Average speed 1 or 2 Display of average speed. The
measurement can be reset at any
time.
To reset, press the SET/CLR button
for a few seconds separately for
selected page 1 or 2.
Digital speed Digital display of the instantaneous
speed.
Range
Range is calculated from current fuel
tank content and current
consumption. The display shows
average values.
After refuelling, the range is updated
automatically after a brief delay.
When the fuel level in the tank is low, a message appears in the display.
When the tank has to be refuelled
immediately, a warning message is
displayed.Additionally the control indicator i in
the fuel gauge illuminates or flashes
3 94.
Instantaneous consumption Displays the instantaneous
consumption.
ECO Information Menu s
Press the MENU button to select
s .
Turn the adjuster wheel to select a
page:
■ Shift indication : Current gear is
indicated inside an arrow. The digit

248
Headlight range adjustment ......113
Headlights................................... 110
Headlights when driving abroad 113
Head restraint adjustment .............8
Head restraints ............................ 46
Heated mirrors ............................. 31
Heated rear window ..................... 34
Heated steering wheel .................79
Heating ........................................ 54
Heating and ventilation system . 123
High beam ........................... 95, 111
High beam assist ..................95, 112
Hill start assist ........................... 147
Horn ....................................... 14, 79
I
Identification plate .....................229
Ignition switch positions .............134
Immobiliser ............................ 29, 95
Indicators ...................................... 85
Information displays...................... 96
Instrument cluster ........................85
Instrument panel fuse box .........200
Instrument panel illumination .....197
Instrument panel illumination control .................................... 119
Instrument panel overview ........... 10
Interactive driving system ...........149
Interior care ............................... 224
Interior lighting ............................ 119Interior lights ...................... 119, 197
Interior mirrors .............................. 31
Interruption of power supply ......143
Introduction .................................... 3
ISOFIX child restraint systems ....69
J
Jump starting ............................. 219
K
Key, memorised settings ..............22
Keys ............................................. 20
Keys, locks ................................... 20
L
Lane departure warning .......93, 171
Lashing eyes ............................... 76
Light switch ................................ 110
Load compartment ................25, 73
Load compartment fuse box ......201
Loading information .....................77
Low fuel ....................................... 94
M
Malfunction indicator light ............91
Manual anti-dazzle ......................31
Manual mode ............................. 142
Manual transmission .................. 144
Memorised settings ......................22Mirror adjustment ........................... 9
Misted light covers .....................119
N New vehicle running-in ..............134
Number plate light .....................196
O Object detection systems ...........157
Odometer ..................................... 86
Oil, engine .......................... 227, 231
Operate pedal ............................... 91
Outside temperature ....................82
Overrun cut-off ........................... 136
P Parking ................................ 18, 138
Parking assist ............................ 157
Parking brake ............................ 145
Parking lights ............................. 118
Particulate filter ........................... 139
Performance .............................. 235
Performing work ........................182
Pollen filter ................................. 132
Power outlets ............................... 84
Power seat adjustment ................52
Power steering.............................. 93
Power steering fluid ....................185
Power windows ............................ 32

249
Preheating ................................... 93
Puncture ..................................... 213
Q
Quickheat ................................... 131
R Radio Frequency Identification (RFID) ..................................... 244
Radio remote control ...................21
Reading lights ............................ 120
Rear floor storage cover ..............75
Rear fog light ............................... 95
Rear fog lights ........................... 118
Rear storage ................................. 75
Rear view camera ...................... 166
Recommended fluids and lubricants ........................ 227, 231
Refuelling ................................... 173 Retained power off .....................134
Reversing lights .........................119
Ride control systems ..................147
Rollover protection system ...........44
S Seat adjustment ....................... 7, 49
Seat belt ........................................ 8
Seat belt reminder .......................90
Seat belts ..................................... 55
Seat folding .................................. 51Seat position ................................ 48
Selector lever ............................. 141
Service ............................... 132, 226
Service display ............................ 87
Service information ....................226
Side airbag system ......................62
Side blind spot alert ....................164
Sidelights .................................... 110
Side turn signal lights ................195
Soft top ........................................ 35
Spare wheel ............................... 216
Speed limiter............................... 153
Speedometer ............................... 85
Starting and operating ................134
Starting off ................................... 17
Starting the engine ....................135
Steering ...................................... 133
Steering wheel adjustment ......9, 78
Steering wheel controls ...............78
Stop-start system........................ 136
Storage ......................................... 70
Storage compartments .................70
Sunvisor lights ........................... 120
Sun visors .................................... 34
Symbols ......................................... 4
T
Tachometer ................................. 86
Tail lights ................................... 194
Three-point seat belt .................... 56Tools .......................................... 203
Top-tether fastening eyes ............69
Tow bar....................................... 175
Towing ................................ 175, 220
Towing another vehicle .............221
Towing equipment .....................176
Towing the vehicle .....................220
Traction Control system ............. 147
Traction Control system off........... 93
Traffic sign assistant ...................168
Trailer coupling ........................... 175
Trailer towing ............................. 176
Transmission ............................... 16
Transmission display .................141
Tread depth ............................... 208
Trip odometer .............................. 86
Turn and lane-change signals ...117
Turn signal ................................... 90
Tyre chains ................................ 210
Tyre designations ......................204
Tyre pressure ............................ 204
Tyre pressure monitoring system ............................... 94, 205
Tyre pressures ........................... 239
Tyre repair kit ............................. 210
U
Ultrasonic parking assist............. 157
Upholstery .................................. 224
