OPEL COMBO 2010 User Guide

5
In Brief
Picture no: 18531s.tif
Pull out the seat belt and engage
it in the belt buckle The seat belt must not be twisted and must
lie snugly against the body. The backrest
must not be tilted back too far (maximum
approx. 25).
To release belt, press red button on belt
buckle.
Three-point seat belts 348,
Airbag system3 356, Seat position 339.
Picture no: 18083s.tif
Adjust the exterior mirror
manually using the handle Mirrors 334, Aspherical exterior mirrors
334, Folding the exterior mirrors 334.
Picture no: 18084s.tif
Electrical exterior mirror
adjustment
3
Select the corresponding exterior mirror
with the rocker switch and adjust with the
four-way switch.
Mirrors 334, Aspherical exterior mirrors
334, Folding the exterior mirrors 334,
Heated exterior mirrors 335.

6In Brief
Picture no: 18082s.tif
To adjust interior mirror by
swivelling Swivel lever on underside of mirror housing
to reduce dazzle at night.
Mirrors 335.
Picture no: 18086s.tif
Steering wheel adjustment
3:
Swivel lever down, adjust height,
swivel lever up, engage
Adjust steering wheel only when vehicle is
stationary and steering column lock is
released.
Airbag systems 3 356.
Picture no: 13715s.tif
Exterior lights Turn light switch
Press light switch
Push button
Lighting 384, Headlamp-warning device
317. 7=Off
8= Parking lamps
9= Dipped beam or main beam
0=Courtesy lamp
>=Fog lamps 3
r= Fog tail lamp

7
In Brief
Picture no: 18475s.tif
Headlamp flash, main beam and
dipped beam Main beam, headlamp flash 385.
Picture no: 14054h.tif
Switch turn signal onTurn signals 385.
Picture no: 15865s.tif
Hazard warning lamps Operated with the ¨ button.
Hazard warning flashers 386. Headlamp flash = Pull stalk towards
steering wheel
Main beam = Push stalk forwards
Dipped beam = Push stalk forwards
again
Right = Lever upwards
Left = Lever downwards

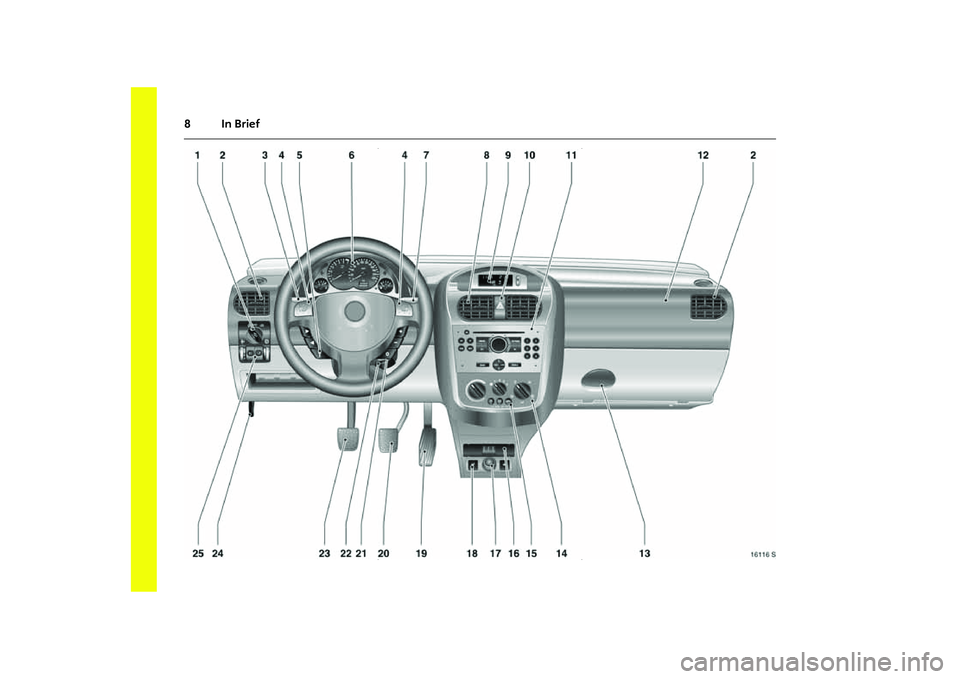

8In Brief

9
In Brief
Page
1Light switch .......................... 36, 384
2Side air vents ................................ 393
3Turn signals, headlamp flash,
dipped beam, main beam .. 36, 384
4Horn ...............................................313
5 Steering wheel remote control 3 .390
6Instruments ................................... 366
7 Windscreen wipers,
windscreen washer system,
rear window washer system 3 .....382
8Centre air vents .............................393
9Display 3 for time, date,
outside temperature,
infotainment system 3 ................ 377Page
10Hazard warning lamps ................. 37
LED for anti-theft alarm system 3332
11 Infotainment system 3 ................ 390
12 Front passenger airbag 3 ........... 356
13Glove compartment ..................... 363
14Heating and ventilation system . 392
15 Air conditioning system 3 ........... 396
Heated rear window 3 .......314, 337
Air recirculation system 3............ 397
16
Ashtray 3...................................... 362
17Accessory socket or
cigarette lighter ........................... 361
18 Seat heating 3 ............................. 340
Fuel selection switch
(natural gas/petrol) 3................ 3113
19Accelerator pedal .......... 3106, 3108Page
20Brake pedal .................... 3106, 3118
21Ignition switch with
steering wheel lock ...................... 316
22 Steering wheel adjustment 3 ....... 36
23 Clutch pedal 3 ........................... 3106
24Bonnet release lever ................... 3128
25 Headlamp range adjustment 3.. 387
Fog tail lamp ................................ 386
Fog lamps 3 ................................. 386
Instrument illumination ............... 387

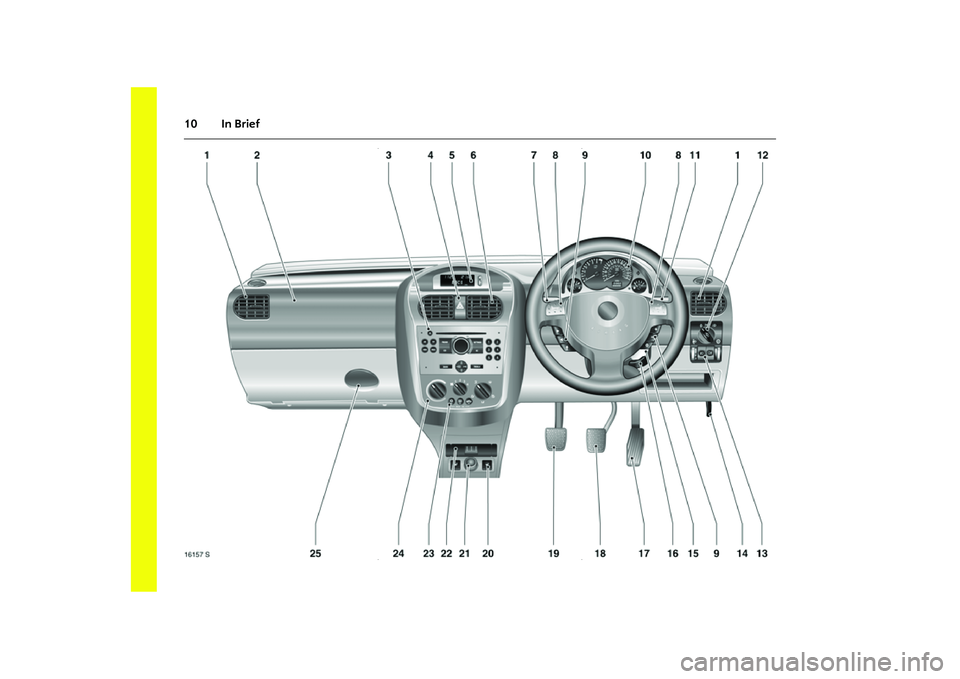

10 In Brief

11
In Brief
Page
1Side air vents ................................ 393
2 Front passenger airbag 3 ........... 356
3 Infotainment system 3 ................ 390
4Hazard warning lamps .................. 37
LED for anti-theft
alarm system 3 .............................332
5Display 3 for time, date,
outside temperature,
infotainment system 3 ................ 377
6Centre air vents .............................393
7Turn signals, headlamp flash,
dipped beam, main beam .. 36, 384
8Horn ...............................................313
9 Steering wheel remote control 3 .390
10Instruments ................................... 366Page
11 Windscreen wipers,
windscreen washer system,
rear window washer system 3 .....382
12Light switch ...........................36, 384
13 Headlamp range adjustment 3.. 387
Fog tail lamp ................................ 386
Fog lamps 3 ................................. 386
Instrument illumination ............... 387
14Bonnet release lever ................... 3128
15Ignition switch with
steering wheel lock ...................... 316
16 Steering wheel adjustment 3 ........ 36
17Accelerator pedal .......... 3106, 3108
18Brake pedal .................... 3106, 3118
19 Clutch pedal 3 ........................... 3106Page
20 Seat heating 3 ............................. 340
Fuel selection switch
(natural gas/petrol) 3................ 3113
21Accessory socket or
cigarette lighter ........................... 361
22 Ashtray 3...................................... 362
23 Air conditioning system 3 ........... 396
Heated rear window 3 .......314, 337
Air recirculation system 3............ 397
24Heating and ventilation system . 392
25Glove compartment .................... 363

12 In BriefControl indicators >
Fog lamps 3,
366, 386.
A
Engine electronics,
Immobiliser3, Manual
transmission automated 3,
Fault,
321, 366, 3116.
Z
Exhaust gases 3,
367, 3115.
v
Airbag systems 3,
Belt tensioners,
367, 350, 359.
I
Engine oil pressure,
367.
O
Turn signal lamps,
368, 385.
C
Main beam,
368, 385.
!
Preheating 3, diesel particle
filter 3,
368, 3116.
T
Winter programme of the
manual transmission
automated 3,
3103.
r
Fog tail lamp,
369, 386.
p
Alternator,
369.
R
Brake system,
clutch system 3,
369, 3179.
u
Anti-lock Braking System 3,
3119.
S
Engine oil level 3,
370, 3175.
EPSElectric power steering 3,
370.
Y
Fuel level,
370, 3111.

13
In Brief
Picture no: 11548s.tif
Operate horn: Press
j
right or left
Airbag system 3 356, Remote control on
steering wheel 3 390.
Picture no: 14055h.tif
Windscreen wiper: Move lever
upwards Windscreen wiper 382, Adjustable wiper
interval 3 383, Further information 3160,
3179.
Picture no: 14056h.tif
Operating windscreen washer
system: Lever toward steering
wheel Windscreen washer system 382, Further
information 3180, 3195.
&=Fast
%=Slow
$= Adjustable interval switching
§=Off

14 In Brief
Picture no: 14057h.tif
Rear window wiper
3 and
Rear window washer system
3
operation Rear window wipers and rear window
washer system 382, Further information
3179, 3180.
Picture no: 11549s.tif
Heated rear window
3, heated
exterior mirrors
3
Operated with the Ü button.
Climate control system 392, Heated rear
window 337.
Picture no: 13205s.tif
To clear fogged or icy windows Turn the rotary switches for temperature
and air flow clockwise. Set air distribution
to V. Air conditioning system 3: Also press
button n.
Climate control 3 392. Wiper on = Push stalk forwards
Wiper off = Lever toward steering wheel
Washing = Push lever forward and hold
