language OPEL COMBO 2010 Owners Manual

79
Instruments
Picture no: 14034s.tif
To select with steering wheel buttons 3
Select menu options via the menus using
the buttons.
Picture no: 16711t.tif
Function ranges
Each function has a main page, which is
selected from the upper row of the display
(not in Infotainment system CD 30):
zAudio,
zNavigation 3,
zTelephone 3.
For audio, navigation 3 and telephone
functions 3, see infotainment system
instructions.
Picture no: 16712t.tif
System settings
The settings are accessed via the
Settingsmenu.
Press the Main button 3 (not found on all
infotainment systems) on the infotainment
system (call up main display).
Press the Settings button on the
infotainment system. For Infotainment
system CD 30, no menu may be selected.
The Settings menu opens.
FMAS[TP]REGCDinMP3

90.6
MHz
19,5° 19:36
7
Settings 19,5° 19:36
Time, Date19:36
Language
Units 10 . 07 . 2004
Contrast
Day / Night
6 Ign. logic

80 Instruments
Picture no: 16713t.tif
Setting date and time
Select menu item Time, Date, from the
Settings menu.
The menu for Time, Date is displayed.
Select the required menu item and make
setting. Automatic time synchronisation
3
The RDS signal of most VHF transmitters
automatically sets the time.
Some transmitters do not send a correct
time signal. In such cases, we recommend
that you switch off automatic time
synchronisation.
On infotainment systems with
navigation3, time and date are also
harmonised upon receipt of a GPS satellite
signal.
The function is activated by ticking the field
in front of Synchron. clock automatical. in
the Time, Date menu.
Picture no: 16714t.tif
Language selection
You can select the display language for
some functions.
Select menu item Language from the
Settings menu.
The available languages are displayed.
7 Time, Date 19,5° 19:36
Time19:36
Date 10 . 07 . 20046 Synchron. clock automatical.
7
Settings 19,5° 19:36
Time, Date
LanguageDeutsch
Units English
Contrast Español
Day / Night Nederlands
6 Ign. logic Français

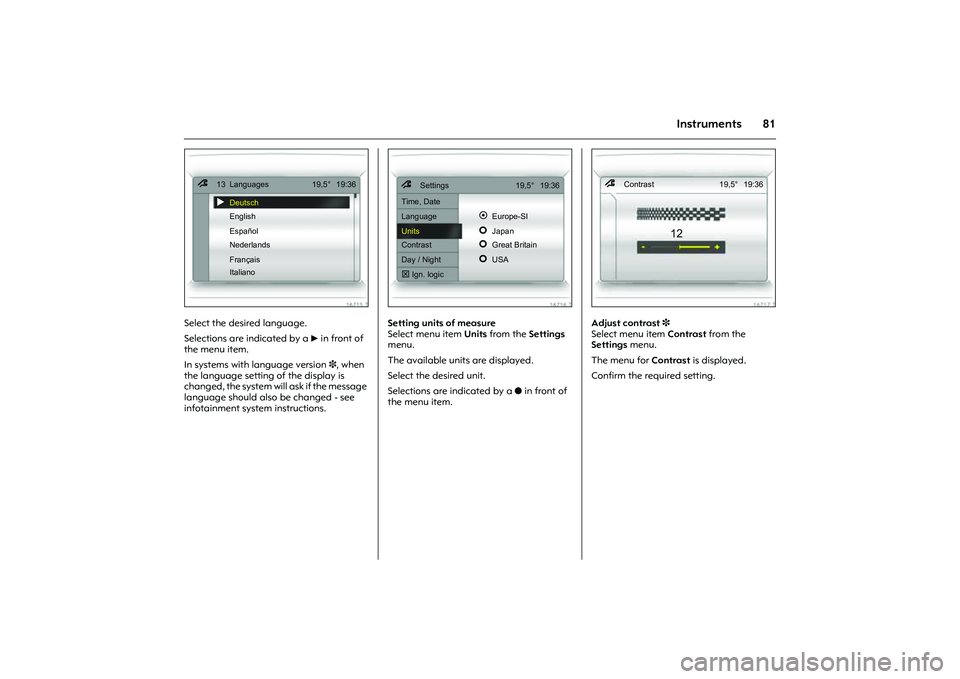

81
Instruments
Picture no: 16715t.tif
Select the desired language.
Selections are indicated by a 6 in front of
the menu item.
In systems with language version 3, when
the language setting of the display is
changed, the system will ask if the message
language should also be changed - see
infotainment system instructions.
Picture no: 16716t.tif
Setting units of measure
Select menu item Units from the Settings
menu.
The available units are displayed.
Select the desired unit.
Selections are indicated by a o in front of
the menu item.
Picture no: 16717t.tif
Adjust contrast 3
Select menu item Contrast from the
Settings menu.
The menu for Contrast is displayed.
Confirm the required setting.
7
13 Languages 19,5° 19:36X
Deutsch
English
Español
Nederlands
Français
Italiano
7 Settings 19,5° 19:36
Time, Date
Language
~
Europe-SI
Units
|
Japan
Contrast
|
Great Britain
Day / Night
|
USA
6 Ign. logic
7 Contrast 19,5° 19:36

12

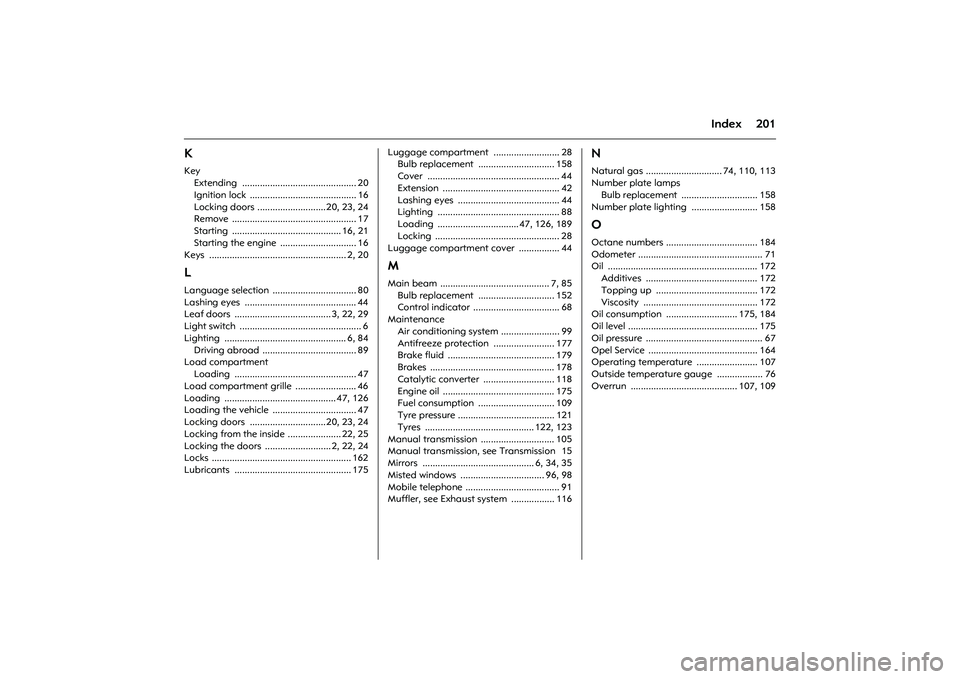

201
Index
KKey
Extending ............................................. 20
Ignition lock .......................................... 16
Locking doors ...........................20, 23, 24
Remove ................................................. 17
Starting ........................................... 16, 21
Starting the engine .............................. 16
Keys ...................................................... 2, 20LLanguage selection ................................. 80
Lashing eyes ............................................ 44
Leaf doors ...................................... 3, 22, 29
Light switch ................................................ 6
Lighting ................................................ 6, 84
Driving abroad ..................................... 89
Load compartment
Loading ................................................ 47
Load compartment grille ........................ 46
Loading ............................................ 47, 126
Loading the vehicle ................................. 47
Locking doors ..............................20, 23, 24
Locking from the inside ..................... 22, 25
Locking the doors .......................... 2, 22, 24
Locks ....................................................... 162
Lubricants .............................................. 175Luggage compartment .......................... 28
Bulb replacement .............................. 158
Cover .................................................... 44
Extension .............................................. 42
Lashing eyes ........................................ 44
Lighting ................................................ 88
Loading ................................ 47, 126, 189
Locking ................................................. 28
Luggage compartment cover ................ 44
MMain beam ........................................... 7, 85
Bulb replacement .............................. 152
Control indicator .................................. 68
Maintenance
Air conditioning system ....................... 99
Antifreeze protection ........................ 177
Brake fluid .......................................... 179
Brakes ................................................. 178
Catalytic converter ............................ 118
Engine oil ............................................ 175
Fuel consumption .............................. 109
Tyre pressure ...................................... 121
Tyres ........................................... 122, 123
Manual transmission ............................. 105
Manual transmission, see Transmission 15
Mirrors ............................................ 6, 34, 35
Misted windows ................................. 96, 98
Mobile telephone ..................................... 91
Muffler, see Exhaust system ................. 116
NNatural gas .............................. 74, 110, 113
Number plate lamps
Bulb replacement .............................. 158
Number plate lighting .......................... 158OOctane numbers .................................... 184
Odometer ................................................. 71
Oil ........................................................... 172
Additives ............................................ 172
Topping up ........................................ 172
Viscosity ............................................. 172
Oil consumption ............................ 175, 184
Oil level ................................................... 175
Oil pressure .............................................. 67
Opel Service ........................................... 164
Operating temperature ........................ 107
Outside temperature gauge .................. 76
Overrun .......................................... 107, 109
