OPEL CORSA 2009 Owners Manual

205
Self-help, vehicle care
Picture no: 17252t.tif

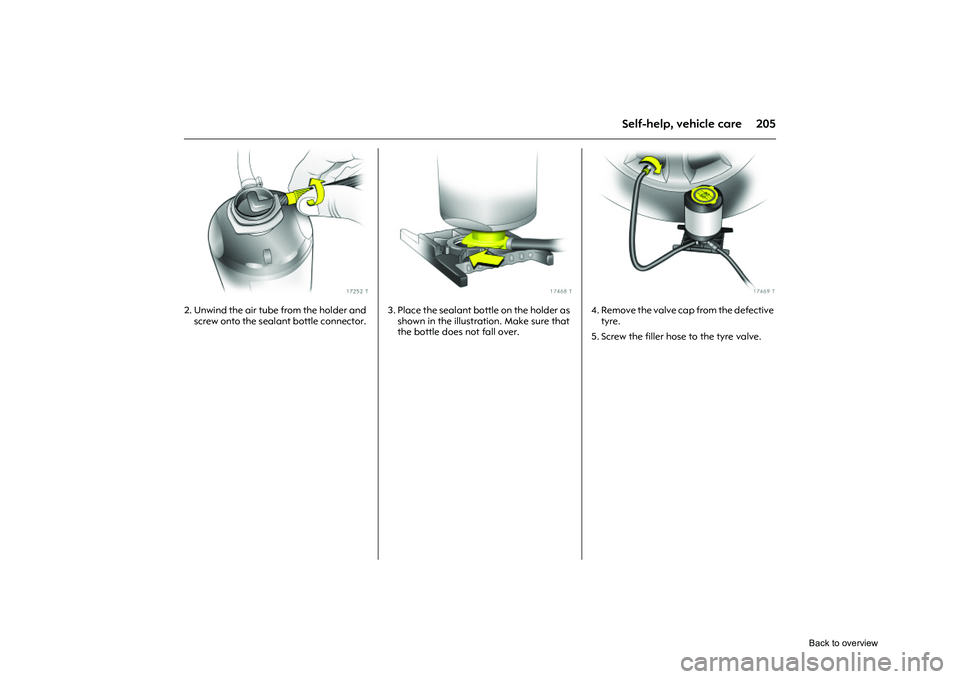

2. Unwind the air tube from the holder and screw onto the sealant bottle connector.
Picture no: 17468t.tif
3. Place the sealant bottle on the holder as shown in the illustrati on. Make sure that
the bottle does not fall over.
Picture no: 17469t.tif
4. Remove the valve cap from the defective
tyre.
5. Screw the filler hose to the tyre valve.
Back to overview

206 Self-help, vehicle care
Picture no: 18427s.tif

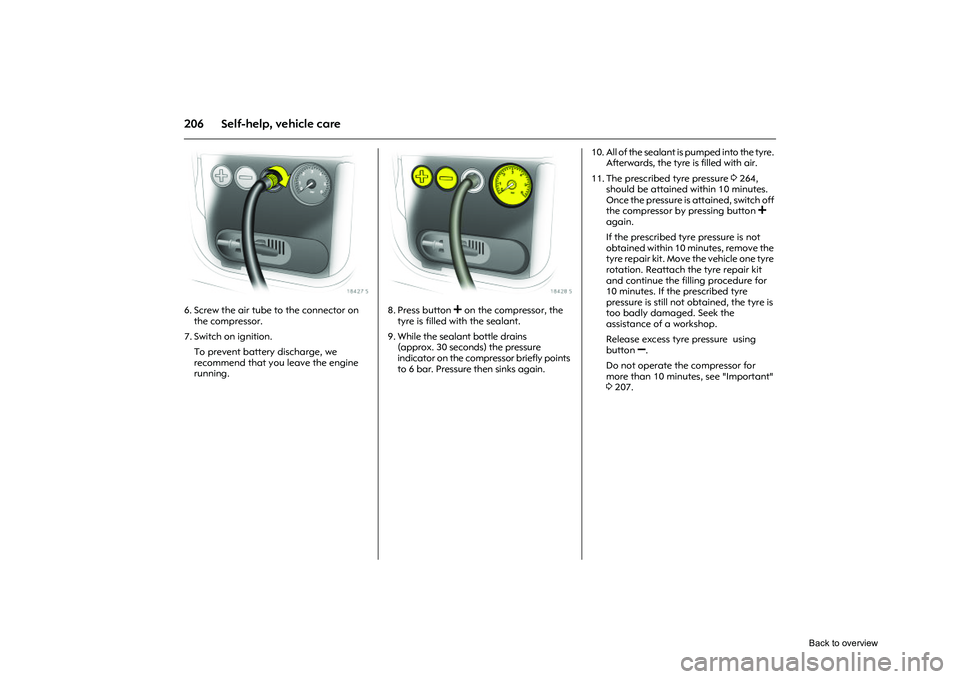

6. Screw the air tube to the connector on the compressor.
7. Switch on ignition. To prevent battery discharge, we
recommend that you leave the engine
running.
Picture no: 18428s.tif
8. Press button < on the compressor, the
tyre is filled with the sealant.
9. While the sealant bottle drains (approx. 30 seconds) the pressure
indicator on the comp ressor briefly points
to 6 bar. Pressure then sinks again. 10. All of the sealant is
pumped into the tyre.
Afterwards, the tyre is filled with air.
11. The prescribed tyre pressure 3264,
should be attained within 10 minutes.
Once the pressure is attained, switch off
the compressor by pressing button <
again.
If the prescribed tyre pressure is not
obtained within 10 minutes, remove the
tyre repair kit. Move the vehicle one tyre
rotation. Reattach the tyre repair kit
and continue the filling procedure for
10 minutes. If the prescribed tyre
pressure is still not obtained, the tyre is
too badly damaged. Seek the
assistance of a workshop.
Release excess tyre pressure using
button ].
Do not operate the compressor for
more than 10 minutes, see "Important"
3 207.
Back to overview

207
Self-help, vehicle care
12. Dismantle the tyre repair kit. When removing the sealant bottle from the
holder, press the ratchet on the holder.
Screw the tyre filler tube onto the free
connector on the sealant bottle. This
prevents the sealant from escaping.
Stow the tyre repair kit in the luggage
compartment.
13. Wipe away any sealant spill with a cloth.
14. Fold away warning triangle 3, store in
luggage compartment 3196.
15. Apply the sticker on the sealant bottle showing the maximum permitted speed
within the line of sight of the driver.
Sticker 3205, Fig. 17469 T. 16. Continue driving immediately so that
the sealant is distributed evenly
inside the tyre. After approx. 10 km
(after 10 minutes at the latest), stop
and check the tyre pressure. To do this,
screw an air tube directly to the tyre
valve and compressor.
If tyre pressure is more than 1.3 bar,
adjust to the prescribed value. Repeat
the procedure until there is no more
pressure loss.
If the tyre pressure has dropped
below 1.3 bar, the vehicle must not
be used. Contact a workshop for
assistance.
17. Stow the tyre repair kit behind the cover on the right in the side trim in the
luggage compartment. To close, lower
the cover and engage in the trim. Important
The driving comfort of the repaired tyre is
severely affected, therefore have this tyre
replaced.
If the compressor makes abnormal noises
or heats up greatly, switch it off for at
least 30 minutes.
The integrated safety valve opens at a
pressure of 7 bar.
Protect the compressor from moisture and
rain.
The sealant can only be stored for
approx. 4 years. After this time, the sealing
properties can no longer be guaranteed.
Heed the expiration
date on the sealant
bottle.
Replace the used sealant bottle. Dispose of
the bottle as prescrib ed by applicable laws.
The compressor and sealant can be used
from approx. -30 C.
The adapter 3 supplied may be used to
pump up other objects, such as balls,
airbeds, dinghies.
When using the tyre repair kit, no consumer
may be connected to the front accessory
socket at the same time.
Back to overview

208 Self-help, vehicle careElectrical system Fuses
Data on the replacement fuse must match
the data on the defective fuse.
There are three fuse boxes in the vehicle:
zfront left, in the engine compartment,
z in the interior behind the light switch, or,
in right-hand drive cars, behind the
glove compartment,
z on the left of the luggage compartment,
behind a cover.
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by its
melted wire. Do not replace the fuse until
the cause of the fault has been remedied.
Only fit fuses of the specified current
rating. Each fuse has its current rating
written on it, the ratings are also colour
coded.
Picture no: 17259t.tif
Some functions are protected by several
fuses.
There may be fuses inserted with no
function.
Picture no: 17260t.tif
Different versions of fuses are used.
Back to overview

209
Self-help, vehicle care
Picture no: 18588s.tif
Fuses and the most important
circuits they protectFuse box in engine compartment
The fuse box is at the front left side of the
engine compartment.
To open, disengage the cover, fold cover
up and remove.
Picture no: 18589s.tif Picture no:
No. Circuit
1 Starter
2 Air conditioning system
3 Diesel fuel filter heater
4 Horn
5 Manual transmission automated,
automatic transmission
6 Engine control unit
7 Fog lamps
8 Engine cooling
9 Engine cooling
No. Circuit
10 Automated manual transmission
11 Glow plugs, ignition system
12 Headlamp range adjustment,
Adaptive Forward Lighting
13 Air conditioning system
14 Automated manual transmission
15 Main beam (right)
16 Main beam (left)
17 Main relay
18 Engine control unit
Back to overview

210 Self-help, vehicle care
Picture no: 18272s.tif
Fuse box in interior
The fuse box is located behind the light
switch. Pull the top edge of the panel and
fold down.
Picture no: 18403s.tif
In right-hand drive cars, the fuse box is
located behind a cover in the glove
compartment. Open the glove
compartment and remove the cover. To
close, first put on the cover, then lock it into
position.
No. Circuit
19 Airbags
20 Main relay
21 Main relay
22 Central control unit
23 Tyre repair kit
24 Fuel pump
25 Anti-lock brake system
26 Heated rear window
27 Anti-lock brake system
28 Interior fan
29 Cigarette lighter
30 Air conditioning system
31 Electric window (left)
32 Electric window (right)
33 Heated exterior mirrors
34 –
35 –
Back to overview

211
Self-help, vehicle care
Picture no: 18590s.tifPicture no: 18261s.tif
Fuse box in luggage compartment
The fuse box is located behind the cover in
the left luggage compartment trim.
Remove cover from fuse box.
Picture no: 18319s.tif
No. Circuit
1 –
2 Instruments, information display
3 Radio
4 Ignition switch
5 Windscreen washer system
6 Unlocking the luggage
compartment
7 Central locking system
8 –
9 Courtesy lamp
10 Electric power steering
11 Light switch, brake lamp
12 ABS, brake lamp
13 Heated steering wheel
14 Park pilot, rain sensor, interior
mirror
No. Circuit
1 Adaptive Forward Lighting
2 –
3 Seat heater (left)
4 Seat heater (right)
5 –
6 –
7 –
8 Flex-Fix system, towing equipment
No. Circuit
9 –
10 –
11 –
12 –
13 –
14 –
15 Flex-Fix system, towing equipment
16 –
17 Sun roof
Back to overview

212 Self-help, vehicle careBulb replacement Switch off the ignition and switch off the
relevant switch or close the doors.
Only hold a new bulb at the base! Do not
touch the bulb glass with your bare hands.
Replace the bulb, checking that the data
on the base matches that of the defective
bulb.
Picture no: 18422s.tif
To replace the bulb on the right-hand side,
remove the air hose from the air filter.
To replace the bulb on the left-hand side,
remove fuse box cover3209, and also
remove windscreen washer system
reservoir filler neck from above. Washing
fluid may escape if the reservoir is full to
the top.
Picture no: 18129s.tif
Halogen headlamp system Headlamp system has separate bulbs for
dipped beam 1 (outer bulbs) and main
beam 2 (inner bulbs).
Back to overview

213
Self-help, vehicle care
Picture no: 18134s.tif

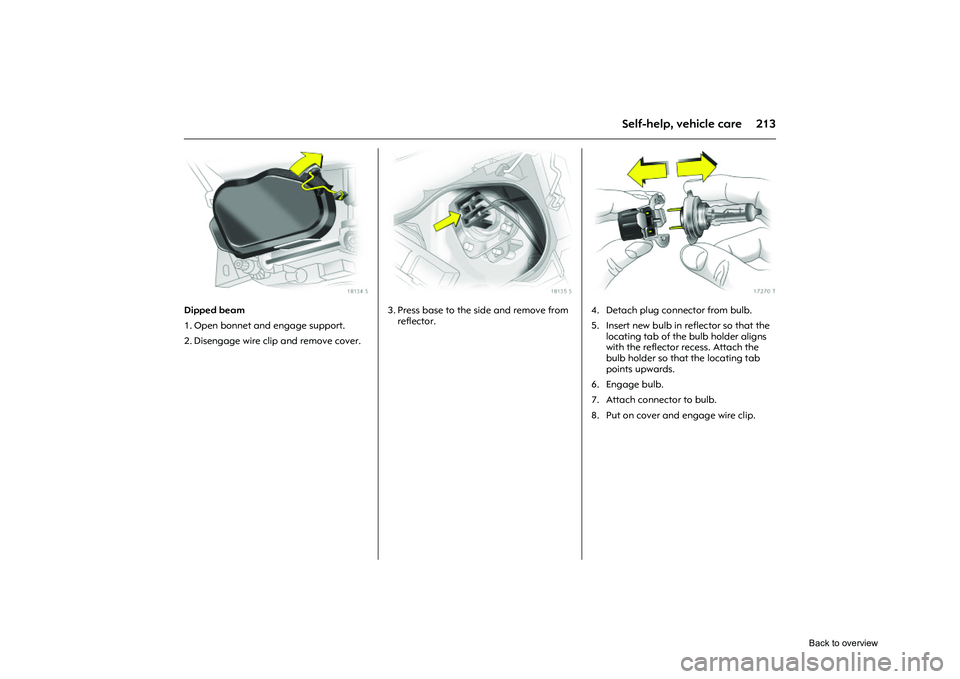

Dipped beam
1. Open bonnet and engage support.
2. Disengage wire clip and remove cover.
Picture no: 18135s.tif
3. Press base to the side and remove from reflector.
Picture no: 17270t.tif
4. Detach plug connector from bulb.
5. Insert new bulb in reflector so that the
locating tab of the bulb holder aligns
with the reflector recess. Attach the
bulb holder so that the locating tab
points upwards.
6. Engage bulb.
7. Attach connector to bulb.
8. Put on cover and engage wire clip.
Back to overview

214 Self-help, vehicle care
Picture no: 18130s.tif
Main beam
1. Open bonnet and engage support.
2. Rotate headlamp cap anticlockwise and remove.
3. Detach plug connector from bulb.
Picture no: 18132s.tif
4. Disengage spring wire clip from retaining lugs by moving it and swivelling it to the
side.
5. Remove bulb from reflector housing.
6. When fitting the new bulb, insert lugs in
the reflector recesses.
Picture no: 18133s.tif
7. Engage spring wire clip, plug connector
onto bulb.
8. Fit headlamp cap and rotate clockwise.
