OPEL CORSA 2009 Owners Manual

215
Self-help, vehicle care
Picture no: 18130s.tif
Parking lamps
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap anticlockwise and remove.
Picture no: 18139s.tif
3. Remove parking lamp socket from reflector.
Picture no: 18140s.tif
4. Remove bulb from socket.
5. Insert new bulb.
6. Insert socket in reflector.
7. Fit headlamp cap and rotate clockwise.
Back to overview

216 Self-help, vehicle care
Picture no: 18129s.tif
Adaptive Forward Lighting
system
3
Headlamp system has separate systems
for dipped beam 1 (outer bulbs) and main
beam 2 (inner bulbs). The cornering light is
also located behind the cover for the main
beam.
Due to the complexity of the procedure,
bulb changes should be carried out by a
workshop.
Picture no: 18134s.tif
Dipped beam
1. Open bonnet and engage support.
2. Disengage wire clip and remove cover.
Picture no: 18374s.tif
3. Press base upwards and remove from reflector.
Back to overview

217
Self-help, vehicle care
Picture no: 17270t.tif
4. Detach plug connector from bulb.
5. Insert new bulb in reflector so that the
locating tab of the bulb holder aligns
with the reflector recess. Attach the bulb
holder so that the locating tab is on the
side.
6. Engage bulb.
7. Attach connector to bulb.
8. Put on cover and engage wire clip.
Picture no: 18130s.tif
Main beam
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap
anticlockwise and remove.
Picture no: 18379s.tif
3. Detach plug connector from bulb.
Back to overview

218 Self-help, vehicle care
Picture no: 18380s.tif
4. Disengage spring wire clip from retaining lugs by moving it and swivelling it to the
side.
5. Remove bulb from reflector housing.
6. When fitting the new bulb, insert lugs in the reflector recesses.
7. Engage spring wire clip, plug connector onto bulb.
8. Fit headlamp cap and rotate clockwise.
Picture no: 18130s.tif
Cornering light
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap
anticlockwise and remove.
Picture no: 18376s.tif
3. Detach plug connector from bulb.
Back to overview

219
Self-help, vehicle care
Picture no: 18377s.tif
4. Disengage spring wire clip from retaining lugs by moving it and swivelling it to the
side.
5. Remove bulb from reflector housing.
6. When fitting the new bulb, insert lugs in the reflector recesses.
7. Engage spring wire clip, plug connector onto bulb.
8. Fit headlamp cap and rotate clockwise.
Picture no: 18130s.tif
Parking lamps
1. Open bonnet and engage support.
2. Rotate the main beam headlamp cap
anticlockwise and remove.
Picture no: 18382s.tif
3. Remove parking lamp socket from reflector.
Back to overview

220 Self-help, vehicle care
Picture no: 18383s.tif
4. Remove bulb from socket.
5. Insert new bulb.
6. Insert socket in reflector.
7. Fit headlamp cap and rotate clockwise.
Picture no: 18137s.tif
Front indicator lamps 1. Open bonnet and engage support.
2. Rotate bulb holder to left and disengage.
Picture no: 18138s.tif
3. Push bulb into holder a little, rotate left
and remove.
4. Insert new bulb.
5. Insert lamp holder in reflector, rotate clockwise and engage in position. Fog lamps
3
Have bulb replacement carried out by a
workshop. Side turn signal lamp Have bulb replacement carried out by a
workshop.
Back to overview

221
Self-help, vehicle care
Picture no: 18261s.tif

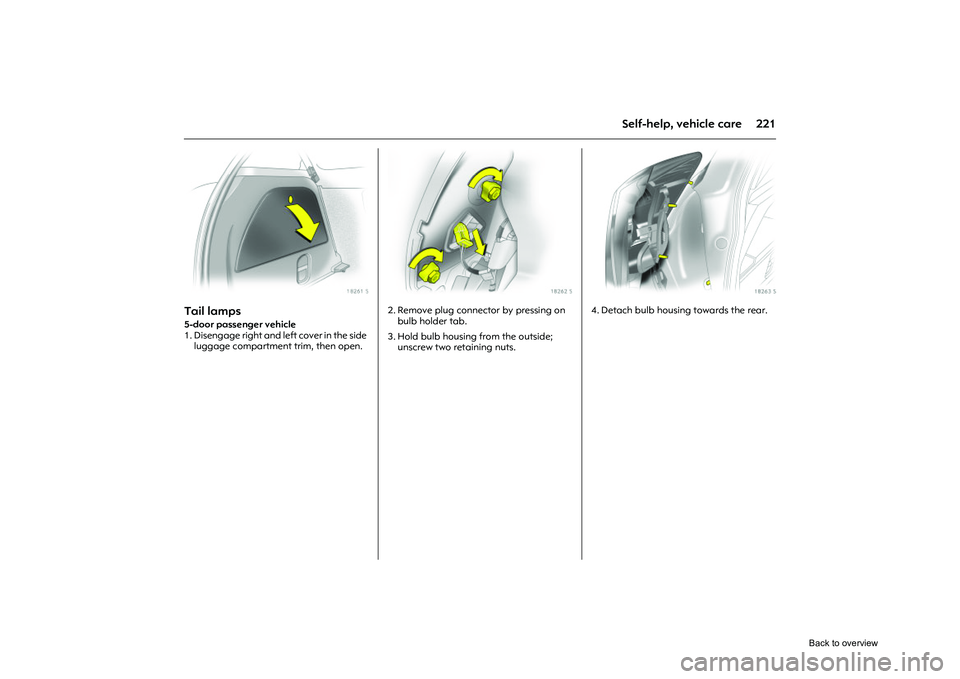

Tail lamps 5-door passenger vehicle
1. Disengage right and left cover in the side
luggage compartment trim, then open.
Picture no: 18262s.tif
2. Remove plug connector by pressing on
bulb holder tab.
3. Hold bulb housing from the outside; unscrew two retaining nuts.
Picture no: 18263s.tif
4. Detach bulb housing towards the rear.
Back to overview

222 Self-help, vehicle care
Picture no: 18264s.tif

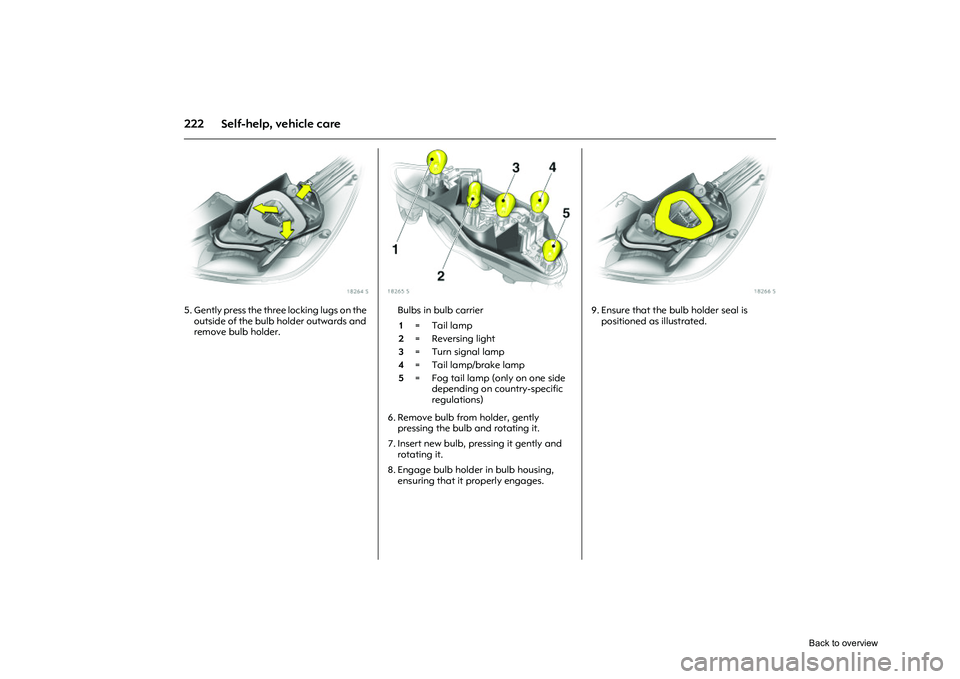

5. Gently press the three locking lugs on the outside of the bulb holder outwards and
remove bulb holder.
Picture no: 18265s.tif
Bulbs in bulb carrier
6. Remove bulb from holder, gently pressing the bulb and rotating it.
7. Insert new bulb, pressing it gently and rotating it.
8. Engage bulb holder in bulb housing, ensuring that it properly engages.
Picture no: 18266s.tif
9. Ensure that the bulb holder seal is
positioned as illustrated.
1 = Tail lamp
2 = Reversing light
3 = Turn signal lamp
4 = Tail lamp/brake lamp
5 = Fog tail lamp (only on one side
depending on country-specific
regulations)
Back to overview

223
Self-help, vehicle care

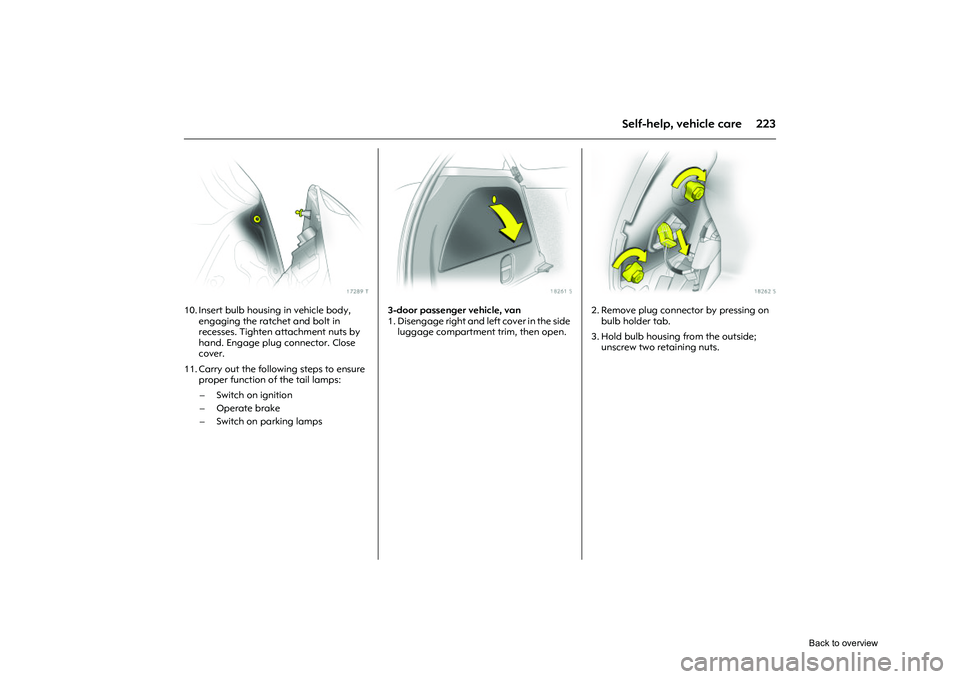

Picture no: 17289t.tif
10. Insert bulb housing in vehicle body, engaging the ratchet and bolt in
recesses. Tighten attachment nuts by
hand. Engage plug connector. Close
cover.
11. Carry out the following steps to ensure proper function of the tail lamps:
Picture no: 18261s.tif
3-door passenger vehicle, van
1. Disengage right and left cover in the side luggage compartment trim, then open.
Picture no: 18262s.tif
2. Remove plug connect or by pressing on
bulb holder tab.
3. Hold bulb housing from the outside; unscrew two retaining nuts.
– Switch on ignition
– Operate brake
– Switch on parking lamps
Back to overview

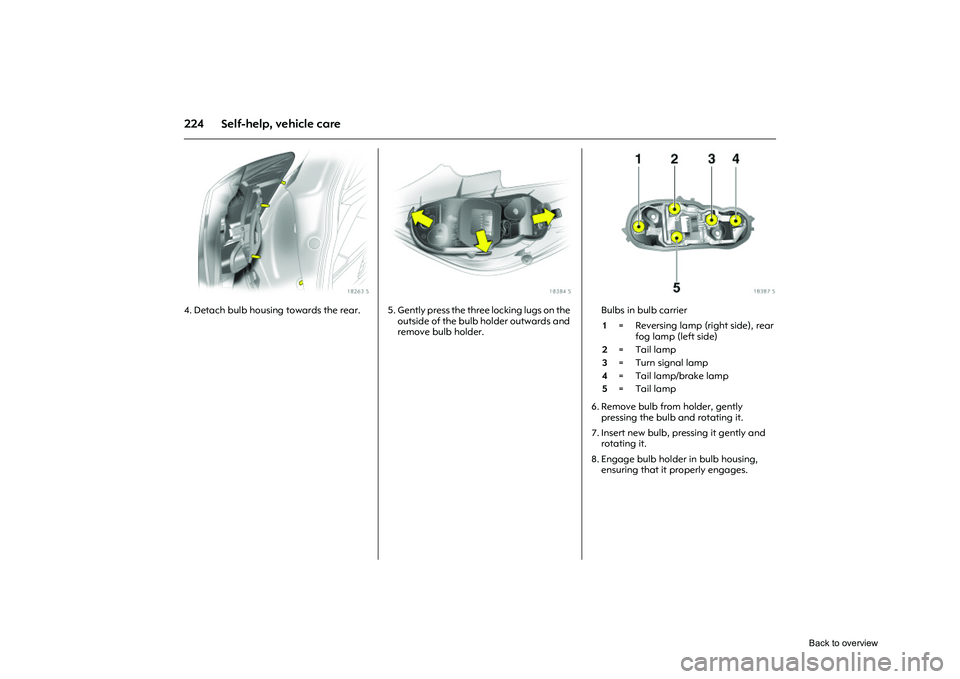

224 Self-help, vehicle care
Picture no: 18263s.tif
4. Detach bulb housing towards the rear.
Picture no: 18384s.tif
5. Gently press the three locking lugs on the outside of the bulb holder outwards and
remove bulb holder.
Picture no: 18387s.tif
Bulbs in bulb carrier
6. Remove bulb from holder, gently pressing the bulb and rotating it.
7. Insert new bulb, pre ssing it gently and
rotating it.
8. Engage bulb holder in bulb housing, ensuring that it properly engages. 1 = Reversing lamp (right side), rear
fog lamp (left side)
2 = Tail lamp
3 = Turn signal lamp
4 = Tail lamp/brake lamp
5 = Tail lamp
Back to overview
