OPEL GRANDLAND X 2018.5 Gebruikershandleiding (in Dutch)
Manufacturer: OPEL, Model Year: 2018.5, Model line: GRANDLAND X, Model: OPEL GRANDLAND X 2018.5Pages: 283, PDF Size: 7.64 MB
Page 261 of 283

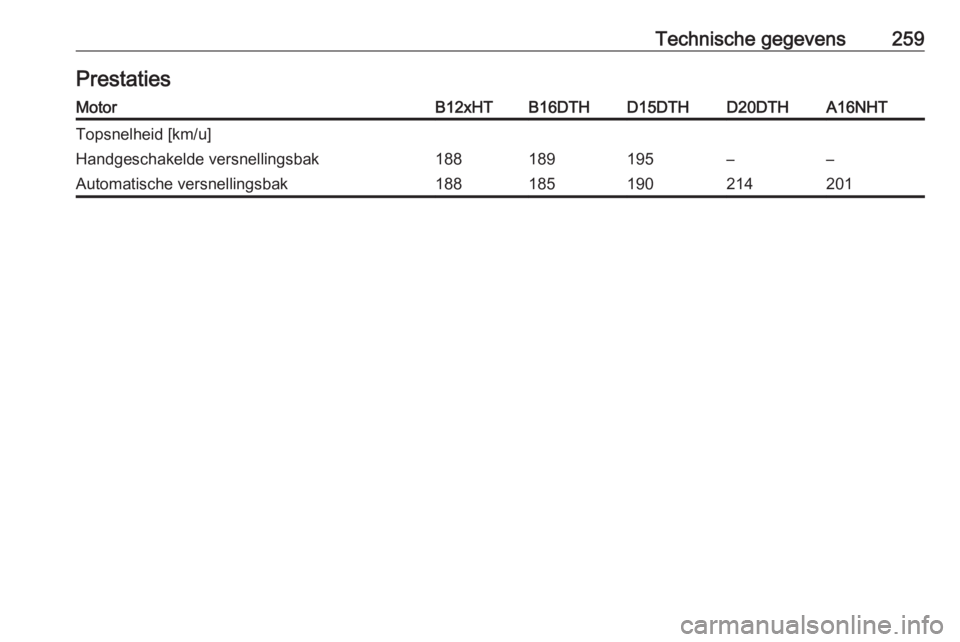

Technische gegevens259PrestatiesMotorB12xHTB16DTHD15DTHD20DTHA16NHTTopsnelheid [km/u]Handgeschakelde versnellingsbak188189195––Automatische versnellingsbak188185190214201
Page 262 of 283

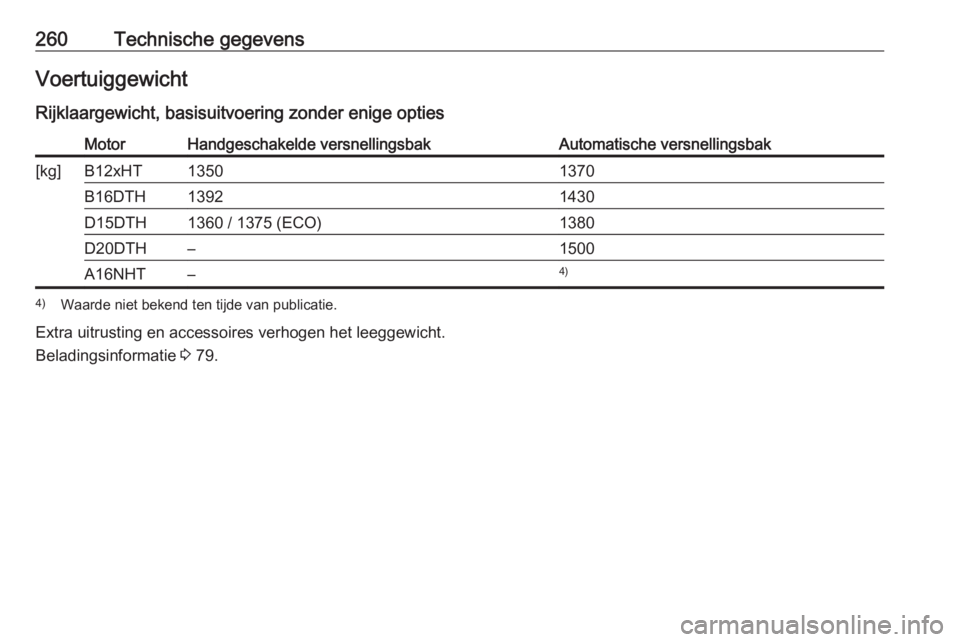

260Technische gegevensVoertuiggewicht
Rijklaargewicht, basisuitvoering zonder enige optiesMotorHandgeschakelde versnellingsbakAutomatische versnellingsbak[kg]B12xHT13501370B16DTH13921430D15DTH1360 / 1375 (ECO)1380D20DTH–1500A16NHT–4)4) Waarde niet bekend ten tijde van publicatie.
Extra uitrusting en accessoires verhogen het leeggewicht.
Beladingsinformatie 3 79.
Page 263 of 283

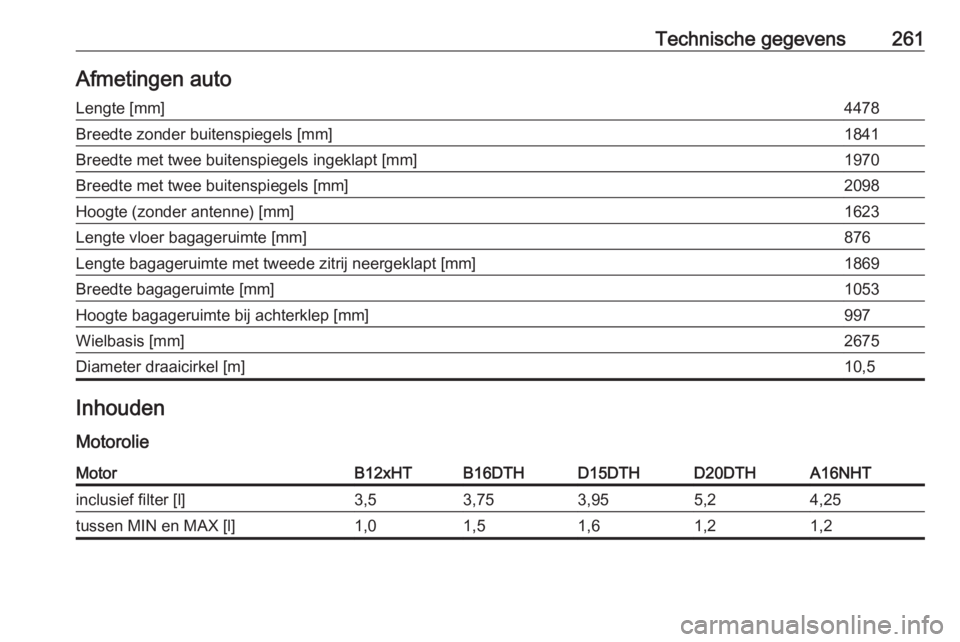

Technische gegevens261Afmetingen autoLengte [mm]4478Breedte zonder buitenspiegels [mm]1841Breedte met twee buitenspiegels ingeklapt [mm]1970Breedte met twee buitenspiegels [mm]2098Hoogte (zonder antenne) [mm]1623Lengte vloer bagageruimte [mm]876Lengte bagageruimte met tweede zitrij neergeklapt [mm]1869Breedte bagageruimte [mm]1053Hoogte bagageruimte bij achterklep [mm]997Wielbasis [mm]2675Diameter draaicirkel [m]10,5Inhouden
MotorolieMotorB12xHTB16DTHD15DTHD20DTHA16NHTinclusief filter [l]3,53,753,955,24,25tussen MIN en MAX [l]1,01,51,61,21,2
Page 264 of 283

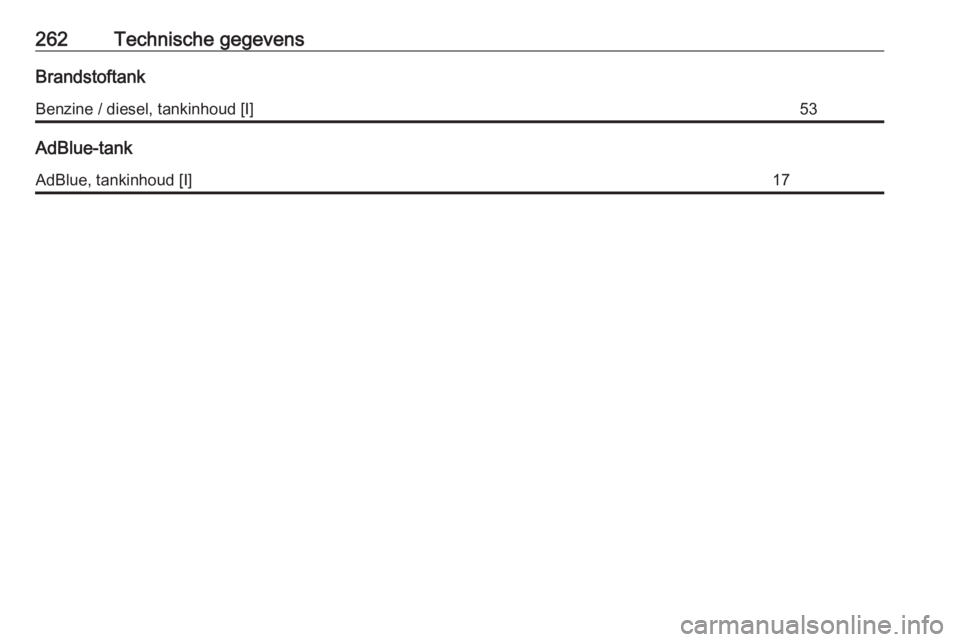

262Technische gegevensBrandstoftankBenzine / diesel, tankinhoud [I]53
AdBlue-tank
AdBlue, tankinhoud [I]17
Page 265 of 283

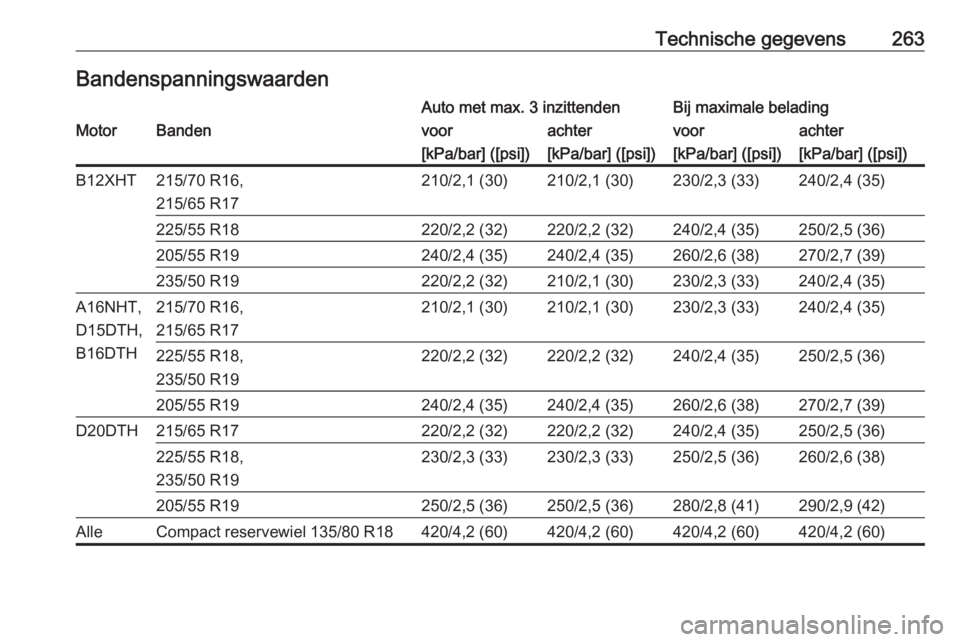

Technische gegevens263BandenspanningswaardenAuto met max. 3 inzittendenBij maximale beladingMotorBandenvoorachtervoorachter[kPa/bar] ([psi])[kPa/bar] ([psi])[kPa/bar] ([psi])[kPa/bar] ([psi])B12XHT215/70 R16,
215/65 R17210/2,1 (30)210/2,1 (30)230/2,3 (33)240/2,4 (35)225/55 R18220/2,2 (32)220/2,2 (32)240/2,4 (35)250/2,5 (36)205/55 R19240/2,4 (35)240/2,4 (35)260/2,6 (38)270/2,7 (39)235/50 R19220/2,2 (32)210/2,1 (30)230/2,3 (33)240/2,4 (35)A16NHT,
D15DTH,
B16DTH215/70 R16,
215/65 R17210/2,1 (30)210/2,1 (30)230/2,3 (33)240/2,4 (35)225/55 R18,
235/50 R19220/2,2 (32)220/2,2 (32)240/2,4 (35)250/2,5 (36)205/55 R19240/2,4 (35)240/2,4 (35)260/2,6 (38)270/2,7 (39)D20DTH215/65 R17220/2,2 (32)220/2,2 (32)240/2,4 (35)250/2,5 (36)225/55 R18,
235/50 R19230/2,3 (33)230/2,3 (33)250/2,5 (36)260/2,6 (38)205/55 R19250/2,5 (36)250/2,5 (36)280/2,8 (41)290/2,9 (42)AlleCompact reservewiel 135/80 R18420/4,2 (60)420/4,2 (60)420/4,2 (60)420/4,2 (60)
Page 266 of 283
264KlantinformatieKlantinformatieKlantinformatie........................... 264
Conformiteitsverklaring ............264
REACH .................................... 267
Reparatie ongevalsschade ......267
Erkenning van software ...........267
Software-update ......................271
Gedeponeerde handelsmerken .......................271
Registratie van voertuigdata en
privacy ....................................... 272
Event Data Recorders (EDR) ..272
Radiofrequentie-identificatie (RFID) ..................................... 275Klantinformatie
Conformiteitsverklaring Radiozendsystemen
Deze auto is uitgevoerd met syste‐
men die radiogolven uitzenden en/of ontvangen conform de Richtlijn
1999/5/EC of 2014/53/EU. De fabri‐
kanten van de onderstaande syste‐
men verklaren dat deze conform de
Richtlijn 1999/5/EU of 2014/53/EU
zijn. De volledige tekst van de EU-
conformiteitsverklaring vindt u op het
volgende webadres: www.opel.com/
conformity
Importeur is
Opel / Vauxhall, Bahnhofsplatz,
65423 Ruesselsheim am Main,
Germany.
Navi 5.0 IntelliLink
Continental
LCIE Bureau Veritas-Site de Fonte‐ nay aux Roses, 33 avenue du général Leclerc, 92260 Fontenay aux Roses,
FranceBedrijfsfre‐
quentie (MHz)Maximum
uitgangsver‐
mogen (dBm)2400,0 - 2483,52,22400,0 - 2483,515
Infotainmentsysteem R 4.0 IntelliLink
LG Electronics
European Shared Service center B.V.
Krijgsman 1, 1186 DM Amstelveen,
The Netherlands
Bedrijfsfrequentie:
2400,0 – 2483,5 MHz
Maximaal vermogen: 4 dBm
Infotainmentsysteem R 4.0
Clarion
244 rue du Pré à Varois, 54670 Custi‐ nes, France
Bedrijfsfrequentie: 2400 - 2480 MHz
Maximaal vermogen: 4 dBm
OnStar-module
LG Electronics
European Shared Service center B.V.
Page 267 of 283

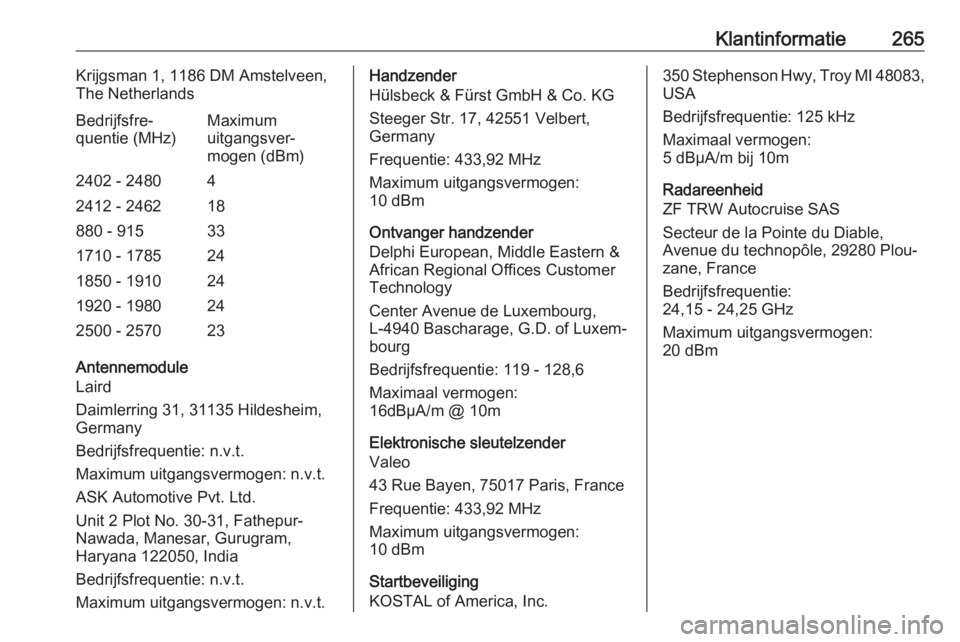

Klantinformatie265Krijgsman 1, 1186 DM Amstelveen,
The NetherlandsBedrijfsfre‐
quentie (MHz)Maximum
uitgangsver‐
mogen (dBm)2402 - 248042412 - 246218880 - 915331710 - 1785241850 - 1910241920 - 1980242500 - 257023
Antennemodule
Laird
Daimlerring 31, 31135 Hildesheim,
Germany
Bedrijfsfrequentie: n.v.t.
Maximum uitgangsvermogen: n.v.t.
ASK Automotive Pvt. Ltd.
Unit 2 Plot No. 30-31, Fathepur-
Nawada, Manesar, Gurugram,
Haryana 122050, India
Bedrijfsfrequentie: n.v.t.
Maximum uitgangsvermogen: n.v.t.
Handzender
Hülsbeck & Fürst GmbH & Co. KG
Steeger Str. 17, 42551 Velbert,
Germany
Frequentie: 433,92 MHz
Maximum uitgangsvermogen:
10 dBm
Ontvanger handzender
Delphi European, Middle Eastern &
African Regional Offices Customer
Technology
Center Avenue de Luxembourg,
L-4940 Bascharage, G.D. of Luxem‐
bourg
Bedrijfsfrequentie: 119 - 128,6
Maximaal vermogen:
16dBµA/m @ 10m
Elektronische sleutelzender
Valeo
43 Rue Bayen, 75017 Paris, France
Frequentie: 433,92 MHz
Maximum uitgangsvermogen:
10 dBm
Startbeveiliging
KOSTAL of America, Inc.350 Stephenson Hwy, Troy MI 48083,
USA
Bedrijfsfrequentie: 125 kHz
Maximaal vermogen:
5 dBμA/m bij 10m
Radareenheid
ZF TRW Autocruise SAS
Secteur de la Pointe du Diable,
Avenue du technopôle, 29280 Plou‐
zane, France
Bedrijfsfrequentie:
24,15 - 24,25 GHz
Maximum uitgangsvermogen: 20 dBm
Page 268 of 283

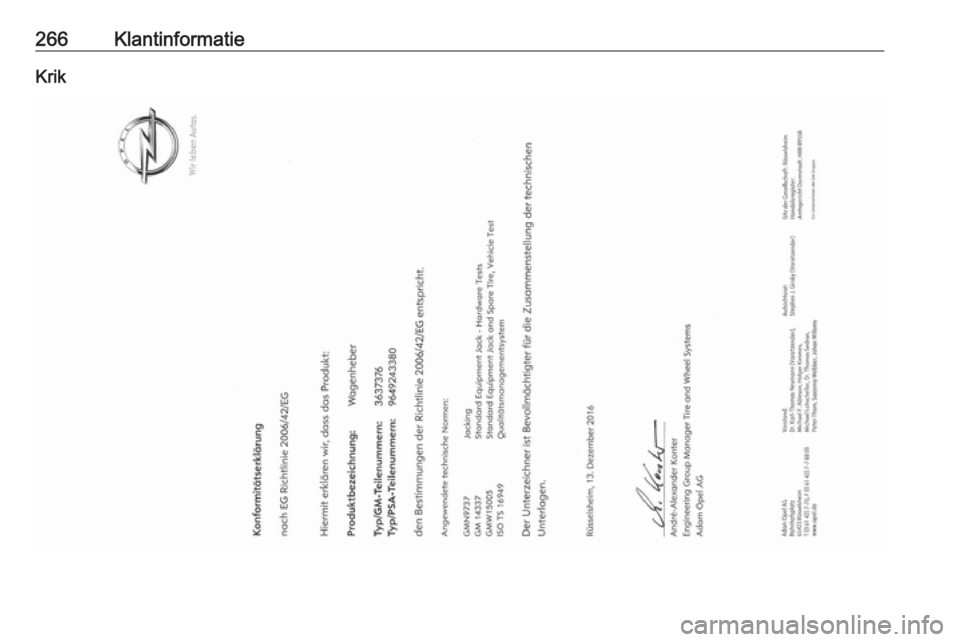

266KlantinformatieKrik
Page 269 of 283
Klantinformatie267Vertaling van de oorspronkelijke
conformiteitsverklaring
Conformiteitsverklaring conform EG-
richtlijn 2006/42/EC
Bij dezen verklaren wij dat het
product:
Productaanduiding: Krik
Type/GM onderdeelnummer:
3637376
Type/onderdeelnummer PSA:
9649243380
voldoet aan de bepalingen van richt‐
lijn 2006/42/EC.
Gehanteerde technische normen:GMN9737:krikkenGM 14337:standaarduitrusting
krik - hardwaretestsGMW15005:standaarduitrusting
krik en reserve‐
band, boordtestISO TS 16949:kwaliteitsborgings‐
systemenOndergetekende is bevoegd tot het
samenstellen van de technische documentatie.
Rüsselsheim, 13 december 2016
was getekend
André-Alexander Konter
Engineering Group Manager Tyre
and Wheel Systems
Adam Opel AG
D-65423 Rüsselsheim
REACH
Registration, Evaluation, Authorisa‐
tion and Restriction of Chemicals
(REACH) is een EU-verordening ter
verbetering van de bescherming van
de volksgezondheid en het milieu
tegen de risico's die mogelijk uitgaan van chemische stoffen. Ga naar
www.opel.com voor nadere informa‐
tie en voor inzage in de Artikel 33-
communicatie.Reparatie ongevalsschade
Lakdikte
Afhankelijk van productietechnieken
kan de dikte van de laklaag variëren
tussen 50 en 400 µm.
Een verschil in de lakdikte is daarom
geen aanwijzing voor een reparatie
na een ongeval.
Erkenning van software
Bepaalde OnStar-componenten
bevatten software van libcurl en unzip
en andere software van derden. Hier‐
onder vindt u de kennisgevingen en
licenties m.b.t. libcurl en unzip. Ga
voor andere software van derden
naar http://www.lg.com/global/
support/opensource/index.
U vindt de vertaalde tekst onder de originele tekst.
libcurlCopyright and permission notice
Copyright (c) 1996 - 2010, Daniel
Stenberg,
All rights reserved.
Page 270 of 283

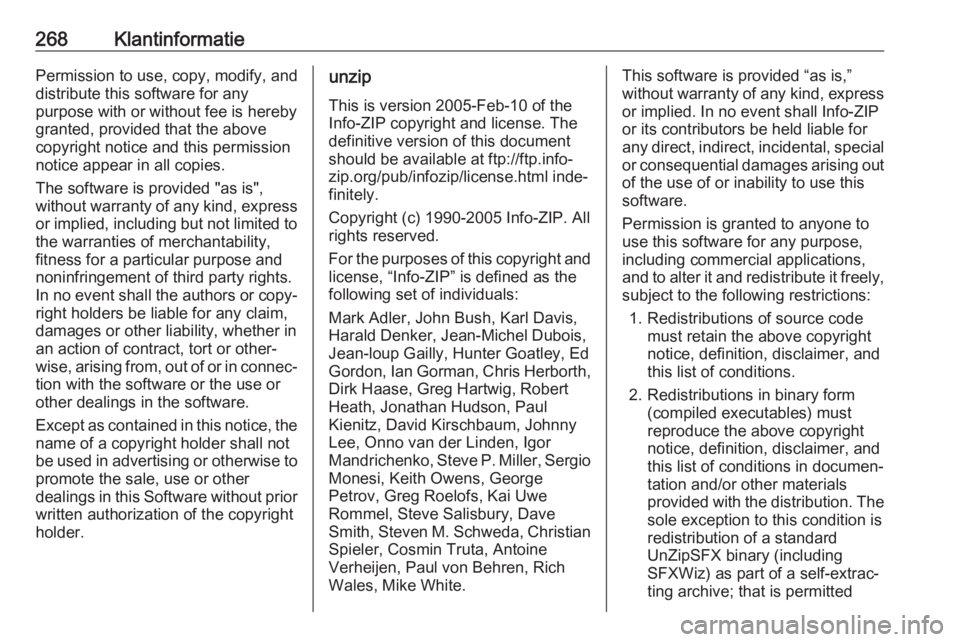

268KlantinformatiePermission to use, copy, modify, and
distribute this software for any
purpose with or without fee is hereby
granted, provided that the above
copyright notice and this permission
notice appear in all copies.
The software is provided "as is",
without warranty of any kind, express
or implied, including but not limited to
the warranties of merchantability,
fitness for a particular purpose and
noninfringement of third party rights.
In no event shall the authors or copy‐ right holders be liable for any claim,
damages or other liability, whether in
an action of contract, tort or other‐
wise, arising from, out of or in connec‐
tion with the software or the use or
other dealings in the software.
Except as contained in this notice, the
name of a copyright holder shall not
be used in advertising or otherwise to
promote the sale, use or other
dealings in this Software without prior
written authorization of the copyright
holder.unzip
This is version 2005-Feb-10 of the Info-ZIP copyright and license. The
definitive version of this document
should be available at ftp://ftp.info-
zip.org/pub/infozip/license.html inde‐
finitely.
Copyright (c) 1990-2005 Info-ZIP. All
rights reserved.
For the purposes of this copyright and
license, “Info-ZIP” is defined as the
following set of individuals:
Mark Adler, John Bush, Karl Davis,
Harald Denker, Jean-Michel Dubois,
Jean-loup Gailly, Hunter Goatley, Ed
Gordon, Ian Gorman, Chris Herborth, Dirk Haase, Greg Hartwig, Robert
Heath, Jonathan Hudson, Paul
Kienitz, David Kirschbaum, Johnny
Lee, Onno van der Linden, Igor
Mandrichenko, Steve P. Miller, Sergio Monesi, Keith Owens, George
Petrov, Greg Roelofs, Kai Uwe
Rommel, Steve Salisbury, Dave
Smith, Steven M. Schweda, Christian Spieler, Cosmin Truta, Antoine
Verheijen, Paul von Behren, Rich
Wales, Mike White.This software is provided “as is,” without warranty of any kind, express
or implied. In no event shall Info-ZIP
or its contributors be held liable for
any direct, indirect, incidental, special
or consequential damages arising out of the use of or inability to use this
software.
Permission is granted to anyone to
use this software for any purpose,
including commercial applications,
and to alter it and redistribute it freely,
subject to the following restrictions:
1. Redistributions of source code must retain the above copyright
notice, definition, disclaimer, and
this list of conditions.
2. Redistributions in binary form (compiled executables) must
reproduce the above copyright
notice, definition, disclaimer, and
this list of conditions in documen‐
tation and/or other materials
provided with the distribution. The sole exception to this condition is
redistribution of a standard
UnZipSFX binary (including
SFXWiz) as part of a self-extrac‐
ting archive; that is permitted
