242Vehicle care
System status and pressure warningsare displayed by a message with the
corresponding tyre flashing in the
Driver Information Centre.
A detected low tyre pressure
condition is indicated by the control
indicator w 3 104.
If w lights up, stop as soon as
possible and inflate the tyres as
recommended 3 289.
After inflating driving may be required
to update the tyre pressure values in
the Driver Information Centre. During
this time w may light up.
If w lights up at lower temperatures
and extinguishes after some driving,
this could be an indicator for getting
low pressure. Check tyre pressure.
Vehicle messages 3 116.
If the tyre pressure must be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and w
illuminates continuously.
A spare wheel or temporary spare
wheel is not equipped with pressure
sensors. The tyre pressure
monitoring system is not operational
for these wheels. Control indicator w
illuminates. For the further three
wheels the system remains
operational.
The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory
approved repair kits can be used.
External high-power radio equipment
could disrupt the tyre pressure
monitoring system.
Each time the tyres are replaced tyre
pressure monitoring system sensors
must be dismounted and serviced.
For the screwed sensor replace valve
core and sealing ring, for clipped
sensor replace complete valve stem.Vehicle loading status
Adjust tyre pressure to load condition according tyre information label or
tyre pressure chart 3 289, and select
the according setting in the Tyre
loading page under the Settings
menu in the Driver Information Centre 3 107.
Select:
■ Light for comfort pressure up to
3 people
■ Eco for Eco pressure up to
3 people
■ Max for full loading

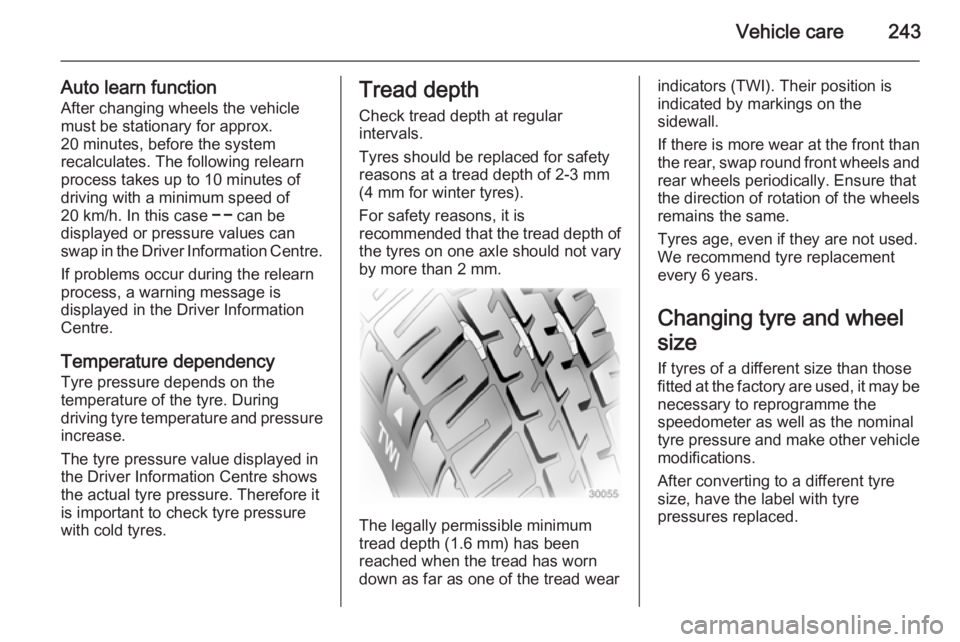

Vehicle care243
Auto learn functionAfter changing wheels the vehicle
must be stationary for approx.
20 minutes, before the system
recalculates. The following relearn
process takes up to 10 minutes of
driving with a minimum speed of
20 km/h. In this case $ can be
displayed or pressure values can
swap in the Driver Information Centre.
If problems occur during the relearn
process, a warning message is
displayed in the Driver Information
Centre.
Temperature dependency Tyre pressure depends on the
temperature of the tyre. During
driving tyre temperature and pressure increase.
The tyre pressure value displayed in
the Driver Information Centre shows
the actual tyre pressure. Therefore it
is important to check tyre pressure
with cold tyres.Tread depth
Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons, it is
recommended that the tread depth of
the tyres on one axle should not vary
by more than 2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread wear
indicators (TWI). Their position is
indicated by markings on the
sidewall.
If there is more wear at the front than
the rear, swap round front wheels and rear wheels periodically. Ensure that
the direction of rotation of the wheels
remains the same.
Tyres age, even if they are not used.
We recommend tyre replacement
every 6 years.
Changing tyre and wheel
size If tyres of a different size than those
fitted at the factory are used, it may be necessary to reprogramme the
speedometer as well as the nominal
tyre pressure and make other vehicle
modifications.
After converting to a different tyre
size, have the label with tyre
pressures replaced.

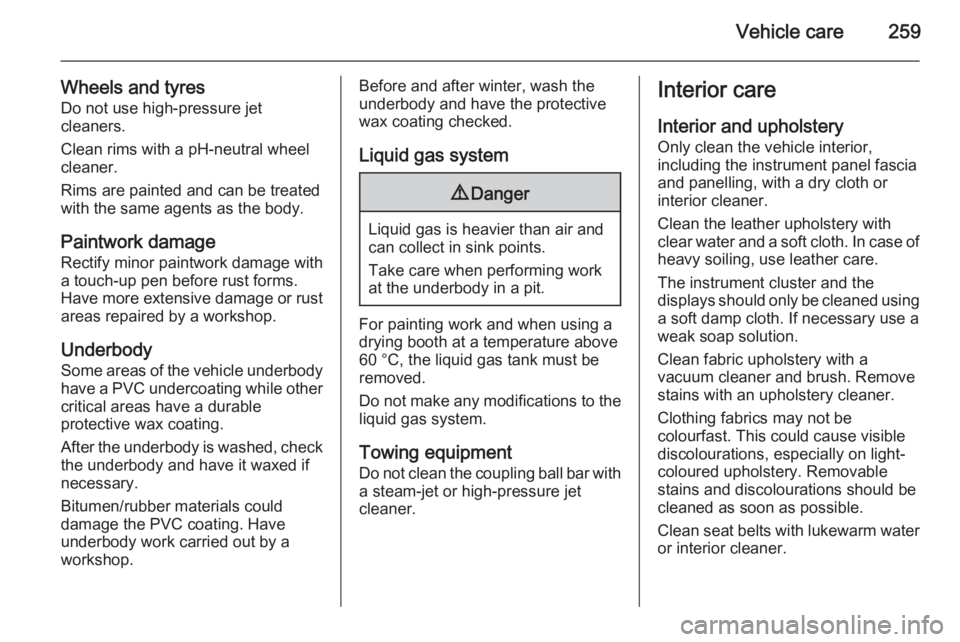

Vehicle care259
Wheels and tyresDo not use high-pressure jet
cleaners.
Clean rims with a pH-neutral wheel
cleaner.
Rims are painted and can be treated
with the same agents as the body.
Paintwork damageRectify minor paintwork damage witha touch-up pen before rust forms.
Have more extensive damage or rust
areas repaired by a workshop.
Underbody Some areas of the vehicle underbody
have a PVC undercoating while other critical areas have a durable
protective wax coating.
After the underbody is washed, check
the underbody and have it waxed if
necessary.
Bitumen/rubber materials could
damage the PVC coating. Have
underbody work carried out by a
workshop.Before and after winter, wash the
underbody and have the protective
wax coating checked.
Liquid gas system9 Danger
Liquid gas is heavier than air and
can collect in sink points.
Take care when performing work
at the underbody in a pit.
For painting work and when using a
drying booth at a temperature above
60 °C, the liquid gas tank must be
removed.
Do not make any modifications to the
liquid gas system.
Towing equipment Do not clean the coupling ball bar with
a steam-jet or high-pressure jet
cleaner.
Interior care
Interior and upholsteryOnly clean the vehicle interior,
including the instrument panel fascia
and panelling, with a dry cloth or
interior cleaner.
Clean the leather upholstery with clear water and a soft cloth. In case of
heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned using
a soft damp cloth. If necessary use a
weak soap solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.
Clothing fabrics may not be
colourfast. This could cause visible
discolourations, especially on light-
coloured upholstery. Removable
stains and discolourations should be
cleaned as soon as possible.
Clean seat belts with lukewarm water or interior cleaner.

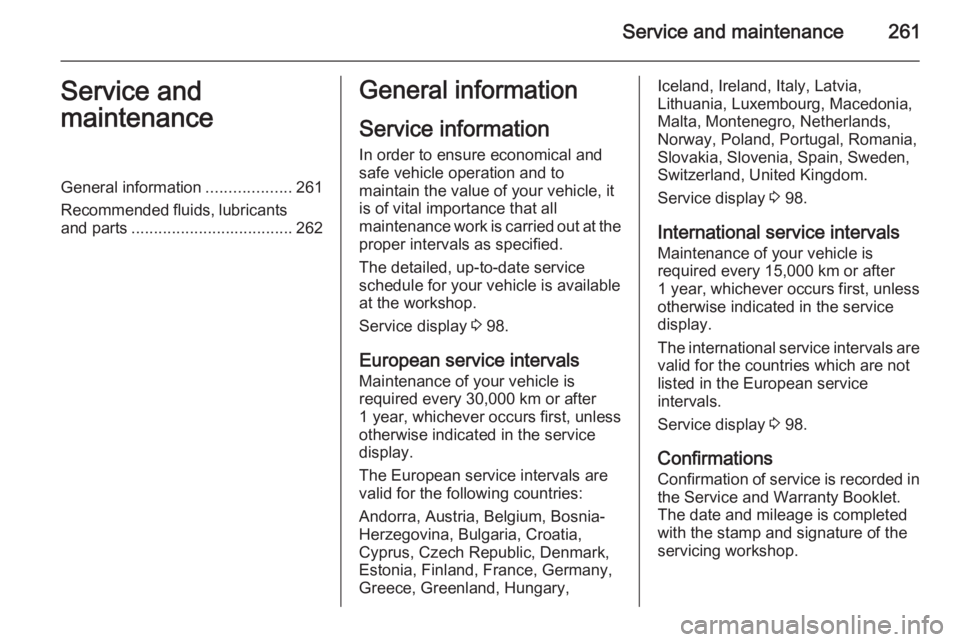

Service and maintenance261Service and
maintenanceGeneral information ...................261
Recommended fluids, lubricants and parts .................................... 262General information
Service information In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is available
at the workshop.
Service display 3 98.
European service intervals
Maintenance of your vehicle is
required every 30,000 km or after
1 year , whichever occurs first, unless
otherwise indicated in the service
display.
The European service intervals are
valid for the following countries:
Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,Iceland, Ireland, Italy, Latvia,
Lithuania, Luxembourg, Macedonia,
Malta, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania,
Slovakia, Slovenia, Spain, Sweden, Switzerland, United Kingdom.
Service display 3 98.
International service intervals Maintenance of your vehicle is
required every 15,000 km or after
1 year , whichever occurs first, unless
otherwise indicated in the service
display.
The international service intervals are
valid for the countries which are not
listed in the European service
intervals.
Service display 3 98.
Confirmations
Confirmation of service is recorded in the Service and Warranty Booklet.The date and mileage is completed
with the stamp and signature of the
servicing workshop.

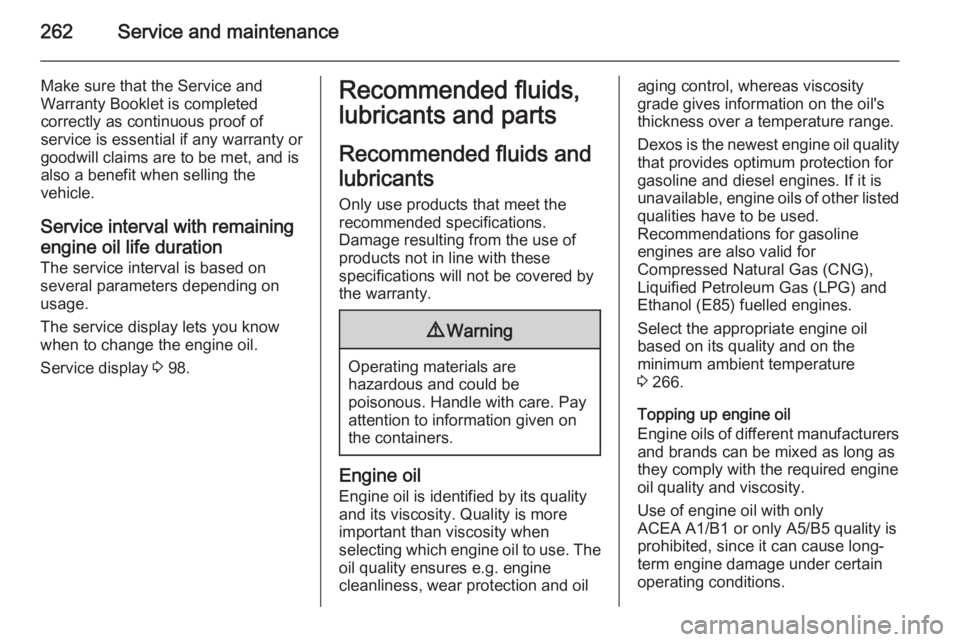

262Service and maintenance
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty or goodwill claims are to be met, and is
also a benefit when selling the
vehicle.
Service interval with remaining
engine oil life duration The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display 3 98.Recommended fluids,
lubricants and parts
Recommended fluids and lubricants Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not in line with these
specifications will not be covered by
the warranty.9 Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use. The oil quality ensures e.g. engine
cleanliness, wear protection and oil
aging control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil quality
that provides optimum protection for
gasoline and diesel engines. If it is unavailable, engine oils of other listed qualities have to be used.
Recommendations for gasoline
engines are also valid for
Compressed Natural Gas (CNG),
Liquified Petroleum Gas (LPG) and
Ethanol (E85) fuelled engines.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
3 266.
Topping up engine oil
Engine oils of different manufacturers
and brands can be mixed as long as
they comply with the required engine
oil quality and viscosity.
Use of engine oil with only
ACEA A1/B1 or only A5/B5 quality is
prohibited, since it can cause long-
term engine damage under certain
operating conditions.

315
Child restraint installationlocations ................................... 63
Child restraints.............................. 62
Child restraint systems ................62
Cigarette lighter ........................... 89
Climate control ............................. 16
Climate control systems .............134
Clock............................................. 87
Colour-Info-Display .....................114
Control indicators........................ 100
Control of the vehicle .................148
Controls ........................................ 82
Convex shape .............................. 36
Coolant and antifreeze ...............262
Cruise control ....................106, 171
Cupholders .................................. 67
Curtain airbag system .................. 60
Curve lighting.............................. 125
D Danger, Warnings and Cautions ...4
Daytime running lights ...............125
Declaration of conformity ............312
Diesel fuel system bleeding .......221
Diesel particle filter .............104, 156
Door open .................................. 107
Doors ............................................ 29
Driver assistance systems ..........171
Driver Information Centre ...........107Driving characteristics and
towing tips .............................. 209
Driving hints ................................ 148
Dual automatic climate control system ..................................... 140
E Electric adjustment ......................36
Electrical system......................... 232
Electric parking brake .................102
Electric parking brake fault .........102
Electronic driving programmes ..160
Electronic key system ...................22
Electronic Stability Control.......... 167
Electronic Stability Control and Traction Control system ..........104
Electronic Stability Control off..... 104
End-of-life vehicle recovery .......214
Engine compartment fuse box ...234
Engine coolant ........................... 217
Engine coolant temperature gauge ....................................... 98
Engine data ............................... 269
Engine exhaust .......................... 156
Engine identification ...................265
Engine oil ................... 215, 262, 266
Engine oil pressure ....................105
Entry lighting .............................. 131
Event data recorders ..................312
Exit lighting ................................ 132Exterior care .............................. 257
Exterior light ............................... 105
Exterior lighting ....................13, 122
Exterior mirrors ............................. 36
F
Fault ........................................... 160
First aid ......................................... 79
First aid kit ................................... 79
Fixed air vents ........................... 146
Fog light ..................................... 106
Fog lights ................................... 227
Folding mirrors ............................. 37
Following distance ......................103
Following distance indication ......184
Forward collision alert................. 181
Front airbag system .....................58
Front fog lights ........................... 128
Front seats.................................... 47
Front storage ................................ 68
Front turn signal light ..................222
Fuel............................................. 202
Fuel consumption - CO 2-
Emissions ............................... 208
Fuel for diesel engines ..............203
Fuel for liquid gas operation .......203
Fuel for petrol engines ...............202
Fuel gauge ................................... 97
Fuel selector ................................ 98
Fuses ......................................... 232

316
GGauges ......................................... 96
Gear shifting ............................... 103
General information ...................209
Glovebox ..................................... 67
H
Halogen headlights ....................222
Hand brake ......................... 163, 164
Hazard warning flashers ............128
Headlight flash ........................... 124
Headlight range adjustment ......124
Headlights................................... 122
Headlights when driving abroad 125
Head restraint adjustment .............8
Head restraints ............................ 45
Heated mirrors ............................. 38
Heated rear window ..................... 41
Heated steering wheel .................83
Heating ........................................ 53
High beam ......................... 105, 123
High beam assist ................106, 123
Hill start assist ........................... 166
Horn ....................................... 14, 83
I
Identification plate .....................264
Ignition switch positions .............149
Immobiliser .......................... 36, 105
Indicators ...................................... 96Information displays.................... 107
Instrument cluster ........................91
Instrument panel fuse box .........236
Instrument panel illumination .....232
Instrument panel illumination control .................................... 130
Instrument panel overview ........... 10
Interactive driving system ...........168
Interior care ............................... 259
Interior lighting ............................ 130
Interior lights ...................... 130, 232
Interior mirrors .............................. 38
Interruption of power supply ......160
Introduction .................................... 3
ISOFIX child restraint systems ....66
J Jump starting ............................. 252
K Key, memorised settings ..............23
Keys ............................................. 20
Keys, locks ................................... 20
L
Lane change alert .......................193
Lane departure warning .....103, 201
Lashing eyes ............................... 73
Lighting features .........................131
Light switch ................................ 122Load compartment ................29, 69
Load compartment cover .............71
Load compartment fuse box ......237
Loading information .....................80
Low fuel ..................................... 105
M
Malfunction indicator light ..........102
Manual anti-dazzle ......................38
Manual mode ............................. 159
Manual transmission .................. 162
Memorised settings ......................23
Mirror adjustment ........................... 9
Misted light covers .....................129
N New vehicle running-in ..............149
Number plate light .....................231
O
Object detection systems ...........187
Odometer ..................................... 96
Oil, engine .......................... 262, 266
Outside temperature ....................86
Overrun cut-off ........................... 152
P Parking ................................ 19, 155
Parking assist ...................... 38, 187
Parking brake ............................ 164

317
Parking lights ............................. 129
Performance .............................. 271
Performing work ........................214
Pollen filter ................................. 146
Power button .............................. 149
Power outlets ............................... 88
Power seat adjustment .................50
Power windows ............................ 39
Preheating ................................. 104
Puncture ..................................... 247
Q
Quickheat ................................... 145
R Radio Frequency Identification (RFID) ..................................... 313
Radio remote control ...................21
Reading lights ............................ 130
Rear cross traffic alert ................196
Rear floor storage cover ..............72
Rear fog light ............................. 106
Rear fog lights ........................... 129
Rear seats .................................... 54
Rear view camera ...................... 194
Rear window wiper/washer .......... 86
Recommended fluids and lubricants ........................ 262, 266
Refuelling ................................... 205
Retained power off .....................151Reversing lights .........................129
Ride control systems ..................166
Roller blinds ................................. 42
Roof .............................................. 42
Roof load ...................................... 80
Roof rack ..................................... 79
S
Safety belts ................................... 54
Safety net .................................... 76
Seat adjustment ....................... 6, 47
Seat belt ........................................ 8
Seat belt reminder .....................100
Seat belts ..................................... 54
Seat position ................................ 47
Selector lever ............................. 158
Service ............................... 147, 261
Service display ............................ 98
Service information ....................261
Side airbag system ......................59
Side blind spot alert ....................191
Sidelights .................................... 122
Side turn signal lights ................230
Smartphone controller ................116
Spare wheel ............................... 250
Speed limiter....................... 106, 172
Speedometer ............................... 96
Starting and operating ................149
Starting off ................................... 17
Starting the engine ....................151Steering...................................... 148
Steering wheel adjustment ......9, 82
Steering wheel controls ...............82
Stop-start system........................ 153
Storage ......................................... 67
Storage compartments .................67
Sunroof ........................................ 42
Sunvisor lights ........................... 131
Sun visors .................................... 41
Symbols ......................................... 4
T
Tachometer ................................. 97
Tail lights ................................... 227
Three-point seat belt .................... 55
Tools .......................................... 239
Top-tether fastening eyes ............66
Tow bar....................................... 209
Towing ................................ 209, 254
Towing another vehicle .............256
Towing equipment .....................210
Towing the vehicle .....................254
Traction Control system ............. 166
Traction Control system off......... 104
Traffic sign assistant ...........107, 198
Trailer coupling ........................... 209
Trailer stability assist .................212
Trailer towing ............................. 210
Transmission ............................... 17
Transmission display .................157
