Driving and Operating 147

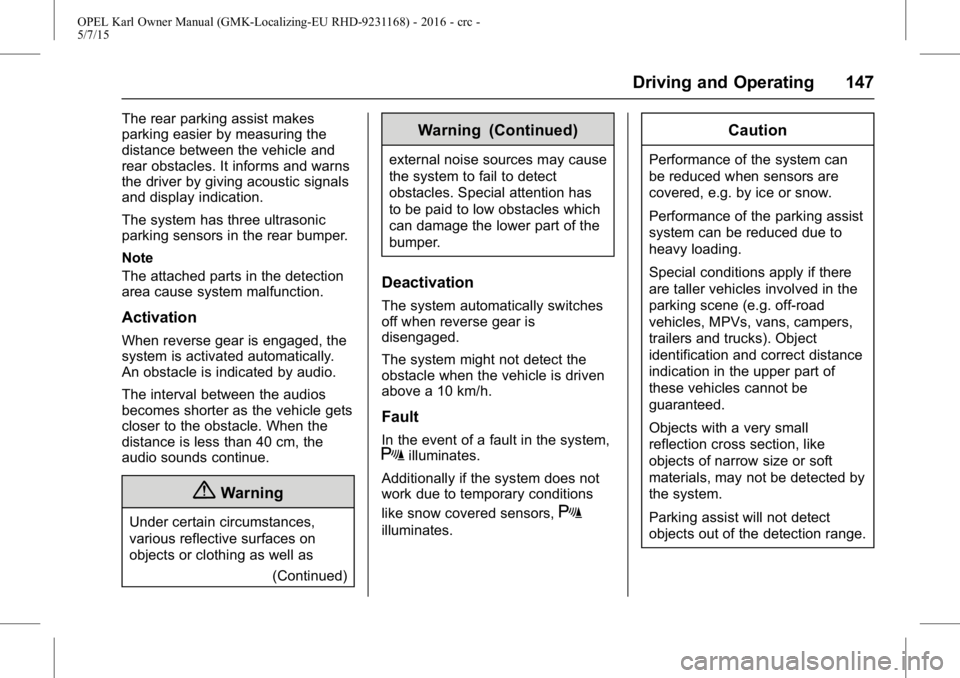

The rear parking assist makes
parking easier by measuring the
distance between the vehicle and
rear obstacles. It informs and warns
the driver by giving acoustic signals
and display indication.
The system has three ultrasonic
parking sensors in the rear bumper.
Note
The attached parts in the detection
area cause system malfunction.
Activation
When reverse gear is engaged, the
system is activated automatically.
An obstacle is indicated by audio.
The interval between the audios
becomes shorter as the vehicle gets
closer to the obstacle. When the
distance is less than 40 cm, the
audio sounds continue.
{Warning
Under certain circumstances,
various reflective surfaces on
objects or clothing as well as(Continued)
Warning (Continued)
external noise sources may cause
the system to fail to detect
obstacles. Special attention has
to be paid to low obstacles which
can damage the lower part of the
bumper.
Deactivation
The system automatically switches
off when reverse gear is
disengaged.
The system might not detect the
obstacle when the vehicle is driven
above a 10 km/h.
Fault
In the event of a fault in the system,Xilluminates.
Additionally if the system does not
work due to temporary conditions
like snow covered sensors,
X
illuminates.
Caution
Performance of the system can
be reduced when sensors are
covered, e.g. by ice or snow.
Performance of the parking assist
system can be reduced due to
heavy loading.
Special conditions apply if there
are taller vehicles involved in the
parking scene (e.g. off-road
vehicles, MPVs, vans, campers,
trailers and trucks). Object
identification and correct distance
indication in the upper part of
these vehicles cannot be
guaranteed.
Objects with a very small
reflection cross section, like
objects of narrow size or soft
materials, may not be detected by
the system.
Parking assist will not detect
objects out of the detection range.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 171

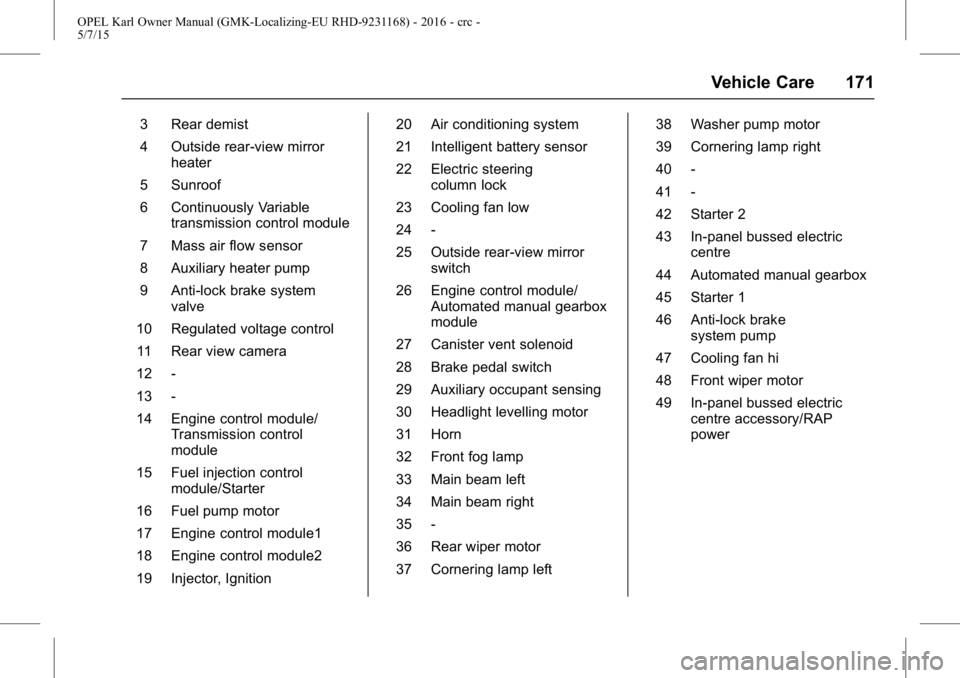

3 Rear demist
4 Outside rear-view mirrorheater
5 Sunroof
6 Continuously Variable transmission control module
7 Mass air flow sensor
8 Auxiliary heater pump
9 Anti-lock brake system valve
10 Regulated voltage control 11 Rear view camera
12 -
13 -
14 Engine control module/ Transmission control
module
15 Fuel injection control module/Starter
16 Fuel pump motor
17 Engine control module1
18 Engine control module2
19 Injector, Ignition 20 Air conditioning system
21 Intelligent battery sensor
22 Electric steering
column lock
23 Cooling fan low
24 -
25 Outside rear-view mirror switch
26 Engine control module/ Automated manual gearbox
module
27 Canister vent solenoid
28 Brake pedal switch
29 Auxiliary occupant sensing
30 Headlight levelling motor
31 Horn
32 Front fog lamp
33 Main beam left
34 Main beam right
35 -
36 Rear wiper motor
37 Cornering lamp left 38 Washer pump motor
39 Cornering lamp right
40 -
41 -
42 Starter 2
43 In-panel bussed electric
centre
44 Automated manual gearbox
45 Starter 1
46 Anti-lock brake system pump
47 Cooling fan hi
48 Front wiper motor
49 In-panel bussed electric centre accessory/RAP
power

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
176 Vehicle Care

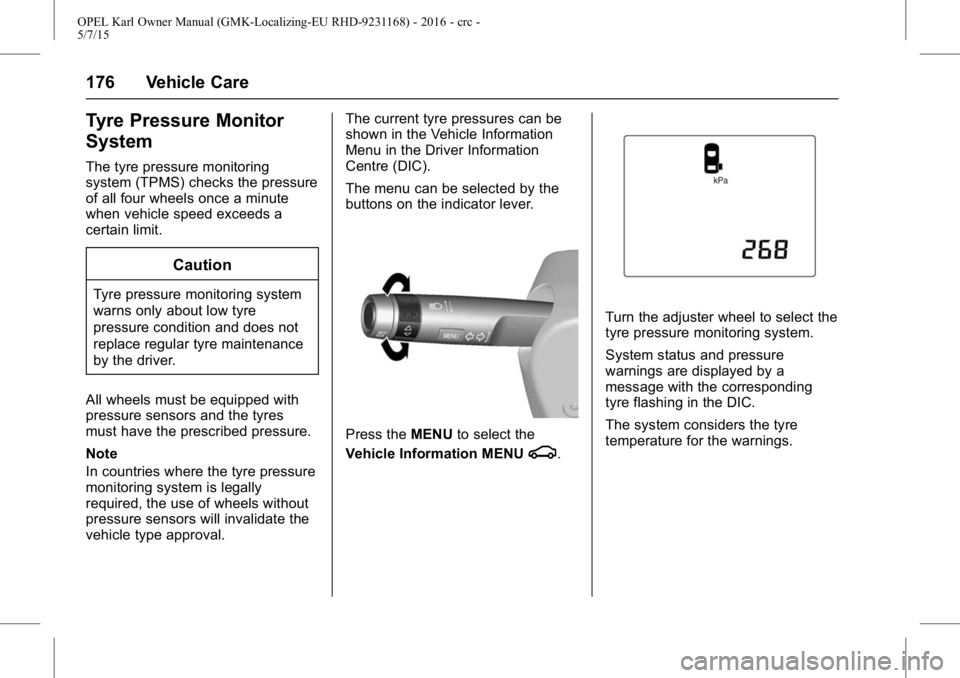

Tyre Pressure Monitor
System
The tyre pressure monitoring
system (TPMS) checks the pressure
of all four wheels once a minute
when vehicle speed exceeds a
certain limit.
Caution
Tyre pressure monitoring system
warns only about low tyre
pressure condition and does not
replace regular tyre maintenance
by the driver.
All wheels must be equipped with
pressure sensors and the tyres
must have the prescribed pressure.
Note
In countries where the tyre pressure
monitoring system is legally
required, the use of wheels without
pressure sensors will invalidate the
vehicle type approval. The current tyre pressures can be
shown in the Vehicle Information
Menu in the Driver Information
Centre (DIC).
The menu can be selected by the
buttons on the indicator lever.
Press the
MENUto select the
Vehicle Information MENU
g.
Turn the adjuster wheel to select the
tyre pressure monitoring system.
System status and pressure
warnings are displayed by a
message with the corresponding
tyre flashing in the DIC.
The system considers the tyre
temperature for the warnings.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 177

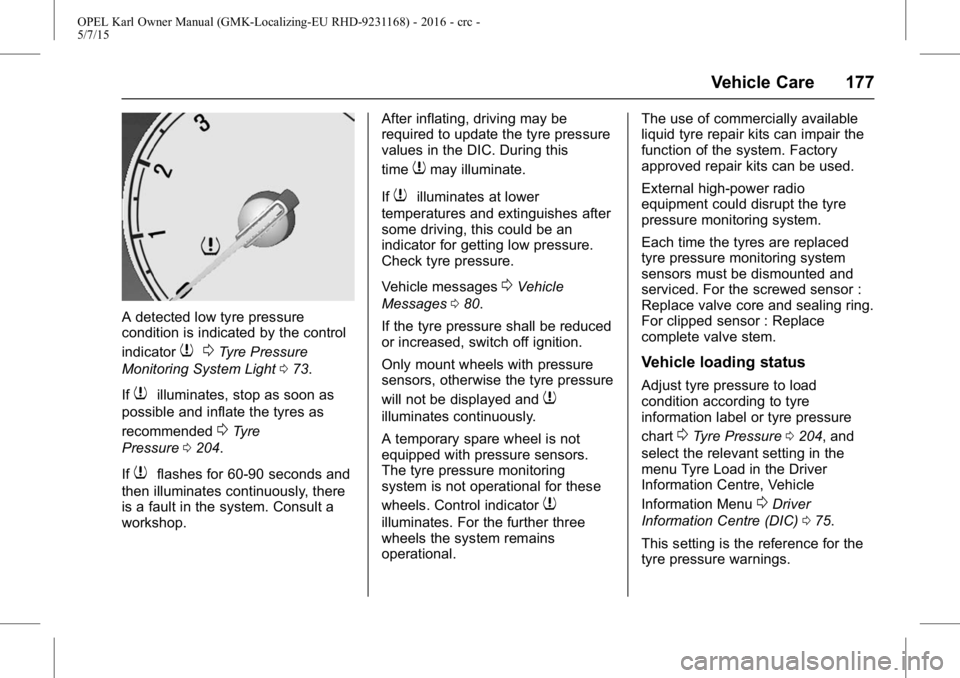

A detected low tyre pressure
condition is indicated by the control
indicator
70Tyre Pressure
Monitoring System Light 073.
If
7illuminates, stop as soon as
possible and inflate the tyres as
recommended
0Tyre
Pressure 0204.
If
7flashes for 60-90 seconds and
then illuminates continuously, there
is a fault in the system. Consult a
workshop. After inflating, driving may be
required to update the tyre pressure
values in the DIC. During this
time
7may illuminate.
If
7illuminates at lower
temperatures and extinguishes after
some driving, this could be an
indicator for getting low pressure.
Check tyre pressure.
Vehicle messages
0Vehicle
Messages 080.
If the tyre pressure shall be reduced
or increased, switch off ignition.
Only mount wheels with pressure
sensors, otherwise the tyre pressure
will not be displayed and
7
illuminates continuously.
A temporary spare wheel is not
equipped with pressure sensors.
The tyre pressure monitoring
system is not operational for these
wheels. Control indicator
7
illuminates. For the further three
wheels the system remains
operational. The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory
approved repair kits can be used.
External high-power radio
equipment could disrupt the tyre
pressure monitoring system.
Each time the tyres are replaced
tyre pressure monitoring system
sensors must be dismounted and
serviced. For the screwed sensor :
Replace valve core and sealing ring.
For clipped sensor : Replace
complete valve stem.
Vehicle loading status
Adjust tyre pressure to load
condition according to tyre
information label or tyre pressure
chart
0Tyre Pressure
0204, and
select the relevant setting in the
menu Tyre Load in the Driver
Information Centre, Vehicle
Information Menu
0Driver
Information Centre (DIC) 075.
This setting is the reference for the
tyre pressure warnings.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
178 Vehicle Care

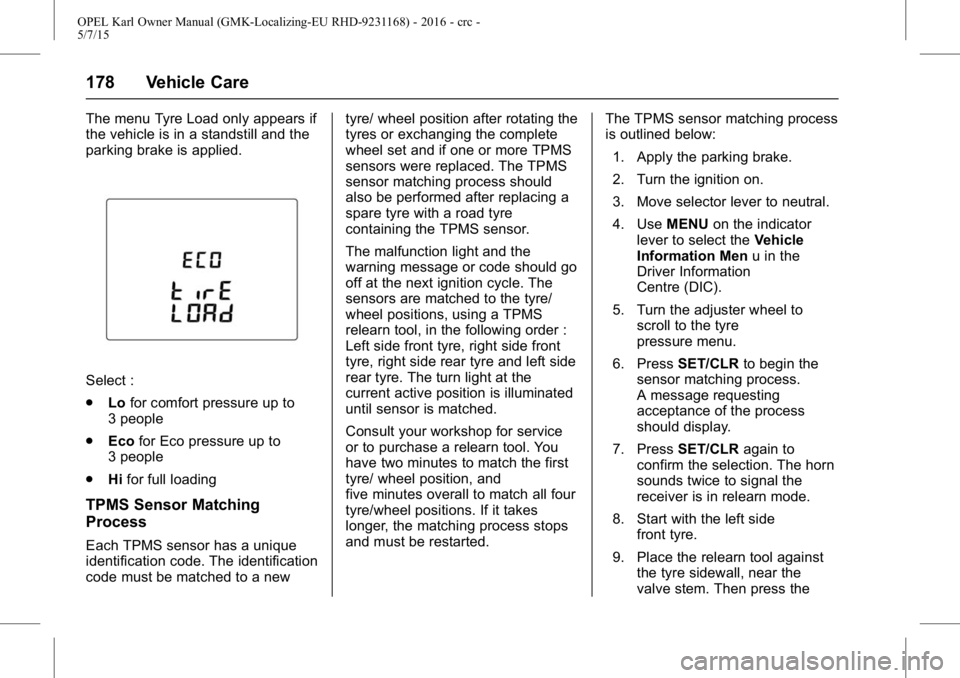

The menu Tyre Load only appears if
the vehicle is in a standstill and the
parking brake is applied.
Select :
.Lofor comfort pressure up to
3 people
. Eco for Eco pressure up to
3 people
. Hifor full loading
TPMS Sensor Matching
Process
Each TPMS sensor has a unique
identification code. The identification
code must be matched to a new tyre/ wheel position after rotating the
tyres or exchanging the complete
wheel set and if one or more TPMS
sensors were replaced. The TPMS
sensor matching process should
also be performed after replacing a
spare tyre with a road tyre
containing the TPMS sensor.
The malfunction light and the
warning message or code should go
off at the next ignition cycle. The
sensors are matched to the tyre/
wheel positions, using a TPMS
relearn tool, in the following order :
Left side front tyre, right side front
tyre, right side rear tyre and left side
rear tyre. The turn light at the
current active position is illuminated
until sensor is matched.
Consult your workshop for service
or to purchase a relearn tool. You
have two minutes to match the first
tyre/ wheel position, and
five minutes overall to match all four
tyre/wheel positions. If it takes
longer, the matching process stops
and must be restarted.
The TPMS sensor matching process
is outlined below:
1. Apply the parking brake.
2. Turn the ignition on.
3. Move selector lever to neutral.
4. Use MENUon the indicator
lever to select the Vehicle
Information Men u in the
Driver Information
Centre (DIC).
5. Turn the adjuster wheel to scroll to the tyre
pressure menu.
6. Press SET/CLR to begin the
sensor matching process.
A message requesting
acceptance of the process
should display.
7. Press SET/CLR again to
confirm the selection. The horn
sounds twice to signal the
receiver is in relearn mode.
8. Start with the left side front tyre.
9. Place the relearn tool against the tyre sidewall, near the
valve stem. Then press the

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 179
button to activate the TPMS
sensor. A horn chirp confirms
that the sensor identification
code has been matched to this
tyre and wheel position.
10. Proceed to the right side front tyre, and repeat the procedure
in Step 9.
11. Proceed to the right side rear tyre, and repeat the procedure
in Step 9.
12. Proceed to the left side rear tyre, and repeat the procedure
in Step 9. The horn sounds
twice to indicate the sensor
identification code has been
matched to the left side rear
tyre, and the TPMS sensor
matching process is no longer
active.
13. Turn off the ignition.
14. Set all four tyres to the recommended air pressure
level as indicated on the tyre
pressure label. 15. Ensure the tyre loading status
is set according selected
pressure
0Driver Information
Centre (DIC) 075.

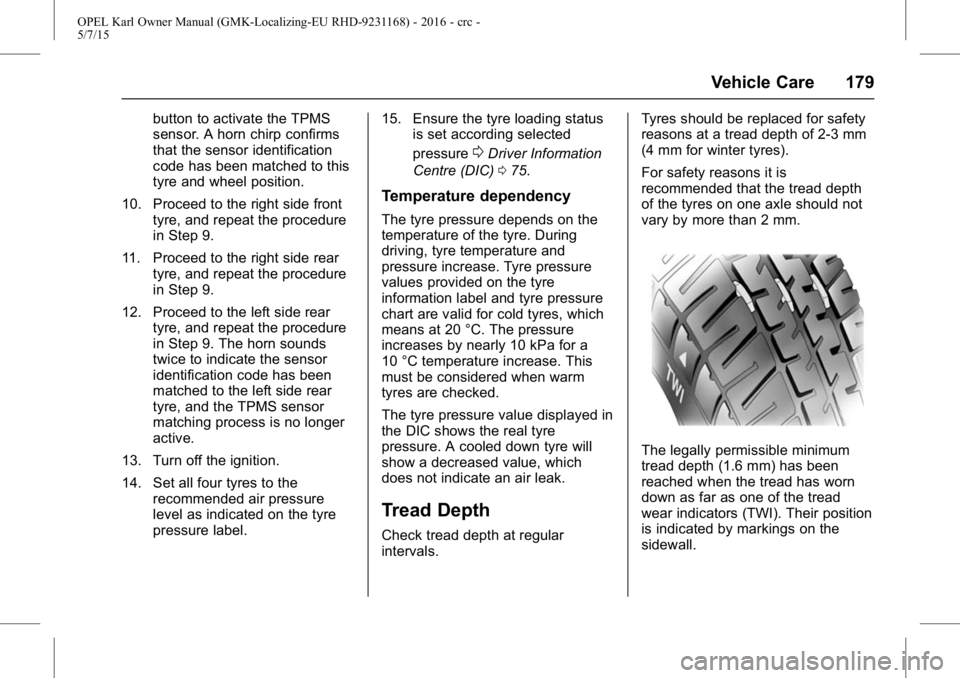

Temperature dependency
The tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase. Tyre pressure
values provided on the tyre
information label and tyre pressure
chart are valid for cold tyres, which
means at 20 °C. The pressure
increases by nearly 10 kPa for a
10 °C temperature increase. This
must be considered when warm
tyres are checked.
The tyre pressure value displayed in
the DIC shows the real tyre
pressure. A cooled down tyre will
show a decreased value, which
does not indicate an air leak.
Tread Depth
Check tread depth at regular
intervals. Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).
For safety reasons it is
recommended that the tread depth
of the tyres on one axle should not
vary by more than 2 mm.
The legally permissible minimum
tread depth (1.6 mm) has been
reached when the tread has worn
down as far as one of the tread
wear indicators (TWI). Their position
is indicated by markings on the
sidewall.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
212 Index
L
LampsCornering . . . . . . . . . . . . . . . . . . . . . . . 88
Daytime Running (DRL) . . . . . . . . 86
Exterior Controls . . . . . . . . . . . . . . . . 85
Front Fog . . . . . . . . . . . . . . . . . . . . . . . 87
Front Indicator . . . . . . . . . . . . . . . . 165
Headlamps and ParkingLamps . . . . . . . . . . . . . . . . . . . . . . 163
Interior . . . . . . . . . . . . . . . . . . . . .89, 168
Malfunction Indicator . . . . . . . . . . . 70
Misted Covers . . . . . . . . . . . . . . . . . . 89
Number Plate . . . . . . . . . . . . . . . . . 168
Rear Fog . . . . . . . . . . . . . . . . . . . . . . . 88
Reversing . . . . . . . . . . . . . . . . . . . . . . 89
Side Indicator . . . . . . . . . . . . . . . . . 167
Taillights . . . . . . . . . . . . . . . . . . . . . . 165
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 150
Lane Departure Warning Light . . . 72
Light Electronic Stability Control(ESC), Off . . . . . . . . . . . . . . . . . . . . . 72
Gear Shifting . . . . . . . . . . . . . . . . . . . 71
Traction Control
System (TCS) . . . . . . . . . . . . . . . . . 72
Variable Effort Steering . . . . . . . . . 71
Light, Auto Stop Mode . . . . . . . . . . . 74 Lighting
Centre Console . . . . . . . . . . . . . . . . . 90
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Illumination Control . . . . . . . . . . . . . 89
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 Airbag and Safety Belt
Tensioner . . . . . . . . . . . . . . . . . . . . . 70
Airbag On-Off . . . . . . . . . . . . . . . . . . . 70
Antilock Brake System (ABS) Warning . . . . . . . . . . . . . . . . 71
Bonnet Ajar . . . . . . . . . . . . . . . . . . . . . 74
Brake and Clutch System . . . . . . . 71
Charging System . . . . . . . . . . . . . . . 70
Cruise Control . . . . . . . . . . . . . . . . . . 74
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . 74
Engine Coolant Temperature Warning . . . . . . . . . . . . . . . . . . . . . . . 72
Engine Oil Pressure . . . . . . . . . . . . 73
Fog Lamp, Rear . . . . . . . . . . . . . . . . 74
Front Fog Lamp . . . . . . . . . . . . . . . . 74
Immobiliser . . . . . . . . . . . . . . . . . . . . . 74
Lane Departure Warning . . . . . . . . 72
Low Fuel Warning . . . . . . . . . . . . . . 73
Main-Beam On . . . . . . . . . . . . . . . . . 74
Main/Dipped Beam Changer . . . . 86
Reduced Engine Power . . . . . . . . 74
Seat Belt Reminders . . . . . . . . . . . . 69 Lights (cont'd)
Service Vehicle Soon . . . . . . . . . . . 71
Tail lamp Indicator . . . . . . . . . . . . . . 74
Tyre Pressure Monitoring
System . . . . . . . . . . . . . . . . . . . . . . . . 73
Ultrasonic Parking Sensor . . . . . . 72
Lights, Hazard . . . . . . . . . . . . . . . . . . . 87
Load Compartment . . . . . . . . . . . . . . 53
LoadCompartment . . . . . . . . . . . . . . . 25
Loading the Vehicle . . . . . . . . . . . . . . 57
Locks Central Locking System . . . . . . . . 22
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Low Fuel Warning Light . . . . . . . . . . 73
M
Main-Beam On Light . . . . . . . . . . . . . 74
Maintenance Air Conditioning Regular
Operation . . . . . . . . . . . . . . . . . . . 132
Maintenance Schedule Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 195
Malfunction Indicator Lamp . . . . . . 70
Manual Gearbox . . . . . . . . . . . . . . . . 141
Manual Windows . . . . . . . . . . . . . . . . 29
Memorised Settings . . . . . . . . . . . . . 22
Messages
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 80

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Index 213
Mileometer . . . . . . . . . . . . . . . . . . . . . . 64Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Mirrors Convex . . . . . . . . . . . . . . . . . . . . . . . . . 27
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 28
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 28
Manual Rearview . . . . . . . . . . . . . . . 28
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Misted Lamp Covers . . . . . . . . . . . . . 89
Monitor System, Tyre Pressure . . . . . . . . . . . . . . . . . . . . . . 176
N
Net, Convenience . . . . . . . . . . . . . . . 56
New Vehicle Run-In . . . . . . . . . . . . 135
O
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . 158
Pressure Light . . . . . . . . . . . . . . . . . . 73
Operation, Infotainment System . . . . . . . . . . . . . . . . . . . . . . . . . 99
Other Service Items Air Conditioning System . . . . . . 126
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Outside Temperature . . . . . . . . . . . . 63
Overview, Infotainment
System . . . . . . . . . . . . . . . . . . . . . . . . . 93
P
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 139Brake . . . . . . . . . . . . . . . . . . . . . . . . . 142
Ultrasonic Sensor Light . . . . . . . . . 72
Parking Assist . . . . . . . . . . . . . . . . . . 146
Pass, Car . . . . . . . . . . . . . . . . . . . . . . . . 21
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Performance . . . . . . . . . . . . . . . . . . . . 202
Personalisation Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 82
Phone Bluetooth . . . . . . . . . . . . . . . . . . . . . .116
Power
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . 63
Protection, Battery . . . . . . . . . . . . . . 91
Reduced Engine Light . . . . . . . . . . 74
Retained Accessory (RAP) . . . 137
Windows . . . . . . . . . . . . . . . . . . . . . . . 29
Pressure Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Privacy Radio Frequency
Identification (RFID) . . . . . . . . . 206
R
RadioPersonalisation . . . . . . . . . . . . . . . .115
Radio Data System (RDS) . . . . . . 106
Radio Frequency Identification (RFID) . . . . . . . . . . 206
Radio Remote Control . . . . . . . . . . . 21
Radios AM-FM Radio . . . . . . . . . . . . . . . . . 102
Rear Compartment/Storage
Panel Cover . . . . . . . . . . . . . . . . . . . . 56
Rear Fog Lamp Light . . . . . . . . . . . . 74
Rear Fog Lamps . . . . . . . . . . . . . . . . . 88
Rear Window Washer/Wiper . . . . . 62
Rear Windows Heated . . . . . . . . . . . . . . . . . . . . . . . . . 30
Rearview Mirrors . . . . . . . . . . . . . . . . 28
Recommended Fluids and Lubricants . . . . . . . . . . . . . . . . . . . . . 195
Reduced Engine Power Light . . . . 74
Remote Control Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Repair Kit Tyre . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Retained Accessory Power (RAP) . . . . . . . . . . . . . . . . . . 137
Rev Counter . . . . . . . . . . . . . . . . . . . . . 65
Reversing Lamps . . . . . . . . . . . . . . . . 89

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Index 215
TowingVehicle . . . . . . . . . . . . . . . . . . . . . . . 190
Traction Control System (TCS) . . . . . . . . 143
Traction Control System (TCS) Off Light . . . . . . . . . . . . . . . . . 72
Tread Depth . . . . . . . . . . . . . . . . . . . . 179
Triangle, Warning . . . . . . . . . . . . . . . . 56
Trip Odometer . . . . . . . . . . . . . . . . . . . 64
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . . 87
Tyre Pressure . . . . . . . . . . . . . . . . . . 204
Tyre Pressure Monitoring System Light . . . . . . . . . . . . . . . . . . . 73
Tyre Repair Kit . . . . . . . . . . . . . . . . . 180
Tyres Chains . . . . . . . . . . . . . . . . . . . . . . . . 180
Changing . . . . . . . . . . . . . . . . . . . . . 184
Compact Spare . . . . . . . . . . . . . . . 186
Designations . . . . . . . . . . . . . . . . . 174
Pressure Monitor System . . . . . 176
Winter . . . . . . . . . . . . . . . . . . . . . . . . 174
Tyres and Wheels . . . . . . . . . . . . . . 174U
Ultrasonic Parking Sensor Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Using This Manual . . . . . . . . . . . . . . . . 3
V
Variable Effort Steering Light . . . . 71
Vehicle Control . . . . . . . . . . . . . . . . . . . . . . . 134
Identification Number (VIN) . . . 200
Messages . . . . . . . . . . . . . . . . . . . . . . 80
Personalisation . . . . . . . . . . . . . . . . . 82
Service Soon Light . . . . . . . . . . . . . 71
Towing . . . . . . . . . . . . . . . . . . . . . . . . 190
Vehicle Care
Tyre Pressure . . . . . . . . . . . . . . . . 175
Vehicle Dimensions . . . . . . . . . . . . . 203
Vehicle Identification Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Vehicle Recovery
End-of-Life . . . . . . . . . . . . . . . . . . . . 157
Vehicle Storage . . . . . . . . . . . . . . . . . 156
Vehicle Weight . . . . . . . . . . . . . . . . . 203
Ventilation Adjustable Air . . . . . . . . . . . . . . . . 131
Fixed Air Vents . . . . . . . . . . . . . . . 132
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
W
Warning Caution and Danger . . . . . . . . . . . . . 4
Lane Departure (LDW) . . . . . . . 150
Warning Buzzers . . . . . . . . . . . . . . . . 81
Warning Triangle . . . . . . . . . . . . . . . . 56
Warnings
Hazard Lights . . . . . . . . . . . . . . . . . . . 87
Washer Fluid . . . . . . . . . . . . . . . . . . . 160
Weights Vehicle . . . . . . . . . . . . . . . . . . . . . . . 203
Wheel Covers . . . . . . . . . . . . . . . . . . 180
Wheels and Tyres . . . . . . . . . . . . . . 174
Windows Heated, Rear . . . . . . . . . . . . . . . . . . . 30
Manual . . . . . . . . . . . . . . . . . . . . . . . . . 29
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Windscreen Wiper/Washer . . . . . . . . . . . . . . . . . . 61
Winter Tyres . . . . . . . . . . . . . . . . . . . . 174
Wiper Blade Replacement . . . . . . 162
Wipers Rear Washer . . . . . . . . . . . . . . . . . . . 62
