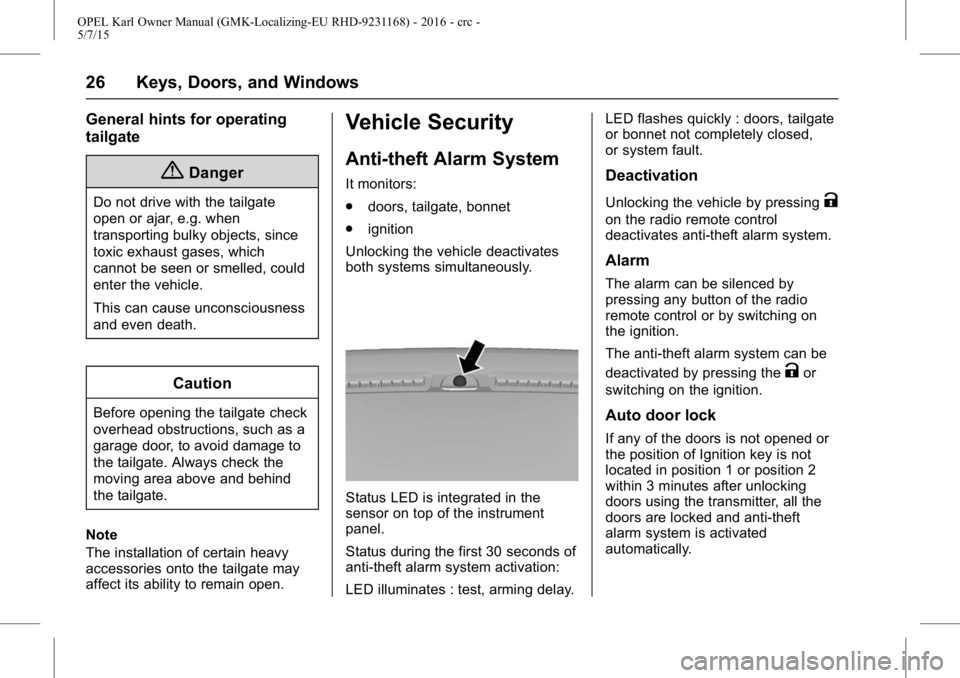

26 Keys, Doors, and Windows
General hints for operating
tailgate
{Danger
Do not drive with the tailgate
open or ajar, e.g. when
transporting bulky objects, since
toxic exhaust gases, which
cannot be seen or smelled, could
enter the vehicle.
This can cause unconsciousness
and even death.
Caution
Before opening the tailgate check
overhead obstructions, such as a
garage door, to avoid damage to
the tailgate. Always check the
moving area above and behind
the tailgate.
Note
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.
Vehicle Security
Anti-theft Alarm System
It monitors:
. doors, tailgate, bonnet
. ignition
Unlocking the vehicle deactivates
both systems simultaneously.
Status LED is integrated in the
sensor on top of the instrument
panel.
Status during the first 30 seconds of
anti-theft alarm system activation:
LED illuminates : test, arming delay. LED flashes quickly : doors, tailgate
or bonnet not completely closed,
or system fault.
Deactivation
Unlocking the vehicle by pressingK
on the radio remote control
deactivates anti-theft alarm system.
Alarm
The alarm can be silenced by
pressing any button of the radio
remote control or by switching on
the ignition.
The anti-theft alarm system can be
deactivated by pressing the
Kor
switching on the ignition.
Auto door lock
If any of the doors is not opened or
the position of Ignition key is not
located in position 1 or position 2
within 3 minutes after unlocking
doors using the transmitter, all the
doors are locked and anti-theft
alarm system is activated
automatically.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

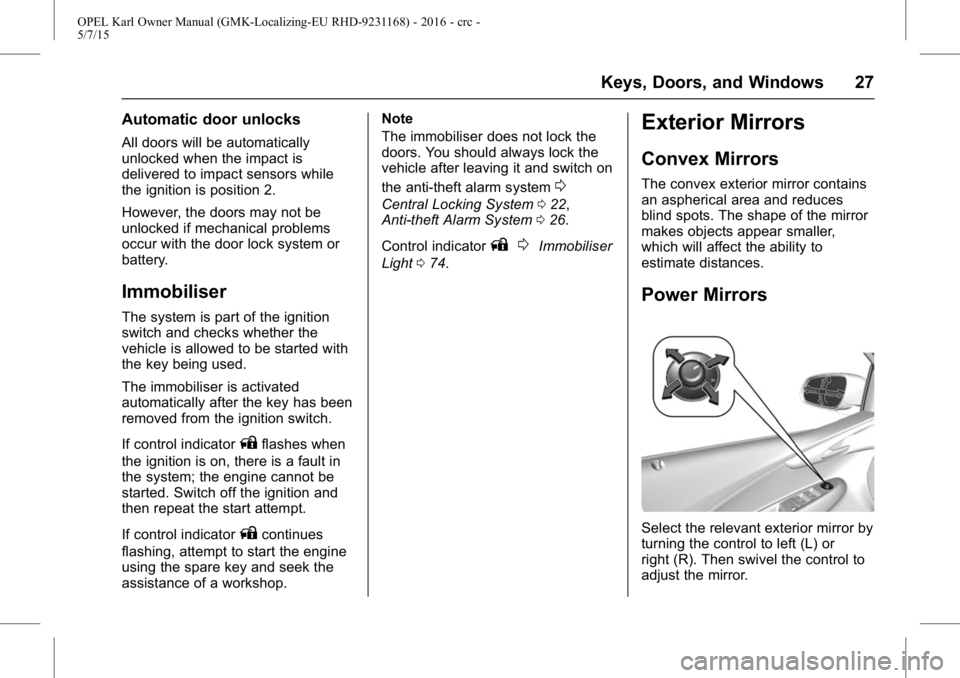

Keys, Doors, and Windows 27
Automatic door unlocks
All doors will be automatically
unlocked when the impact is
delivered to impact sensors while
the ignition is position 2.
However, the doors may not be
unlocked if mechanical problems
occur with the door lock system or
battery.
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been
removed from the ignition switch.
If control indicator
Aflashes when
the ignition is on, there is a fault in
the system; the engine cannot be
started. Switch off the ignition and
then repeat the start attempt.
If control indicator
Acontinues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop. Note
The immobiliser does not lock the
doors. You should always lock the
vehicle after leaving it and switch on
the anti-theft alarm system
0
Central Locking System
022,
Anti-theft Alarm System 026.
Control indicator
A 0Immobiliser
Light 074.
Exterior Mirrors
Convex Mirrors
The convex exterior mirror contains
an aspherical area and reduces
blind spots. The shape of the mirror
makes objects appear smaller,
which will affect the ability to
estimate distances.
Power Mirrors
Select the relevant exterior mirror by
turning the control to left (L) or
right (R). Then swivel the control to
adjust the mirror.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

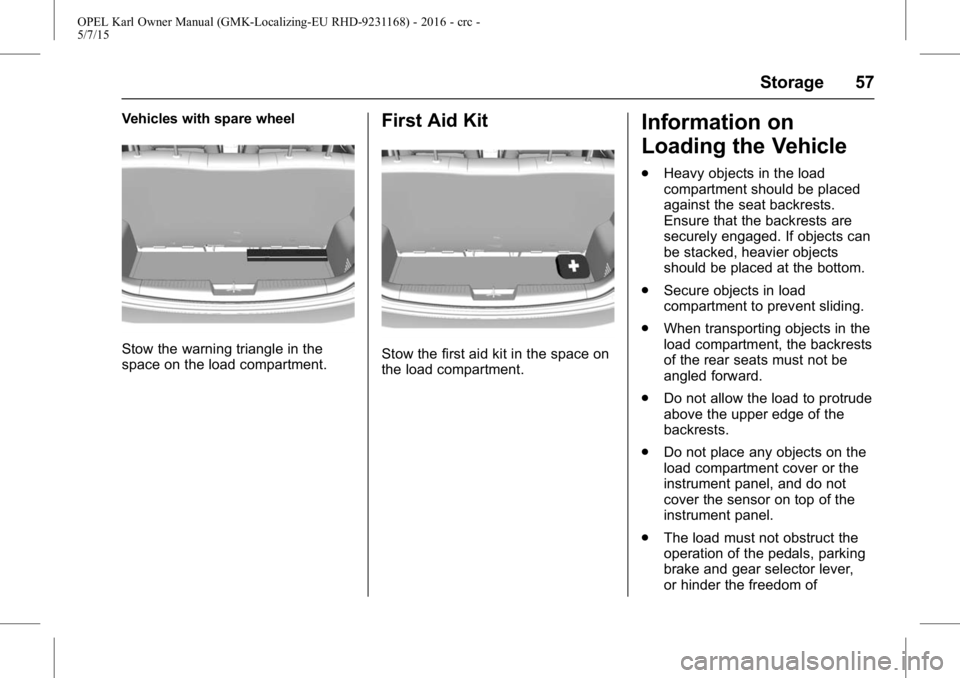

Storage 57
Vehicles with spare wheel
Stow the warning triangle in the
space on the load compartment.
First Aid Kit
Stow the first aid kit in the space on
the load compartment.
Information on
Loading the Vehicle
.Heavy objects in the load
compartment should be placed
against the seat backrests.
Ensure that the backrests are
securely engaged. If objects can
be stacked, heavier objects
should be placed at the bottom.
. Secure objects in load
compartment to prevent sliding.
. When transporting objects in the
load compartment, the backrests
of the rear seats must not be
angled forward.
. Do not allow the load to protrude
above the upper edge of the
backrests.
. Do not place any objects on the
load compartment cover or the
instrument panel, and do not
cover the sensor on top of the
instrument panel.
. The load must not obstruct the
operation of the pedals, parking
brake and gear selector lever,
or hinder the freedom of

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Instruments and Controls 59
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . 60
Steering Wheel Controls . . . . . . . 60
Heated Steering Wheel . . . . . . . . 60
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Windscreen Wiper/Washer . . . . . 61
Rear Window Wiper/Washer . . . 62
Outside Temperature . . . . . . . . . . 63
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Power Sockets . . . . . . . . . . . . . . . . 63
Warning Lights, Gauges, and
Indicators
Speedometer . . . . . . . . . . . . . . . . . . 64
Mileometer . . . . . . . . . . . . . . . . . . . . . 64
Trip Odometer . . . . . . . . . . . . . . . . . 64
Rev Counter . . . . . . . . . . . . . . . . . . . 65
Fuel Gauge . . . . . . . . . . . . . . . . . . . . 65
Control Indicators . . . . . . . . . . . . . . 65
Engine Coolant TemperatureGauge . . . . . . . . . . . . . . . . . . . . . . . . 68
Service Display . . . . . . . . . . . . . . . . 68
Indicator . . . . . . . . . . . . . . . . . . . . . . . 69
Seat Belt Reminders . . . . . . . . . . . 69
Airbag and Safety Belt Tensioner Light . . . . . . . . . . . . . . . 70 Airbag On-Off Light . . . . . . . . . . . . 70
Charging System Light . . . . . . . . . 70
Malfunction Indicator Lamp . . . . 70
Service Vehicle Soon Light . . . . 71
Brake and Clutch System
Warning Light . . . . . . . . . . . . . . . . 71
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . 71
Gear Shifting Light . . . . . . . . . . . . . 71
Variable Effort Steering Light . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lane Departure Warning (LDW) Light . . . . . . . . . . . . . . . . . . . . . . . . . 72
Ultrasonic Parking Sensor Light . . . . . . . . . . . . . . . . . . . . . . . . . 72
Electronic Stability Control (ESC) Indicator Light . . . . . . . . . 72
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . 72
Traction Control System (TCS) Off Light . . . . . . . . . . . . . . . . . . . . . . 72
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . 72
Tyre Pressure Monitoring System Light . . . . . . . . . . . . . . . . . 73
Engine Oil Pressure Light . . . . . . 73
Low Fuel Warning Light . . . . . . . . 73
Auto Stop Mode . . . . . . . . . . . . . . . 74
Immobiliser Light . . . . . . . . . . . . . . 74
Reduced Engine Power Light . . . . . . . . . . . . . . . . . . . . . . . . . 74 Main-Beam On Light . . . . . . . . . . . 74
Front Fog Lamp Light . . . . . . . . . . 74
Rear Fog Lamp Light . . . . . . . . . . 74
Tail lamp Indicator Light . . . . . . . . 74
Cruise Control Light . . . . . . . . . . . 74
Bonnet Ajar Light . . . . . . . . . . . . . . 74
Door Ajar Light . . . . . . . . . . . . . . . . 74
Information Displays
Driver Information
Centre (DIC) . . . . . . . . . . . . . . . . . 75
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . 80
Warning Buzzers . . . . . . . . . . . . . . 81
Vehicle Personalisation
Vehicle Personalisation . . . . . . . . 82

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

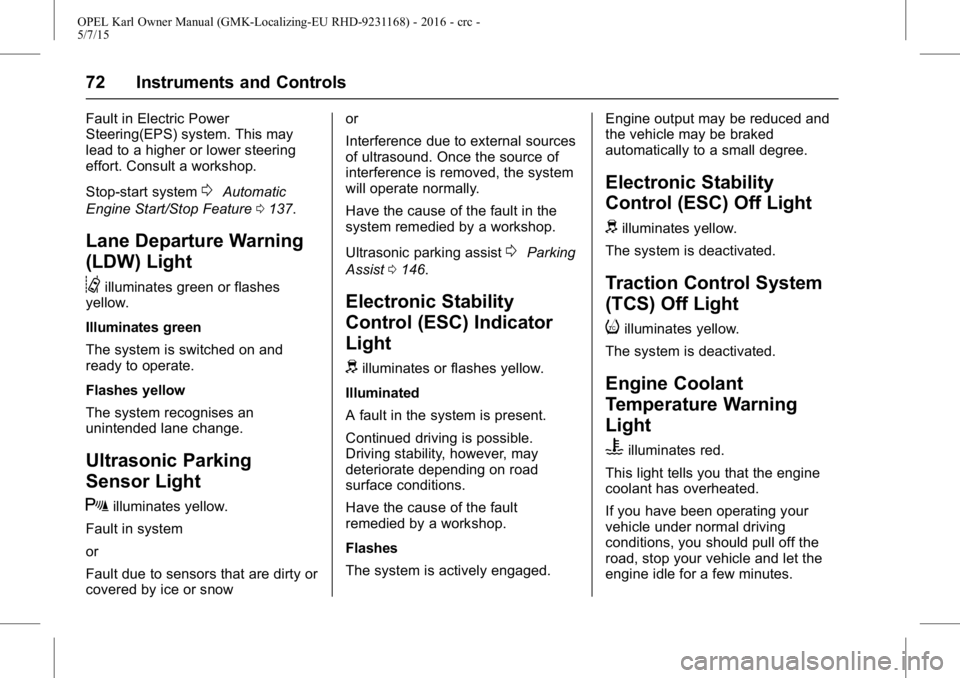

72 Instruments and Controls
Fault in Electric Power
Steering(EPS) system. This may
lead to a higher or lower steering
effort. Consult a workshop.
Stop-start system
0Automatic
Engine Start/Stop Feature 0137.
Lane Departure Warning
(LDW) Light
@
illuminates green or flashes
yellow.
Illuminates green
The system is switched on and
ready to operate.
Flashes yellow
The system recognises an
unintended lane change.
Ultrasonic Parking
Sensor Light
X
illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or
covered by ice or snow or
Interference due to external sources
of ultrasound. Once the source of
interference is removed, the system
will operate normally.
Have the cause of the fault in the
system remedied by a workshop.
Ultrasonic parking assist
0Parking
Assist 0146.
Electronic Stability
Control (ESC) Indicator
Light
d
illuminates or flashes yellow.
Illuminated
A fault in the system is present.
Continued driving is possible.
Driving stability, however, may
deteriorate depending on road
surface conditions.
Have the cause of the fault
remedied by a workshop.
Flashes
The system is actively engaged. Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.
Electronic Stability
Control (ESC) Off Light
d
illuminates yellow.
The system is deactivated.
Traction Control System
(TCS) Off Light
i
illuminates yellow.
The system is deactivated.
Engine Coolant
Temperature Warning
Light
C
illuminates red.
This light tells you that the engine
coolant has overheated.
If you have been operating your
vehicle under normal driving
conditions, you should pull off the
road, stop your vehicle and let the
engine idle for a few minutes.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

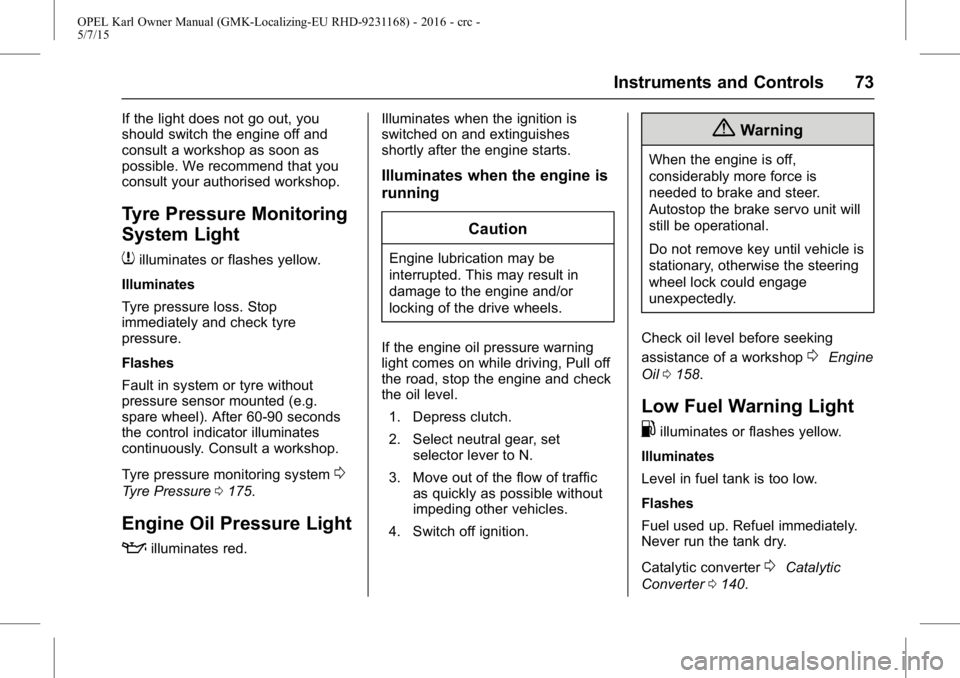

Instruments and Controls 73
If the light does not go out, you
should switch the engine off and
consult a workshop as soon as
possible. We recommend that you
consult your authorised workshop.
Tyre Pressure Monitoring
System Light
7
illuminates or flashes yellow.
Illuminates
Tyre pressure loss. Stop
immediately and check tyre
pressure.
Flashes
Fault in system or tyre without
pressure sensor mounted (e.g.
spare wheel). After 60-90 seconds
the control indicator illuminates
continuously. Consult a workshop.
Tyre pressure monitoring system
0
Tyre Pressure 0175.
Engine Oil Pressure Light
:
illuminates red. Illuminates when the ignition is
switched on and extinguishes
shortly after the engine starts.
Illuminates when the engine is
running
Caution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
If the engine oil pressure warning
light comes on while driving, Pull off
the road, stop the engine and check
the oil level. 1. Depress clutch.
2. Select neutral gear, set selector lever to N.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off ignition.
{Warning
When the engine is off,
considerably more force is
needed to brake and steer.
Autostop the brake servo unit will
still be operational.
Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.
Check oil level before seeking
assistance of a workshop
0Engine
Oil 0158.
Low Fuel Warning Light
.
illuminates or flashes yellow.
Illuminates
Level in fuel tank is too low.
Flashes
Fuel used up. Refuel immediately.
Never run the tank dry.
Catalytic converter
0Catalytic
Converter 0140.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Instruments and Controls 79

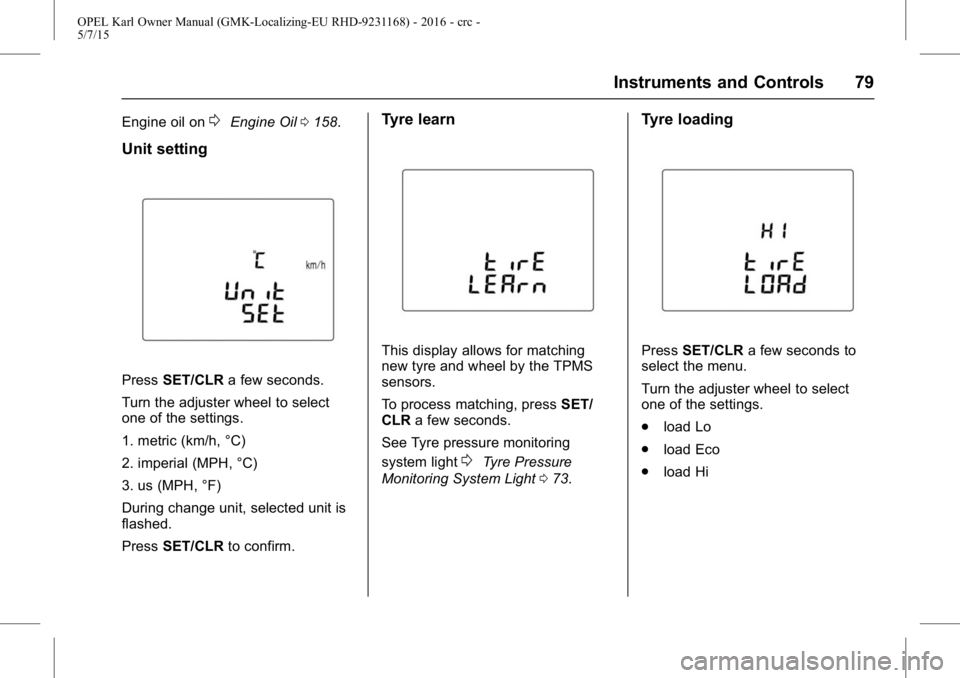

Engine oil on0Engine Oil0158.
Unit setting
Press SET/CLR a few seconds.
Turn the adjuster wheel to select
one of the settings.
1. metric (km/h, °C)
2. imperial (MPH, °C)
3. us (MPH, °F)
During change unit, selected unit is
flashed.
Press SET/CLR to confirm.
Tyre learn
This display allows for matching
new tyre and wheel by the TPMS
sensors.
To process matching, press SET/
CLR a few seconds.
See Tyre pressure monitoring
system light
0Tyre Pressure
Monitoring System Light 073.
Tyre loading
Press SET/CLR a few seconds to
select the menu.
Turn the adjuster wheel to select
one of the settings.
. load Lo
. load Eco
. load Hi

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Instruments and Controls 83
To select the Settings menu,
pressMENU.
To close or back to previous,
press BACK.
Select the "Vehicle settings".
Vehicle Settings
. Park assist / Collision detection
Park assist: Activate or
deactivate the ultrasonic
sensors.
. Comfort settings
Chime volume: Change the
volume of warning chime.
Personalisation by driver:
Activate or deactivate the
personalisation.
Rear auto wipe in reverse:
Activate or deactivate the rear
wipe in reverse gear.
. Language
Select the Language menu item.
Scroll through the list and select
the desired language. .
Exterior ambient lighting
Exterior lighting by unlocking:
Activate or deactivate the entry
lighting.
Duration upon exit of vehicle:
Activate or deactivate of exit
lighting and change the lighting
duration.
. Stop door lock if door open:
Activate or deactivate the
driver's door lock when the door
is open.
If deactivated is selected, the
Delayed door lock menu is
available.
Delayed door lock: Activate or
deactivate the delayed
door lock.
When pressing the central
locking button, three chimes are
sounds to signal delayed locking
is in use. This function will delay
the locking of the doors until
five seconds after the last door
is closed. .
Remote locking, unlocking,
starting
Remote unlock feedback:
Activate or deactivate the light
feedback while unlocking.
Remote door unlock: Change
the configuration to unlock only
the driver's door or the all doors
while unlocking.
Auto relock doors: Activate or
deactivate the door automatically
locking when door is not opened
after unlocking.
. Restore factory settings
All settings are restored to initial
settings.
. Valet mode
if valet mode is activated, all
vehicle displays are locked and
no changes may be performed
within the system.
Note
Vehicle-related messages remain
enabled. Locking the system: Press
MENU and then select the
SETTINGS Menu.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Lighting 89

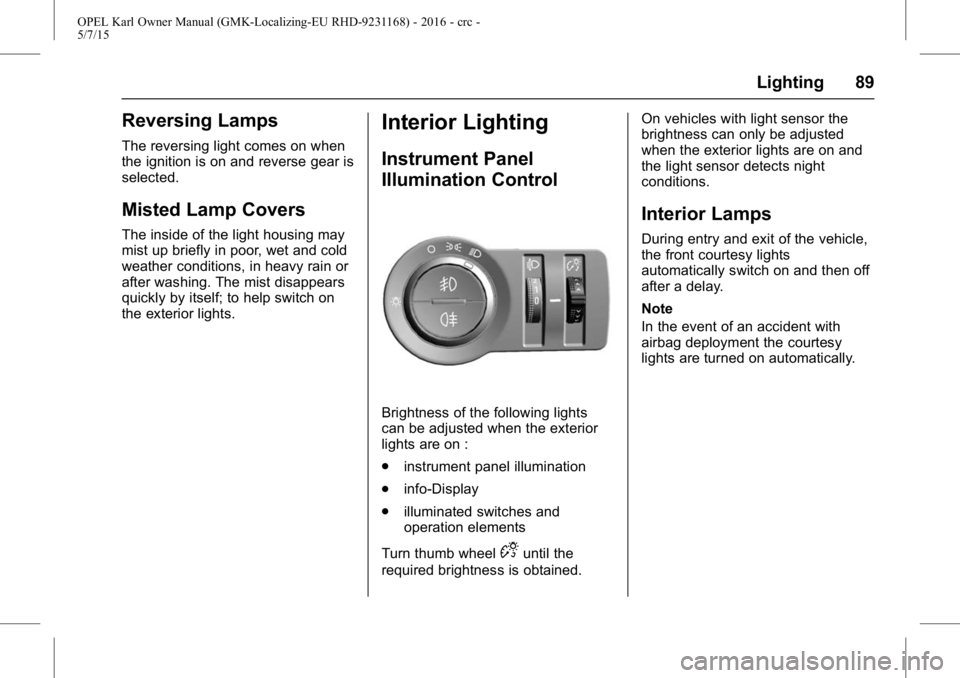

Reversing Lamps
The reversing light comes on when
the ignition is on and reverse gear is
selected.
Misted Lamp Covers
The inside of the light housing may
mist up briefly in poor, wet and cold
weather conditions, in heavy rain or
after washing. The mist disappears
quickly by itself; to help switch on
the exterior lights.
Interior Lighting
Instrument Panel
Illumination Control
Brightness of the following lights
can be adjusted when the exterior
lights are on :
.instrument panel illumination
. info-Display
. illuminated switches and
operation elements
Turn thumb wheel
Duntil the
required brightness is obtained. On vehicles with light sensor the
brightness can only be adjusted
when the exterior lights are on and
the light sensor detects night
conditions.
Interior Lamps
During entry and exit of the vehicle,
the front courtesy lights
automatically switch on and then off
after a delay.
Note
In the event of an accident with
airbag deployment the courtesy
lights are turned on automatically.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

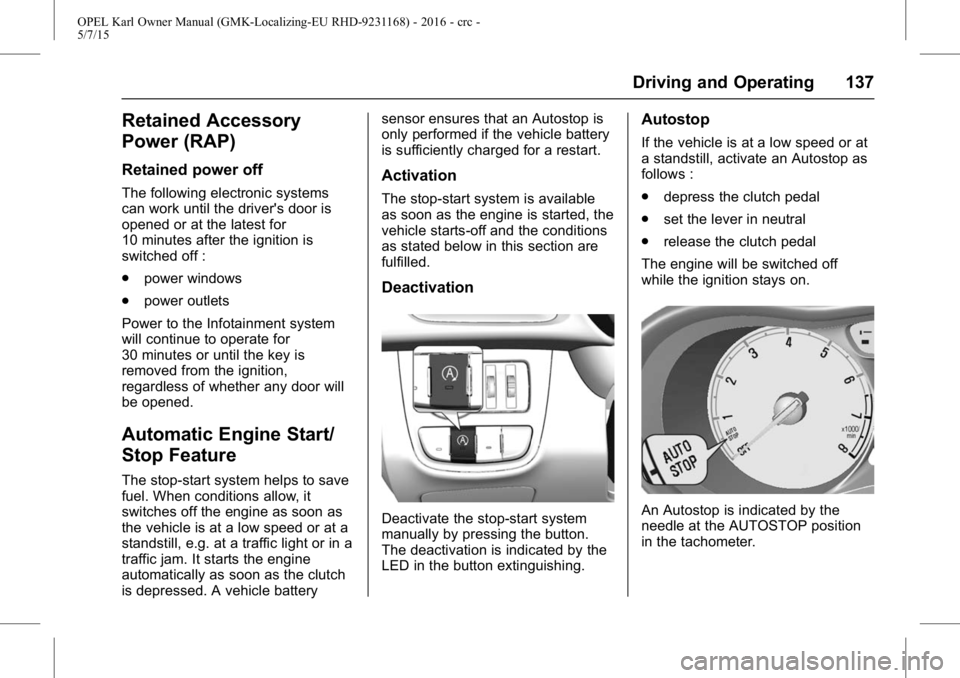

Driving and Operating 137
Retained Accessory
Power (RAP)
Retained power off
The following electronic systems
can work until the driver's door is
opened or at the latest for
10 minutes after the ignition is
switched off :
.power windows
. power outlets
Power to the Infotainment system
will continue to operate for
30 minutes or until the key is
removed from the ignition,
regardless of whether any door will
be opened.
Automatic Engine Start/
Stop Feature
The stop-start system helps to save
fuel. When conditions allow, it
switches off the engine as soon as
the vehicle is at a low speed or at a
standstill, e.g. at a traffic light or in a
traffic jam. It starts the engine
automatically as soon as the clutch
is depressed. A vehicle battery sensor ensures that an Autostop is
only performed if the vehicle battery
is sufficiently charged for a restart.
Activation
The stop-start system is available
as soon as the engine is started, the
vehicle starts-off and the conditions
as stated below in this section are
fulfilled.
Deactivation
Deactivate the stop-start system
manually by pressing the button.
The deactivation is indicated by the
LED in the button extinguishing.
Autostop
If the vehicle is at a low speed or at
a standstill, activate an Autostop as
follows :
.
depress the clutch pedal
. set the lever in neutral
. release the clutch pedal
The engine will be switched off
while the ignition stays on.
An Autostop is indicated by the
needle at the AUTOSTOP position
in the tachometer.
