190 Vehicle Care

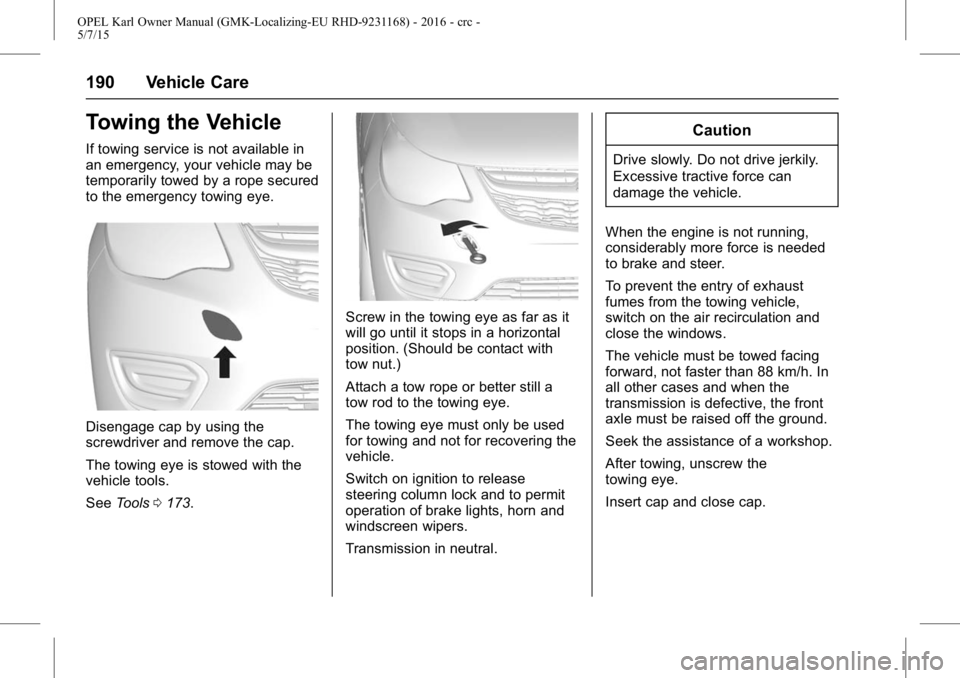

Towing the Vehicle
If towing service is not available in
an emergency, your vehicle may be
temporarily towed by a rope secured
to the emergency towing eye.
Disengage cap by using the
screwdriver and remove the cap.
The towing eye is stowed with the
vehicle tools.
SeeTools 0173.
Screw in the towing eye as far as it
will go until it stops in a horizontal
position. (Should be contact with
tow nut.)
Attach a tow rope or better still a
tow rod to the towing eye.
The towing eye must only be used
for towing and not for recovering the
vehicle.
Switch on ignition to release
steering column lock and to permit
operation of brake lights, horn and
windscreen wipers.
Transmission in neutral.
Caution
Drive slowly. Do not drive jerkily.
Excessive tractive force can
damage the vehicle.
When the engine is not running,
considerably more force is needed
to brake and steer.
To prevent the entry of exhaust
fumes from the towing vehicle,
switch on the air recirculation and
close the windows.
The vehicle must be towed facing
forward, not faster than 88 km/h. In
all other cases and when the
transmission is defective, the front
axle must be raised off the ground.
Seek the assistance of a workshop.
After towing, unscrew the
towing eye.
Insert cap and close cap.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 191
Appearance Care
Exterior Care
Locks
The locks are lubricated at the
factory using a high quality lock
cylinder grease. Use de-icing agent
only when absolutely necessary, as
this has a degreasing effect and
impairs lock function. After using
de-icing agent, have the locks
re-greased by a workshop.
Washing
The paintwork of your vehicle is
exposed to environmental
influences. Wash and wax your
vehicle regularly. When using
automatic vehicle washes, select a
programme that includes waxing.
Bird droppings, dead insects, resin,
pollen and the like should be
cleaned off immediately, as they
contain aggressive constituents
which can cause paint damage.
If using a vehicle wash, comply with
the vehicle wash manufacturer's
instructions. The windscreen wipersand rear window wiper must be
switched off. Lock the vehicle so
that the fuel filler flap cannot be
opened. Remove antenna and
external accessories such as roof
racks etc.
If you wash your vehicle by hand,
make sure that the insides of the
wheel housings are also thoroughly
rinsed out.
Clean edges and folds on opened
doors and the bonnet as well as the
areas they cover.Caution
Always use a cleaning agent with
a pH value of 4 to 9.
Do not use cleaning agents on
hot surfaces.
Have the door hinges of all doors
greased by a workshop.
Do not clean the engine
compartment with a steam-jet or
high-pressure jet cleaner. Thoroughly rinse and leather-off the
vehicle. Rinse leather frequently.
Use separate leathers for painted
and glass surfaces : Remnants of
wax on the windows will impair
vision.
Do not use hard objects to remove
spots of tar. Use tar removal spray
on painted surfaces.
Exterior lights
Headlamp and other lamp covers
are made of plastic.
Do not use any abrasive or caustic
agents, do not use an ice scraper,
and do not clean them dry.
Polishing and waxing
Wax the vehicle regularly (at the
latest when water no longer beads).
Otherwise, the paintwork will
dry out.
Polishing is necessary only if the
paint has become dull or if solid
deposits have become attached
to it.
Paintwork polish with silicone forms
a protective film, making waxing
unnecessary.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
192 Vehicle Care

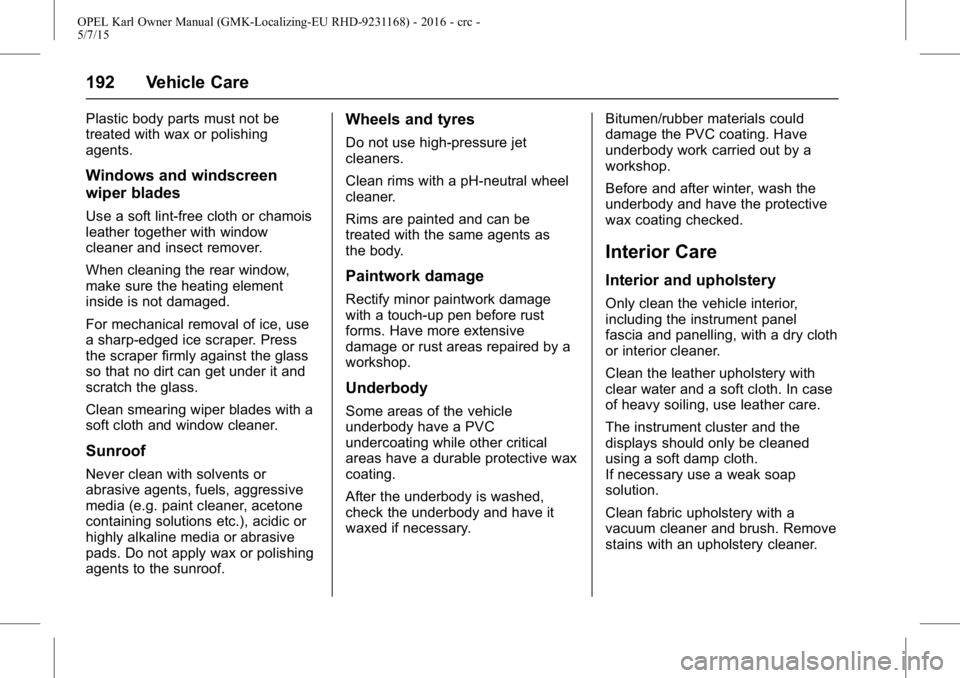

Plastic body parts must not be
treated with wax or polishing
agents.
Windows and windscreen
wiper blades
Use a soft lint-free cloth or chamois
leather together with window
cleaner and insect remover.
When cleaning the rear window,
make sure the heating element
inside is not damaged.
For mechanical removal of ice, use
a sharp-edged ice scraper. Press
the scraper firmly against the glass
so that no dirt can get under it and
scratch the glass.
Clean smearing wiper blades with a
soft cloth and window cleaner.
Sunroof
Never clean with solvents or
abrasive agents, fuels, aggressive
media (e.g. paint cleaner, acetone
containing solutions etc.), acidic or
highly alkaline media or abrasive
pads. Do not apply wax or polishing
agents to the sunroof.
Wheels and tyres
Do not use high-pressure jet
cleaners.
Clean rims with a pH-neutral wheel
cleaner.
Rims are painted and can be
treated with the same agents as
the body.
Paintwork damage
Rectify minor paintwork damage
with a touch-up pen before rust
forms. Have more extensive
damage or rust areas repaired by a
workshop.
Underbody
Some areas of the vehicle
underbody have a PVC
undercoating while other critical
areas have a durable protective wax
coating.
After the underbody is washed,
check the underbody and have it
waxed if necessary.Bitumen/rubber materials could
damage the PVC coating. Have
underbody work carried out by a
workshop.
Before and after winter, wash the
underbody and have the protective
wax coating checked.
Interior Care
Interior and upholstery
Only clean the vehicle interior,
including the instrument panel
fascia and panelling, with a dry cloth
or interior cleaner.
Clean the leather upholstery with
clear water and a soft cloth. In case
of heavy soiling, use leather care.
The instrument cluster and the
displays should only be cleaned
using a soft damp cloth.
If necessary use a weak soap
solution.
Clean fabric upholstery with a
vacuum cleaner and brush. Remove
stains with an upholstery cleaner.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Vehicle Care 193
Clothing fabrics may not be
colour-fast. This could cause visible
discolourations, especially on light
coloured upholstery.
Removable stains and
discolourations should be cleaned
as soon as possible. Clean seat
belts with lukewarm water or interior
cleaner.
Caution
Close Velcro fasteners as open
Velcro fasteners on clothing could
damage seat upholstery.
The same applies to clothing with
sharp-edged objects, like Zips or
belts or studded jeans.
Plastic and rubber parts
Plastic and rubber parts can be
cleaned with the same cleaner as
used to clean the body. Use interior
cleaner if necessary. Do not use any
other agent. Avoid solvents and
petrol in particular. Do not use
high-pressure jet cleaners.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
194 Service and Maintenance
Service and
Maintenance
General Information
Service Information . . . . . . . . . . . 194
Recommended Fluids,
Lubricants, and Parts
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 195
General Information
Service Information
In order to ensure economical and
safe vehicle operation and to
maintain the value of your vehicle, it
is of vital importance that all
maintenance work is carried out at
the proper intervals as specified.
The detailed, up-to-date service
schedule for your vehicle is
available at the workshop.
Service display
0Service
Display 068.
European service intervals
Maintenance of your vehicle is
required every 25000 km or after
1 year, whichever occurs first,
unless otherwise indicated in the
service display.
A shorter service interval can be
valid for severe driving behaviour,
e.g. for taxis and police vehicles. The European service intervals are
valid for the following countries :
Andorra, Austria, Belgium, Bosnia-
Herzegovina, Bulgaria, Croatia,
Cyprus, Czech Republic, Denmark,
Estonia, Finland, France, Germany,
Greece, Greenland, Hungary,
Iceland, Ireland, Italy, Latvia,
Liechtenstein, Lithuania,
Luxembourg, Macedonia, Malta,
Monaco, Montenegro, Netherlands,
Norway, Poland, Portugal, Romania,
San Marino, Serbia, Slovakia,
Slovenia, Spain, Sweden,
Switzerland, United Kingdom.
Service display
0Service
Display 068.
International service intervals
Maintenance of your vehicle is
required every 15000 km or after
1 year, whichever occurs first,
unless otherwise indicated in the
service display.
The international service intervals
are valid for the countries which are
not listed in the European service
intervals.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Service and Maintenance 195
Service display0Service
Display 068.
Confirmations
Confirmation of service is recorded
in the Service and Warranty
Booklet. The date and mileage is
completed with the stamp and
signature of the servicing workshop.
Make sure that the Service and
Warranty Booklet is completed
correctly as continuous proof of
service is essential if any warranty
or goodwill claims are to be met,
and is also a benefit when selling
the vehicle.
Service interval with remaining
engine oil life duration
The service interval is based on
several parameters depending on
usage.
The service display lets you know
when to change the engine oil.
Service display
0Service
Display 068.
Recommended
Fluids, Lubricants,
and Parts
Recommended Fluids
and Lubricants
Only use products that meet the
recommended specifications.
Damage resulting from the use of
products not compliant with these
specifications will not be covered by
the warranty.
{Warning
Operating materials are
hazardous and could be
poisonous. Handle with care. Pay
attention to information given on
the containers.
Engine oil
Engine oil is identified by its quality
and its viscosity. Quality is more
important than viscosity when
selecting which engine oil to use.
The oil quality ensures e.g. engine cleanliness, wear protection and oil
ageing control, whereas viscosity
grade gives information on the oil's
thickness over a temperature range.
Dexos is the newest engine oil
quality that provides optimum
protection for petrol and diesel
engines. If it is unavailable, engine
oils of other listed qualities have to
be used. Recommendations for
petrol engines are also valid for
Compressed Natural Gas (CNG),
Liquefied Petroleum Gas (LPG) and
Ethanol (E85) fuelled engines.

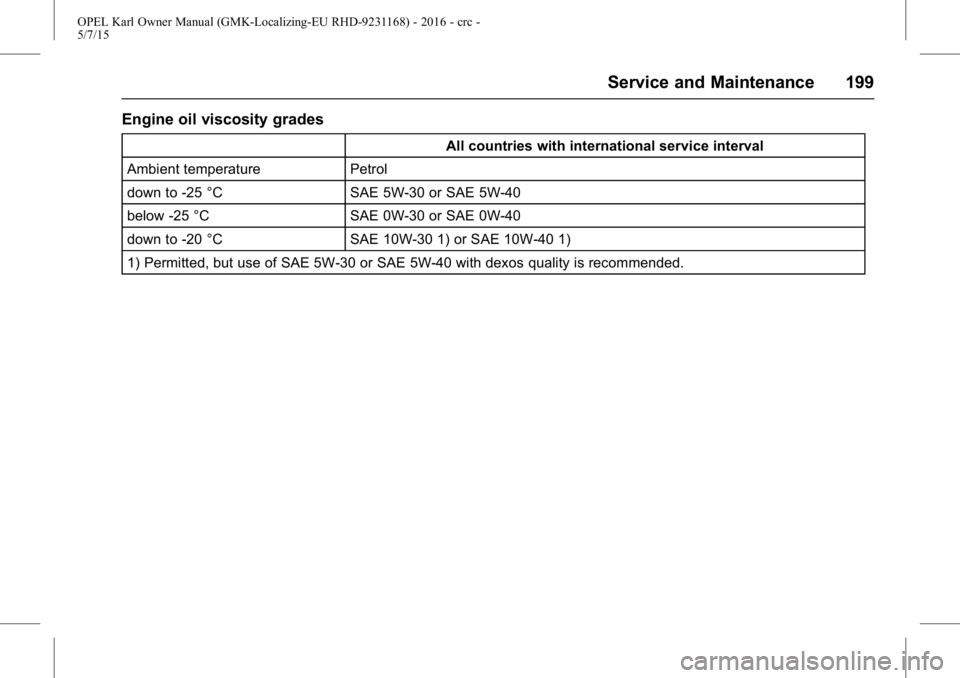

Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
0
Recommended Fluids and
Lubricants
0195.
Topping up engine oil
Engine oils of different
manufacturers and brands can be
mixed as long as they comply with
the required engine oil quality and
viscosity.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
196 Service and Maintenance
Use of engine oil with only ACEA
A1/B1 or only A5/B5 quality is
prohibited, since it can cause
longterm engine damage under
certain operating conditions.
Select the appropriate engine oil
based on its quality and on the
minimum ambient temperature
0
Recommended Fluids and
Lubricants0195.
Additional engine oil additives
The use of additional engine oil
additives could cause damage and
invalidate the warranty.
Engine oil viscosity grades
The SAE viscosity grade gives
information of the thickness of
the oil.
Multi-grade oil is indicated by two
figures, e.g. SAE 5W-30. The first
figure, followed by a W, indicates
the low temperature viscosity and
the second figure the high
temperature viscosity. Select the appropriate viscosity
grade depending on the minimum
ambient temperature
0
Recommended Fluids and
Lubricants
0195.
All of the recommended viscosity
grades are suitable for high ambient
temperatures.
Coolant and antifreeze
Use only organic acid type-long life
coolant (LLC) antifreeze approved
for the vehicle. Consult a workshop.
The system is factory filled with
coolant designed for excellent
corrosion protection and frost
protection down to approx. -36 °C.
In northern countries with very low
temperatures the factory filled
coolant provides frost protection
down to approx. -50 °C. This
concentration should be maintained
all year round. The use of additional
coolant additives intended to give
additional corrosion protection or
seal against minor leaks can cause
function problems. Liability for consequences resulting from the
use of additional coolant additives
will be rejected.
Brake and clutch fluid
Over time, brake fluid absorbs
moisture which will reduce braking
effectiveness. The brake fluid
should therefore be replaced at the
specified interval.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Service and Maintenance 197
European service schedule
Required engine oil qualityAll European countries with European service interval
Engine oil quality Petrol engines (including CNG, LPG, E85)
dexos 1
dexos 2
V
In case dexos quality is unavailable you may use max. 1 litre engine oil quality ACEA C3 for topping up once between
each oil change.
Engine oil viscosity grades
All European countries with European service interval
Ambient temperature Petrol
down to -25 °C SAE 5W-30 or SAE 5W-40
below -25 °C SAE 0W-30 or SAE 0W-40
International service schedule
Required engine oil quality
All countries with international service interval
Engine oil quality Petrol engines (including CNG, LPG, E85)

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
198 Service and Maintenance

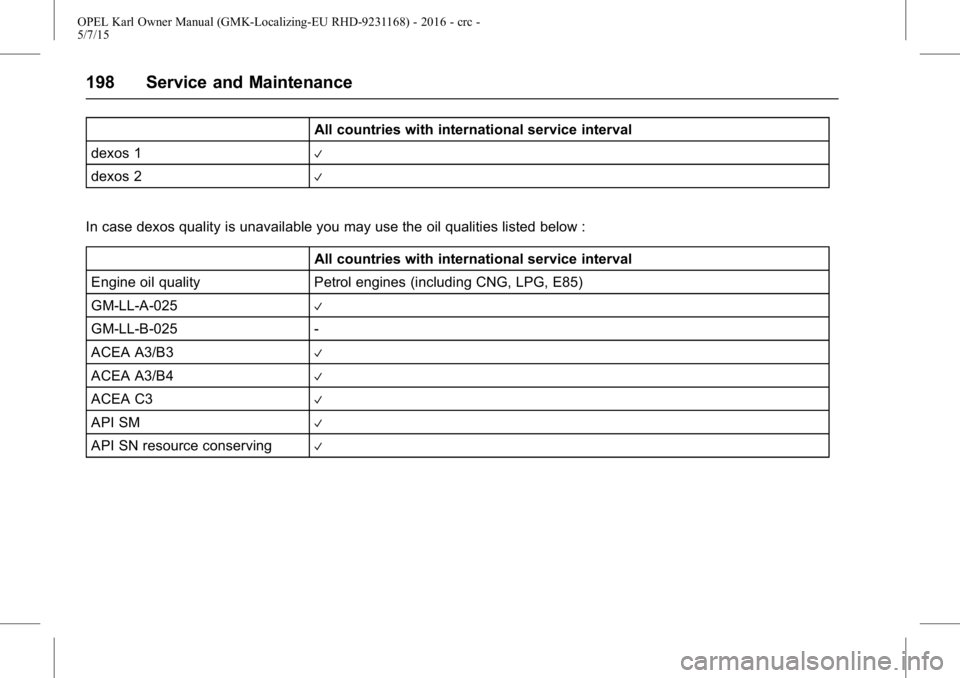

All countries with international service interval
dexos 1
V
dexos 2V
In case dexos quality is unavailable you may use the oil qualities listed below :
All countries with international service interval
Engine oil quality Petrol engines (including CNG, LPG, E85)
GM-LL-A-025
V
GM-LL-B-025 -
ACEA A3/B3
V
ACEA A3/B4V
ACEA C3V
API SMV
API SN resource conservingV

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Service and Maintenance 199
Engine oil viscosity grades
All countries with international service interval
Ambient temperature Petrol
down to -25 °C SAE 5W-30 or SAE 5W-40
below -25 °C SAE 0W-30 or SAE 0W-40
down to -20 °C SAE 10W-30 1) or SAE 10W-40 1)
1) Permitted, but use of SAE 5W-30 or SAE 5W-40 with dexos quality is recommended.
