display OPEL KARL 2015 Owners Manual

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Introduction 3
Vehicle specific data
Please enter your vehicle's data on
the previous page to keep it easily
accessible. This information is
available in the sections "Service
and maintenance" and "Technical
data" as well as on the identification
plate.
Introduction
Your vehicle is a designed
combination of advanced
technology, safety, environmental
friendliness and economy.
This Owner's Manual provides you
with all the necessary information to
enable you to drive your vehicle
safely and efficiently.
Make sure your passengers are
aware of the possible risk of
accident and injury which may result
from improper use of the vehicle.
You must always comply with the
specific laws and regulations of the
country that you are in. These laws
may differ from the information in
this Owner's Manual.When this Owner's Manual refers to
a workshop visit, we recommend
your Opel Service Partner. For gas
vehicles we recommend an Opel
workshop authorised for servicing
gas vehicles.
All Opel Service Partners provide
first-class service at reasonable
prices. Experienced mechanics
trained by Opel work according to
specific Opel instructions.
The customer literature pack should
always be kept ready to hand in the
vehicle.
Using this Manual
.
This manual describes all
options and features available
for this model. Certain
descriptions, including those for
display and menu functions, may
not apply to your vehicle due to
model variant, country
specifications, special equipment
or accessories.
. The "In brief" section will give
you an initial overview. .
The table of contents at the
beginning of this manual and
within each section shows where
the information is located.
. The index will enable you to
search for specific information.
. This Owner's Manual depicts
left-hand drive vehicles.
Operation is similar for
right-hand drive vehicles.
. The Owner's Manual uses the
factory engine designations. The
corresponding sales
designations can be found in the
section "Technical data".
. Directional data, e.g. left or right,
or front or back, always relate to
the direction of travel.
. The vehicle display screens may
not support your specific
language.
. Display messages and interior
labelling are written in bold
letters.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
10 In Brief
1. Power windows on pagePower
Windows 029.
Central locking system on page
Central Locking System 022.
2. Exterior mirrors on page Convex Mirrors 027.
3. Cruise control, Speed limiter on page Driver Assistance
Systems 0148.
Heated steering wheel on page
Heated Steering Wheel 060.
4. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 087.
Exit lighting on page Exit
Lighting 091.
Parking lights on page Parking
Lights 088.
5. Side air vents on page Fixed
Air Vents 0132.
6. Instruments on page Steering
Wheel Adjustment 060. 7. Driver Information Centre on
page Driver Information Centre
(DIC) 075.
8. Steering wheel controls on page Steering Wheel
Controls 060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Centre air vents on page Adjustable Air Vents 0131.
11. Hazard warning lights on page Hazard Warning Flashers 087.
12. Info-Display on page Overview 093.
13. Infotainment system on page Operation 099.
14. Glove box on page Glove
Box 053.
15. Climate control system on page Electronic Climate
Control System 0128.
16. Selector lever, manual gearbox on page Manual
Gearbox 0141. 17. Parking brake on page
Handbrake 0142.
18. Ignition switch with steering wheel lock on page Ignition
Positions 0135.
19. Horn on page Horn061.
Driver airbag on page Airbag
System 038.
20. Steering wheel adjustment on page Steering Wheel
Adjustment 060.
21. Bonnet release lever on page Bonnet 0157.
22. Fuse box on page Fuses 0169.
23. Traction control system on page Traction Control System
(TCS) 0143.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0137.
City mode on page Electronic
Stability Control (ESC) 0144.
Lane departure warning on
page Lane Departure Warning
(LDW) 0150.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
In Brief 13
1. Infotainment system on pageOperation 099.
2. Info-Display on page Overview 093.
3. Hazard warning lights on page Hazard Warning Flashers 087.
4. Centre air vents on page Adjustable Air Vents 0131.
5. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 087.
Exit lighting on page Exit
Lighting 091.
Parking lights on page Parking
Lights 088.
6. Instruments on page Steering
Wheel Adjustment 060.
7. Driver Information Centre on page Driver Information Centre
(DIC) 075.
8. Cruise control, Speed limiter on page Driver Assistance
Systems 0148. Heated steering wheel on page
Heated Steering Wheel
060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Side air vents on page Fixed
Air Vents 0132.
11. Steering wheel controls on page Steering Wheel
Controls 060.
12. Exterior mirrors on page Convex Mirrors 027
13. Power windows on page Power
Windows 029.
Central locking system on page
Central Locking System 022.
14. Light switch, Headlight range adjustment,
Front fog lights,
Rear fog light,
Instrument illumination on page
Exterior Lamp Controls 085. 15. Traction control system on
page Traction Control System
(TCS) 0143.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0137.
City mode on page Electronic
Stability Control (ESC) 0144.
Lane departure warning on
page Lane Departure Warning
(LDW) 0150.
16. Ignition switch with steering wheel lock on page Ignition
Positions 0135.
17. Fuse box on page Fuses 0169.
18. Bonnet release lever on page Bonnet 0157.
19. Horn on page Horn061.
Driver airbag on page Airbag
System 038.
20. Steering wheel adjustment on page Steering Wheel
Adjustment 060.
21. Parking brake on page Handbrake 0142.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
22 Keys, Doors, and Windows
Key with foldaway key section
Extend the key and open the unit.
Replace the battery (battery type
CR 2032), paying attention to the
installation position. Close the unit
and synchronise.
Key with fixed key section
Have the battery replaced by a
workshop.
Radio remote control
synchronisation
After replacing the battery, unlock
the door with the key in the driver's
door lock. The radio remote control
will be synchronised when the
ignition is switched on.
Memorised Settings
Whenever the key is removed from
the ignition switch, the following
settings are automatically
memorised by the key:
.lighting
. infotainment system
. central locking system
. comfort settings
The saved settings are
automatically used the next time the
memorised key is inserted into the
ignition switch and turned to position
1
0Ignition Positions 0135.
A precondition is that
Personalisation by driver is
activated in the personal settings of
the Graphic-Info-Display. This must be set for each key used.
On vehicles equipped with
Colour-Info-Display, the
personalisation is permanently
activated.
Vehicle personalisation
0Vehicle
Personalisation 082.
Central Locking System
Unlocks and locks doors, load
compartment.
Note
In the event of an accident in which
airbags or belt pretensioners are
deployed, the vehicle is
automatically unlocked.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Keys, Doors, and Windows 23

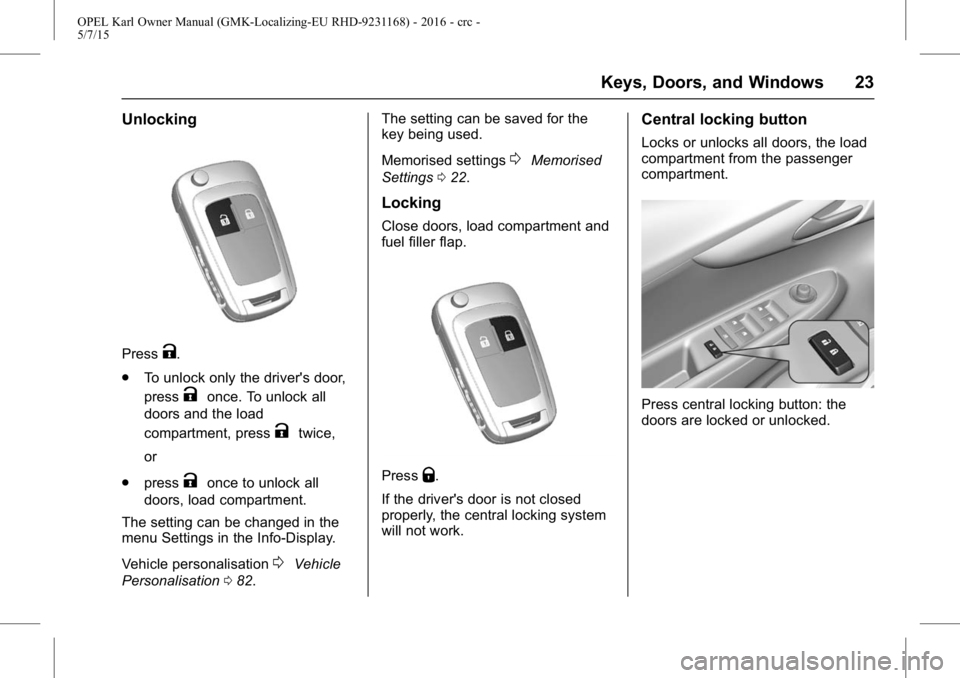

Unlocking
PressK.
. To unlock only the driver's door,
press
Konce. To unlock all
doors and the load
compartment, press
Ktwice,
or
. press
Konce to unlock all
doors, load compartment.
The setting can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation
0Vehicle
Personalisation 082. The setting can be saved for the
key being used.
Memorised settings
0Memorised
Settings 022.
Locking
Close doors, load compartment and
fuel filler flap.
PressQ.
If the driver's door is not closed
properly, the central locking system
will not work.
Central locking button
Locks or unlocks all doors, the load
compartment from the passenger
compartment.
Press central locking button: the
doors are locked or unlocked.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15
34 Seats and Restraints
pressing the pedals. Slide the
front passenger seat as far back
as possible.
. Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest
when turning the steering wheel.
Do not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
. Adjust the steering wheel
0
Steering Wheel Adjustment 060.
. Set the seat high enough to
have a clear field of vision on all
sides and on all display
instruments. There should be at
least one hand of clearance
between your head and the
headlining. Your thighs should
rest lightly on the seat without
pressing into it.
. Adjust the head restraint
0
Head Restraints 032. .
Adjust the height of the seat belt
0Three-Point Seat belt 037.

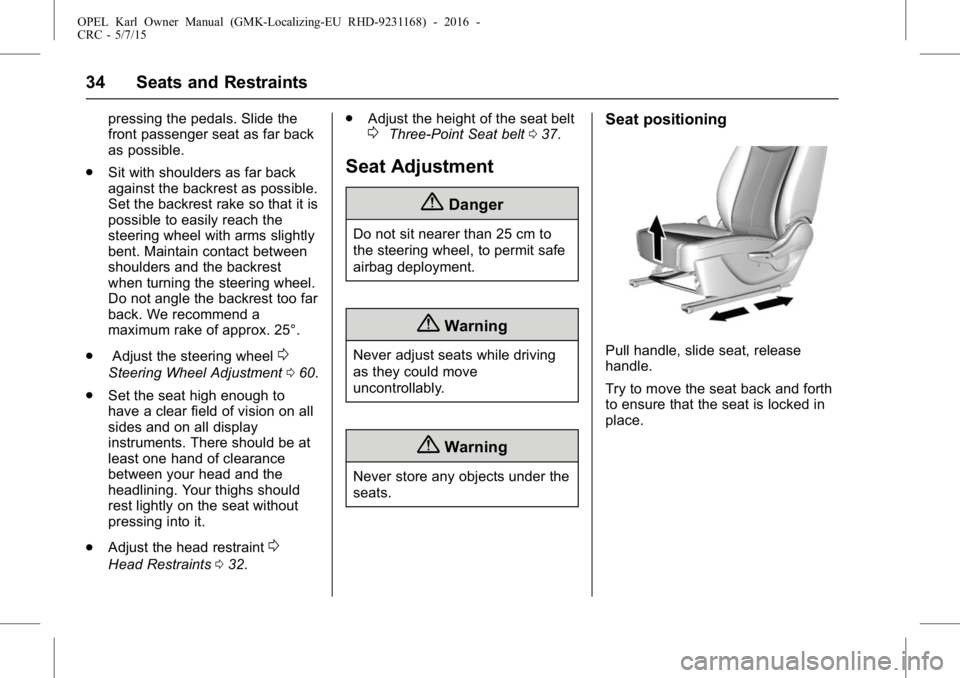

Seat Adjustment
{Danger
Do not sit nearer than 25 cm to
the steering wheel, to permit safe
airbag deployment.
{Warning
Never adjust seats while driving
as they could move
uncontrollably.
{Warning
Never store any objects under the
seats.
Seat positioning
Pull handle, slide seat, release
handle.
Try to move the seat back and forth
to ensure that the seat is locked in
place.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Instruments and Controls 59
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . 60
Steering Wheel Controls . . . . . . . 60
Heated Steering Wheel . . . . . . . . 60
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

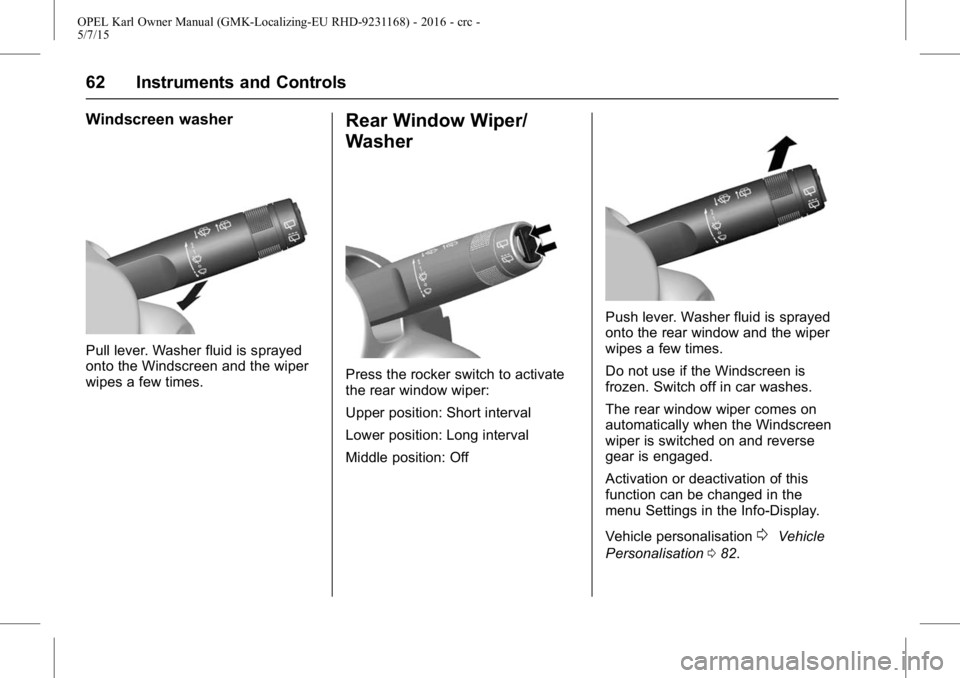

Windscreen Wiper/Washer . . . . . 61
Rear Window Wiper/Washer . . . 62

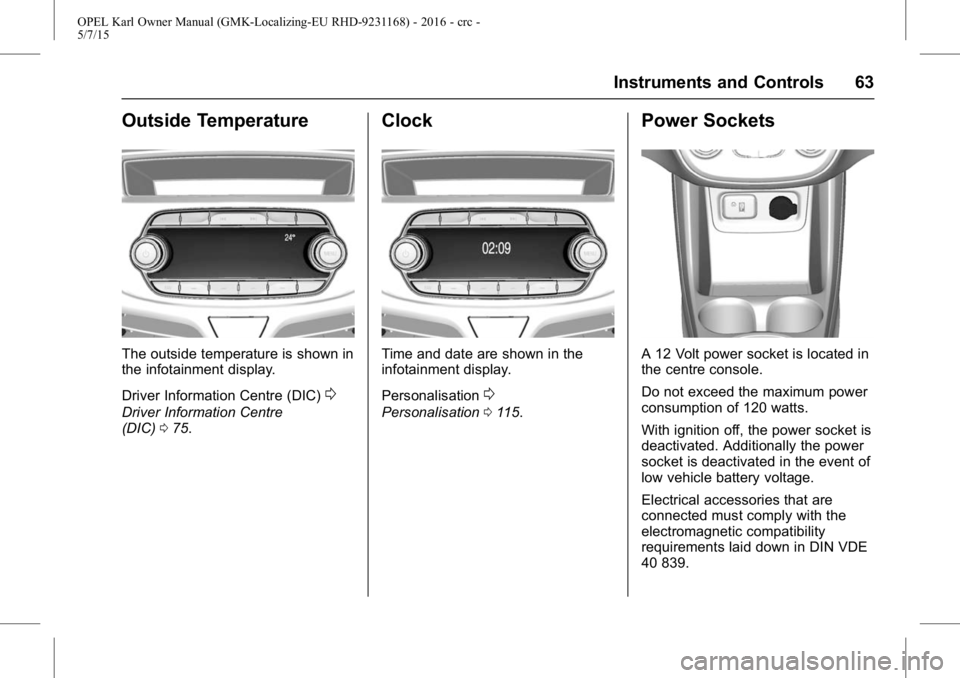

Outside Temperature . . . . . . . . . . 63
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Power Sockets . . . . . . . . . . . . . . . . 63
Warning Lights, Gauges, and
Indicators

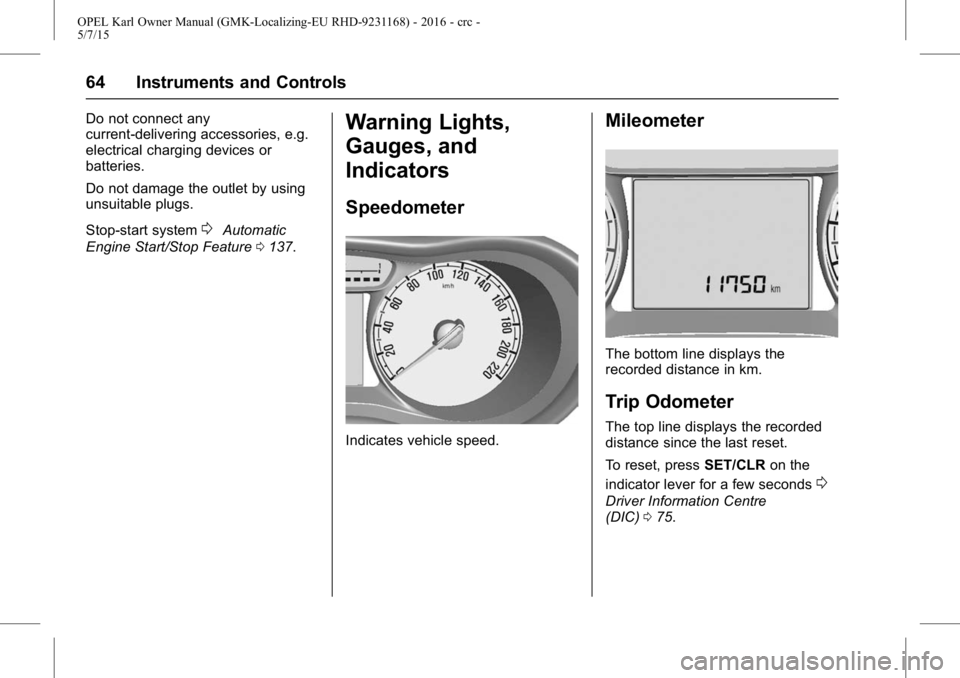

Speedometer . . . . . . . . . . . . . . . . . . 64
Mileometer . . . . . . . . . . . . . . . . . . . . . 64
Trip Odometer . . . . . . . . . . . . . . . . . 64
Rev Counter . . . . . . . . . . . . . . . . . . . 65
Fuel Gauge . . . . . . . . . . . . . . . . . . . . 65
Control Indicators . . . . . . . . . . . . . . 65
Engine Coolant TemperatureGauge . . . . . . . . . . . . . . . . . . . . . . . . 68
Service Display . . . . . . . . . . . . . . . . 68
Indicator . . . . . . . . . . . . . . . . . . . . . . . 69
Seat Belt Reminders . . . . . . . . . . . 69
Airbag and Safety Belt Tensioner Light . . . . . . . . . . . . . . . 70 Airbag On-Off Light . . . . . . . . . . . . 70
Charging System Light . . . . . . . . . 70
Malfunction Indicator Lamp . . . . 70
Service Vehicle Soon Light . . . . 71
Brake and Clutch System
Warning Light . . . . . . . . . . . . . . . . 71
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . 71
Gear Shifting Light . . . . . . . . . . . . . 71
Variable Effort Steering Light . . . . . . . . . . . . . . . . . . . . . . . . . 71
Lane Departure Warning (LDW) Light . . . . . . . . . . . . . . . . . . . . . . . . . 72
Ultrasonic Parking Sensor Light . . . . . . . . . . . . . . . . . . . . . . . . . 72
Electronic Stability Control (ESC) Indicator Light . . . . . . . . . 72
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . 72
Traction Control System (TCS) Off Light . . . . . . . . . . . . . . . . . . . . . . 72
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . 72
Tyre Pressure Monitoring System Light . . . . . . . . . . . . . . . . . 73
Engine Oil Pressure Light . . . . . . 73
Low Fuel Warning Light . . . . . . . . 73
Auto Stop Mode . . . . . . . . . . . . . . . 74
Immobiliser Light . . . . . . . . . . . . . . 74
Reduced Engine Power Light . . . . . . . . . . . . . . . . . . . . . . . . . 74 Main-Beam On Light . . . . . . . . . . . 74
Front Fog Lamp Light . . . . . . . . . . 74
Rear Fog Lamp Light . . . . . . . . . . 74
Tail lamp Indicator Light . . . . . . . . 74
Cruise Control Light . . . . . . . . . . . 74
Bonnet Ajar Light . . . . . . . . . . . . . . 74
Door Ajar Light . . . . . . . . . . . . . . . . 74
Information Displays
Driver Information
Centre (DIC) . . . . . . . . . . . . . . . . . 75
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . 80
Warning Buzzers . . . . . . . . . . . . . . 81
Vehicle Personalisation
Vehicle Personalisation . . . . . . . . 82

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
62 Instruments and Controls
Windscreen washer
Pull lever. Washer fluid is sprayed
onto the Windscreen and the wiper
wipes a few times.
Rear Window Wiper/
Washer
Press the rocker switch to activate
the rear window wiper:
Upper position: Short interval
Lower position: Long interval
Middle position: Off
Push lever. Washer fluid is sprayed
onto the rear window and the wiper
wipes a few times.
Do not use if the Windscreen is
frozen. Switch off in car washes.
The rear window wiper comes on
automatically when the Windscreen
wiper is switched on and reverse
gear is engaged.
Activation or deactivation of this
function can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation
0Vehicle
Personalisation 082.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Instruments and Controls 63
Outside Temperature
The outside temperature is shown in
the infotainment display.
Driver Information Centre (DIC)
0
Driver Information Centre
(DIC)075.
Clock
Time and date are shown in the
infotainment display.
Personalisation
0
Personalisation 0115.
Power Sockets
A 12 Volt power socket is located in
the centre console.
Do not exceed the maximum power
consumption of 120 watts.
With ignition off, the power socket is
deactivated. Additionally the power
socket is deactivated in the event of
low vehicle battery voltage.
Electrical accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in DIN VDE
40 839.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
64 Instruments and Controls
Do not connect any
current-delivering accessories, e.g.
electrical charging devices or
batteries.
Do not damage the outlet by using
unsuitable plugs.
Stop-start system
0Automatic
Engine Start/Stop Feature 0137.
Warning Lights,
Gauges, and
Indicators
Speedometer
Indicates vehicle speed.
Mileometer
The bottom line displays the
recorded distance in km.
Trip Odometer
The top line displays the recorded
distance since the last reset.
To reset, press SET/CLRon the
indicator lever for a few seconds
0
Driver Information Centre
(DIC) 075.
