heating OPEL KARL 2015 Owners Manual

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

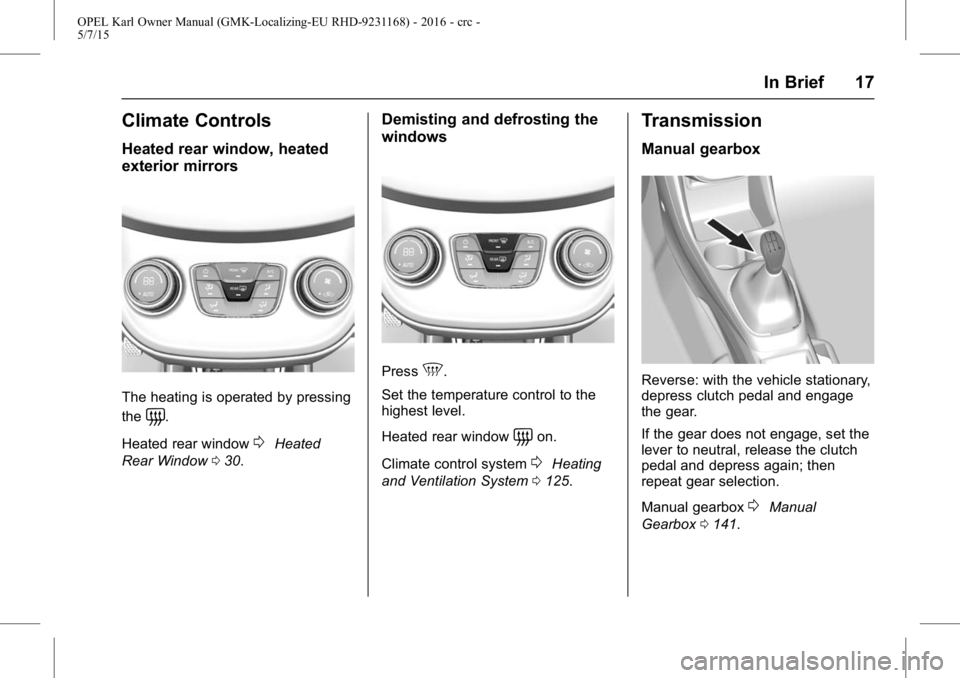

In Brief 17
Climate Controls
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
the
=.
Heated rear window
0Heated
Rear Window 030.
Demisting and defrosting the
windows
Press5.
Set the temperature control to the
highest level.
Heated rear window
=on.
Climate control system
0Heating
and Ventilation System 0125.
Transmission
Manual gearbox
Reverse: with the vehicle stationary,
depress clutch pedal and engage
the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then
repeat gear selection.
Manual gearbox
0Manual
Gearbox 0141.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

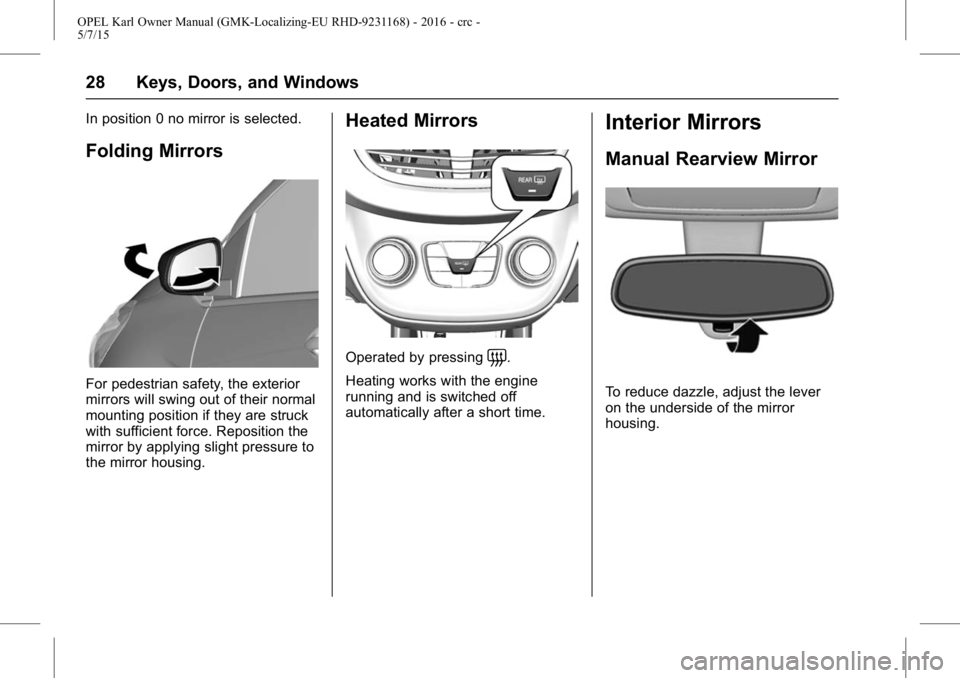

28 Keys, Doors, and Windows
In position 0 no mirror is selected.
Folding Mirrors
For pedestrian safety, the exterior
mirrors will swing out of their normal
mounting position if they are struck
with sufficient force. Reposition the
mirror by applying slight pressure to
the mirror housing.
Heated Mirrors
Operated by pressing=.
Heating works with the engine
running and is switched off
automatically after a short time.
Interior Mirrors
Manual Rearview Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

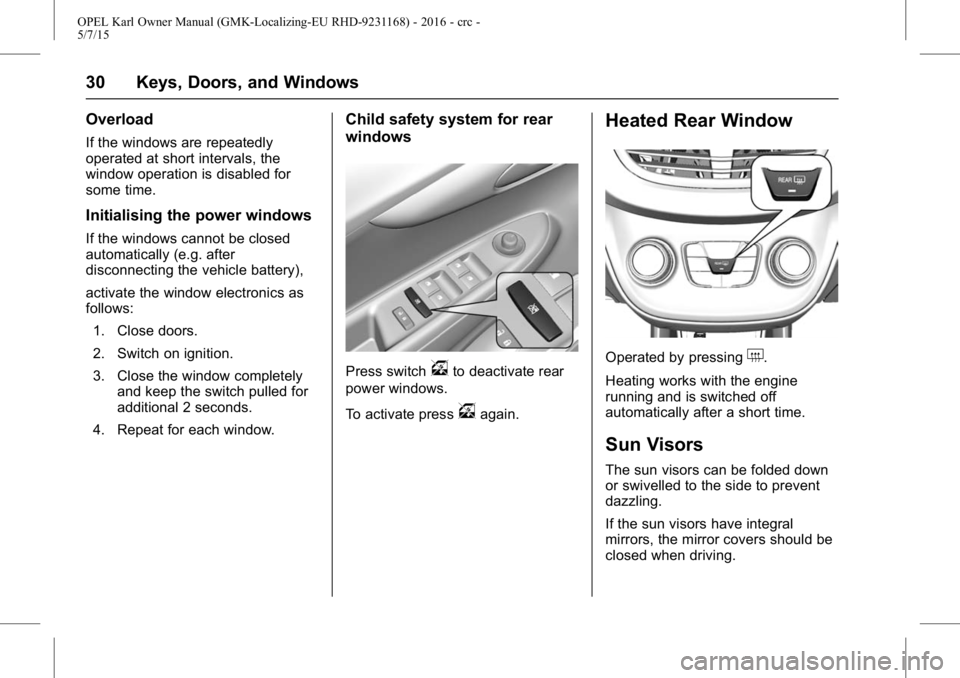

30 Keys, Doors, and Windows
Overload
If the windows are repeatedly
operated at short intervals, the
window operation is disabled for
some time.
Initialising the power windows
If the windows cannot be closed
automatically (e.g. after
disconnecting the vehicle battery),
activate the window electronics as
follows:1. Close doors.
2. Switch on ignition.
3. Close the window completely and keep the switch pulled for
additional 2 seconds.
4. Repeat for each window.
Child safety system for rear
windows
Press switchvto deactivate rear
power windows.
To activate press
vagain.
Heated Rear Window
Operated by pressing+.
Heating works with the engine
running and is switched off
automatically after a short time.
Sun Visors
The sun visors can be folded down
or swivelled to the side to prevent
dazzling.
If the sun visors have integral
mirrors, the mirror covers should be
closed when driving.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 -
CRC - 5/7/15

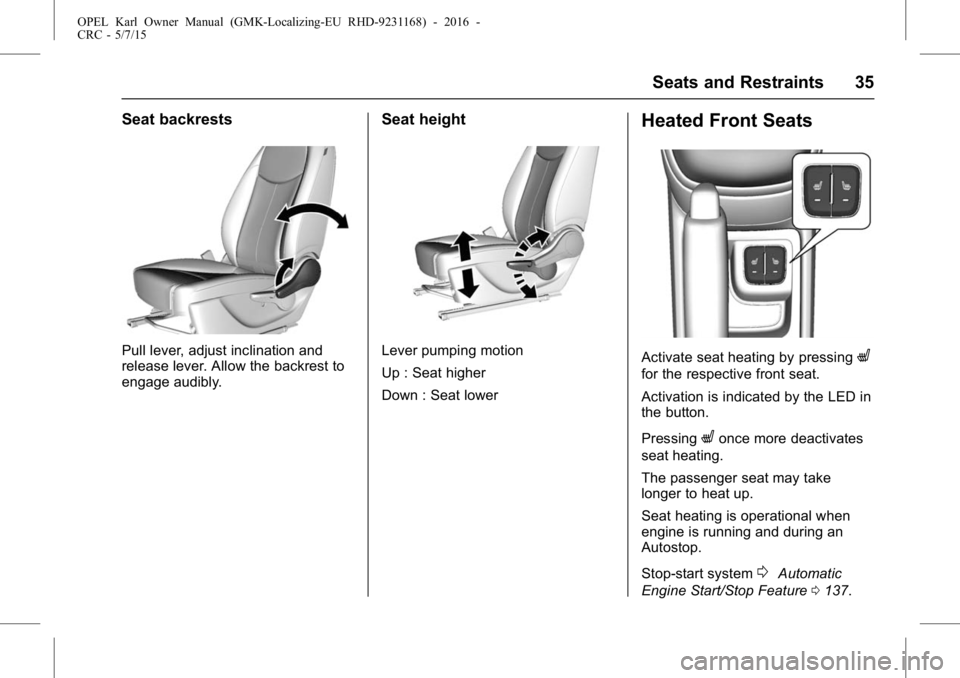

Seats and Restraints 35
Seat backrests
Pull lever, adjust inclination and
release lever. Allow the backrest to
engage audibly.
Seat height
Lever pumping motion
Up : Seat higher
Down : Seat lower
Heated Front Seats
Activate seat heating by pressingL
for the respective front seat.
Activation is indicated by the LED in
the button.
Pressing
Lonce more deactivates
seat heating.
The passenger seat may take
longer to heat up.
Seat heating is operational when
engine is running and during an
Autostop.
Stop-start system
0Automatic
Engine Start/Stop Feature 0137.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

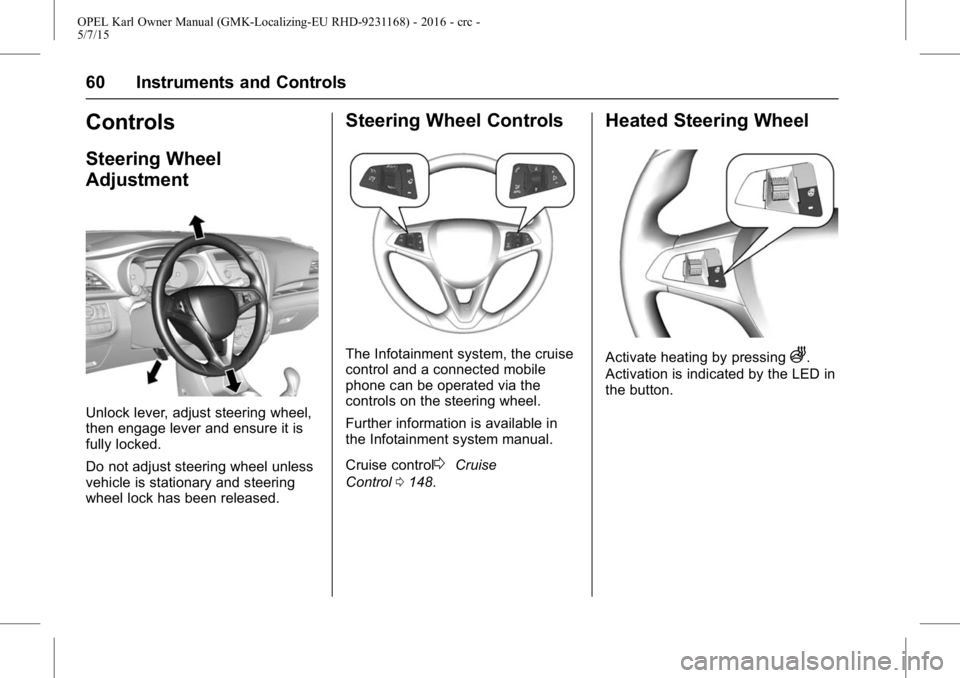

60 Instruments and Controls
Controls
Steering Wheel
Adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering Wheel Controls
The Infotainment system, the cruise
control and a connected mobile
phone can be operated via the
controls on the steering wheel.
Further information is available in
the Infotainment system manual.
Cruise control
0Cruise
Control 0148.
Heated Steering Wheel
Activate heating by pressingA.
Activation is indicated by the LED in
the button.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15

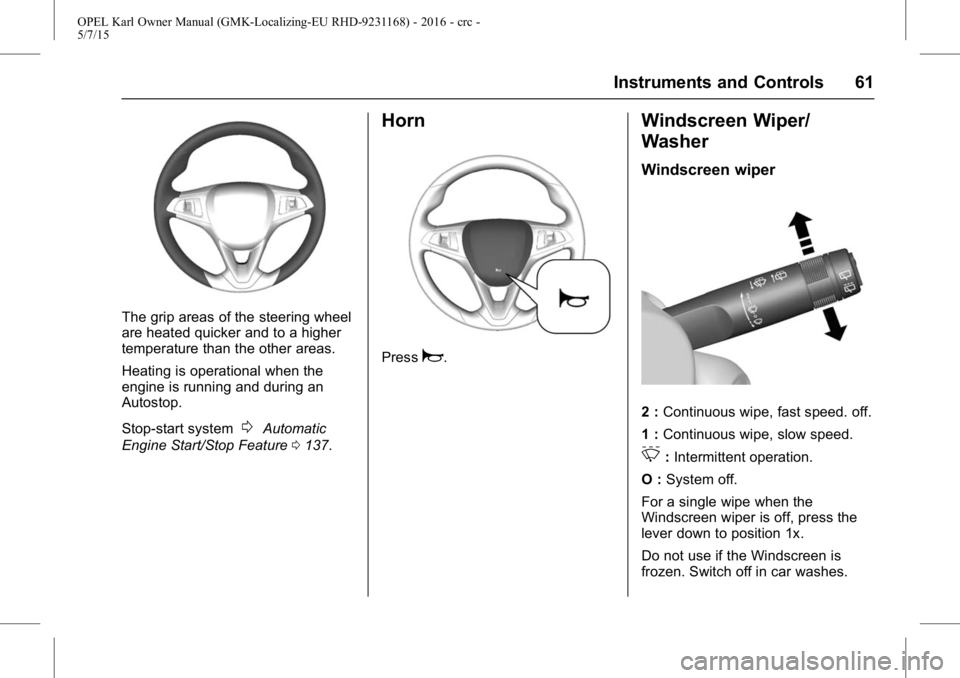

Instruments and Controls 61
The grip areas of the steering wheel
are heated quicker and to a higher
temperature than the other areas.
Heating is operational when the
engine is running and during an
Autostop.
Stop-start system
0Automatic
Engine Start/Stop Feature 0137.
Horn
Pressa.
Windscreen Wiper/
Washer
Windscreen wiper
2 : Continuous wipe, fast speed. off.
1 : Continuous wipe, slow speed.
3:Intermittent operation.
O : System off.
For a single wipe when the
Windscreen wiper is off, press the
lever down to position 1x.
Do not use if the Windscreen is
frozen. Switch off in car washes.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
82 Instruments and Controls
.If a fault in the automatic locking
system is detected.
When the vehicle is parked
and / or the driver's door is
opened
.With exterior lights on.
During an Autostop
.If the driver's door is opened.
Battery voltage
When the vehicle battery voltage is
running low, a warning message or
warning code 174 will appear in the
Driver Information Centre.
1. Switch off immediately any electrical consumers which are
not required for a safe ride, e.g.
seat heating, heated rear
window or other main
consumers.
2. Charge the vehicle battery by driving continuously for a while
or by using a charging device. The warning message or warning
code will disappear after the engine
has been started twice
consecutively without a
voltage drop.
If the vehicle battery cannot be
recharged, have the cause of the
fault remedied by a workshop.
Vehicle
Personalisation
The vehicle can be personalised by
changing the settings in the
infotainment display.
Depending on vehicle equipment
some of the functions described
below might not be available.
Press
MENU, when ignition is ON
and infotainment system is
activated.
Setting menus displayed.
To switch the Settings menu turn the
MENU knob.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Infotainment System 99
In Radio modes, changes
broadcast frequencies
saved to Presets.
. When buttons are turned
and held.
In Radio modes,
automatically searches
broadcast frequencies.
. Press the button to change
the audio source.
3. +
x- (volume)
. Press the buttons to
increase or decrease the
volume.
. Press and hold the buttons
to quickly increase or
decrease the volume.
Operation
Buttons and controlling device
the Infotainment system is operated
by using the function buttons,
multifunctional dial, and the menu
indicated on the screen display. the buttons and control devices
used in the system are the
following:
.
the Infotainment system buttons
and dials
. the Steering wheel audio remote
control buttons
System on/off
PressPto turn the power on.
When the power is off, pressing
P
will turn the power on and play a
radio broadcast. Automatically turn power on
.
When the external source is
connected in the power off
mode, system will turn power on
and play.
If this connection is removed,
system will automatically turn
power off.
. When a call is received or
initiated, the power is turned on
and the action is carried out.
If this action is ended, system
will automatically turn power off.
. When pressing an HVAC
(Heating,Ventilation, and Air
Conditioning) related button,
system will turn power on and
operate this action.
If no action is taken within
5 seconds, the system will
automatically turn power off.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
Climate Controls 125
Climate Controls
Climate Control Systems
Heating and VentilationSystem . . . . . . . . . . . . . . . . . . . . . . 125
Air Conditioning System . . . . . . 126
Electronic Climate Control System . . . . . . . . . . . . . . . . . . . . . . 128
Air Vents
Adjustable Air Vents . . . . . . . . . . 131
Fixed Air Vents . . . . . . . . . . . . . . . 132
Maintenance
Air Intake . . . . . . . . . . . . . . . . . . . . . 132
Passenger Compartment AirFilter . . . . . . . . . . . . . . . . . . . . . . . . 132
Air Conditioning Regular Operation . . . . . . . . . . . . . . . . . . . 132
Service . . . . . . . . . . . . . . . . . . . . . . . 133
Climate Control
Systems
Heating and Ventilation
System
Controls for:
. temperature
. air distribution
. fan speed
. demisting and defrosting
. air recirculation .
heated rear window
0Heated
Rear Window 030
Temperature
Adjust the temperature by turning
the knob.
Red: Warm
Blue: Cold
Heating will not be fully effective
until the engine has reached normal
operating temperature.
Air distribution
E: To head area via adjustable air
vents.
): To head area and foot well.
[:To foot well, with a small
amount of the air being directed to
windscreen, front door windows and
side air vents.
-: To windscreen and foot well,
with a small amount of the air being
directed to front door windows and
side air vents.
0: To windscreen and front door
windows, with a small amount of the
air being directed to side air vents.

OPEL Karl Owner Manual (GMK-Localizing-EU RHD-9231168) - 2016 - crc -
5/7/15
128 Climate Controls
Electronic Climate
Control System
Controls for:
.temperature
. air distribution
. fan speed
. automatic mode
. air recirculation
. demisting and Defrosting
Temperature
Adjust the temperature by turning
the knob. Red :
Warm
Blue : Cold
Heating will not be fully effective
until the engine has reached normal
operating temperature.
Air distribution
E: To head area via adjustable air
vents.
): To head area and foot well.
[:To foot well, with a small
amount of the air being directed to
windscreen, front door windows and
side air vents.
-: To windscreen and foot well,
with a small amount of the air being
directed to front door windows and
side air vents.
0: To windscreen and front door
windows, with a small amount of the
air being directed to side air vents.
Fan speed
Adjust the air flow by dial knob the
fan to the desired speed.
In order to turn off or on, press
P
or adjust blower knob.
Automatic mode
The system automatically controls
the fan speed, air delivery, air
conditioning, and recirculation in
order to heat or cool the vehicle to
the desired temperature. When the
AUTO indicator light is on, the
system is in full automatic operation.
If the air delivery mode, fan speed,
recirculation, or air conditioning
setting is adjusted, the AUTO
indicator turns off. To improve fuel
efficiency and to cool the vehicle
faster, recirculation may be
automatically selected in warm
weather. The recirculation light will
not come on. Press
Wto select
recirculation; press it again to select
outside air. To turn off the system,
press power
P.
Basic setting for maximum comfort:
. Press AUTO.
. Open all air vents to allow
optimised air distribution in
automatic mode.
