PEUGEOT 1007 2008 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 1007, Model: PEUGEOT 1007 2008Pages: 189, PDF Size: 10.54 MB
Page 21 of 189
1
24
S e r v i c e i n d i c a t o r
This indicates when the next service
is due in accordance with the manu-
facturer’s servicing schedule.
The point at which the next service
is due is calculated from the last
indicator zero reset. It is determined
by two parameters:
- the distance travelled,
- the time which has elapsed since the last service.
Operation
When the ignition is switched on, the
spanner symbolising the servicing
operations comes on; the distance
recorder display indicates the number
of miles [kilometres] (rounded off)
remaining until the next service.
E x a m p l e : 4,800 miles/km remain be-
f o r e t h e n e x t s e r v i c e . F o r fi v e s e c o n d s
after the ignition is switched on, the
display indicates: 10 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and
the display indicates the total or trip
distance.
10 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and the
spanner remains lit.
It indicates that a service must be
carried out soon. The display indi-
cates the total or trip distance. T h e s e r v i c e i s o v e r d u e .
T h e s p a n n e r fl a s h e s f o r 5 s e c o n d s
each time the ignition is switched on.
10 seconds after the ignition was
switched on, the distance recorder
resumes its normal operation and the
spanner remains lit.
The display indicates the total or trip
distance.
The distance remaining before the
next service may be weighted by the
time factor, depending on the user’s
driving habits.
The spanner may also come on if
more than two years have elapsed
since the last service.
T h e d i s t a n c e r e m a i n i n g t o
t h e n e x t s e r v i c e i s l e s s t h a n
5 0 0 m i l e s / 1 , 0 0 0 k m .
E x a m p l e : 400 miles/900 km remain
before the next service.
For 5 seconds after the ignition is
switched on, the display indicates:
E x a m p l e : the service is overdue by
300 miles/km, your vehicle must be
serviced as soon as possible.
For 5 seconds after the ignition is
switched on, the display indicates:
Page 22 of 189
1
25

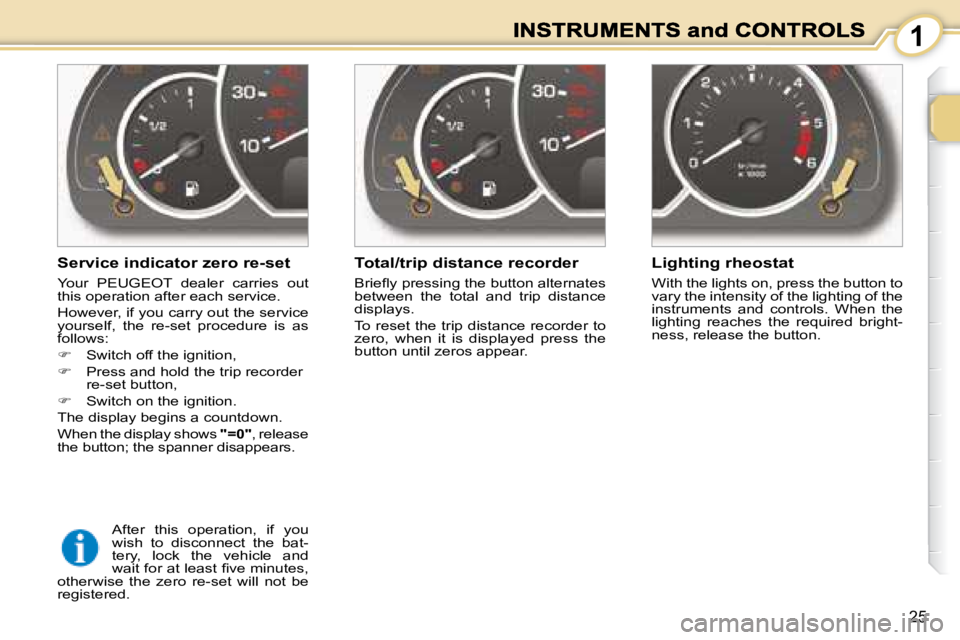

S e r v i c e i n d i c a t o r z e r o r e - s e t
Your PEUGEOT dealer carries out
this operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
Switch off the ignition,
Press and hold the trip recorder
re-set button,
Switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears. T o t a l / t r i p d i s t a n c e r e c o r d e r
B r i e fl y p r e s s i n g t h e b u t t o n a l t e r n a t e s
between the total and trip distance
displays.
To reset the trip distance recorder to
zero, when it is displayed press the
button until zeros appear.
L i g h t i n g r h e o s t a t
With the lights on, press the button to
vary the intensity of the lighting of the
instruments and controls. When the
lighting reaches the required bright-
ness, release the button.
After this operation, if you
wish to disconnect the bat-
tery, lock the vehicle and
w a i t f o r a t l e a s t fi v e m i n u t e s ,
otherwise the zero re-set will not be
registered.
Page 23 of 189
1
26

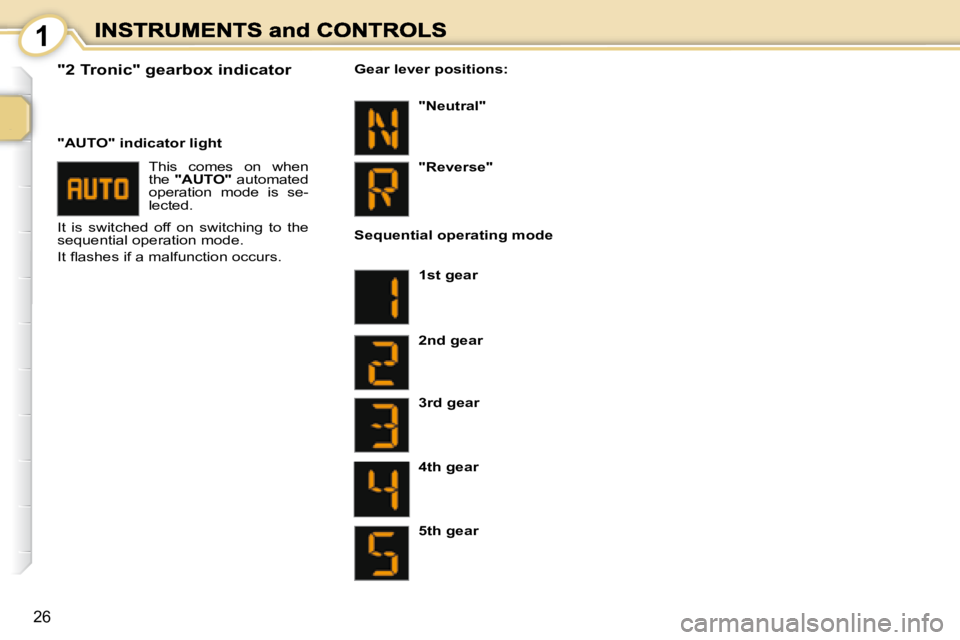

" 2 T r o n i c " g e a r b o x i n d i c a t o r This comes on when
the "AUTO" automated
operation mode is se-
lected.
It is switched off on switching to the
sequential operation mode.
I t fl a s h e s i f a m a l f u n c t i o n o c c u r s . G e a r l e v e r p o s i t i o n s :
" N e u t r a l "
" R e v e r s e "
S e q u e n t i a l o p e r a t i n g m o d e
1 s t g e a r
2nd gear
3rd gear
4th gear
5th gear
" A U T O " i n d i c a t o r l i g h t
Page 24 of 189
1
27

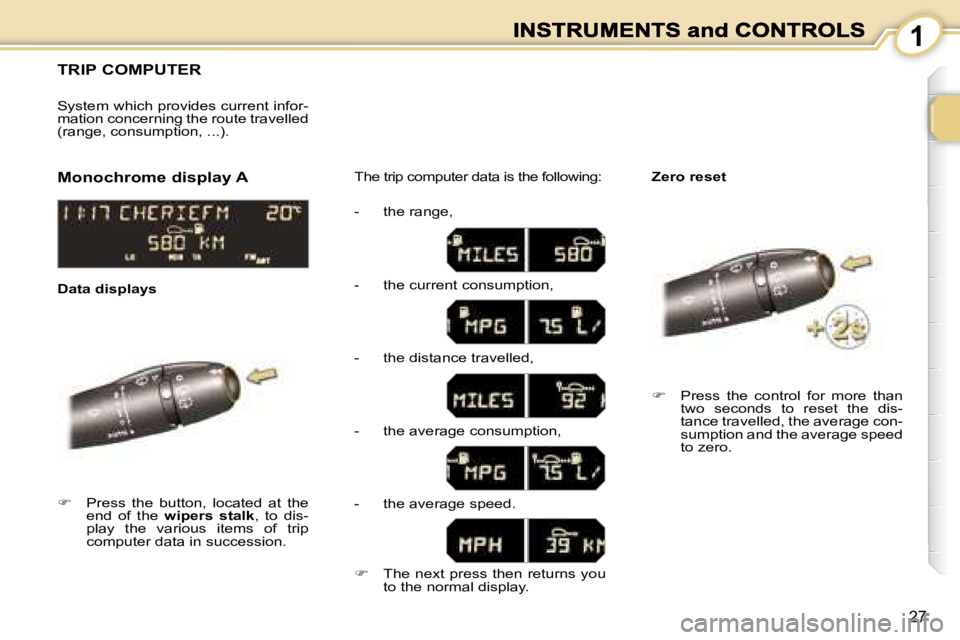

TRIP COMPUTER
Press the button, located at the
end of the w i p e r s s t a l k , to dis-
play the various items of trip
computer data in succession. The trip computer data is the following:
System which provides current infor-
mation concerning the route travelled
(range, consumption, ...).
Press the control for more than
two seconds to reset the dis-
tance travelled, the average con-
sumption and the average speed
to zero.
M o n o c h r o m e d i s p l a y A
Z e r o r e s e t
D a t a d i s p l a y s - the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.
The next press then returns you
to the normal display.
Page 25 of 189
1
28

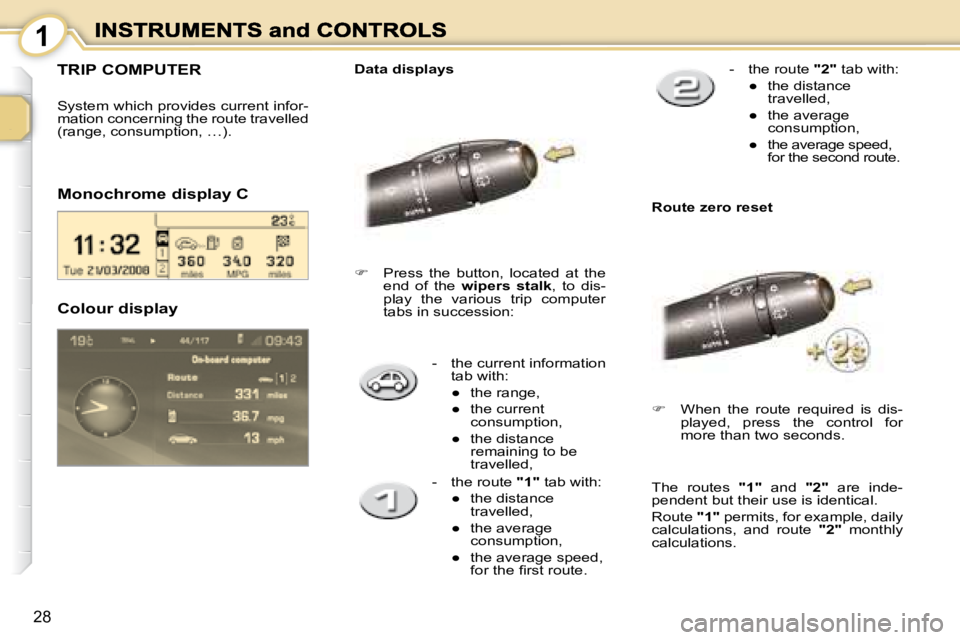

- the current information tab with:
Page 26 of 189
1
29

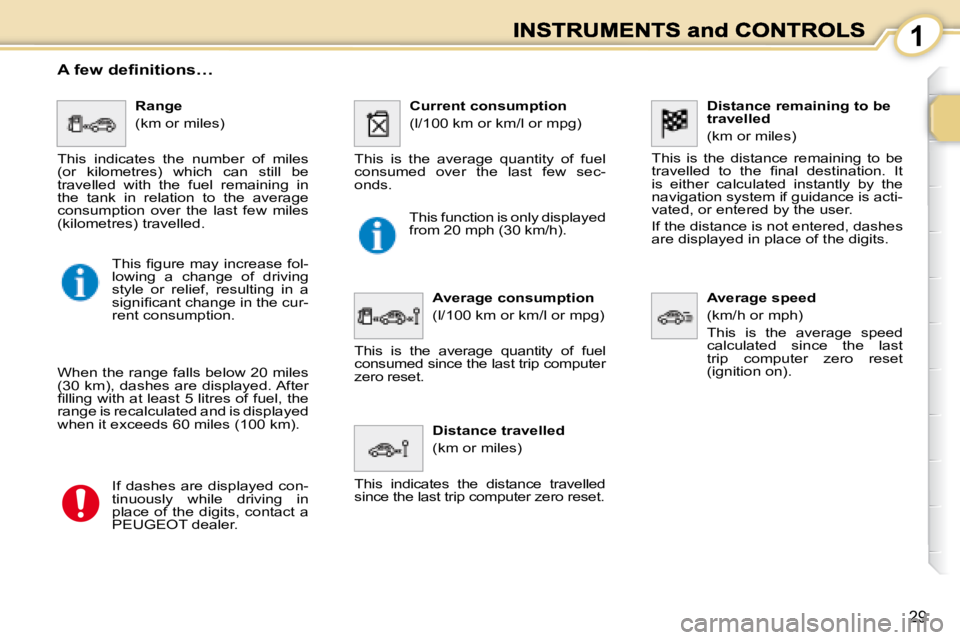

D i s t a n c e r e m a i n i n g t o b e
t r a v e l l e d
(km or miles)
This is the distance remaining to be
t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t
is either calculated instantly by the
navigation system if guidance is acti-
vated, or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
A v e r a g e s p e e d
(km/h or mph)
This is the average speed
calculated since the last
trip computer zero reset
(ignition on).
Range
(km or miles)
This indicates the number of miles
(or kilometres) which can still be
travelled with the fuel remaining in
the tank in relation to the average
consumption over the last few miles
(kilometres) travelled. C u r r e n t c o n s u m p t i o n
(l/100 km or km/l or mpg)
This is the average quantity of fuel
consumed over the last few sec-
onds.
A v e r a g e c o n s u m p t i o n
(l/100 km or km/l or mpg)
This is the average quantity of fuel
consumed since the last trip computer
zero reset.
D i s t a n c e t r a v e l l e d
(km or miles)
This indicates the distance travelled
since the last trip computer zero reset.
A f e w d e f i n i t i o n s …
When the range falls below 20 miles
(30 km), dashes are displayed. After
fi l l i n g w i t h a t l e a s t 5 l i t r e s o f f u e l , t h e
range is recalculated and is displayed
when it exceeds 60 miles (100 km).
If dashes are displayed con-
tinuously while driving in
place of the digits, contact a
PEUGEOT dealer. This function is only displayed
from 20 mph (30 km/h).
T h i s fi g u r e m a y i n c r e a s e f o l -
lowing a change of driving
style or relief, resulting in a
s i g n i fi c a n t c h a n g e i n t h e c u r -
rent consumption.
Page 27 of 189
1
30

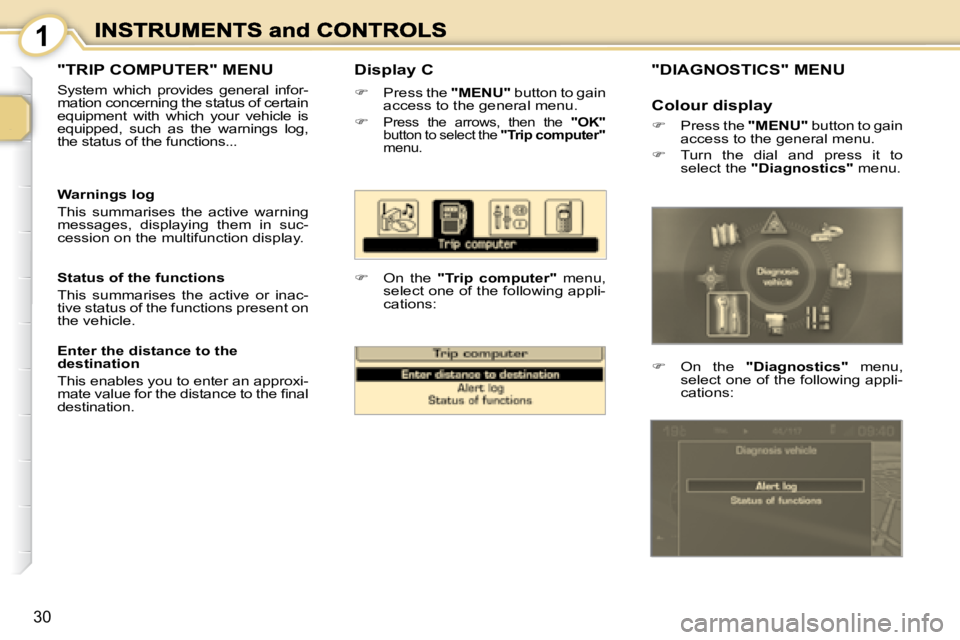

D i s p l a y C
Press the "MENU" button to gain
access to the general menu.
Press the arrows, then the "OK"
button to select the " T r i p c o m p u t e r "
menu.
On the " T r i p c o m p u t e r " menu,
select one of the following appli-
cations:
W a r n i n g s l o g
This summarises the active warning
messages, displaying them in suc-
cession on the multifunction display.
S t a t u s o f t h e f u n c t i o n s
This summarises the active or inac-
tive status of the functions present on
the vehicle.
E n t e r t h e d i s t a n c e t o t h e
d e s t i n a t i o n
This enables you to enter an approxi-
m a t e v a l u e f o r t h e d i s t a n c e t o t h e fi n a l
destination.
"TRIP COMPUTER" MENU
System which provides general infor-
mation concerning the status of certain
equipment with which your vehicle is
equipped, such as the warnings log,
the status of the functions...
"DIAGNOSTICS" MENU
On the " D i a g n o s t i c s " menu,
select one of the following appli-
cations:
C o l o u r d i s p l a y
Press the "MENU" button to gain
access to the general menu.
Turn the dial and press it to
select the " D i a g n o s t i c s " menu.
Page 28 of 189
2
31

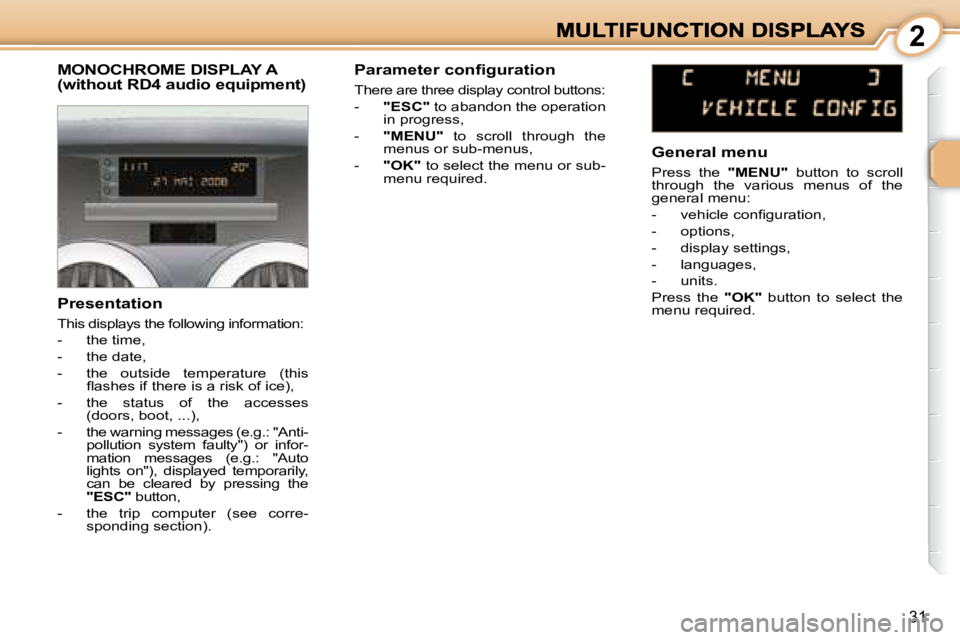

MONOCHROME DISPLAY A (without RD4 audio equipment)
Presentation
This displays the following information:
- the time,
- the date,
- the outside temperature (this fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- t h e s t a t u s o f t h e a c c e s s e s ( d o o r s , b o o t , . . . ) ,
- the warning messages (e.g.: "Anti- p o l l u t i o n s y s t e m f a u l t y " ) o r i n f o r -
mation messages (e.g.: "Auto
l i g h t s o n " ) , d i s p l a y e d t e m p o r a r i l y ,
c a n b e c l e a r e d b y p r e s s i n g t h e
"ESC" button,
- t h e t r i p c o m p u t e r ( s e e c o r r e - s p o n d i n g s e c t i o n ) . Parameter configuration
T h e r e a r e t h r e e d i s p l a y c o n t r o l b u t t o n s :
-
"ESC" to abandon the operation
in progress,
- "MENU" t o s c r o l l t h r o u g h t h e
menus or sub-menus,
- "OK" t o s e l e c t t h e m e n u o r s u b -
menu required. General menu
Press the
"MENU" b u t t o n t o s c r o l l
through the various menus of the
general menu:
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" b u t t o n t o s e l e c t t h e
menu required.
Page 29 of 189
2
32

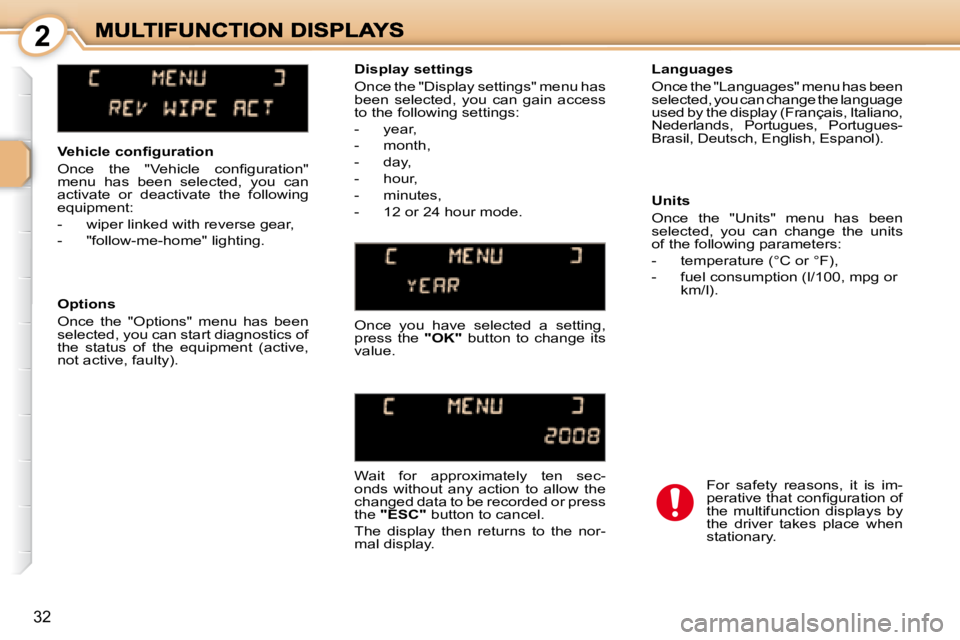

V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e c o n fi g u r a t i o n "
m e n u h a s b e e n s e l e c t e d , y o u c a n
a c t i v a t e o r d e a c t i v a t e t h e f o l l o w i n g
equipment:
- w i p e r l i n k e d w i t h r e v e r s e g e a r ,
- "follow-me-home" lighting. Languages
O n c e t h e " L a n g u a g e s " m e n u h a s b e e n
s e l e c t e d , y o u c a n c h a n g e t h e l a n g u a g e
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
B r a s i l , D e u t s c h , E n g l i s h , E s p a n o l ) .
Display settings
O n c e t h e " D i s p l a y s e t t i n g s " m e n u h a s
b e e n s e l e c t e d , y o u c a n g a i n a c c e s s
to the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Options
O n c e t h e " O p t i o n s " m e n u h a s b e e n
s e l e c t e d , y o u c a n s t a r t d i a g n o s t i c s o f
t h e s t a t u s o f t h e e q u i p m e n t ( a c t i v e ,
n o t a c t i v e , f a u l t y ) . O n c e y o u h a v e s e l e c t e d a s e t t i n g ,
press the
"OK" b u t t o n t o c h a n g e i t s
value.
W a i t f o r a p p r o x i m a t e l y t e n s e c -
o n d s w i t h o u t a n y a c t i o n t o a l l o w t h e
c h a n g e d d a t a t o b e r e c o r d e d o r p r e s s
the "ESC" b u t t o n t o c a n c e l .
The display then returns to the nor-
mal display. Units
O n c e t h e " U n i t s " m e n u h a s b e e n
s e l e c t e d , y o u c a n c h a n g e t h e u n i t s
of the following parameters:
- t e m p e r a t u r e ( ° C o r ° F ) ,
- f u e l c o n s u m p t i o n ( l / 1 0 0 , m p g o r
k m / l ) .
For safety reasons, it is im-
p e r a t i v e t h a t c o n fi g u r a t i o n o f
t h e m u l t i f u n c t i o n d i s p l a y s b y
t h e d r i v e r t a k e s p l a c e w h e n
stationary.
Page 30 of 189
2
33
General menu
Press the "MENU" button to gain
a c c e s s t o t h e g e n e r a l m e n u , t h e n
press the " " or " " b u t t o n s t o s c r o l l
through the following items:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" b u t t o n t o s e l e c t t h e
menu required. V e h i c l e c o n fi g u r a t i o n
O n c e t h e " V e h i c l e c o n fi g u r a t i o n "
m e n u h a s b e e n s e l e c t e d , y o u c a n
a c t i v a t e o r d e a c t i v a t e t h e f o l l o w i n g
equipment:
- r e a r w i p e r l i n k e d w i t h r e v e r s e
gear,
- "follow-me-home" lighting.
Presentation
This displays the following informa-
tion, via the RD4 audio equipment
c o n t r o l k e y p a d :
- the time,
- the date,
- the outside temperature (this fl a s h e s i f t h e r e i s a r i s k o f i c e ) ,
- t h e a u d i o s o u r c e d i s p l a y s ( r a d i o , C D , . . . ) ,
- t h e s t a t u s o f t h e a c c e s s e s ( d o o r s , b o o t , . . . ) ,
- the warning messages (e.g.: "Anti- p o l l u t i o n s y s t e m f a u l t y " ) o r i n f o r -
mation messages (e.g.: "Auto
l i g h t s o n " ) , d i s p l a y e d t e m p o r a r i l y ,
c a n b e c l e a r e d b y p r e s s i n g t h e
"ESC" button,
- t h e t r i p c o m p u t e r ( s e e c o r r e - s p o n d i n g s e c t i o n ) .
MONOCHROME DISPLAY A
Options
O n c e t h e " O p t i o n s " m e n u h a s b e e n
s e l e c t e d , y o u c a n s t a r t d i a g n o s t i c s o f
t h e s t a t u s o f t h e e q u i p m e n t ( a c t i v e ,
n o t a c t i v e , f a u l t y ) .
Radio-CD
With the RD4 audio equipment
s w i t c h e d o n , o n c e t h e " R a d i o - C D "
m e n u h a s b e e n s e l e c t e d , y o u c a n
a c t i v a t e o r d e a c t i v a t e t h e f u n c t i o n s
l i n k e d w i t h t h e u s e o f t h e r a d i o ( R D S
f o l l o w i n g , R E G m o d e ) , t h e C D o r t h e
C D c h a n g e r ( i n t r o s c a n , r a n d o m p l a y ,
C D r e p e a t ) .
