PEUGEOT 1007 2008 Repair Manual
Manufacturer: PEUGEOT, Model Year: 2008, Model line: 1007, Model: PEUGEOT 1007 2008Pages: 189, PDF Size: 10.54 MB
Page 61 of 189
3
64

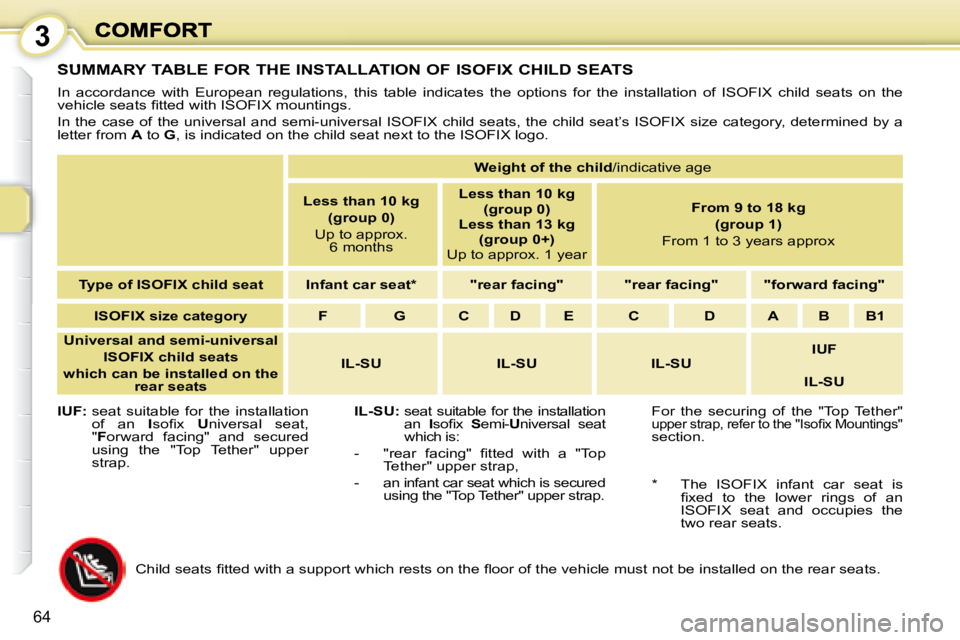

SUMMARY TABLE FOR THE INSTALLATION OF ISOFIX CHILD SEATS
In accordance with European regulations, this table indicates the options for the installation of ISOFIX child seats on the
v e h i c l e s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
In the case of the universal and semi-universal ISOFIX child seat s, the child seat’s ISOFIX size category, determined by a
letter from A to G , is indicated on the child seat next to the ISOFIX logo.
IUF: seat suitable for the installation
of an I s o fi x U niversal seat,
" F orward facing" and secured
using the "Top Tether" upper
strap.
* The ISOFIX infant car seat is fi x e d t o t h e l o w e r r i n g s o f a n
ISOFIX seat and occupies the
two rear seats.
IL-SU: seat suitable for the installation
an I s o fi x S emi- U niversal seat
which is:
- " r e a r f a c i n g " fi t t e d w i t h a " T o p Tether" upper strap,
- an infant car seat which is secured using the "Top Tether" upper strap.
C h i l d s e a t s fi t t e d w i t h a s u p p o r t w h i c h r e s t s o n t h e fl o o r o f t h e v e h i c l e m u s t n o t b e i n s t a l l e d o n t h e r e a r s e a t s .
Weight of the child /indicative age
Less than 10 kg
(group 0)
Up to approx. 6 months
Less than 10 kg
(group 0)
Less than 13 kg
(group 0+)
Up to approx. 1 year
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
Type of ISOFIX child seat Infant car seat * "rear facing" "rear facing" "forward facing"
ISOFIX size category F G C D E C D A B B1
Universal and semi-universal ISOFIX child seats
which can be installed on the rear seats IL-SU IL-SU IL-SU
IUF
IL-SU
For the securing of the "Top Tether"
u p p e r s t r a p , r e f e r t o t h e " I s o fi x M o u n t i n g s "
section.
Page 62 of 189
3
65

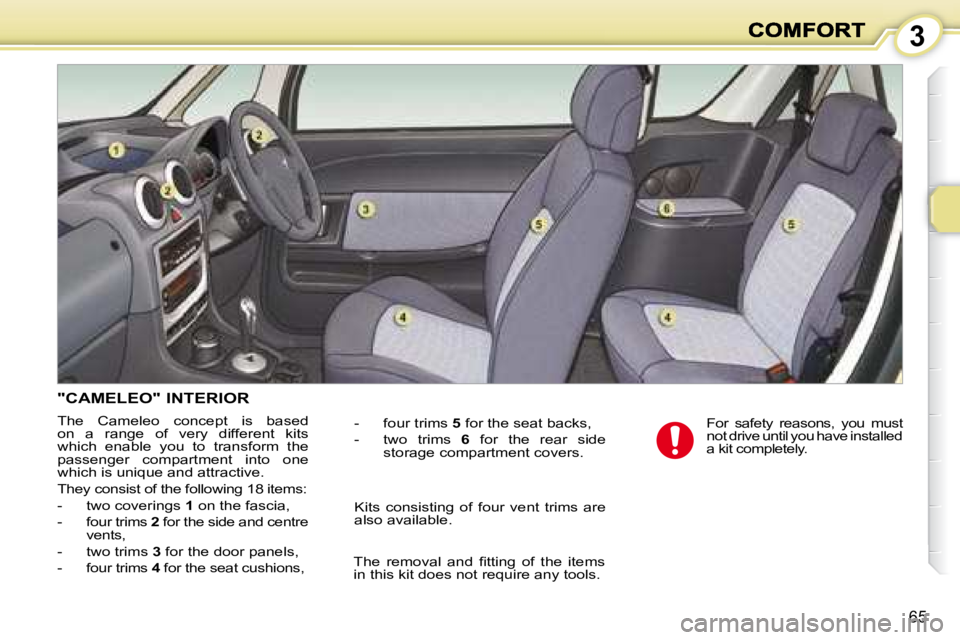

"CAMELEO" INTERIOR
The Cameleo concept is based
on a range of very different kits
which enable you to transform the
passenger compartment into one
which is unique and attractive.
They consist of the following 18 items:
- two coverings 1 on the fascia,
- four trims 2 for the side and centre
vents,
- two trims 3 for the door panels,
- four trims 4 for the seat cushions, - four trims
5 for the seat backs,
- two trims 6 for the rear side
storage compartment covers. For safety reasons, you must
not drive until you have installed
a kit completely.
Kits consisting of four vent trims are
also available.
T h e r e m o v a l a n d fi t t i n g o f t h e i t e m s
in this kit does not require any tools.
Page 63 of 189
3
66

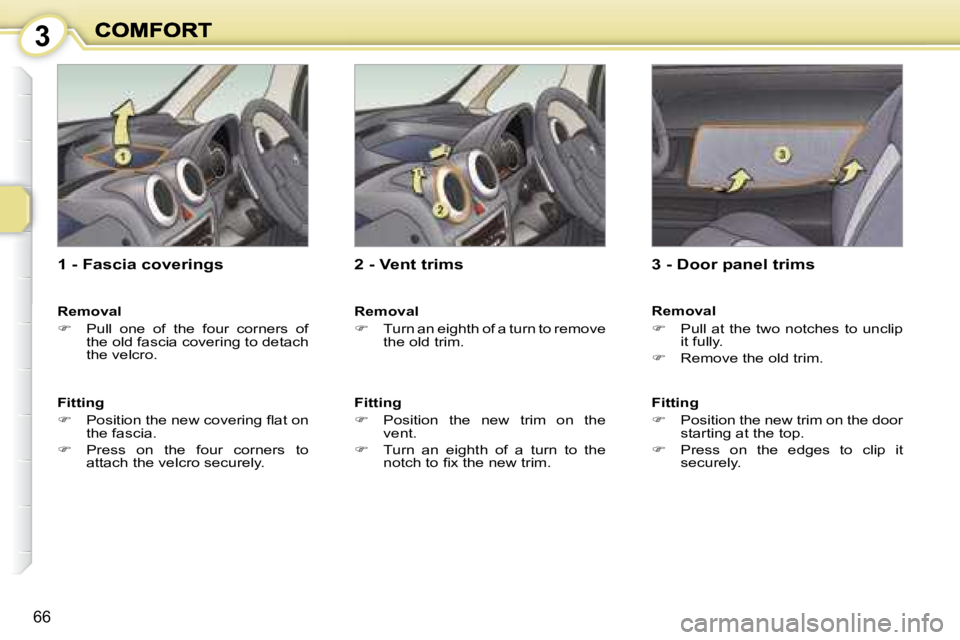

1 - Fascia coverings
Removal
Pull one of the four corners of
the old fascia covering to detach
the velcro.
Fitting
P o s i t i o n t h e n e w c o v e r i n g fl a t o n
the fascia.
Press on the four corners to
attach the velcro securely. 2 - Vent trims
Removal
Turn an eighth of a turn to remove
the old trim.
Fitting
Position the new trim on the
vent.
Turn an eighth of a turn to the
n o t c h t o fi x t h e n e w t r i m . 3 - Door panel trims
Removal
Pull at the two notches to unclip
it fully.
Remove the old trim.
Fitting
Position the new trim on the door
starting at the top.
Press on the edges to clip it
securely.
Page 64 of 189
3
67

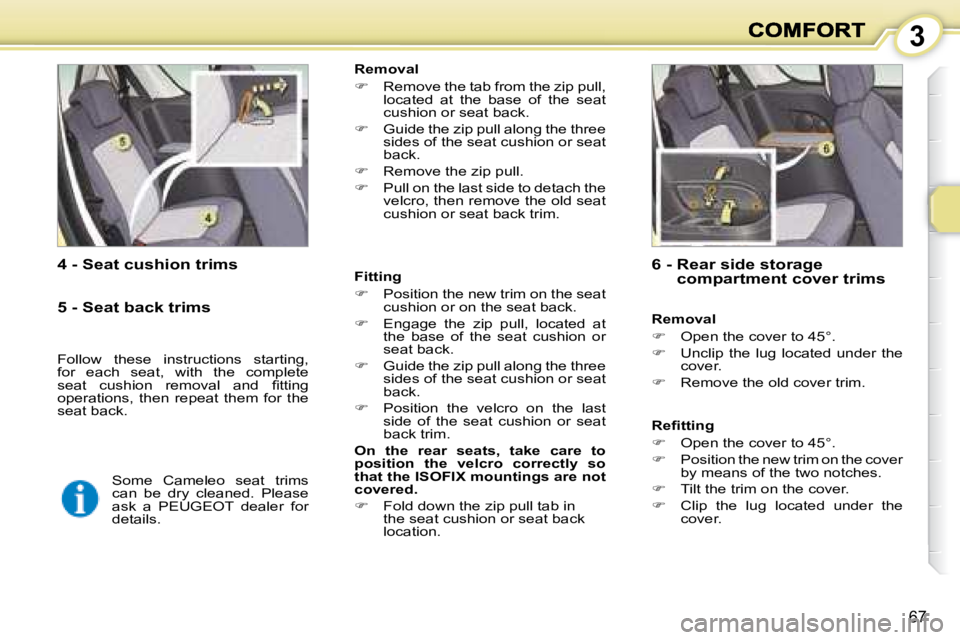

4 - Seat cushion trims Fitting
Position the new trim on the seat
cushion or on the seat back.
Engage the zip pull, located at
the base of the seat cushion or
seat back.
Guide the zip pull along the three
sides of the seat cushion or seat
back.
Position the velcro on the last
side of the seat cushion or seat
back trim.
On the rear seats, take care to
position the velcro correctly so
that the ISOFIX mountings are not
covered.
Fold down the zip pull tab in
the seat cushion or seat back
location. 6 - Rear side storage
compartment cover trims
Removal
Remove the tab from the zip pull,
located at the base of the seat
cushion or seat back.
Guide the zip pull along the three
sides of the seat cushion or seat
back.
Remove the zip pull.
Pull on the last side to detach the
velcro, then remove the old seat
cushion or seat back trim.
Removal
Open the cover to 45°.
Unclip the lug located under the
cover.
Remove the old cover trim.
R e fi t t i n g
Open the cover to 45°.
Position the new trim on the cover
by means of the two notches.
Tilt the trim on the cover.
Clip the lug located under the
cover.
Some Cameleo seat trims
can be dry cleaned. Please
ask a PEUGEOT dealer for
details.
5 - Seat back trims
Follow these instructions starting,
for each seat, with the complete
s e a t c u s h i o n r e m o v a l a n d fi t t i n g
operations, then repeat them for the
seat back.
Page 65 of 189
3
68
Page 66 of 189
3
69

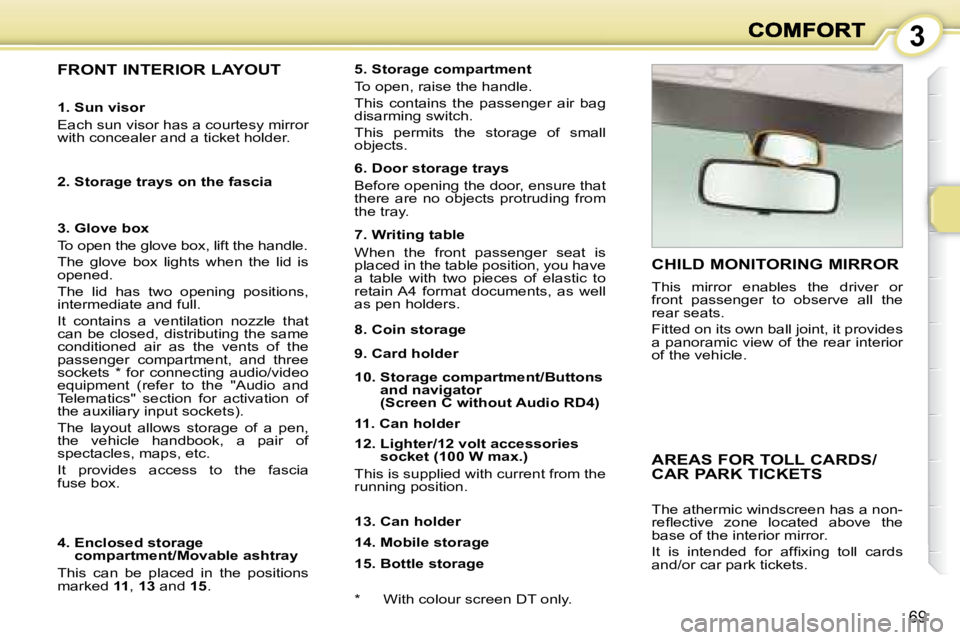

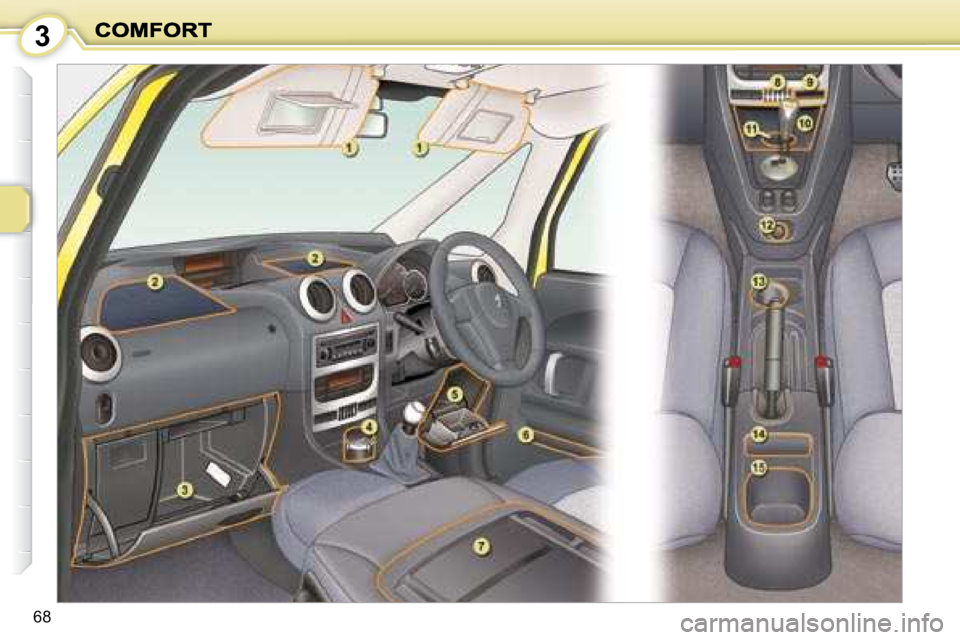

FRONT INTERIOR LAYOUT 5. Storage compartment
To open, raise the handle.
This contains the passenger air bag
disarming switch.
This permits the storage of small
objects.
CHILD MONITORING MIRROR
This mirror enables the driver or
front passenger to observe all the
rear seats.
Fitted on its own ball joint, it provides
a panoramic view of the rear interior
of the vehicle.
AREAS FOR TOLL CARDS/CAR PARK TICKETS
* With colour screen DT only.
1. Sun visor
Each sun visor has a courtesy mirror
with concealer and a ticket holder.
2. Storage trays on the fascia
3. Glove box
To open the glove box, lift the handle.
The glove box lights when the lid is
opened.
The lid has two opening positions,
intermediate and full.
It contains a ventilation nozzle that
can be closed, distributing the same
conditioned air as the vents of the
passenger compartment, and three
sockets * for connecting audio/video
equipment (refer to the "Audio and
Telematics" section for activation of
the auxiliary input sockets).
The layout allows storage of a pen,
the vehicle handbook, a pair of
spectacles, maps, etc.
It provides access to the fascia
fuse box.
4. Enclosed storage
compartment/Movable ashtray
This can be placed in the positions
marked 11 , 13 and 15 . 6. Door storage trays
B e f o r e o p e n i n g t h e d o o r , e n s u r e t h a t
there are no objects protruding from
the tray.
7. Writing table
When the front passenger seat is
placed in the table position, you have
a table with two pieces of elastic to
retain A4 format documents, as well
as pen holders.
8. Coin storage
9. Card holder
10. Storage compartment/Buttons
and navigator
(Screen C without Audio RD4)
11. Can holder
12. Lighter/12 volt accessories socket (100 W max.)
This is supplied with current from the
running position.
13. Can holder
14. Mobile storage The athermic windscreen has a non-
r e fl e c t i v e z o n e l o c a t e d a b o v e t h e
base of the interior mirror.
I t i s i n t e n d e d f o r a f fi x i n g t o l l c a r d s
and/or car park tickets.
15. Bottle storage
Page 67 of 189
3
70
Page 68 of 189
3
71

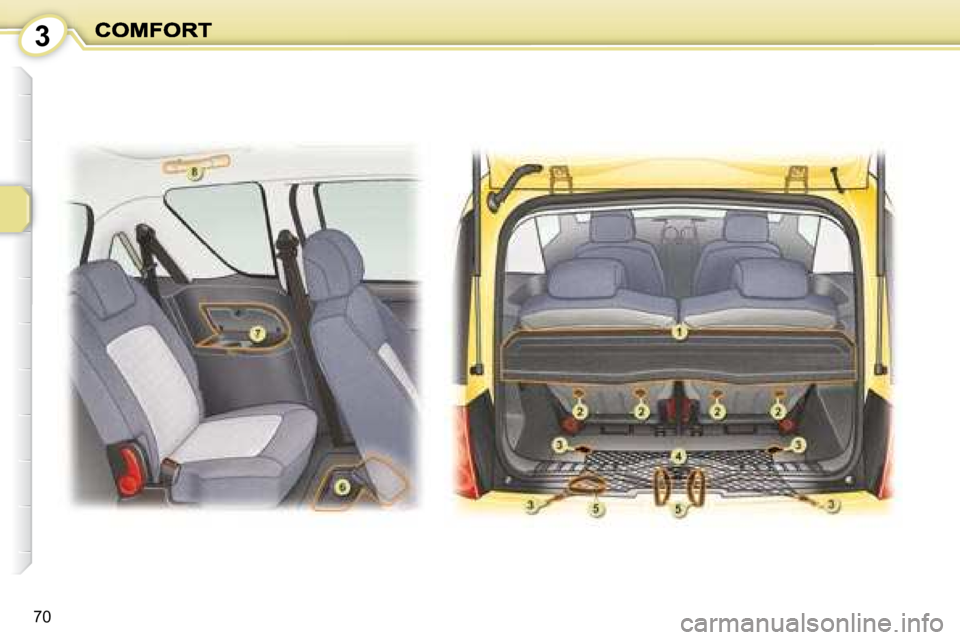

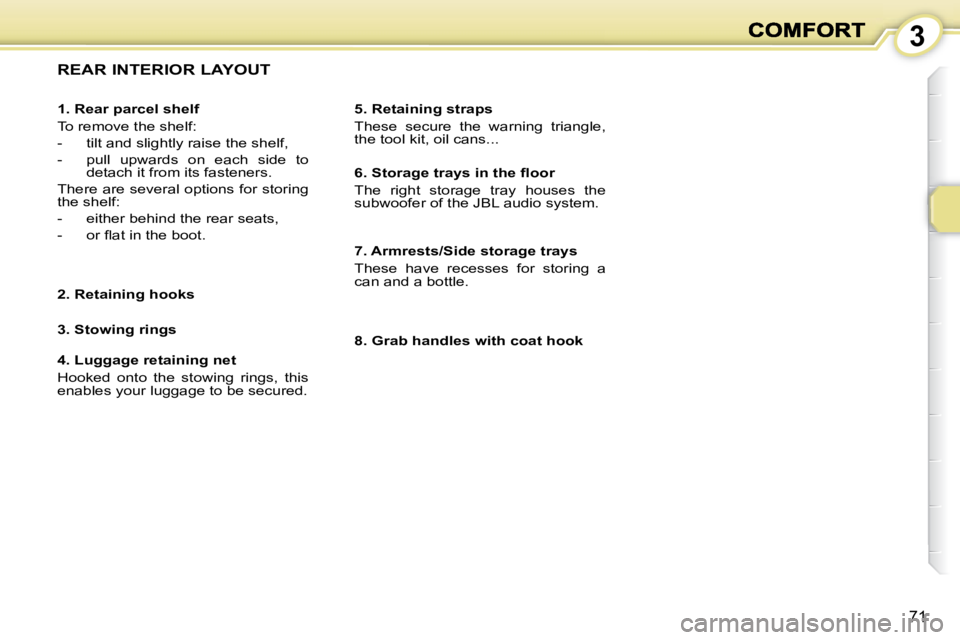

REAR INTERIOR LAYOUT
5. Retaining straps
These secure the warning triangle,
the tool kit, oil cans...
1. Rear parcel shelf
To remove the shelf:
- tilt and slightly raise the shelf,
- pull upwards on each side to
detach it from its fasteners.
There are several options for storing
the shelf:
- either behind the rear seats,
- o r fl a t i n t h e b o o t .
2. Retaining hooks
3. Stowing rings
4. Luggage retaining net
Hooked onto the stowing rings, this
enables your luggage to be secured. 6 . S t o r a g e t r a y s i n t h e fl o o r
The right storage tray houses the
s u b w o o f e r o f t h e J B L a u d i o s y s t e m .
7. Armrests/Side storage trays
These have recesses for storing a
can and a bottle.
8. Grab handles with coat hook
Page 69 of 189
4
72

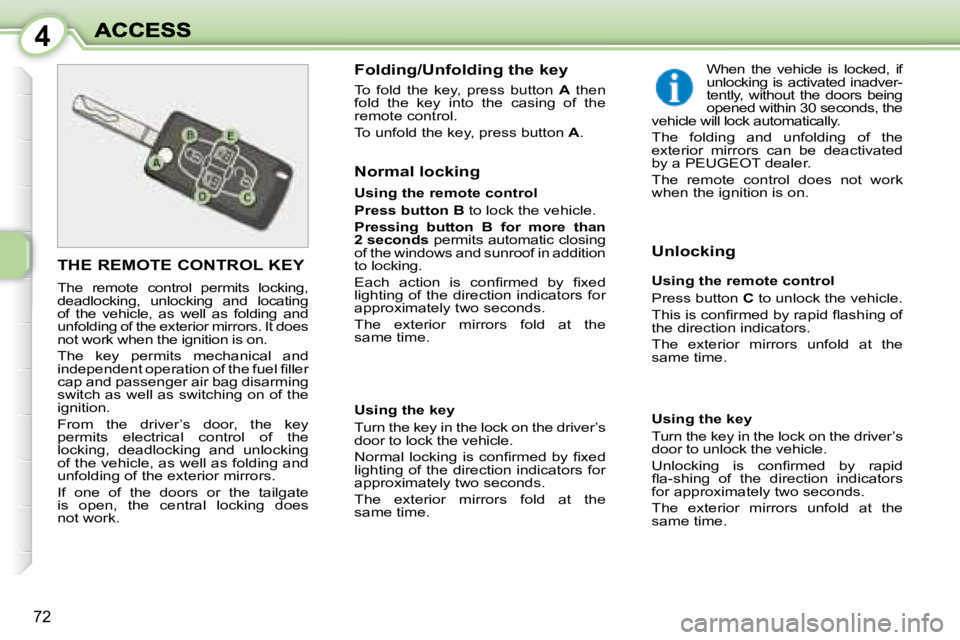

THE REMOTE CONTROL KEY
The remote control permits locking,
deadlocking, unlocking and locating
of the vehicle, as well as folding and
unfolding of the exterior mirrors. It does
not work when the ignition is on.
The key permits mechanical and
i n d e p e n d e n t o p e r a t i o n o f t h e f u e l fi l l e r
cap and passenger air bag disarming
switch as well as switching on of the
ignition.
From the driver’s door, the key
permits electrical control of the
locking, deadlocking and unlocking
of the vehicle, as well as folding and
unfolding of the exterior mirrors.
If one of the doors or the tailgate
is open, the central locking does
not work. Using the key
Turn the key in the lock on the driver’s
door to lock the vehicle.
N o r m a l l o c k i n g i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the
same time.
Using the key
Turn the key in the lock on the driver’s
door to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a - s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately two seconds.
The exterior mirrors unfold at the
same time.
Folding/Unfolding the key
To fold the key, press button
A then
fold the key into the casing of the
remote control.
To unfold the key, press button A .
Unlocking
Normal locking When the vehicle is locked, if
u n l o c k i n g i s a c t i v a t e d i n a d v e r -
tently, without the doors being
opened within 30 seconds, the
vehicle will lock automatically.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
The remote control does not work
when the ignition is on.
Using the remote control
Press button B to lock the vehicle.
Pressing button B for more than
2 seconds permits automatic closing
of the windows and sunroof in addition
to locking.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds.
The exterior mirrors fold at the
same time. Using the remote control
Press button
C to unlock the vehicle.
T h i s i s c o n fi r m e d b y r a p i d fl a s h i n g o f
the direction indicators.
The exterior mirrors unfold at the
same time.
Page 70 of 189
4
73

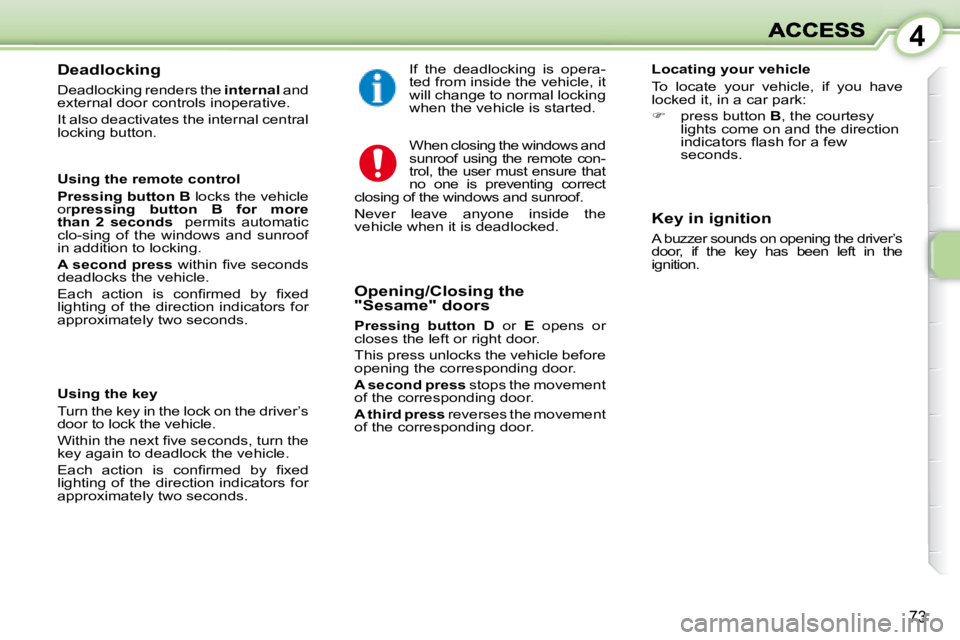

Deadlocking
Deadlocking renders the internal and
external door controls inoperative.
It also deactivates the internal central
locking button.
Using the remote control
Pressing button B locks the vehicle
or pressing button B for more
than 2 seconds permits automatic
c l o - s i n g o f t h e w i n d o w s a n d s u n r o o f
in addition to locking.
A second press w i t h i n fi v e s e c o n d s
deadlocks the vehicle.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds. Opening/Closing the
"Sesame" doors
Pressing button D or E opens or
closes the left or right door.
This press unlocks the vehicle before
opening the corresponding door.
A second press stops the movement
of the corresponding door.
A third press reverses the movement
of the corresponding door.
Using the key
Turn the key in the lock on the driver’s
door to lock the vehicle.
W i t h i n t h e n e x t fi v e s e c o n d s , t u r n t h e
key again to deadlock the vehicle.
E a c h a c t i o n i s c o n fi r m e d b y fi x e d
lighting of the direction indicators for
approximately two seconds. Key in ignition
A buzzer sounds on opening the driver’s
door, if the key has been left in the
ignition.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press button B , the courtesy
lights come on and the direction
i n d i c a t o r s fl a s h f o r a f e w
seconds.
I f t h e d e a d l o c k i n g i s o p e r a -
ted from inside the vehicle, it
will change to normal locking
when the vehicle is started.
When closing the windows and
s u n r o o f u s i n g t h e r e m o t e c o n -
trol, the user must ensure that
no one is preventing correct
closing of the windows and sunroof.
Never leave anyone inside the
vehicle when it is deadlocked.
