3
54
REAR SEATS

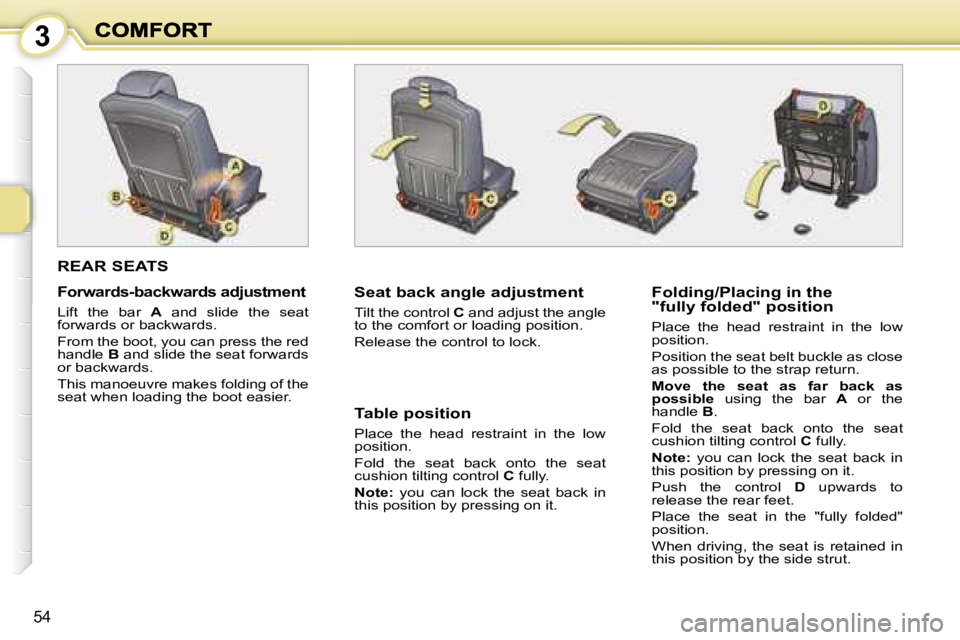

Seat back angle adjustment
Tilt the control C and adjust the angle
to the comfort or loading position.
Release the control to lock. Folding/Placing in the
"fully folded" position
Place the head restraint in the low
position.
Position the seat belt buckle as close
as possible to the strap return.
Move the seat as far back as
possible using the bar A or the
handle B .
Fold the seat back onto the seat
cushion tilting control C fully.
Note: you can lock the seat back in
this position by pressing on it.
Push the control D upwards to
release the rear feet.
Place the seat in the "fully folded"
position.
When driving, the seat is retained in
this position by the side strut.
Table position
Place the head restraint in the low
position.
Fold the seat back onto the seat
cushion tilting control
C fully.
Note: you can lock the seat back in
this position by pressing on it.
Forwards-backwards adjustment
Lift the bar
A and slide the seat
forwards or backwards.
From the boot, you can press the red
handle B and slide the seat forwards
or backwards.
This manoeuvre makes folding of the
seat when loading the boot easier.
Page 52 of 189
3
55
Never drive with the head
restraints removed, they
must be in place and correctly
adjusted.
Locked Released
In order to ensure that the
seat covers have a long
service life, do not leave
the seat in the table or "fully
folded" position after loading.
Avoid placing luggage on the seats
when they are in the table position.
REAR HEAD RESTRAINTS
The rear head restraints can be
r e m o v e d a n d h a v e t w o p o s i t i o n s ;
- high, position for use
- low, storage position

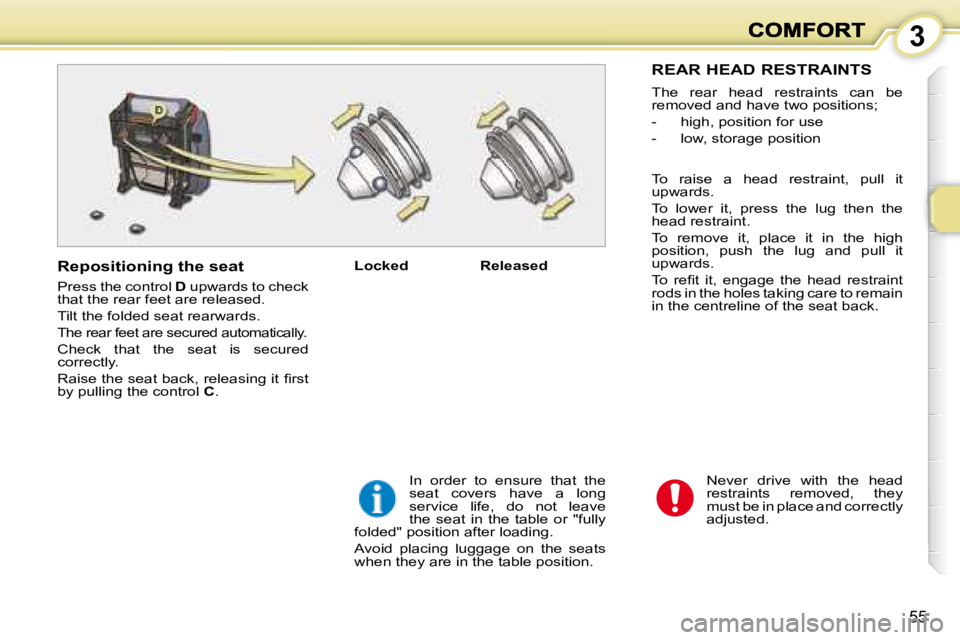

Repositioning the seat
Press the control D upwards to check
that the rear feet are released.
Tilt the folded seat rearwards.
The rear feet are secured automatically.
Check that the seat is secured
correctly.
R a i s e t h e s e a t b a c k , r e l e a s i n g i t fi r s t
by pulling the control C . To raise a head restraint, pull it
upwards.
To lower it, press the lug then the
head restraint.
To remove it, place it in the high
position, push the lug and pull it
upwards.
T o r e fi t i t , e n g a g e t h e h e a d r e s t r a i n t
rods in the holes taking care to remain
in the centreline of the seat back.
Page 53 of 189
3
56

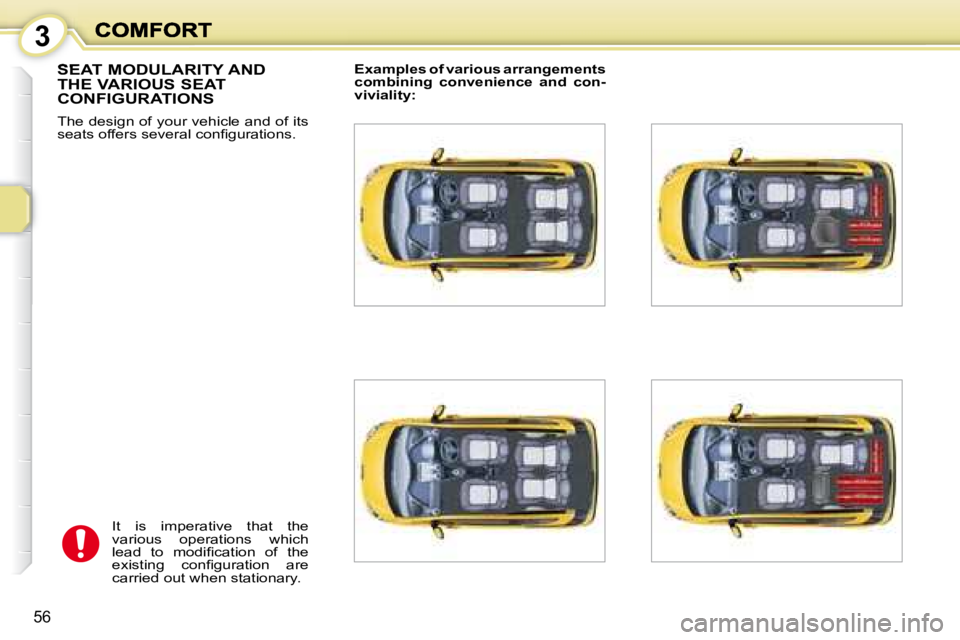

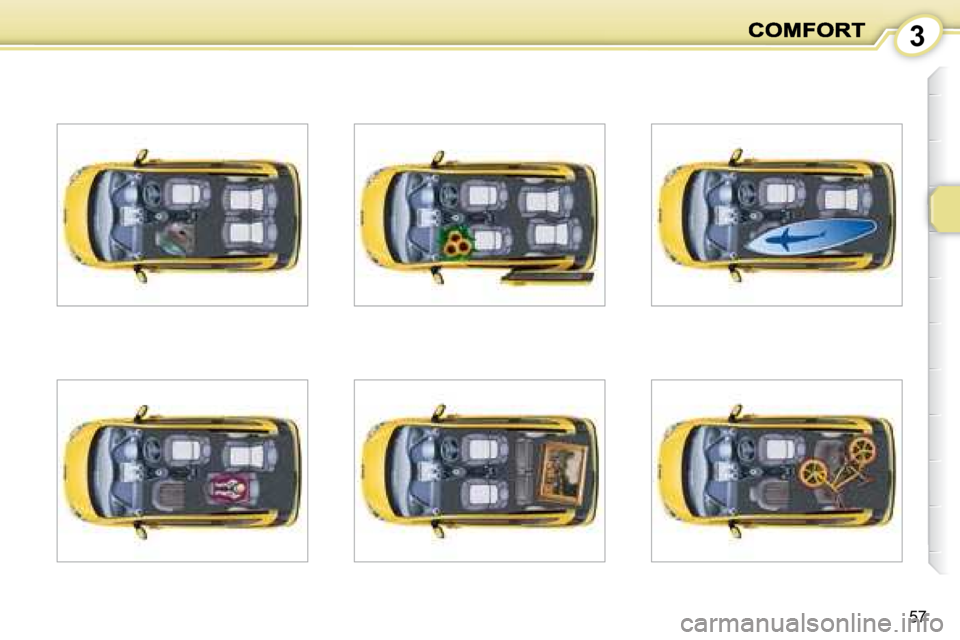

SEAT MODULARITY AND THE VARIOUS SEAT CONFIGURATIONS
The design of your vehicle and of its
s e a t s o f f e r s s e v e r a l c o n fi g u r a t i o n s .
Examples of various arrangements
combining convenience and con-
viviality:
It is imperative that the
various operations which
l e a d t o m o d i fi c a t i o n o f t h e
e x i s t i n g c o n fi g u r a t i o n a r e
carried out when stationary.
Page 54 of 189
3
57
Page 55 of 189
3
58
Although one of PEUGEOT’s main
criteria when designing your vehicle,
the safety of your children also

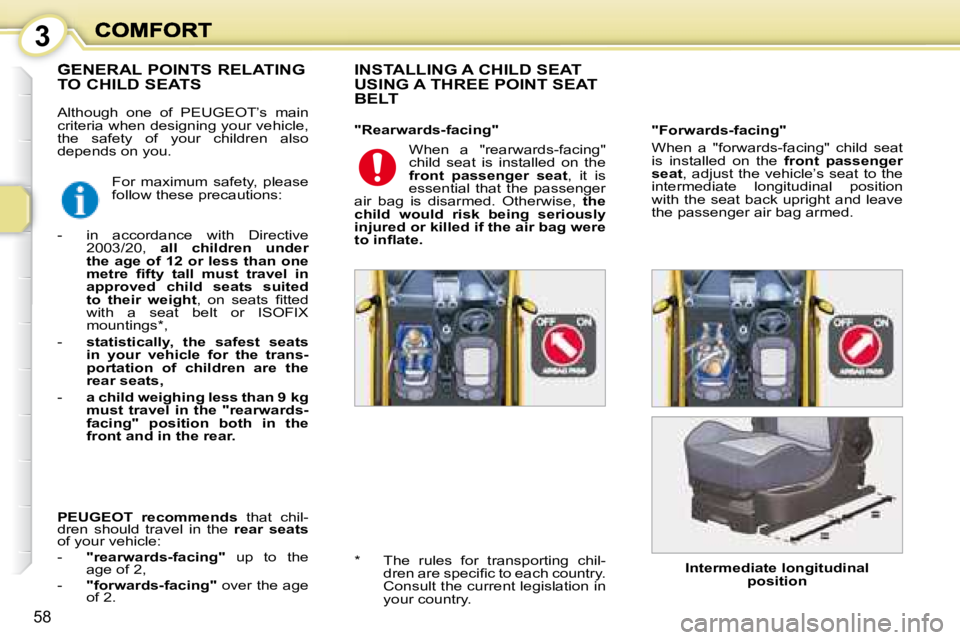

depends on you. INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
Intermediate longitudinal position
* The rules for transporting chil-
d r e n a r e s p e c i fi c t o e a c h c o u n t r y .
Consult the current legislation in
your country.
GENERAL POINTS RELATING TO CHILD SEATS
"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle’s seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed.
"Rearwards-facing"
When a "rearwards-facing"
child seat is installed on the
front passenger seat , it is
essential that the passenger
air bag is disarmed. Otherwise, the
child would risk being seriously
injured or killed if the air bag were
t o i n fl a t e .
For maximum safety, please
follow these precautions:
- in accordance with Directive 2003/20, all children under
the age of 12 or less than one
m e t r e fi f t y t a l l m u s t t r a v e l i n
approved child seats suited
to their weight , o n s e a t s fi t t e d
with a seat belt or ISOFIX
mountings * ,
- statistically, the safest seats
in your vehicle for the trans-
portation of children are the
rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the
front and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the age
of 2.
Page 56 of 189
3
61

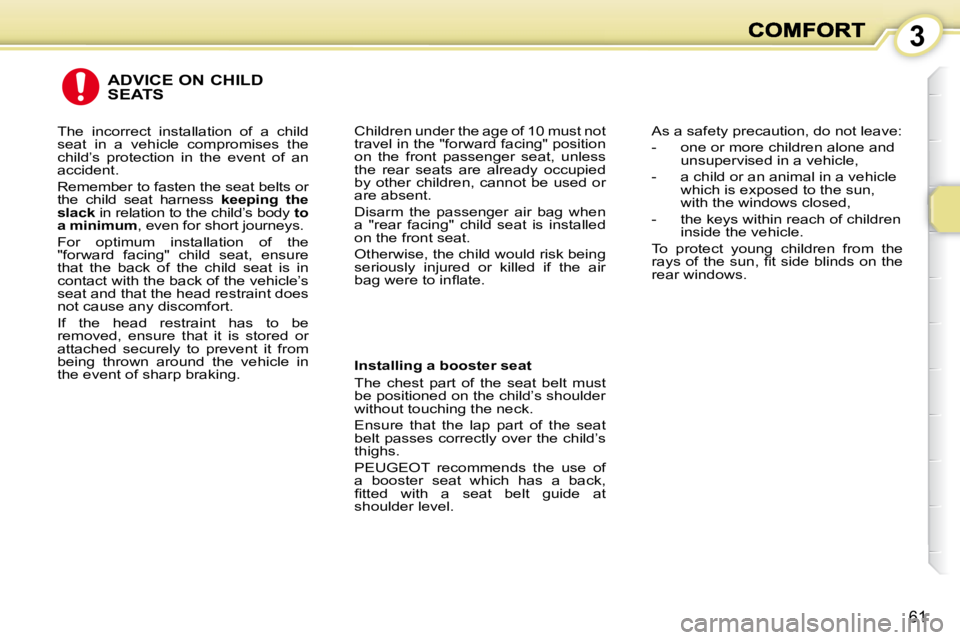

ADVICE ON CHILD SEATS
Installing a booster seat
The chest part of the seat belt must
be positioned on the child’s shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child’s
thighs.
PEUGEOT recommends the use of
a booster seat which has a back,
fi t t e d w i t h a s e a t b e l t g u i d e a t
shoulder level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun,
with the windows closed,
- the keys within reach of children inside the vehicle.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the air
b a g w e r e t o i n fl a t e .
The incorrect installation of a child
seat in a vehicle compromises the
child’s protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harness
keeping the
slack in relation to the child’s body to
a minimum , even for short journeys.
For optimum installation of the
"forward facing" child seat, ensure
that the back of the child seat is in
contact with the back of the vehicle’s
seat and that the head restraint does
not cause any discomfort.
If the head restraint has to be
removed, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Page 57 of 189
3
59

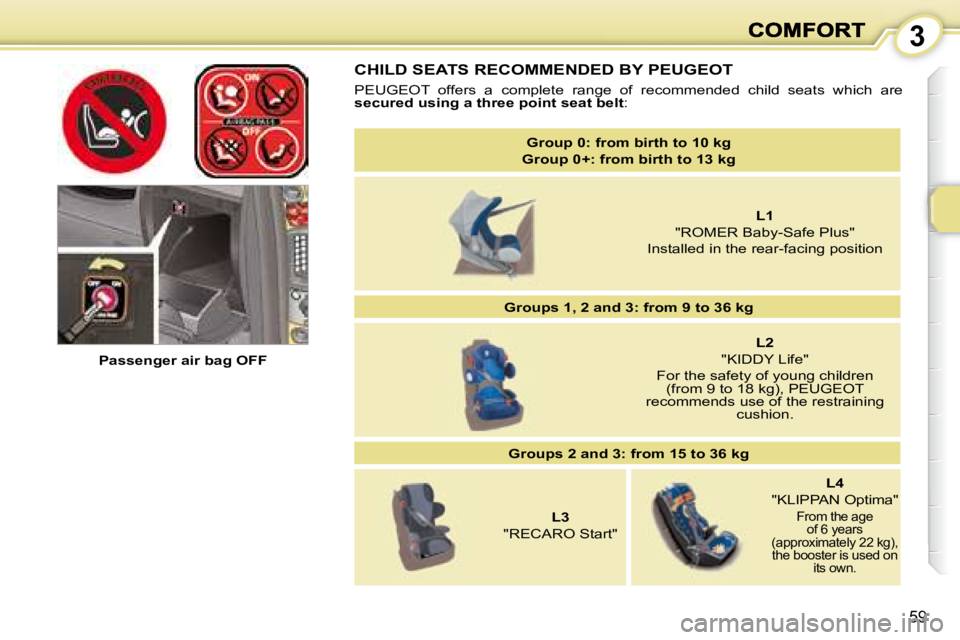

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt :
Passenger air bag OFF
Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
" R O M E R B a b y - S a f e P l u s "
Installed in the rear-facing position
Groups 1, 2 and 3: from 9 to 36 kg
L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start"
L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the booster is used on its own.
Page 58 of 189
3
60

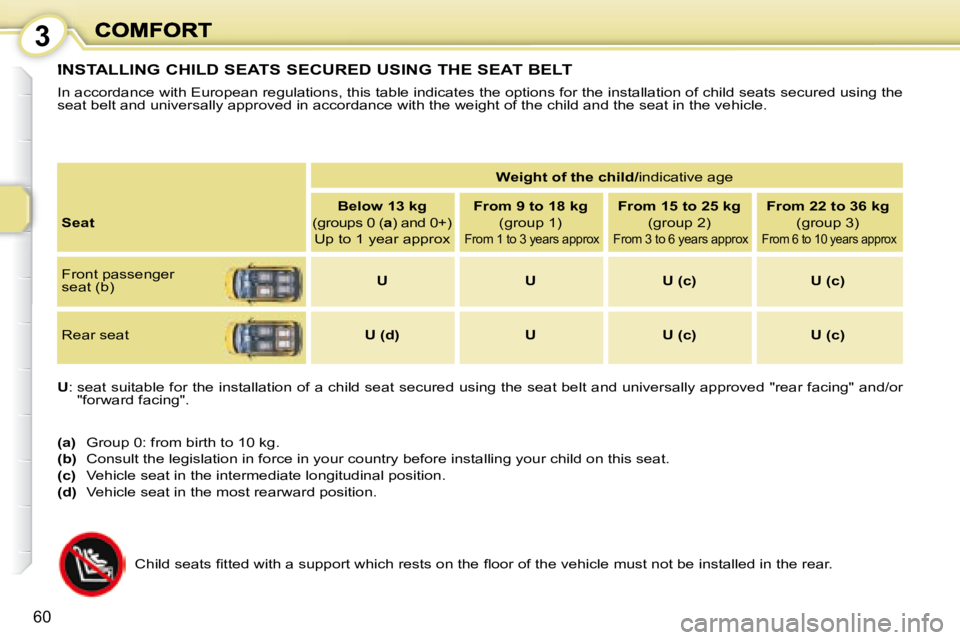

INSTALLING CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved in accordance with the weig ht of the child and the seat in the vehicle.
U : seat suitable for the installation of a child seat secu red using the seat belt and universally approved "rear facing" an d/or
"forward facing".
C h i l d s e a t s fi t t e d w i t h a s u p p o r t w h i c h r e s t s o n t h e fl o o r o f t h e v e h i c l e m u s t n o t b e i n s t a l l e d i n t h e r e a r .
Weight of the child/ indicative age
Seat
Below 13 kg
(groups 0 ( a ) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years approx
From 15 to 25 kg
(group 2)
From 3 to 6 years approx
From 22 to 36 kg
(group 3)
From 6 to 10 years approx
Front passenger
seat (b)
U U U (c) U (c)
Rear seat U (d) U U (c) U (c)
(a) Group 0: from birth to 10 kg.
(b) Consult the legislation in force in your country before insta lling your child on this seat.
(c) Vehicle seat in the intermediate longitudinal position.
(d) Vehicle seat in the most rearward position.
Page 59 of 189
3
62

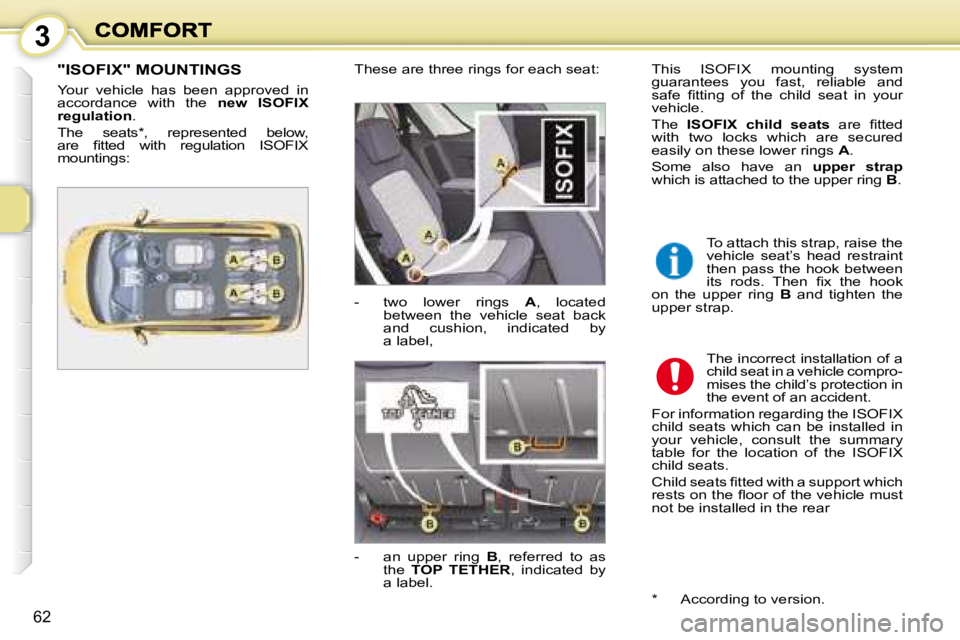

"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the new ISOFIX
regulation .
The seats * , represented below,
a r e fi t t e d w i t h r e g u l a t i o n I S O F I X
mountings: These are three rings for each seat: This ISOFIX mounting system
guarantees you fast, reliable and
s a f e fi t t i n g o f t h e c h i l d s e a t i n y o u r
vehicle.
The ISOFIX child seats a r e fi t t e d
with two locks which are secured
easily on these lower rings A .
Some also have an upper strap
which is attached to the upper ring B .
- two lower rings A , located
between the vehicle seat back
and cushion, indicated by
a label,
- an upper ring B , referred to as
the TOP TETHER , indicated by
a label. To attach this strap, raise the
vehicle seat’s head restraint
then pass the hook between
i t s r o d s . T h e n fi x t h e h o o k
on the upper ring B and tighten the
upper strap.
The incorrect installation of a
child seat in a vehicle compro-
mises the child’s protection in
the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, consult the summary
table for the location of the ISOFIX
child seats.
C h i l d s e a t s fi t t e d w i t h a s u p p o r t w h i c h
r e s t s o n t h e fl o o r o f t h e v e h i c l e m u s t
not be installed in the rear
* According to version.
Page 60 of 189
3
63
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s .
In this case, it must be attached to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ’ s i n s t a l l a t i o n g u i d e .
ISOFIX RÖMER Duo Plus (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX upp er ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

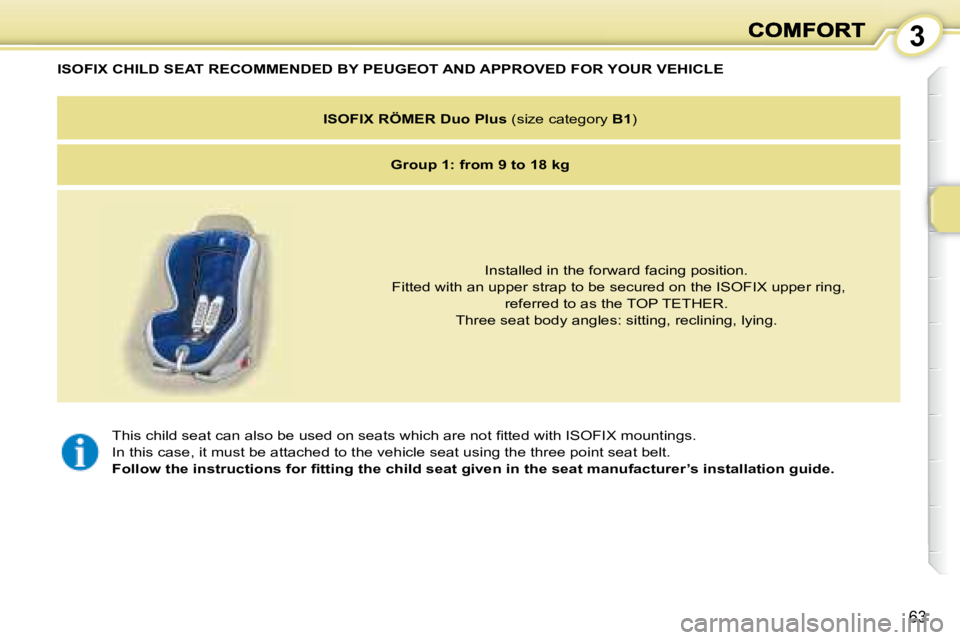

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR
VEHICLE
