3
44
Turn the control from blue
(cold) to red (hot) to adjust
the temperature to your
requirements.

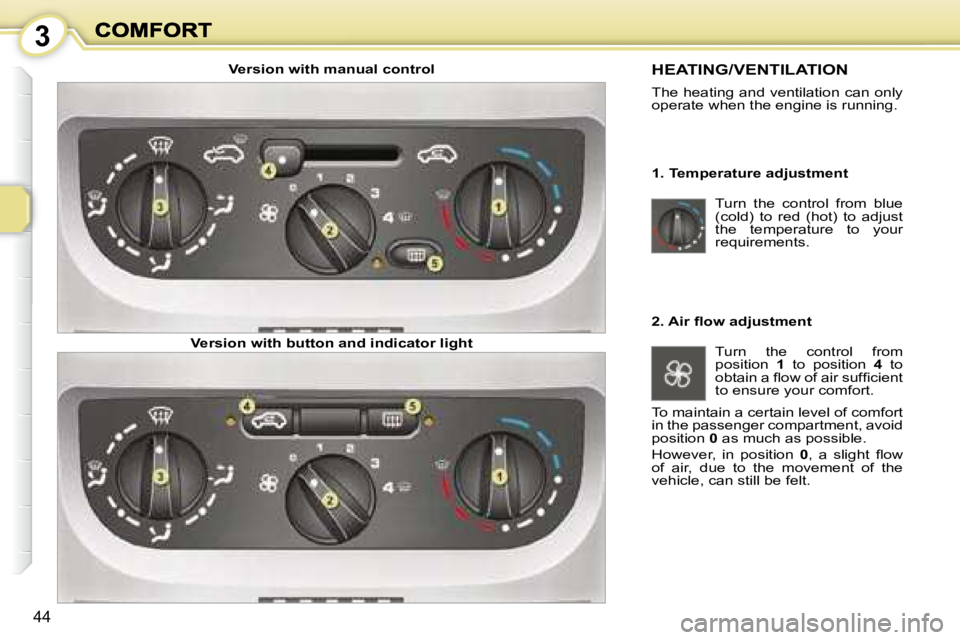

HEATING/VENTILATION
The heating and ventilation can only
operate when the engine is running.
1. Temperature adjustment
Version with button and indicator light Version with manual control
2 . A i r fl o w a d j u s t m e n t Turn the control from
position 1 to position 4 to
o b t a i n a fl o w o f a i r s u f fi c i e n t
to ensure your comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 as much as possible.
However, in position 0 , a s l i g h t fl o w
of air, due to the movement of the
vehicle, can still be felt.
Page 42 of 189
3
45

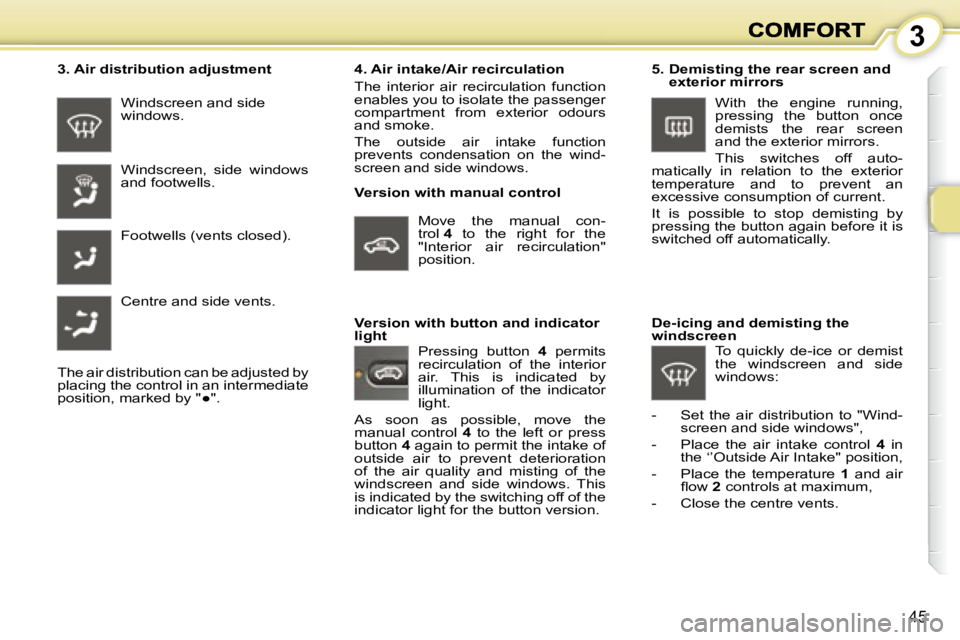

3. Air distribution adjustment Version with manual control
Windscreen and side
windows.
Windscreen, side windows
and footwells.
Footwells (vents closed).
Centre and side vents. 5. Demisting the rear screen and
exterior mirrors
With the engine running,
pressing the button once
demists the rear screen
and the exterior mirrors.
This switches off auto-
matically in relation to the exterior
temperature and to prevent an
excessive consumption of current.
It is possible to stop demisting by
pressing the button again before it is
switched off automatically.
4. Air intake/Air recirculation
The interior air recirculation function
enables you to isolate the passenger
compartment from exterior odours
and smoke.
The outside air intake function
prevents condensation on the wind-
screen and side windows.
Pressing button
4 permits
recirculation of the interior
air. This is indicated by
illumination of the indicator
light.
As soon as possible, move the
manual control 4 to the left or press
button 4 again to permit the intake of
outside air to prevent deterioration
of the air quality and misting of the
windscreen and side windows. This
is indicated by the switching off of the
indicator light for the button version. Move the manual con-
trol
4 to the right for the
"Interior air recirculation"
position.
Version with button and indicator
light To quickly de-ice or demist
the windscreen and side
windows:
The air distribution can be adjusted by
placing the control in an intermediate
position, marked by "
Page 43 of 189
3
46

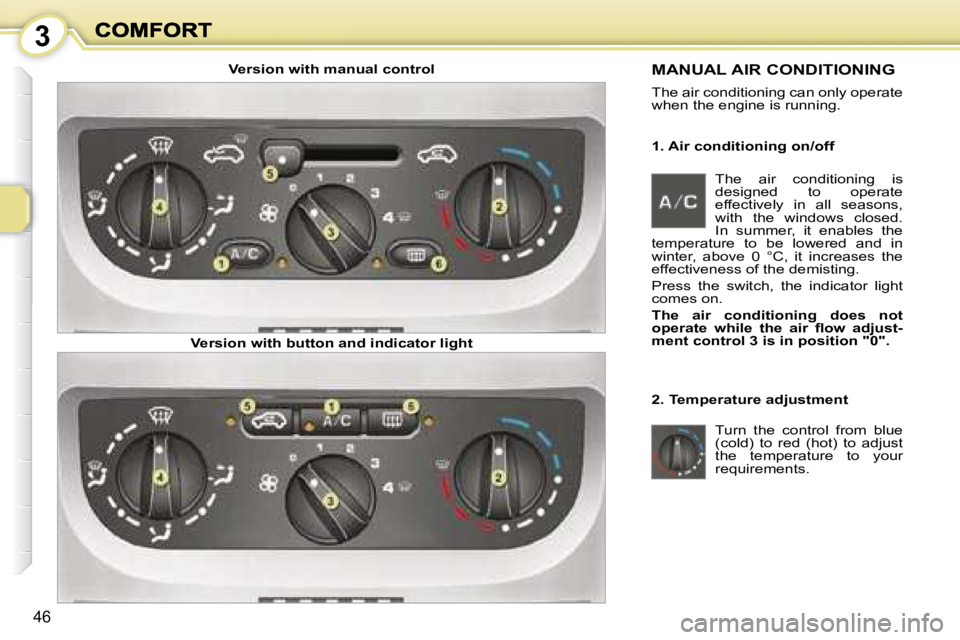

1. Air conditioning on/off
MANUAL AIR CONDITIONING
The air conditioning can only operate
when the engine is running.
2. Temperature adjustment Turn the control from blue
(cold) to red (hot) to adjust
the temperature to your
requirements.
Version with button and indicator light Version with manual control
The air conditioning is
designed to operate
effectively in all seasons,
with the windows closed.
In summer, it enables the
temperature to be lowered and in
winter, above 0 °C, it increases the
effectiveness of the demisting.
Press the switch, the indicator light
comes on.
The air conditioning does not
o p e r a t e w h i l e t h e a i r fl o w a d j u s t -
ment control 3 is in position "0".
Page 44 of 189
3
47
Windscreen and side
windows.

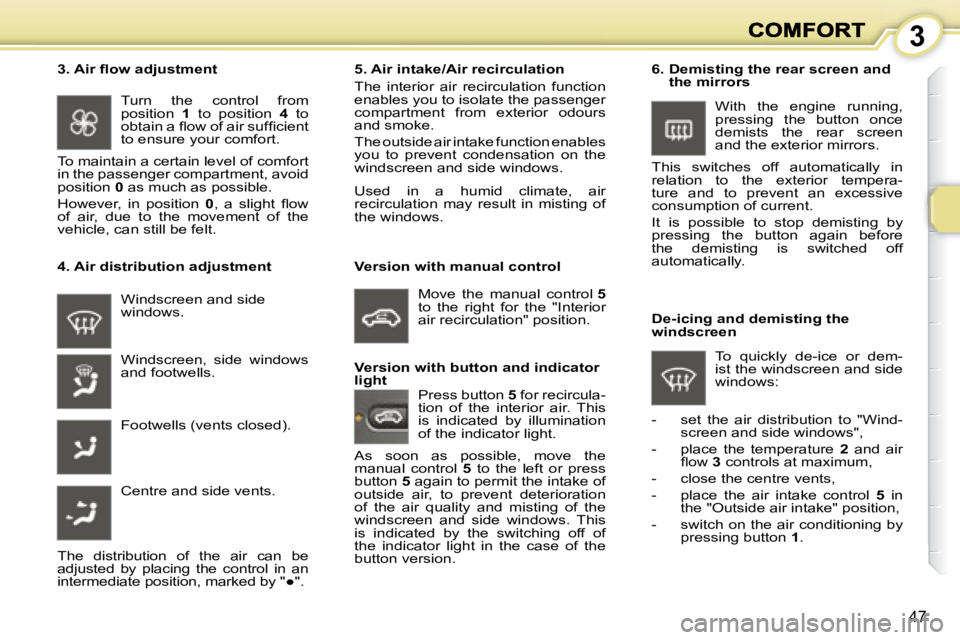

4. Air distribution adjustment 5. Air intake/Air recirculation
The interior air recirculation function
enables you to isolate the passenger
compartment from exterior odours
and smoke.
The outside air intake function enables
you to prevent condensation on the
windscreen and side windows.
3 . A i r fl o w a d j u s t m e n t
Turn the control from
position 1 to position 4 to
o b t a i n a fl o w o f a i r s u f fi c i e n t
to ensure your comfort.
To maintain a certain level of comfort
in the passenger compartment, avoid
position 0 as much as possible.
However, in position 0 , a s l i g h t fl o w
of air, due to the movement of the
vehicle, can still be felt.
Windscreen, side windows
and footwells.
Footwells (vents closed).
Centre and side vents.
The distribution of the air can be
adjusted by placing the control in an
i n t e r m e d i a t e p o s i t i o n , m a r k e d b y "
Page 45 of 189
3
48

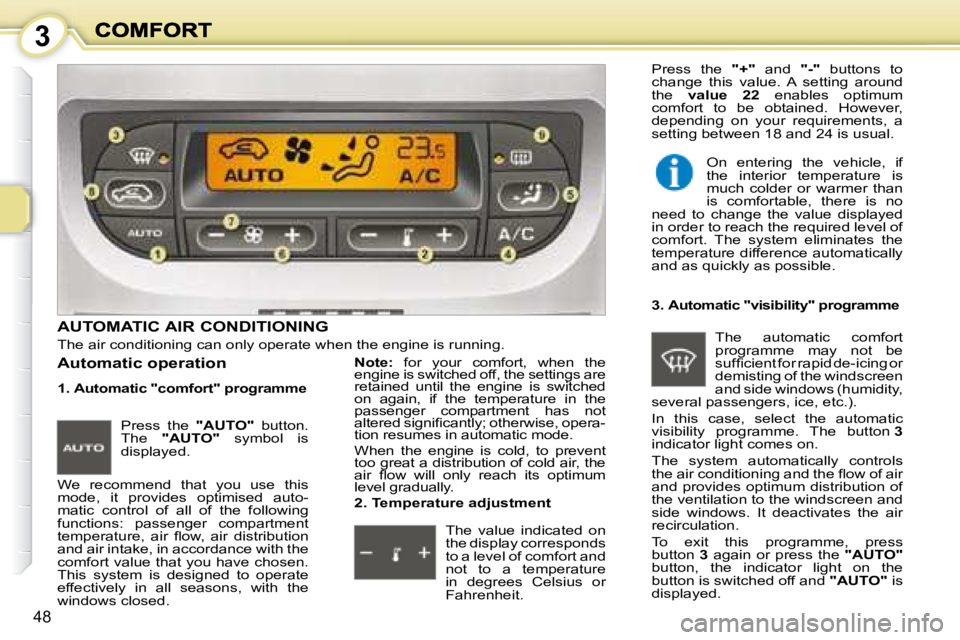

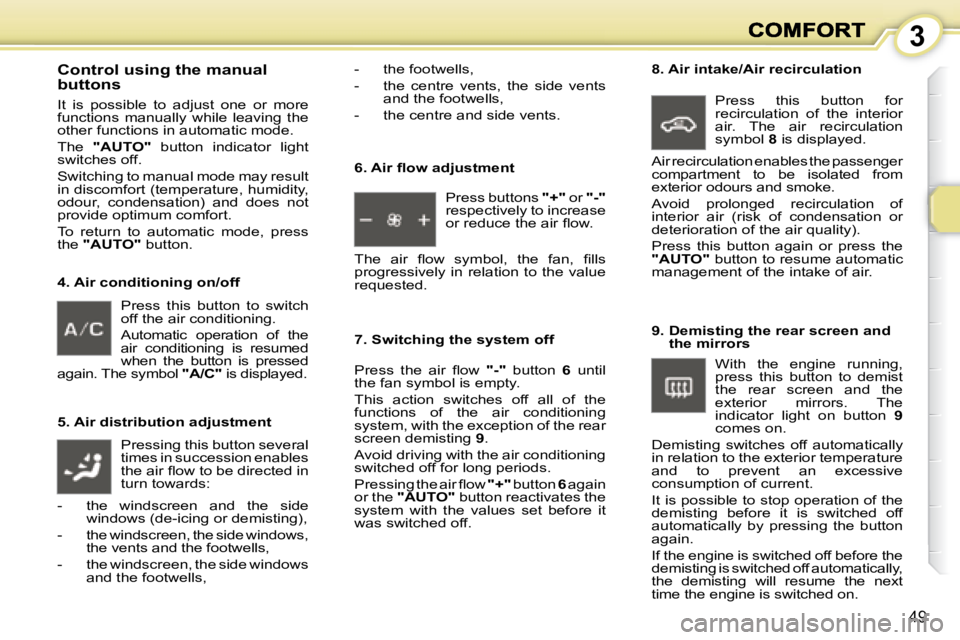

AUTOMATIC AIR CONDITIONING
The air conditioning can only operate when the engine is running.
1. Automatic "comfort" programme
We recommend that you use this
mode, it provides optimised auto-
matic control of all of the following
functions: passenger compartment
t e m p e r a t u r e , a i r fl o w , a i r d i s t r i b u t i o n
and air intake, in accordance with the
comfort value that you have chosen.
This system is designed to operate
effectively in all seasons, with the
windows closed. Press the
"AUTO" button.
The "AUTO" symbol is
displayed. The automatic comfort
programme may not be
s u f fi c i e n t f o r r a p i d d e - i c i n g o r
demisting of the windscreen
and side windows (humidity,
several passengers, ice, etc.).
In this case, select the automatic
visibility programme. The button 3
indicator light comes on.
The system automatically controls
t h e a i r c o n d i t i o n i n g a n d t h e fl o w o f a i r
and provides optimum distribution of
the ventilation to the windscreen and
side windows. It deactivates the air
recirculation.
To exit this programme, press
button 3 again or press the "AUTO"
button, the indicator light on the
button is switched off and "AUTO" is
displayed.
Note: for your comfort, when the
engine is switched off, the settings are
retained until the engine is switched
on again, if the temperature in the
passenger compartment has not
a l t e r e d s i g n i fi c a n t l y ; o t h e r w i s e , o p e r a -
tion resumes in automatic mode.
When the engine is cold, to prevent
too great a distribution of cold air, the
a i r fl o w w i l l o n l y r e a c h i t s o p t i m u m
level gradually. 3. Automatic "visibility" programme
Automatic operation
The value indicated on
the display corresponds
to a level of comfort and
not to a temperature
in degrees Celsius or
Fahrenheit.
2. Temperature adjustment On entering the vehicle, if
the interior temperature is
much colder or warmer than
is comfortable, there is no
need to change the value displayed
in order to reach the required level of
comfort. The system eliminates the
temperature difference automatically
and as quickly as possible.
Press the
"+" and "-" buttons to
change this value. A setting around
the value 22 enables optimum
comfort to be obtained. However,
depending on your requirements, a
setting between 18 and 24 is usual.
Page 46 of 189
3
49
Press this button to switch
off the air conditioning.
Automatic operation of the
air conditioning is resumed
when the button is pressed
again. The symbol "A/C" is displayed.
4. Air conditioning on/off
Pressing this button several
times in succession enables
t h e a i r fl o w t o b e d i r e c t e d i n
turn towards:
- the windscreen and the side windows (de-icing or demisting),
- the windscreen, the side windows, the vents and the footwells,
- the windscreen, the side windows and the footwells,
5. Air distribution adjustment Press buttons
"+" or "-"
respectively to increase
o r r e d u c e t h e a i r fl o w .
T h e a i r fl o w s y m b o l , t h e f a n , fi l l s
progressively in relation to the value
requested.
6 . A i r fl o w a d j u s t m e n t
P r e s s t h e a i r fl o w
"-" button 6 until
the fan symbol is empty.
This action switches off all of the
functions of the air conditioning
system, with the exception of the rear
screen demisting 9 .
Avoid driving with the air conditioning
switched off for long periods.
P r e s s i n g t h e a i r fl o w "+" button 6 again
or the "AUTO" button reactivates the
system with the values set before it
was switched off.
7. Switching the system off
Control using the manual
buttons
It is possible to adjust one or more
functions manually while leaving the
other functions in automatic mode.
The
"AUTO" button indicator light
switches off.
Switching to manual mode may result
in discomfort (temperature, humidity,
odour, condensation) and does not
provide optimum comfort.
To return to automatic mode, press
the "AUTO" button. Press this button for
recirculation of the interior
air. The air recirculation
symbol
8 is displayed.
Air recirculation enables the passenger
compartment to be isolated from
exterior odours and smoke.
Avoid prolonged recirculation of
interior air (risk of condensation or
deterioration of the air quality).
Press this button again or press the
"AUTO" button to resume automatic
management of the intake of air.
8. Air intake/Air recirculation
With the engine running,
press this button to demist
the rear screen and the
exterior mirrors. The
indicator light on button 9
comes on.
Demisting switches off automatically
in relation to the exterior temperature
and to prevent an excessive
consumption of current.
It is possible to stop operation of the
demisting before it is switched off
automatically by pressing the button
again.
If the engine is switched off before the
demisting is switched off automatically,
the demisting will resume the next
time the engine is switched on.
9. Demisting the rear screen and
the mirrors
- the footwells,
- the centre vents, the side vents
and the footwells,
- the centre and side vents.
Page 47 of 189
3
50

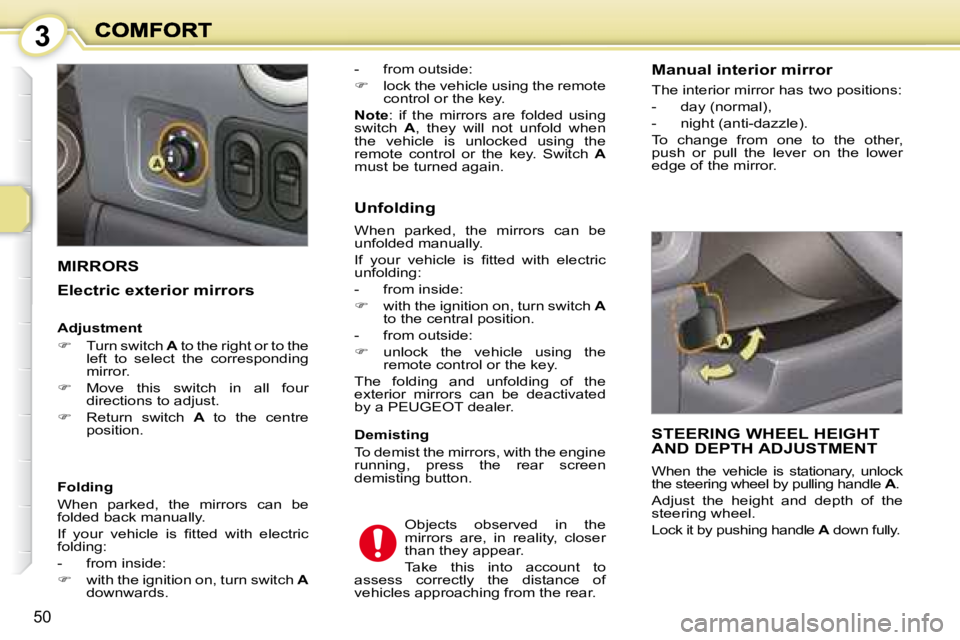

MIRRORS
- from outside:
lock the vehicle using the remote
control or the key.
Note : if the mirrors are folded using
switch A , they will not unfold when
the vehicle is unlocked using the
remote control or the key. Switch A
must be turned again. Manual interior mirror
The interior mirror has two positions:
- day (normal),
- night (anti-dazzle).
To change from one to the other,
push or pull the lever on the lower
edge of the mirror.
STEERING WHEEL HEIGHT AND DEPTH ADJUSTMENT
When the vehicle is stationary, unlock
the steering wheel by pulling handle
A .
Adjust the height and depth of the
steering wheel.
Lock it by pushing handle A down fully.
Demisting
To demist the mirrors, with the engine
running, press the rear screen
demisting button.
Folding
When parked, the mirrors can be
folded back manually.
I f y o u r v e h i c l e i s fi t t e d w i t h e l e c t r i c
folding:
- from inside:
with the ignition on, turn switch A
downwards. Objects observed in the
mirrors are, in reality, closer
than they appear.
Take this into account to
assess correctly the distance of
vehicles approaching from the rear.
Electric exterior mirrors
Adjustment
Turn switch A to the right or to the
left to select the corresponding
mirror.
Move this switch in all four
directions to adjust.
Return switch A to the centre
position.
Unfolding
When parked, the mirrors can be
unfolded manually.
I f y o u r v e h i c l e i s fi t t e d w i t h e l e c t r i c
unfolding:
- from inside:
with the ignition on, turn switch A
to the central position.
- from outside:
unlock the vehicle using the
remote control or the key.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Page 48 of 189
3
51

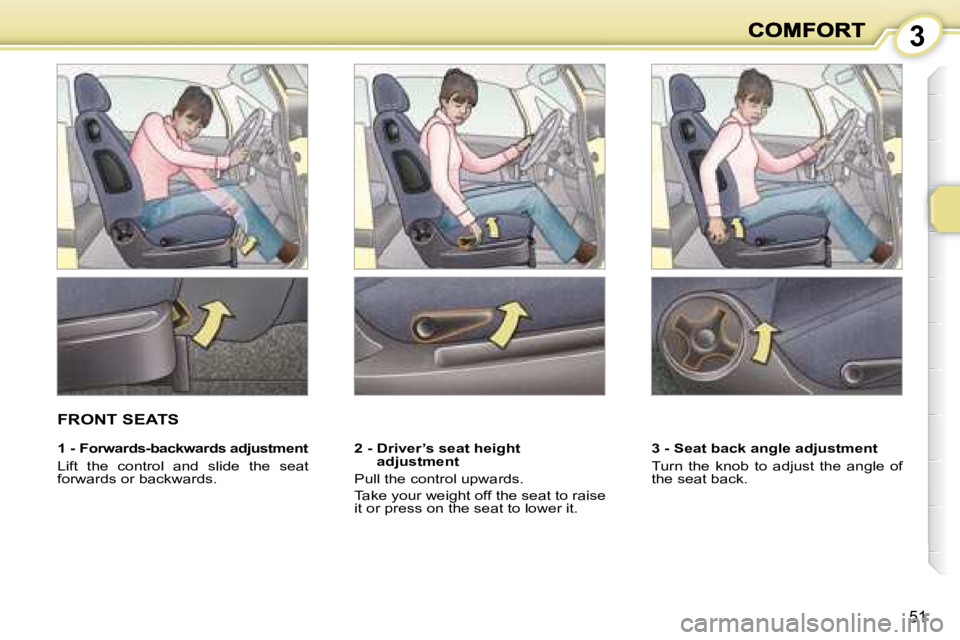

FRONT SEATS
2 - Driver’s seat height adjustment
Pull the control upwards.
Take your weight off the seat to raise
it or press on the seat to lower it. 3 - Seat back angle adjustment
Turn the knob to adjust the angle of
the seat back.
1 - Forwards-backwards adjustment
Lift the control and slide the seat
forwards or backwards.
Page 49 of 189
3
52

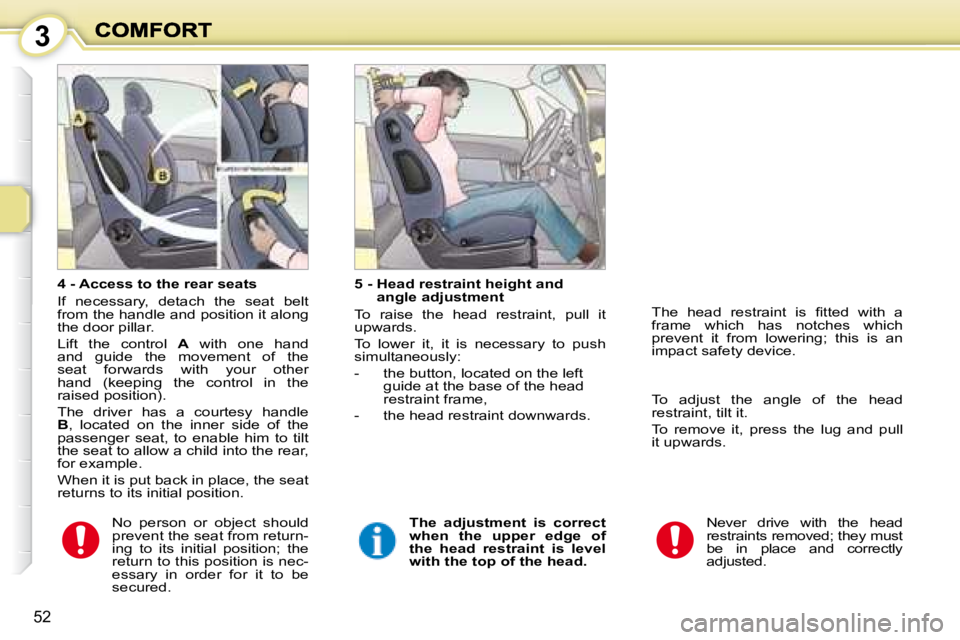

4 - Access to the rear seats
If necessary, detach the seat belt
from the handle and position it along
the door pillar.
Lift the control A with one hand
and guide the movement of the
seat forwards with your other
hand (keeping the control in the
raised position).
The driver has a courtesy handle
B , located on the inner side of the
passenger seat, to enable him to tilt
the seat to allow a child into the rear,
for example.
When it is put back in place, the seat
returns to its initial position. 5 - Head restraint height and
angle adjustment
To raise the head restraint, pull it
upwards.
To lower it, it is necessary to push
simultaneously:
- the button, located on the left guide at the base of the head
restraint frame,
- the head restraint downwards.
No person or object should
prevent the seat from return-
i n g t o i t s i n i t i a l p o s i t i o n ; t h e
return to this position is nec-
essary in order for it to be
secured. T h e h e a d r e s t r a i n t i s fi t t e d w i t h a
frame which has notches which
p r e v e n t i t f r o m l o w e r i n g ; t h i s i s a n
impact safety device.
Never drive with the head
r e s t r a i n t s r e m o v e d ; t h e y m u s t
be in place and correctly
adjusted.
The adjustment is correct
when the upper edge of
the head restraint is level
with the top of the head. To adjust the angle of the head
restraint, tilt it.
To remove it, press the lug and pull
it upwards.
Page 50 of 189
3
53

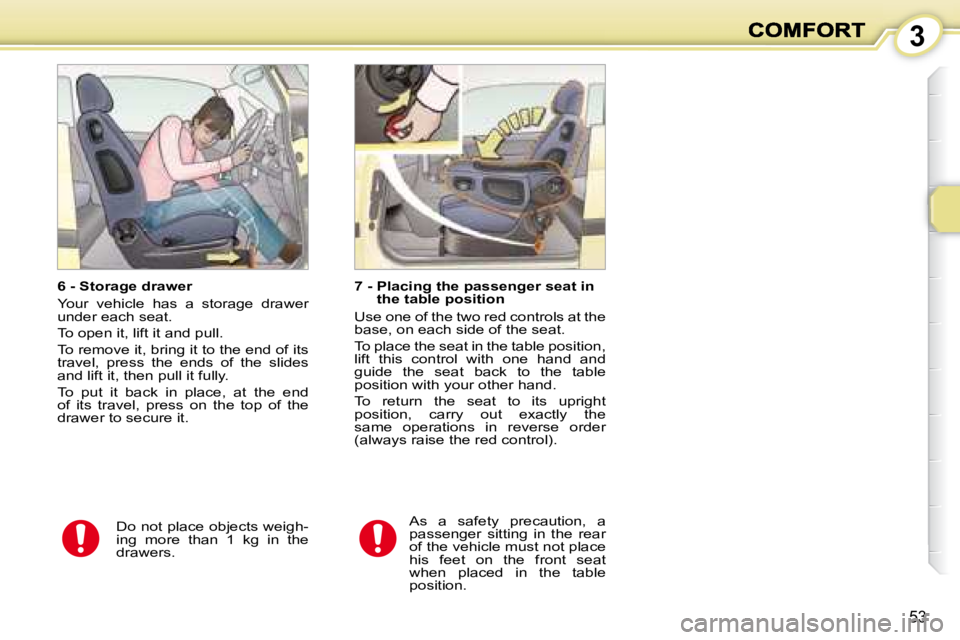

6 - Storage drawer
Your vehicle has a storage drawer
under each seat.
To open it, lift it and pull.
To remove it, bring it to the end of its
travel, press the ends of the slides
and lift it, then pull it fully.
To put it back in place, at the end
of its travel, press on the top of the
drawer to secure it. 7 - Placing the passenger seat in
the table position
Use one of the two red controls at the
base, on each side of the seat.
To place the seat in the table position,
lift this control with one hand and
guide the seat back to the table
position with your other hand.
To return the seat to its upright
position, carry out exactly the
same operations in reverse order
(always raise the red control).
As a safety precaution, a
passenger sitting in the rear
of the vehicle must not place
his feet on the front seat
when placed in the table
position.
Do not place objects weigh-
ing more than 1 kg in the
drawers.
