69 Practical information

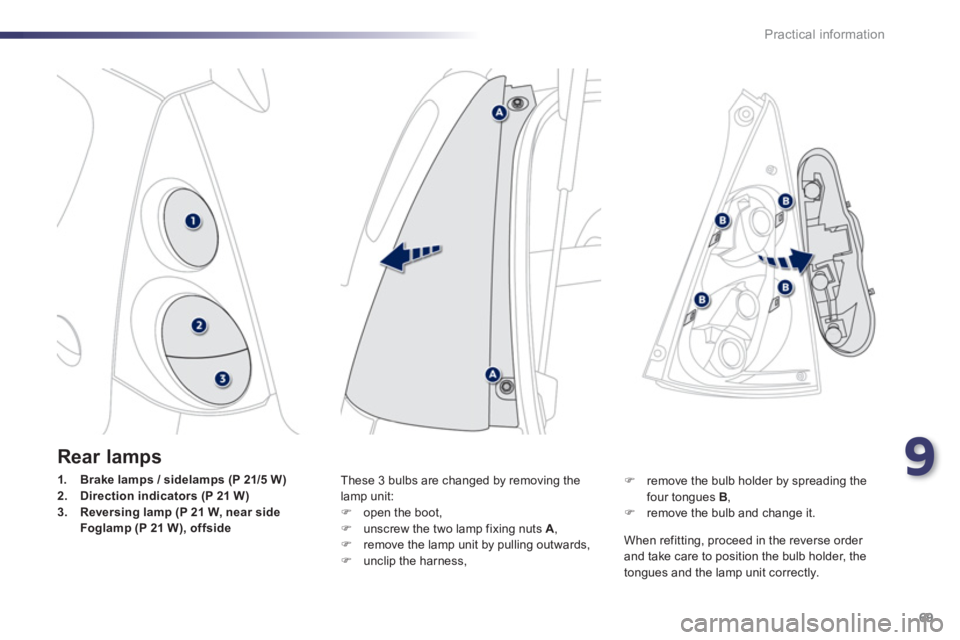

Rear lamps
1.Brake lamps / sidelamps (P 21/5 W)2. Direction indicators (P 21 W)3.Reversing lamp (P 21 W, near sideFoglamp (P 21 W), offside
These 3 bulbs are changed by removing thelamp unit:) open the boot,)
unscrew the two lamp fixing nuts A , )
remove the lamp unit by pulling outwards, )
unclip the harness,
When refittin
g, proceed in the reverse order
and take care to position the bulb holder, the
tongues and the lamp unit correctly.

)
remove the bulb holder by spreading the four tongues B
, )
remove the bulb and change it.

70Practical information

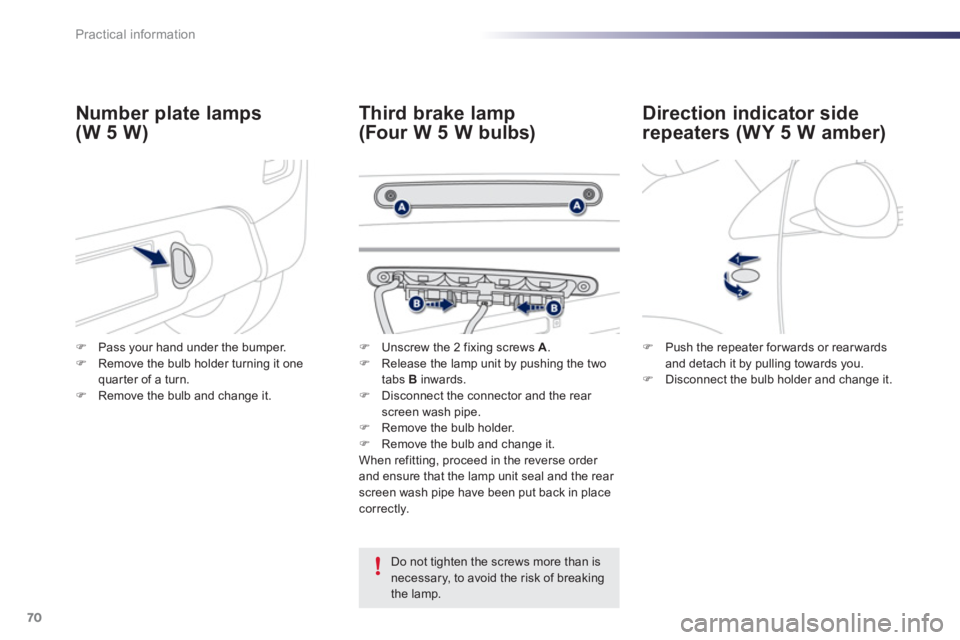

Direction indicator side
repeaters (WY 5 W amber)
Third brake lamp
(Four W 5 W bulbs) Number
plate lamps
(W 5 W)
Do not tighten the screws more than isnecessary, to avoid the risk of breaking
the lamp.
)Pass your hand under the bumper. )Remove the bulb holder turning it onequar ter of a turn.)Remove the bulb and change it.
)
Unscrew the 2 fixing screws A.)
Release the lamp unit by pushing the two
tabs Binwards.)
Disconnect the connector and the rear screen wash pipe.)
Remove the bulb holder.)
Remove the bulb and change it.
When refitting, proceed in the reverse order
and ensure that the lamp unit seal and the rear
screen wash pipe have been put back in place correctly.
)Push the repeater forwards or rearwardsand detach it by pulling towards you. )Disconnect the bulb holder and change it.

9
71 Practical information

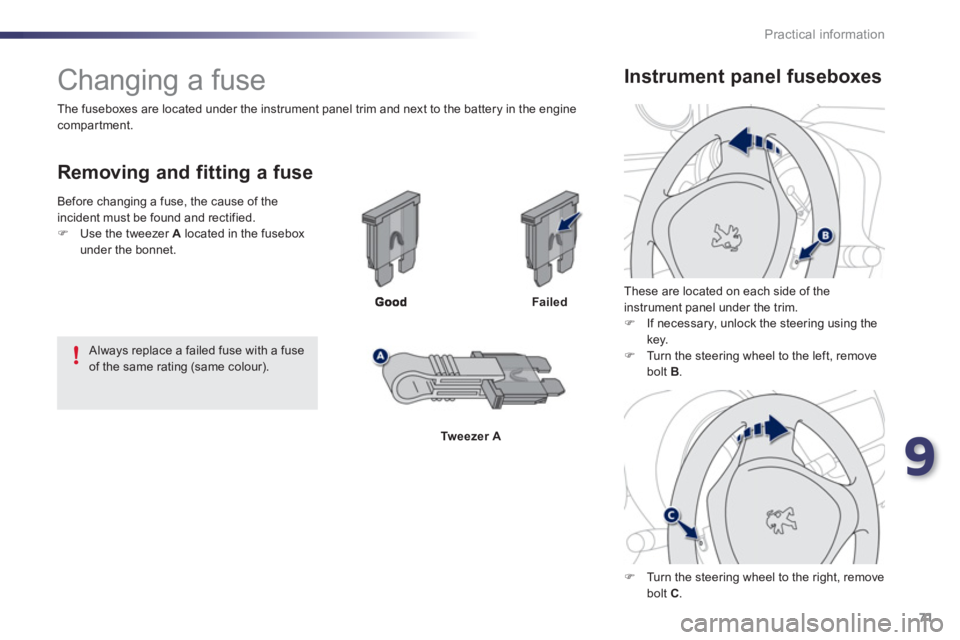

Changing a fuse


Removing and fitting a fuse
Failed
Tweezer A
Th
ese are located on each side of the
instrument panel under the trim.
) If necessary, unlock the steering using the
key. ) Turn the steering wheel to the left, remove bolt B.
)
Turn the steering wheel to the right, removebolt C.


Always replace a failed fuse with a fuse of the same rating (same colour).


Instrument panel fuseboxes


The fuseboxes are located under the instrument panel trim and next to the battery in the engine compartment.

Before chan
ging a fuse, the cause of the
incident must be found and rectified. )Use the tweezer A located in the fusebox under the bonnet.

72Practical information

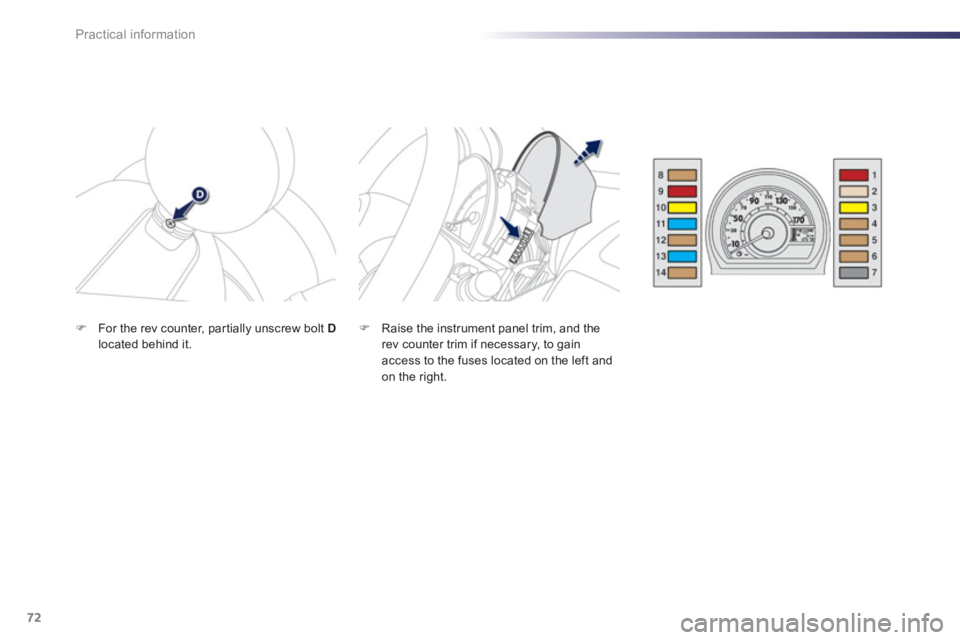

) Raise the instrument panel trim, and the
rev counter trim if necessary, to gain access to the fuses located on the left and on the right.

)For the rev counter, par tially unscrew bolt Dlocated behind it.

9
73 Practical information
* Fuses located behind the instrument panel. To change them, contact a PEUGEOT dealer or a qualified workshop.

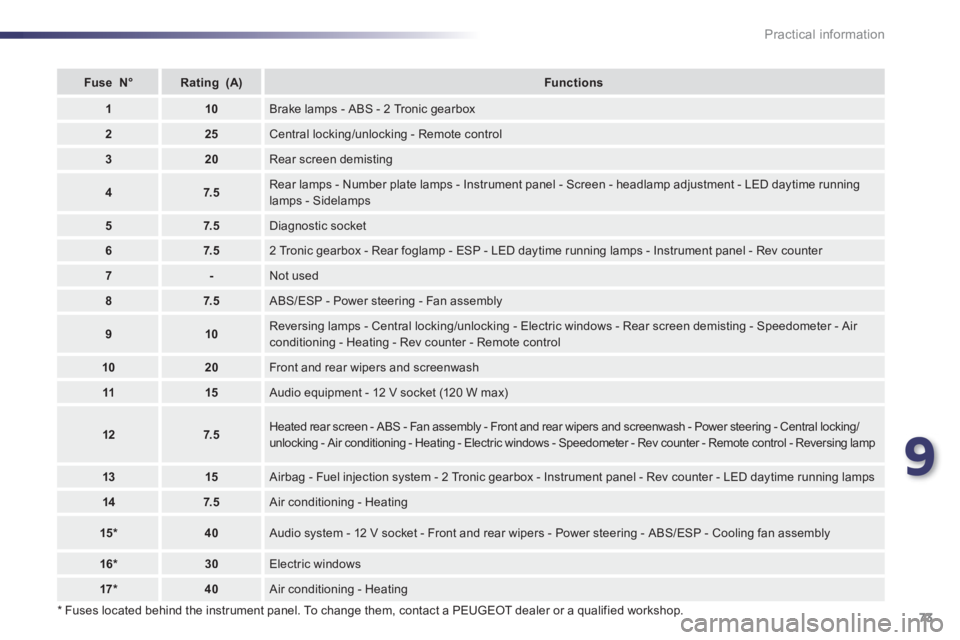

FuseN°Rating(A)Functions
110Brake lamps - ABS - 2 Tronic gearbox
225Central locking/unlocking - Remote control
320Rear screen demisting
47.5Rear lamps - Number plate lamps - Instrument panel - Screen - headlamp adjustment - LED daytime runninglamps - Sidelamps
57.5Diagnostic socket
67.52 Tronic gearbox - Rear foglamp - ESP - LED daytime running lamps - Instrument panel - Rev counter
7-Not used
87.5
ABS/ESP - Power steering - Fan assembly
910Reversing lamps - Central locking/unlocking - Electric windows - Rear screen demisting - Speedometer - Air conditioning - Heating - Rev counter - Remote control
1020Front and rear wipers and screenwash
1115
Audio equipment - 12 V socket (120 W max)
127.5Heated rear screen - ABS - Fan assembly - Front and rear wipers and screenwash - Power steering - Central locking/
unlocking - Air conditioning - Heating - Electric windows - Speedometer - Rev counter - Remote control - Reversing lamp
1315
Airbag - Fuel injection system - 2 Tronic gearbox - Instrument panel - Rev counter - LED daytime running lamps
147.5 Air conditioning - Heating
15 *40
Audio system - 12 V socket - Front and rear wipers - Power steering - ABS/ESP - Cooling fan assembly
16 * 30Electric windows
17 *40
Air conditioning - Heating

i
74Practical information

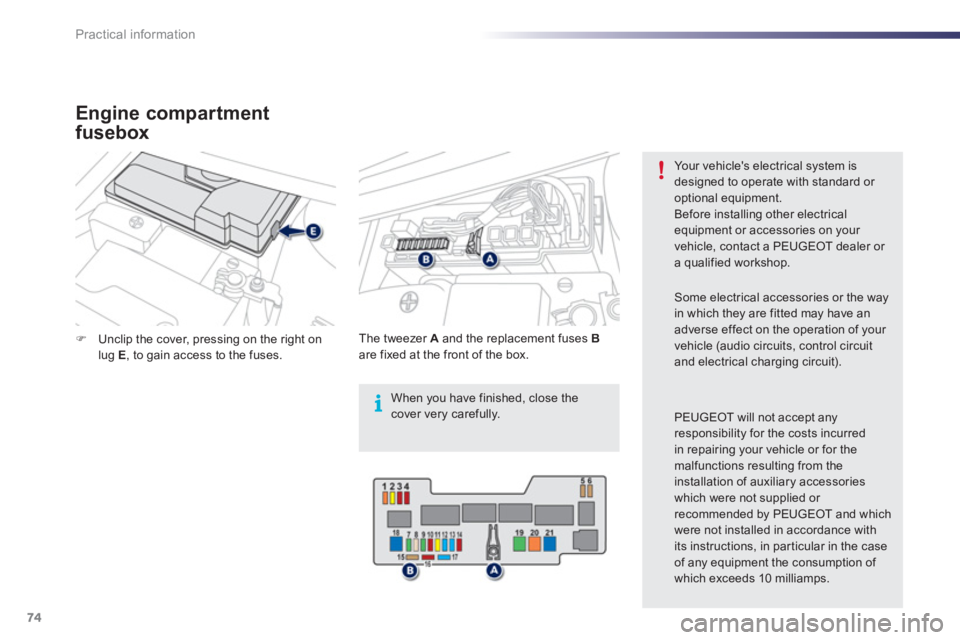

)Unclip the cover, pressing on the right onlug E, to gain access to the fuses.

Th
e tweezer A
and the replacement fuses Bare fixed at the front of the box.
Your vehicle's electrical system is designed to operate with standard or optional equipment. Before installing other electrical
equipment or accessories on your vehicle, contact a PEUGEOT dealer or a qualified workshop.
Some electrical accessories or the way in which they are fitted may have anadverse effect on the operation of your vehicle (audio circuits, control circuitand electrical charging circuit).
PEUGEOT will not accept any
responsibility for the costs incurred in repairing your vehicle or for the malfunctions resulting from theinstallation of auxiliary accessories which were not supplied or recommended by PEUGEOT and whichwere not installed in accordance with its instructions, in particular in the caseof any equipment the consumption of which exceeds 10 milliamps.
Engine compartment
fusebox

When you have finished, close the cover very carefully.

9
75 Practical information

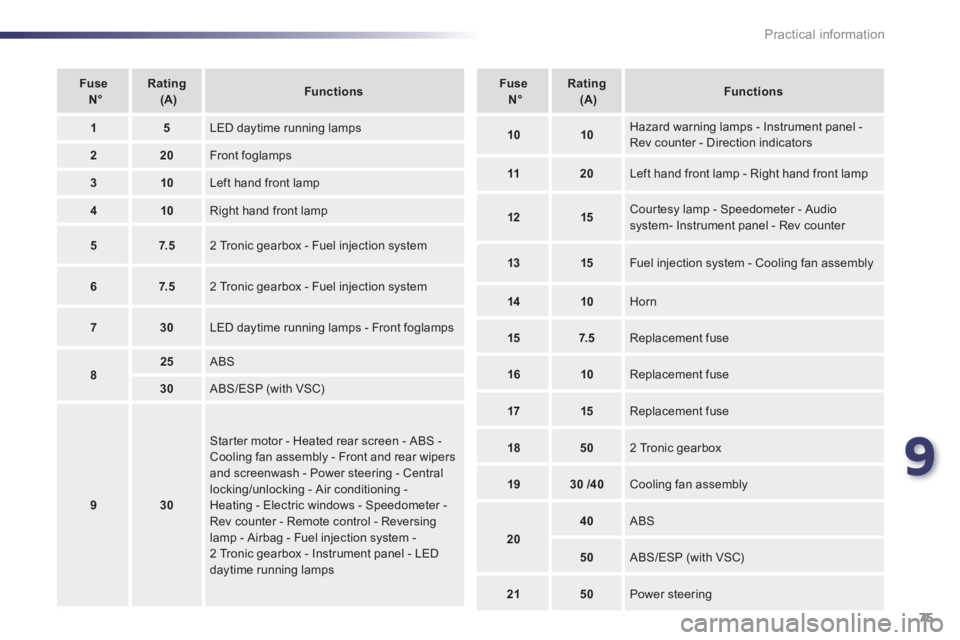

FuseN°Rating(A)Functions
15 LED daytime running lamps
220
Front foglamps
310
Left hand front lamp
410
Right hand front lamp
57.5 2 Tr o n i c gearbox - Fuel injection system
67.5
2 Tronic gearbox - Fuel injection system


730
LED daytime running lamps - Front foglamps
825
ABS
30
ABS/ESP (with VSC)
930
Starter motor - Heated rear screen - ABS -Cooling fan assembly - Front and rear wipers and screenwash - Power steering - Central locking/unlocking - Air conditioning - Heating - Electric windows - Speedometer -Rev counter - Remote control - Reversing lamp - Airbag - Fuel injection system - 2 Tronic gearbox - Instrument panel - LED daytime running lamps
FuseN°Rating(A)Functions
1010 Hazard warning lamps - Instrument panel - Rev counter - Direction indicators
1120
Left hand front lamp - Right hand front lamp
1215 Cour tesy lamp - Speedometer - Audiosystem- Instrument panel - Rev counter
1315
Fuel injection system - Cooling fan assembly
1410
Horn
157.5
Replacement fuse
1610
Replacement fuse
1715
Replacement fuse
1850 2 Tr o n i c gearbox
1930/40 Cooling fan assembly
20
40 ABS
50 ABS/ESP (with VSC)
2150
Power steering

76Practical information

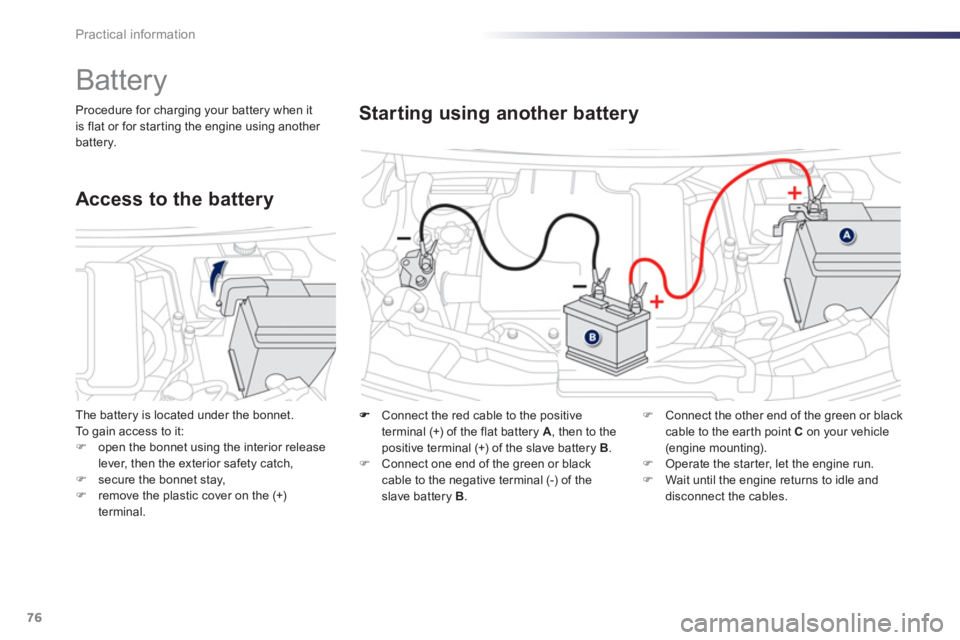

Connect the red cable to the positive
terminal
(+) of the flat battery A, then to the
positive terminal (+) of the slave battery B.) Connect one end of the green or black cable to the negative terminal (-) of theslave battery B.
Starting using another battery
)Connect the other end of the green or black
cable to the ear th point Con your vehicle(engine mounting). )Operate the star ter, let the engine run. )Wait until the engine returns to idle anddisconnect the cables.





Battery
Procedure for charging your battery when it
is flat or for star ting the engine using another
battery.
The batter
y is located under the bonnet.To gain access to it:)open the bonnet using the interior release lever, then the exterior safety catch,)secure the bonnet stay,)remove the plastic cover on the (+)
terminal.
Access to the battery

9
77 Practical information

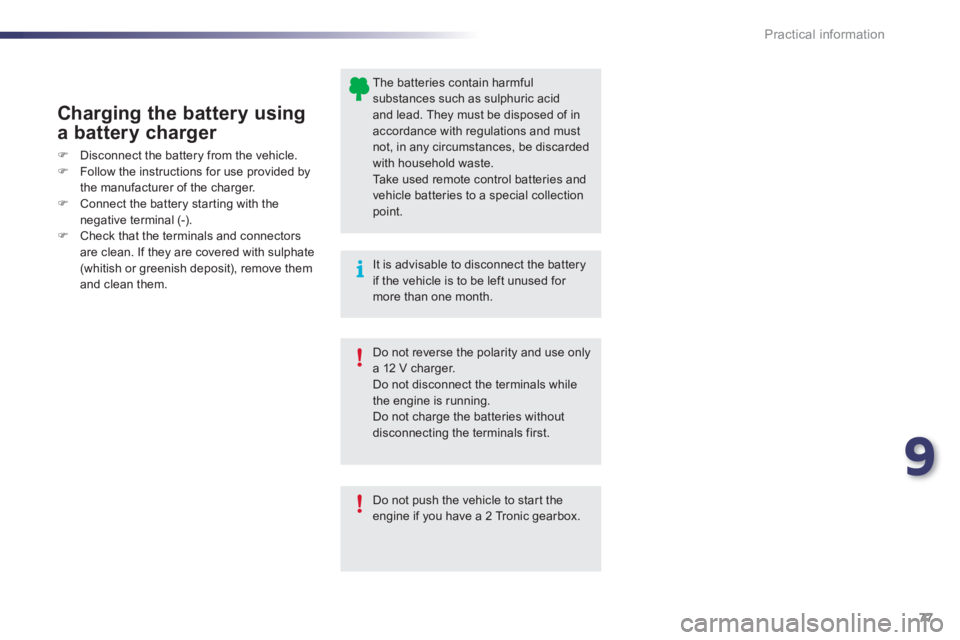

Charging the battery using
a battery charger
)Disconnect the battery from the vehicle.
)Follow the instructions for use provided by
the manufacturer of the charger.)Connect the battery star ting with thenegative terminal (-).)Check that the terminals and connectorsare clean. If they are covered with sulphate (whitish or greenish deposit), remove themand clean them.

The batteries contain harmful substances such as sulphuric acidand lead. They must be disposed of inaccordance with regulations and mustnot, in any circumstances, be discarded with household waste.
Take used remote control batteries andvehicle batteries to a special collection point.
Do not push the vehicle to star t the engine if you have a 2 Tronic gearbox.

It is advisable to disconnect the batteryif the vehicle is to be left unused for more than one month.


Do not reverse the polarity and use onlya 12 V charger.
Do not disconnect the terminals whilethe engine is running.
Do not charge the batteries withoutdisconnecting the terminals first.

78Practical information

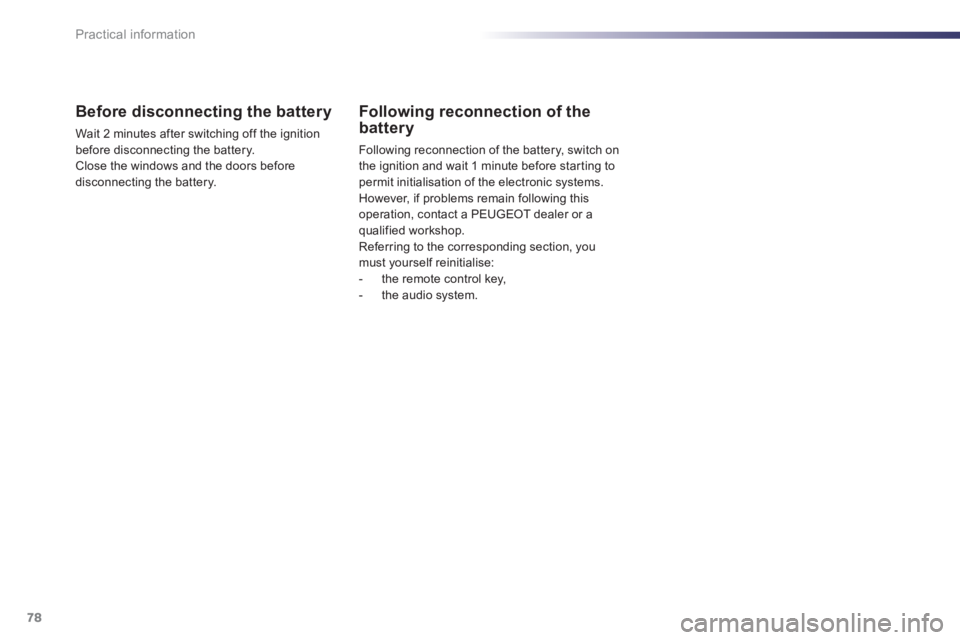

Before disconnecting the battery
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before disconnecting the battery.


Following reconnection of thebattery

Following reconnection of the battery, switch on
the i
gnition and wait 1 minute before star ting to
permit initialisation of the electronic systems.However, if problems remain following this
operation, contact a PEUGEOT dealer or aqualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:


- the remote control key,

- the audio system.
