59 Child safety

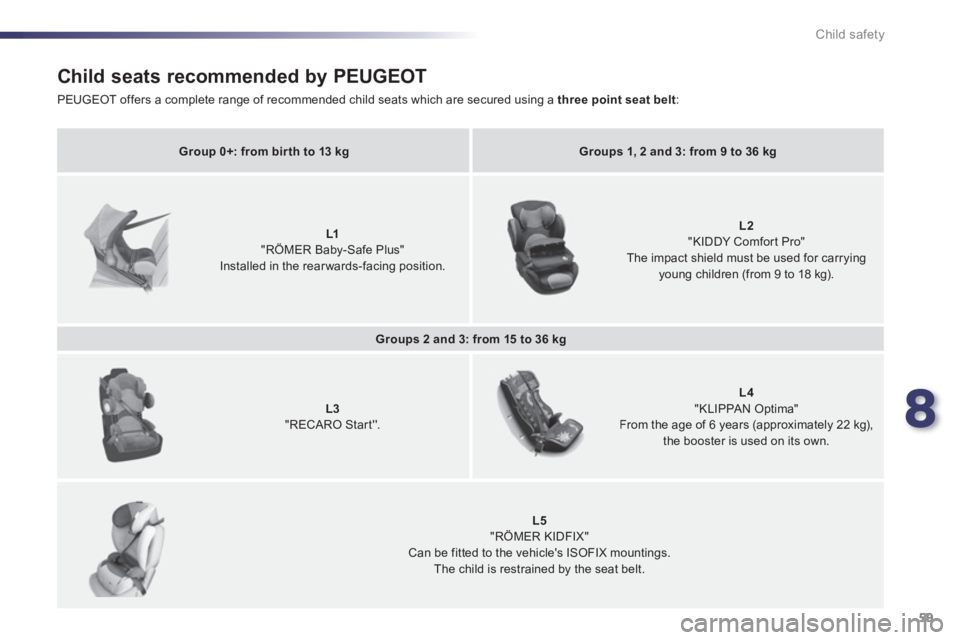

Child seats recommended by PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt:
Group 0+: from bir th to 13 kgGroups 1, 2 and 3: from 9 to 36 kg
L1"RÖMER Baby-Safe Plus" Installed in the rear wards-facing position.
L2
"KIDDY Comfort Pro" The impact shield must be used for carryingyoung children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L3"RECARO Start''.
L4"KLIPPAN Optima"From the age of 6 years (approximately 22 kg),
the booster is used on its own.
L5
"RÖMER KIDFIX"Can be fitted to the vehicle's ISOFIX mountings.The child is restrained by the seat belt.

60Child safety
Locations for child seats attached using the seat belt
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt and universally approved inaccordance with the weight of the child and the seat in the vehicle.
a : Group 0: from bir th to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat. b: consult the legislation in force in your country before installing your child on this seat.
U
: seat suitable for the installation of a universally approved child seat secured using a seat belt, "rear facing" and/or "forward facing". L_
: only the child seats indicated and recommended by PEUGEOT can be installed on the seat concerned (according to country)._X
: seat not suitable for fitting a child seat of the weight group indicated.
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 (a ) and 0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)6 to 10 years approx

Front passenger seat (b ) L1XL3, L4L3, L4
Rear seatsUUUU

8
61 Child safety
Children under the age of 10 must not travelin the "forward facing" position on the front passenger seat, unless the rear seats are already occupied by other children, cannot be used or are absent.Deactivate the passenger airbag * when a "rear facing" child seat is installed on the front seat. Other wise, the child would risk beingseriously injured or killed if the airbag were to inflate.
As a safety precaution, do not leave:


- one or more children alone and unsupervised in a vehicle,

- a child or an animal in a vehicle which is exposed to the sun, with the windowsclosed,

- the keys within reach of children insidethe vehicle.
To protect young children from the rays of the sun, fit side blinds on the rear windows.
Installing a booster seat
The chest par t of the seat belt must bepositioned on the child's shoulder without touching the neck.Ensure that the lap part of the seat belt
passes correctly over the child's thighs.PEUGEOT recommends the use of a booster seat which has a back, fitted with a seat beltguide at shoulder level.

*

According to country.

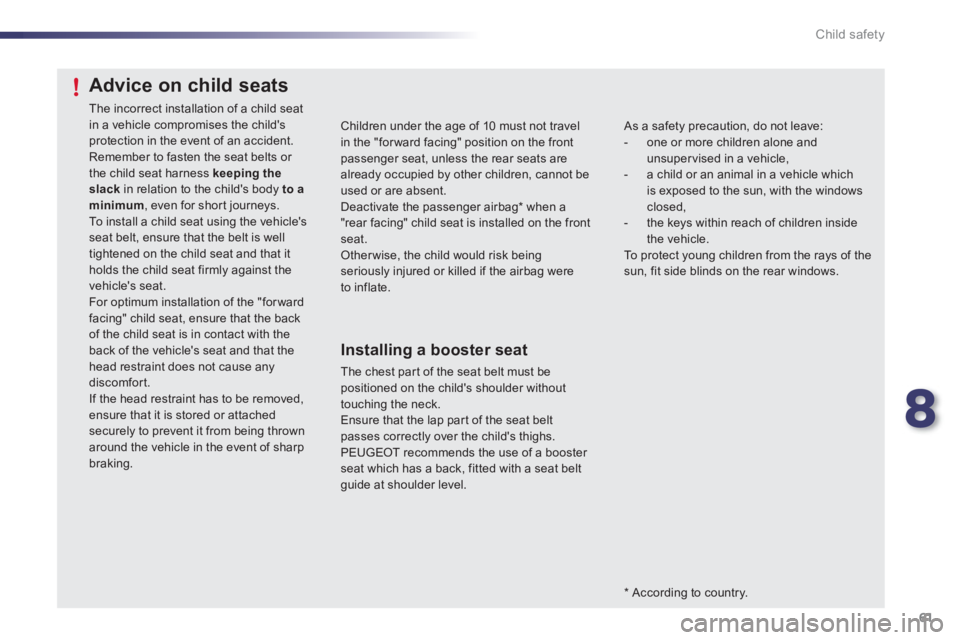

Advice on child seats
The incorrect installation of a child seat in a vehicle compromises the child's protection in the event of an accident.Remember to fasten the seat belts or the child seat harness keeping theslackin relation to the child's body to aminimum, even for short journeys.To install a child seat using the vehicle's seat belt, ensure that the belt is welltightened on the child seat and that itholds the child seat firmly against the vehicle's seat. For optimum installation of the "forward facing" child seat, ensure that the back of the child seat is in contact with the back of the vehicle's seat and that thehead restraint does not cause any discomfort. If the head restraint has to be removed,ensure that it is stored or attached
securely to prevent it from being thrownaround the vehicle in the event of sharpbraking.

62Child safety

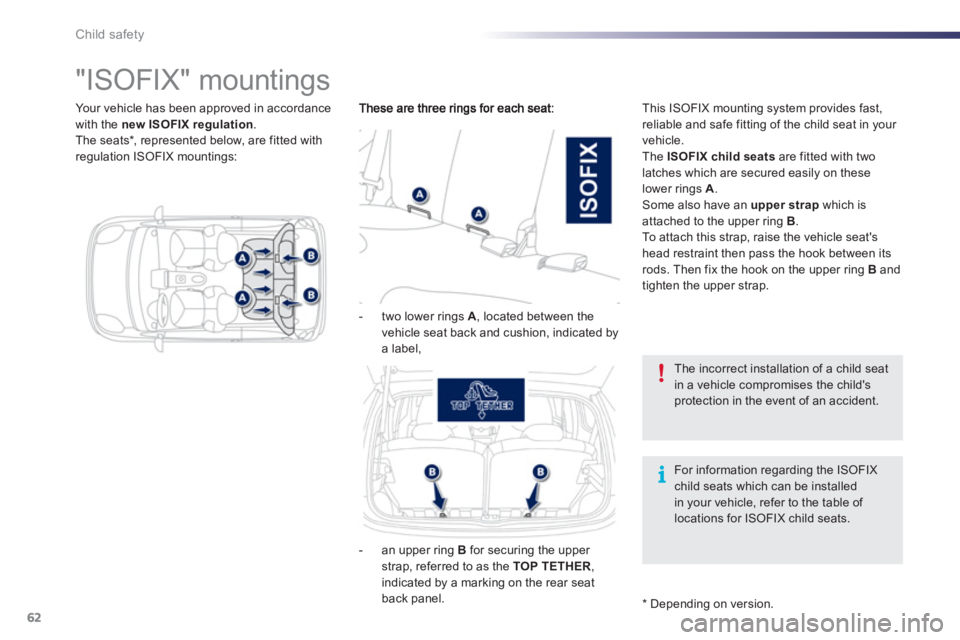

"ISOFIX" mountings

This ISOFIX mounting system provides fast,
reliable and safe fitting of the child seat in your
vehicle.
The ISOFIX child seatsare fitted with two latches which are secured easily on these lower rings A. Some also have an upper strapwhich isattached to the upper ring B.
To attach this strap, raise the vehicle seat's
head restraint then pass the hook between its
rods. Then fix the hook on the upper ring Band
tighten the upper strap.


- two
lower rings A
, located between the
vehicle seat back and cushion, indicated by
a label,

*
Dependin
g on version.
- an upper ring
Bfor securing the upper strap, referred to as the TOP TETHER,
indicated by a marking on the rear seat
back panel.
The incorrect installation of a child seatin a vehicle compromises the child's protection in the event of an accident.
For information regarding the ISOFIX child seats which can be installedin your vehicle, refer to the table of locations for ISOFIX child seats. Your vehicle has been approved in accordance
with th
e new ISOFIX regulation.The seats * , represented below, are fitted withregulation ISOFIX mountings:

8
63 Child safety

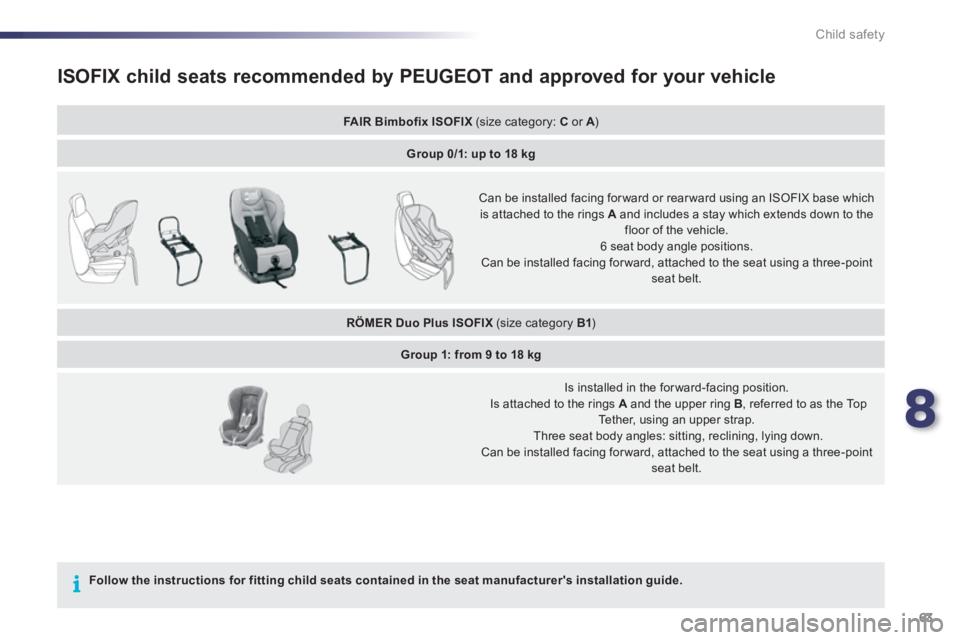

ISOFIX child seats recommended by PEUGEOT and approved for your vehicle
FAIR Bimbofix ISOFIX (size category: C
or A)A
Group 0/1: up to 18 kg

Can be installed facing for ward or rear ward using an ISOFIX base whichis attached to the rings A
and includes a stay which extends down to the
floor of the vehicle. 6 seat body angle positions. Can be installed facing for ward, attached to the seat using a three-point seat belt.
RÖMER Duo Plus ISOFIX
(size category B1 )

Group 1: from 9 to 18 kg


Is installed in the forward-facing position. Is attached to the rings A
and the upper ring B, referred to as the Top Tether, using an upper strap. Three seat body angles: sitting, reclining, lying down.Can be installed facing for ward, attached to the seat using a three-point seat belt.
Follow the instructions for fitting child seats contained in the seat manufacturer's installation guide.

64Child safety

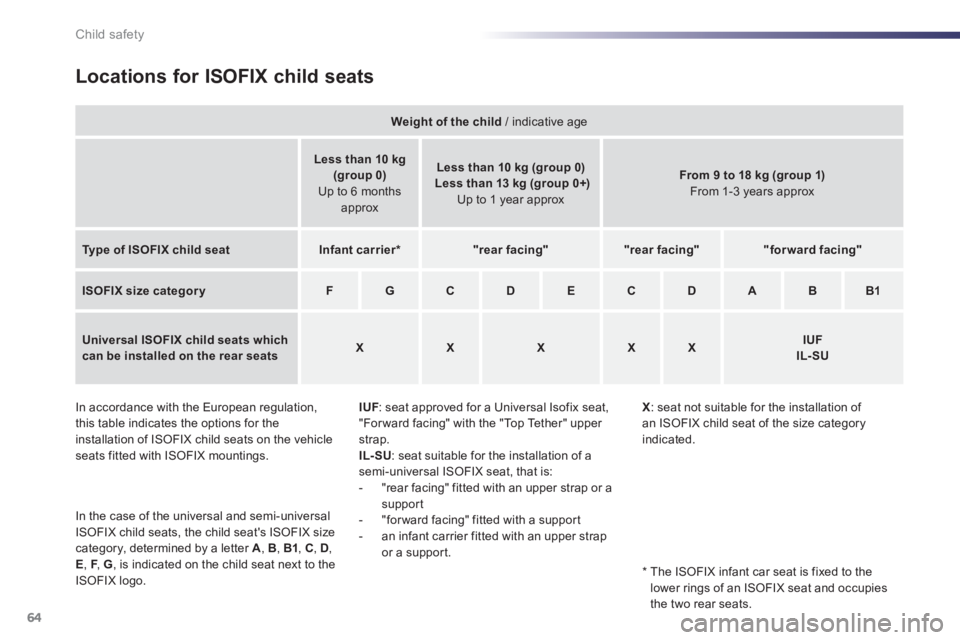

Locations for ISOFIX child seats
IUF: seat approved for a Universal Isofix seat, "For ward facing" with the "Top Tether" upper
strap.
IL-SU : seat suitable for the installation of asemi-universal ISOFIX seat, that is:


- "rear facing" fitted with an upper strap or a support

- "forward facing" fitted with a suppor t

- an infant carrier fitted with an upper strap
or a suppor t.
X
: seat not suitable for the installation of
an ISOFIX child seat of the size categoryindicated.



In accordance with the European regulation,
this table indicates the options for the
installation of ISOFIX child seats on the vehicle seats fitted with ISOFIX mountings.
In th
e case of the universal and semi-universal
ISOFIX child seats, the child seat's ISOFIX size category, determined by a letter A, B , B1, C , D,E , F, FG, is indicated on the child seat next to the
ISOFIX logo.
Weight of the child/ indicative age
Less than 10 kg (group 0)Up to 6 months approx
Less than 10 kg (group 0)
Less than 13 kg (group 0+)Up to 1 year approx
From 9 to 18 kg (group 1)From 1-3 years approx
Type of ISOFIX child seatInfant carrier * "rear facing""rear facing""for ward facing"
ISOFIX size categoryFGCDECDABB1
Universal ISOFIX child seats which can be installed on the rear seatsXXXXXIUFIL- SU

*

The ISOFIX infant car seat is fixed to the
lower rings of an ISOFIX seat and occupies
the two rear seats.

9
65 Practical information
)As far as possible, immobilise the vehicle
on level, stable, non-slippery ground. )Apply the parking brake, switch off the
ignition and engage first gear or reverse
for the manual gearbox, position Nfor the2 Tronic gearbox. The followin
g tools are installed in a carrier,
located in the centre of the spare wheel:
1
. Wheelbrace 2.Jack with handle 3.Removable towing eye

Access to the spare wheel and
the jack in the boot
) Remove the carpet then the plastic cover using the handle.



Tyre pressures

These are indicated on the label positioned on the inner pillar of the left door, see
"Identification markings".

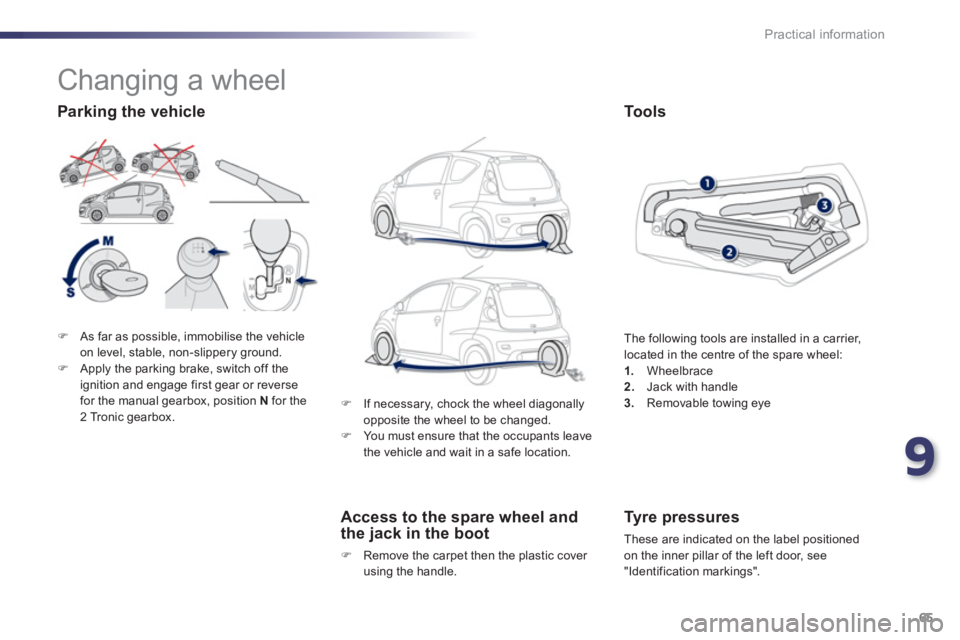

Changing a wheel
)
If necessary, chock the wheel diagonally
opposite the wheel to be changed.) You must ensure that the occupants leave
the vehicle and wait in a safe location.

Parking the vehicle
To o l s

66Practical information
1. Position the wheel.2.Screw in the bolts fully by hand.1.
Remove the trim. 2.
Slacken the wheel bolts using the
wheelbrace 1.
3. Place the jack 2in contact with one of
the four locations A provided on the
underbody, the one closest to the wheel to
be changed.
4.Extend the jack 2 until its base is in contact
with the ground. Ensure that the centrelineof the jack base is directly below thelocation A
used.
5.Lift the vehicle.
6. Remove the bolts and detach the wheel.3.Pre-tighten the bolts * using the wheelbrace 1.4.
Fold the jack 2
and detach it. *

If your vehicle is fitted with alloy wheels, when tightening the bolts it is normal to notice that the
washers do not come into contact with the spare wheel. It is still fixed securely.
Removing the wheel
Refi tting the wheel

9
67 Practical information

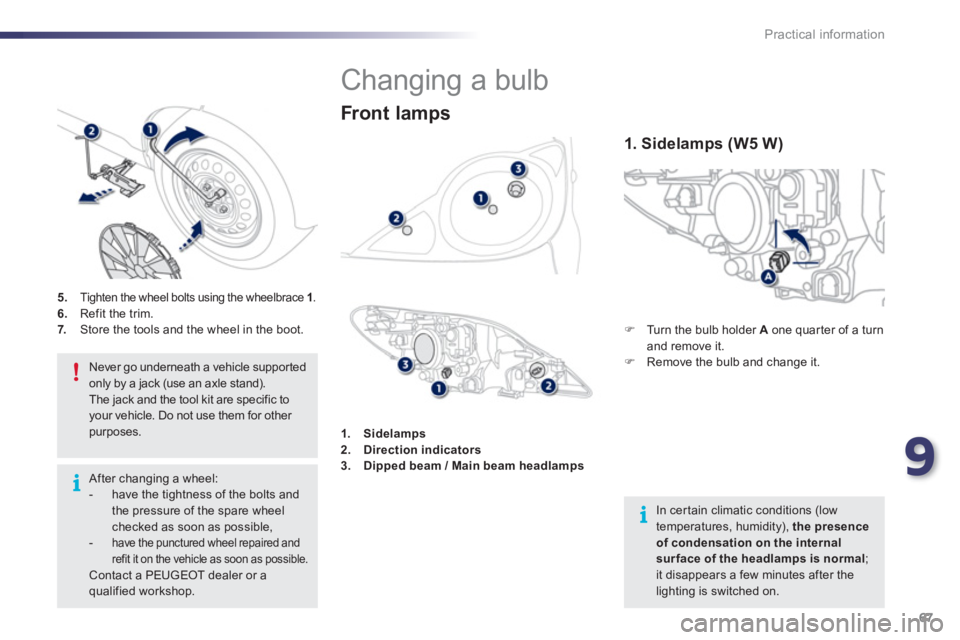

Changing a bulb
)
Turn the bulb holder A
one quar ter of a turn and remove it. )
Remove the bulb and change it.

5
.Tighten the wheel bolts using the wheelbrace 1.6.Refit the trim. 7. Store the tools and the wheel in the boot.
1
.Sidelamps2.Direction indicators3.Dipped beam / Main beam headlamps
Never go underneath a vehicle suppor tedonly by a jack (use an axle stand). The jack and the tool kit are specific to your vehicle. Do not use them for other
purposes.
In cer tain climatic conditions (low temperatures, humidity), the presence
of condensation on the internalsur face of the headlamps is normal ; it disappears a few minutes after the lighting is switched on.
Front lamps
1. Sidelamps (W5 W)

After changing a wheel:- have the tightness of the bolts and the pressure of the spare wheel checked as soon as possible,
-have the punctured wheel repaired andrefit it on the vehicle as soon as possible. Contact a PEUGEOT dealer or aqualified workshop.

68Practical information
) Disconnect the connector. )
Remove the rubber cap C.)
Push the side of the tongue D.)
Remove the bulb holder and change thebulb. )
Refit the bulb holder, the tongue then the
rubber cap.
If
you encounter any difficulties, contact a PEUGEOT dealer or a qualified workshop.



LED daytime running lamps

For the replacement of these lamps, contact a
PEUGEOT dealer or qualified workshop.

Front foglamps

For replacement of these bulbs, contact a
PEUGEOT dealer or a qualified workshop.

)Turn the bulb holder Bone quar ter of a turnand remove it.)Turn the bulb one quar ter of a turn.)Remove the bulb and change it.
If you encounter any difficulties, contact a
PEUGEOT dealer or a qualified workshop.

2. Direction indicators(PY 21 W amber)3. Dipped / Main beam headlamps(H4 - 60/55W)
