3
39
COMFORT

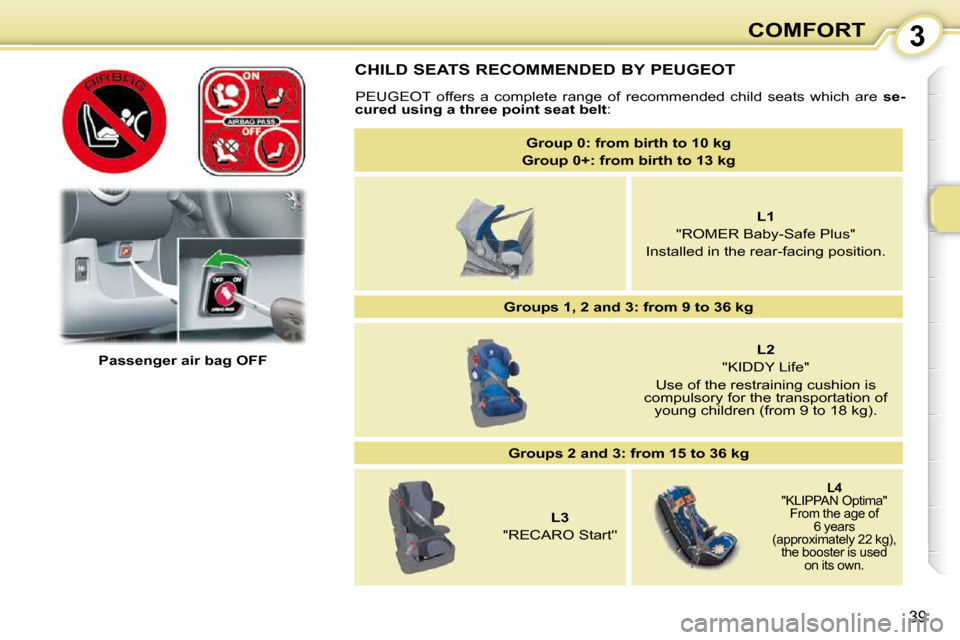

CHILD SEATS RECOMMENDED BY PEUGEOT PEUGEOT offers a complete range of recommended child seats which a re se-
c u r e d u s i n g a t h r e e p o i n t s e a t b e l t :
Passenger air bag OFF
G r o u p 0 : f r o m b i r t h t o 1 0 k g
G r o u p 0 + : f r o m b i r t h t o 1 3 k g
L1
" R O M E R B a b y - S a f e P l u s "
I n s t a l l e d i n t h e r e a r - f a c i n g p o s i t i o n .
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g
L2
"KIDDY Life"
Use of the restraining cushion is
compulsory for the transportation of young children (from 9 to 18 kg).
G r o u p s 2 a n d 3 : f r o m 1 5 t o 3 6 k g
L3
"RECARO Start''
L4
"KLIPPAN Optima" From the age of 6 years
(approximately 22 kg), the booster is used on its own.
Page 42 of 99
3
40
COMFORT

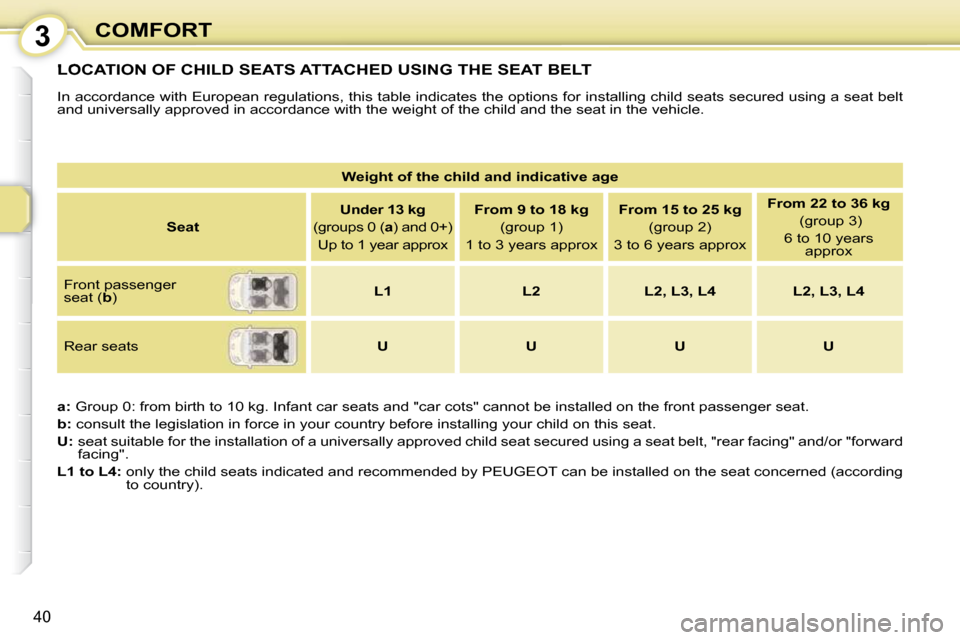

LOCATION OF CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved in accordance with the weight of the child and the seat in the vehicle.
a: Group 0: from birth to 10 kg. Infant car seats and "car cots" can not be installed on the front passenger seat.
b: consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a universally appro ved child seat secured using a seat belt, "rear facing" and/or "fo rward
facing".
L1 to L4: only the child seats indicated and recommended by PEUGEOT can be installed on the seat concerned (according
to country).
W e i g h t o f t h e c h i l d a n d i n d i c a t i v e a g e
Seat
U n d e r 1 3 k g
(groups 0 ( a ) and 0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g
(group 1)
1 to 3 years approx
F r o m 1 5 t o 2 5 k g
(group 2)
3 to 6 years approx
F r o m 2 2 t o 3 6 k g
(group 3)
6 to 10 years approx
Front passenger
seat ( b )
L1 L2 L2, L3, L4 L2, L3, L4
Rear seats U U U U
Page 43 of 99
3
41
COMFORT

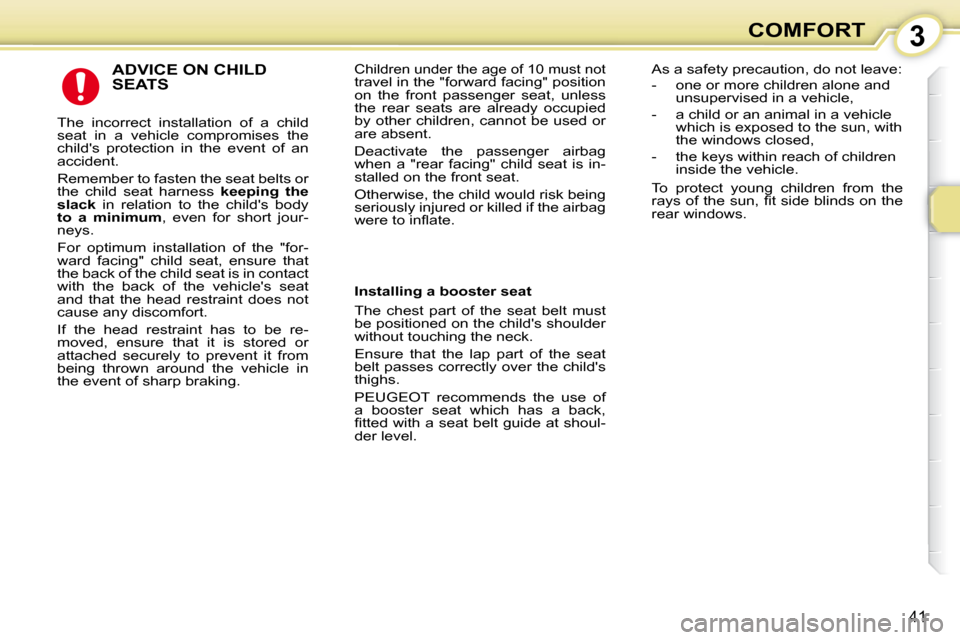

ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harness k e e p i n g t h e
s l a c k in relation to the child's body
to a minimum , e v e n f o r s h o r t j o u r -
neys.
F o r o p t i m u m i n s t a l l a t i o n o f t h e " f o r -
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
I f t h e h e a d r e s t r a i n t h a s t o b e r e -
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Children under the age of 10 must not travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger airbag
w h e n a " r e a r f a c i n g " c h i l d s e a t i s i n -
stalled on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
w e r e t o i n fl a t e . As a safety precaution, do not leave:
- o n e o r m o r e c h i l d r e n a l o n e a n d
unsupervised in a vehicle,
- a c h i l d o r a n a n i m a l i n a v e h i c l e which is exposed to the sun, with
the windows closed,
- t h e k e y s w i t h i n r e a c h o f c h i l d r e n inside the vehicle.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
I n s t a l l i n g a b o o s t e r s e a t
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back,
fi t t e d w i t h a s e a t b e l t g u i d e a t s h o u l -
der level.
Page 44 of 99
3
42
COMFORT

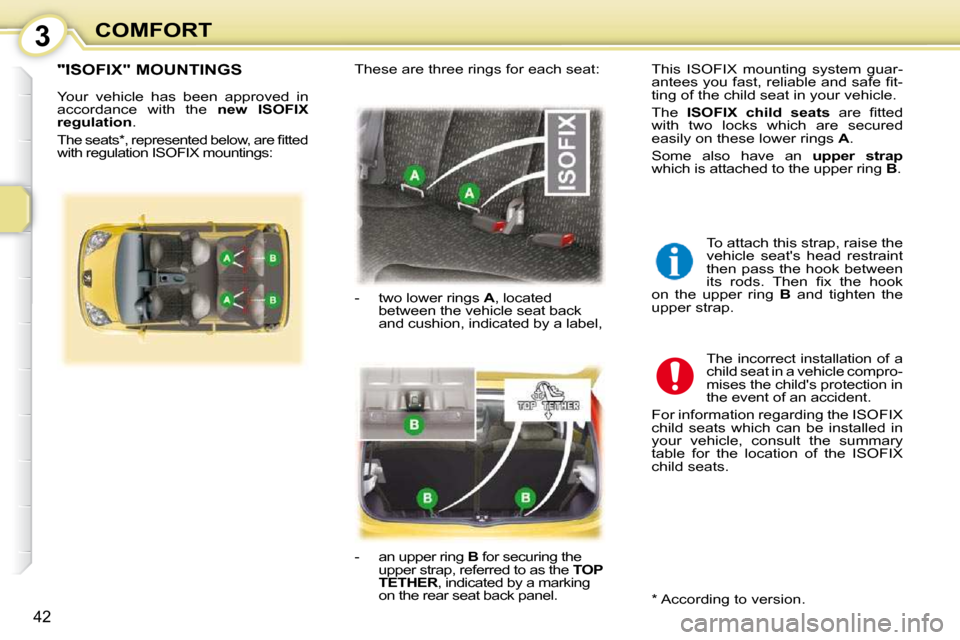

"ISOFIX" MOUNTINGS
Your vehicle has been approved in
accordance with the n e w I S O F I X
r e g u l a t i o n .
T h e s e a t s * , r e p r e s e n t e d b e l o w , a r e fi t t e d
w i t h r e g u l a t i o n I S O F I X m o u n t i n g s :
These are three rings for each seat: T h i s I S O F I X m o u n t i n g s y s t e m g u a r -
a n t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t -
ting of the child seat in your vehicle.
The I S O F I X c h i l d s e a t s a r e fi t t e d
with two locks which are secured
easily on these lower rings A .
Some also have an upper strap
which is attached to the upper ring B .
- t w o l o w e r r i n g s A , located
between the vehicle seat back
and cushion, indicated by a label,
* According to version.
- a n u p p e r r i n g
B for securing the
upper strap, referred to as the TOP
TETHER , indicated by a marking
on the rear seat back panel. To attach this strap, raise the
vehicle seat's head restraint
then pass the hook between
i t s r o d s . T h e n fi x t h e h o o k
on the upper ring B and tighten the
upper strap.
The incorrect installation of a
c h i l d s e a t i n a v e h i c l e c o m p r o -
mises the child's protection in
the event of an accident.
F o r i n f o r m a t i o n r e g a r d i n g t h e I S O F I X
child seats which can be installed in
your vehicle, consult the summary
t a b l e f o r t h e l o c a t i o n o f t h e I S O F I X
child seats.
Page 45 of 99
3
43
COMFORT
T h i s c h i l d s e a t c a n a l s o b e u s e d o n s e a t s w h i c h a r e n o t fi t t e d w i t h I S O F I X m o u n t i n g s . I n t h i s c a s e , i t m u s t b e a t t a c h e d
to the vehicle seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g t h e c h i l d s e a t g i v e n i n t h e s e a t m a n u f a c t u r e r ' s i n s t a l l a t i o n g u i d e .

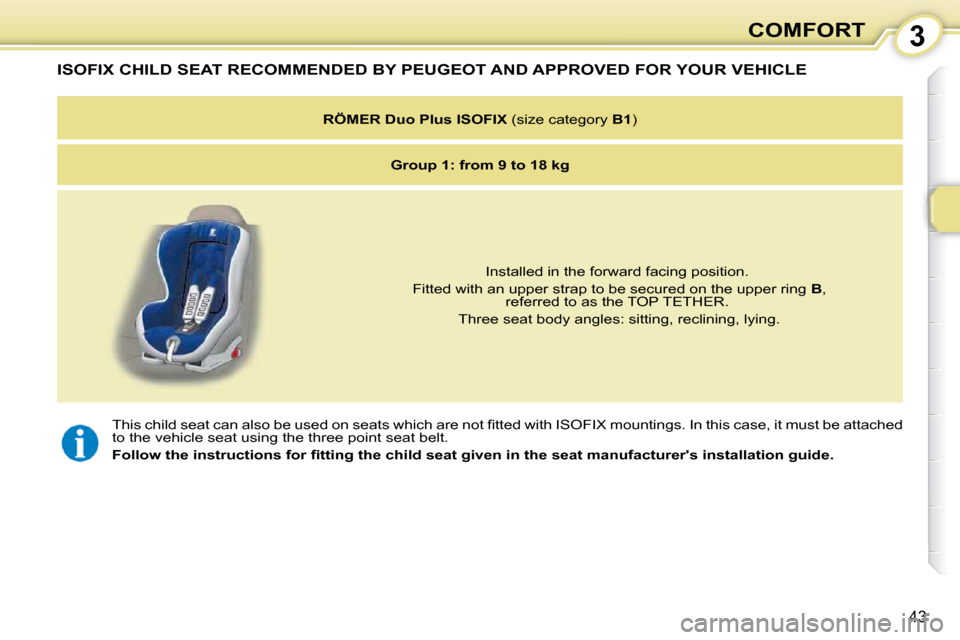

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
R Ö M E R D u o P l u s I S O F I X (size category B1 )
G r o u p 1 : f r o m 9 t o 1 8 k g
Installed in the forward facing position.
Fitted with an upper strap to be secured on the upper ring B ,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
Page 46 of 99
3
44
COMFORT

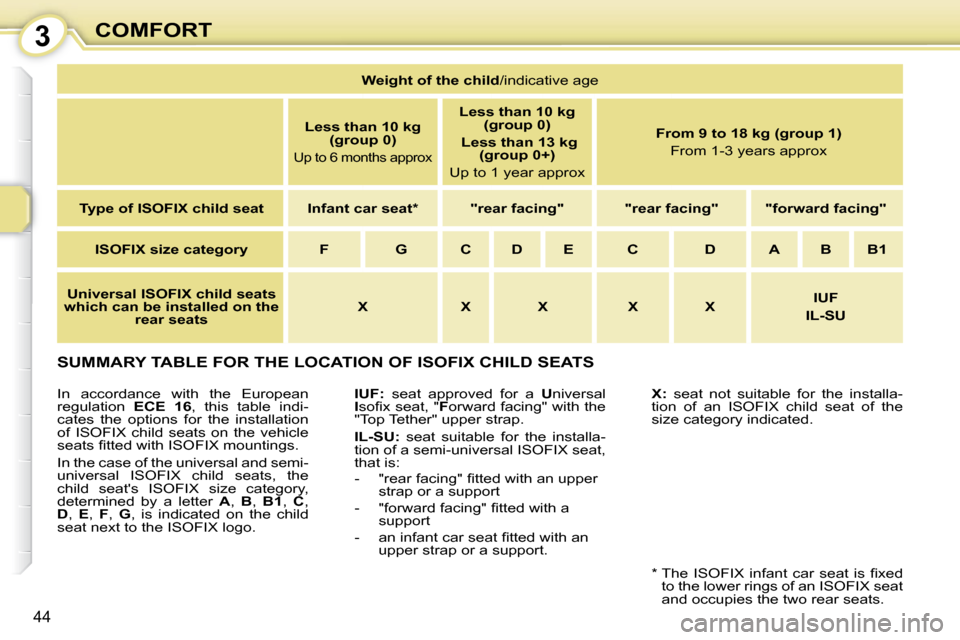

SUMMARY TABLE FOR THE LOCATION OF ISOFIX CHILD SEATS
IUF: seat approved for a Universal
I s o fi x s e a t , " Forward facing" with the
"Top Tether" upper strap.
IL-SU
: s e a t s u i t a b l e f o r t h e i n s t a l l a -
t i o n o f a s e m i - u n i v e r s a l I S O F I X s e a t ,
that is:
- " r e a r f a c i n g " fi t t e d w i t h a n u p p e r strap or a support
- " f o r w a r d f a c i n g " fi t t e d w i t h a support
- a n i n f a n t c a r s e a t fi t t e d w i t h a n upper strap or a support.
* T h e I S O F I X i n f a n t c a r s e a t i s fi x e d t o t h e l o w e r r i n g s o f a n I S O F I X s e a t
and occupies the two rear seats.
X
: s e a t n o t s u i t a b l e f o r t h e i n s t a l l a -
t i o n o f a n I S O F I X c h i l d s e a t o f t h e
size category indicated.
In accordance with the European
regulation
ECE 16 , t h i s t a b l e i n d i -
cates the options for the installation
o f I S O F I X c h i l d s e a t s o n t h e v e h i c l e
s e a t s fi t t e d w i t h I S O F I X m o u n t i n g s .
I n t h e c a s e o f t h e u n i v e r s a l a n d s e m i -
u n i v e r s a l I S O F I X c h i l d s e a t s , t h e
c h i l d s e a t ' s I S O F I X s i z e c a t e g o r y ,
determined by a letter A , B , B1 , C ,
D , E , F , G , is indicated on the child
s e a t n e x t t o t h e I S O F I X l o g o .
W e i g h t o f t h e c h i l d /indicative age
L e s s t h a n 1 0 k g
(group 0)
Up to 6 months approx
L e s s t h a n 1 0 k g
(group 0)
L e s s t h a n 1 3 k g (group 0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g ( g r o u p 1 )
F r o m 1 - 3 y e a r s a p p r o x
T y p e o f I S O F I X c h i l d s e a t Infant car seat * "rear facing" "rear facing" " f o r w a r d f a c i n g "
ISOFIX size category F G C D E C D A B B1
U n i v e r s a l I S O F I X c h i l d s e a t s
w h i c h c a n b e i n s t a l l e d o n t h e rear seats
X X X X X
IUF
IL-SU
Page 47 of 99
3
45
COMFORT

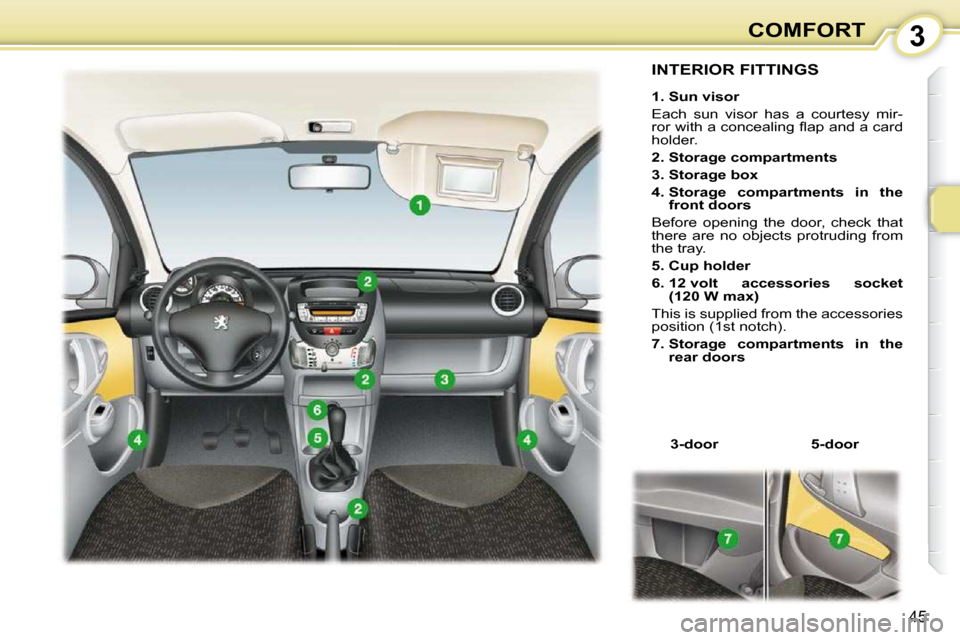

INTERIOR FITTINGS
1. Sun visor
E a c h s u n v i s o r h a s a c o u r t e s y m i r -
r o r w i t h a c o n c e a l i n g fl a p a n d a c a r d
holder.
2. Storage compartments
3. Storage box
4. Storage compartments in the
front doors
Before opening the door, check that
there are no objects protruding from
the tray.
5 . C u p h o l d e r
6 . 1 2 v o l t a c c e s s o r i e s s o c k e t
(120 W max)
This is supplied from the accessories
position (1st notch).
7. Storage compartments in the
rear doors
3-door 5-door
Page 48 of 99
4
46
ACCESS

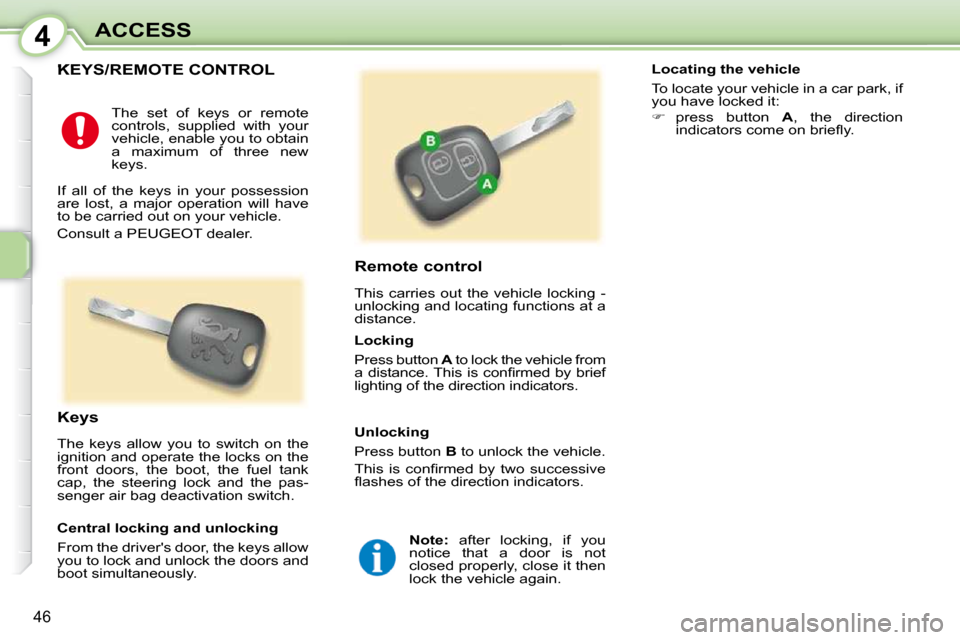

KEYS/REMOTE CONTROL
Remote control
This carries out the vehicle locking -
unlocking and locating functions at a
distance.
Keys
The keys allow you to switch on the
ignition and operate the locks on the
front doors, the boot, the fuel tank
cap, the steering lock and the pas-
senger air bag deactivation switch. Locking
Press button
A to lock the vehicle from
a d i s t a n c e . T h i s i s c o n fi r m e d b y b r i e f
lighting of the direction indicators.
Central locking and unlocking
From the driver's door, the keys allow
you to lock and unlock the doors and
boot simultaneously. Unlocking
Press button
B to unlock the vehicle.
T h i s i s c o n fi r m e d b y t w o s u c c e s s i v e
fl a s h e s o f t h e d i r e c t i o n i n d i c a t o r s . Locating the vehicle
To locate your vehicle in a car park, if
you have locked it:
press button A , the direction
i n d i c a t o r s c o m e o n b r i e fl y .
Note: after locking, if you
notice that a door is not
closed properly, close it then
lock the vehicle again.
The set of keys or remote
controls, supplied with your
vehicle, enable you to obtain
a maximum of three new
keys.
If all of the keys in your possession
are lost, a major operation will have
to be carried out on your vehicle.
Consult a PEUGEOT dealer.
Page 49 of 99
4
47
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched
off and therefore prevents starting of
the vehicle by anyone who does not
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a PEUGEOT dealer.

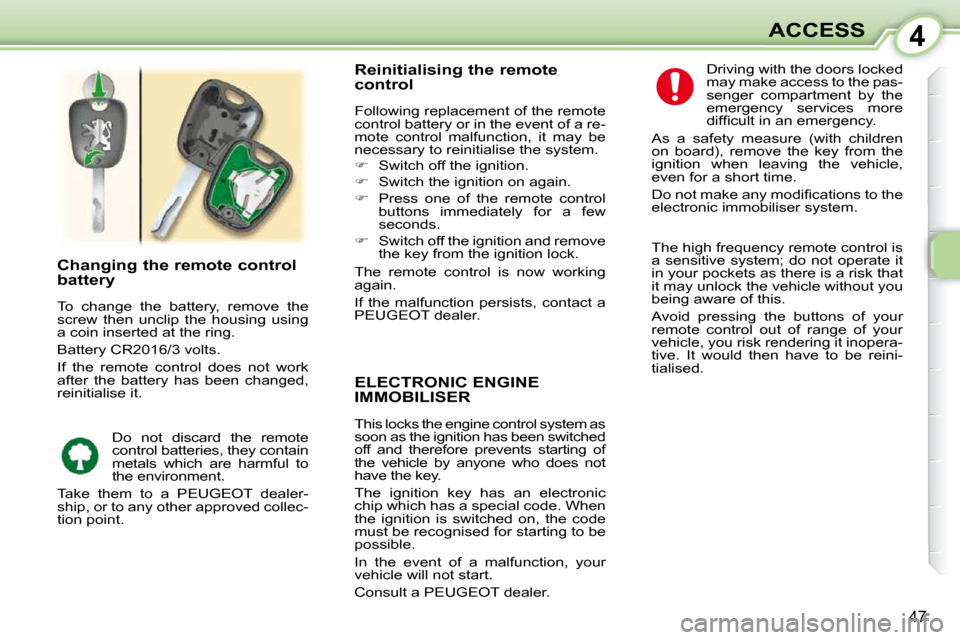

Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control malfunction, it may be
necessary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
PEUGEOT dealer. Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a PEUGEOT dealer-
ship, or to any other approved collec-
tion point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
Page 50 of 99
4
47
ACCESS
ELECTRONIC ENGINE IMMOBILISER
This locks the engine control system as
soon as the ignition has been switched
off and therefore prevents starting of
the vehicle by anyone who does not
have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.
In the event of a malfunction, your
vehicle will not start.
Consult a PEUGEOT dealer.
Changing the remote control
battery
To change the battery, remove the
screw then unclip the housing using
a coin inserted at the ring.
Battery CR2016/3 volts.
If the remote control does not work
after the battery has been changed,
reinitialise it.
Reinitialising the remote
control
Following replacement of the remote
control battery or in the event of a re-
mote control malfunction, it may be
necessary to reinitialise the system.
Switch off the ignition.
Switch the ignition on again.
Press one of the remote control
buttons immediately for a few
seconds.
Switch off the ignition and remove
the key from the ignition lock.
The remote control is now working
again.
If the malfunction persists, contact a
PEUGEOT dealer. Driving with the doors locked
may make access to the pas-
senger compartment by the
emergency services more
d i f fi c u l t i n a n e m e r g e n c y .
As a safety measure (with children
on board), remove the key from the
ignition when leaving the vehicle,
even for a short time.
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e
electronic immobiliser system.
Do not discard the remote
control batteries, they contain
metals which are harmful to
the environment.
Take them to a PEUGEOT dealer-
ship, or to any other approved collec-
tion point. The high frequency remote control is
a sensitive system; do not operate it
in your pockets as there is a risk that
it may unlock the vehicle without you
being aware of this.
Avoid pressing the buttons of your
remote control out of range of your
vehicle, you risk rendering it inopera-
tive. It would then have to be reini-
tialised.
