PEUGEOT 108 2014 Owners Manual

149
LED daytime running lamps
For the replacement of these lamps, contact a
PeugeOt dealer or qualified workshop.
For replacement of these bulbs, contact a
Pe
ugeOt
dealer or a qualified workshop.
Front foglamps
9
Practical information

150
1. Brake lamps (P21/5W)
2. Sidelamps (P21/5W)
3.
D

irection indicators (PY21W)
4.
R

eversing lamp (P21W), near side
F

oglamp (P21W), offside
Rear lamps
these bulbs are changed by removing the lamp
unit:
F
O
pen the boot,
F
t
i
p the plastic cover and remove the screw.
F

M
ove the boot trim firmly aside.
D

eformation of the trim is normal.
F
u
n
screw the nut and remove it (take care
not to drop it in the wing).
F

R
emove the lamp unit by pulling it firmly
outwards. F
A t the back of the lamp, remove the failed
bulb and change it.
When refitting, proceed in the reverse order,
taking care to position the lamp unit correctly.
Practical information

151
Number plate lamps (W5W)
F Insert a thin screwdriver into one of the cutouts in the the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
Third brake lamp (4 W5W bulbs)
F With the boot open, unclip the plastic cover.
F P ress the metal clips to disengage the
lamp.
F

R
emove the lamp via the exterior of the
tailgate.
F

R
emove the bulb-holder by squeezing the
plastic catches.
F

C
hange the failed bulb(s).
Direction indicator side repeaters
(WY 5W amber)
F Push the repeater for wards or rear wards and detach it by pulling towards you.
F

D
isconnect the bulb holder and change it.
to r

efit, press on the lens to clip it in place.
to r

efit, carry out these operations in reverse
o r d e r.
9
Practical information

152
Changing a fuse
Access to toolsthe fuseboxes are located behind the
dashboard in the passenger compartment and
next to the battery under the bonnet.
th
e extraction tweezer is fixed at the front of
the underbonnet fusebox.
F
u
n
clip the plastic cover, located below
the windscreen, by pressing on the
two


catches.F
u
n
clip the fusebox cover by pressing on
the lug on the right.
F

R
emove the tweezer.
When unclipping the plastic cover, take
care not to remove the seal.
Practical information

153
Before changing a fuse, it is necessary to
F i mmobilise the vehicle and switch off the
ignition,
F

s
witch off all electrical consumers,
F

i
dentify the failed fuse using the fuse
allocation tables and diagrams in the
following pages,
F

i
dentify and correct the cause of the
problem.
Replacing a fuse
Good Failed
Tw e e z e r
When replacing a fuse, you must always:
F

u

se the special tweezer to extract the fuse
from its holder and check the condition of
its element,
F

r

eplace a failed fuse by on of the same
rating (same colour); the use of a different
rating fuse could cause a fault (risk of fire).
If the problem recurs after replacing the fuse,
have the vehicle's electrical system checked by
P
e

uge
Ot

dealer or a qualified workshop. P
e

uge
Ot
will not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the
installation of auxiliary accessories which
were not supplied or recommended by
P
e

uge
Ot
and which were not installed
in accordance with its instructions, in
particular where the current consumption
of all the the additional equipment
connected exceeds 10 milliamps.
Installation of electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a P
e

uge
Ot
dealer or
a qualified workshop.
9
Practical information

154
Dashboard fuses
the fusebox is located below the dashboard
(driver's side).
F u
n
clip the plastic cover for access to the
fuses.
When you have finished, carefully refit the
c ove r. Fuse

N° Rating

(A) Functions
1 5Fuel injection system - Audio system - VSC system
2 15Front and rear screenwash
3 5Main distribution unit - Instrument panel - Display screen -
Air conditioning - Heated rear screen and door mirror heating -
Heated seats - e
l
ectric fabric roof - Audio system
4 5
el
ectric power steering - Stop & Start
5 15Rear wiper
6 5Cooling fan - ABS system
e
S
P - VSC system
7 25Front wiper
8 10Heated door mirrors
9 1512 V socket (120 W max)
10 7. 5Door mirrors - Audio system - Stop & Start - Instrument panel -
Display screen
Practical information

155
FuseN° Rating
(A) Functions
11 5Steering lock - Fuel injection system -
e
l
ectronic gearbox
12 7. 5Airbags
13 5Instrument panel - Display Screen - Stop & Start
14 15* *
Steering - Fuel injection system - Brake lamps
7. 5 *
15 7. 5 * *
Fuel injection system - Stop & Start
10*
16 7. 5
en

gine diagnosis
17 10Brake lamps -
t
h
ird brake lamp - Fuel injection system - ABS
system - VSC system -
e
l
ectronic gearbox - Keyless e
n
try and
Starting system
18 10Sidelamps - Number plate lamps - Rear foglamp - Front
foglamps - Rear lamps - Lighting dimmer
19 40Air conditioning

* V
ti 8

2 engine.
** V
ti 6

8 engine.
9

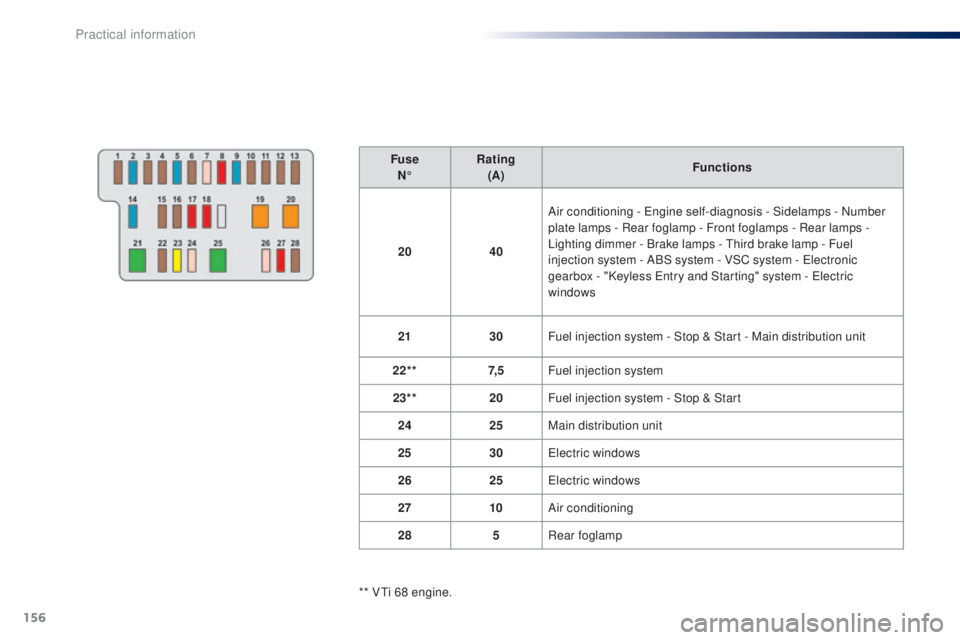

Practical information

156
FuseN° Rating
(A) Functions
20 40Air conditioning -
e
n
gine self-diagnosis - Sidelamps - Number
plate lamps - Rear foglamp - Front foglamps - Rear lamps


-
Lighting dimmer - Brake lamps -
t
h
ird brake lamp - Fuel
injection system - ABS system - VSC system -
e
l
ectronic
gearbox - "Keyless
e
n
try and Starting" system - e
l
ectric
windows
21 30Fuel injection system - Stop & Start - Main distribution unit
22** 7, 5Fuel injection system
23** 20Fuel injection system - Stop & Start
24 25Main distribution unit
25 30
el

ectric windows
26 25
el

ectric windows
27 10Air conditioning
28 5Rear foglamp
** V
ti 6

8 engine.
Practical information

157
Fuse
N° Rating
(A) Functions
1 10Right hand dipped beam
2 10Left hand dipped beam - Headlamp adjustment
3 7. 5Right hand main beam
4 7. 5Left hand main beam
5* 15Fuel injection system
6* 7. 5Fuel injection system
7* 15Fuel injection system
8* 7. 5Cooling fan
9 7. 5Air conditioning
10* * 7. 5Fuel injection system - Brake lamps -
t
h
ird brake lamp
11 5Courtesy lamp - Boot lamp
12 10
Direction indicators - Hazard warning lamps - Instrument panel - Display screen
Fuses under the bonnet
F unclip the plastic cover, located below
the windscreen, by pressing on the
two


catches.
F
u
n
clip the fusebox cover by pressing on
the lug on the right, for access to the fuses.
When you have finished, carefully refit the
c ove r.
* V
ti 8

2 engine.
** V
ti 6

8 engine.
9
Practical information

158
** Vti 68 engine.Fuse
N° Rating
(A) Functions
13 10Horn
14 30Distribution units
15* * 7. 5
ele
ctronic gearbox
16 7. 5Fuel injection system
17 7. 0Keyless e
n
try and Starting system
18* * 7. 5Battery
19 25Fuel injection system - Cooling fan
20 30Starter motor
21 7. 5Steering lock
22 25Front lamps
23 7. 5Fuel injection system
24 7. 5Fuel injection system - Starter motor - e
l
ectronic gearbox -
Stop

& Start
25 15Audio system - "Keyless e
n
try and Starting" system
26 7. 5Instrument panel - Display screen
