PEUGEOT 108 2014 Owners Manual

179
Dimensions (in mm)these dimensions have been measured on a vehicle that is not loaded.
11
technical data

180

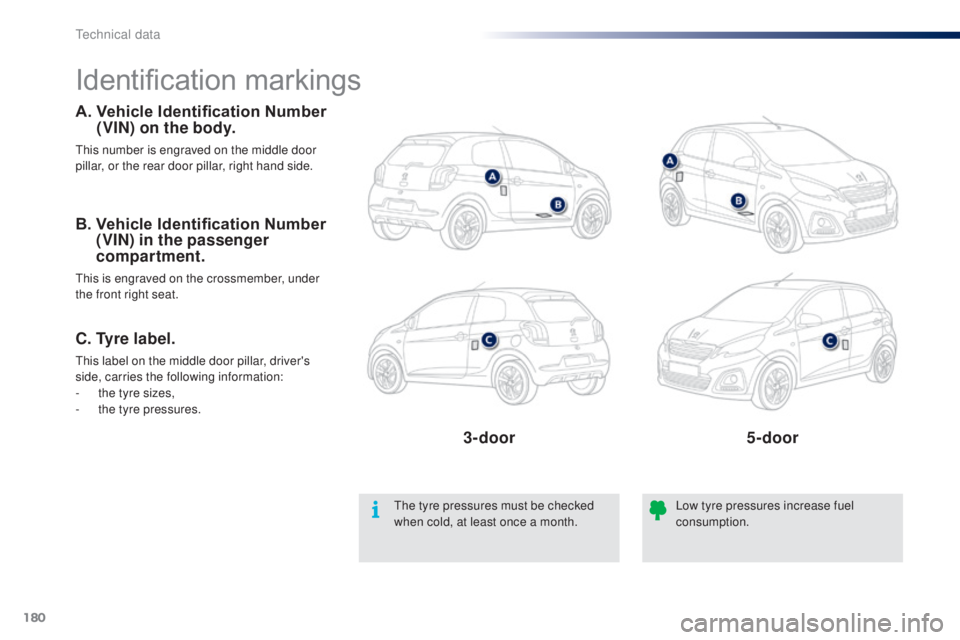

Identification markings
A. Vehicle Identification Number (VIN) on the body.
this number is engraved on the middle door
pillar, or the rear door pillar, right hand side.
th

e tyre pressures must be checked
when cold, at least once a month. Low tyre pressures increase fuel
consumption.
B. Vehicle Identification Number
(VIN) in the passenger
compartment.
this is engraved on the crossmember, under
the front right seat.
C. Tyre label.
this label on the middle door pillar, driver's
side, carries the following information:
-

t
he tyre sizes,
-

t
he tyre pressures.
3-door 5-door
Technical data

181
7-Inch touch screen
For safety reasons, the driver must carry out operations
which require prolonged attention while the vehicle is
stationary.
to prevent discharging of the battery
, the system cuts off
following activation of energy economy mode, 20 minutes
after switching off the engine on vehicles fitted with the
"Keyless
e ntry and Starting" system.
Multimedia system
Bluetooth
® telephone
Mirror Screen
®
CONTENTS
182
01

General
operation p.
184
02

First steps - Control
panelp.
198
05
Telephone p. 186
04
Media p.
206
06
Connections p.
206
p.
210
06-1
iPhone
® connection
06-2

MirrorLink
® connection p.
214
07

Configuration p.
218
Frequently asked questions
p. 185
03

Steering mounted
controls
p.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

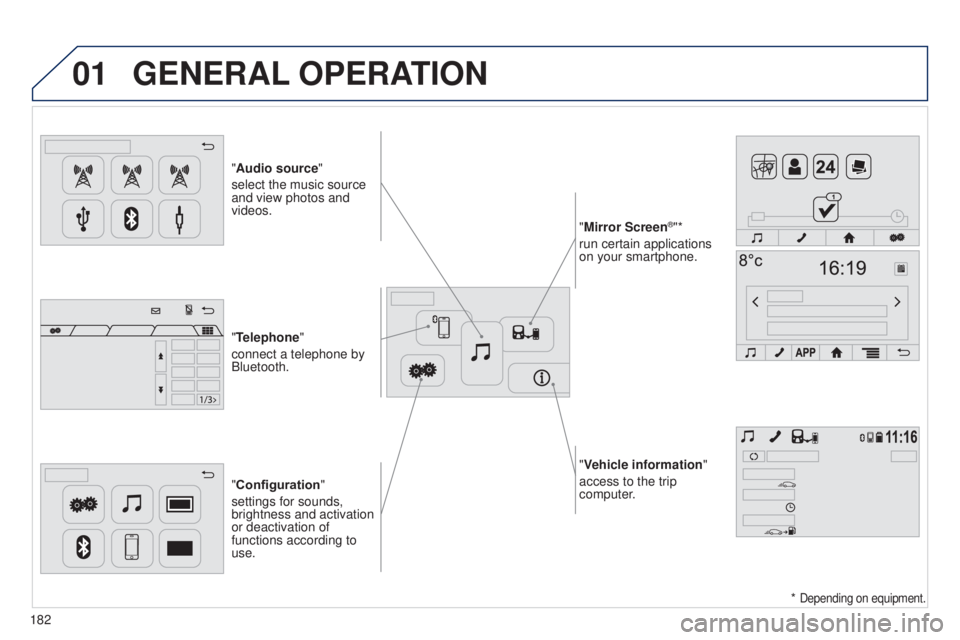

01
"Vehicle information"
access to the trip
computer.
"Audio source"
select the music source
and view photos and
videos.
"Configuration
"
settings for sounds,
brightness and activation
or deactivation of
functions according to
use. "Mirror Screen
®"*
run certain applications
on your smartphone.
"Telephone"
connect a telephone by
Bluetooth.
GENERAL OPERATION
182 *
Depending on equipment.

01
In ACC mode or when starting the vehicle, the system comes on.
u
se the button at bottom right of the screen for access to the main menus\
.
A second press returns the system to the last source activated, then pres\
s the virtual buttons
in the screen.
GENERAL OPERATION
In the event of prolonged exposure to sunlight and very hot conditions, \
the system may go into stand-by (screen and sound completely off)
for at least 5 minutes.
Return to normal operation takes place when the temperature in the passe\
nger compartment drops.
183
B3_en_Chap12a_Autoradio-toyota-tactile-1_ed01-2014

02
184Press to mute the sound.
A long press reinitialises the system. Volume (each source is
independent).
Select audio source (depending on version):
-
"FM" / "AM" / "DAB"* radio.
-

"
u SB" player.
- t
elephone connected by Bluetooth and with Bluetooth streaming.
-

Media player connected to the auxiliary socket (jack, cable not supplie\
d).
Pressing with more than one finger is not recognised.
t
he screen can be used when wearing gloves.
FIRST STEPS
* Depending on equipment.
to clean the screen, use a soft non-abrasive cloth (spectacles cloth) w\
ithout any additional product or a damp cloth.
Do not use pointed objects on the screen.
Do not touch the screen with wet hands.
Short-cuts: using virtual buttons in the
top bar of the screen, it is possible to go
directly to the choice of audio source,
telephone functions or "Mirror Screen
®"
mode.

03
185
STEERING MOUNTED CONTROLS
Short press: change multimedia
source.
Long press: mute / restore sound from
the radio or pause media sources.
Increase volume.
Decrease volume.
Radio: change to preset radio stations
in ascending order.
Media: next track.
Radio: change to preset radio stations
in descending order.
Media: previous track.Accept an incoming call.
Other than on a call: press to open the
list of contacts; a second press opens
the calls history.
Reject the incoming call.
e

nd the call in progress.
Other than on a call: press to return
to the radio screen or the clock if the
radio is not active.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

04
186
MEDIA
Level 1Level 2 Level 3
"Audio source"

187
Level 1
Level 2 Level 3 Comment
Audio source FM FM radio configuration
u

pdate the list of stations
update the list to take account of reception.
List of stationsChoose to list by "Broadcaster" or "Alphabetic".
FM traffic announcements
Activate or deactivate options.FM alternative frequencies
Change regional code
FM radiotext
Presets
List of preset stations.
StationsList of radio stations received.
ManualSearch for stations step by step or automatically.
Audio source
AM PresetsList of preset stations.
ManualSearch for stations step by step or automatically.
Audio source
DAB DAB radio configuration
u
pdate the list of stations
update the list to take account of reception.
L-Band
Activate or deactivate options.DAB traffic announcements
DAB alternative frequencies
DAB radiotext
Presets
List of preset stations.
StationsList of radio stations received.
ManualSearch for stations step by step or automatically.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

04MEDIA
Level 1Level 2 Level 3
188
"Audio source"
