PEUGEOT 108 2014 Owners Manual

199
Level 1
Level 2Level 3Comment
Contacts
After making choices, start the call.Favourites
Call history
Enter a number Call
enter a number then start the call.
Telephone/message
configurationConnect the telephone
telephoneSelect the services to use on the
peripheral device
Audio player
Sounds configuration Ringtone
Choose settings, activate or deactivate
options.
Ringtone volume
Incoming SMS/MMS tone
Incoming SMS/MMS volume
Incoming e-mail tone
Incoming e-mail volume
Incoming call volume
Contacts/call history
configuration Automatic transfer
u

pdate telephone contacts
Sort contacts by
Add favourite
Remove favourite
Message configuration Display of incoming calls
Contacts/call history transfer
state
Telephone display
configuration Display of incoming calls
Contacts/call history transfer
state
B3_en_Chap12a_Autoradio-t
oyota-tactile-1_ed01-2014

05
200
Pairing a Bluetooth telephone
First connectionFor reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetooth
mobile telephone to the hands-free system of the audio system must
be carried out with the vehicle stationary.
Select "Bluetooth audio ". Select the system on your telephone.
Select the "Add" tab in the system.
t

he list of telephone detected is displayed.
Press on "Audio source" to display the
carousel of audio sources. Activate the telephone's Bluetooth function
and ensure that it is "visible to all" (telephone
configuration).
Select "Telephone" then select the name of the telephone.
t

he system offers to connect the telephone:
-

with "
Connect all",
-

with "
Connect as telephone" (hands-free kit, telephone only),
-

with "
Connect as audio player" (streaming: wireless play of
audio files on the telephone).
Select the name of the desired peripheral from the list.
BLUETOOTH
If the telephone is not detected, it is recommended that you switch
the Bluetooth function on your telephone off and then on again. Enter a code of at least 4 figures for the
connection then confirm.
e

nter this same code in the telephone then
accept the connection.
t
he system displays that the services to be
used on the telephone are: " Telephone" and
"Audio player".

05
201

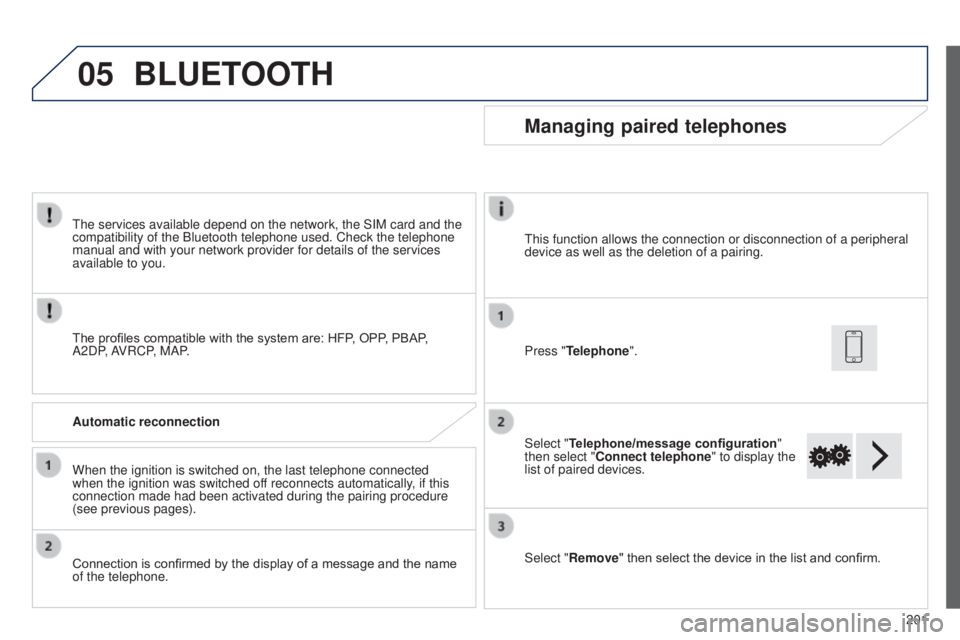

t

he services available depend on the network, the SIM card and the
compatibility of the Bluetooth telephone used. Check the telephone
manual and with your network provider for details of the services
available to you.
The profiles compatible with the system are: HFP, OPP, PBAP,
A2DP, AVRCP, MAP.
BLUETOOTH
Automatic reconnection
When the ignition is switched on, the last telephone connected
when the ignition was switched off reconnects automatically, if this
connection made had been activated during the pairing procedure
(see previous pages).
Connection is confirmed by the display of a message and the name
of the telephone.
Managing paired telephones
Press "Telephone".
Select "Telephone/message configuration "
then select "Connect telephone" to display the
list of paired devices.
Select "Remove " then select the device in the list and confirm.
t
his function allows the connection or disconnection of a peripheral
device as well as the deletion of a pairing.
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

05

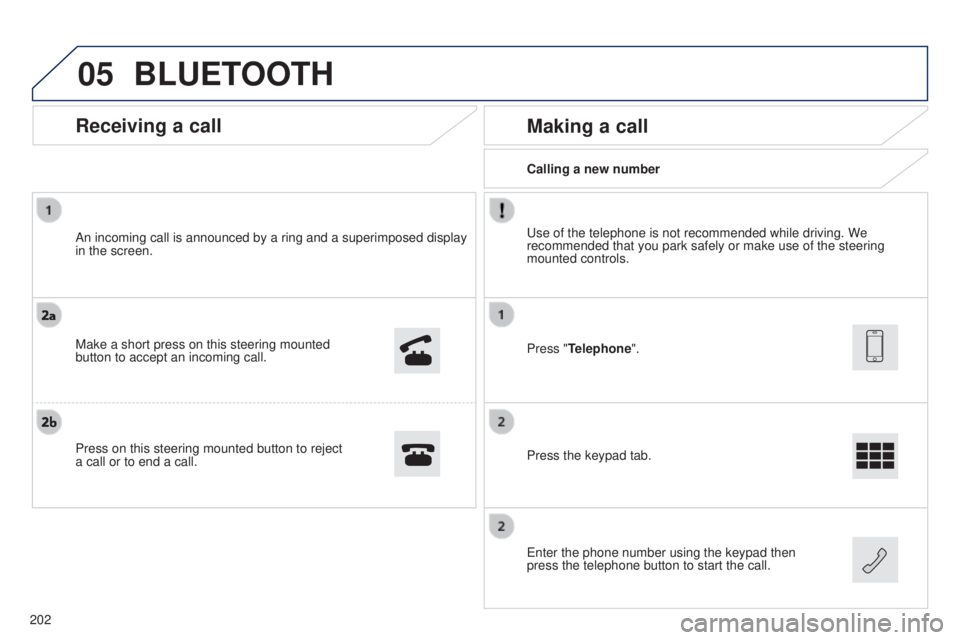

Calling a new number
Making a call
use of the telephone is not recommended while driving. We
recommended that you park safely or make use of the steering
mounted controls.
Press the keypad tab.
e

nter the phone number using the keypad then
press the telephone button to start the call. Press "Telephone".
Receiving a call
An incoming call is announced by a ring and a superimposed display
in the screen.
Make a short press on this steering mounted
button to accept an incoming call.
Press on this steering mounted button to reject
a call or to end a call.
BLUETOOTH
202

05
203
Press on "Telephone". Calling a contact
Select the "Contacts" tab.
Select the desired contact from the list offered
to start the call.
CONTACTS
Or press this steering mounted button to open
the list of contacts.
Or press this steering mounted button to open
the list of contacts; a second press opens the
calls history. Calling a recently used number
Select the "Calls history" tab. Press on "Telephone".
Select the desired contact from the list offered
to start the call.
B3_en_Chap12a_Autoradio-t
oyota-tactile-1_ed01-2014

05

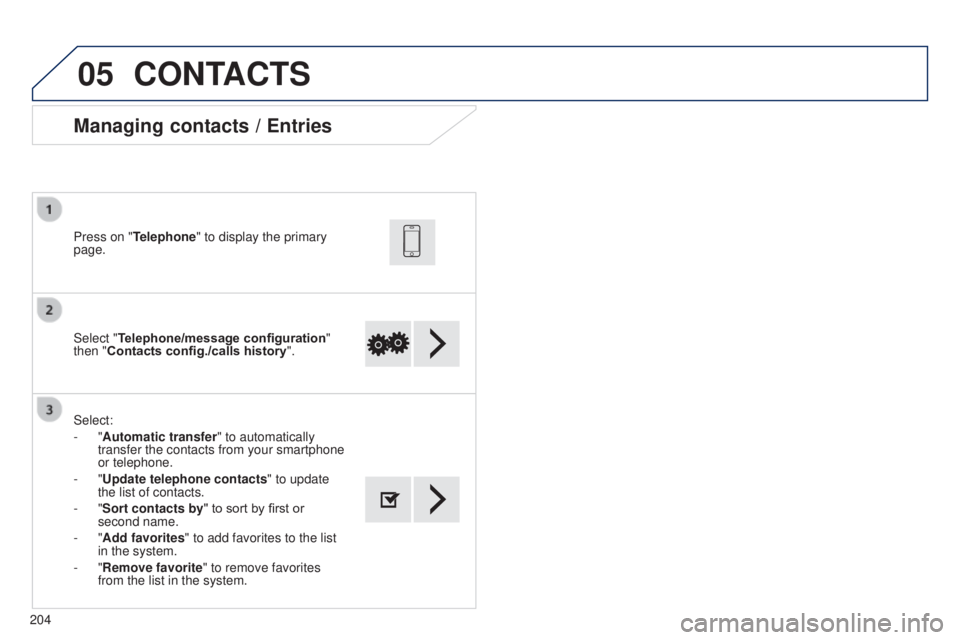

204Select "Telephone/message configuration
"
then "Contacts config./calls history ".
Press on "Telephone" to display the primary
page.
Select:
- "Automatic transfer
" to automatically
transfer the contacts from your smartphone
or telephone.
- "Update telephone contacts" to update
the list of contacts.
- "Sort contacts by" to sort by first or
second name.
- "Add favorites" to add favorites to the list
in the system.
- "Remove favorite
" to remove favorites
from the list in the system.
Managing contacts / Entries
CONTACTS

05
205

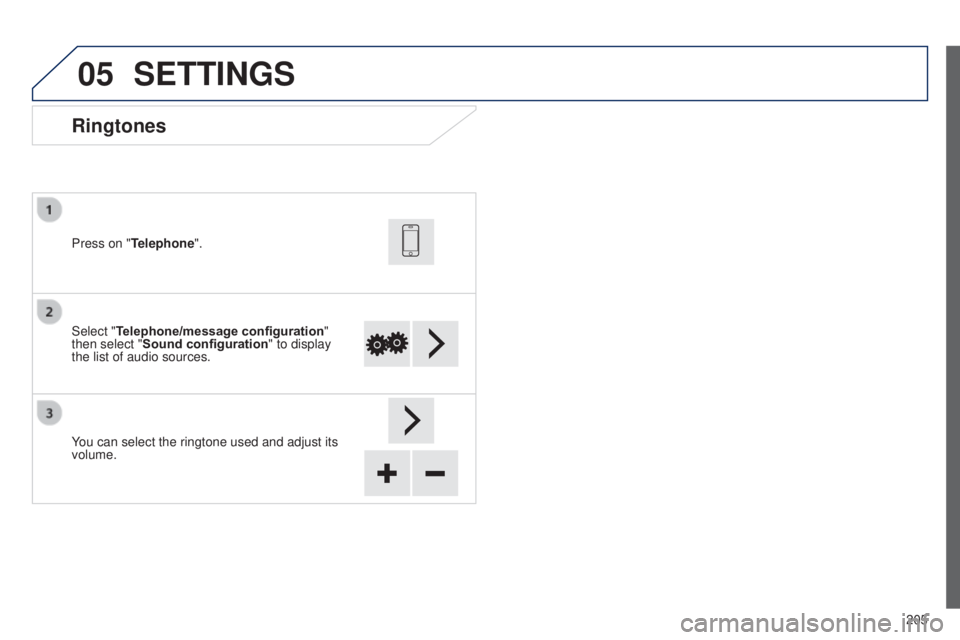

Ringtones
Select "Telephone/message configuration"
then select "Sound configuration " to display
the list of audio sources. Press on "Telephone".
You can select the ringtone used and adjust its
volume.
SETTINGS
B3_en_Chap12a_Autoradio-t oyota-tactile-1_ed01-2014

06
206

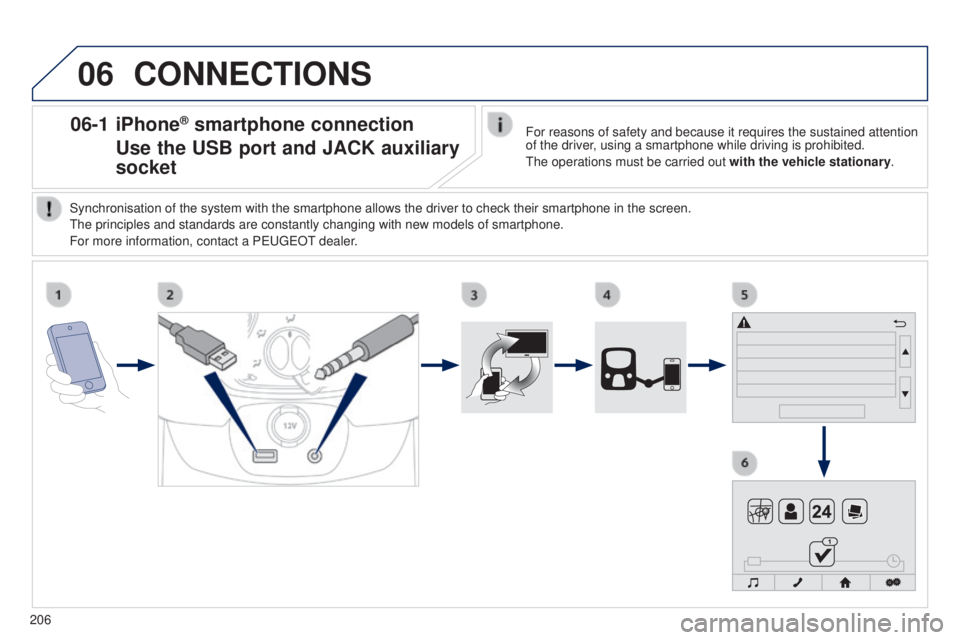

06-1 iPhone® smartphone connection
Use the USB port
and JACK auxiliary
socket
CONNECTIONS
For reasons of safety and because it requires the sustained attention
of the driver, using a smartphone while driving is prohibited.
t

he operations must be carried out with the vehicle stationary.
Synchronisation of the system with the smartphone allows the driver to c\
heck their smartphone in the screen.
t

he principles and standards are constantly changing with new models of s\
martphone.
For more information, contact a P
euge
O
t
dealer

.

06
207

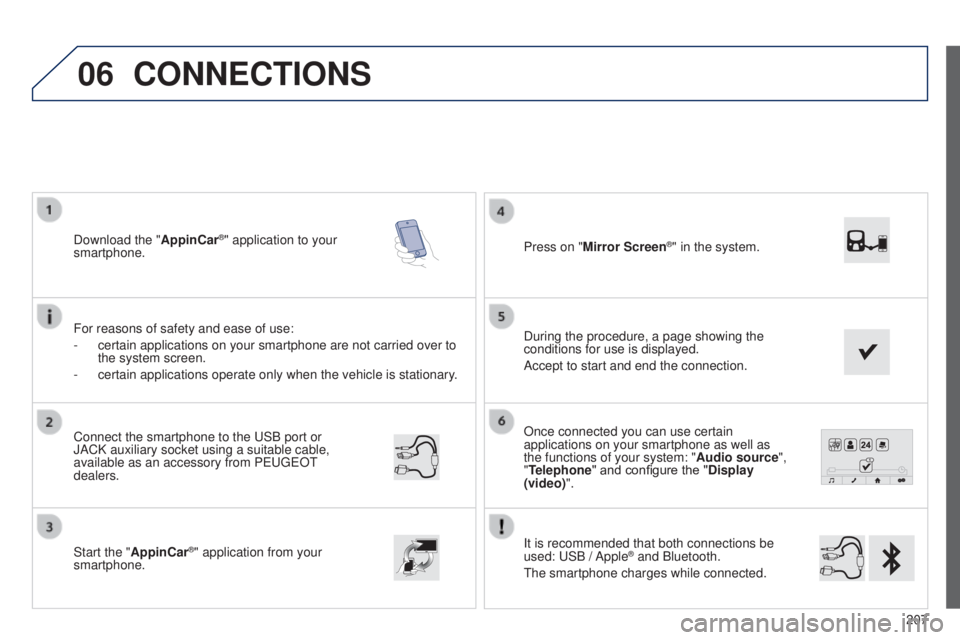

Once connected you can use certain
applications on your smartphone as well as
the functions of your system: "Audio source",
"Telephone" and configure the "Display
(video)".
It is recommended that both connections be
used:
u
SB / Apple
® and Bluetooth.
t

he smartphone charges while connected.
Connect the smartphone to the
u
SB

port or
JACK auxiliary socket using a suitable cable,
available as an accessory from P
euge
O
t

dealers.
Start the "

AppinCar®" application from your
smartphone. During the procedure, a page showing the
conditions for use is displayed.
Accept to start and end the connection. Press on "Mirror Screen
®" in the system.
Download the "
AppinCar®" application to your
smartphone.
For reasons of safety and ease of use:
-

certain applications on your smartphone are not carried over to
the system screen.
-


certain applications operate only when the vehicle is stationary
.
CONNECTIONS
B3_en_Chap12a_Autoradio-toyota-tactile-1_ed01-2014

06
208Level 1
Level 2Level 3
"Mirror Screen®"
CONNECTIONS
