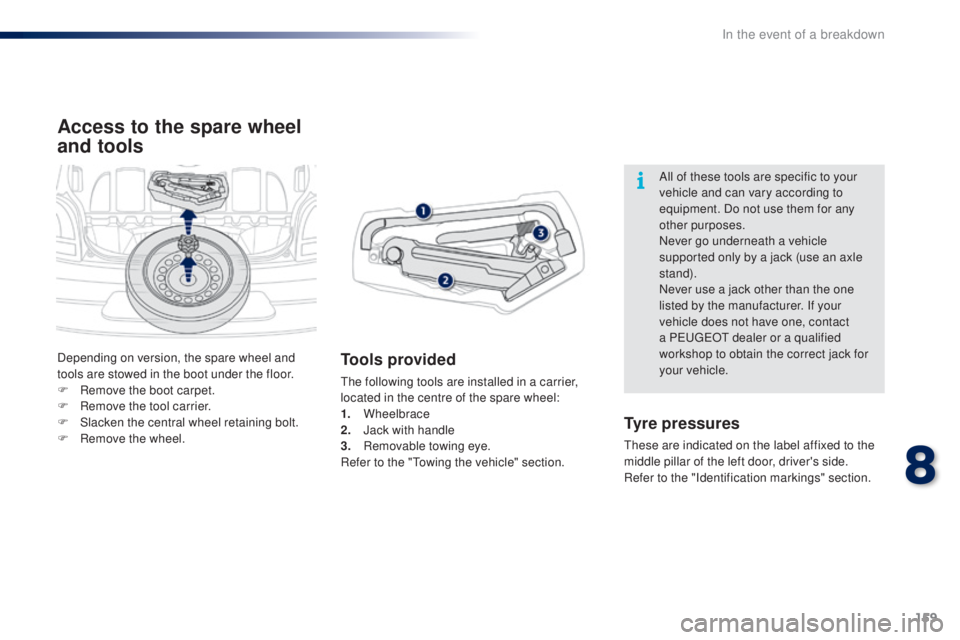

Access to the spare wheel
and tools
tools provided
the following tools are installed in a carrier,
located in the centre of the spare wheel:
1.

Wheelbrace
2.
J

ack with handle
3.
R

emovable towing eye.
Refer to the "
to

wing the vehicle" section.
tyre pressures
these are indicated on the label affixed to the
middle pillar of the left door, driver's side.
Refer to the "Identification markings" section.All of these tools are specific to your
vehicle and can vary according to
equipment. Do not use them for any
other purposes.
Never go underneath a vehicle
supported only by a jack (use an axle
stand).
Never use a jack other than the one
listed by the manufacturer. If your
vehicle does not have one, contact
a P
e

uge
Ot
dealer or a qualified
workshop to obtain the correct jack for
your vehicle.
Depending on version, the spare wheel and
tools are stowed in the boot under the floor.
F

R

emove the boot carpet.
F

R

emove the tool carrier.
F

S

lacken the central wheel retaining bolt.
F
R
emove the wheel.
8
In the event of a breakdown

160
108_en_Chap08_en-cas-pannes_ed01-2016

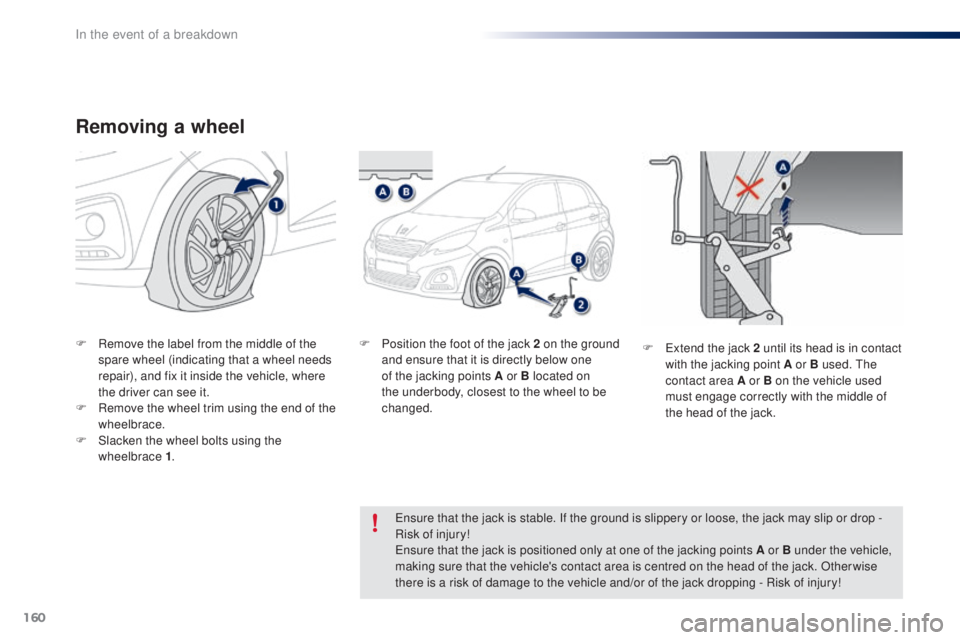

Removing a wheel
F Remove the label from the middle of the spare wheel (indicating that a wheel needs
repair), and fix it inside the vehicle, where
the driver can see it.
F

R
emove the wheel trim using the end of the
wheelbrace.
F

S
lacken the wheel bolts using the
wheelbrace 1 . F
P osition the foot of the jack 2 on the ground
and ensure that it is directly below one
of the jacking points A or B located on
the underbody, closest to the wheel to be
changed.
en

sure that the jack is stable. If the ground is slippery or loose, the jack may slip or drop -
Risk of injury!
en

sure that the jack is positioned only at one of the jacking points A or B under the vehicle,
making sure that the vehicle's contact area is centred on the head of the jack. Other wise
there is a risk of damage to the vehicle and/or of the jack dropping - Risk of injury! F
ex tend the jack 2 until its head is in contact
with the jacking point A or B used.
t
h
e
contact area A or B on the vehicle used
must engage correctly with the middle of
the head of the jack.
In the event of a breakdown

161
108_en_Chap08_en-cas-pannes_ed01-2016
Fitting the "space-saver"
type spare wheel
If your vehicle is fitted with alloy wheels,
it is normal to notice when tightening
the wheel bolts that the washers do not
come into contact with the "space-
saver" type spare wheel.
t
h
e wheel is
secured by the conical contact sur face
on each bolt.

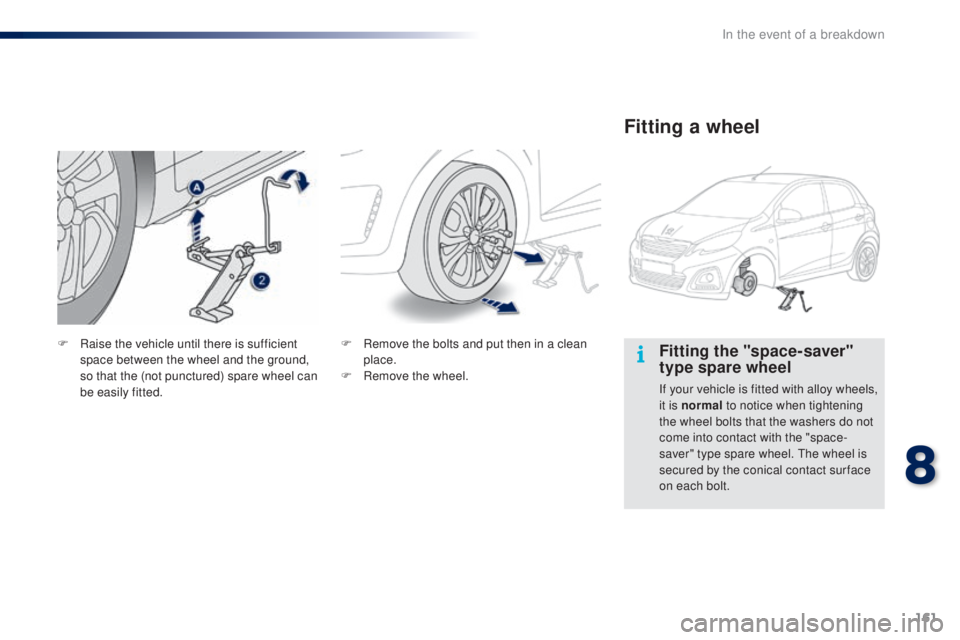

Fitting a wheel
F Remove the bolts and put then in a clean place.
F

R
emove the wheel.
F
Ra
ise the vehicle until there is sufficient
space between the wheel and the ground,
so that the (not punctured) spare wheel can
be easily fitted.
8
In the event of a breakdown

162
108_en_Chap08_en-cas-pannes_ed01-2016
F tighten the wheel bolts using the wheelbrace 1 .
F

S
tore the tools and the wheel in the boot.
F

L
ower the vehicle to the ground.
F
F
old the jack 2 and detach it.
After changing a wheel
As soon as possible, have the
tightness of the wheel bolts and the
pressure of the spare wheel checked
by a P
e

uge
Ot
dealer or a qualified
workshop.
Have the punctured tyre repaired or
replaced and refit it to the vehicle as soon
as possible.
Do not exceed 50 mph (80 km/h) when
using the "space-saver" spare wheel.
F

P

osition the wheel on the hub.
F

S

crew in the bolts fully by hand.
F

P

re-tighten the bolts using the
wheelbrace


1 o n l y.
th

e lane departure warning system
should be deactivated when driving with
a spare wheel fitted.
In the event of a breakdown

163
108_en_Chap08_en-cas-pannes_ed01-2016

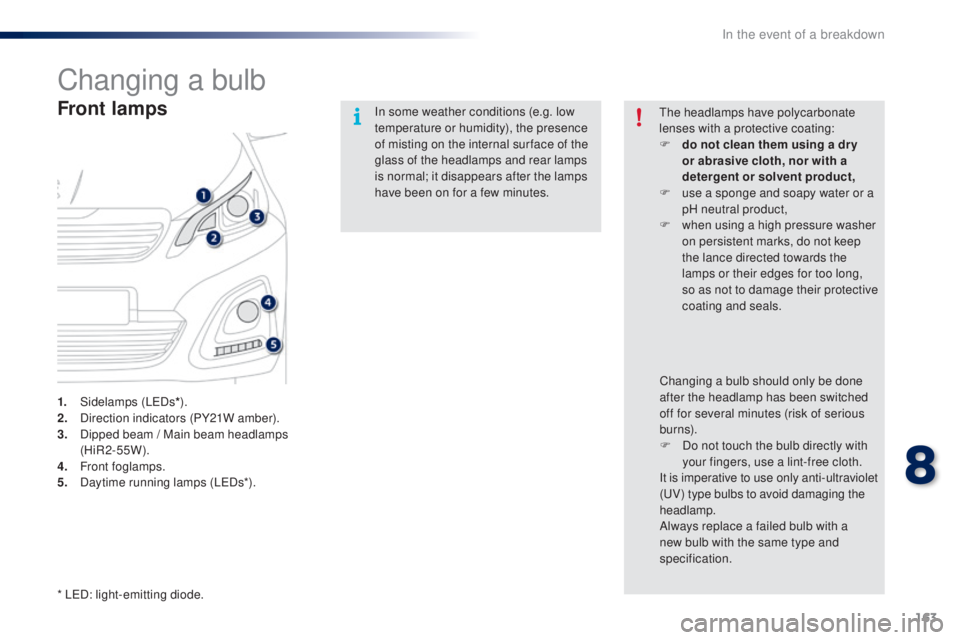

Changing a bulb
Front lamps
1. Sidelamps (LeDs*).
2. D irection indicators (PY21W amber).
3.
D

ipped beam / Main beam headlamps
(HiR2-55W).
4.
F

ront foglamps.
5.
D

aytime running lamps (L e
D
s*).In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
th

e headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-ultraviolet
(
uV

) type bulbs to avoid damaging the
headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
* L
eD

: light-emitting diode.
8
In the event of a breakdown

164
108_en_Chap08_en-cas-pannes_ed01-2016

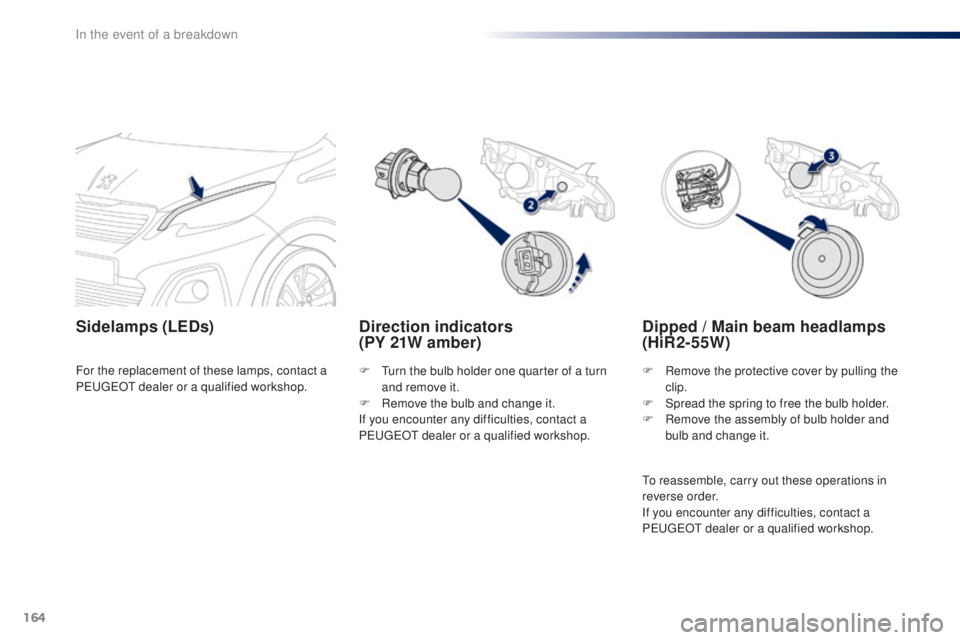

Direction indicators
(PY 21W amber)
Sidelamps (Le
Ds)
F turn the bulb holder one quarter of a turn
and remove it.
F

R
emove the bulb and change it.
If you encounter any difficulties, contact a
P
e

uge
Ot
dealer or a qualified workshop.
For the replacement of these lamps, contact a
Pe
ugeOt
dealer or a qualified workshop.
Dipped / Main beam headlamps
(HiR2-55W)
F Remove the protective cover by pulling the
clip.
F

S
pread the spring to free the bulb holder.
F

R
emove the assembly of bulb holder and
bulb and change it.
to r

eassemble, carry out these operations in
reverse order.
If you encounter any difficulties, contact a
P
e

uge
Ot
dealer or a qualified workshop.
In the event of a breakdown

165
108_en_Chap08_en-cas-pannes_ed01-2016
Front foglamps
For replacement of these bulbs, contact a
PeugeOt dealer or a qualified workshop.
LeD daytime running lamps
For the replacement of these lamps, contact a
PeugeOt dealer or qualified workshop.
8
In the event of a breakdown

166
108_en_Chap08_en-cas-pannes_ed01-2016
1. Brake lamps (P21/5W)
2. Sidelamps (P21/5W)
3.
D

irection indicators (PY21W)
4.
R

eversing lamp (P21W), near side
F

oglamp (P21W), offside

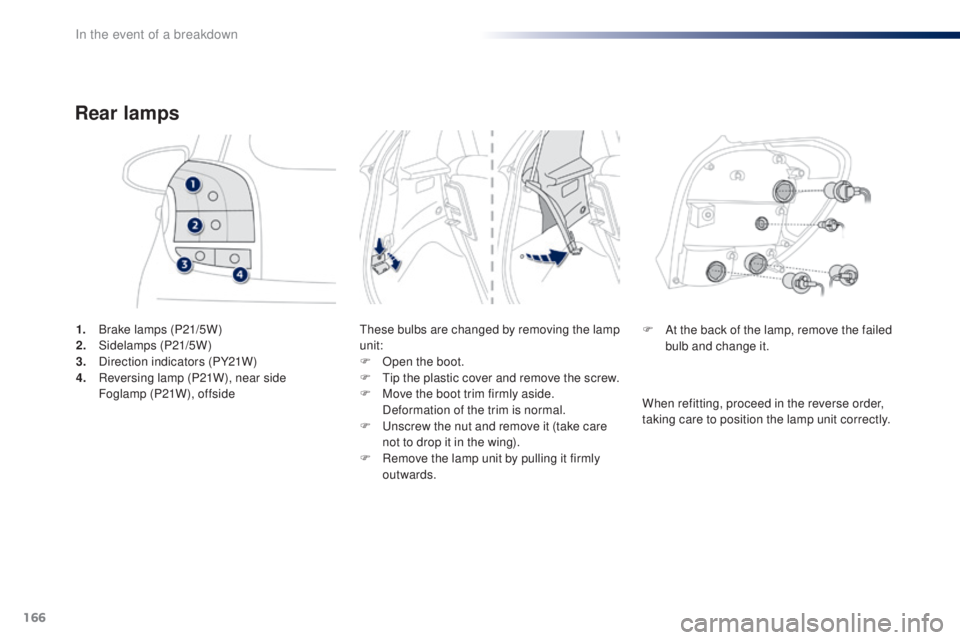

Rear lamps
these bulbs are changed by removing the lamp
unit:
F
O
pen the boot.
F
t
i
p the plastic cover and remove the screw.
F

M
ove the boot trim firmly aside.
D

eformation of the trim is normal.
F
u
n
screw the nut and remove it (take care
not to drop it in the wing).
F

R
emove the lamp unit by pulling it firmly
outwards. F
A t the back of the lamp, remove the failed
bulb and change it.
When refitting, proceed in the reverse order,
taking care to position the lamp unit correctly.
In the event of a breakdown

167
108_en_Chap08_en-cas-pannes_ed01-2016

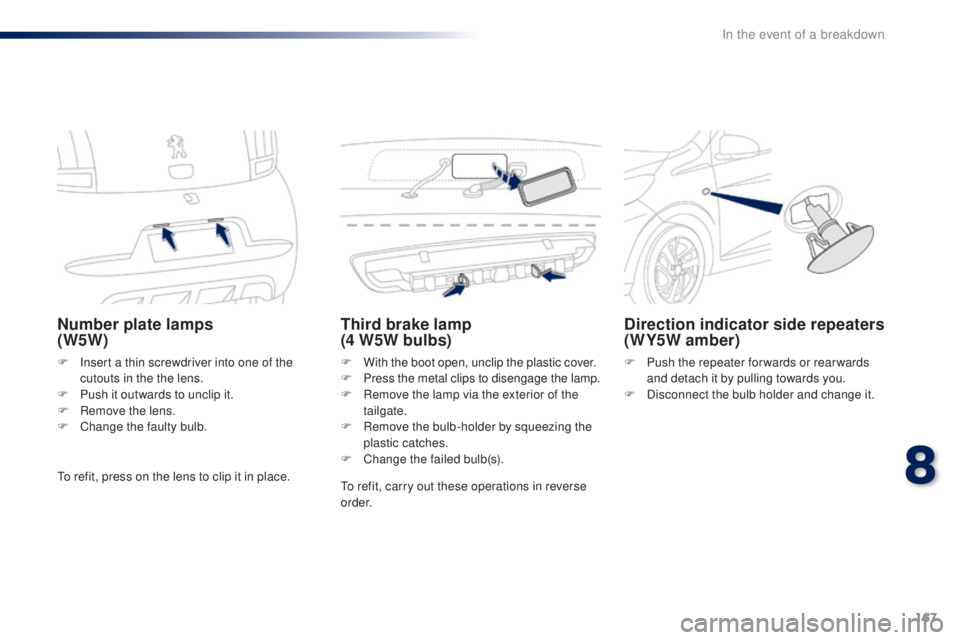

Number plate lamps
(W5W)
F Insert a thin screwdriver into one of the cutouts in the the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

C
hange the faulty bulb.
third brake lamp
(4 W5W bulbs)
F With the boot open, unclip the plastic cover.
F P ress the metal clips to disengage the lamp.
F

R
emove the lamp via the exterior of the
tailgate.
F

R
emove the bulb-holder by squeezing the
plastic catches.
F

C
hange the failed bulb(s).
Direction indicator side repeaters
(WY5W amber)
F Push the repeater for wards or rear wards and detach it by pulling towards you.
F

D
isconnect the bulb holder and change it.
to r

efit, press on the lens to clip it in place.
to r

efit, carry out these operations in reverse
o r d e r.
8
In the event of a breakdown

168
108_en_Chap08_en-cas-pannes_ed01-2016

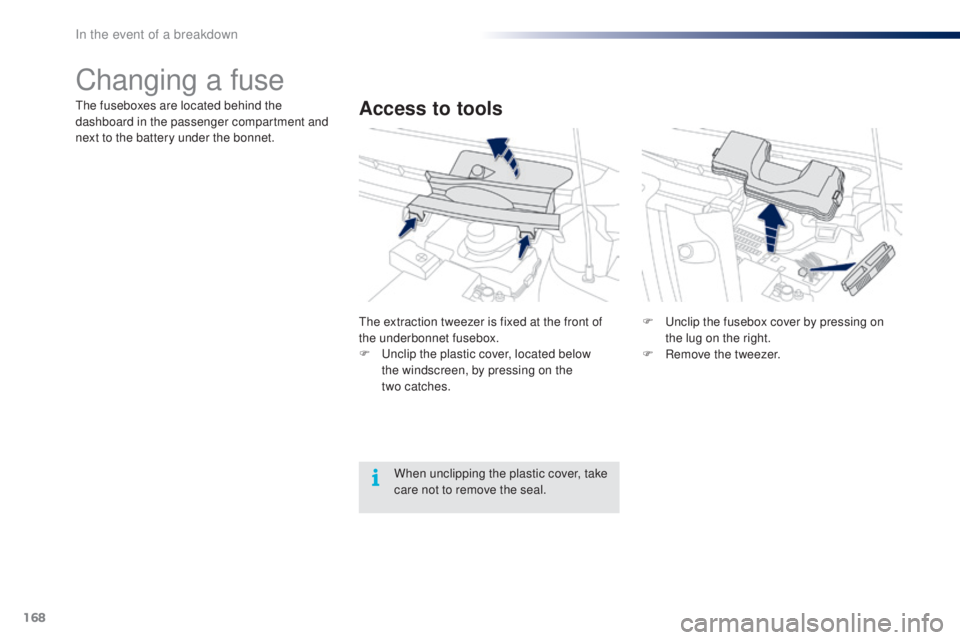

Changing a fuse
Access to toolsthe fuseboxes are located behind the
dashboard in the passenger compartment and
next to the battery under the bonnet.
th
e extraction tweezer is fixed at the front of
the underbonnet fusebox.
F
u
n
clip the plastic cover, located below
the windscreen, by pressing on the
two


catches.F
u
n
clip the fusebox cover by pressing on
the lug on the right.
F

R
emove the tweezer.
When unclipping the plastic cover, take
care not to remove the seal.
