Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a P
e
uge
Ot
dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.

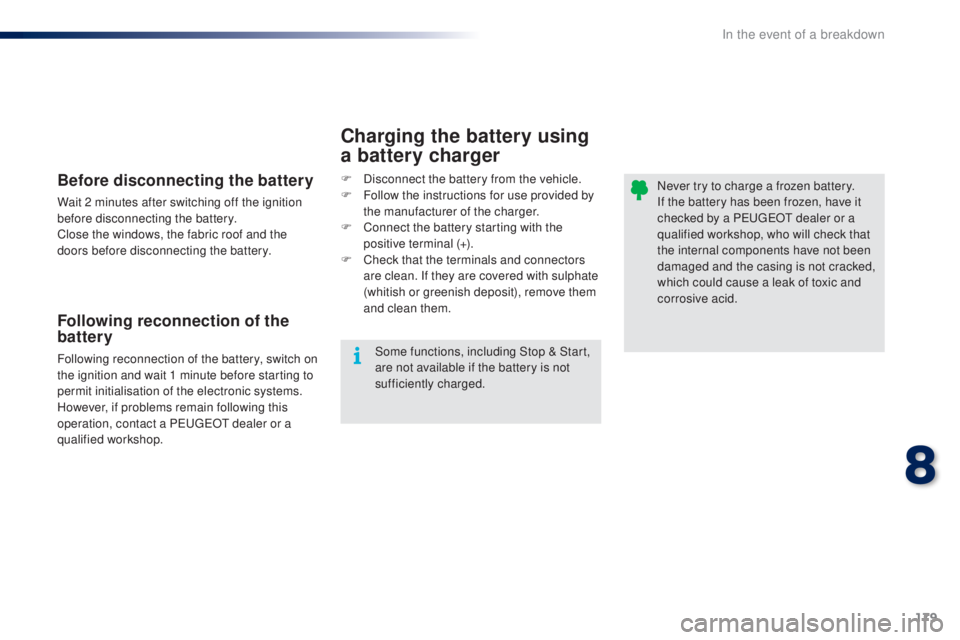

Charging the battery using
a battery charger
F Disconnect the battery from the vehicle.
F F ollow the instructions for use provided by
the manufacturer of the charger.
F

C
onnect the battery starting with the
positive terminal (+).
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them.
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.Before disconnecting the battery
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows, the fabric roof and the
doors before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a P
e

uge
Ot
dealer or a
qualified workshop.
8
In the event of a breakdown

180
108_en_Chap08_en-cas-pannes_ed01-2016

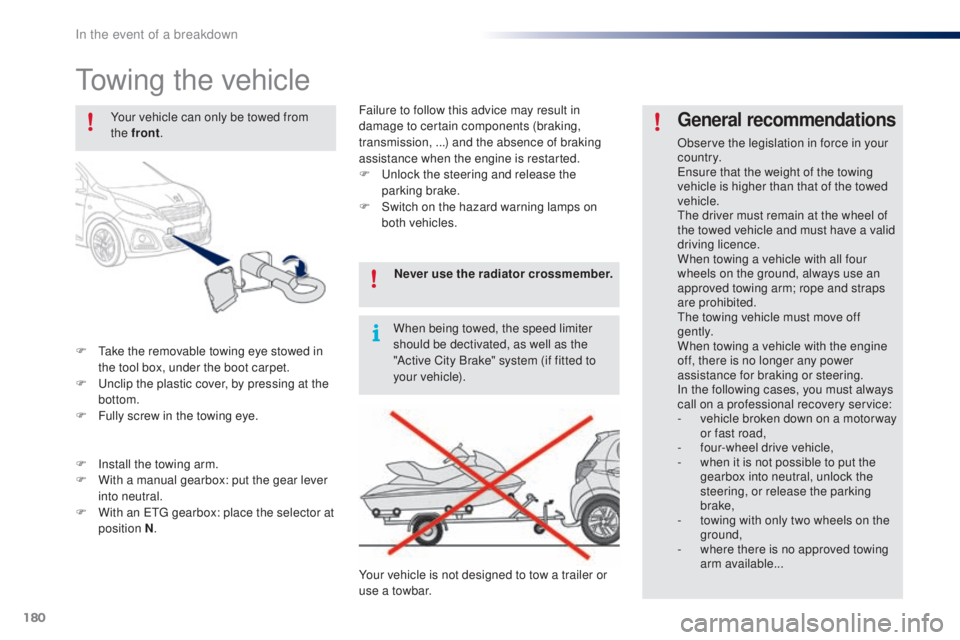

towing the vehicle
F take the removable towing eye stowed in the tool box, under the boot carpet.
F
u
n
clip the plastic cover, by pressing at the
bottom.
F

F
ully screw in the towing eye.
general recommendations
Observe the legislation in force in your
c o unt r y.
en
sure that the weight of the towing
vehicle is higher than that of the towed
vehicle.
th

e driver must remain at the wheel of
the towed vehicle and must have a valid
driving licence.
When towing a vehicle with all four
wheels on the ground, always use an
approved towing arm; rope and straps
are prohibited.
th

e towing vehicle must move off
g e nt l y.
When towing a vehicle with the engine
off, there is no longer any power
assistance for braking or steering.
In the following cases, you must always
call on a professional recovery service:
-

v
ehicle broken down on a motor way
or fast road,
-
f

our-wheel drive vehicle,
-

w
hen it is not possible to put the
gearbox into neutral, unlock the
steering, or release the parking
brake,
-

t
owing with only two wheels on the
ground,
-

w
here there is no approved towing
arm available...
Your vehicle can only be towed from
the front
.
F

I

nstall the towing arm.
F

W

ith a manual gearbox: put the gear lever
into neutral.
F

W

ith an
etg
gearbox: place the selector at
position N . Never use the radiator crossmember.
When being towed, the speed limiter
should be dectivated, as well as the
"Active City Brake" system (if fitted to
your vehicle).
Your vehicle is not designed to tow a trailer or
use a towbar. Failure to follow this advice may result in
damage to certain components (braking,
transmission, ...) and the absence of braking
assistance when the engine is restarted.
F
u
n

lock the steering and release the
parking brake.
F

S

witch on the hazard warning lamps on
both vehicles.
In the event of a breakdown

181
108_en_Chap09_caracteristiques-techniques_ed01-2016
Petrol engineVti 6 8Vti 6 8 S&SPurete ch 82
ge

arbox Manual

(5 - speed)
et

g
e
lectronic
(5 - speed) Manual
(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHM
t

B
AHM
t

C...B1A
...H1A ...P1A
...W1A
Cubic capacity (cc) 9989989981 19 9
Bore x stroke (mm) 71 x 8471 x 8471 x 8475 x 90.5
e

u standard maximum power (kW)* 51515160
Max power engine speed (rpm) 6 0006 0006 000 5 750
e

u standard max torque (Nm) 959595118
Max torque engine speed (rpm) 4 3004 3004 300 2 750
Fuel
u

nleaded petrol
Catalytic converter Ye s
en

gine oil capacity in litres (with filter
replacement) 3.2
3.23.23.25
*
t
h
e maximum power corresponds to the value type-approved on a test bed, under conditions defined in e
u
ropean legislation
(Directive 1999/99/
eC

).
engines
...B1: 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
9
technical data

182
108_en_Chap09_caracteristiques-techniques_ed01-2016
engineVti 6 8Vti 6 8 S&SPurete ch 82
ge

arbox Manual

(5 - speed)
e

tg electronic
(5 - speed) Manual

(5 - speed) Manual
(5 - speed)
Model code:
P... SCFBB
SCFBC ...B1A
...H1A ...P1A
...W1A SCFBB
SCFBC ...B1C
...H1C ...P1C
...W1C SCFB2
SCFB3 ...B1B
...H1B ...P1B
...W1B AHM
t

B
AHM
t

C...B1A
...H1A ...P1A
...W1A
Kerb weight 840860 855865
un

laden weiight* 915935 930940
gr

oss vehicle weight (
gV
W) 1 2401 2401 2401 240
gr

oss train weight (
g
t
W
) 1 2401 2401 2401 240
Weights (in kg)
the design of your vehicle does not permit the fitting of a towbar.
*
t
h

e unladen weight is equal to the kerb weight + driver (75 kg).
...B1
: 3 -door version.
...H1 : 5 -door version. ...P1
: 3 -door convertible version.
...W1 : 5 -door convertible version.
technical data

183
108_en_Chap09_caracteristiques-techniques_ed01-2016

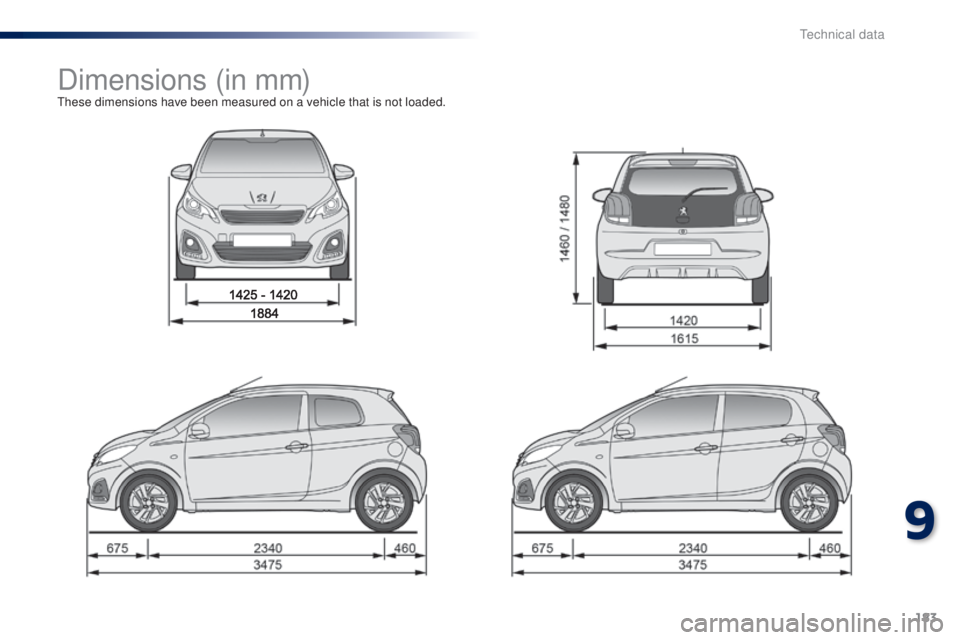

Dimensions (in mm)these dimensions have been measured on a vehicle that is not loaded.
9
technical data

184
108_en_Chap09_caracteristiques-techniques_ed01-2016

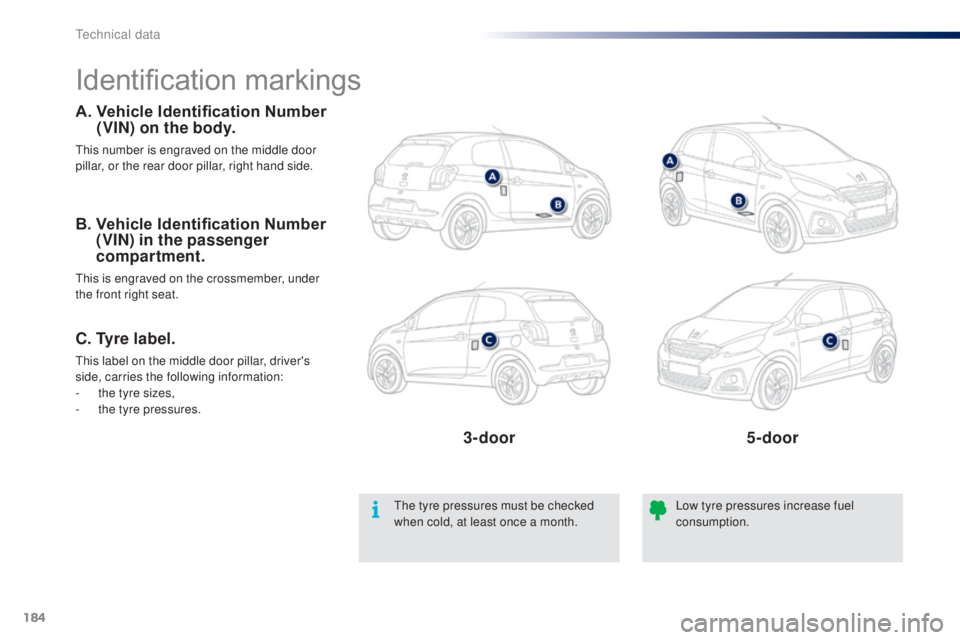

Identification markings
A. Vehicle Identification Number (VIN) on the body.
this number is engraved on the middle door
pillar, or the rear door pillar, right hand side.
th

e tyre pressures must be checked
when cold, at least once a month. Low tyre pressures increase fuel
consumption.
B. Vehicle Identification Number
(VIN) in the passenger
compartment.
this is engraved on the crossmember, under
the front right seat.
C. tyre label.
this label on the middle door pillar, driver's
side, carries the following information:
-

t
he tyre sizes,
-

t
he tyre pressures.
3-door 5-door
technical data

185
108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016

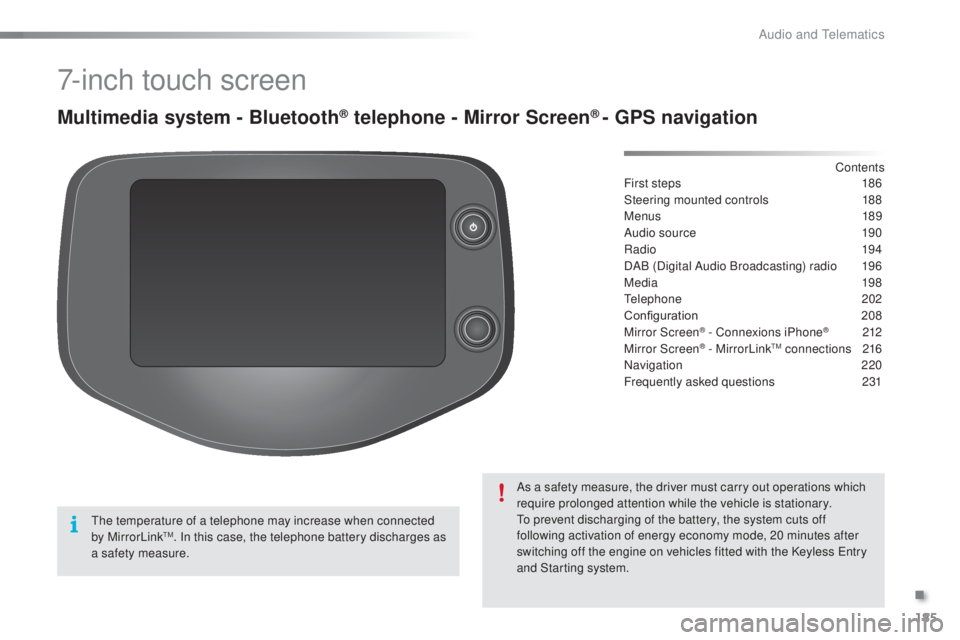

7-inch touch screen
Multimedia system - Bluetooth® telephone - Mirror Screen® - gPS navigation
First steps 1 86
Steering mounted controls
1
88
Menus


189
Audio source

1
90
Radio


19 4
DAB (Digital Audio Broadcasting) radio

1
96
Media
19

8
te

lephone

202
Configuration
20

8
Mirror Screen
® - Connexions iPhone® 212
Mirror Screen® - MirrorLinktM connections 2 16
Navigation
2
20
Frequently asked questions
23

1
As a safety measure, the driver must carry out operations which
require prolonged attention while the vehicle is stationary.
to p

revent discharging of the battery, the system cuts off
following activation of energy economy mode, 20 minutes after
switching off the engine on vehicles fitted with the Keyless
e
n
try
and Starting system. Contents
th

e temperature of a telephone may increase when connected
by MirrorLink
tM. In this case, the telephone battery discharges as
a safety measure.
.
Audio and telematics

186
108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016
In the event of prolonged exposure to
sunlight and very hot conditions, the
system may go into stand-by (screen
and sound completely off) for at least
5 minutes.
Return to normal operation takes
place when the temperature in the
passenger compartment drops.

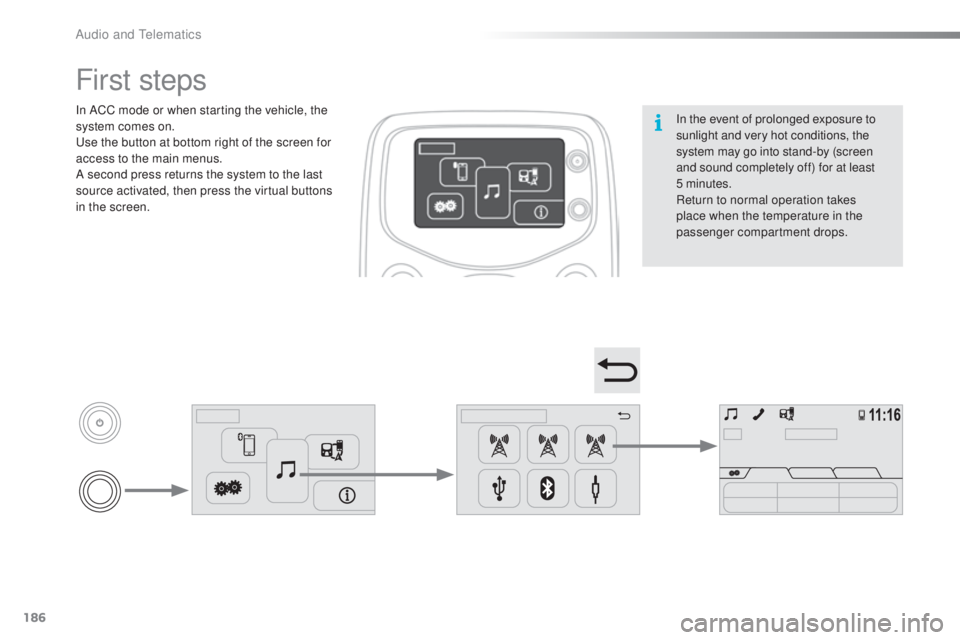

First steps
In ACC mode or when starting the vehicle, the
system comes on.
us

e the button at bottom right of the screen for
access to the main menus.
A second press returns the system to the last
source activated, then press the virtual buttons
in the screen.
Audio and telematics

187
108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016
Press to mute the sound.
A long press reinitialises the system.
Volume (each source is independent).
Select audio source (depending on version):
-
"
FM" / "AM" / "DAB"* radio.
-
"uS
B" player.
-
t
e

lephone connected by Bluetooth and
with Bluetooth streaming.
-

M

edia player connected to the auxiliary
socket (jack, cable not supplied).

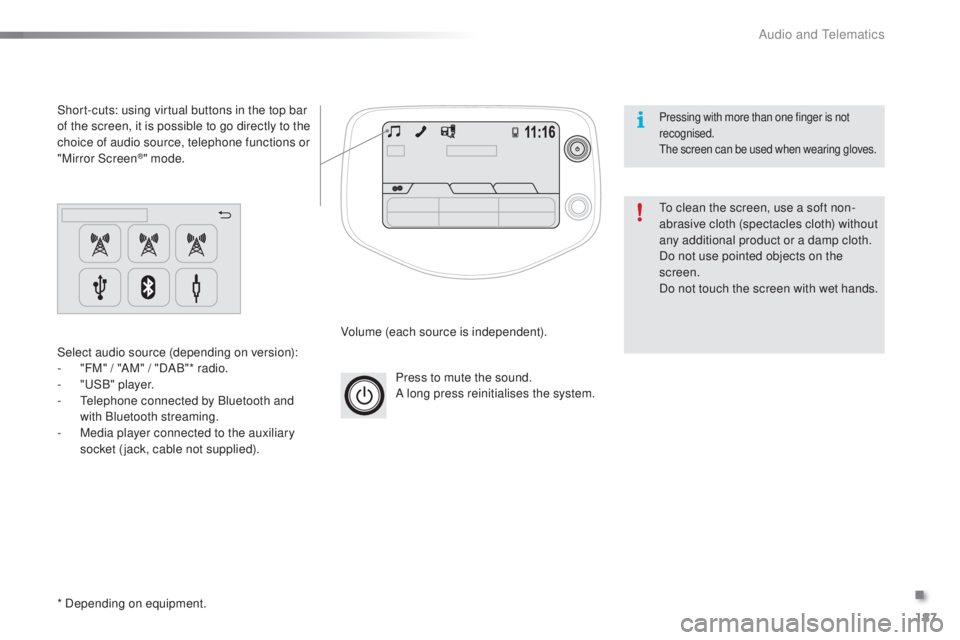

Short-cuts: using virtual buttons in the top bar
of the screen, it is possible to go directly to the
choice of audio source, telephone functions or
"Mirror Screen
®" mode.
* Depending on equipment.
to c
lean the screen, use a soft non-
abrasive cloth (spectacles cloth) without
any additional product or a damp cloth.
Do not use pointed objects on the
screen.
Do not touch the screen with wet hands.
Pressing with more than one finger is not
recognised.
th

e screen can be used when wearing gloves.
.
Audio and telematics

188
108_en_Chap10a_Autoradio-toyota-tactile-1_ed01-2016

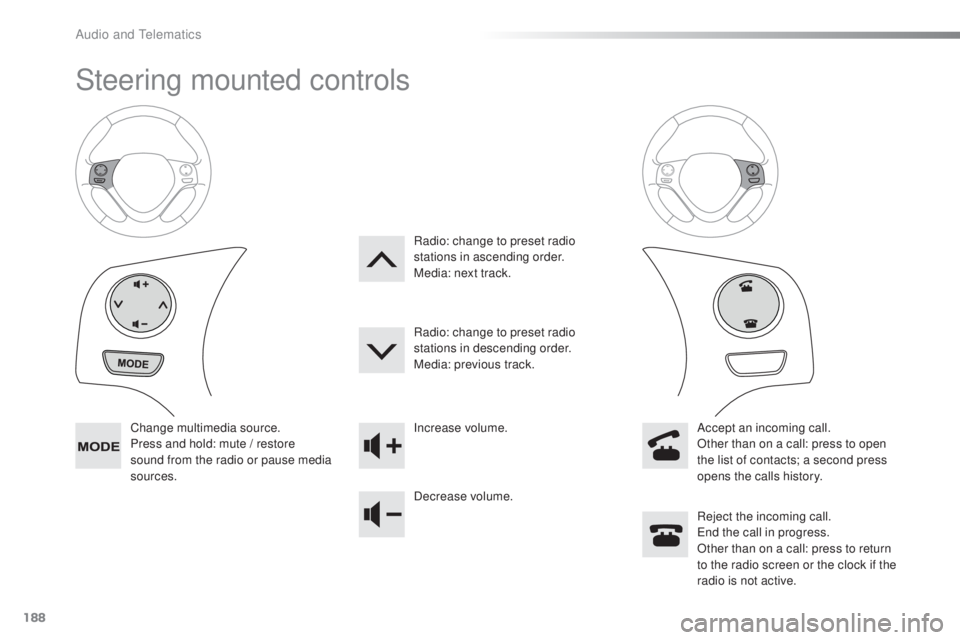

Steering mounted controls
Change multimedia source.
Press and hold: mute / restore
sound from the radio or pause media
sources. Increase volume.
Decrease volume.
Reject the incoming call.
en

d the call in progress.
Other than on a call: press to return
to the radio screen or the clock if the
radio is not active.
Radio: change to preset radio
stations in ascending order.
Media: next track.
Radio: change to preset radio
stations in descending order.
Media: previous track.
Accept an incoming call.
Other than on a call: press to open
the list of contacts; a second press
opens the calls history.
Audio and telematics
