PEUGEOT 108 2016 Manual PDF

69
108_en_Chap03_ergonomie-confort_ed01-2016

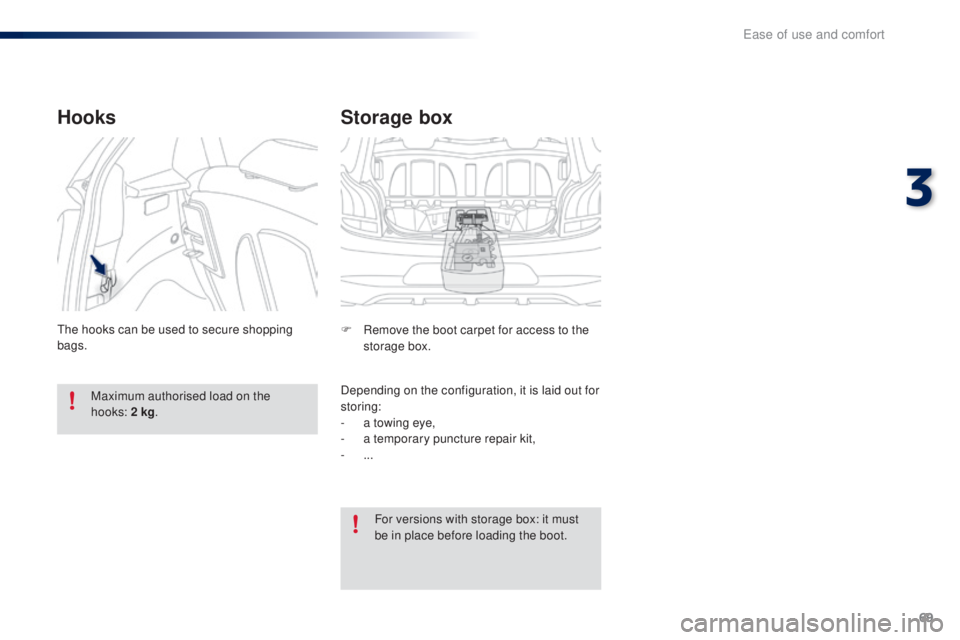

Storage box
F Remove the boot carpet for access to the storage box.
Depending on the configuration, it is laid out for
storing:
-

a t
owing eye,
-

a t
emporary puncture repair kit,
-


...For versions with storage box: it must
be in place before loading the boot.th
e hooks can be used to secure shopping
bags.
Hooks
Maximum authorised load on the
hooks: 2 kg .
3
ease of use and comfort

70
108_en_Chap04_conduite_ed01-2016

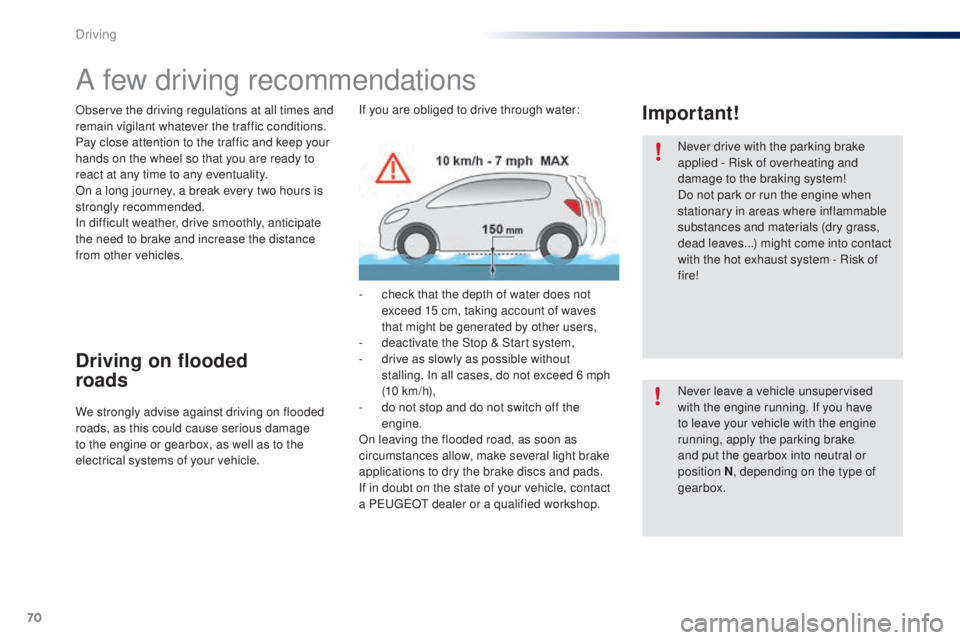

A few driving recommendations
Observe the driving regulations at all times and
remain vigilant whatever the traffic conditions.
Pay close attention to the traffic and keep your
hands on the wheel so that you are ready to
react at any time to any eventuality.
On a long journey, a break every two hours is
strongly recommended.
In difficult weather, drive smoothly, anticipate
the need to brake and increase the distance
from other vehicles.Never drive with the parking brake
applied - Risk of overheating and
damage to the braking system!
Do not park or run the engine when
stationary in areas where inflammable
substances and materials (dry grass,
dead leaves...) might come into contact
with the hot exhaust system - Risk of
fire!
Never leave a vehicle unsupervised
with the engine running. If you have
to leave your vehicle with the engine
running, apply the parking brake
and put the gearbox into neutral or
position


N, depending on the type of
gearbox.
Driving on flooded
roads
We strongly advise against driving on flooded
roads, as this could cause serious damage
to the engine or gearbox, as well as to the
electrical systems of your vehicle.
Important!If you are obliged to drive through water:
-

c
heck that the depth of water does not
exceed 15 cm, taking account of waves
that might be generated by other users,
-

d
eactivate the Stop & Start system,
-

d
rive as slowly as possible without
stalling. In all cases, do not exceed 6 mph
(10


km/h),
-

d
o not stop and do not switch off the
engine.
On leaving the flooded road, as soon as
circumstances allow, make several light brake
applications to dry the brake discs and pads.
If in doubt on the state of your vehicle, contact
a P
e

uge
Ot
dealer or a qualified workshop.
Driving

71
108_en_Chap04_conduite_ed01-2016

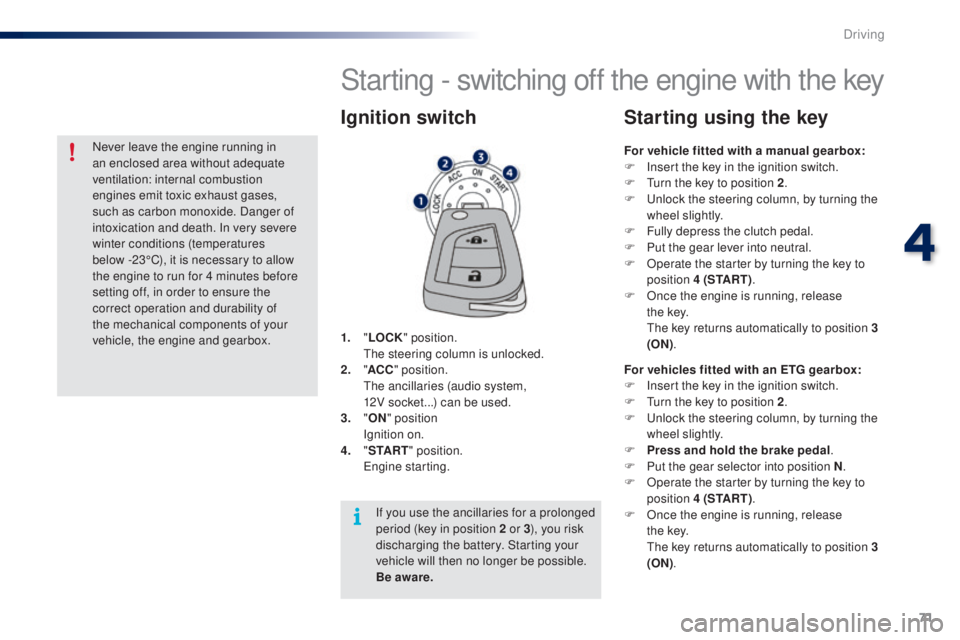

Starting - switching off the engine with the key
1. "L oCK " position.
th e steering column is unlocked.
2.
" AC

C" position.


t
h
e ancillaries (audio system,
12V
socket...) can be used.
3.


"
oN"

position
I

gnition on.
4.
" St

A R
t"
position.


e
n
gine starting.
Ignition switch
For vehicle fitted with a manual gearbox:
F I nsert the key in the ignition switch.
F
t
u
rn the key to position 2 .
F
u
n
lock the steering column, by turning the
wheel slightly.
F

F
ully depress the clutch pedal.
F

P
ut the gear lever into neutral.
F

O
perate the starter by turning the key to
position 4 (S
t

A R
t).
F


O
nce the engine is running, release
t h e


key.


t
h
e key returns automatically to position 3
(
o
N
).
Starting using the key
For vehicles fitted with an etg gearbox:
F I nsert the key in the ignition switch.
F
t
u
rn the key to position 2 .
F
u
n
lock the steering column, by turning the
wheel slightly.
F

P
ress and hold the brake pedal .
F

P
ut the gear selector into position N .
F

O
perate the starter by turning the key to
position 4 (S
t

A R
t).
F


O
nce the engine is running, release
t h e


key.


t
h
e key returns automatically to position 3
(
o
N
)
.
If you use the ancillaries for a prolonged
period (key in position 2 or 3 ), you risk
discharging the battery. Starting your
vehicle will then no longer be possible.
Be aware.
Never leave the engine running in
an enclosed area without adequate
ventilation: internal combustion
engines emit toxic exhaust gases,
such as carbon monoxide. Danger of
intoxication and death. In very severe
winter conditions (temperatures
below

-23°C), it is necessary to allow
the engine to run for 4 minutes before
setting off, in order to ensure the
correct operation and durability of
the mechanical components of your
vehicle, the engine and gearbox.
4
Driving

72
108_en_Chap04_conduite_ed01-2016
If you use the ancillaries for a prolonged
period, the vehicle will automatically
switch to "
oFF" m

ode after about
20


minutes.
Be aware in order to avoid discharging
the battery.

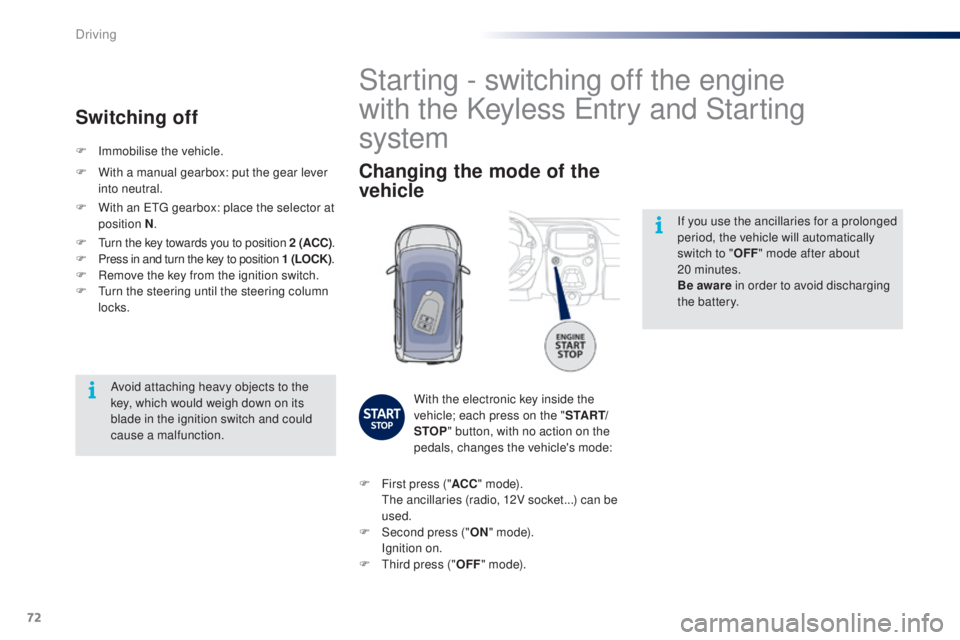

Starting - switching off the engine
with the Keyless e
n
try and Starting
system
Changing the mode of the
vehicle
With the electronic key inside the
vehicle; each press on the " St
A Rt/
StoP " b

utton, with no action on the
pedals, changes the vehicle's mode:
F

F

irst press (" ACC" m o d e).


t
h

e ancillaries (radio, 12V socket...) can be
used.
F

Sec

ond press ("
oN "

m o d e).
I

gnition on.
F
t
h

ird press ("
oFF "

m o d e).
Avoid attaching heavy objects to the
key, which would weigh down on its
blade in the ignition switch and could
cause a malfunction.
F

Imm

obilise the vehicle.
Switching off
F With a manual gearbox: put the gear lever
into neutral.
F

W
ith an etg gearbox: place the selector at
position N .
F
t
u
rn the key towards you to position 2 (ACC) .
F

Press in and turn the key to position 1 (LoC K).F Remove the key from the ignition switch.
F
tu rn the steering until the steering column
locks.
Driving

73
108_en_Chap04_conduite_ed01-2016

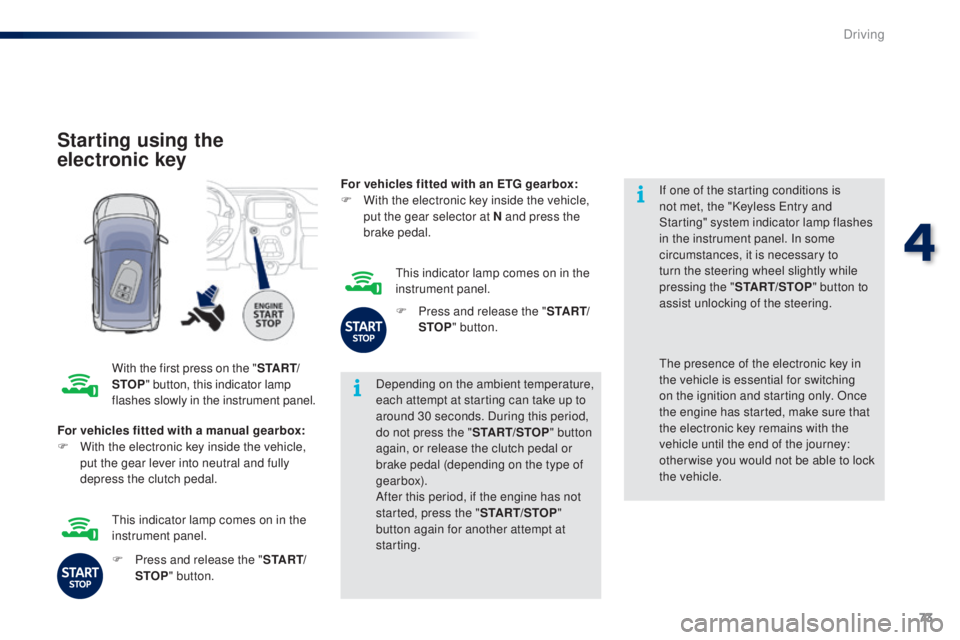

Starting using the
electronic key
With the first press on the "St A Rt/
StoP " b
utton, this indicator lamp
flashes slowly in the instrument panel. Depending on the ambient temperature,
each attempt at starting can take up to
around 30 seconds. During this period,
do not press the "
S
t
A
R
t/
S to
P" b

utton
again, or release the clutch pedal or
brake pedal (depending on the type of
gearbox).
After this period, if the engine has not
started, press the " S
t
A
R
t/
S to
P"
b

utton again for another attempt at
starting. If one of the starting conditions is
not met, the "Keyless
e
n
try and
Starting" system indicator lamp flashes
in the instrument panel. In some
circumstances, it is necessary to
turn the steering wheel slightly while
pressing the " S t
A
R
t/
S to
P
" b
utton to
assist unlocking of the steering.
For vehicles fitted with a manual gearbox:
F

W

ith the electronic key inside the vehicle,
put the gear lever into neutral and fully
depress the clutch pedal.th e presence of the electronic key in
the vehicle is essential for switching
on the ignition and starting only. Once
the engine has started, make sure that
the electronic key remains with the
vehicle until the end of the journey:
other wise you would not be able to lock
the


vehicle.
F

P
ress and release the " S
t

A R
t/
StoP " b

utton.
th
is indicator lamp comes on in the
instrument panel. For vehicles fitted with an
etg gearbox:
F
W
ith the electronic key inside the vehicle,
put the gear selector at N and press the
brake pedal.
th
is indicator lamp comes on in the
instrument panel.
F
P
ress and release the "
S
t
A R
t/
StoP " b
utton.
4
Driving

74
108_en_Chap04_conduite_ed01-2016
there is an audible signal when the driver's door
is opened and the vehicle is in "ACC" mode.
If the vehicle is not immobilised, the
engine will not stop.

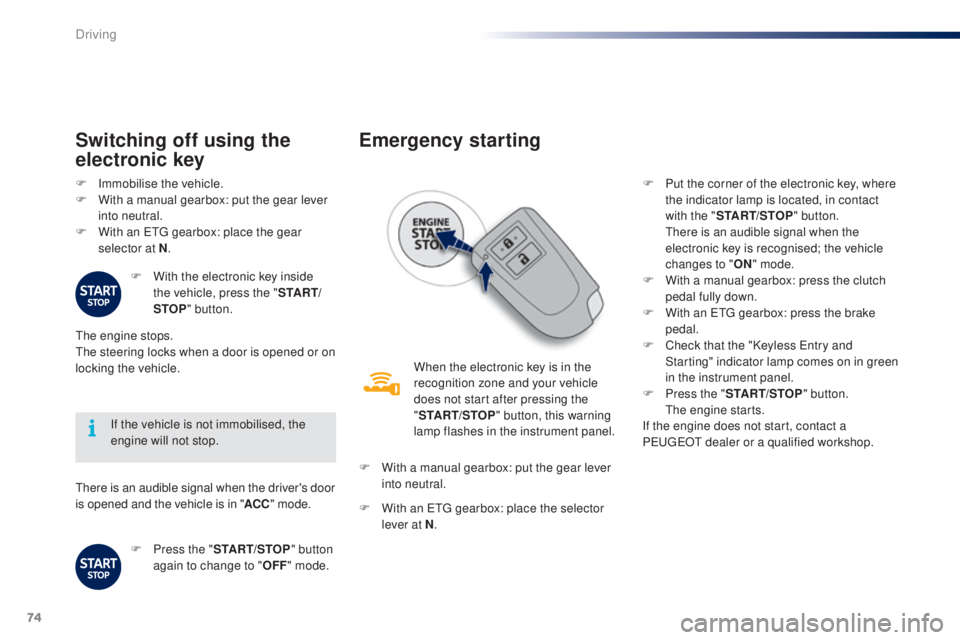

Switching off using the
electronic key
F Immobilise the vehicle.
F
W ith a manual gearbox: put the gear lever
into neutral.
F

W
ith an etg gearbox: place the gear
selector at N .
F

W
ith the electronic key inside
the vehicle, press the " S
t

A R
t/
StoP " b

utton.
the

engine stops.
th

e steering locks when a door is opened or on
locking the vehicle.
F

P
ress the "S
t
A
R
t/
S to
P" b

utton
again to change to "
oFF " m

ode.
emergency starting
When the electronic key is in the
recognition zone and your vehicle
does not start after pressing the
"S
t
A
R
t/
S to
P" b

utton, this warning
lamp flashes in the instrument panel.
F

W

ith a manual gearbox: put the gear lever
into neutral.
F

W

ith an etg gearbox: place the selector
lever at N . F

P
ut the corner of the electronic key, where
the indicator lamp is located, in contact
with the " S t
A
R
t/
S to
P
" b
utton.


t
h
ere is an audible signal when the
electronic key is recognised; the vehicle
changes to "
oN " m
ode.
F
W
ith a manual gearbox: press the clutch
pedal fully down.
F
W
ith an etg gearbox: press the brake
pedal.
F
C
heck that the "Keyless e
n
try and
Starting" indicator lamp comes on in green
in the instrument panel.
F

P
ress the "S
t
A
R
t/
S to
P" b

utton.


t
h
e engine starts.
If the engine does not start, contact a
P
e

uge
Ot
dealer or a qualified workshop.
Driving

75
108_en_Chap04_conduite_ed01-2016

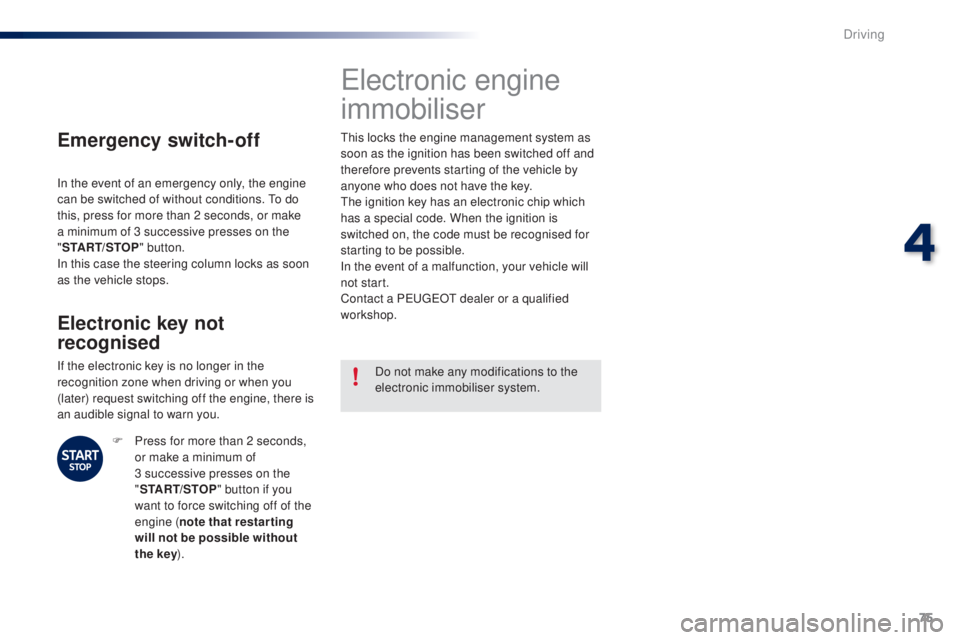

emergency switch-off
In the event of an emergency only, the engine
can be switched of without conditions. to d o
this, press for more than 2 seconds, or make
a minimum of 3 successive presses on the
" S
t
A
R
t/
S to
P" b

utton.
In this case the steering column locks as soon
as the vehicle stops.
electronic key not
recognised
If the electronic key is no longer in the
recognition zone when driving or when you
(later) request switching off the engine, there is
an audible signal to warn you.
F

P
ress for more than 2 seconds,
or make a minimum of
3
successive presses on the
" S
t
A
R
t/
S to
P" b

utton if you
want to force switching off of the
engine ( note that restarting
will not be possible without
the
key).
electronic engine
immobiliser
this locks the engine management system as
soon as the ignition has been switched off and
therefore prevents starting of the vehicle by
anyone who does not have the key.
th

e ignition key has an electronic chip which
has a special code. When the ignition is
switched on, the code must be recognised for
starting to be possible.
In the event of a malfunction, your vehicle will
not start.
Contact a P
e

uge
Ot
dealer or a qualified
workshop.
Do not make any modifications to the
electronic immobiliser system.
4
Driving

76
108_en_Chap04_conduite_ed01-2016

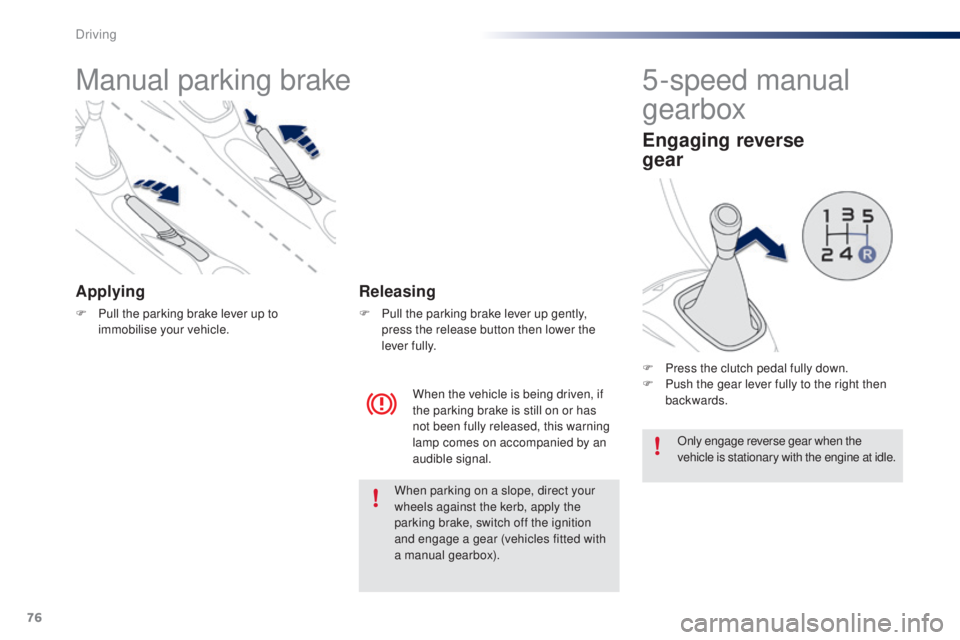

Manual parking brake
Applying
F Pull the parking brake lever up to immobilise your vehicle.
When the vehicle is being driven, if
the parking brake is still on or has
not been fully released, this warning
lamp comes on accompanied by an
audible signal.
Releasing
F Pull the parking brake lever up gently, press the release button then lower the
lever fully.
5-speed manual
gearbox
engaging reverse
gear
F Press the clutch pedal fully down.
F P ush the gear lever fully to the right then
backwards.
Only engage reverse gear when the
vehicle is stationary with the engine at idle.
When parking on a slope, direct your
wheels against the kerb, apply the
parking brake, switch off the ignition
and engage a gear (vehicles fitted with
a manual gearbox).
Driving

77
108_en_Chap04_conduite_ed01-2016

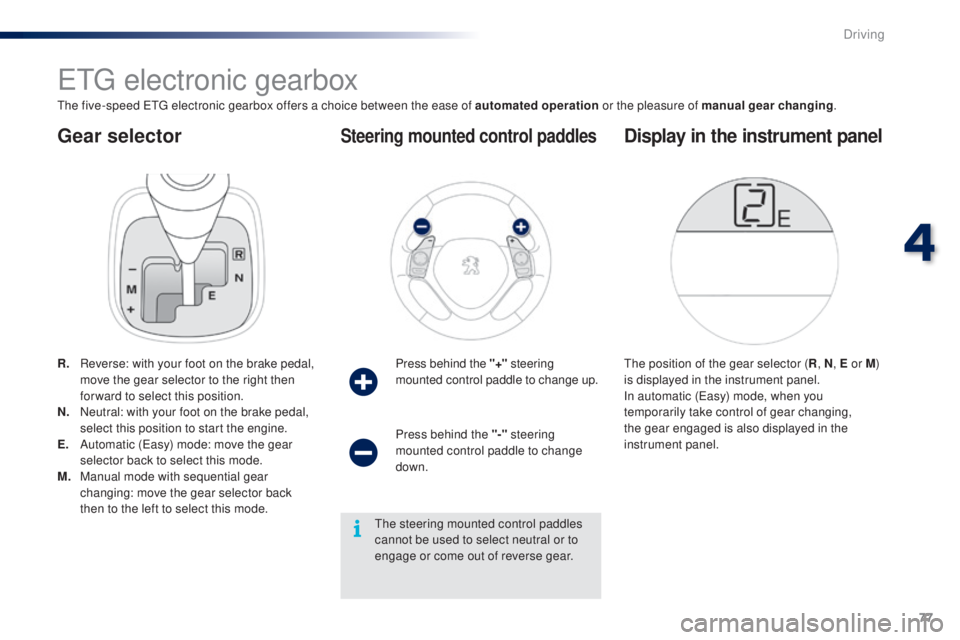

gear selector
etg electronic gearbox
the five-speed etg electronic gearbox offers a choice between the ease of automated operation or the pleasure of manual gear changing.
R.
R
everse: with your foot on the brake pedal,
move the gear selector to the right then
for ward to select this position.
N.

N
eutral: with your foot on the brake pedal,
select this position to start the engine.
e.


A
utomatic (
ea
sy) mode: move the gear
selector back to select this mode.
M.

M
anual mode with sequential gear
changing: move the gear selector back
then to the left to select this mode. Press behind the "+"
steering
mounted control paddle to change up.
Steering mounted control paddles
the position of the gear selector ( R, N , e or M)
is displayed in the instrument panel.
In automatic (
ea

sy) mode, when you
temporarily take control of gear changing,
the gear engaged is also displayed in the
instrument panel.
Display in the instrument panel
Press behind the "-" steering
mounted control paddle to change
down.
th

e steering mounted control paddles
cannot be used to select neutral or to
engage or come out of reverse gear.
4
Driving

78
108_en_Chap04_conduite_ed01-2016

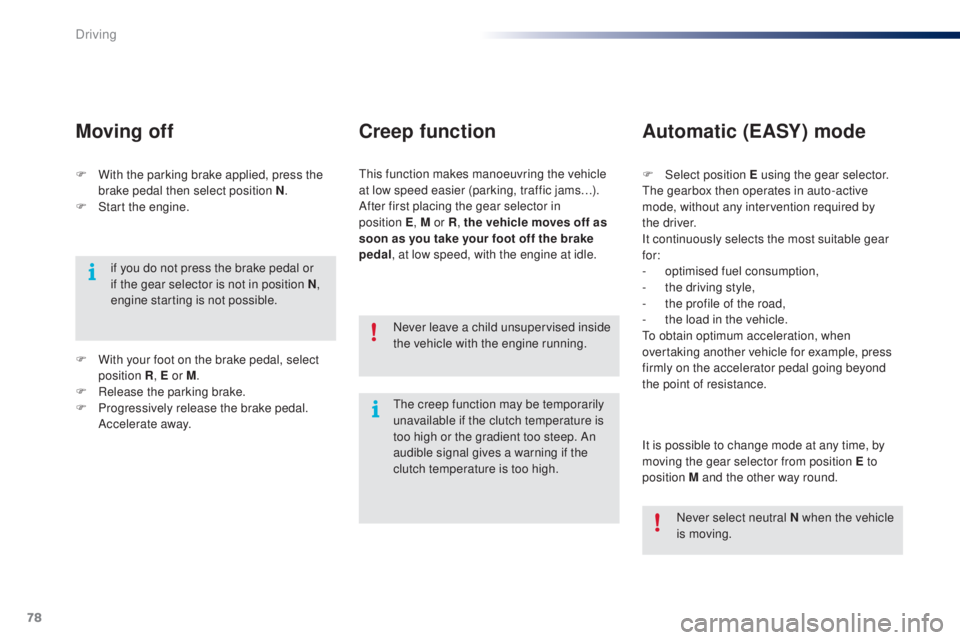

F With the parking brake applied, press the brake pedal then select position N .
F

S
tart the engine.
Moving off
if you do not press the brake pedal or
if the gear selector is not in position N ,
engine starting is not possible.
Never leave a child unsupervised inside
the vehicle with the engine running.F

Sel
ect position e using the gear selector.
th

e gearbox then operates in auto-active
mode, without any intervention required by
the

driver.
It continuously selects the most suitable gear
for:
- op timised fuel consumption,
-

t
he driving style,
-

t
he profile of the road,
-

t
he load in the vehicle.
to o

btain optimum acceleration, when
overtaking another vehicle for example, press
firmly on the accelerator pedal going beyond
the point of resistance.
Automatic (eA SY) mode
It is possible to change mode at any time, by
moving the gear selector from position
e to
position M and the other way round.
F

W

ith your foot on the brake pedal, select
position R ,
e
or M
.
F

R

elease the parking brake.
F

P

rogressively release the brake pedal.
A

ccelerate away.
th

e creep function may be temporarily
unavailable if the clutch temperature is
too high or the gradient too steep. An
audible signal gives a warning if the
clutch temperature is too high.
Never select neutral N when the vehicle
is moving.
th

is function makes manoeuvring the vehicle
at low speed easier (parking, traffic jams…).
After first placing the gear selector in
position


e
,

M or R
, the vehicle moves off as
soon as you take your foot off the brake
pedal , at low speed, with the engine at idle.
Creep function
Driving
