PEUGEOT 108 2016 Repair Manual

59
108_en_Chap03_ergonomie-confort_ed01-2016
Avoid driving for long periods with the air
conditioning switched off (risk of misting
and reduction of the air quality in the cabin).
this action switches off all of the functions of
the air conditioning system.
th
ermal comfort is no longer controlled. A
slight flow of air resulting from the movement of
the vehicle, remains perceptible however.
Pressing the "A
u

to
" b

utton again reactivates
the system with the values set before it was
switched off.

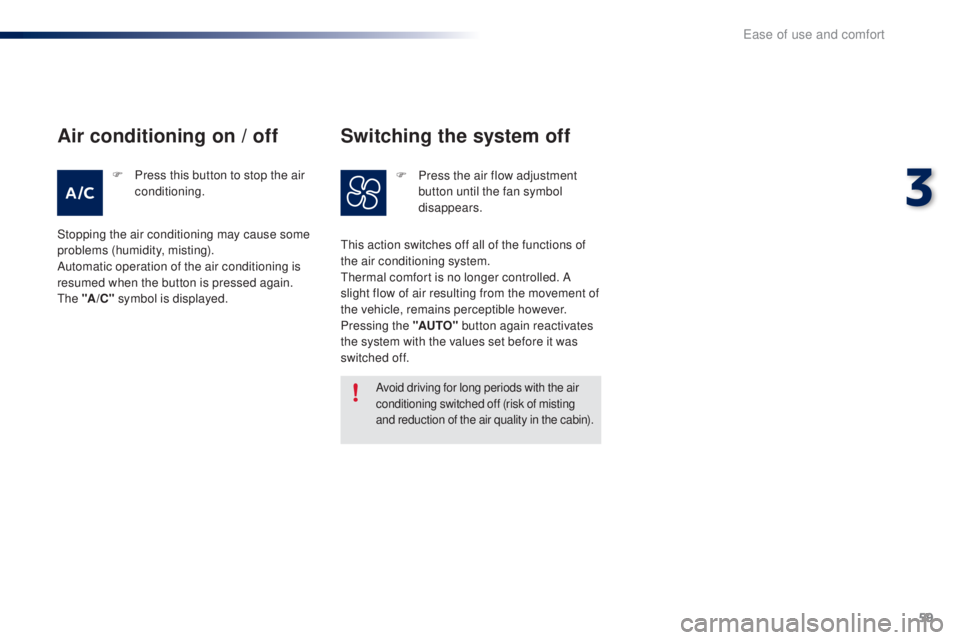

Switching the system off
F Press the air flow adjustment button until the fan symbol
disappears.
F
P
ress this button to stop the air
conditioning.
Air conditioning on / off
Stopping the air conditioning may cause some
problems (humidity, misting).
Automatic operation of the air conditioning is
resumed when the button is pressed again.
th

e "A /C " symbol is displayed.
3
ease of use and comfort

60
108_en_Chap03_ergonomie-confort_ed01-2016

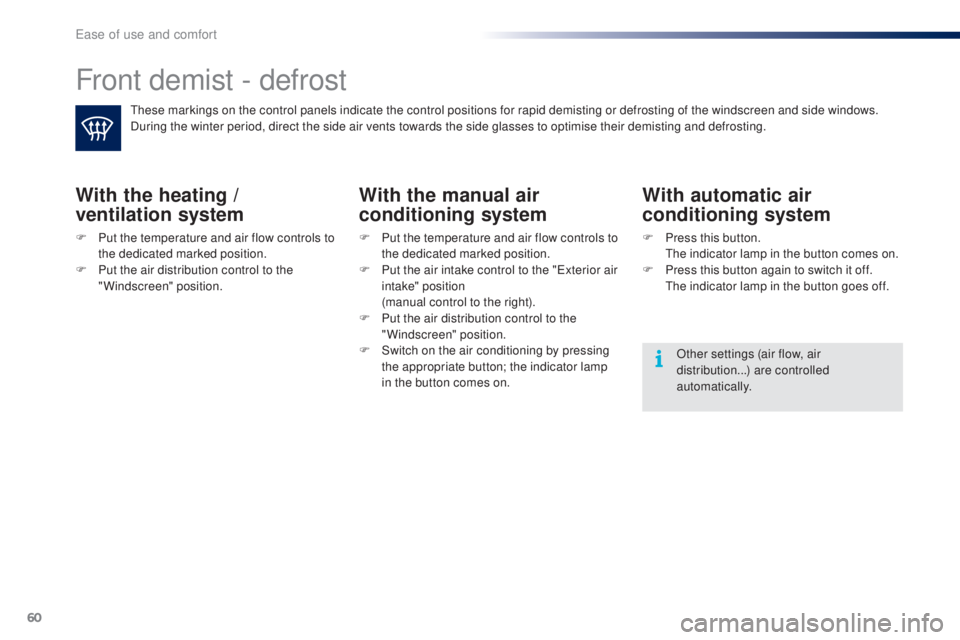

Front demist - defrost
these markings on the control panels indicate the control positions for rapid demisting or defrosting of the windscreen and side windows.
During the winter period, direct the side air vents towards the side glasses to optimise their demisting and defrosting.
With the heating /
ventilation system
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air distribution control to the
"Windscreen" position.
With the manual air
conditioning system
F Put the temperature and air flow controls to the dedicated marked position.
F

P
ut the air intake control to the "
ex
terior air
intake" position
(

manual control to the right).
F

P
ut the air distribution control to the
"Windscreen" position.
F

S
witch on the air conditioning by pressing
the appropriate button; the indicator lamp
in the button comes on.
With automatic air
conditioning system
F Press this button. th e indicator lamp in the button comes on.
F

P
ress this button again to switch it off.


t
h
e indicator lamp in the button goes off.
Other settings (air flow, air
distribution...) are controlled
automatically.
ease of use and comfort

61
108_en_Chap03_ergonomie-confort_ed01-2016

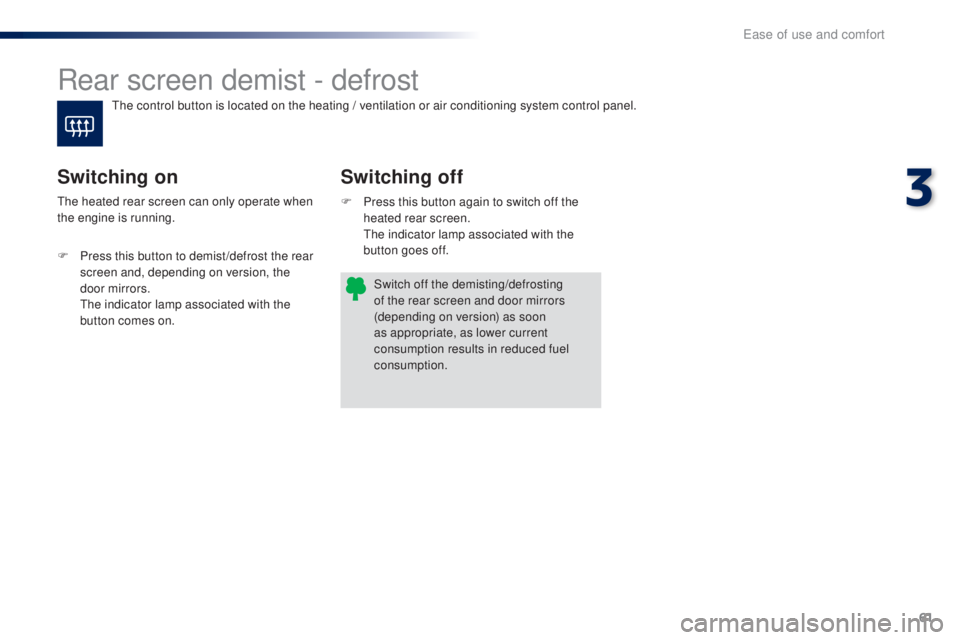

Rear screen demist - defrost
Switching off
Switching on
F Press this button again to switch off the
heated rear screen.


t
h
e indicator lamp associated with the
button goes off.th
e heated rear screen can only operate when
the engine is running.
Switch off the demisting/defrosting
of the rear screen and door mirrors
(depending on version) as soon
as appropriate, as lower current
consumption results in reduced fuel
consumption.
F

P

ress this button to demist /defrost the rear
screen and, depending on version, the
door mirrors.


t
h

e indicator lamp associated with the
button comes on.
th

e control button is located on the heating / ventilation or air conditioning system control panel.
3
ease of use and comfort

62
108_en_Chap03_ergonomie-confort_ed01-2016

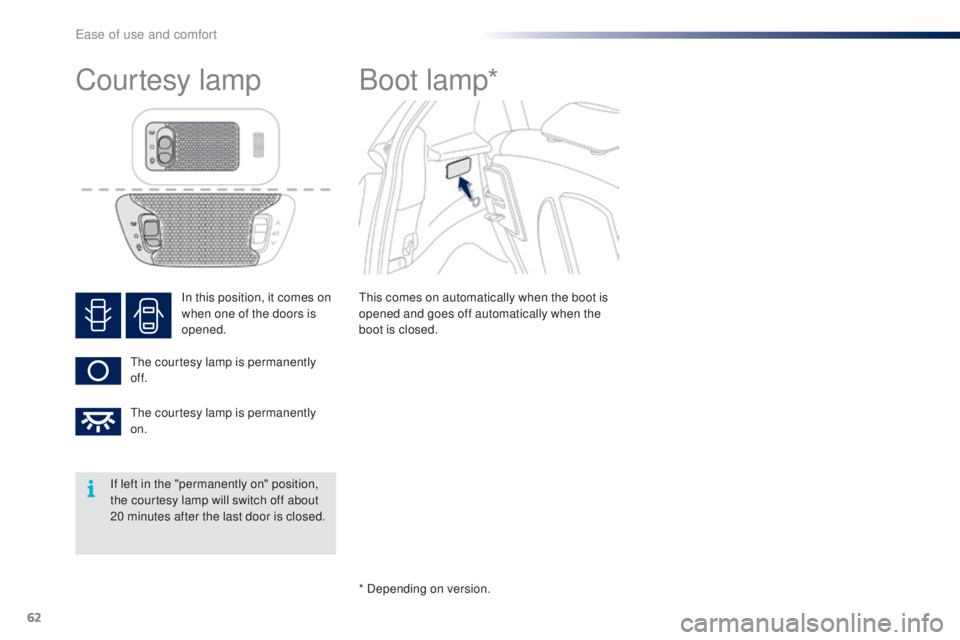

In this position, it comes on
when one of the doors is
opened.
th

e courtesy lamp is permanently
of f.
th

e courtesy lamp is permanently
on.
Courtesy lamp Boot lamp*
this comes on automatically when the boot is
opened and goes off automatically when the
boot is closed.
If left in the "permanently on" position,
the courtesy lamp will switch off about
20 minutes after the last door is closed. * Depending on version.
ease of use and comfort

63
108_en_Chap03_ergonomie-confort_ed01-2016

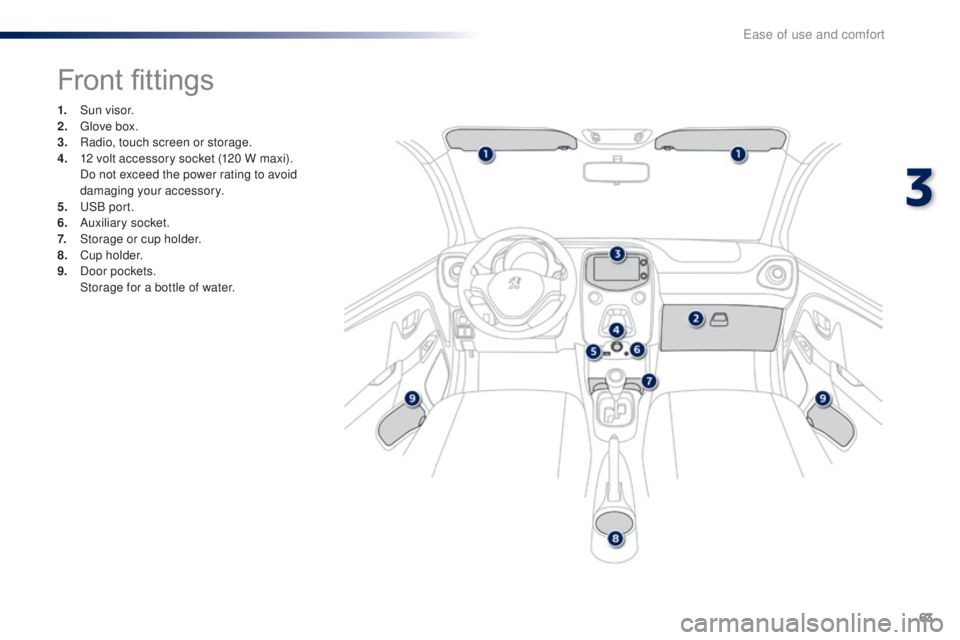

Front fittings
1. Sun visor.
2. gl ove box.
3.
R

adio, touch screen or storage.
4.
1

2 volt accessory socket (120 W maxi).
D

o not exceed the power rating to avoid
damaging your accessory.
5.


u
S
B port.
6.
Au

xiliary socket.
7.
St

orage or cup holder.
8.
C

u p h o l d e r.
9.
D

oor pockets.
S

torage for a bottle of water.
3
ease of use and comfort

64
108_en_Chap03_ergonomie-confort_ed01-2016

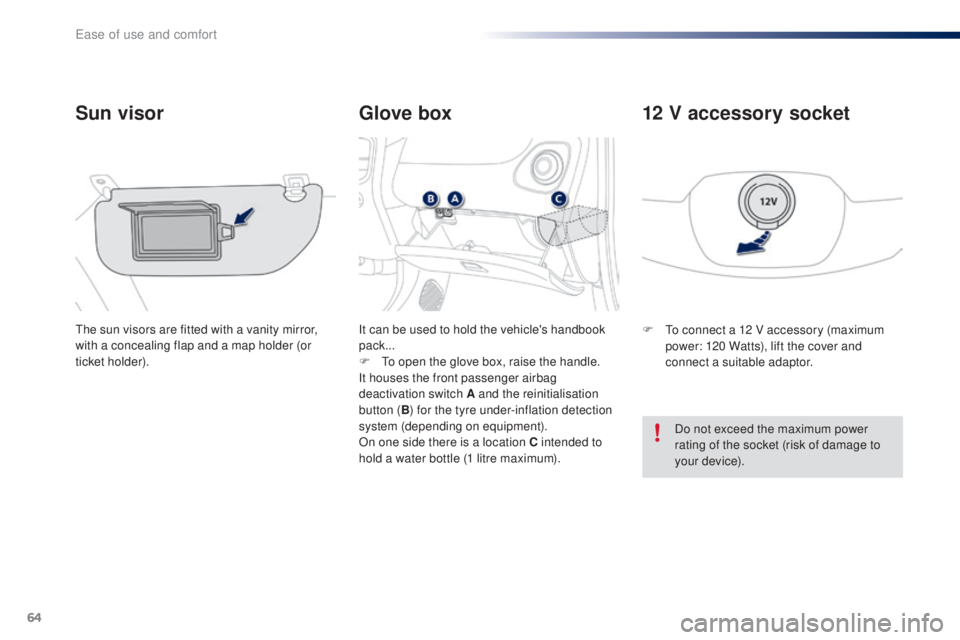

glove box
Sun visor
the sun visors are fitted with a vanity mirror,
with a concealing flap and a map holder (or
ticket holder). It can be used to hold the vehicle's handbook
pack...
F
t
o o
pen the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A and the reinitialisation
button ( B) for the tyre under-inflation detection
system (depending on equipment).
On one side there is a location C
intended to
hold a water bottle (1 litre maximum). F
to c onnect a 12 V accessory (maximum
power: 120 Watts), lift the cover and
connect a suitable adaptor.
12 V accessory socket
Do not exceed the maximum power
rating of the socket (risk of damage to
your device).
ease of use and comfort

65
108_en_Chap03_ergonomie-confort_ed01-2016

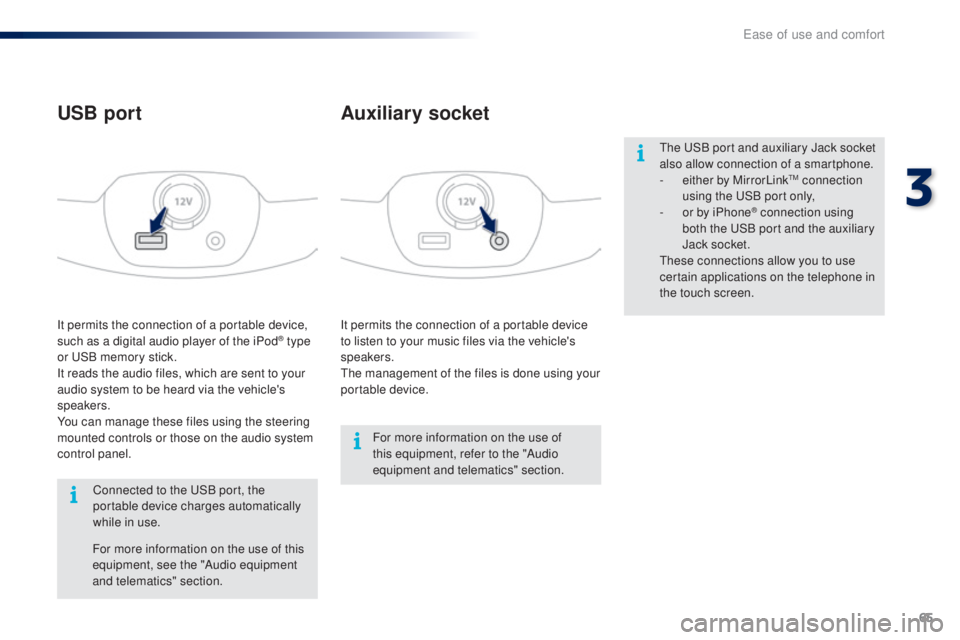

It permits the connection of a portable device
to listen to your music files via the vehicle's
speakers.
th
e management of the files is done using your
portable device.
It permits the connection of a portable device,
such as a digital audio player of the iPod® type
or
uS
B memory stick.
It reads the audio files, which are sent to your
audio system to be heard via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or those on the audio system
control panel.
Auxiliary socketu
SB port
For more information on the use of
this equipment, refer to the "Audio
equipment and telematics" section.
For more information on the use of this
equipment, see the "Audio equipment
and telematics" section. Connected to the
u
S

B port, the
portable device charges automatically
while in use.
th
e u
S
B port and auxiliary Jack socket
also allow connection of a smartphone.
-
e
ither by MirrorLink
tM connection
using the
uS
B port only,
-

o

r by iPhone
® connection using
both the
uS
B port and the auxiliary
Jack socket.
th

ese connections allow you to use
certain applications on the telephone in
the touch screen.
3
ease of use and comfort

66
108_en_Chap03_ergonomie-confort_ed01-2016
to remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.

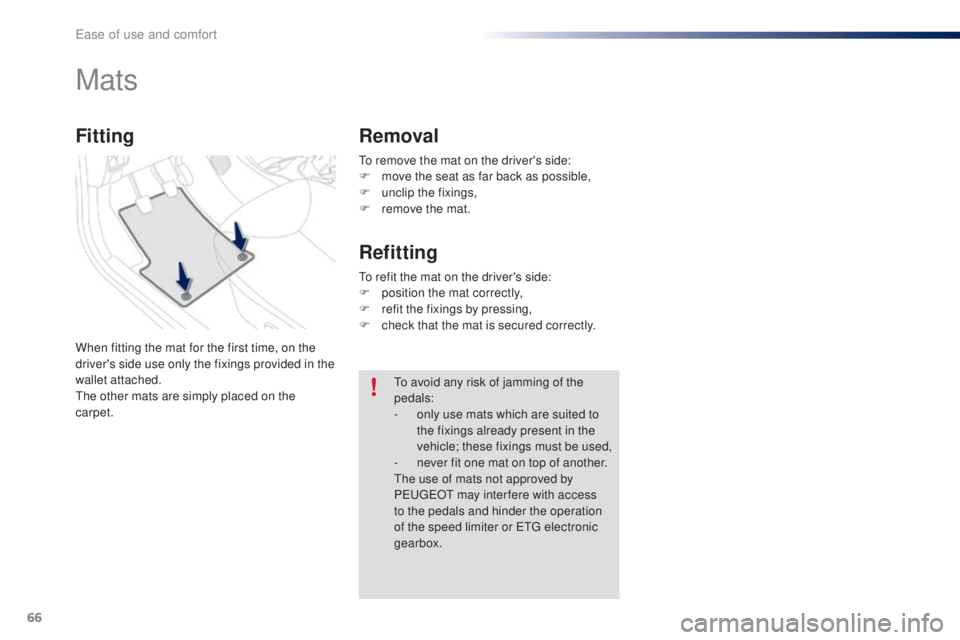

Mats
When fitting the mat for the first time, on the
driver's side use only the fixings provided in the
wallet attached.
th
e other mats are simply placed on the
carpet.
to a

void any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
th

e use of mats not approved by
P
e

uge
Ot
may inter fere with access
to the pedals and hinder the operation
of the speed limiter or
etg electronic
gearbox.
to r
efit the mat on the driver's side:
F
p
osition the mat correctly,
F
r
efit the fixings by pressing,
F
c
heck that the mat is secured correctly.
Fitting
Removal
Refitting
ease of use and comfort

67
108_en_Chap03_ergonomie-confort_ed01-2016

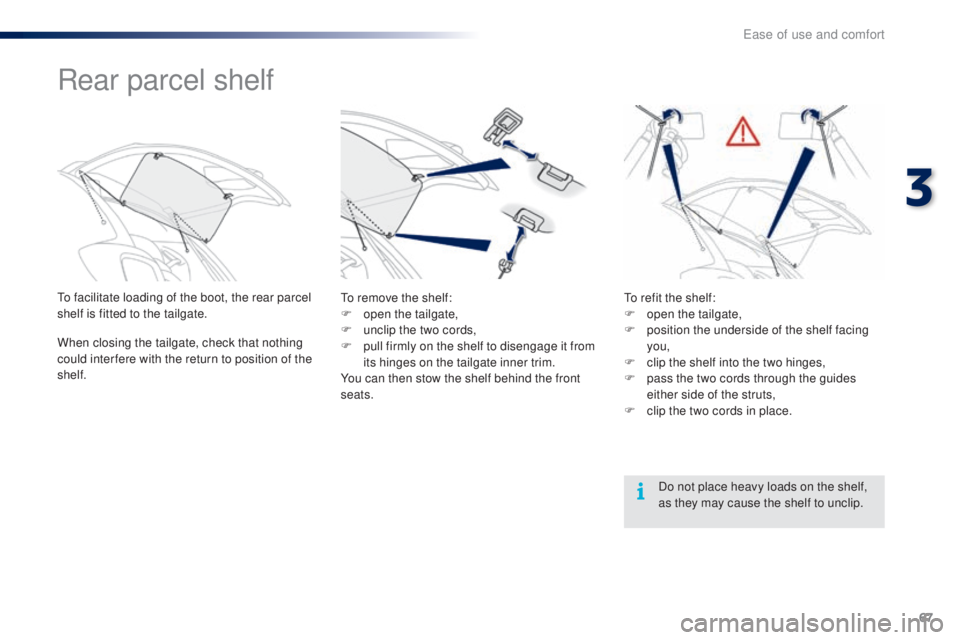

Rear parcel shelf
to facilitate loading of the boot, the rear parcel
shelf is fitted to the tailgate.
When closing the tailgate, check that nothing
could inter fere with the return to position of the
shelf.Do not place heavy loads on the shelf,
as they may cause the shelf to unclip.to remove the shelf:
F

o
pen the tailgate,
F

u
nclip the two cords,
F

p
ull firmly on the shelf to disengage it from
its hinges on the tailgate inner trim.
You can then stow the shelf behind the front
seats.to r efit the shelf:
F

o
pen the tailgate,
F

p
osition the underside of the shelf facing
you,
F

c
lip the shelf into the two hinges,
F

p
ass the two cords through the guides
either side of the struts,
F

c
lip the two cords in place.
3
ease of use and comfort

68
108_en_Chap03_ergonomie-confort_ed01-2016

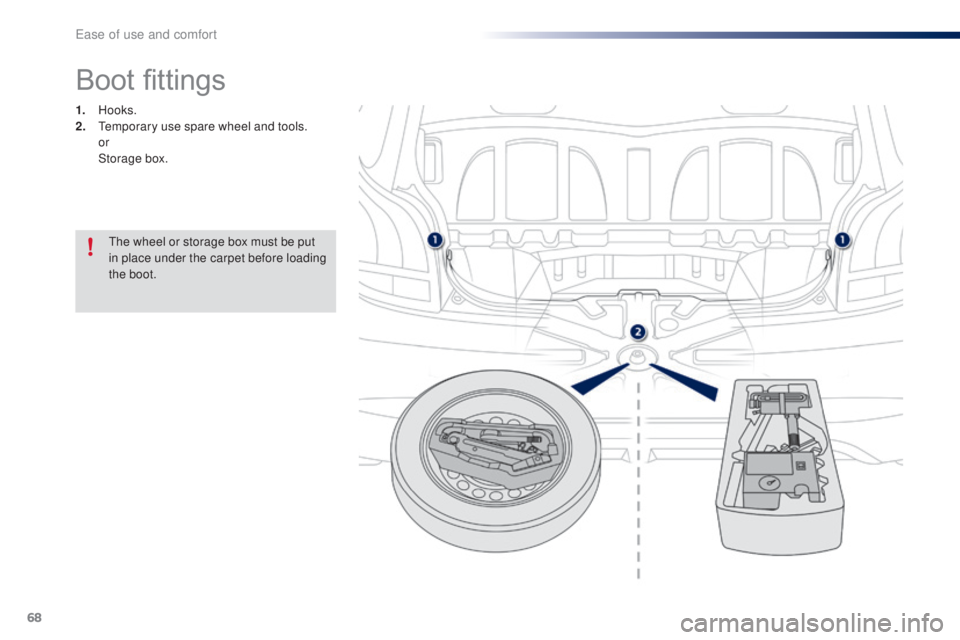

Boot fittings
1. Hooks.
2. te mporary use spare wheel and tools.


or
St

orage box.
th

e wheel or storage box must be put
in place under the carpet before loading
the boot.
ease of use and comfort
