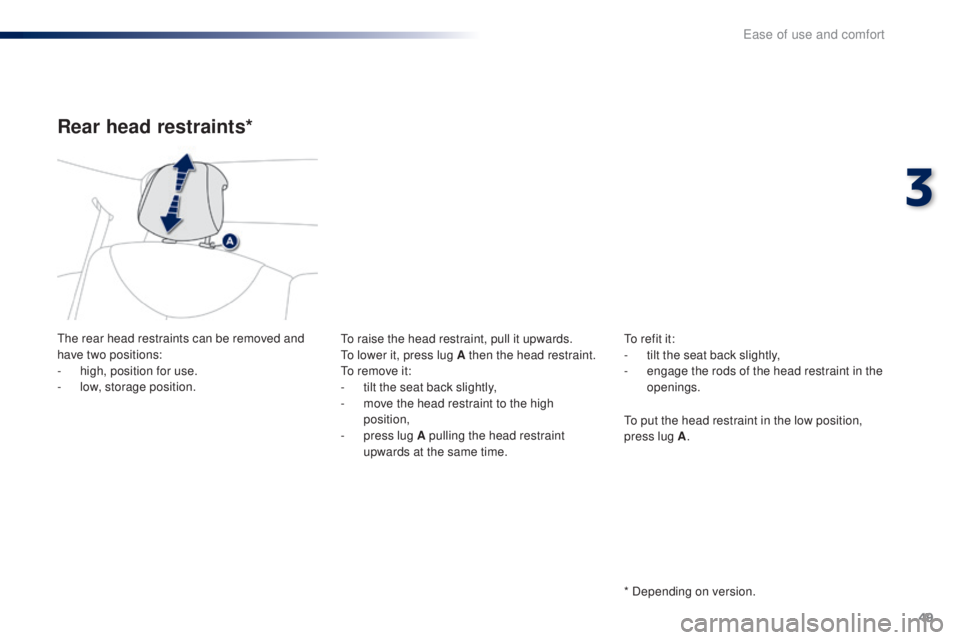

Rear head restraints*
the rear head restraints can be removed and
have two positions:
-
h
igh, position for use.
-
lo

w, storage position.to r aise the head restraint, pull it upwards.
to l

ower it, press lug A then the head restraint.
to r

emove it:
-

t
ilt the seat back slightly,
-

m
ove the head restraint to the high
position,
-

p
ress lug A pulling the head restraint
upwards at the same time.to refit it:
-

t
ilt the seat back slightly,
-

e
ngage the rods of the head restraint in the
openings.
* Depending on version.
to p
ut the head restraint in the low position,
press lug A .
3
ease of use and comfort

50
108_en_Chap03_ergonomie-confort_ed01-2016

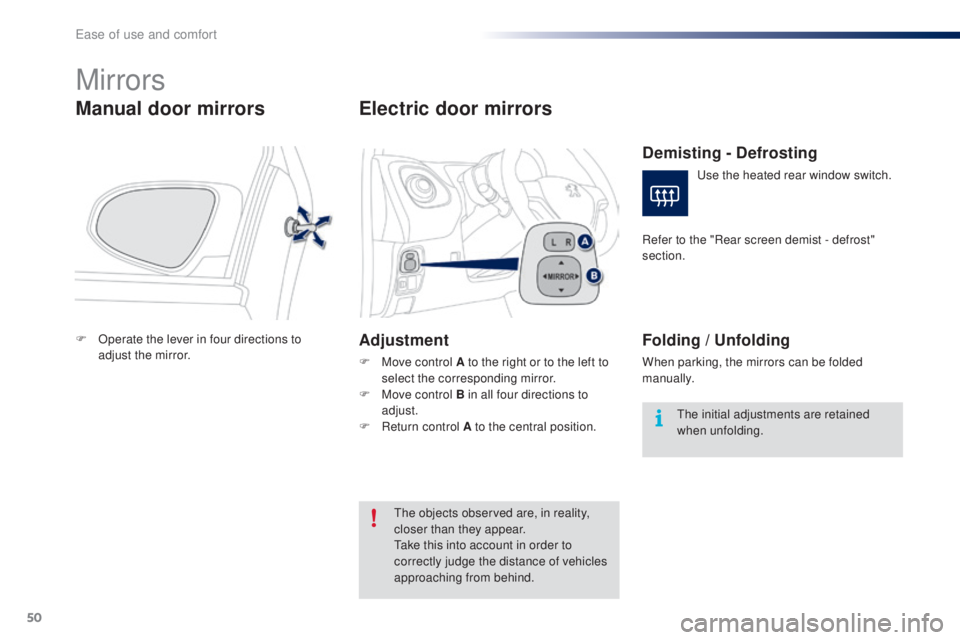

Mirrors
Manual door mirrors
F Operate the lever in four directions to adjust the mirror.
electric door mirrors
Adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
th

e objects observed are, in reality,
closer than they appear.
ta

ke this into account in order to
correctly judge the distance of vehicles
approaching from behind.
Demisting - Defrosting
use the heated rear window switch.
Refer to the "Rear screen demist - defrost"
section.
Folding / un folding
When parking, the mirrors can be folded
manually.
th

e initial adjustments are retained
when unfolding.
ease of use and comfort

51
108_en_Chap03_ergonomie-confort_ed01-2016

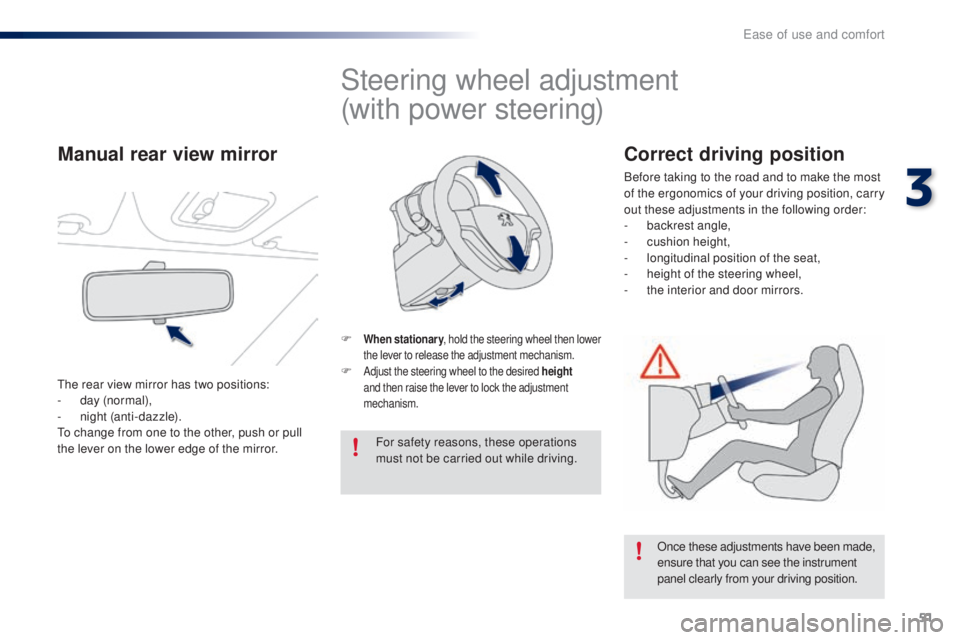

Steering wheel adjustment
(with power steering)
F When stationary, hold the steering wheel then lower
the lever to release the adjustment mechanism.
F Adjust the steering wheel to the desired height
and then raise the lever to lock the adjustment
mechanism.
For safety reasons, these operations
must not be carried out while driving.
Once these adjustments have been made,
ensure that you can see the instrument
panel clearly from your driving position.
Manual rear view mirror
the rear view mirror has two positions:
- d ay (normal),
-

n
ight (anti-dazzle).
to c

hange from one to the other, push or pull
the lever on the lower edge of the mirror.
Correct driving position
Before taking to the road and to make the most
of the ergonomics of your driving position, carry
out these adjustments in the following order:
-

b
ackrest angle,
-

c
ushion height,
-
l

ongitudinal position of the seat,
-
hei

ght of the steering wheel,
-

t
he interior and door mirrors.
3
ease of use and comfort

52
108_en_Chap03_ergonomie-confort_ed01-2016

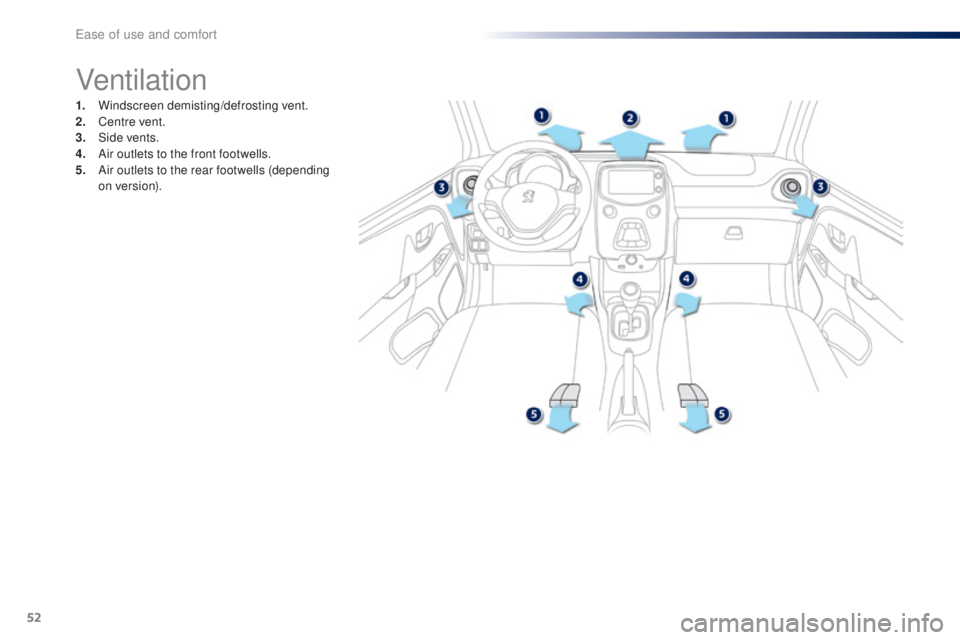

Ventilation
1. Windscreen demisting/defrosting vent.
2. Centre vent.
3.
Sid

e vents.
4.
A

ir outlets to the front footwells.
5.
A

ir outlets to the rear footwells (depending
on version).
ease of use and comfort

53
108_en_Chap03_ergonomie-confort_ed01-2016

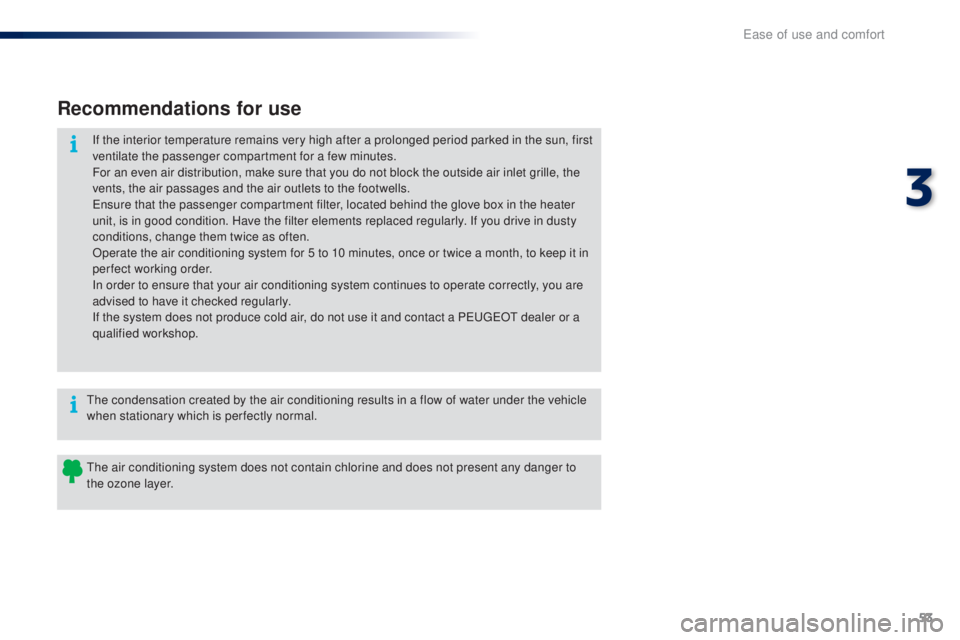

Recommendations for use
If the interior temperature remains very high after a prolonged period parked in the sun, first
ventilate the passenger compartment for a few minutes.
For an even air distribution, make sure that you do not block the outside air inlet grille, the
vents, the air passages and the air outlets to the footwells.
en
sure that the passenger compartment filter, located behind the glove box in the heater
unit, is in good condition. Have the filter elements replaced regularly. If you drive in dusty
conditions, change them twice as often.
Operate the air conditioning system for 5 to 10 minutes, once or twice a month, to keep it in
perfect working order.
In order to ensure that your air conditioning system continues to operate correctly, you are
advised to have it checked regularly.
If the system does not produce cold air, do not use it and contact a P
e

uge
Ot
dealer or a
qualified workshop.
th

e air conditioning system does not contain chlorine and does not present any danger to
the ozone layer.
th

e condensation created by the air conditioning results in a flow of water under the vehicle
when stationary which is per fectly normal.
3
ease of use and comfort

54
108_en_Chap03_ergonomie-confort_ed01-2016

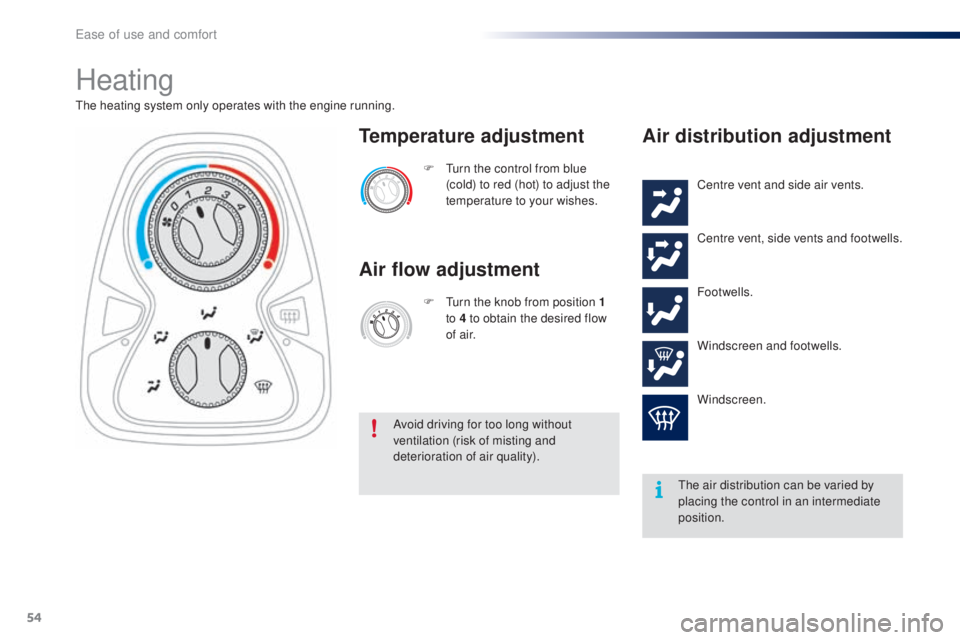

Heating
the heating system only operates with the engine running.F t
u
rn the control from blue
(cold) to red (hot) to adjust the
temperature to your wishes.
temperature adjustment
Air flow adjustment
F turn the knob from position 1 to 4 to obtain the desired flow
o f a i r.
Avoid driving for too long without
ventilation (risk of misting and
deterioration of air quality).
Air distribution adjustment
Centre vent and side air vents.
Centre vent, side vents and footwells.
Footwells.
Windscreen and footwells.
Windscreen.
th

e air distribution can be varied by
placing the control in an intermediate
position.
ease of use and comfort

55
108_en_Chap03_ergonomie-confort_ed01-2016

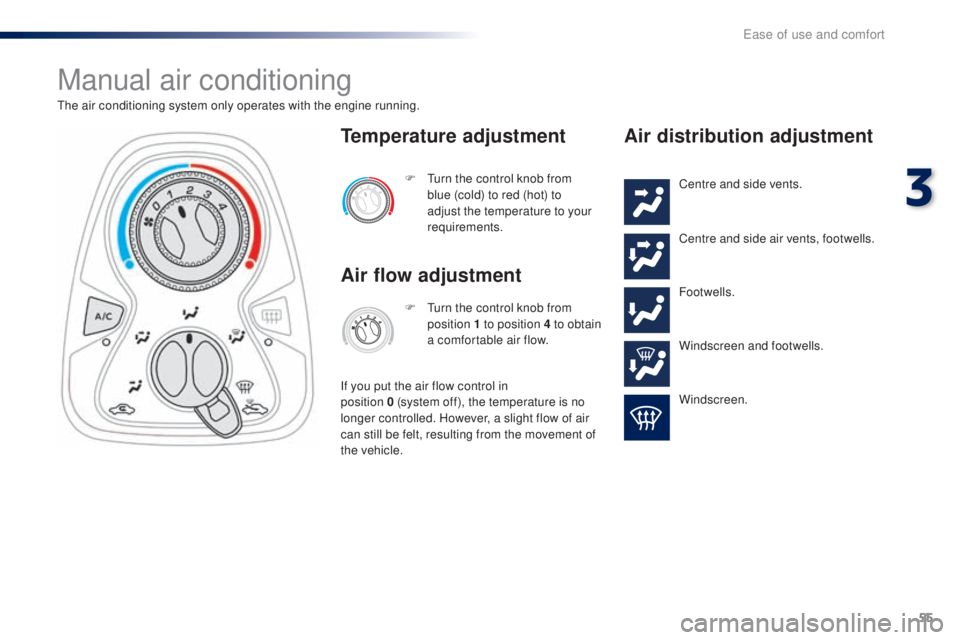

Manual air conditioning
the air conditioning system only operates with the engine running.F t
u
rn the control knob from
blue (cold) to red (hot) to
adjust the temperature to your
requirements.
temperature adjustment
Air flow adjustment
F turn the control knob from position 1 to position 4 to obtain
a comfortable air flow.
If you put the air flow control in
position


0

(system off), the temperature is no
longer controlled. However, a slight flow of air
can still be felt, resulting from the movement of
the vehicle.
Air distribution adjustment
Centre and side vents.
Centre and side air vents, footwells.
Footwells.
Windscreen and footwells.
Windscreen.
3
ease of use and comfort

56
108_en_Chap03_ergonomie-confort_ed01-2016

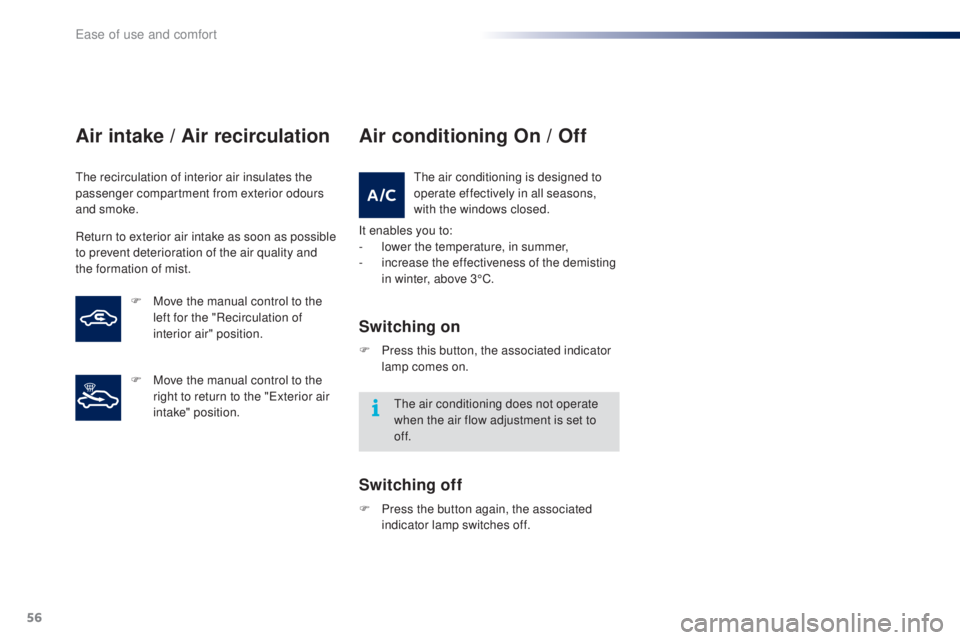

Air intake / Air recirculation
the recirculation of interior air insulates the
passenger compartment from exterior odours
and smoke.
Return to exterior air intake as soon as possible
to prevent deterioration of the air quality and
the formation of mist.
Air conditioning on / of f
the air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
It enables you to:
-

l

ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
F Press this button, the associated indicator lamp comes on.
th

e air conditioning does not operate
when the air flow adjustment is set to
of f.
Switching off
F Press the button again, the associated indicator lamp switches off.
F

M

ove the manual control to the
left for the "Recirculation of
interior air" position.
F

M

ove the manual control to the
right to return to the "
ex

terior air
intake" position.
ease of use and comfort

57
108_en_Chap03_ergonomie-confort_ed01-2016
Manual override
It is possible to adjust one or more functions
manually while leaving the other functions in
automatic mode.
th
e "A
u
to
" s

ymbol switches off.
to r

eturn to automatic mode, press the "A
u
to
"
b

utton.
Switching to manual mode may not be suitable
(temperature, humidity, odour, condensation)
and does not provide optimum comfort.

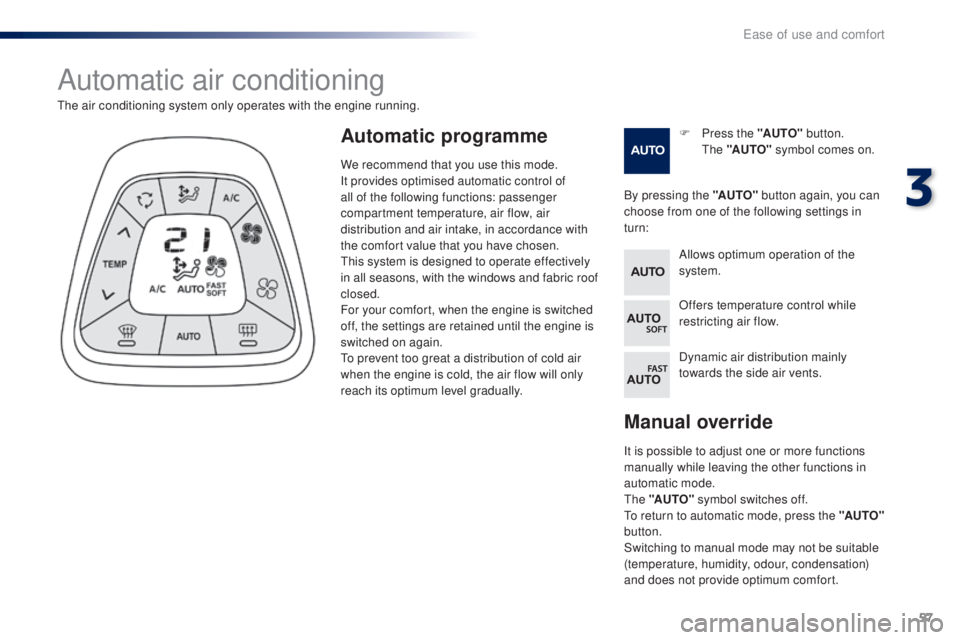

Automatic air conditioning
F Press the "Au to" b utton. th
e "Au
to" s
ymbol comes on.
th

e air conditioning system only operates with the engine running.
By pressing the "A
u
to
" b

utton again, you can
choose from one of the following settings in
turn:Automatic programme
Allows optimum operation of the
system.
Offers temperature control while
restricting air flow.
Dynamic air distribution mainly
towards the side air vents.
We recommend that you use this mode.
It provides optimised automatic control of
all of the following functions: passenger
compartment temperature, air flow, air
distribution and air intake, in accordance with
the comfort value that you have chosen.th
is system is designed to operate effectively
in all seasons, with the windows and fabric roof
closed.
For your comfort, when the engine is switched
off, the settings are retained until the engine is
switched on again.
to p

revent too great a distribution of cold air
when the engine is cold, the air flow will only
reach its optimum level gradually.
3
ease of use and comfort

58
108_en_Chap03_ergonomie-confort_ed01-2016
For maximum cooling or heating of the
cabin, it is possible to go beyond the
minimum 14 or maximum 28 value.
F
P
ress the temperature adjustment
button down or up until "L
o
"
or
"HI" is displayed.
A setting around 21
gives optimum comfort.
However, depending on your requirements, a
setting between 18 and 24 is normal.
On entering the vehicle, if the interior is very
cold or hot, there is no need to change the
value displayed in order to reach the required
level of comfort. t
h
e system corrects the
temperature difference automatically and as
quickly as possible.

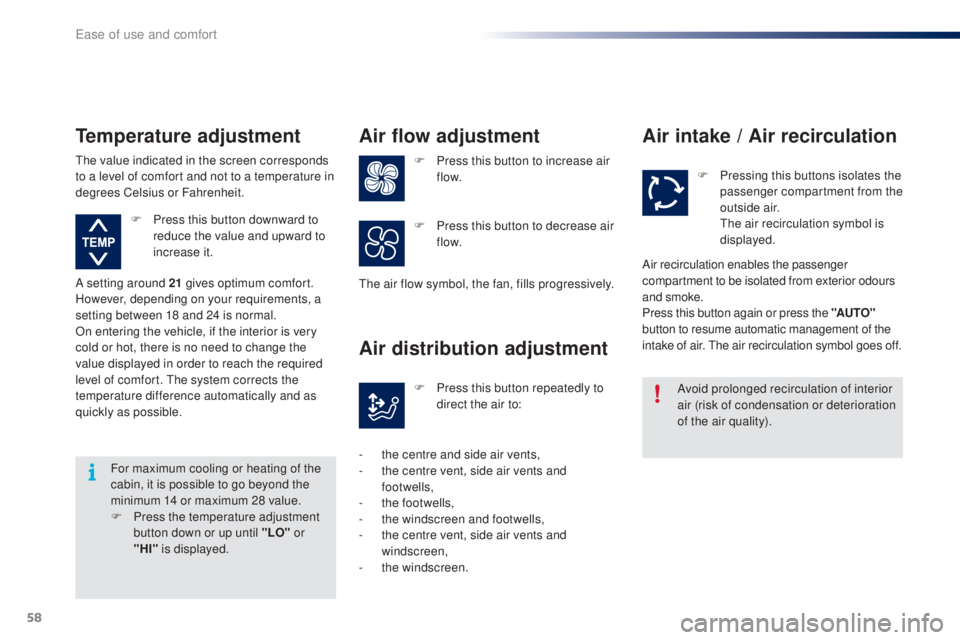

temperature adjustment
F Press this button downward to reduce the value and upward to
increase it.
th

e value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
Air flow adjustment
F Press this button to increase air f low.
th

e air flow symbol, the fan, fills progressively. F

P
ress this button to decrease air
f low.
Air distribution adjustment
- the centre and side air vents,
- t he centre vent, side air vents and
footwells,
-

t
he footwells,
-

t
he windscreen and footwells,
-

t
he centre vent, side air vents and
windscreen,
-
t

he windscreen. F

P
ress this button repeatedly to
direct the air to:
Air intake / Air recirculation
Avoid prolonged recirculation of interior
air (risk of condensation or deterioration
of the air quality). F

P
ressing this buttons isolates the
passenger compartment from the
outside air.

t
h
e air recirculation symbol is
displayed.
Air recirculation enables the passenger
compartment to be isolated from exterior odours
and smoke.
Press this button again or press the "A
u
to
"

b

utton to resume automatic management of the
intake of air. t
h
e air recirculation symbol goes off.
