PEUGEOT 2008 2013 User Guide

.
9
Familiarisation

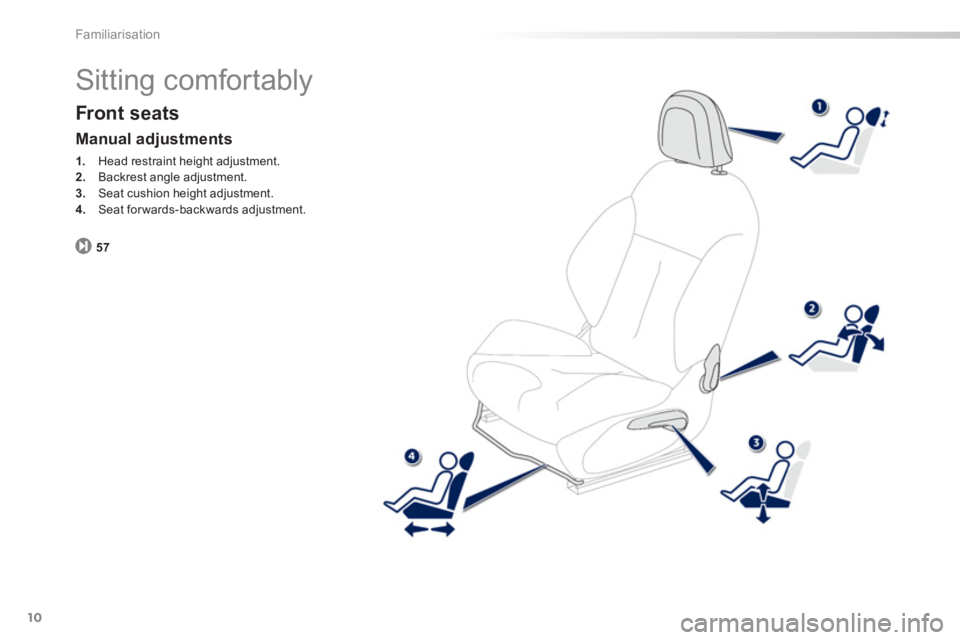

10
Familiarisation
Sitting comfortably
Front seats
57
Manual adjustments
1.
Head restraint height adjustment. 2.
Backrest angle adjustment.3.Seat cushion height adjustment.4.
Seat forwards-backwards adjustment.

.

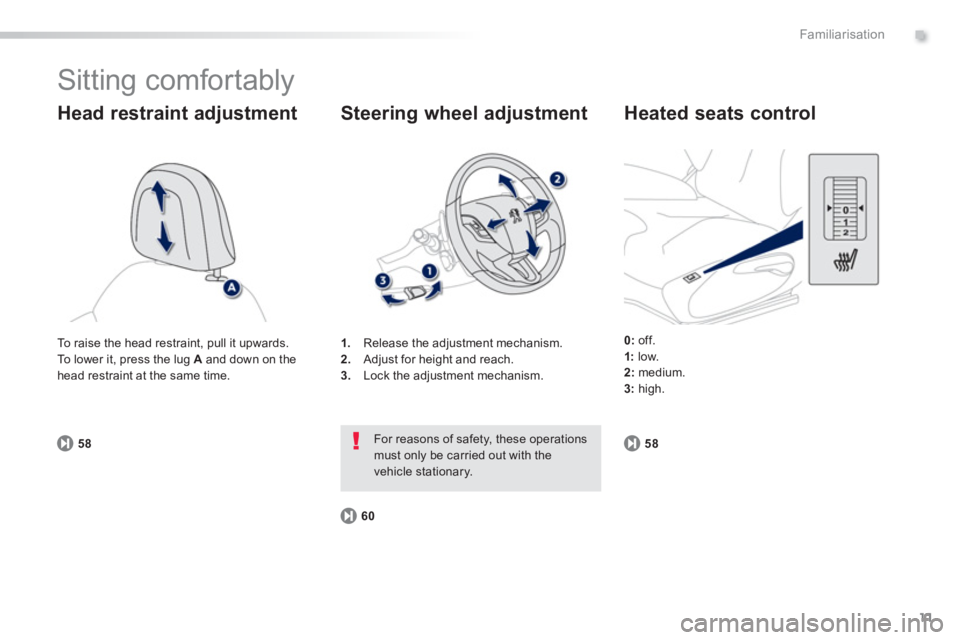

11
Familiarisation
Sitting comfortably


Head restraint adjustment
58
1.Release the adjustment mechanism.
2. Adjust for height and reach. 3.
Lock the adjustment mechanism.
Steering wheel adjustment
60
For reasons of safety, these operationsmust only be carried out with thevehicle stationary.


Heated seats control
0:
off.
1:low. 2: medium. 3:high. To raise the head restraint, pull it upwards.
To lower it, press the lu
g A
and down on thehead restraint at the same time.
5
8

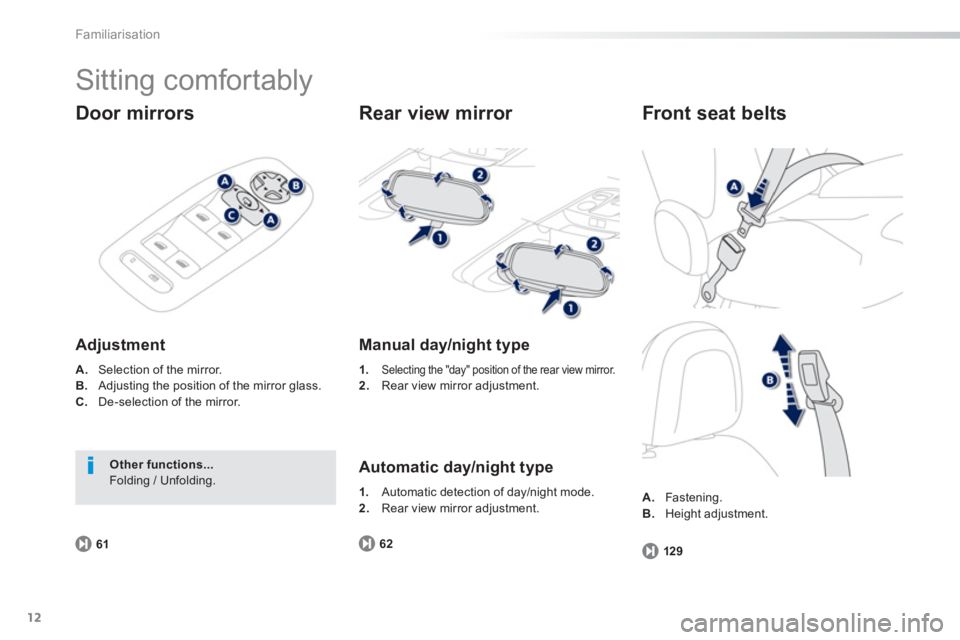

12
Familiarisation
Sitting comfortably
Door mirrors
Adjustment
A.
Selection of the mirror.B.Adjusting the position of the mirror glass. C.De-selection of the mirror.
6
1
Other functions... Folding / Unfolding.


Rear view mirror


Manual day/night type
1.Selecting the "day" position of the rear view mirror.2.
Rear view mirror adjustment.


Automatic day/night type
62
1.Automatic detection of day/night mode.
2. Rear view mirror adjustment.A.Fastening.
B.Height adjustment.


Front seat belts
129

.

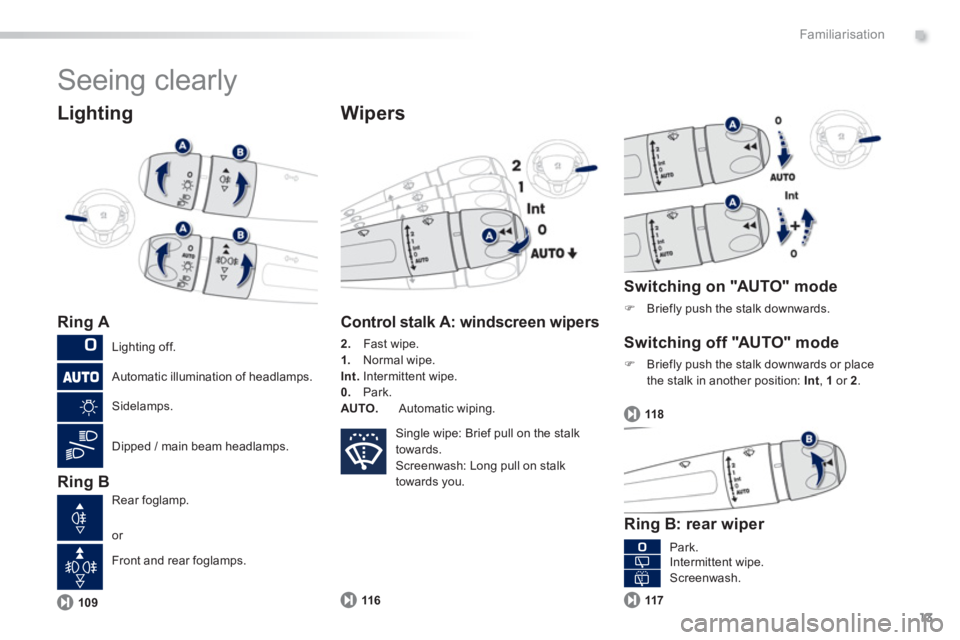

13
Familiarisation
Seeing clearly


Lighting

Ring A

Ring B
Wipers
109
Control stalk A: windscreen wipers
2.
Fast wipe. 1.Normal wipe.
Int.Intermittent wipe.0.Park.AUTO. Automatic wiping.
116

Switching on "AUTO" mode
)
Briefly push the stalk downwards.


Switching off "AUTO" mode
)
Briefly push the stalk downwards or place
the stalk in another position:Int, 1or 2.


Ring B: rear wiper
118
117
Lighting off.
Automatic illumination of headlamps.
Sidelamps.
Dipped / main beam headlamps.
Rear
foglamp.
Park.
Intermittent wipe.
Screenwash.
or
Front and rear
foglamps.
Single wipe: Brief pull on the stalk
towards.
Screenwash: Long pull on stalk
towards you.

14
Familiarisation
I require...
Heating or Manual air conditioning
Air distributionAir flowAir recirculation/Intake of exterior airTemperatureManual AC
HOT
COLD
DEMISTINGDEFROSTING











Vent ilat ion
Recommended interior settings
Digital air conditioning:
use the automatic mode in preference by pressing the "AUTO"button.

.

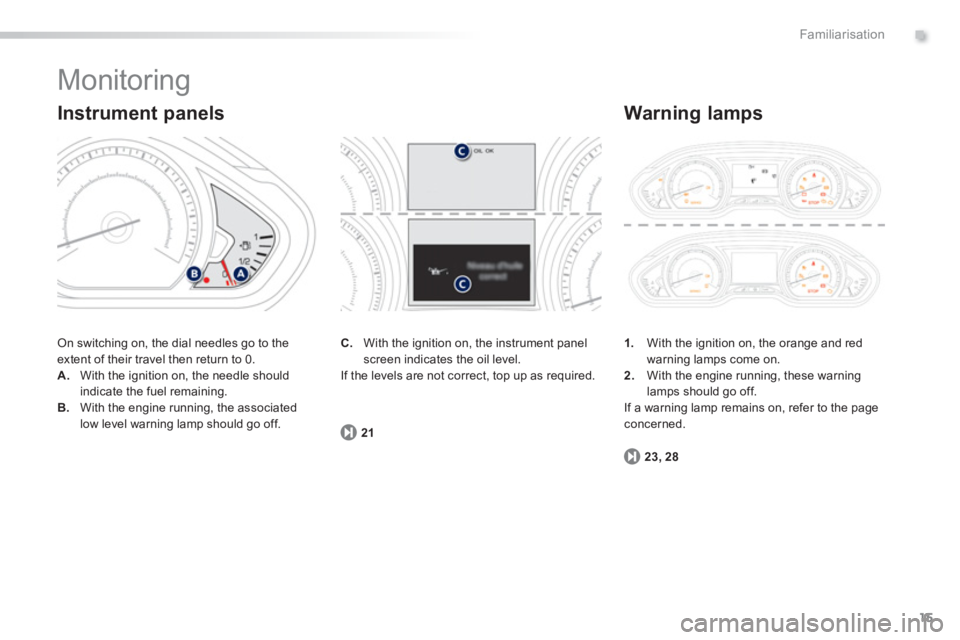

15
Familiarisation
Monitoring
On switching on, the dial needles go to the extent of their travel then return to 0.
A.With the ignition on, the needle should
indicate the fuel remaining.B.With the engine running, the associatedlow level warning lamp should go off.

Instrument panels
1.
With the ignition on, the orange and red
warning lamps come on. 2.With the engine running, these warninglamps should go off.
If a warning lamp remains on, refer to the page concerned.


Warning lamps
23, 28
C.
With the ignition on, the instrument panelscreen indicates the oil level.
If the levels are not correct, top up as required.
21

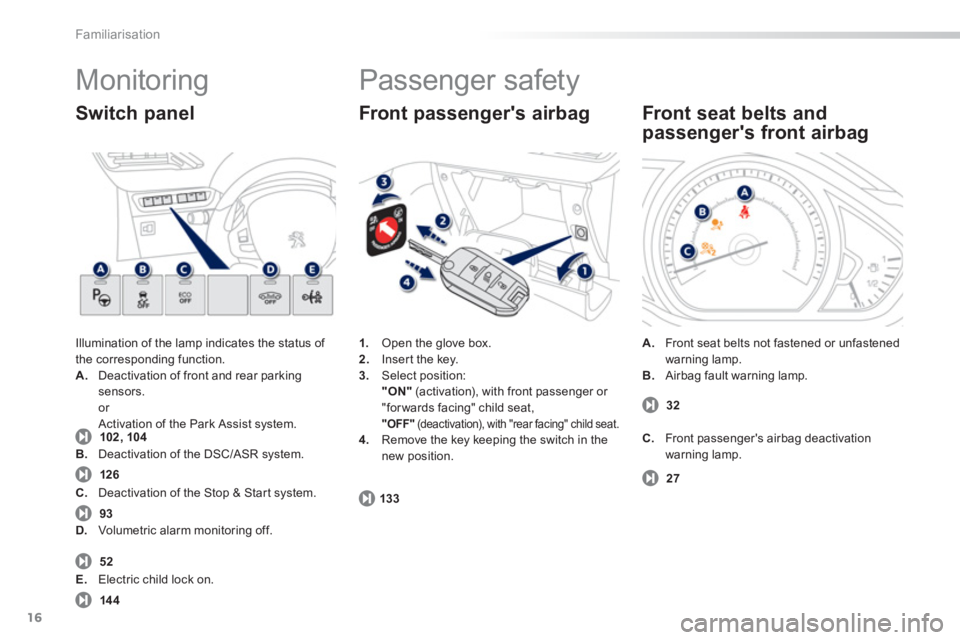

16
Familiarisation
Monitoring
Illumination of the lamp indicates the status of
the corresponding function. A. Deactivation of front and rear parking sensors.or
Activation of the Park Assist system.
Switch panel
102, 1041
.Open the glove box.
2. Inser t the key.3.
Select position: "ON"
(activation), with front passenger or "forwards facing" child seat,"OFF"
(deactivation), with "rear facing" child seat. 4.Remove the key keeping the switch in the
new position.


Front passenger's airbag
133
126
B.Deactivation of the DSC/ASR system.
93
C.Deactivation of the Stop & Start system.
52
D. Volumetric alarm monitoring off.
144
E.
Electric child lock on.

Passenger safety
A.Front seat belts not fastened or unfastened
warning lamp.
B.Airbag fault warning lamp.

Front seat belts and
passenger's front airbag
27
C.Front passenger's airbag deactivation
warning lamp.
32

.

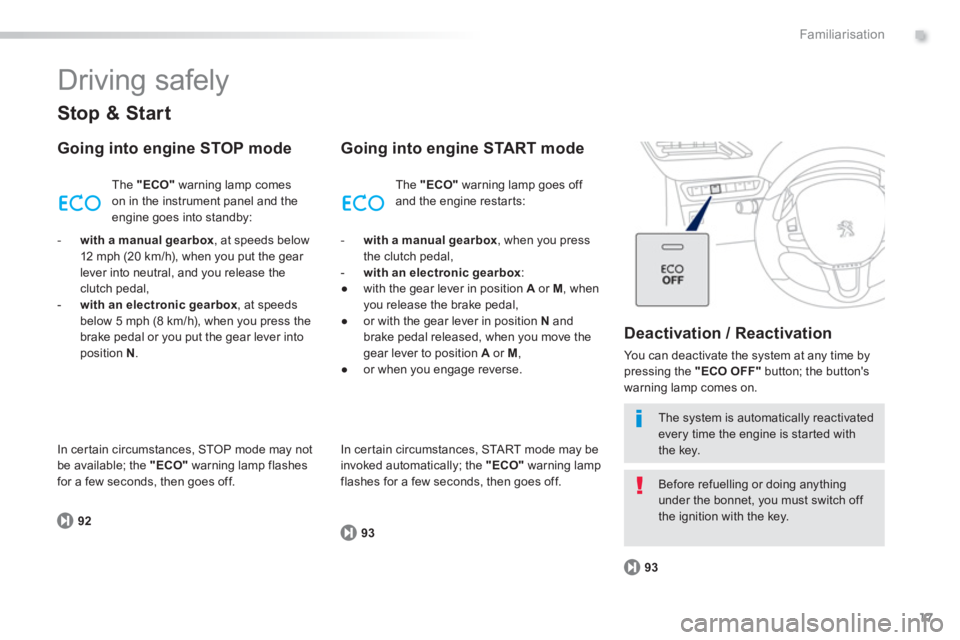

17
Familiarisation
Driving safely


Stop & Start


Going into engine STOP mode
92Th
e "ECO"warning lamp comes
on in the instrument panel and the
en
gine goes into standby:
Going into engine START mode

Deactivation
/ Reactivation

You can deactivate the system at any time bypressing the "ECO OFF"
button; the button's
warning lamp comes on.
93
93
The system is automatically reactivated every time the engine is star ted withthe key.
Before refuelling or doing anything under the bonnet, you must switch off the ignition with the key. Th
e "ECO"
warning lamp goes off
and the engine restar ts:
-with a manual gearbox, when you press
the clutch pedal,-with an electronic gearbox:●
with the gear lever in position A
or M,
whenyou release the brake pedal,
●
or with the gear lever in position N
andbrake pedal released, when you move thegear lever to position A
or M,●
or when you engage reverse.
-with a manual gearbox
, at speeds below
12 mph (20 km/h), when you put the gear lever into neutral, and you release theclutch pedal,
-
with an electronic gearbox
, at speeds
below 5 mph (8 km/h), when you press the
brake pedal or you put the gear lever into position N .

In certain circumstances,
START mode may beinvoked automatically; the "ECO"
warning lamp
flashes for a few seconds, then goes off. In certain circumstances,
STOP mode may not
be available; the "ECO"warning lamp flashes
for a few seconds, then goes off.

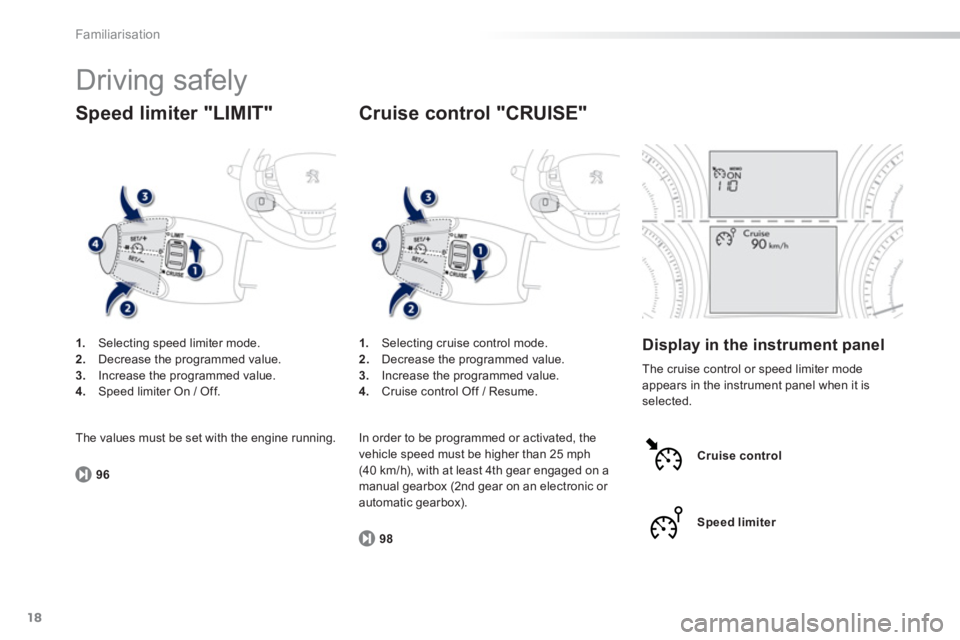

18
Familiarisation
Driving safely
1.
Selecting speed limiter mode.2.
Decrease the programmed value.3.
Increase the programmed value.4.
Speed limiter On / Off.
Speed limiter "LIMIT"
96
1.Selecting cruise control mode.
2. Decrease the programmed value. 3.
Increase the programmed value. 4.Cruise control Off / Resume.


Cruise control "CRUISE"
98
The cruise control or speed limiter mode
appears in the instrument panel when it isselected.

Display in the instrument panel
Cruise control
Speed limite
r
The values must be set with the engine running. In order to be programmed or activated, the
vehicle speed must be higher than 25 mph (40 km/h), with at least 4th gear engaged on a
manual gearbox (2nd gear on an electronic or
automatic gearbox).
