PEUGEOT 2008 2014 Owners Manual

05
These functions are only available if risk areas have been downloaded and installed on the system.
Select " Navigation GPS ".
Select " Settings ".
Select " Risk areas ".

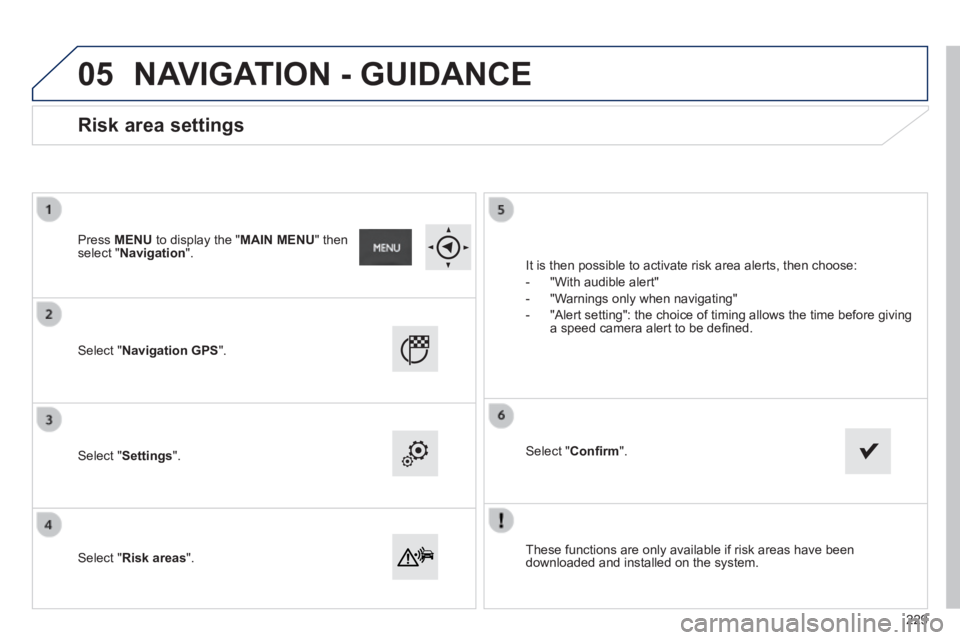

Risk area settings
It is then possible to activate risk area alerts, then choose:
- "With audible alert"
- "Warnings only when navigating"
- "Alert setting": the choice of timing allows the time before giving a speed camera alert to be defi ned.
Select " Confi rm ".
Press MENU to display the " MAIN MENU " then select " Navigation ".
NAVIGATION - GUIDANCE
229

05
230

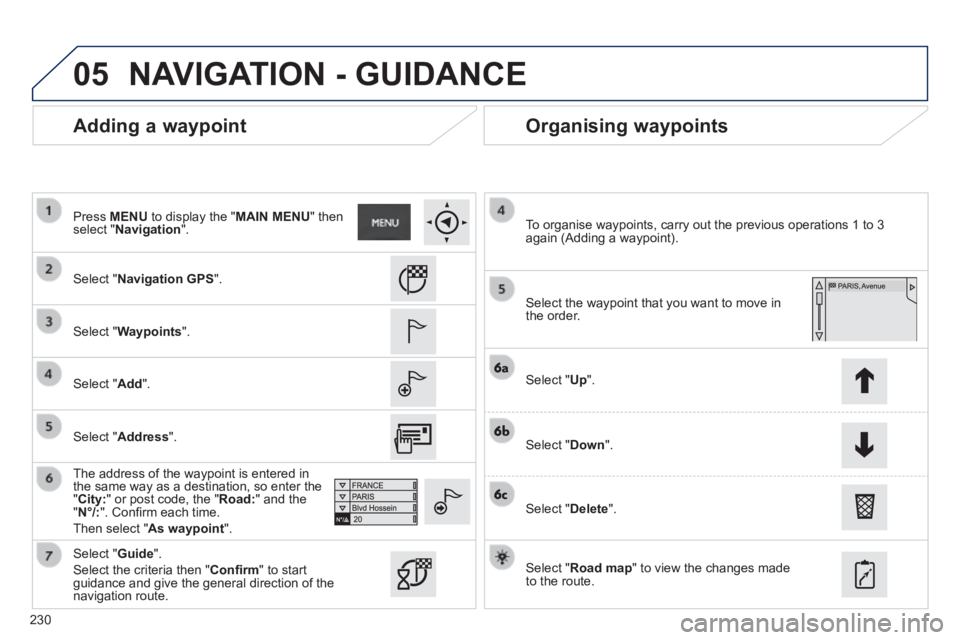

Adding a waypoint Organising waypoints
Select " Navigation GPS ".
Select " Waypoints ".
Select " Add ".
The address of the waypoint is entered in the same way as a destination, so enter the " City: " or post code, the " Road: " and the " N°/: ". Confi rm each time.
Then select " As waypoint ".
Select the waypoint that you want to move in the order.
To organise waypoints, carry out the previous operations 1 to 3 again (Adding a waypoint).
Select " Up ".
Select " Down ".
Select " Delete ".
Select " Road map " to view the changes made to the route.
Select " Guide ".
Select the criteria then " Confi rm " to start guidance and give the general direction of the navigation route.
Press MENU to display the " MAIN MENU " then select " Navigation ".
NAVIGATION - GUIDANCE
Select " Address ".

05
231

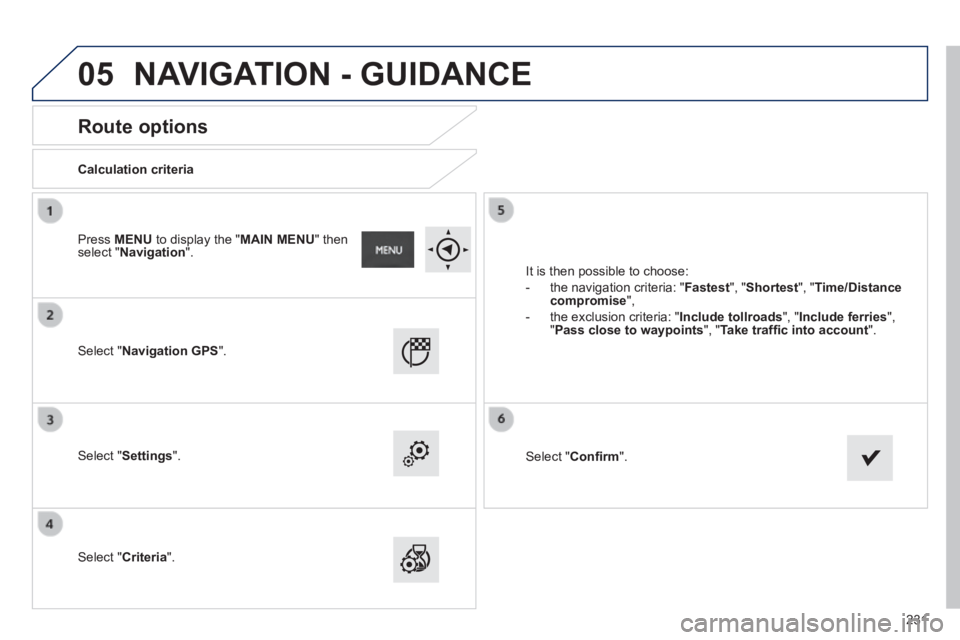

Route options
Calculation criteria
Select " Navigation GPS ".
Select " Settings ".
Select " Criteria ".
It is then possible to choose:
- the navigation criteria: " Fastest ", " Shortest ", " Time/Distance compromise ",
- the exclusion criteria: " Include tollroads ", " Include ferries ", " Pass close to waypoints ", " Take traffi c into account ".
Select " Confi rm ".
Press MENU to display the " MAIN MENU " then select " Navigation ".
NAVIGATION - GUIDANCE

05
232

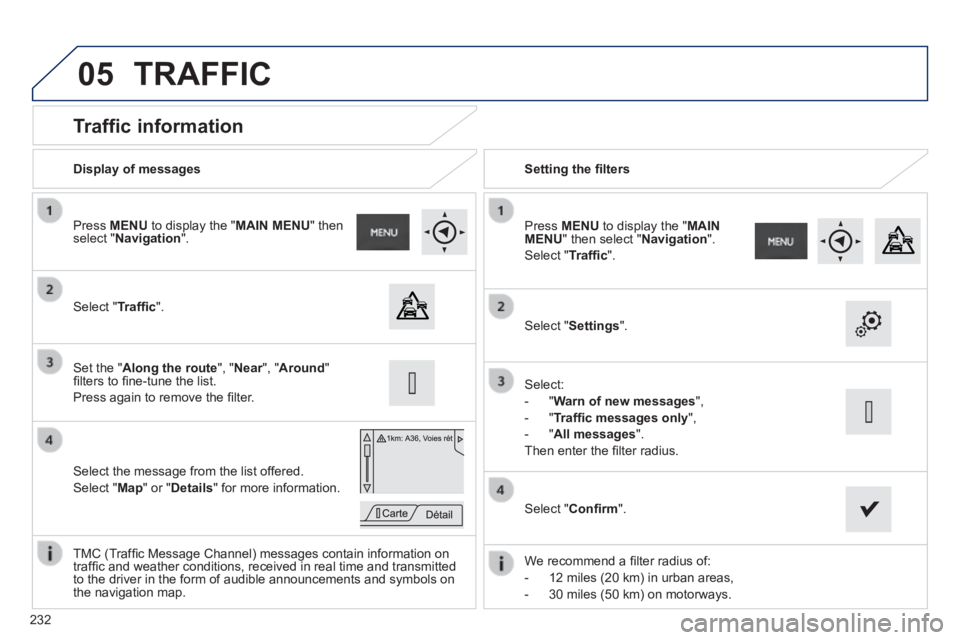

Traffic information
Select " Traffi c ".
Press MENU to display the " MAIN MENU " then select " Navigation ".
Select the message from the list offered.
Select " Map " or " Details " for more information.
Set the " Along the route ", " Near ", " Near ", " NearAround " fi lters to fi ne-tune the list.
Press again to remove the fi lter.
Select " Settings ".
Select:
- " Warn of new messages ",
- " Traffi c messages only ",
- " All messages ".
Then enter the fi lter radius.
Press MENU to display the " MAIN MENU " then select " Navigation ".
Select " Traffi c ".
Display of messages Setting the fi lters
We recommend a fi lter radius of:
- 12 miles (20 km) in urban areas,
- 30 miles (50 km) on motorways.
TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the driver in the form of audible announcements and symbols on the navigation map.
Select " Confi rm ".
TRAFFIC

05
233

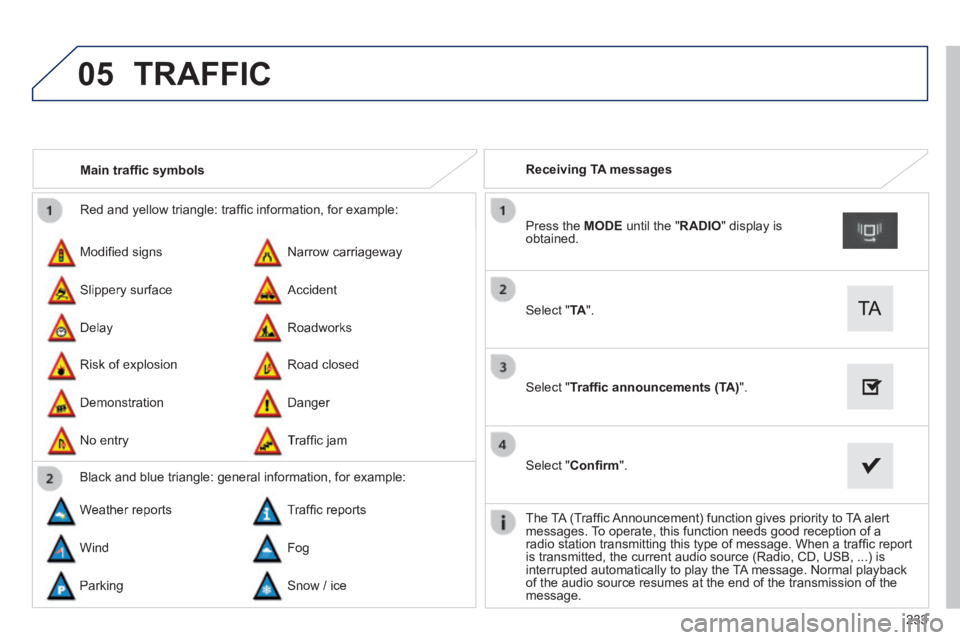

Red and yellow triangle: traffi c information, for example:
Modifi ed signs
Risk of explosion
Narrow carriageway
Road closed
Slippery surface
Demonstration
Accident
Danger
Delay
No entry
Roadworks
Traffi c jam
Main traffi c symbols
Black and blue triangle: general information, for example:
Weather reports Traffi c reports
Wind Fog
Parking Snow / ice
Receiving TA messages
Select " TA ".
Press the MODE until the " RADIO " display is obtained.
Select " Traffi c announcements (TA) ".
Select " Confi rm ".
The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report is transmitted, the current audio source (Radio, CD, USB, ...) is interrupted automatically to play the TA message. Normal playback of the audio source resumes at the end of the transmission of the message.
TRAFFIC

05

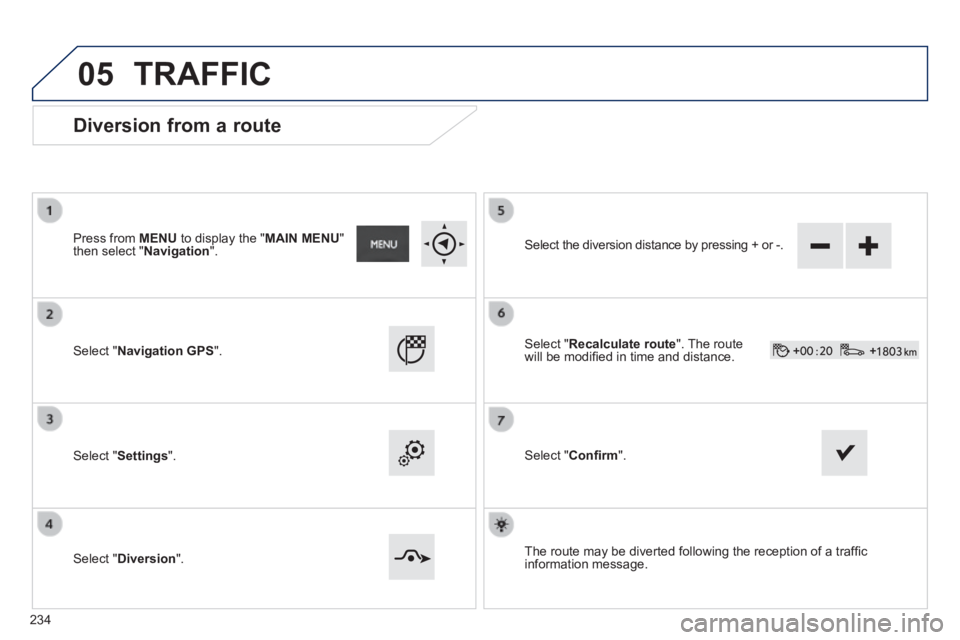

Diversion from a route
Press from MENU to display the " MAIN MENU " then select " Navigation ".
Select " Navigation GPS ".
Select " Settings ".
Select " Diversion ".
Select the diversion distance by pressing + or -.
Select " Recalculate route ". The route will be modifi ed in time and distance.
Select " Confi rm ".
The route may be diverted following the reception of a traffi c information message.
TRAFFIC
234

05
235

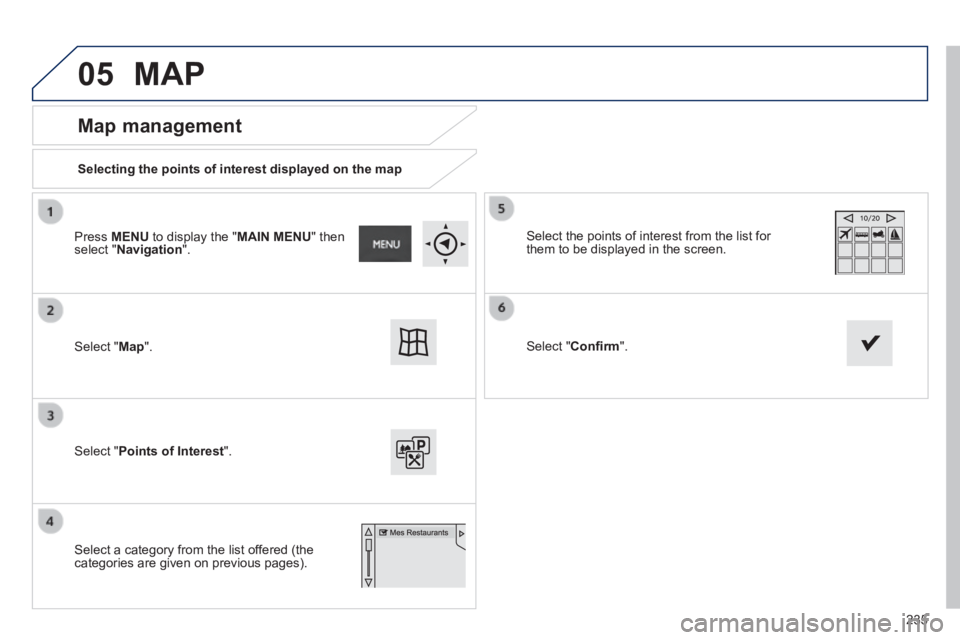

Map management
Selecting the points of interest displayed on the map
Select " Map ".
Select " Points of Interest ".
Select the points of interest from the list for them to be displayed in the screen.
Select a category from the list offered (the categories are given on previous pages).
Select " Confi rm ".
Press MENU to display the " MAIN MENU " then select " Navigation ".
MAP

05
Map orientation
Select " Map ".
Select " Map heading ".
Select:
- " Flat map view " to display the map in 2D,
- " Perspective map view " to display a perspective view.
With " Flat map view ":
- " North heading " to keep the map always North up,
- " Vehicle heading " to have the map follow the direction of travel,
Street names are visible on the map from the 100 m scale.
Map colour
Select " Map colour ". Map colour ". Map colour
Select:
- " Automatic day/night mode " to have the brightness of the map adjusted automatically according to the ambient light level, using the vehicle's sunshine sensor,
- " Map in day mode " to have the map always in day mode,
- " Map in night mode " to have the map always in night mode.
Then " Confi rm " to save the modifi cations.
Press MENU to display the " MAIN MENU " then select " Navigation ".
Select " Map ".
Press MENU to display the " MAIN MENU " then select " Navigation ".
MAP
Then " Confi rm " to save the modifi cations.
236

05
237

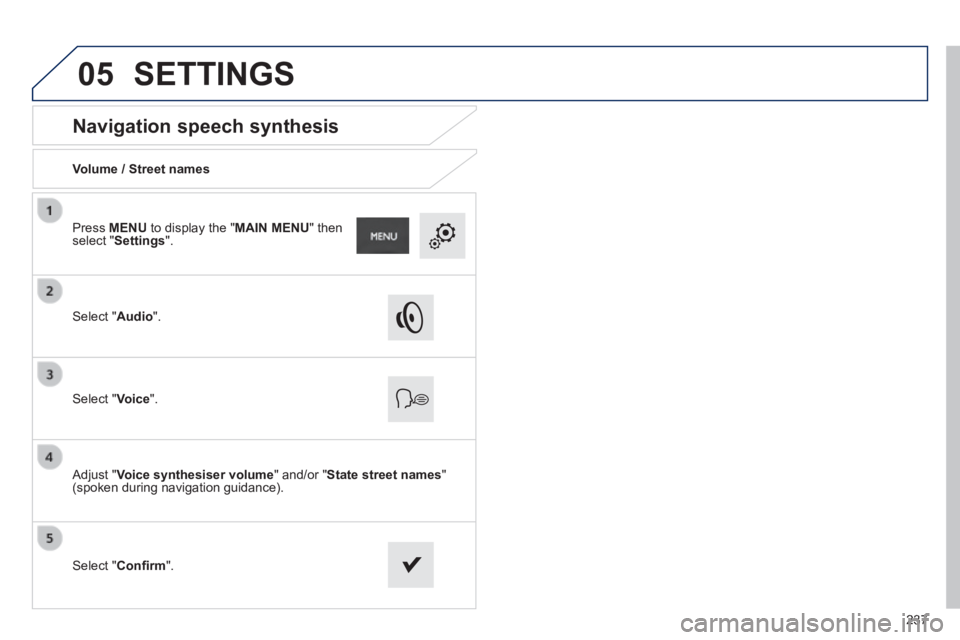

Navigation speech synthesis
Volume / Street names
Select " Audio ".
Select " Voice ".
Adjust " Voice synthesiser volume " and/or " State street names " (spoken during navigation guidance).
Select " Confi rm ".
Press MENU to display the " MAIN MENU " then select " Settings ".
SETTINGS

06
238

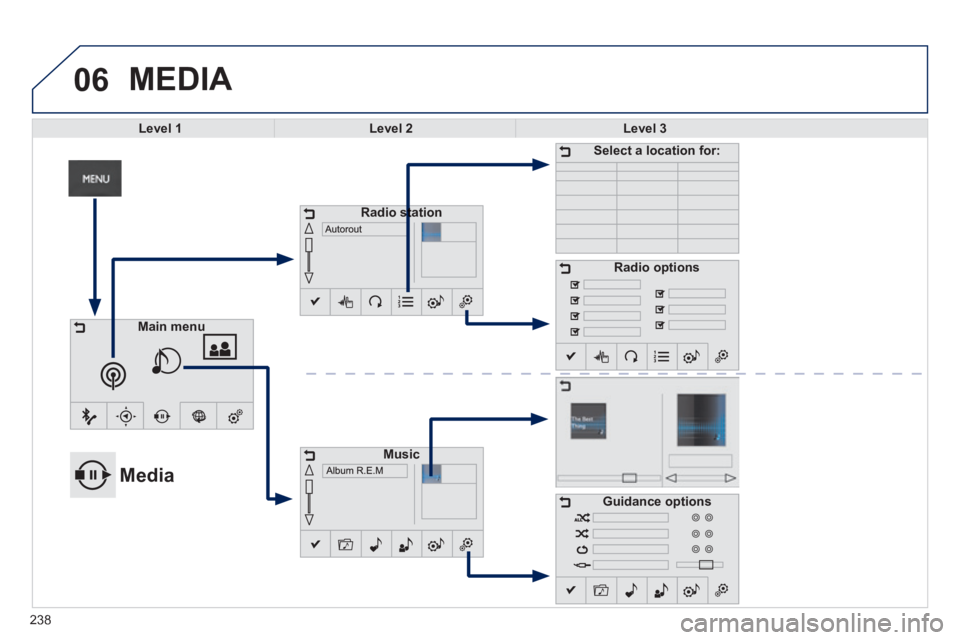

MEDIA
Level 1Level 2Level 3
Radio stationRadio station
Music
Select a location for:
Radio options
Guidance options
Main menu
Media
