To replace a fuse, you must:
F u se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a
lways replace the failed fuse with a fuse
of the same rating (same colour); using
a different rating could cause faults (risk
of


f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a PEUGEOT dealer or a qualified workshop.
Professional repairers: for full information
on the fuses and relays, consult the wiring
information and diagrams available at a
PEUGEOT dealer. Before changing a fuse:
F
t
he vehicle must be immobilised with the
ignition off,
F
a
ll electrical consumers must be
switched

off,
F
i
dentify the failed fuse using the tables and
layout drawings in the following pages.
GoodFailed
PEUGEOT will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by PEUGEOT and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a PEUGEOT dealer or
a qualified workshop.
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a PEUGEOT dealer or a qualified
workshop. Tw e e z e r
9
Practical information

210
2008_en_Chap09_info-pratiques_ed01-2016
Fuse N°Rating Functions
F2 5 ADoor mirrors, headlamps, diagnostic socket.
F9 5 AAlarm.
F10 5 AIndependent telematic unit.
F11 5 AElectrochrome rear view mirror, additional heating, Active City
Brake.
F13 5 AHi-Fi amplifier, parking sensors, reversing camera.
F16 15 AFront 12 V socket.
F17 15 AAudio system (without touch screen).
F18 20 ATouch screen, radio (if touch screen).

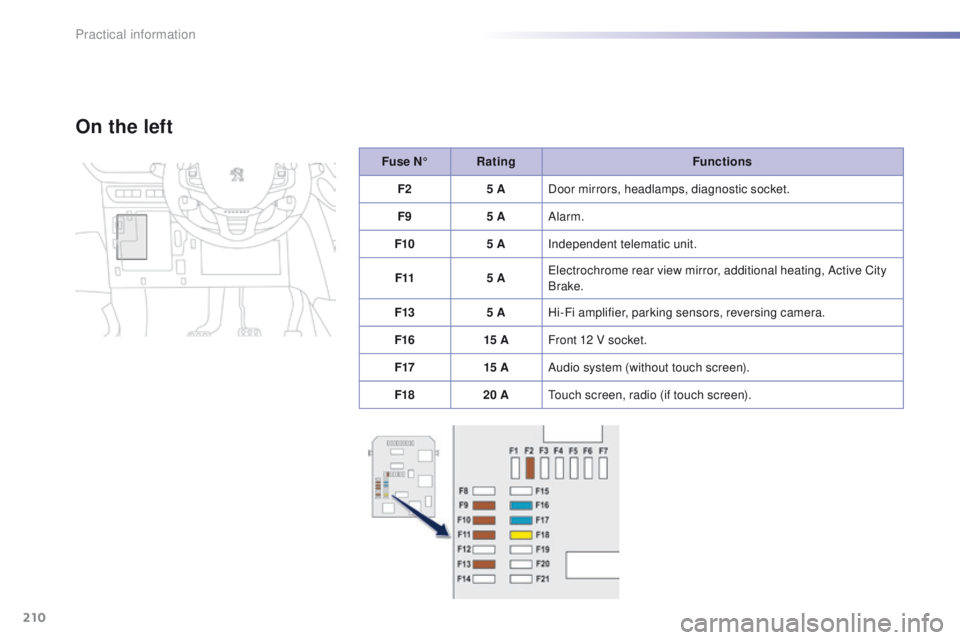

On the left
Practical information

211
2008_en_Chap09_info-pratiques_ed01-2016

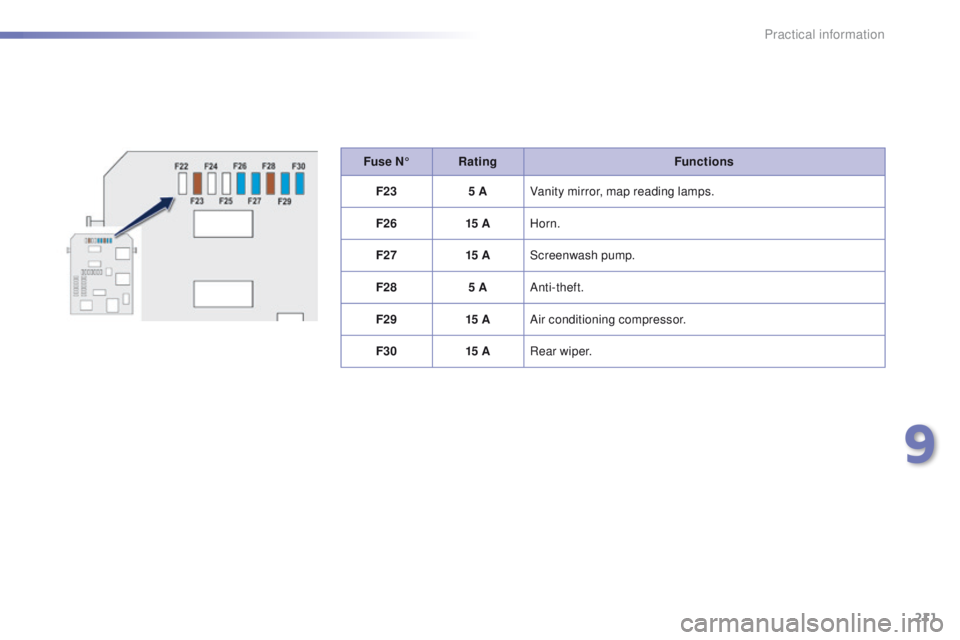

Fuse N°Rating Functions
F23 5 AVanity mirror, map reading lamps.
F26 15 AHorn.
F27 15 AScreenwash pump.
F28 5 AAnti-theft.
F29 15 AAir conditioning compressor.
F30 15 ARear wiper.
9
Practical information

212
2008_en_Chap09_info-pratiques_ed01-2016

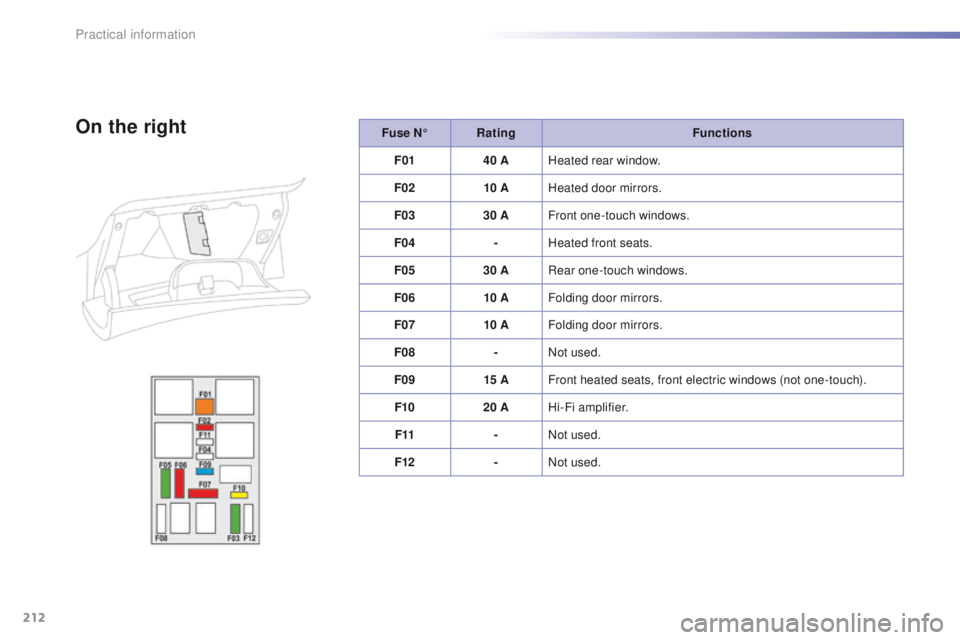

Fuse N°Rating Functions
F01 40 AHeated rear window.
F02 10 AHeated door mirrors.
F03 30 AFront one-touch windows.
F04 -Heated front seats.
F05 30 ARear one-touch windows.
F06 10 AFolding door mirrors.
F07 10 AFolding door mirrors.
F08 -Not used.
F09 15 AFront heated seats, front electric windows (not one-touch).
F10 20 AHi-Fi amplifier.
F11 -Not used.
F12 -Not used.On the right
Practical information

213
2008_en_Chap09_info-pratiques_ed01-2016
Fuse N°Rating Functions
F16 15 ADaytime running lamps.
F18 10 ARight hand main beam headlamp.
F19 10 ALeft hand main beam headlamp.
F25 30 AHeadlamp wash relay (accessory).
F29 40 AFront wiper motor.
F30 80 APre-heater plugs (Diesel).

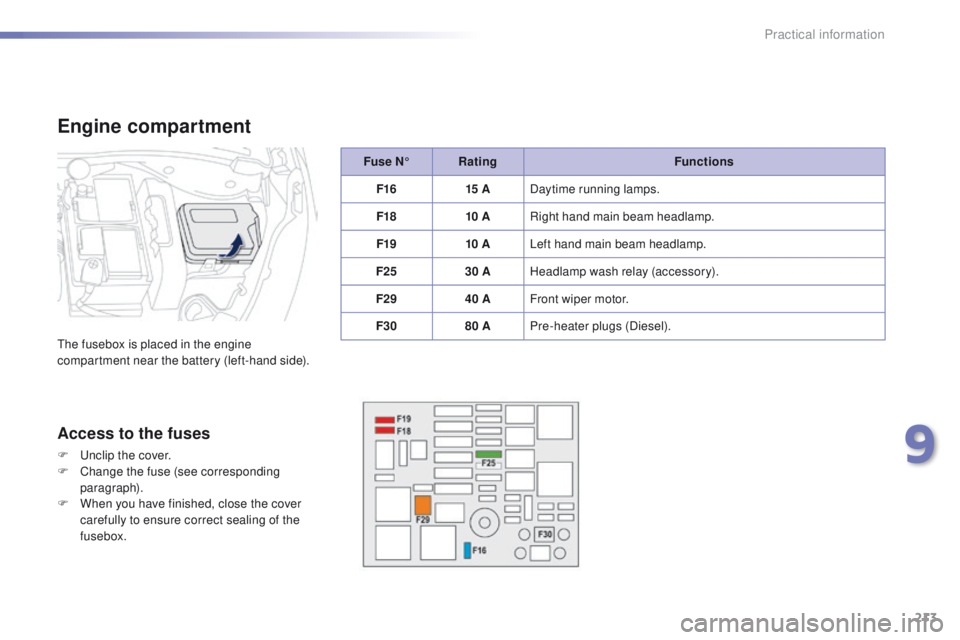

Engine compartment
The fusebox is placed in the engine
compartment near the battery (left-hand side).
Access to the fuses
F Unclip the cover.
F
C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
9
Practical information

214
2008_en_Chap09_info-pratiques_ed01-2016

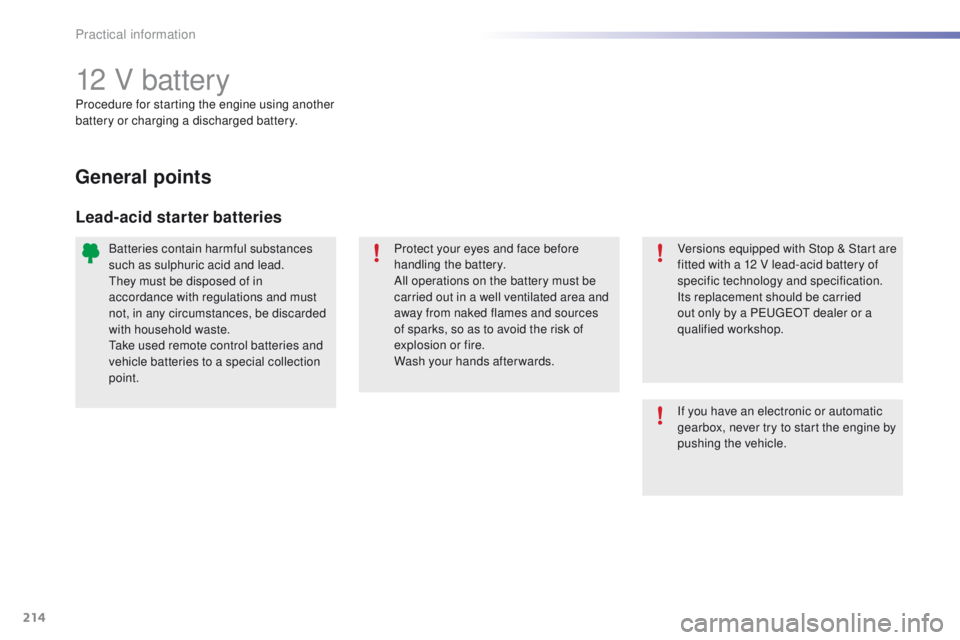

12 V battery
Procedure for starting the engine using another
battery or charging a discharged battery.
General points
Lead-acid starter batteries
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of
specific technology and specification.
Its replacement should be carried
out only by a PEUGEOT dealer or a
qualified workshop.
If you have an electronic or automatic
gearbox, never try to start the engine by
pushing the vehicle.
Batteries contain harmful substances
such as sulphuric acid and lead.
They must be disposed of in
accordance with regulations and must
not, in any circumstances, be discarded
with household waste.
Take used remote control batteries and
vehicle batteries to a special collection
point.
Protect your eyes and face before
handling the battery.
All operations on the battery must be
carried out in a well ventilated area and
away from naked flames and sources
of sparks, so as to avoid the risk of
explosion or fire.
Wash your hands afterwards.
Practical information

215
2008_en_Chap09_info-pratiques_ed01-2016
Some functions, including Stop & Start,
are not available if the battery is not
sufficiently charged.

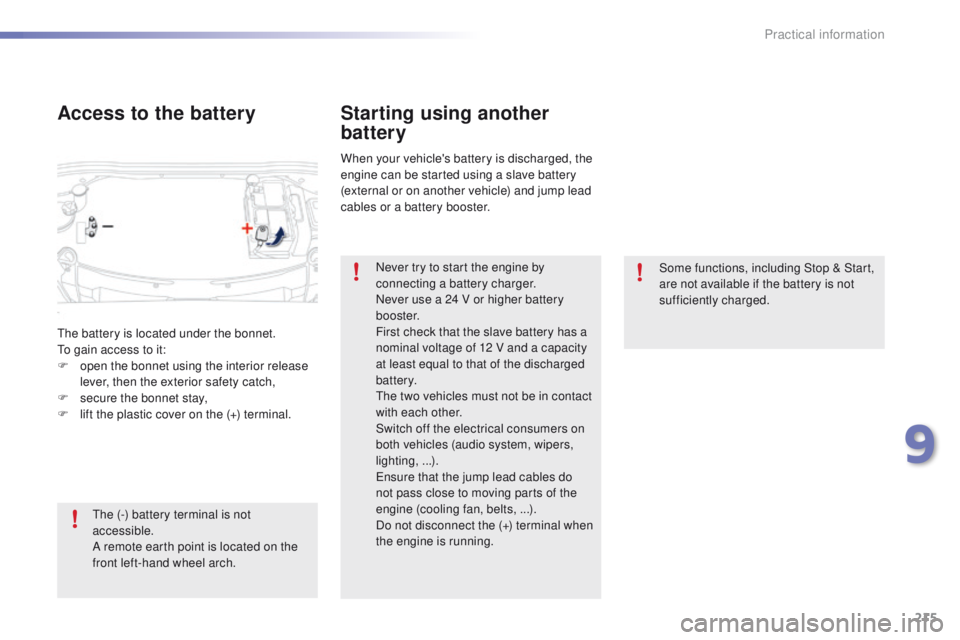

Starting using another
battery
When your vehicle's battery is discharged, the
engine can be started using a slave battery
(external or on another vehicle) and jump lead
cables or a battery booster.Never try to start the engine by
connecting a battery charger.
Never use a 24 V or higher battery
b o o s t e r.
First check that the slave battery has a
nominal voltage of 12 V and a capacity
at least equal to that of the discharged
battery.
The two vehicles must not be in contact
with each other.
Switch off the electrical consumers on
both vehicles (audio system, wipers,
lighting, ...).
Ensure that the jump lead cables do
not pass close to moving parts of the
engine (cooling fan, belts, ...).
Do not disconnect the (+) terminal when
the engine is running.
The battery is located under the bonnet.
To gain access to it:
F

o

pen the bonnet using the interior release
lever, then the exterior safety catch,
F

s

ecure the bonnet stay,
F

l

ift the plastic cover on the (+) terminal.
Access to the battery
The (-) battery terminal is not
accessible.
A remote earth point is located on the
front left-hand wheel arch.
9
Practical information

216
2008_en_Chap09_info-pratiques_ed01-2016
F Raise the plastic cover on the (+) terminal, if your vehicle has one.
F

C
onnect the red cable to the positive
terminal (+) of the flat battery A (at
the metal elbow) then to the positive
terminal
(+) of the slave battery B or the
b o o s t e r.
F

C
onnect one end of the green or black
cable to the negative terminal (-) of the
slave battery B or the booster (or earth
point on the other vehicle).
F

C
onnect the other end of the green or black
cable to the earth point C on the broken
down vehicle. F

S
tart the engine of the vehicle with the
good battery and leave it running for a
few

minutes.
F
O
perate the starter on the broken down
vehicle and let the engine run.
If the engine does not start straight away,
switch off the ignition and wait a few moments
before trying again.
F
W
ait until the engine returns to idle then
disconnect the jump lead cables in the
reverse order.
F R efit the plastic cover to the (+) terminal, if
your vehicle has one.
F

A
llow the engine to run for at least
30
minutes, by driving or with the vehicle
stationary, so that the battery reaches an
adequate state of charge.

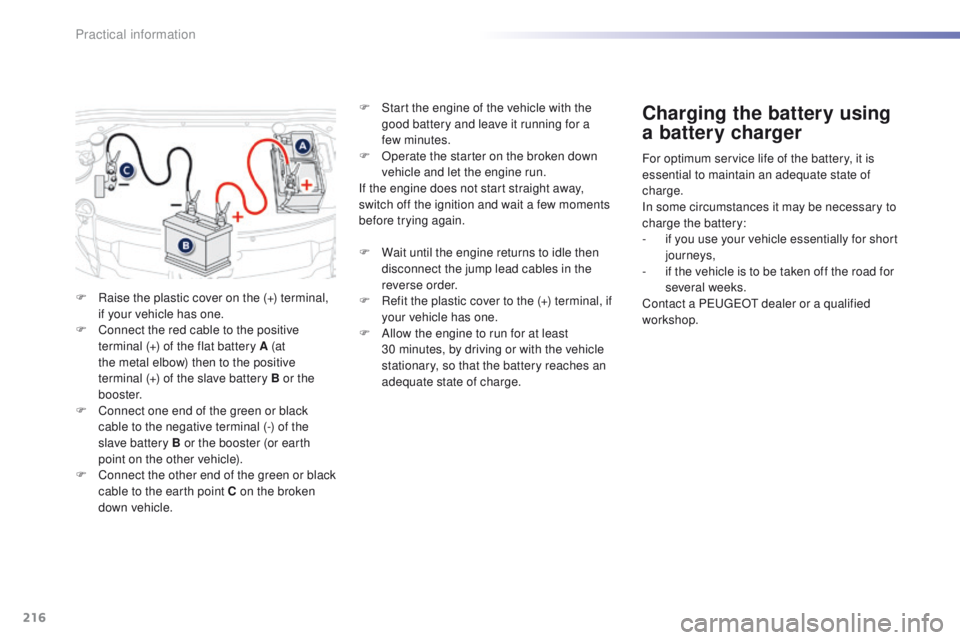

Charging the battery using
a battery charger
For optimum service life of the battery, it is
essential to maintain an adequate state of
charge.
In some circumstances it may be necessary to
charge the battery:
-

i
f you use your vehicle essentially for short
journeys,
-

i
f the vehicle is to be taken off the road for
several weeks.
Contact a PEUGEOT dealer or a qualified
workshop.
Practical information

217
2008_en_Chap09_info-pratiques_ed01-2016
Follow the instructions for use provided
by the manufacturer of the charger.
Never reverse polarities.
It is not necessary to disconnect the
battery.F

S
witch off the ignition.
F
S
witch off all electrical consumers (audio
system, lighting, wipers, ...).
F
S
witch off the charger B before connecting
the cables to the battery, so as to avoid any
dangerous sparks.
F
E
nsure that the charger cables are in good
condition.
F R aise the plastic cover, if your vehicle has
one, on the (+) terminal.
F

C
onnect the charger B cables as follows:
-

t
he positive (+) red cable to the (+)
terminal of the battery A ,
-

t
he negative (-) black cable to the earth
point C on the vehicle.
F

A
t the end of the charging operation, switch
off the charger B before disconnecting the
cables from the battery A .

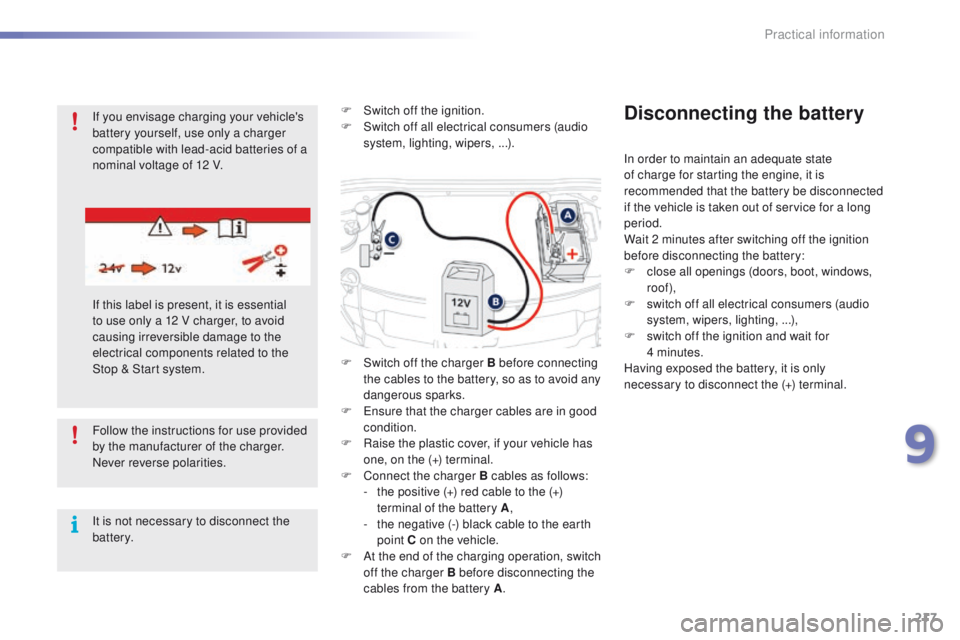

Disconnecting the battery
In order to maintain an adequate state
of charge for starting the engine, it is
recommended that the battery be disconnected
if the vehicle is taken out of service for a long
period.
Wait 2 minutes after switching off the ignition
before disconnecting the battery:
F

c
lose all openings (doors, boot, windows,
roof),
F

s
witch off all electrical consumers (audio
system, wipers, lighting, ...),
F

s
witch off the ignition and wait for
4


minutes.
Having exposed the battery, it is only
necessary to disconnect the (+) terminal.
If you envisage charging your vehicle's
battery yourself, use only a charger
compatible with lead-acid batteries of a
nominal voltage of 12 V.
If this label is present, it is essential
to use only a 12 V charger, to avoid
causing irreversible damage to the
electrical components related to the
Stop & Start system.
9
Practical information

218
2008_en_Chap09_info-pratiques_ed01-2016
Never try to charge a frozen battery.
If the battery has been frozen, have it
checked by a PEUGEOT dealer or a
qualified workshop, who will check that
the internal components have not been
damaged and the casing is not cracked,
which could cause a leak of toxic and
corrosive acid.The Stop & Start system may not be
operational during the trip following the
first engine start.
In this case, the system will only be
available again after a continuous
period of immobilisation of the vehicle,
a period which depends on the ambient
temperature and the state of charge of
the battery (up to about 8 hours).

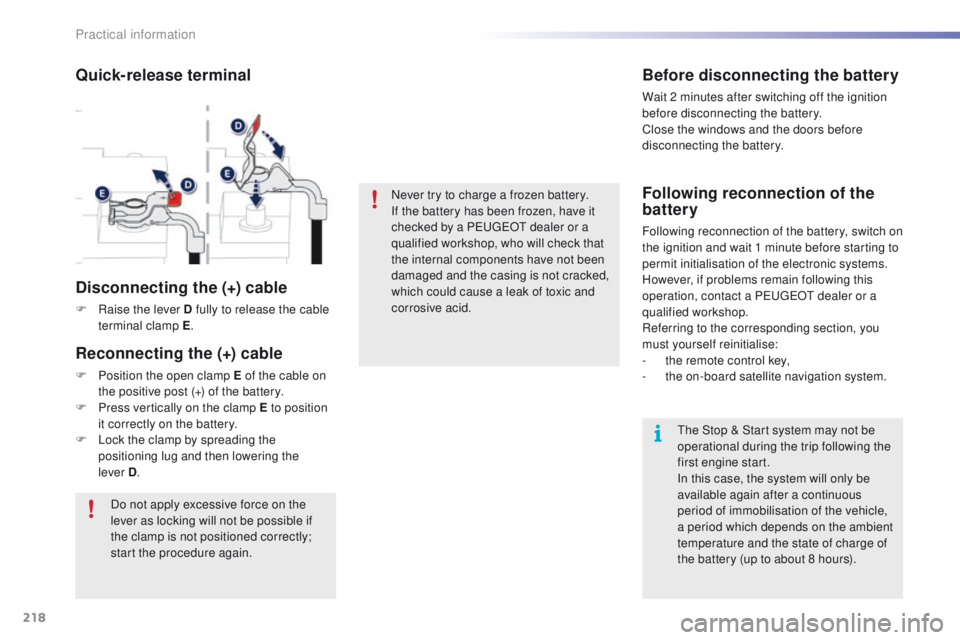

Quick-release terminal
Disconnecting the (+) cable
F Raise the lever D fully to release the cable terminal clamp E .
Do not apply excessive force on the
lever as locking will not be possible if
the clamp is not positioned correctly;
start the procedure again.
Before disconnecting the battery
Wait 2 minutes after switching off the ignition
before disconnecting the battery.
Close the windows and the doors before
disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the battery, switch on
the ignition and wait 1 minute before starting to
permit initialisation of the electronic systems.
However, if problems remain following this
operation, contact a PEUGEOT dealer or a
qualified workshop.
Referring to the corresponding section, you
must yourself reinitialise:
-
t
he remote control key,
-

t
he on-board satellite navigation system.
Reconnecting the (+) cable
F Position the open clamp E of the cable on the positive post (+) of the battery.
F

P
ress vertically on the clamp E to position
it correctly on the battery.
F

L
ock the clamp by spreading the
positioning lug and then lowering the
lever


D.
Practical information
