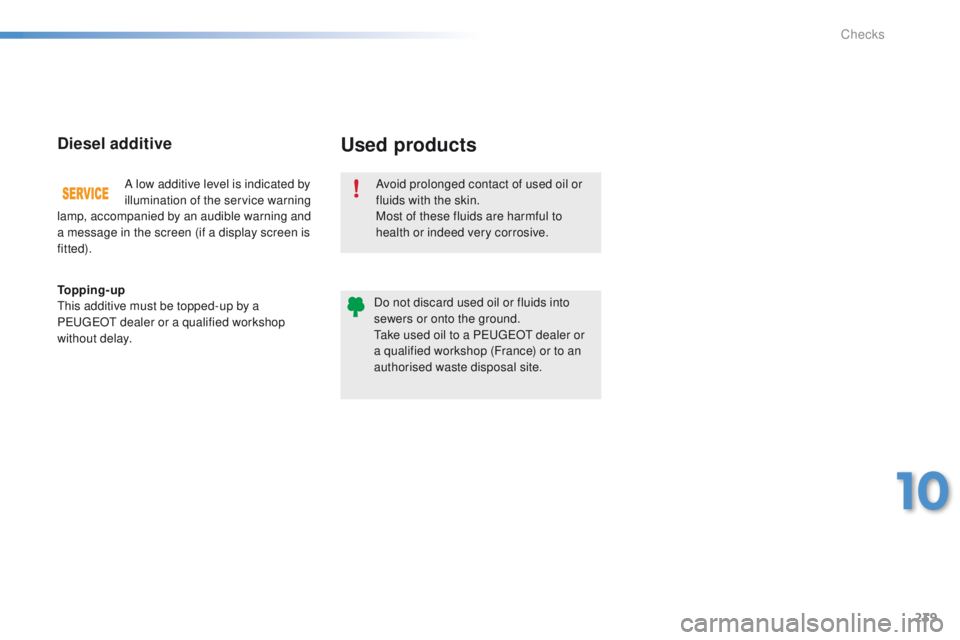

Avoid prolonged contact of used oil or
fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids into
sewers or onto the ground.
Take used oil to a PEUGEOT dealer or
a qualified workshop (France) or to an
authorised waste disposal site.
Used products
To p p i n g - u p
This additive must be topped-up by a
PEUGEOT dealer or a qualified workshop
without delay.
Diesel additive
A low additive level is indicated by
illumination of the service warning
lamp, accompanied by an audible warning and
a message in the screen (if a display screen is
fitted).
10
Checks

240
2008_en_Chap10_verifications_ed01-2016

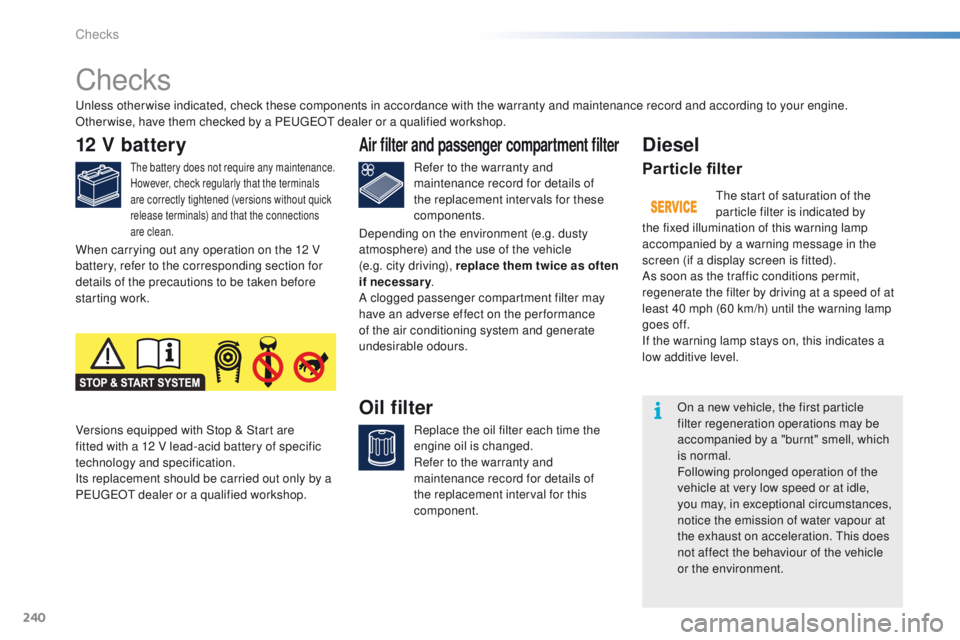

Checks
12 V battery
The battery does not require any maintenance.
However, check regularly that the terminals
are correctly tightened (versions without quick
release terminals) and that the connections
are clean.
Versions equipped with Stop & Start are
fitted with a 12 V lead-acid battery of specific
technology and specification.
Its replacement should be carried out only by a
PEUGEOT dealer or a qualified workshop.
Diesel
Particle filter
On a new vehicle, the first particle
filter regeneration operations may be
accompanied by a "burnt" smell, which
is normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstances,
notice the emission of water vapour at
the exhaust on acceleration. This does
not affect the behaviour of the vehicle
or the environment.
Unless other wise indicated, check these components in accordance with the warranty and maintenance record and according to your engine.
Other wise, have them checked by a PEUGEOT dealer or a qualified workshop.
Air filter and passenger compartment filter
Refer to the warranty and
maintenance record for details of
the replacement intervals for these
components.
Oil filter
Replace the oil filter each time the
engine oil is changed.
Refer to the warranty and
maintenance record for details of
the replacement interval for this
component.
When carrying out any operation on the 12 V
battery, refer to the corresponding section for
details of the precautions to be taken before
starting work.
Depending on the environment (e.g. dusty
atmosphere) and the use of the vehicle
(e.g. city driving), replace them twice as often
if necessary
.
A clogged passenger compartment filter may
have an adverse effect on the per formance
of the air conditioning system and generate
undesirable odours. The start of saturation of the
particle filter is indicated by
the fixed illumination of this warning lamp
accompanied by a warning message in the
screen (if a display screen is fitted).
As soon as the traffic conditions permit,
regenerate the filter by driving at a speed of at
least 40 mph (60 km/h) until the warning lamp
goes off.
If the warning lamp stays on, this indicates a
low additive level.
Checks

241
2008_en_Chap10_verifications_ed01-2016

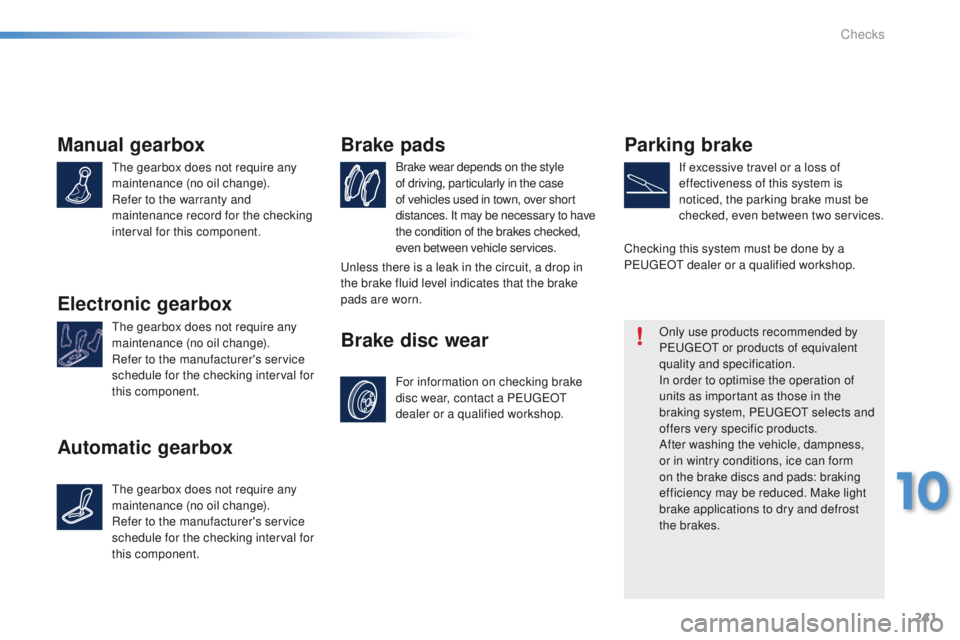

Manual gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the warranty and
maintenance record for the checking
interval for this component.
Electronic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.
Automatic gearbox
The gearbox does not require any
maintenance (no oil change).
Refer to the manufacturer's service
schedule for the checking interval for
this component.Brake wear depends on the style
of driving, particularly in the case
of vehicles used in town, over short
distances. It may be necessary to have
the condition of the brakes checked,
even between vehicle services.
Brake pads
For information on checking brake
disc wear, contact a PEUGEOT
dealer or a qualified workshop.
Brake disc wear
Parking brake
If excessive travel or a loss of
effectiveness of this system is
noticed, the parking brake must be
checked, even between two services.
Only use products recommended by
PEUGEOT or products of equivalent
quality and specification.
In order to optimise the operation of
units as important as those in the
braking system, PEUGEOT selects and
offers very specific products.
After washing the vehicle, dampness,
or in wintry conditions, ice can form
on the brake discs and pads: braking
efficiency may be reduced. Make light
brake applications to dry and defrost
the brakes.
Checking this system must be done by a
PEUGEOT dealer or a qualified workshop.
Unless there is a leak in the circuit, a drop in
the brake fluid level indicates that the brake
pads are worn.
10
Checks

242
2008_en_Chap11_caracteristiques-techniques_ed01-2016

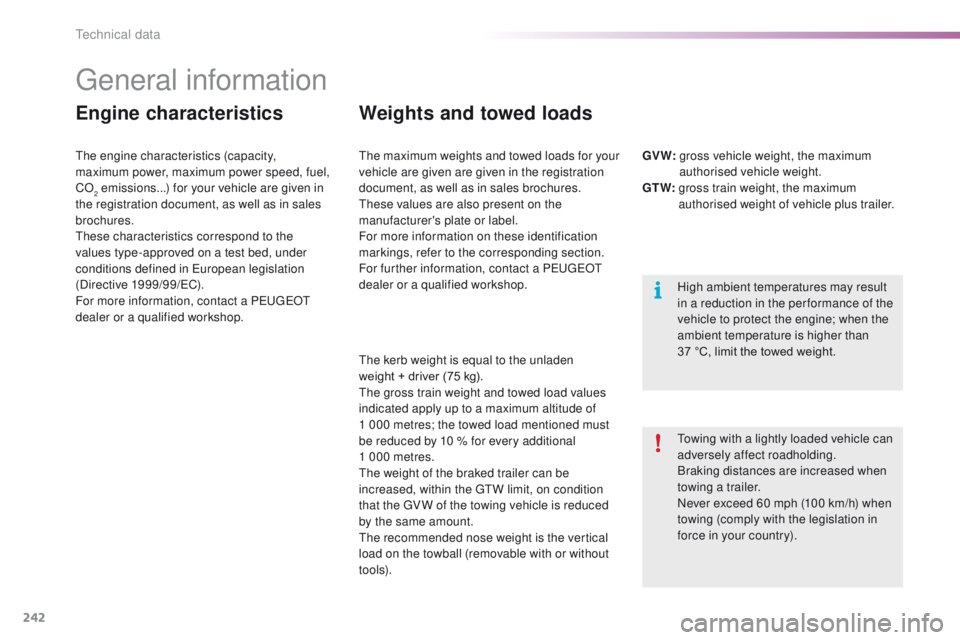

General information
Towing with a lightly loaded vehicle can
adversely affect roadholding.
Braking distances are increased when
towing a trailer.
Never exceed 60 mph (100 km/h) when
towing (comply with the legislation in
force in your country). High ambient temperatures may result
in a reduction in the per formance of the
vehicle to protect the engine; when the
ambient temperature is higher than
37 °C, limit the towed weight.
Engine characteristics Weights and towed loads
The engine characteristics (capacity,
maximum power, maximum power speed, fuel,
CO
2 emissions...) for your vehicle are given in
t
he registration document, as well as in sales
brochures.
These characteristics correspond to the
values type-approved on a test bed, under
conditions defined in European legislation
(Directive


1999/99/EC).
For more information, contact a PEUGEOT
dealer or a qualified workshop. The maximum weights and towed loads for your
vehicle are given are given in the registration
document, as well as in sales brochures.
These values are also present on the
manufacturer's plate or label.
For more information on these identification
markings, refer to the corresponding section.
For further information, contact a PEUGEOT
dealer or a qualified workshop.
The kerb weight is equal to the unladen
weight
+ driver (75 kg).
The gross train weight and towed load values
indicated apply up to a maximum altitude of
1 000 metres; the towed load mentioned must
be reduced by 10 % for every additional
1 000 metres.
The weight of the braked trailer can be
increased, within the GTW limit, on condition
that the GV W of the towing vehicle is reduced
by the same amount.
The recommended nose weight is the vertical
load on the towball (removable with or without
to o l s). GV W:

g
ross vehicle weight, the maximum
authorised vehicle weight.
GT W: g ross train weight, the maximum
authorised weight of vehicle plus trailer.
Technical data

243
2008_en_Chap11_caracteristiques-techniques_ed01-2016

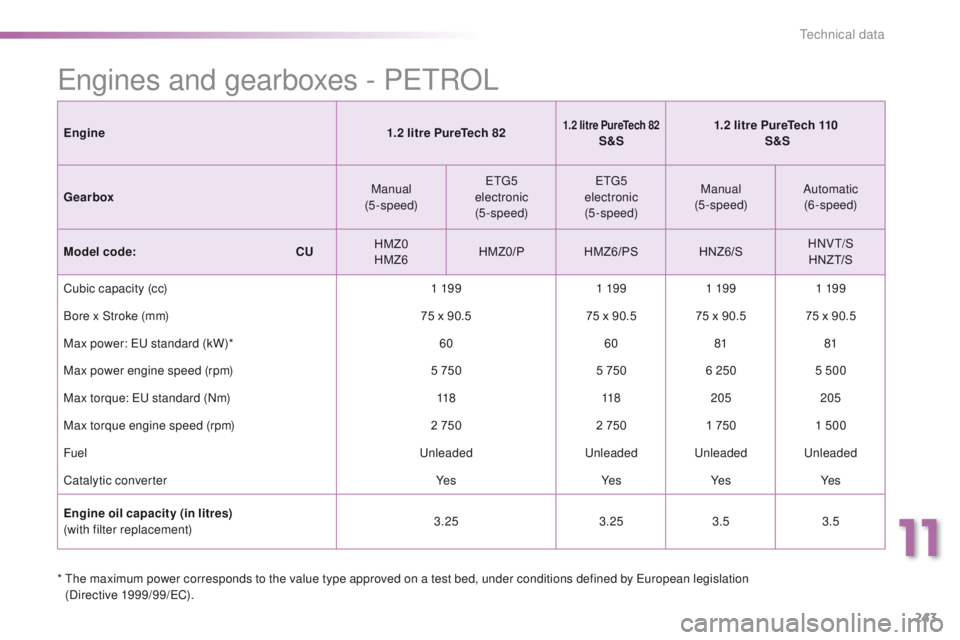

Engines and gearboxes - PETROL
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
Engine
1.2 litre PureTech 82
1.2 litre PureTech 82S&S1.
2 litre PureTech 110
S&S
Gearbox Manual
(5-speed) ETG5
electronic (5-speed) ETG5
electronic (5-speed) Manual
(5-speed) Automatic
(6-speed)
Model code:

C

U HMZ0
HMZ6 HMZ0/P
HMZ6/PS HNZ6/SH N V T/S
H NZ T/S
Cubic capacity (cc) 1 19 91 19 91 19 91 19 9
Bore x Stroke (mm) 75 x 90.575 x 90.5 75 x 90.5 75 x 90.5
Max power: EU standard (kW)* 60608181
Max power engine speed (rpm) 5 7505 7506 2505 500
Max torque: EU standard (Nm) 118118205 205
Max torque engine speed (rpm) 2 7502 7501 7501 500
Fuel UnleadedUnleaded Unleaded Unleaded
Catalytic converter Ye sYe sYe sYe s
Engine oil capacity (in litres)
(with filter replacement) 3.25
3.253.53.5
11
Technical data

244
2008_en_Chap11_caracteristiques-techniques_ed01-2016

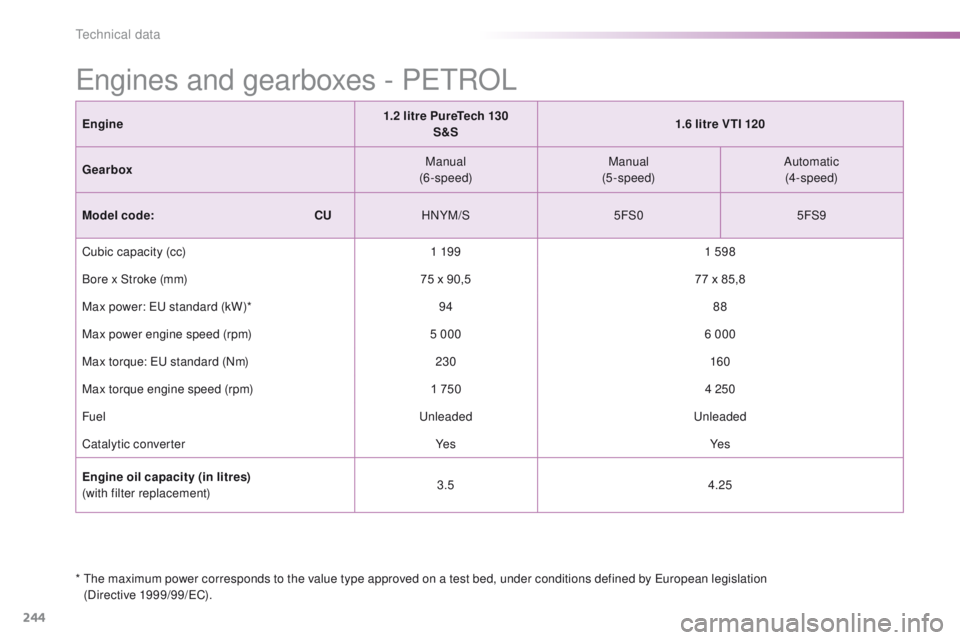

Engine1.2 litre PureTech 130
S&S 1.6 litre VTI 120
Gearbox Manual
(6-speed) Manual
(5-speed) Automatic
(4-speed)
Model code:

C

UHNYM/S 5FS05FS9
Cubic capacity (cc) 1 19 91 598
Bore x Stroke (mm) 75 x 90,577 x 85,8
Max power: EU standard (kW)* 9488
Max power engine speed (rpm) 5 0006 000
Max torque: EU standard (Nm) 230160
Max torque engine speed (rpm) 1 7504 250
Fuel UnleadedUnleaded
Catalytic converter Ye sYe s
Engine oil capacity (in litres)
(with filter replacement) 3.5
4.25
Engines and gearboxes - PETROL
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation
(Directive 1999/99/EC).
Technical data

245
2008_en_Chap11_caracteristiques-techniques_ed01-2016
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.

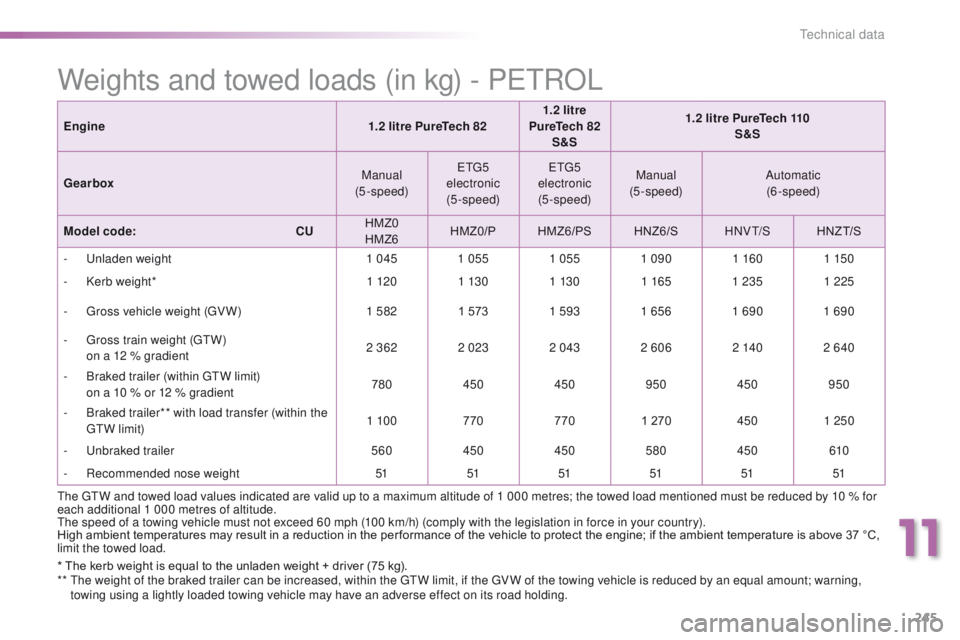

Weights and towed loads (in kg) - PETROL
Engine 1.2 litre PureTech 821.
2 litre
PureTech 82 S&S 1.2 litre PureTech 110
S&S
Gearbox Manual
(5-speed) ETG5
electronic (5-speed) ETG5
electronic (5-speed) Manual
(5-speed) Automatic
(6-speed)
Model code:

C

UHMZ0
HMZ6 HMZ0/P
HMZ6/PS HNZ6/SH N V T/S H NZ T/S
-

U
nladen weight 1 0451 055 1 055 1 0901 1601 150
-

K
erb weight* 1 1201 13 0 1 13 01 1651 235 1 225
-

G
ross vehicle weight (GV W) 1 5821 5731 593 1 656 1 690 1 690
-

G
ross train weight (GTW)
o

n a 12 % gradient 2 362
2 0232 043 2 606 2 1402 640
-

B
raked trailer (within GTW limit)
o

n a 10 % or 12 % gradient 780
450 450950 450950
-

B
raked trailer** with load transfer (within the
GTW limit) 1 10 0
7707701 270 4501 250
-
U

nbraked trailer 560450450580 450 610
-
R

ecommended nose weight 515151515151
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
11
Technical data

246
2008_en_Chap11_caracteristiques-techniques_ed01-2016

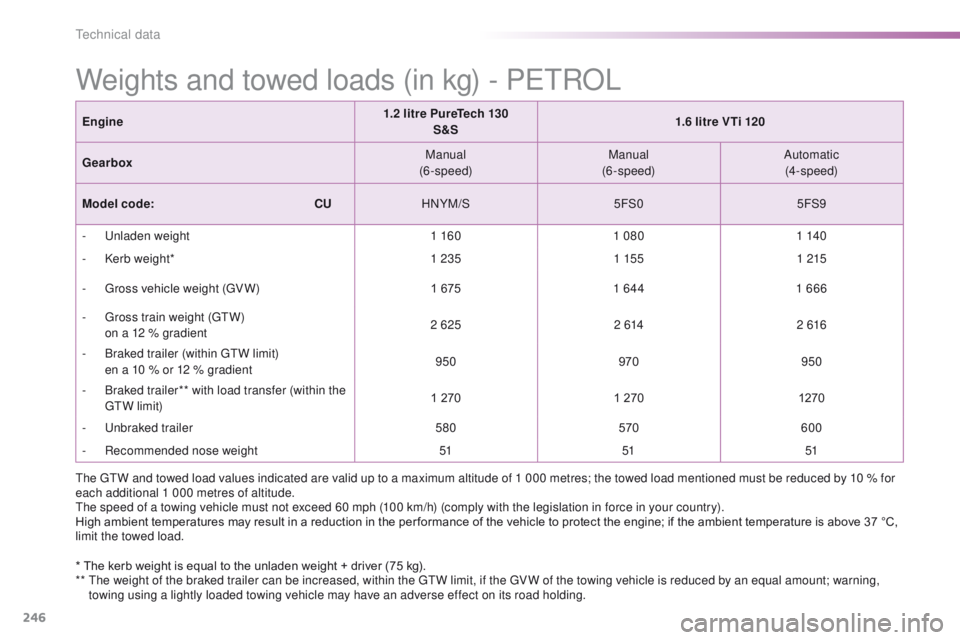

Weights and towed loads (in kg) - PETROL
Engine1.2 litre PureTech 130
S&S 1.6 litre VTi 120
Gearbox Manual
(6-speed) Manual
(6-speed) Automatic
(4-speed)
Model code:

C

UHNYM/S 5FS05FS9
-

U
nladen weight 1 1601 080 1 140
-

K
erb weight* 1 2351 1551 215
-

G
ross vehicle weight (GV W) 1 6751 644 1 666
-

G
ross train weight (GTW)
o

n a 12 % gradient 2 625
2 6142 616
-

B
raked trailer (within GTW limit)
e

n a 10 % or 12 % gradient 950
970950
-

B
raked trailer** with load transfer (within the
GTW limit) 1 270
1 270 1270
-
U

nbraked trailer 580570600
-
R

ecommended nose weight 515151
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
**

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Technical data

247
2008_en_Chap11_caracteristiques-techniques_ed01-2016
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).

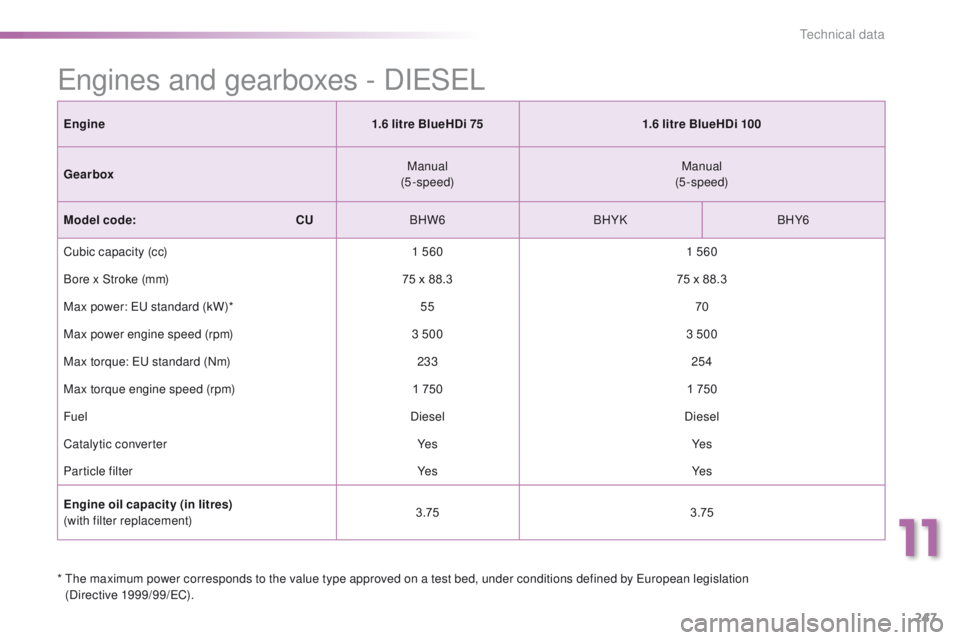

Engines and gearboxes - DIESEL
Engine 1.6 litre BlueHDi 751.6 litre BlueHDi 100
Gearbox Manual
(5-speed) Manual
(5-speed)
Model code:

C

UBHW6 BHYKBHY6
Cubic capacity (cc) 1 5601 560
Bore x Stroke (mm) 75 x 88.375 x 88.3
Max power: EU standard (kW)* 5570
Max power engine speed (rpm) 3 5003 500
Max torque: EU standard (Nm) 233254
Max torque engine speed (rpm) 1 7501 750
Fuel DieselDiesel
Catalytic converter Ye sYe s
Particle filter Ye sYe s
Engine oil capacity (in litres)
(with filter replacement) 3.75
3.75
11
Technical data

248
2008_en_Chap11_caracteristiques-techniques_ed01-2016
* The maximum power corresponds to the value type approved on a test bed, under conditions defined by European legislation (Directive 1999/99/EC).
** For BELGIUM.

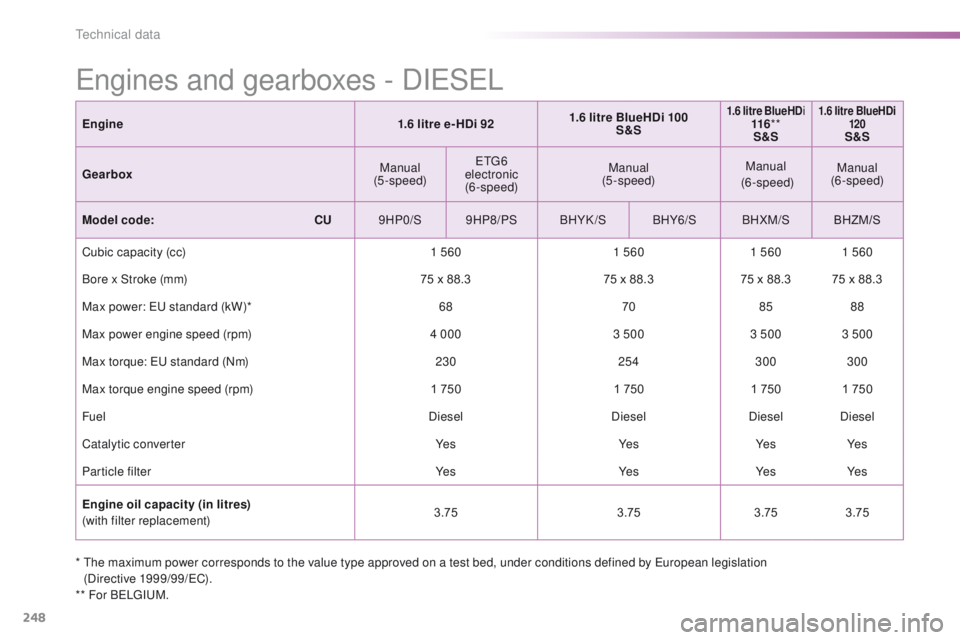

Engines and gearboxes - DIESEL
Engine 1.6 litre e- HDi 921.6 litre BlueHDi 100
S&S1.6 litre BlueHD i
116 **
S&S1.6 litre BlueHDi 120
S&S
Gearbox Manual
(5-speed) ETG6
electronic (6-speed) Manual
(5-speed) Manual
(6-speed) Manual
(6-speed)
Model code:

C

U 9HP0/S 9HP8/PS BHYK /SBHY6/SBHXM/S BHZM/S
Cubic capacity (cc) 1 5601 5601 560 1 560
Bore x Stroke (mm) 75 x 88.375 x 88.375 x 88.3 75 x 88.3
Max power: EU standard (kW)* 68708588
Max power engine speed (rpm) 4 0003 5003 500 3 500
Max torque: EU standard (Nm) 230254300300
Max torque engine speed (rpm) 1 7501 7501 7501 750
Fuel DieselDieselDiesel Diesel
Catalytic converter Ye sYe sYe sYe s
Particle filter Ye sYe sYe sYe s
Engine oil capacity (in litres)
(with filter replacement) 3.75
3.753.753.75
Technical data
