PEUGEOT 2008 2016 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2016, Model line: 2008, Model: PEUGEOT 2008 2016Pages: 450, PDF Size: 14.16 MB
Page 201 of 450

199
2008_en_Chap09_info-pratiques_ed01-2016

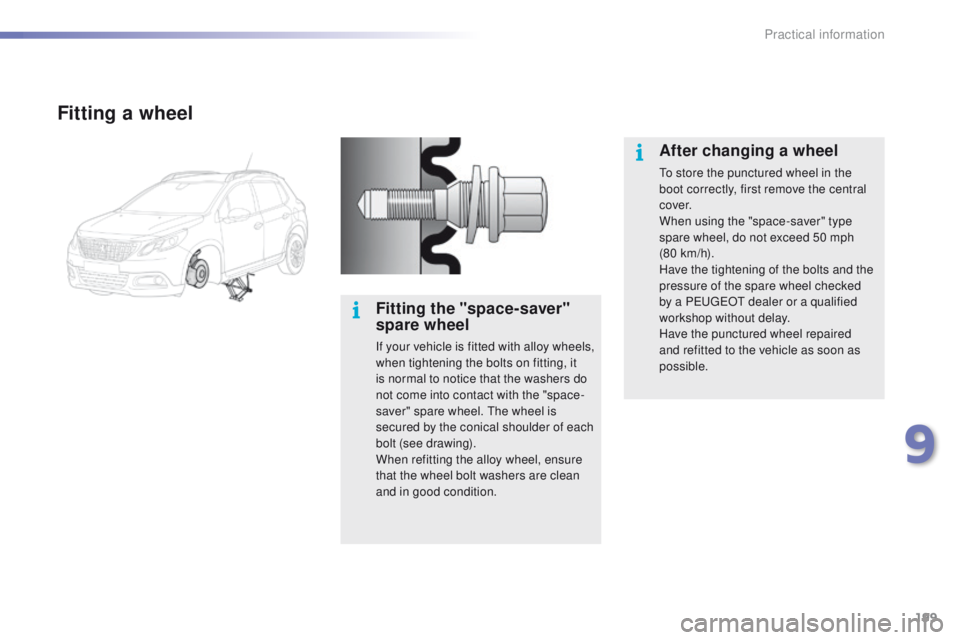

Fitting a wheel
Fitting the "space-saver"
spare wheel
If your vehicle is fitted with alloy wheels,
when tightening the bolts on fitting, it
is normal to notice that the washers do
not come into contact with the "space-
saver" spare wheel. The wheel is
secured by the conical shoulder of each
bolt (see drawing).
When refitting the alloy wheel, ensure
that the wheel bolt washers are clean
and in good condition.
After changing a wheel
To store the punctured wheel in the
boot correctly, first remove the central
c ove r.
When using the "space-saver" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and the
pressure of the spare wheel checked
by a PEUGEOT dealer or a qualified
workshop without delay.
Have the punctured wheel repaired
and refitted to the vehicle as soon as
possible.
9
Practical information
Page 202 of 450

200
2008_en_Chap09_info-pratiques_ed01-2016

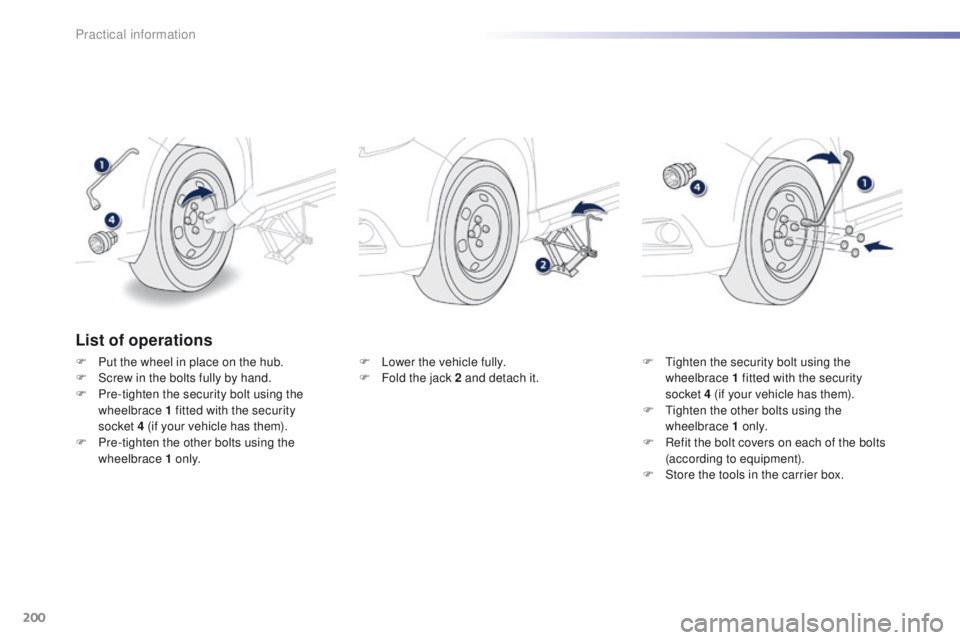

List of operations
F Put the wheel in place on the hub.
F S crew in the bolts fully by hand.
F
P
re-tighten the security bolt using the
wheelbrace 1 fitted with the security
socket
4 (if your vehicle has them).
F
P
re-tighten the other bolts using the
wheelbrace 1 o n l y. F
L ower the vehicle fully.
F F old the jack 2 and detach it.F
T ighten the security bolt using the
wheelbrace 1 fitted with the security
socket
4 (if your vehicle has them).
F
T
ighten the other bolts using the
wheelbrace 1 o n l y.
F
R
efit the bolt covers on each of the bolts
(according to equipment).
F
S
tore the tools in the carrier box.
Practical information
Page 203 of 450

201
2008_en_Chap09_info-pratiques_ed01-2016

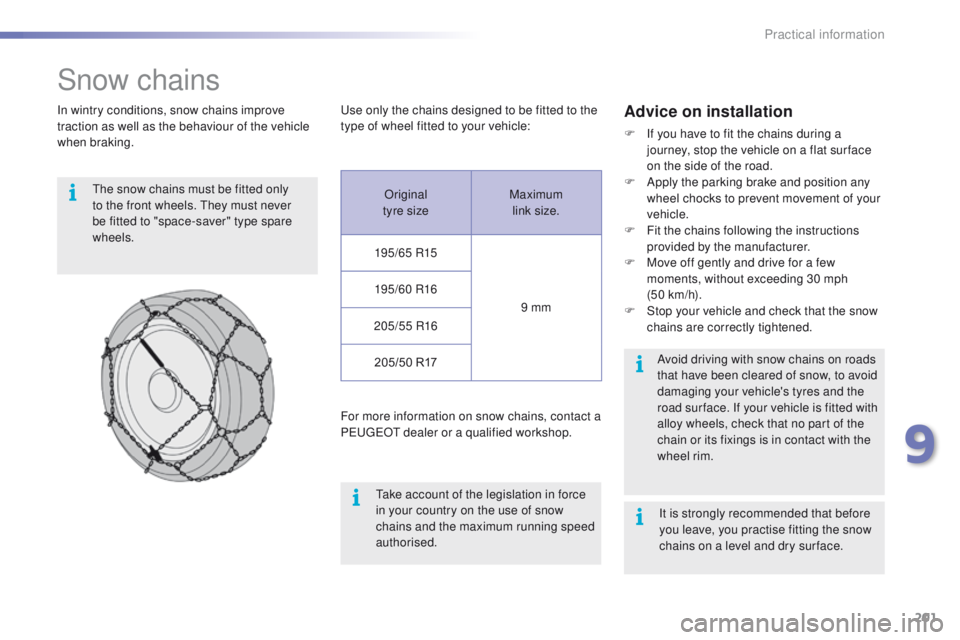

Snow chains
In wintry conditions, snow chains improve
traction as well as the behaviour of the vehicle
when braking.The snow chains must be fitted only
to the front wheels. They must never
be fitted to "space-saver" type spare
wheels.
Take account of the legislation in force
in your country on the use of snow
chains and the maximum running speed
authorised.
Use only the chains designed to be fitted to the
type of wheel fitted to your vehicle:
For more information on snow chains, contact a
PEUGEOT dealer or a qualified workshop.Advice on installation
F If you have to fit the chains during a
journey, stop the vehicle on a flat sur face
on the side of the road.
F
A
pply the parking brake and position any
wheel chocks to prevent movement of your
vehicle.
F
F
it the chains following the instructions
provided by the manufacturer.
F
M
ove off gently and drive for a few
moments, without exceeding 30 mph
(50
km/h).
F
S
top your vehicle and check that the snow
chains are correctly tightened.
Avoid driving with snow chains on roads
that have been cleared of snow, to avoid
damaging your vehicle's tyres and the
road sur face. If your vehicle is fitted with
alloy wheels, check that no part of the
chain or its fixings is in contact with the
wheel rim.
Original
tyre size Maximum
link size.
195/65 R15
9 mm
195/60 R16
205/55 R16 205/50 R17
It is strongly recommended that before
you leave, you practise fitting the snow
chains on a level and dry sur face.
9
Practical information
Page 204 of 450

202
2008_en_Chap09_info-pratiques_ed01-2016

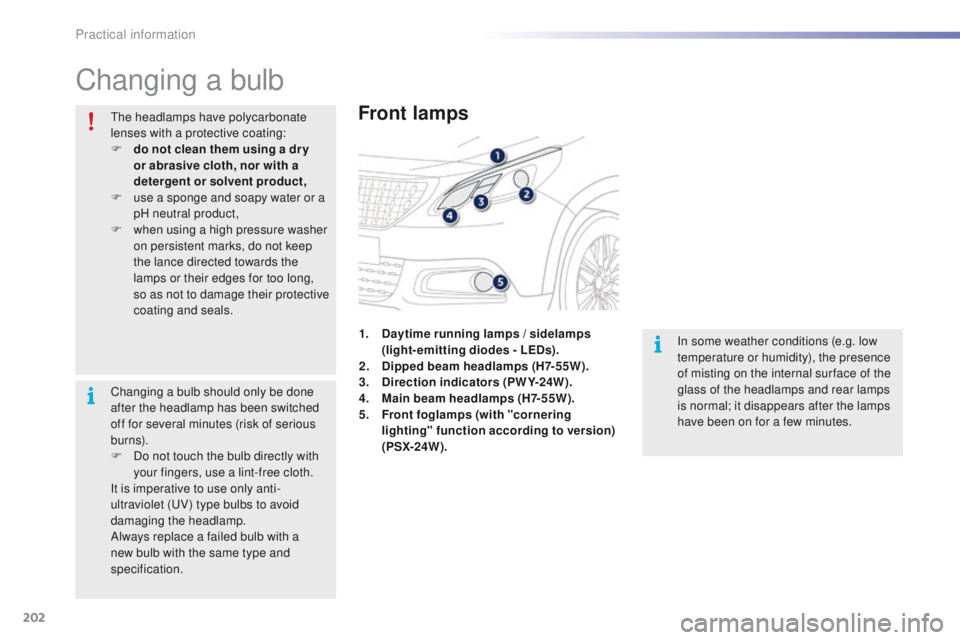

Changing a bulb
Front lamps
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps have polycarbonate
lenses with a protective coating:
F
d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F
u
se a sponge and soapy water or a
pH neutral product,
F
w
hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
1. D
aytime running lamps / sidelamps
(light -emitting diodes - LEDs).
2.
D
ipped beam headlamps (H7-55W).
3.
D
irection indicators (PWY-24W).
4.
M
ain beam headlamps (H7-55W).
5.
F
ront foglamps (with "cornering
lighting" function according to version)
(PSX-24W).
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F
D
o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification.
Practical information

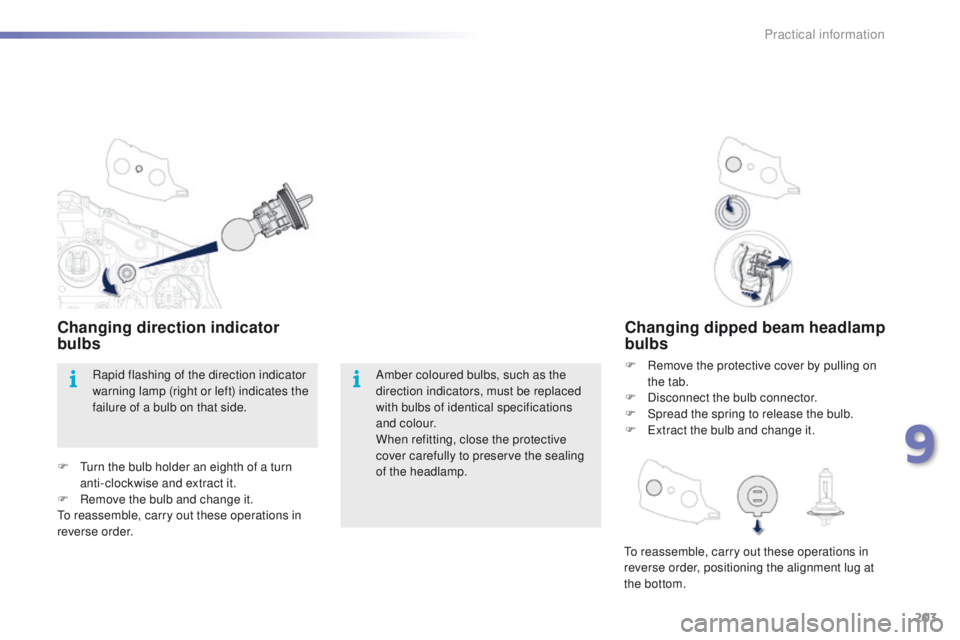

Page 205 of 450

203
2008_en_Chap09_info-pratiques_ed01-2016
Changing dipped beam headlamp
bulbs
F Remove the protective cover by pulling on the tab.
F
D
isconnect the bulb connector.
F
S
pread the spring to release the bulb.
F
E
xtract the bulb and change it.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.
Changing direction indicator
bulbs
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
F
T
urn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F
R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
9
Practical information
Page 206 of 450

204
2008_en_Chap09_info-pratiques_ed01-2016
Changing main beam headlamp bulbsDaytime running lamps /
sidelamps (light-emitting
diodes - LEDs)
For the replacement of this type of LED lamp,
contact a PEUGEOT dealer or a qualified
workshop.
To reassemble, carry out these operations in
reverse order, positioning the alignment lug at
the bottom.
F
R
emove the protective cover by pulling on
the tab.
F
D
isconnect the bulb connector.
F
P
ull out the bulb and replace it.
Practical information
Page 207 of 450

205
2008_en_Chap09_info-pratiques_ed01-2016

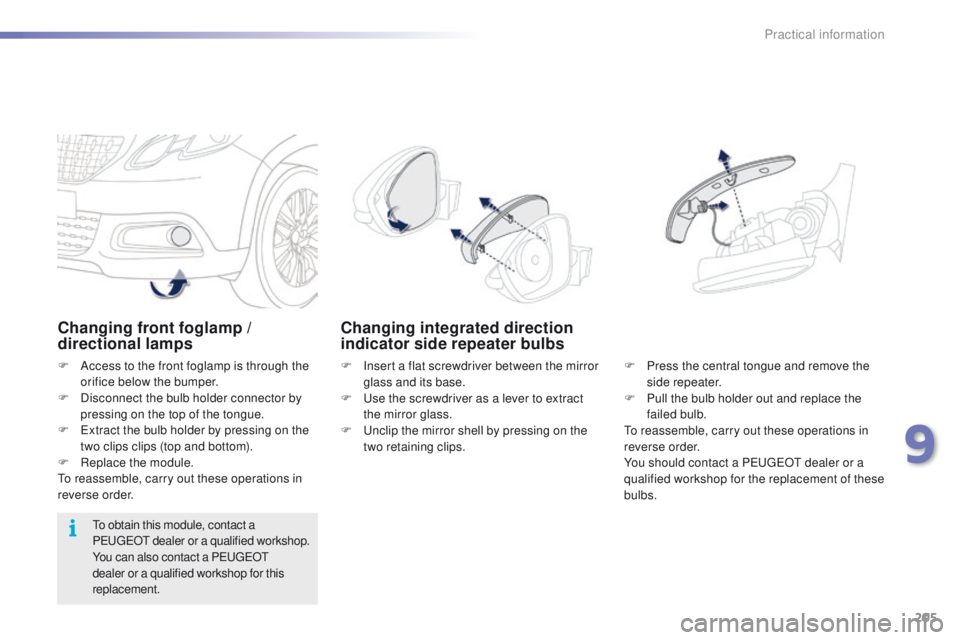

Changing front foglamp /
directional lamps
F Access to the front foglamp is through the orifice below the bumper.
F
D
isconnect the bulb holder connector by
pressing on the top of the tongue.
F
E
xtract the bulb holder by pressing on the
two clips clips (top and bottom).
F
R
eplace the module.
To reassemble, carry out these operations in
reverse order.
Changing integrated direction
indicator side repeater bulbs
F Press the central tongue and remove the side repeater.
F
P
ull the bulb holder out and replace the
failed bulb.
To reassemble, carry out these operations in
reverse order.
You should contact a PEUGEOT dealer or a
qualified workshop for the replacement of these
bulbs.
F
I
nsert a flat screwdriver between the mirror
glass and its base.
F
U
se the screwdriver as a lever to extract
the mirror glass.
F
U
nclip the mirror shell by pressing on the
two retaining clips.
To obtain this module, contact a
PEUGEOT dealer or a qualified workshop.
You can also contact a PEUGEOT
dealer or a qualified workshop for this
replacement.
9
Practical information
Page 208 of 450

206
2008_en_Chap09_info-pratiques_ed01-2016

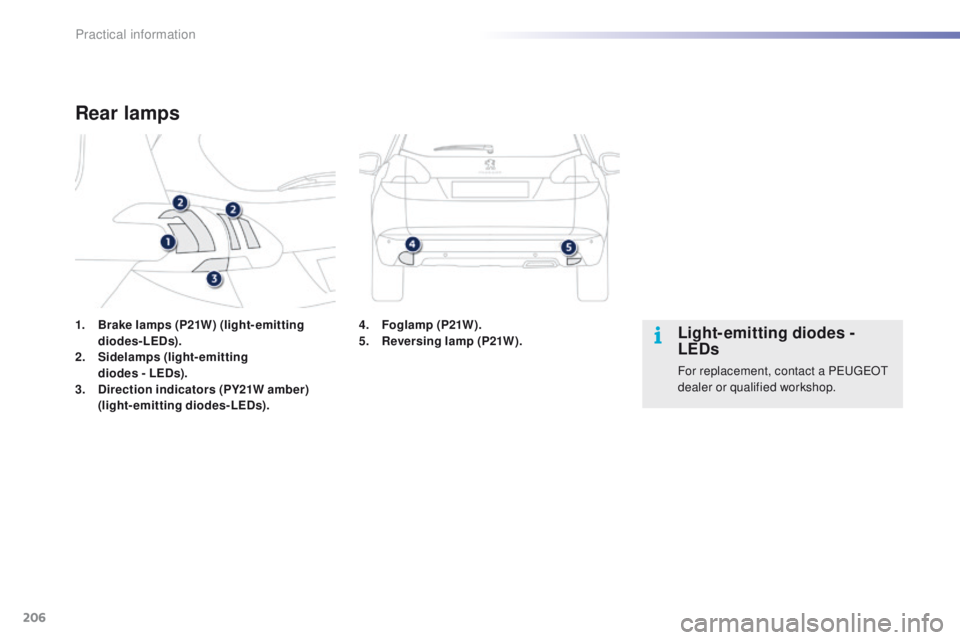

1. Brake lamps (P21W) (light- emitting diodes-LEDs).
2.
S
idelamps (light-emitting
diodes - LEDs).
3.
D
irection indicators (PY21W amber)
(light-emitting diodes-LEDs).
Rear lamps
Light-emitting diodes -
LEDs
For replacement, contact a PEUGEOT
dealer or qualified workshop.
4.
F
oglamp (P21W).
5.
R
eversing lamp (P21W).
Practical information
Page 209 of 450

207
2008_en_Chap09_info-pratiques_ed01-2016

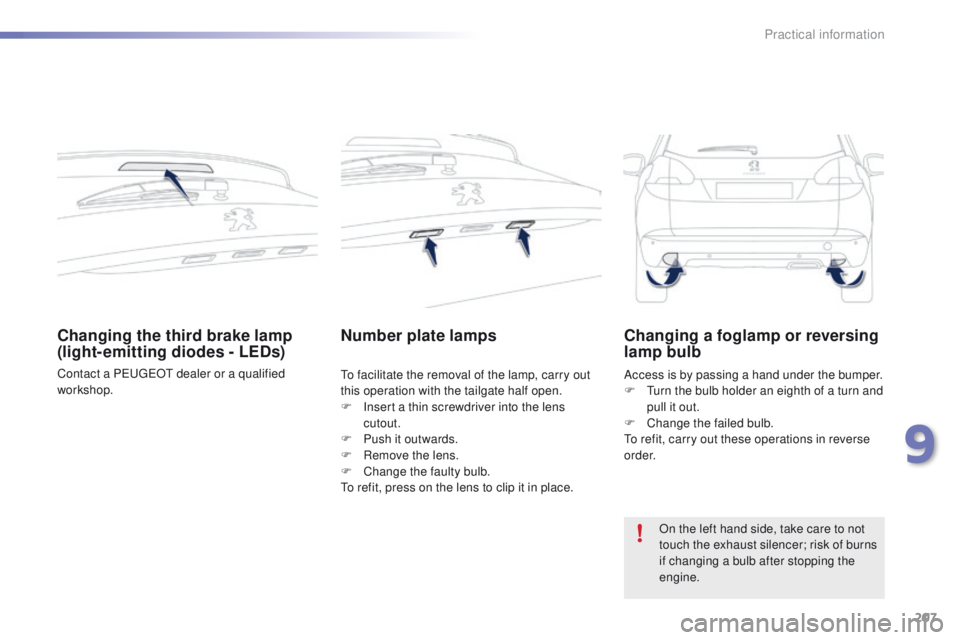

Changing the third brake lamp
(light- emitting diodes - LEDs)
Contact a PEUGEOT dealer or a qualified
workshop.
Number plate lamps
To facilitate the removal of the lamp, carry out
this operation with the tailgate half open.
F
I
nsert a thin screwdriver into the lens
cutout.
F
P
ush it outwards.
F
R
emove the lens.
F
C
hange the faulty bulb.
To refit, press on the lens to clip it in place. Access is by passing a hand under the bumper.
F
T urn the bulb holder an eighth of a turn and
pull it out.
F
C
hange the failed bulb.
To refit, carry out these operations in reverse
o r d e r.
Changing a foglamp or reversing
lamp bulb
On the left hand side, take care to not
touch the exhaust silencer; risk of burns
if changing a bulb after stopping the
engine.
9
Practical information
Page 210 of 450

208
2008_en_Chap09_info-pratiques_ed01-2016
Changing a fuse
The extraction tweezer is fitted to the back of the dashboard or glove box fusebox cover.
Access to tools
For the dashboard:
F U nclip the cover by pulling at the top left,
then right.
F
D
isengage the cover completely and turn it
ove r.
F
R
emove the carrier on which the tweezer is
fitted.
For the glove box:
F
O
pen the glove box lid.
F
U
nclip the fusebox cover by pulling at top
right.
F
D
isengage the cover fully and turn it over.
F
R
emove the back of the carrier on which
the tweezer is fitted.
