PEUGEOT 2008 2016 Owners Manual

249
2008_en_Chap11_caracteristiques-techniques_ed01-2016

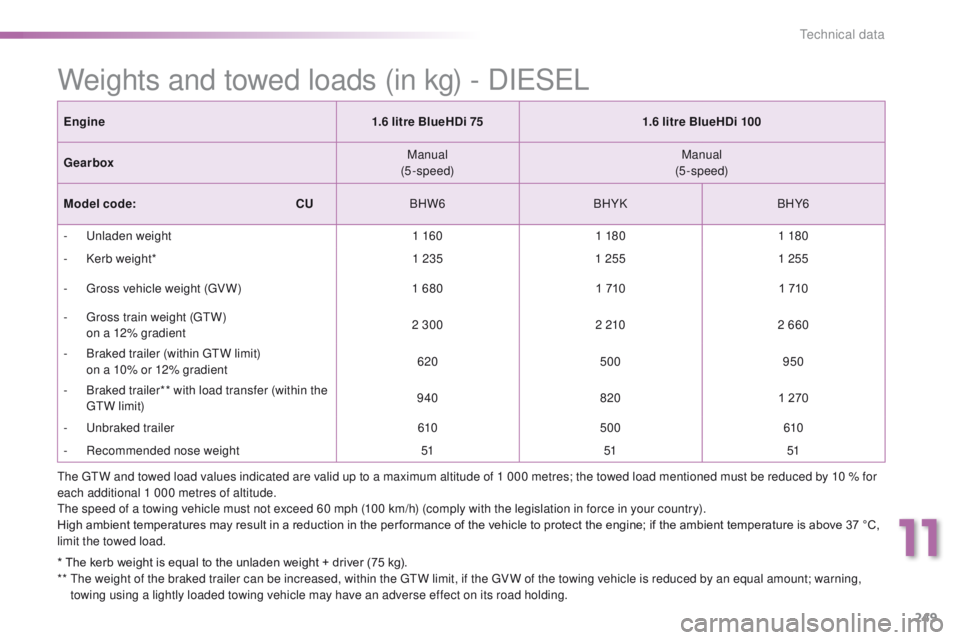

Weights and towed loads (in kg) - DIESEL
Engine1.6 litre BlueHDi 751.6 litre BlueHDi 100
Gearbox Manual
(5-speed) Manual
(5-speed)
Model code:

C

UBHW6 BHYKBHY6
-

U
nladen weight 1 1601 1801 180
-

K
erb weight* 1 2351 2551 255
-

G
ross vehicle weight (GV W) 1 6801 7101 710
-

G
ross train weight (GTW)
o

n a 12% gradient 2 300
2 2102 660
-

B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient 620
500 950
-

B
raked trailer** with load transfer (within the
GTW limit) 940
8201 270
-
U

nbraked trailer 610500 610
-
R

ecommended nose weight 515151
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
* The kerb weight is equal to the unladen weight + driver (75 kg).
**

T
he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
11
Technical data

250
2008_en_Chap11_caracteristiques-techniques_ed01-2016

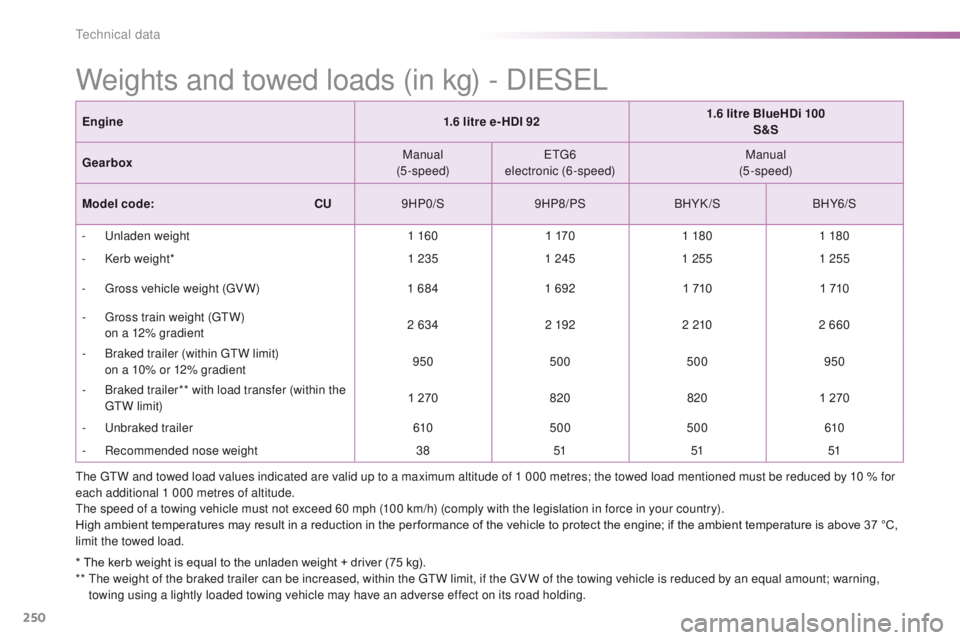

Weights and towed loads (in kg) - DIESEL
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
Engine
1.6 litre e- HDI 921.6 litre BlueHDi 100
S&S
Gearbox Manual
(5-speed) ETG6
electronic (6-speed) Manual
(5-speed)
Model code:

C
U
9HP0/S 9HP8/PS BHYK /SBHY6/S
-
U
nladen weight
1 1601 1701 180 1 180
-
K
erb weight*
1 2351 2451 255 1 255
-
G
ross vehicle weight (GV W)
1 6841 692 1 7101 710
-
G
ross train weight (GTW)

o
n a 12% gradient
2 634
2 1922 2102 660
-
B
raked trailer (within GTW limit)

o
n a 10% or 12% gradient
950
500 500 950
-
B
raked trailer** with load transfer (within the
GTW limit) 1 270
8208201 270
-
U
nbraked trailer
610500 500 610
-
R
ecommended nose weight
38515151
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load.
Technical data

251
2008_en_Chap11_caracteristiques-techniques_ed01-2016

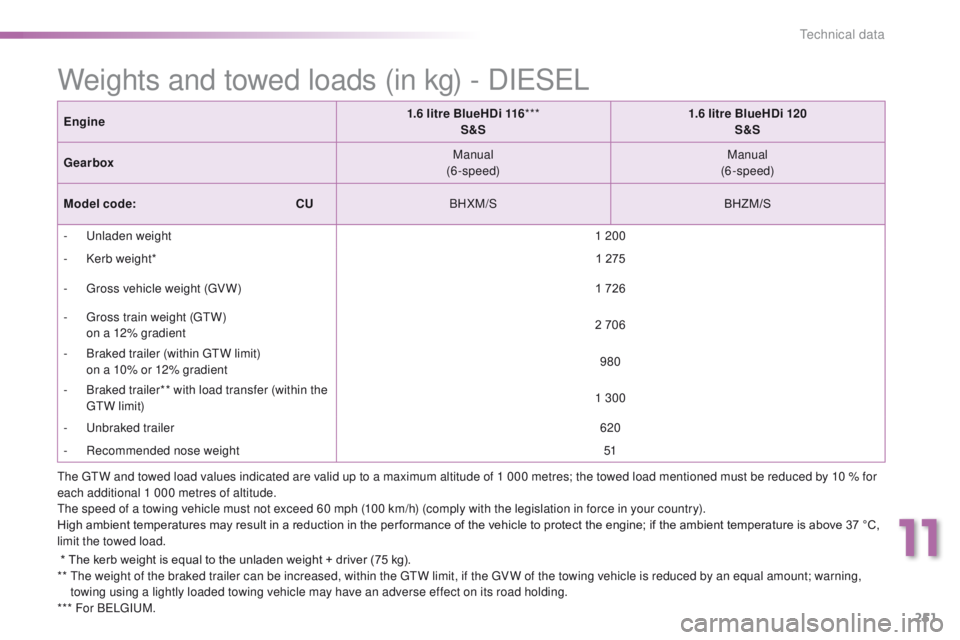

Weights and towed loads (in kg) - DIESEL
* The kerb weight is equal to the unladen weight + driver (75 kg).
** T he weight of the braked trailer can be increased, within the GTW limit, if the GV W of the towing vehicle is reduced by an equal amount; warning,
towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
*** For BELGIUM. The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle to protect the engine; if the ambient temperature is above 37 °C,
limit the towed load. Engine
1.6 litre BlueHDi 116
***
S&S 1.6 litre BlueHDi 120
S&S
Gearbox Manual
(6-speed) Manual
(6-speed)
Model code:

C
U
BHXM/S BHZM/S
-
U
nladen weight
1 200
-
K
erb weight*
1 275
-
G
ross vehicle weight (GV W)
1 726
-
G
ross train weight (GTW)
o

n a 12% gradient
2 706
-
B
raked trailer (within GTW limit)
o

n a 10% or 12% gradient
980
-
B
raked trailer** with load transfer (within the
GTW limit) 1 300
-
U
nbraked trailer
620
-
R
ecommended nose weight
51
11
Technical data

252
2008_en_Chap11_caracteristiques-techniques_ed01-2016

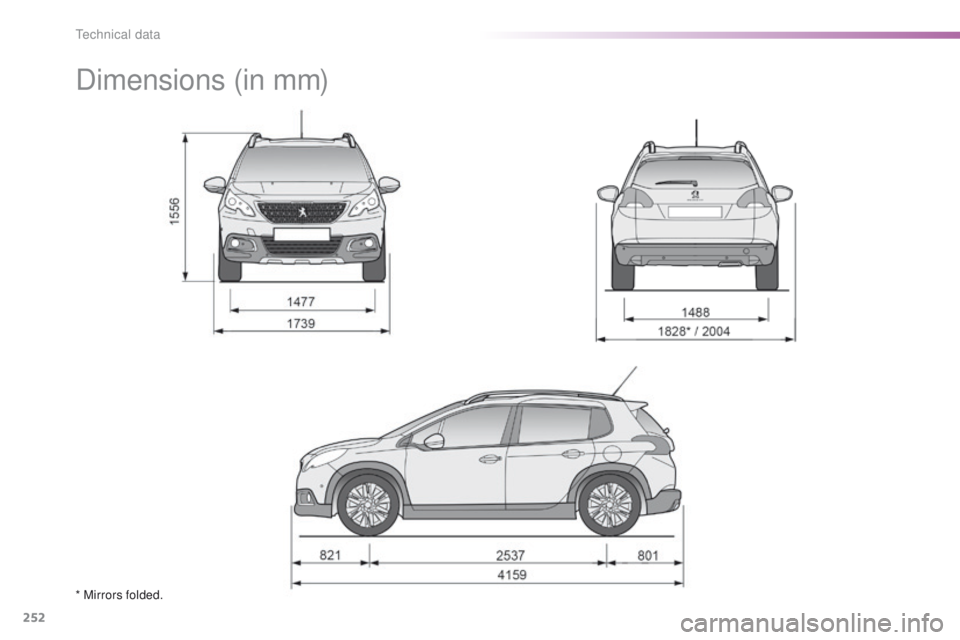

Dimensions (in mm)
* Mirrors folded.
Technical data

253
2008_en_Chap11_caracteristiques-techniques_ed01-2016

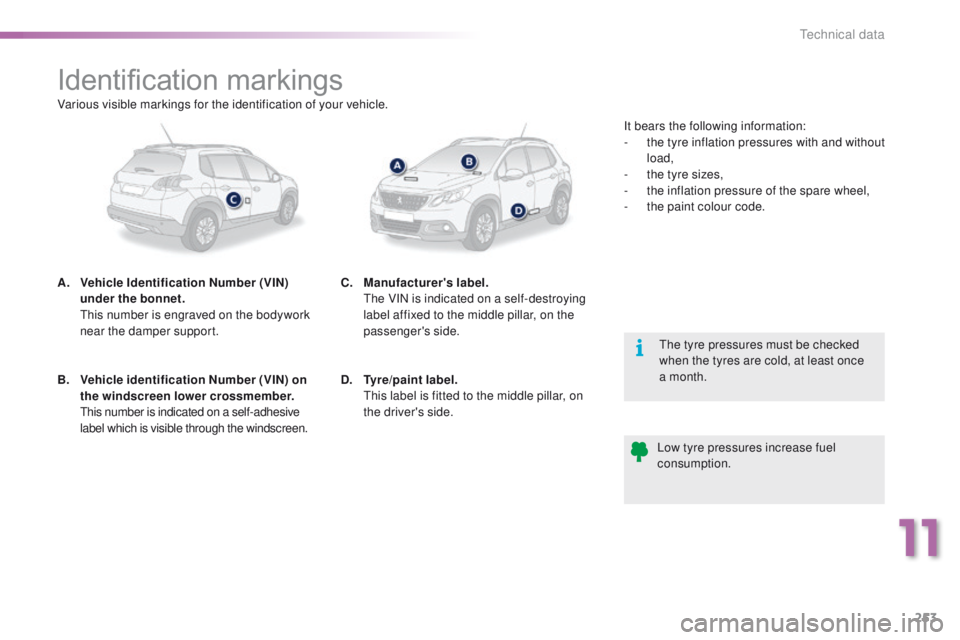

Identification markings
A. Vehicle Identification Number (VIN) under the bonnet.
T

his number is engraved on the bodywork
near the damper support. The tyre pressures must be checked
when the tyres are cold, at least once
a month.
Low tyre pressures increase fuel
consumption.
B.
V

ehicle identification Number (VIN) on
the windscreen lower crossmember.
T

his number is indicated on a self-adhesive
label which is visible through the windscreen. C. M
anufacturer's label.
T
he VIN is indicated on a self-destroying
label affixed to the middle pillar, on the
passenger's side.
D.
T

yre/paint label.
T

his label is fitted to the middle pillar, on
the driver's side. It bears the following information:
-

t
he tyre inflation pressures with and without
load,
-
t
he tyre sizes,
-
t
he inflation pressure of the spare wheel,
-
t
he paint colour code.
Various visible markings for the identification of your vehicle.
11
Technical data

254
2008_en_Chap12a_BTA_ed01-2016

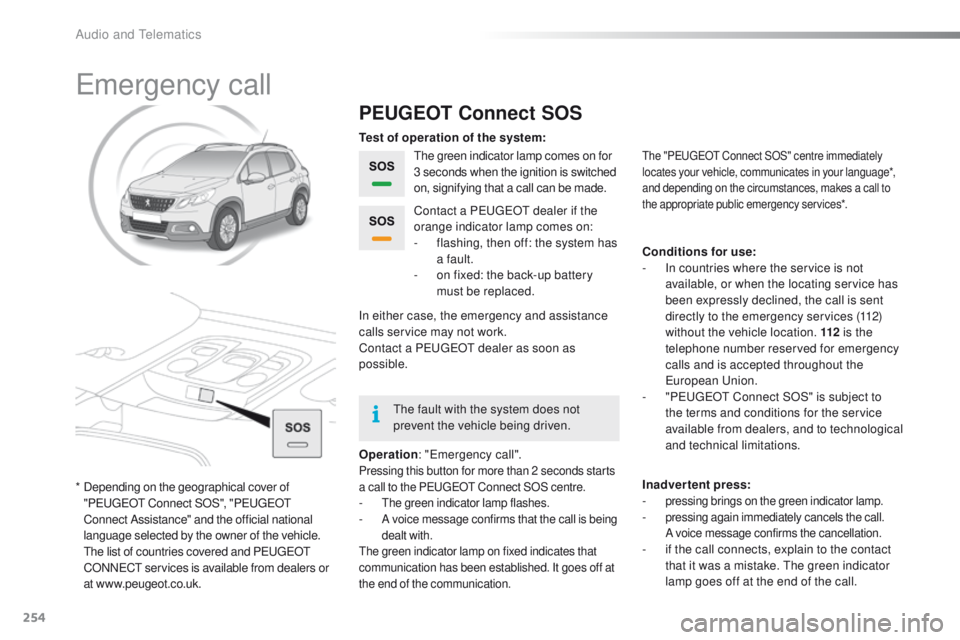

Emergency call
PEUGEOT Connect SOS
The green indicator lamp comes on for
3 seconds when the ignition is switched
on, signifying that a call can be made.
Operation : "Emergency call".
Pressing this button for more than 2 seconds starts
a call to the PEUGEOT Connect SOS centre.
- The green indicator lamp flashes.- A voice message confirms that the call is being
dealt with.
The green indicator lamp on fixed indicates that
communication has been established. It goes off at
the end of the communication.
Contact a PEUGEOT dealer if the
orange indicator lamp comes on:
-

f
lashing, then off: the system has
a fault.
-

o
n fixed: the back-up battery
must be replaced.
In either case, the emergency and assistance
calls service may not work.
Contact a PEUGEOT
dealer as soon as
possible. Test of operation of the system:
Conditions for use:
-
I
n countries where the service is not
available, or when the locating service has
been expressly declined, the call is sent
directly to the emergency services (112)
without the vehicle location. 112 is the
telephone number reserved for emergency
calls and is accepted throughout the
European Union.
-

"
PEUGEOT Connect SOS" is subject to
the terms and conditions for the service
available from dealers, and to technological
and technical limitations.
Inadvertent press:
-

pressing brings on the green indicator lamp.- pressing again immediately cancels the call.
A voice message confirms the cancellation.
- if the call connects, explain to the contact that it was a mistake. The green indicator
lamp goes off at the end of the call.
The "PEUGEOT Connect SOS" centre immediately
locates your vehicle, communicates in your language*,
and depending on the circumstances, makes a call to
the appropriate public emergency services*.
* Depending on the geographical cover of "PEUGEOT Connect SOS", "PEUGEOT
Connect Assistance" and the official national
language selected by the owner of the vehicle.



T
he list of countries covered and PEUGEOT
CONNECT services is available from dealers or
at www.peugeot.co.uk. The fault with the system does not
prevent the vehicle being driven.
Audio and Telematics

255
2008_en_Chap12a_BTA_ed01-2016

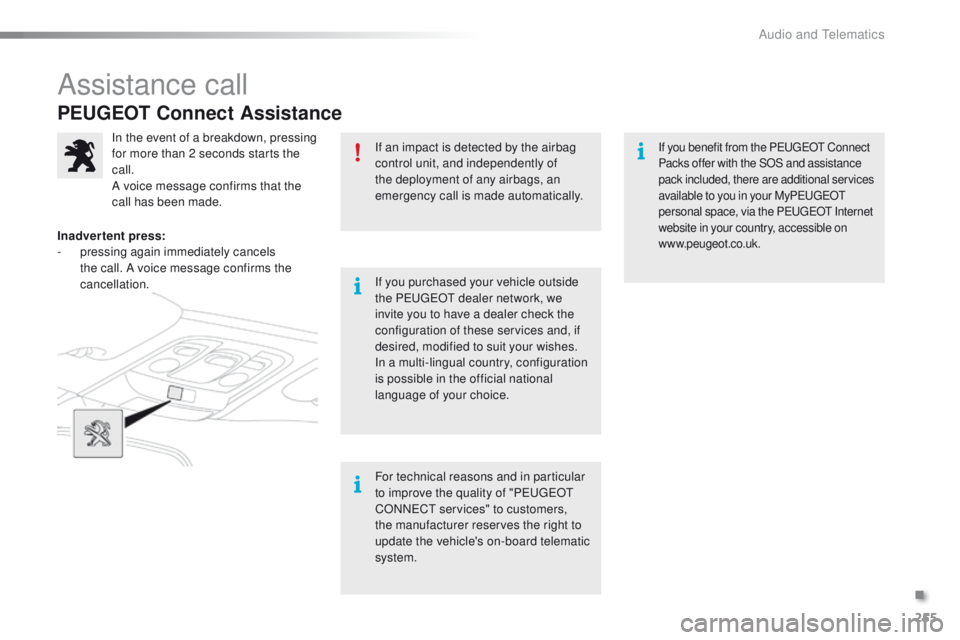

PEUGEOT Connect Assistance
If an impact is detected by the airbag
control unit, and independently of
the deployment of any airbags, an
emergency call is made automatically.
If you purchased your vehicle outside
the PEUGEOT dealer network, we
invite you to have a dealer check the
configuration of these services and, if
desired, modified to suit your wishes.
In a multi-lingual country, configuration
is possible in the official national
language of your choice.
In the event of a breakdown, pressing
for more than 2 seconds starts the
call.
A voice message confirms that the
call has been made.
Inadvertent press:
-
p

ressing again immediately cancels
the call. A voice message confirms the
cancellation.
For technical reasons and in particular
to improve the quality of "PEUGEOT
CONNECT services" to customers,
the manufacturer reserves the right to
update the vehicle's on-board telematic
system.If you benefit from the PEUGEOT Connect
Packs offer with the SOS and assistance
pack included, there are additional services
available to you in your MyPEUGEOT
personal space, via the PEUGEOT Internet
website in your country, accessible on
www.peugeot.co.uk.
Assistance call
.
Audio and Telematics

257
2008_en_Chap12b_SMEGplus_ed01-2016

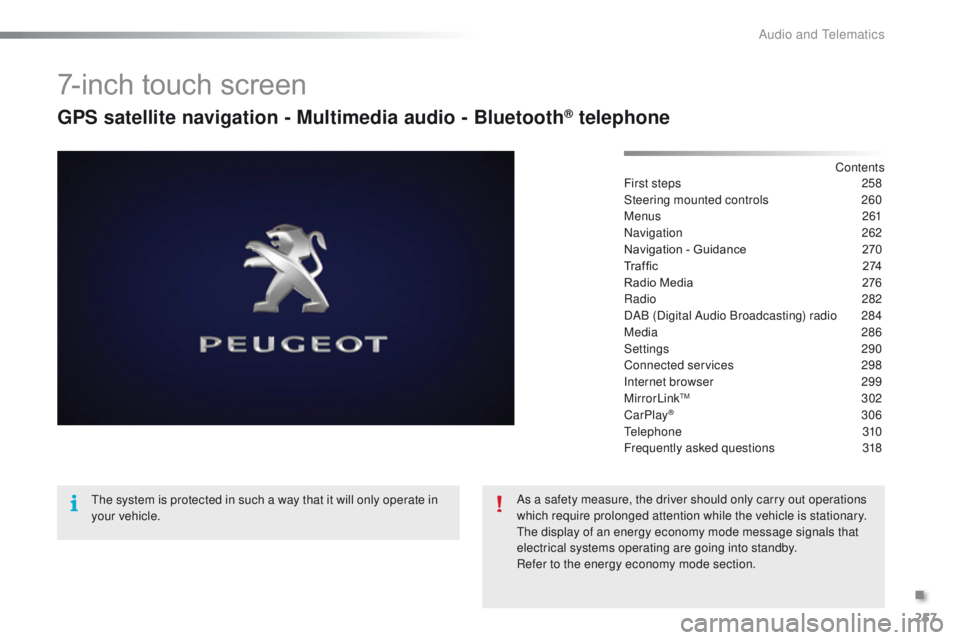

7-inch touch screen
GPS satellite navigation - Multimedia audio - Bluetooth® telephone
Contents
First steps 25 8
Steering mounted controls
26

0
Menus
2

61
Navigation
2

62
Navigation - Guidance

2
70
Tr a f fi c
2

74
Radio Media

2
76
Radio

2
82
DAB (Digital Audio Broadcasting) radio

2
84
Media
286
Settings


290
Connected services
2

98
Internet browser
2

99
MirrorLink
TM 302
C
arPlay® 3 06
Telephone

310
Frequently asked questions

3
18
The system is protected in such a way that it will only operate in
your vehicle. As a safety measure, the driver should only carry out operations
which require prolonged attention while the vehicle is stationary.
The display of an energy economy mode message signals that
electrical systems operating are going into standby.
Refer to the energy economy mode section.
.
Audio and Telematics

258
2008_en_Chap12b_SMEGplus_ed01-2016

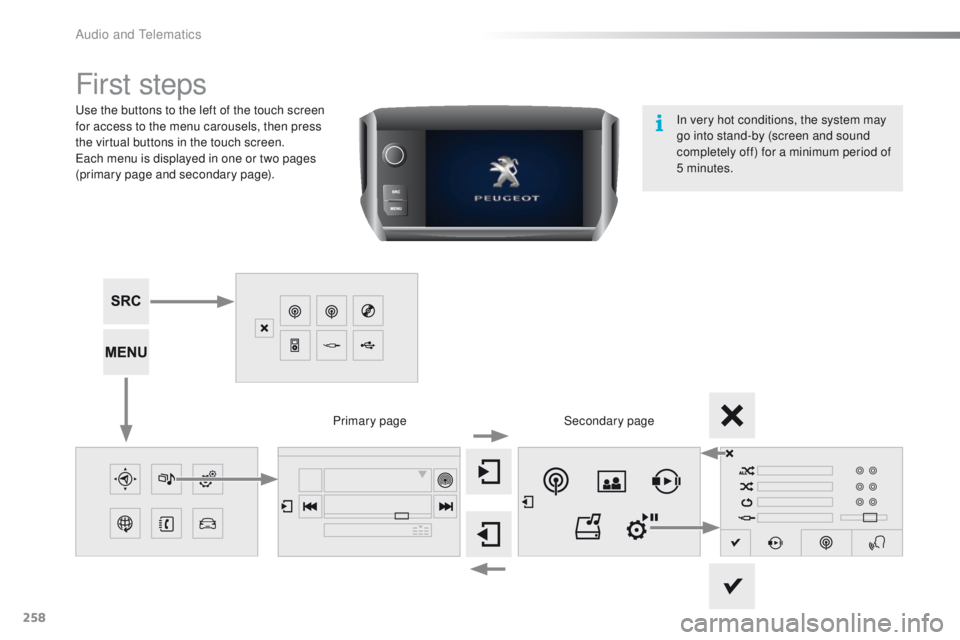

First steps
Use the buttons to the left of the touch screen
for access to the menu carousels, then press
the virtual buttons in the touch screen.
Each menu is displayed in one or two pages
(primary page and secondary page).Secondary page
Primary page In very hot conditions, the system may
go into stand-by (screen and sound
completely off) for a minimum period of
5 minutes.
