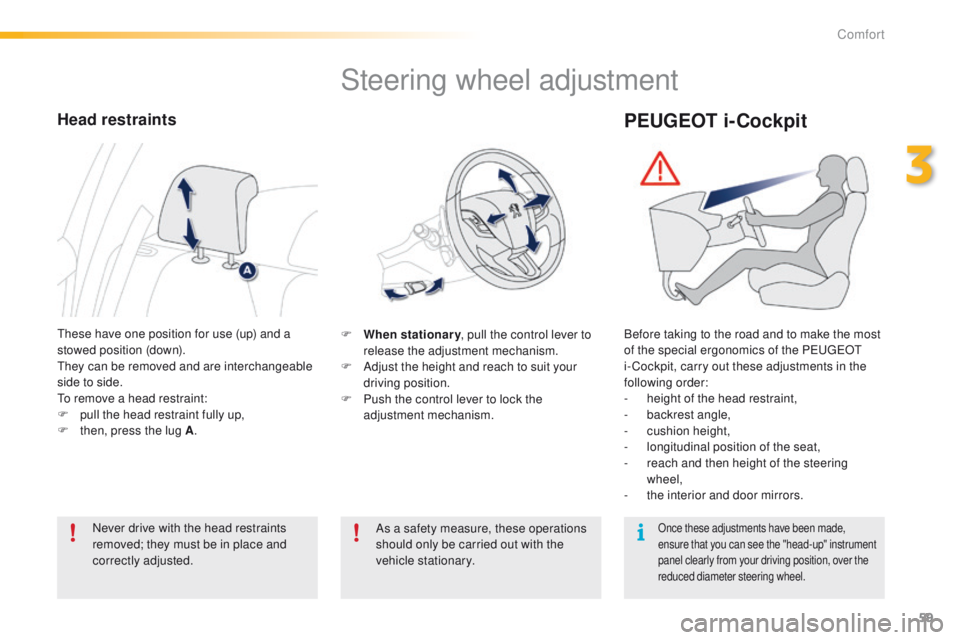

Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these operations
should only be carried out with the
vehicle stationary.
Never drive with the head restraints
removed; they must be in place and
correctly adjusted.
These have one position for use (up) and a
stowed position (down).
They can be removed and are interchangeable
side to side.
To remove a head restraint:
F

p

ull the head restraint fully up,
F

t

hen, press the lug A .
Head restraintsPEUGEOT i-Cockpit
Before taking to the road and to make the most
of the special ergonomics of the PEUGEOT
i- Cockpit, carry out these adjustments in the
following order:
-

h
eight of the head restraint,
-

b
ackrest angle,
-

c
ushion height,
-
l

ongitudinal position of the seat,
-
r

each and then height of the steering
wheel,
-

t
he interior and door mirrors.
Once these adjustments have been made,
ensure that you can see the "head-up" instrument
panel clearly from your driving position, over the
reduced diameter steering wheel.
3
Comfort

60
2008_en_Chap03_confort_ed01-2016

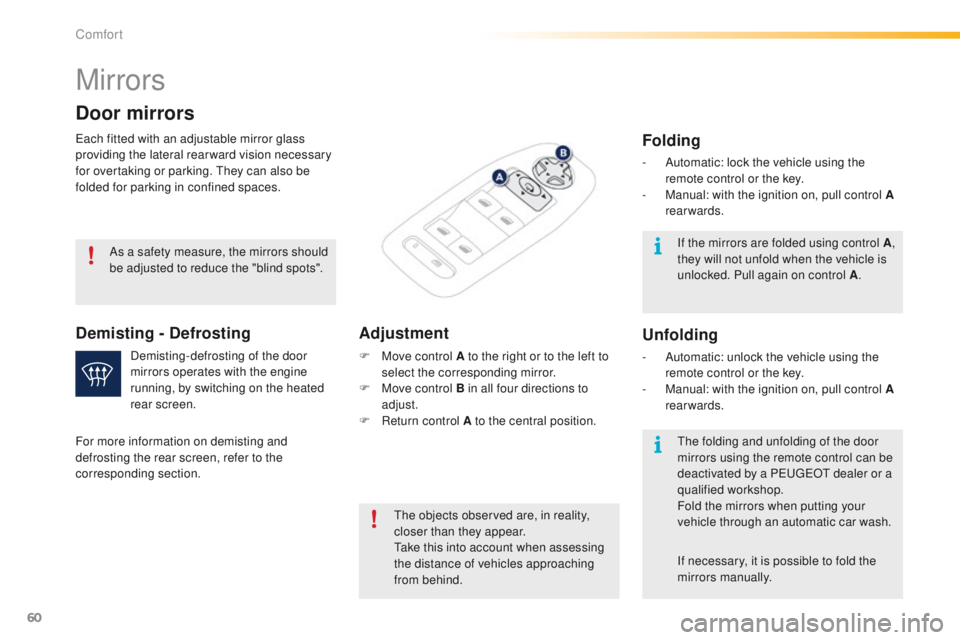

Mirrors
Each fitted with an adjustable mirror glass
providing the lateral rear ward vision necessary
for overtaking or parking. They can also be
folded for parking in confined spaces.
Door mirrors
The objects observed are, in reality,
closer than they appear.
Take this into account when assessing
the distance of vehicles approaching
from behind.
Demisting - DefrostingAdjustment
F Move control A to the right or to the left to
select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
Demisting-defrosting of the door
mirrors operates with the engine
running, by switching on the heated
rear screen.
As a safety measure, the mirrors should
be adjusted to reduce the "blind spots".
For more information on demisting and
defrosting the rear screen, refer to the
corresponding section. If the mirrors are folded using control A
,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
Folding
- Automatic: lock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
Unfolding
- Automatic: unlock the vehicle using the remote control or the key.
-

M
anual: with the ignition on, pull control A
rearwards.
If necessary, it is possible to fold the
mirrors manually.
Comfort

61
2008_en_Chap03_confort_ed01-2016
Automatic "electrochrome"
model
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...

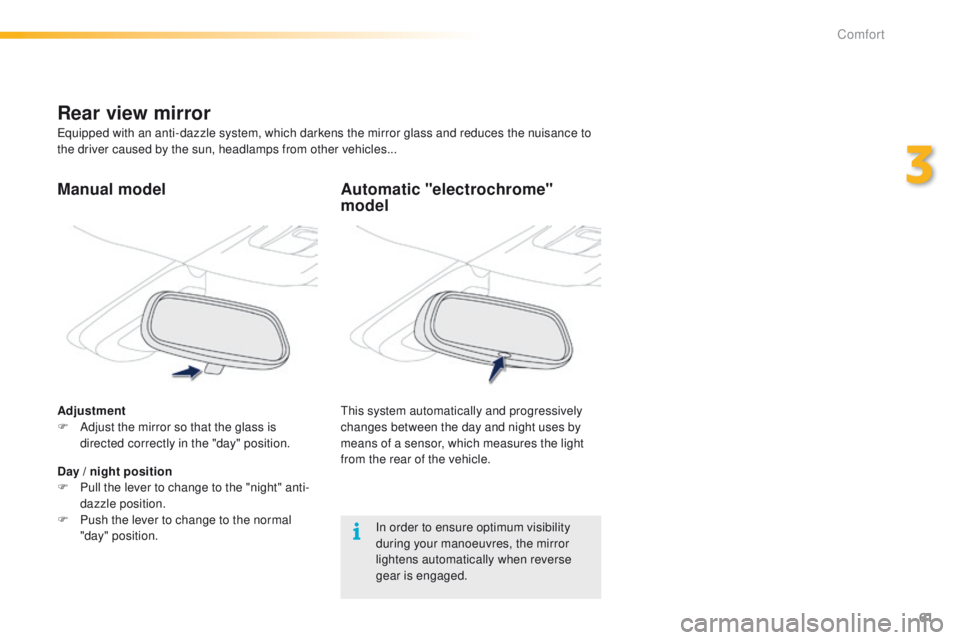

Rear view mirror
Manual model
Adjustment
F
A djust the mirror so that the glass is
directed correctly in the "day" position.
Day / night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position. In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
3
Comfort

62
2008_en_Chap03_confort_ed01-2016

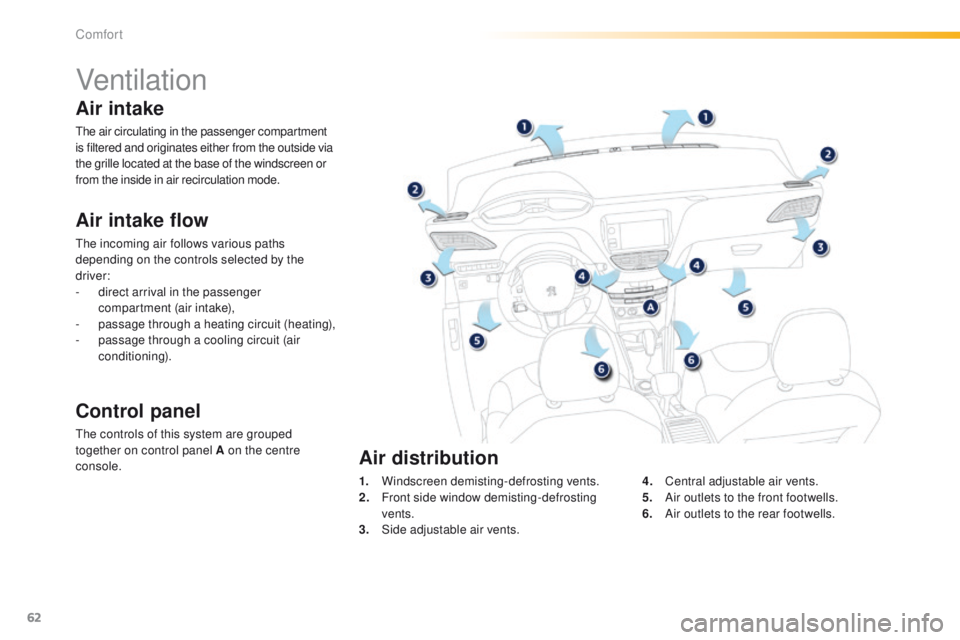

Ventilation
Air intake flow
The incoming air follows various paths
depending on the controls selected by the
driver:
-
d
irect arrival in the passenger
compartment (air intake),
-
p

assage through a heating circuit (heating),
-

p
assage through a cooling circuit (air
conditioning).
Control panel
The controls of this system are grouped
together on control panel A on the centre
console. 1.
W

indscreen demisting-defrosting vents.
2.
F

ront side window demisting-defrosting
vents.
3.
S

ide adjustable air vents.4.
C

entral adjustable air vents.
5.
A

ir outlets to the front footwells.
6.
A

ir outlets to the rear footwells.
Air distribution
Air intake
The air circulating in the passenger compartment
is filtered and originates either from the outside via
the grille located at the base of the windscreen or
from the inside in air recirculation mode.
Comfort

63
2008_en_Chap03_confort_ed01-2016
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F
T
o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D
o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O
perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E
nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to its
special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T
o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F

I
f the system does not produce cold air, switch it off and contact a PEUGEOT dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability.

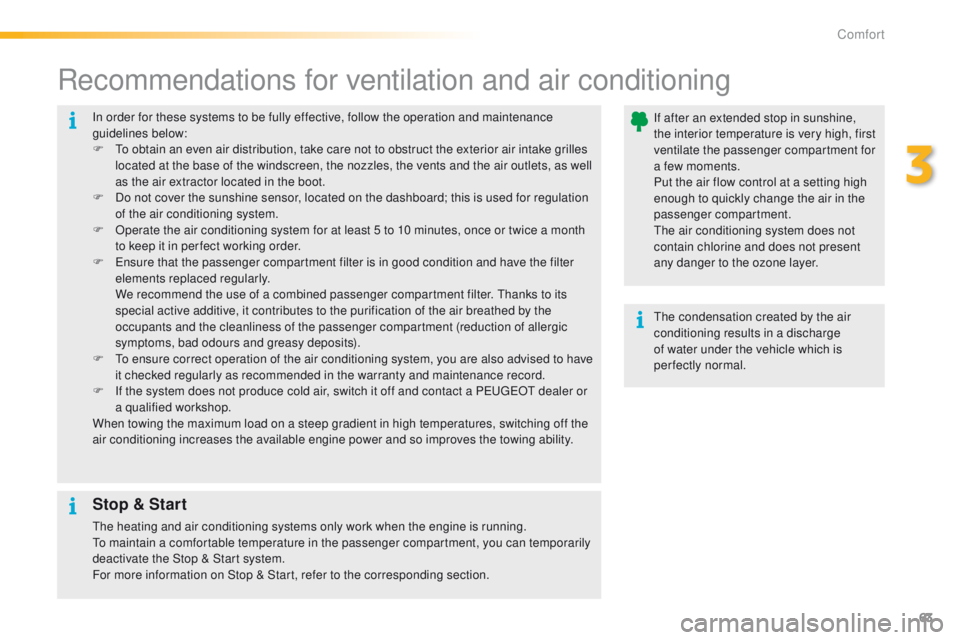

Recommendations for ventilation and air conditioning
If after an extended stop in sunshine,
the interior temperature is very high, first
ventilate the passenger compartment for
a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.
The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
Stop & Start
The heating and air conditioning systems only work when the engine is running.
To maintain a comfortable temperature in the passenger compartment, you can temporarily
deactivate the Stop & Start system.
For more information on Stop & Start, refer to the corresponding section.
3
Comfort

64
2008_en_Chap03_confort_ed01-2016

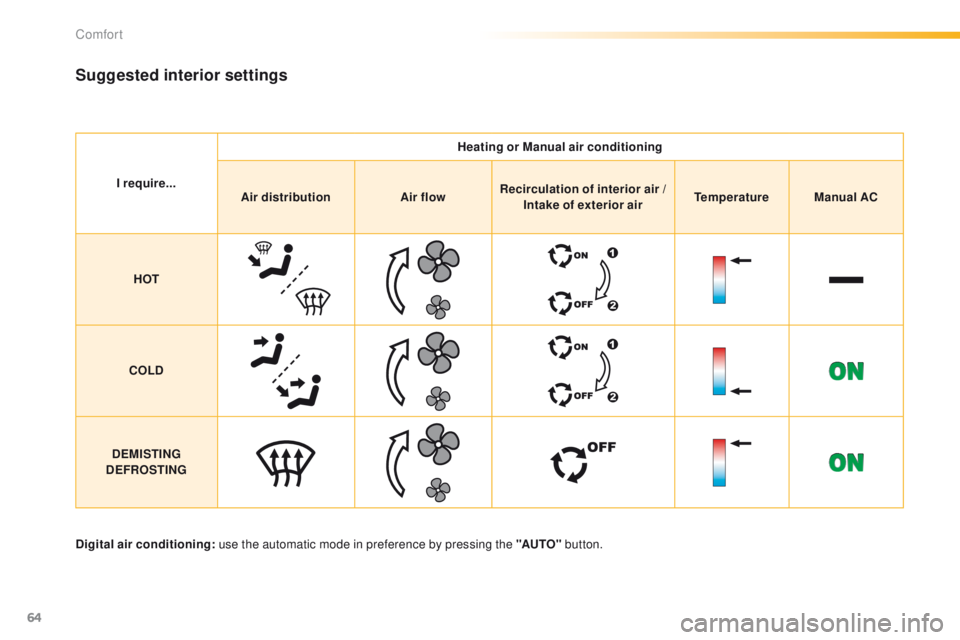

Suggested interior settings
I require...Heating or Manual air conditioning
Air distribution Air flowRecirculation of interior air /
Intake of exterior air Temperature Manual AC
HOT
COLD
DEMISTING
DEFROSTING
Digital air conditioning: use the automatic mode in preference by pressing the "AUTO" button.
Comfort

65
2008_en_Chap03_confort_ed01-2016
If you place the air flow control at
position 0 (off), the temperature in the
vehicle will no longer be maintained.
However, a slight flow of air can still be
felt due to the movement of the vehicle.

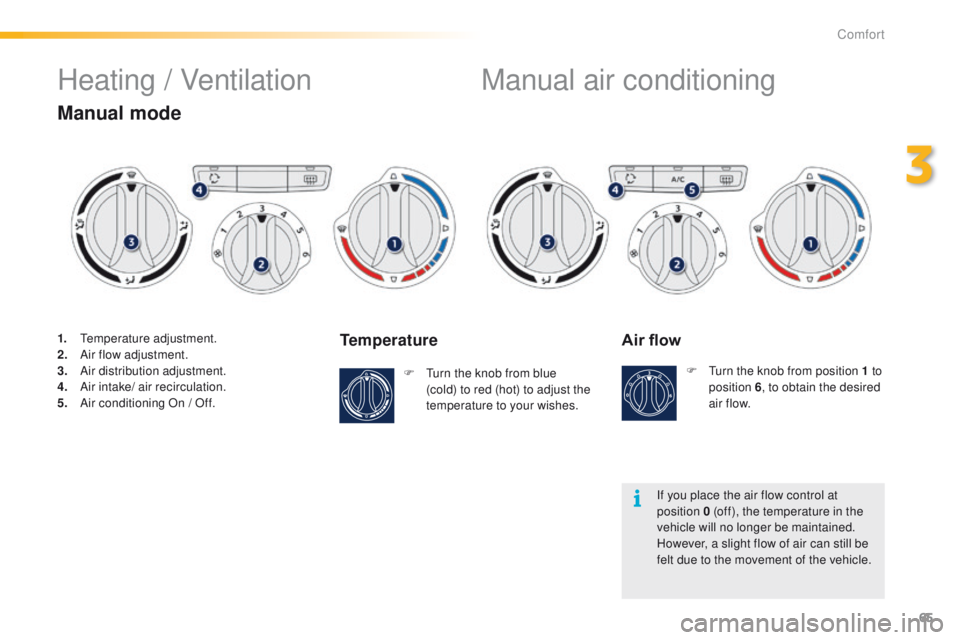

Manual air conditioning
1. Temperature adjustment.
2. Air flow adjustment.
3.
A

ir distribution adjustment.
4.
A

ir intake/ air recirculation.
5.
A

ir conditioning On / Off.Temperature
F Turn the knob from blue (cold) to red (hot) to adjust the
temperature to your wishes.
Air flow
F Turn the knob from position 1 to position 6 , to obtain the desired
air f low.
Manual mode
Heating / Ventilation
3
Comfort

66
2008_en_Chap03_confort_ed01-2016

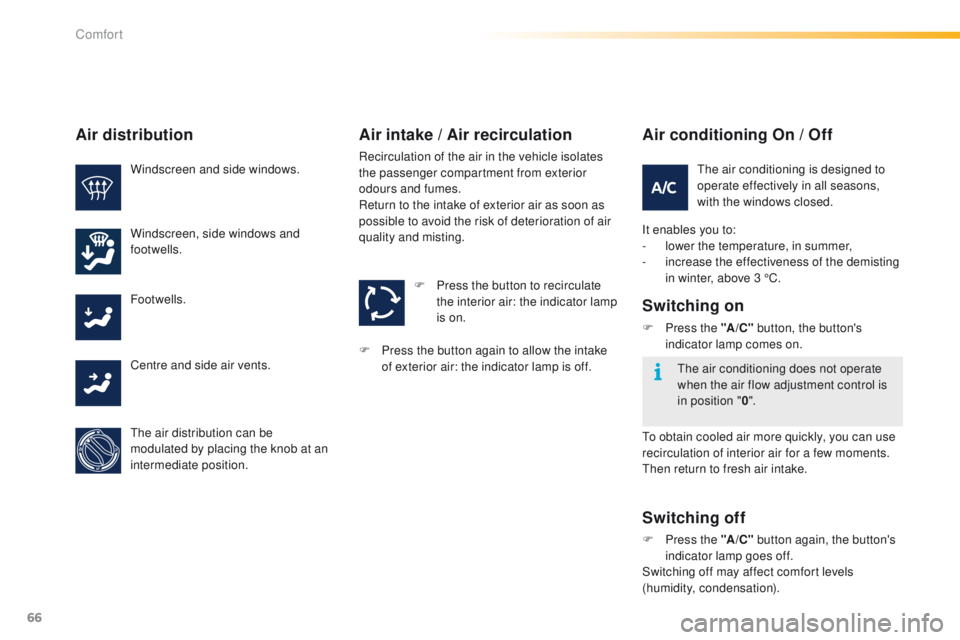

Air conditioning On / Off
It enables you to:
- l ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3 °C.
Switching on
F Press the "A /C " button, the button's
indicator lamp comes on.
Switching off
F Press the "A /C " button again, the button's
indicator lamp goes off.
Switching off may affect comfort levels
(humidity, condensation). The air conditioning is designed to
operate effectively in all seasons,
with the windows closed.
The air conditioning does not operate
when the air flow adjustment control is
in position " 0".
To obtain cooled air more quickly, you can use
recirculation of interior air for a few moments.
Then return to fresh air intake.
Air distribution
Windscreen and side windows.
Windscreen, side windows and
footwells.
Footwells.
Centre and side air vents.
The air distribution can be
modulated by placing the knob at an
intermediate position. F

P
ress the button to recirculate
the interior air: the indicator lamp
is on.
Air intake / Air recirculation
Recirculation of the air in the vehicle isolates
the passenger compartment from exterior
odours and fumes.
Return to the intake of exterior air as soon as
possible to avoid the risk of deterioration of air
quality and misting.
F

P
ress the button again to allow the intake
of exterior air: the indicator lamp is off.
Comfort

67
2008_en_Chap03_confort_ed01-2016

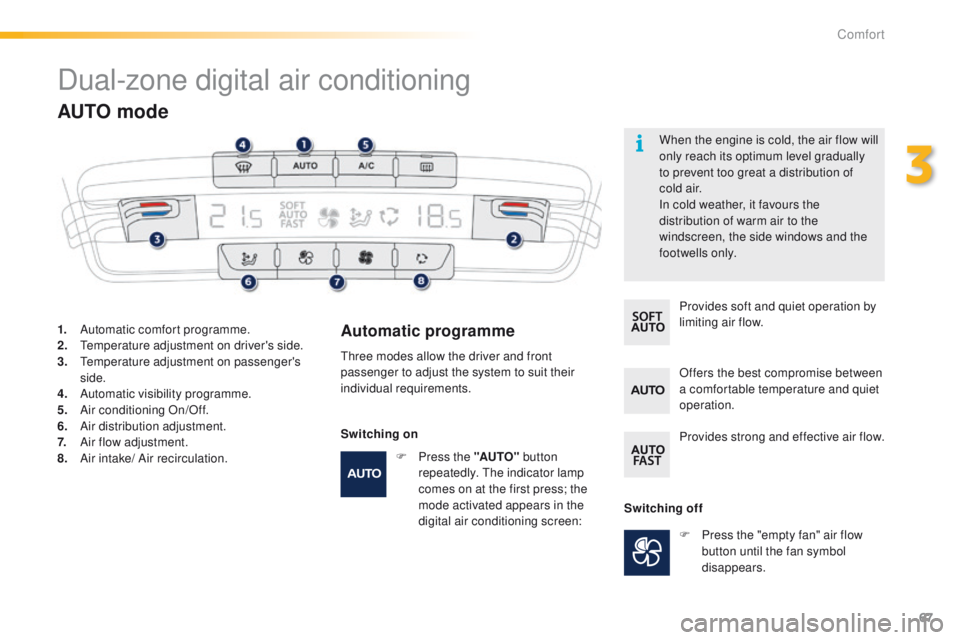

Dual-zone digital air conditioning
AUTO mode
Automatic programme
When the engine is cold, the air flow will
only reach its optimum level gradually
to prevent too great a distribution of
c o l d a i r.
In cold weather, it favours the
distribution of warm air to the
windscreen, the side windows and the
footwells only.Offers the best compromise between
a comfortable temperature and quiet
operation. Provides soft and quiet operation by
limiting air flow.
Provides strong and effective air flow.
F

P

ress the "AUTO" button
repeatedly. The indicator lamp
comes on at the first press; the
mode activated appears in the
digital air conditioning screen:
1.
A

utomatic comfort programme.
2.
T

emperature adjustment on driver's side.
3.
T

emperature adjustment on passenger's
side.
4.
A

utomatic visibility programme.
5.
A

ir conditioning On/Off.
6.
A

ir distribution adjustment.
7.
A

ir flow adjustment.
8.
A

ir intake/ Air recirculation. Three modes allow the driver and front
passenger to adjust the system to suit their
individual requirements.
Switching offF

P
ress the "empty fan" air flow
button until the fan symbol
disappears.
Switching on
3
Comfort

68
2008_en_Chap03_confort_ed01-2016

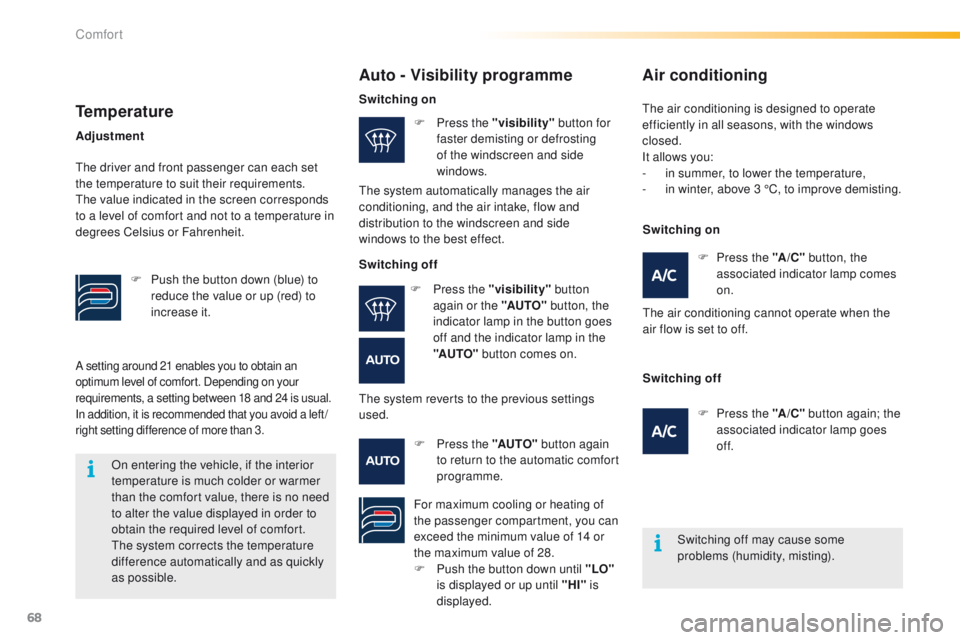

A setting around 21 enables you to obtain an
optimum level of comfort. Depending on your
requirements, a setting between 18 and 24 is usual.
In addition, it is recommended that you avoid a left /
right setting difference of more than 3.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value, there is no need
to alter the value displayed in order to
obtain the required level of comfort.
The system corrects the temperature
difference automatically and as quickly
as possible.
Auto - Visibility programme
Switching off may cause some
problems (humidity, misting).
F

P

ress the "visibility"
button for
faster demisting or defrosting
of the windscreen and side
windows.
F
P
ress the "
A/C" button, the
associated indicator lamp comes
on.
The air conditioning cannot operate when the
air flow is set to off.
F

P

ress the "AUTO"
button again
to return to the automatic comfort
programme.
Temperature
F Push the button down (blue) to reduce the value or up (red) to
increase it.
Adjustment
The driver and front passenger can each set
the temperature to suit their requirements.
The value indicated in the screen corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
Switching on
The system automatically manages the air
conditioning, and the air intake, flow and
distribution to the windscreen and side
windows to the best effect.
Switching off
F P ress the "visibility" button
again or the "AUTO" button, the
indicator lamp in the button goes
off and the indicator lamp in the
"AUTO" button comes on.
The system reverts to the previous settings
used.
For maximum cooling or heating of
the passenger compartment, you can
exceed the minimum value of 14 or
the maximum value of 28.
F

P
ush the button down until "LO"
is displayed or up until "HI" is
displayed.
Air conditioning
The air conditioning is designed to operate
efficiently in all seasons, with the windows
closed.
It allows you:
-

i
n summer, to lower the temperature,
-

i
n winter, above 3 °C, to improve demisting.
Switching on
Switching off F

P
ress the "A /C " button again; the
associated indicator lamp goes
of f.
Comfort
