69
2008_en_Chap03_confort_ed01-2016

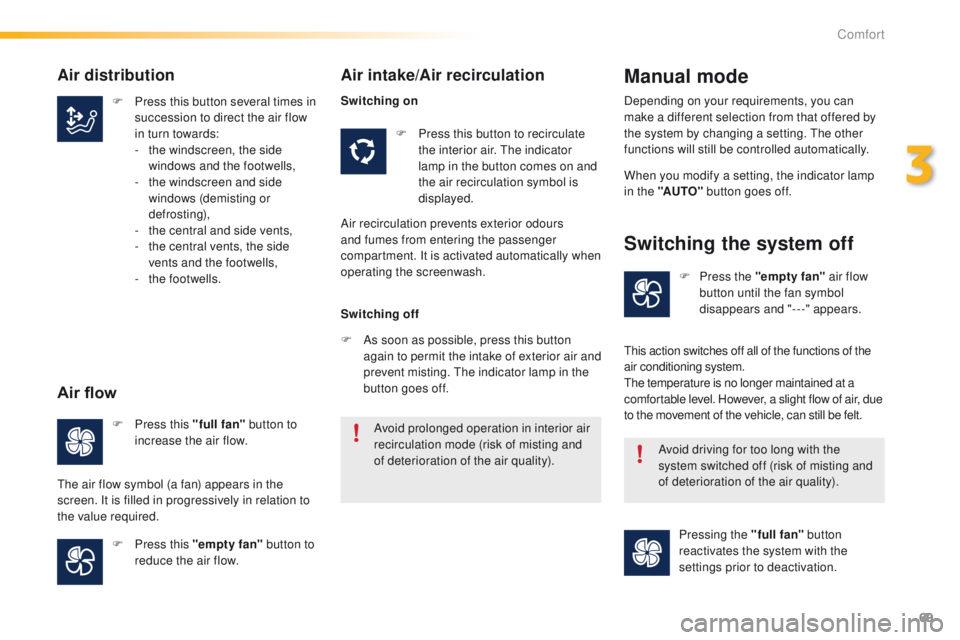

F Press this button several times in succession to direct the air flow
in turn towards:
-

t
he windscreen, the side
windows and the footwells,
-

t
he windscreen and side
windows (demisting or
def r o st ing),
-

t
he central and side vents,
-

t
he central vents, the side
vents and the footwells,
-

t
he footwells. F

P
ress this button to recirculate
the interior air. The indicator
lamp in the button comes on and
the air recirculation symbol is
displayed. When you modify a setting, the indicator lamp
in the "AUTO"
button goes off.
F

P
ress this "full fan" button to
increase the air flow.
F

P
ress this "empty fan" button to
reduce the air flow. Avoid prolonged operation in interior air
recirculation mode (risk of misting and
of deterioration of the air quality).
Avoid driving for too long with the
system switched off (risk of misting and
of deterioration of the air quality).
Air distribution
Air flow
The air flow symbol (a fan) appears in the
screen. It is filled in progressively in relation to
the value required.
Air intake/Air recirculation
Air recirculation prevents exterior odours
and fumes from entering the passenger
compartment. It is activated automatically when
operating the screenwash.
Manual mode
Switching the system off
Switching on
Switching off
F

A
s soon as possible, press this button
again to permit the intake of exterior air and
prevent misting. The indicator lamp in the
button goes off. Depending on your requirements, you can
make a different selection from that offered by
the system by changing a setting. The other
functions will still be controlled automatically.
F

P
ress the "empty fan" air flow
button until the fan symbol
disappears and "---" appears.
This action switches off all of the functions of the
air conditioning system.
The temperature is no longer maintained at a
comfortable level. However, a slight flow of air, due
to the movement of the vehicle, can still be felt.
Pressing the "full fan" button
reactivates the system with the
settings prior to deactivation.
3
Comfort

70
2008_en_Chap03_confort_ed01-2016
F Switch off the demisting/defrosting of the rear screen and door mirrors
as soon as appropriate, as lower
current consumption results in
reduced fuel consumption.

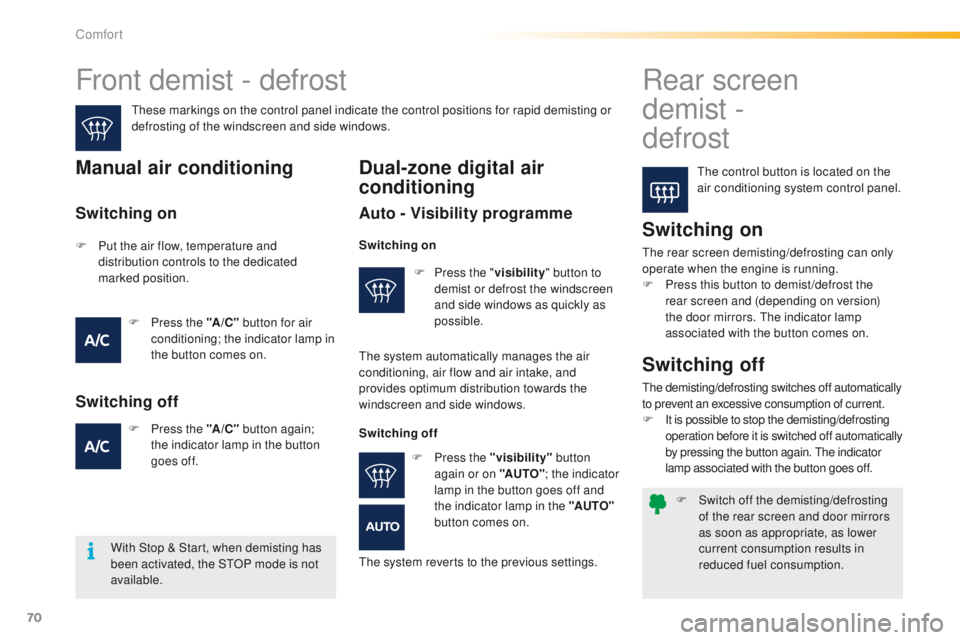

Front demist - defrost Rear screen
demist


-
defrost
The control button is located on the
air conditioning system control panel.
These markings on the control panel indicate the control positions for rapid demisting or
defrosting of the windscreen and side windows.Manual air conditioning
Switching on
The rear screen demisting/defrosting can only
operate when the engine is running.
F
P
ress this button to demist /defrost the
rear screen and (depending on version)
the door mirrors. The indicator lamp
associated with the button comes on.
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
Switching off
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
F
I
t is possible to stop the demisting/defrosting
operation before it is switched off automatically
by pressing the button again. The indicator
lamp associated with the button goes off.
Dual-zone digital air
conditioning
Auto - Visibility programme
F Press the " visibility" button to
demist or defrost the windscreen
and side windows as quickly as
possible.
Switching on
F Put the air flow, temperature and distribution controls to the dedicated
marked position.
F

P
ress the "A /C " button for air
conditioning; the indicator lamp in
the button comes on.
F

P
ress the "A /C " button again;
the indicator lamp in the button
goes


off.
Switching off
Switching on
The system automatically manages the air
conditioning, air flow and air intake, and
provides optimum distribution towards the
windscreen and side windows.
Switching offF

P
ress the "visibility" button
again or on "AUTO" ; the indicator
lamp in the button goes off and
the indicator lamp in the "AUTO"
button comes on.
The system reverts to the previous settings.
Comfort

71
2008_en_Chap04_amenagements_ed01-2016

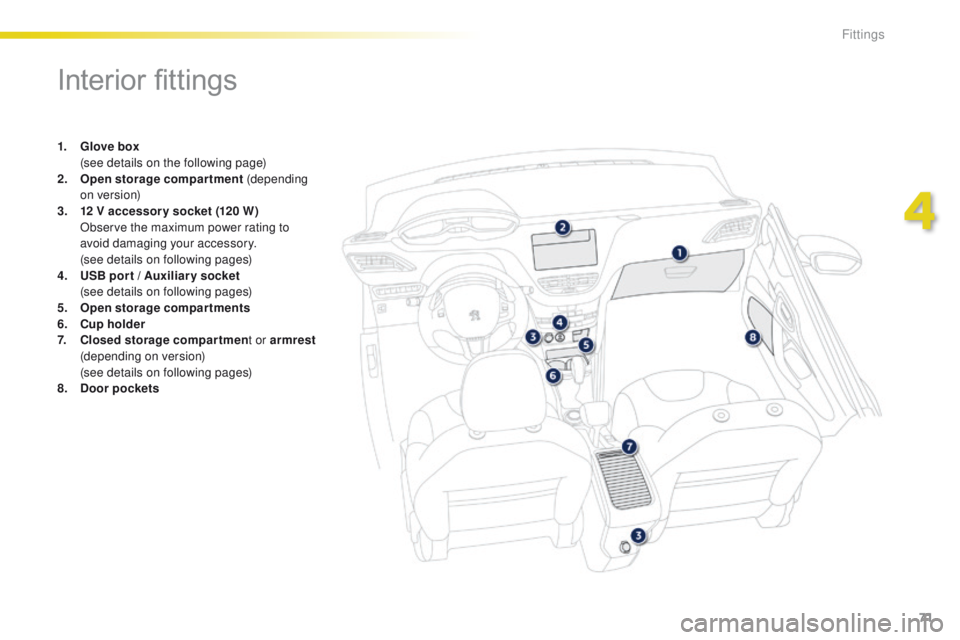

Interior fittings
1. Glove box (
see details on the following page)
2.
O

pen storage compartment (depending
on version)
3.
1

2 V accessory socket (120 W )
O

bserve the maximum power rating to
avoid damaging your accessory.
(

see details on following pages)
4.
U

SB por t / Auxiliar y socket
(

see details on following pages)
5.
O

pen storage compartments
6.
C

up holder
7.
C

losed storage compartmen t or armrest
(depending on version)
(

see details on following pages)
8.
Doo

r pockets
4
Fittings

72
2008_en_Chap04_amenagements_ed01-2016

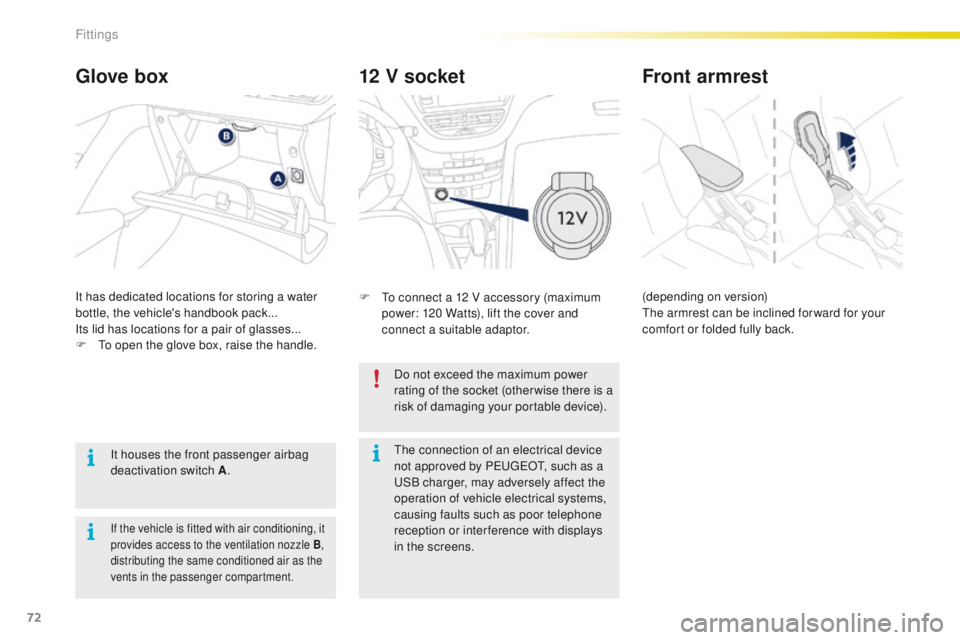

12 V socket
F To connect a 12 V accessory (maximum power: 120 Watts), lift the cover and
connect a suitable adaptor.
Glove box
It has dedicated locations for storing a water
bottle, the vehicle's handbook pack...
Its lid has locations for a pair of glasses...
F

T
o open the glove box, raise the handle.
It houses the front passenger airbag
deactivation switch A .
If the vehicle is fitted with air conditioning, it
provides access to the ventilation nozzle
B,
distributing the same conditioned air as the
vents in the passenger compartment.
Do not exceed the maximum power
rating of the socket (otherwise there is a
risk of damaging your portable device).
Front armrest
(depending on version)
The armrest can be inclined for ward for your
comfort or folded fully back.
The connection of an electrical device
not approved by PEUGEOT, such as a
USB charger, may adversely affect the
operation of vehicle electrical systems,
causing faults such as poor telephone
reception or inter ference with displays
in the screens.
Fittings

73
2008_en_Chap04_amenagements_ed01-2016

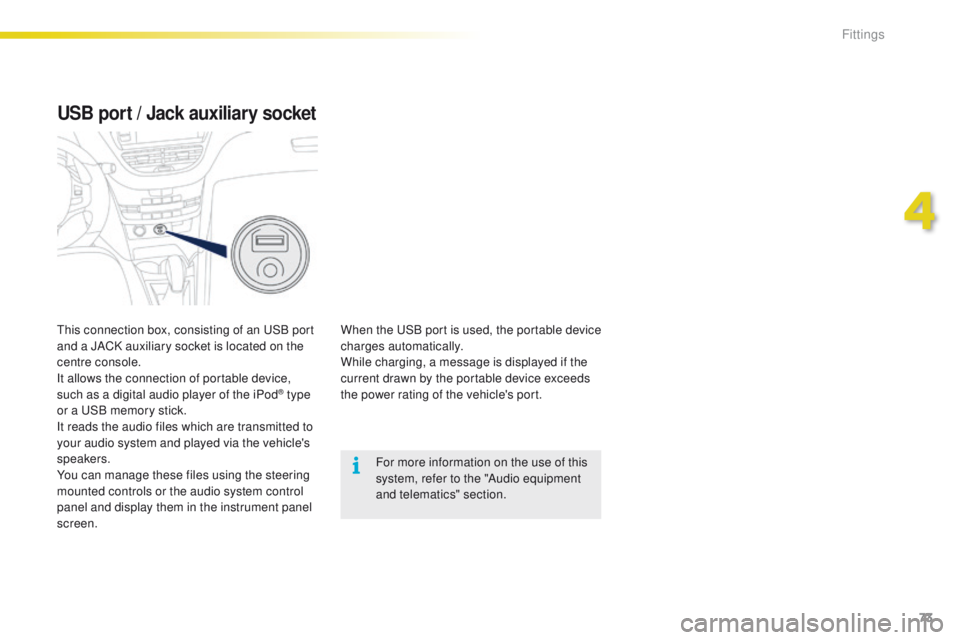

USB port / Jack auxiliary socket
When the USB port is used, the portable device
charges automatically.
While charging, a message is displayed if the
current drawn by the portable device exceeds
the power rating of the vehicle's port.For more information on the use of this
system, refer to the "Audio equipment
and telematics" section.
This connection box, consisting of an USB port
and a JACK auxiliary socket is located on the
centre console.
It allows the connection of portable device,
such as a digital audio player of the iPod
® type
or a USB memory stick.
It reads the audio files which are transmitted to
your audio system and played via the vehicle's
speakers.
You can manage these files using the steering
mounted controls or the audio system control
panel and display them in the instrument panel
screen.
4
Fittings

74
2008_en_Chap04_amenagements_ed01-2016
To remove the mat on the driver's side:
F m ove the seat as far back as possible,
F

un
clip the fixings,
F

r
emove the mat.
Removal Refitting
To avoid any risk of jamming of the
pedals:
-

o
nly use mats which are suited to
the fixings already present in the
vehicle; these fixings must be used,
-

n
ever fit one mat on top of another.
The use of mats not approved by
PEUGEOT may inter fere with access to
the pedals and hinder the operation of
the cruise control / speed limiter.
To refit the mat on the driver's side:
F

p

osition the mat correctly,
F

r

efit the fixings by pressing,
F

c

heck that the mat is secured correctly.
Mats
Removable carpet protection.
Fittings

75
2008_en_Chap04_amenagements_ed01-2016

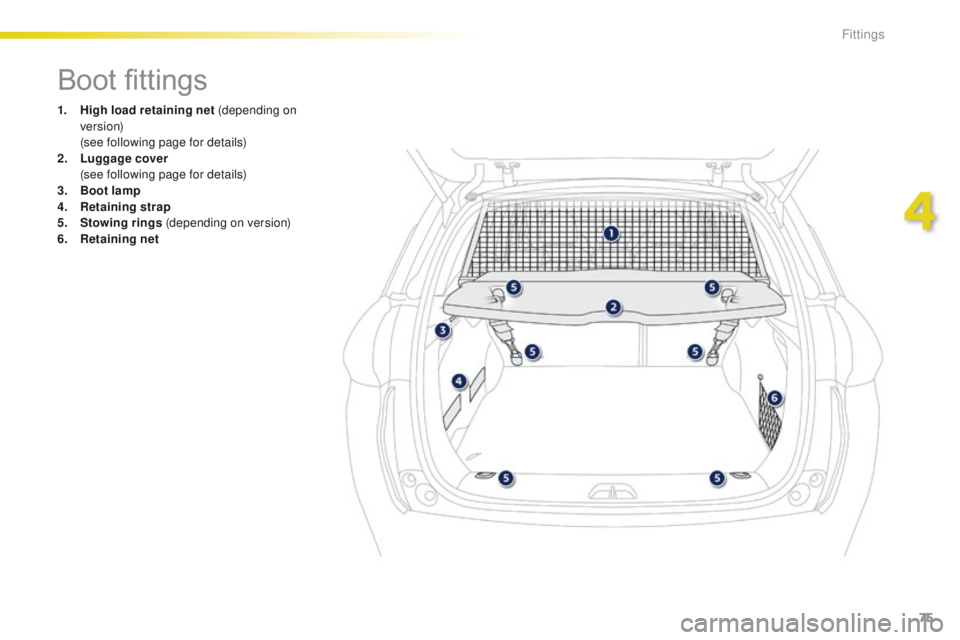

Boot fittings
1. High load retaining net (depending on ve r s i o n)
(

see following page for details)
2.
L

uggage cover
(

see following page for details)
3.
B

oot lamp
4.
R

etaining strap
5.
S

towing rings (depending on version)
6.
R

etaining net
4
Fittings

76
2008_en_Chap04_amenagements_ed01-2016

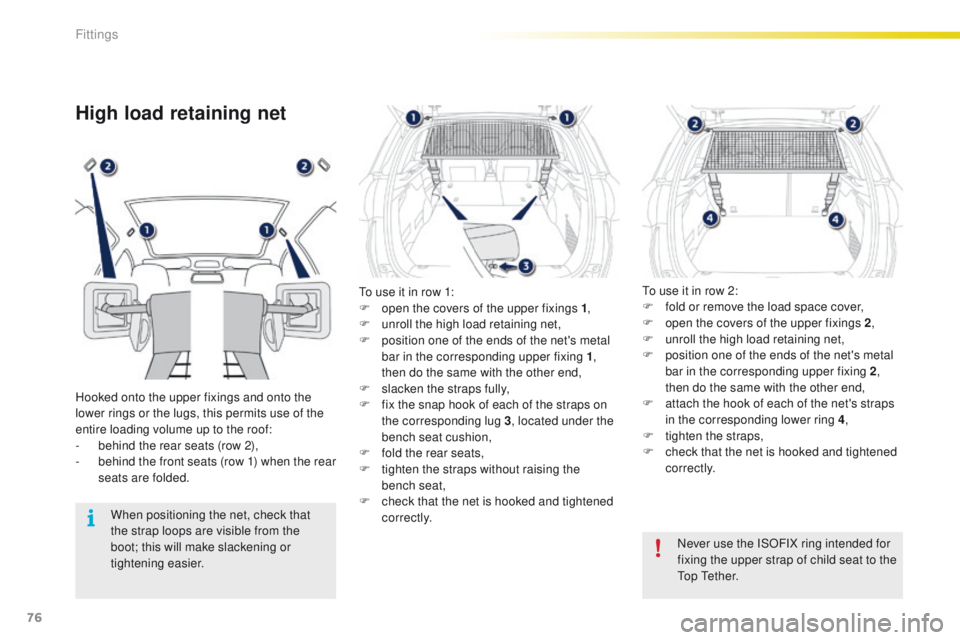

High load retaining net
Hooked onto the upper fixings and onto the
lower rings or the lugs, this permits use of the
entire loading volume up to the roof:
-
b
ehind the rear seats (row 2),
-

b
ehind the front seats (row 1) when the rear
seats are folded.
When positioning the net, check that
the strap loops are visible from the
boot; this will make slackening or
tightening easier. Never use the ISOFIX ring intended for
fixing the upper strap of child seat to the
Top Tether.
To use it in row 1:
F

o
pen the covers of the upper fixings 1
,
F
u
nroll the high load retaining net,
F
p
osition one of the ends of the net's metal
bar in the corresponding upper fixing 1 ,
then do the same with the other end,
F s lacken the straps fully,
F f ix the snap hook of each of the straps on
the corresponding lug 3 , located under the
bench seat cushion,
F

f
old the rear seats,
F

t
ighten the straps without raising the
bench


seat,
F

c
heck that the net is hooked and tightened
c o r r e c t l y. To use it in row 2:
F

f
old or remove the load space cover,
F
o
pen the covers of the upper fixings 2
,
F
u
nroll the high load retaining net,
F
p
osition one of the ends of the net's metal
bar in the corresponding upper fixing 2 ,
then do the same with the other end,
F a ttach the hook of each of the net's straps
in the corresponding lower ring 4 ,
F

t
ighten the straps,
F

c
heck that the net is hooked and tightened
c o r r e c t l y.
Fittings

77
2008_en_Chap04_amenagements_ed01-2016

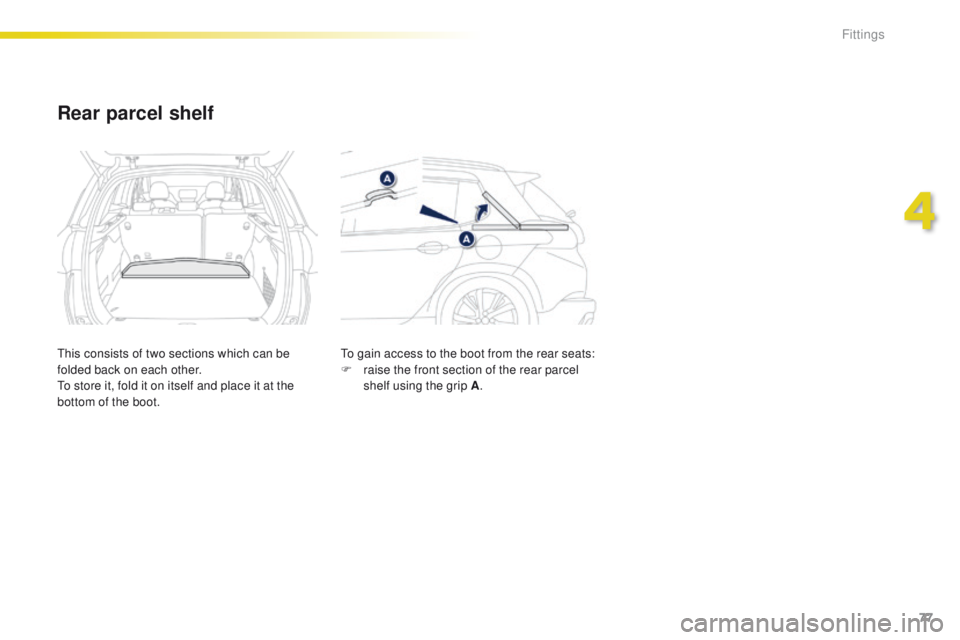

Rear parcel shelf
This consists of two sections which can be
folded back on each other.
To store it, fold it on itself and place it at the
bottom of the boot.To gain access to the boot from the rear seats:
F
r aise the front section of the rear parcel
shelf using the grip A .
4
Fittings

78
2008_en_Chap04_amenagements_ed01-2016

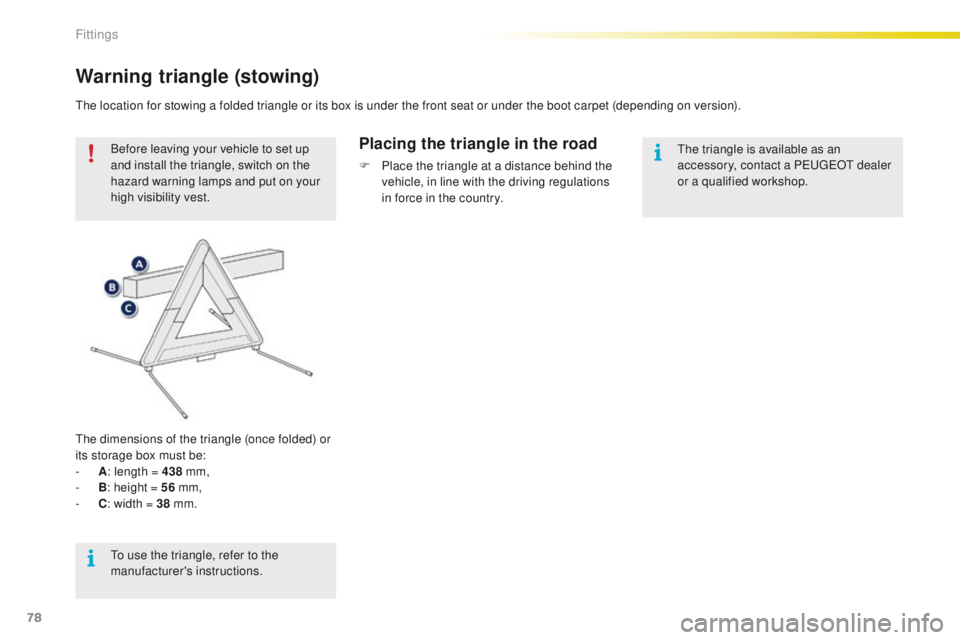

Warning triangle (stowing)
Before leaving your vehicle to set up
and install the triangle, switch on the
hazard warning lamps and put on your
high visibility vest.
The dimensions of the triangle (once folded) or
its storage box must be:
-

A : l

ength = 438 mm,
-

B : h

eight = 56 mm,
-

C : w

idth = 38 mm.Placing the triangle in the road
F Place the triangle at a distance behind the
vehicle, in line with the driving regulations
in force in the country.
The location for stowing a folded triangle or its box is under the front seat or under the boot carpet (depending on version).
The triangle is available as an
accessory, contact a PEUGEOT dealer
or a qualified workshop.
To use the triangle, refer to the
manufacturer's instructions.
Fittings
