Page 11 of 171
26-05-2003
99100
ELECTRIC WINDOWS
1. Driver's electric windowManual operation: press or pull the switch lightly.
The window stops as soon as the switch is released. Automatic operation: press or pull the switch
firmly. One touch completely opens or closes the
window. Automatic opening and closing only operate when the engine is running.
2. Passenger's electric window.
3. Rear left electric window.
4. Rear right electric window. ELECTRIC MIRRORS
Turn knob
5to the right or to the left to select the cor-
responding mirror. Move knob 5in all four directions to adjust.
Electric folding mirrors With the ignition on, turn knob 5to position A. 7
YOUR 206 AT A GLANCE
Page 12 of 171
26-05-2003
DOORS Front doors Rear doors (206 SW)
89
LOCKING/UNLOCKING THE BOOT AND THE REAR SCREEN (206 SW)
The boot and the rear screen cannot be opened simultaneously. With the rear screen closed, to open the boot, pull the handle Aand lift.
With the boot closed, to open the rear
screen , press and hold the unlocking
button on the remote control or pull the handle B, then lift the rear screen
using the windscreen wiper arm (at C).
The lighting is switched on byopening the boot or the rear screen. Note: Close the rear screen using the
windscreen wiper arm Cor by pressing
the centre of the window.
6
YOUR 206 AT A GLANCE
90
Page 13 of 171
26-05-2003
13
10192
YOUR 206 AT A GLANCE
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the han- dle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel.OPENING THE BONNET From inside the vehicle:
pull the
handle. From the outside:
lift the catch
and raise the bonnet. Secure the strut to hold the bonnet open. 13
Page 14 of 171
26-05-2003
11 0
YOUR 206 AT A GLANCE14P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
A. Sport programme.
B. Snow programme.
THE AUTOMATIC AUTOADAPTIVE GEARBOX Starting
To start the engine, place the selector lever in position
Nor P. Press
the brake to leave position P and when selecting forward or reverse
gears. Position of the selector lever This is shown by an indicator on the instrument panel.
Page 15 of 171
26-05-2003
68
70
YOUR 206 AT A GLANCE11
N¡ Symbol Function
HEATING/AIR CONDITIONING
Setting the air distribution.
1
Air intake control.
2
Temperatureadjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioningcontrol.
6
Page 16 of 171
26-05-2003
72
YOUR 206 AT A GLANCE12
N¡ Symbol Function

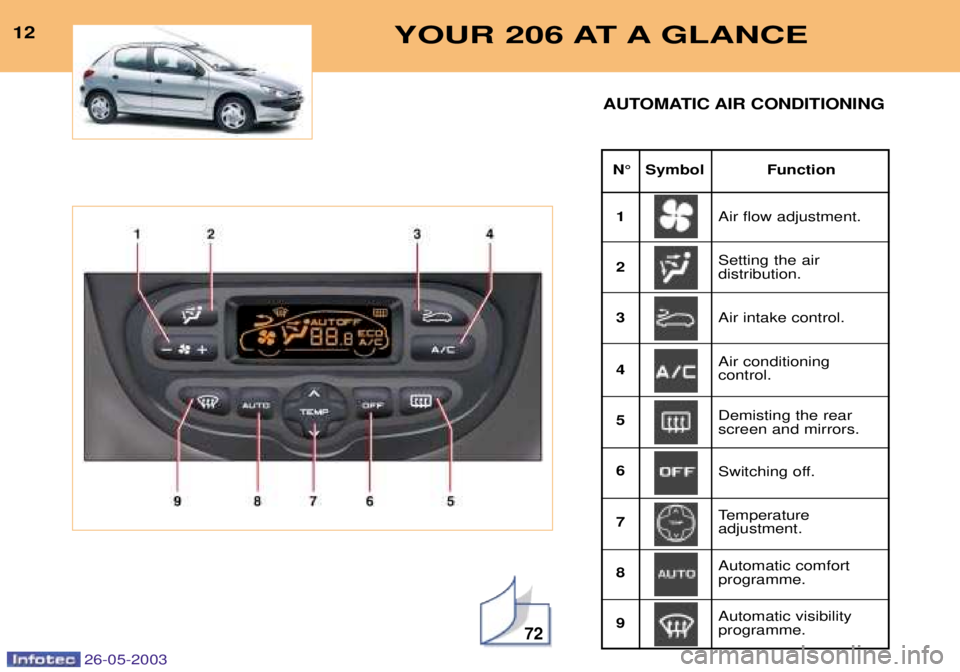

AUTOMATIC AIR CONDITIONING
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 89 Air intake control. Air conditioning control.
Switching off.
Demisting the rear screen and mirrors.
Temperature adjustment. Automatic comfort programme. Automatic visibility programme.
Page 17 of 171
26-05-2003
PEUGEOT SERVICINGYour vehicle benefits from extended service intervals.
¥ For petrol engines: every 20 000 miles (30 000 km) or every two years.
¥ For direct injection diesel engines: every 12 000 miles (20 000) km or every two years.
¥ For indirect injection diesel engines: every 10 000 miles (15 000 km) or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 10 000 miles
(15 000 km) for saloon and 206 SW petrol engines; every 6 000 miles (10 000 km) for 206 GTi 180 direct injectiondiesel engines and every 5 000 miles (7 500 km) for indirect injection diesel engines.
A PEUGEOT dealer will carry out a quick check and top up the levels if necessary (oil, coolant, windscreen wash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every
2 000 to 3 000 miles (3 000 to 5 000 km), depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO USE ONLY ENGINE LUBRICANTS THAT ARE SUITED TO YOUR ENGINE AND RECOM-
MENDED BY THE MANUFACTURER (see "Lubraicants" pages).
PEUGEOT SERVICING
18
Page 18 of 171
26-05-2003
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The brake fluid must be replaced every 40 000 miles (60 000 km) or every 2 years.
The passenger compartment filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular
services).The timing belt : consult your PEUGEOT dealer.
PEUGEOT SERVICING 19

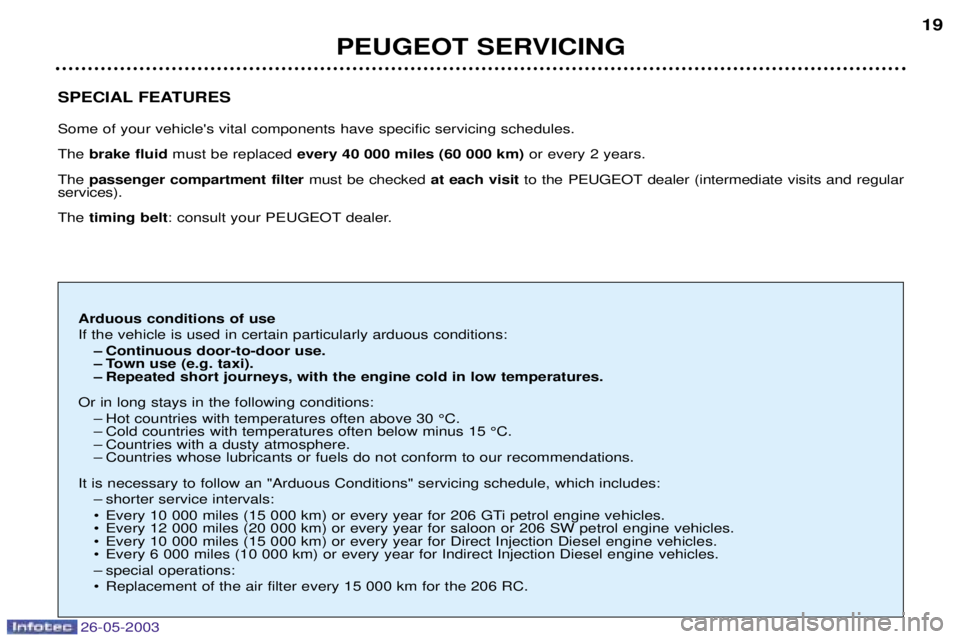

Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:
Ð Continuous door-to-door use.
Ð Town use (e.g. taxi).
Ð Repeated short journeys, with the engine cold in low temperatures.
Or in long stays in the following conditions: Ð Hot countries with temperatures often above 30 ¡C.
Ð Cold countries with temperatures often below minus 15 ¡C.
Ð Countries with a dusty atmosphere.
Ð Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous Conditions" servicing schedule, which includes: Ð shorter service intervals:
¥ Every 10 000 miles (15 000 km) or every year for 206 GTi petrol engine vehicles.
¥ Every 12 000 miles (20 000 km) or every year for saloon or 206 SW petrol engine vehicles.
¥ Every 10 000 miles (15 000 km) or every year for Direct Injection Diesel engine vehicles.
¥ Every 6 000 miles (10 000 km) or every year for Indirect Injection Diesel engine vehicles.
Ð special operations:
¥ Replacement of the air filter every 15 000 km for the 206 RC.
Page 19 of 171
26-05-2003
SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is tobe carried out according to the manu-facturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spanner sym-
bolising ''service operation'' is lit. Thetrip recorder display shows you thedistance remaining (in round figures)before the next service. Example: 4,800 miles remain before
the next service is due. When the ignition comes on and for 5 secondsthe display indicates: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the display shows the total or tripdistances. The distance remaining before the next service is less than 500 miles. Example:
400 miles remain before
the next service is due.When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the symbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances. The service is overdue. Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 miles. The service should be car-
ried out very shortly. When the ignition is switched on andfor 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operation
and the symbol remains lit. Thedisplay shows the total or tripdistances.
PEUGEOT SERVICING
20
Page 20 of 171
26-05-2003
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the reset procedure is as fol-lows:Ð Switch off the ignition.
Ð Press and hold button 1.
Ð Switch on the ignition.
The display begins a 10 second countdown.
Ð Keep button 1pressed for 10 seconds.
The display shows [= 0]and the
service symbol disappears.
PEUGEOT SERVICING 21
