Page 11 of 123

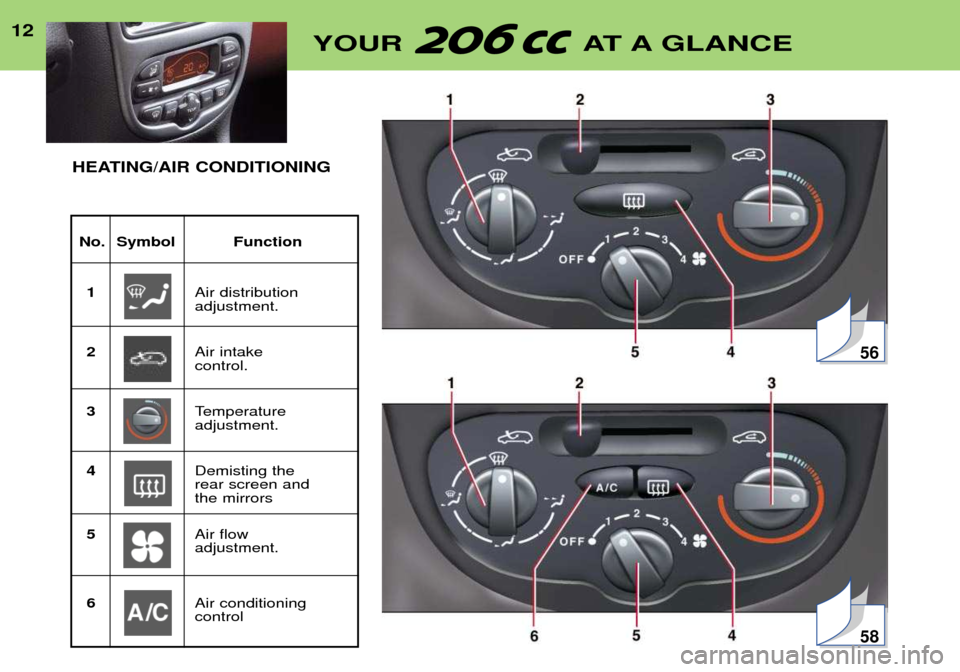

Peugeot 206 CC 2001.5 User Guide 12YOUR AT A GLANCE
No. Symbol Function
1 Air distribution adjustment.
2 Air intake control.
3 Temperature adjustment.
4 Demisting the rear screen and the mirrors
5 Air flow adjustment.
6 Air condition

Page 12 of 123

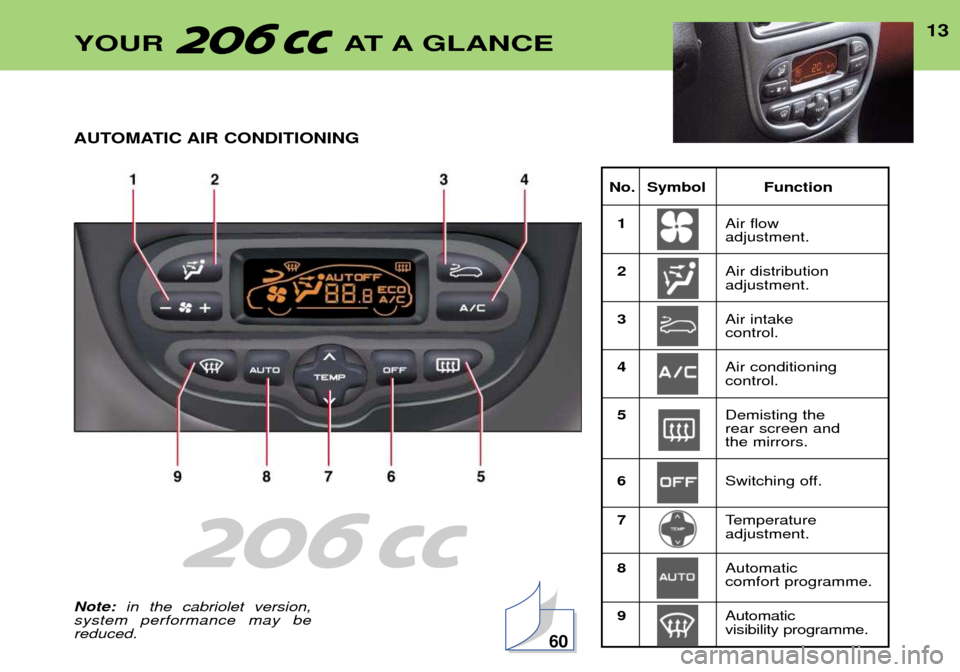

Peugeot 206 CC 2001.5 User Guide 13YOUR AT A GLANCE
No. Symbol Function
1 Air flow  adjustment.
2 Air distributionadjustment.
3 Air intake control.
4 Air conditioningcontrol.
5 Demisting the rear screen and the mirrors.
6 Switching o

Page 13 of 123

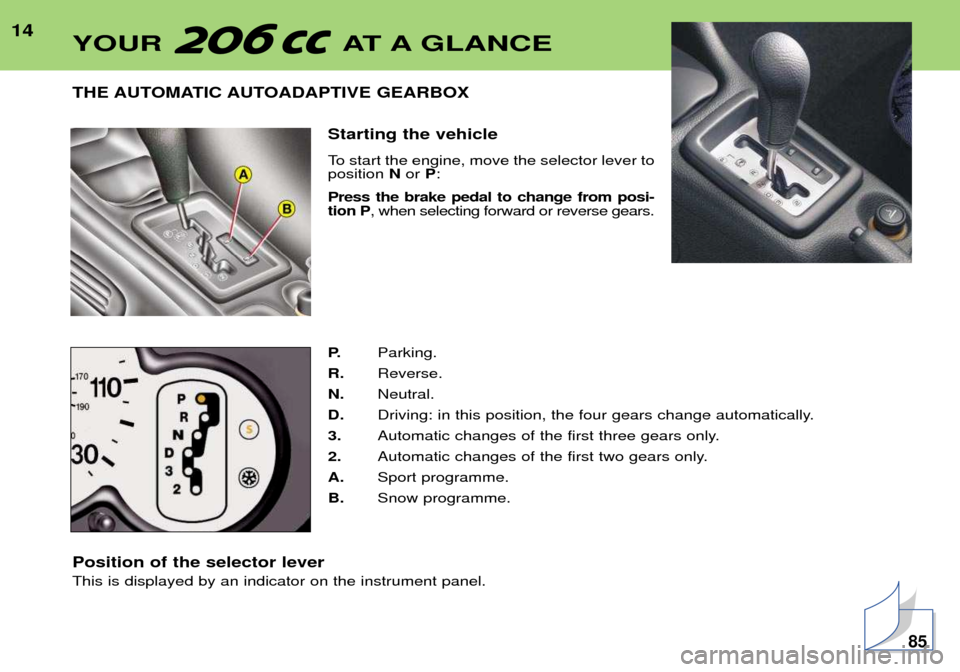

Peugeot 206 CC 2001.5 User Guide 14THE AUTOMATIC AUTOADAPTIVE GEARBOX Starting the vehicle
To start the engine, move the selector lever to position N or  P:
Press the brake pedal to change from posi-tion P , when selecting forward

Page 14 of 123

Peugeot 206 CC 2001.5 User Guide PEUGEOT SERVICING
18
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals, every 20,000 miles (30,000 km) or every two years. The extension of the service intervals means that the

Page 15 of 123

Peugeot 206 CC 2001.5 User Guide PEUGEOT SERVICING19
SPECIAL FEATURES Some of your vehicles vital components have specific servicing schedules.  The air bags and the pretensioning seat belts must be replaced every 10 years. The brak

Page 16 of 123

Peugeot 206 CC 2001.5 User Guide PEUGEOT SERVICING
20

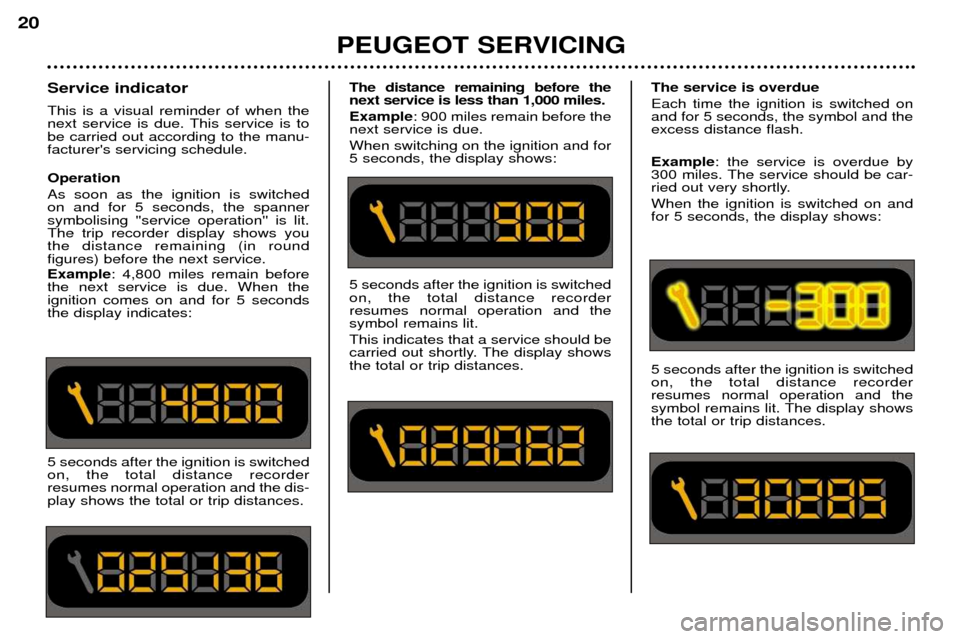

Service indicator This is a visual reminder of when the
next service is due. This service is tobe carried out according to the manu-facturers servicing schedule. Operation As so

Page 17 of 123

Peugeot 206 CC 2001.5 User Guide PEUGEOT SERVICING21
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the reset procedure is as follo

Page 18 of 123

Peugeot 206 CC 2001.5 User Guide PEUGEOT SERVICING
22
SERVICING LEVELS Each vehicle possesses its servicing cycle, defined by the manufacturer in terms of the technical features.
This cycle consists in alternating beteen 2 levels A

Page 19 of 123

Peugeot 206 CC 2001.5 User Guide PEUGEOT SERVICING23
- Engine oil��
Level
Operations Operation descriptions 1st
service
AC
Intermediate visit
- Oil filter��- Fuel filter�- Air filter element�- Spark plugs�
- Engine oil (check + top-u

Page 20 of 123

Peugeot 206 CC 2001.5 User Guide PEUGEOT SERVICING
24

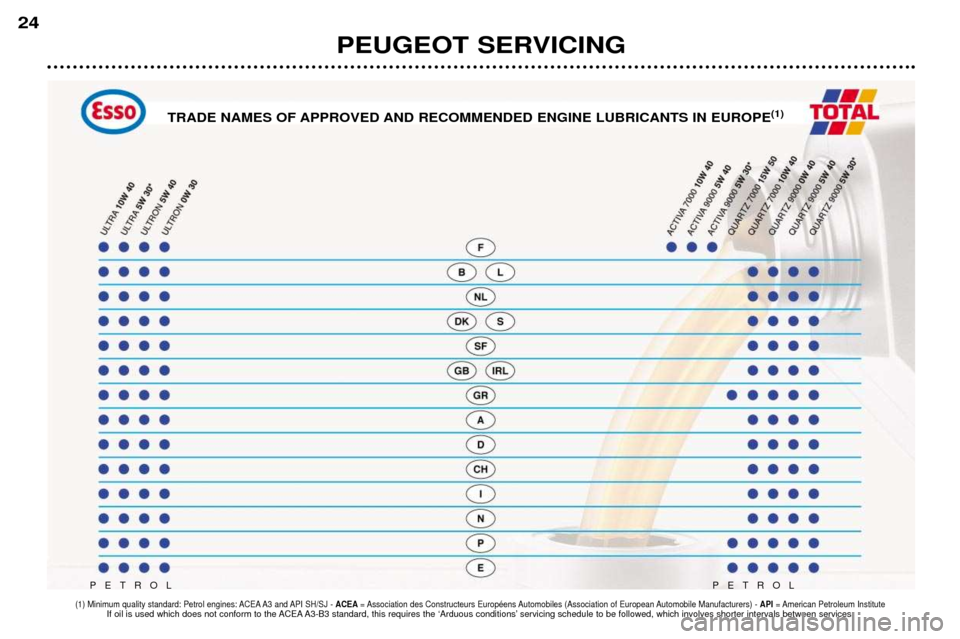

PETROL
PETROL
(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ - ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile
