Peugeot 206 CC 2001.5 Workshop Manual

YOUR 206 CC IN DETAIL
52

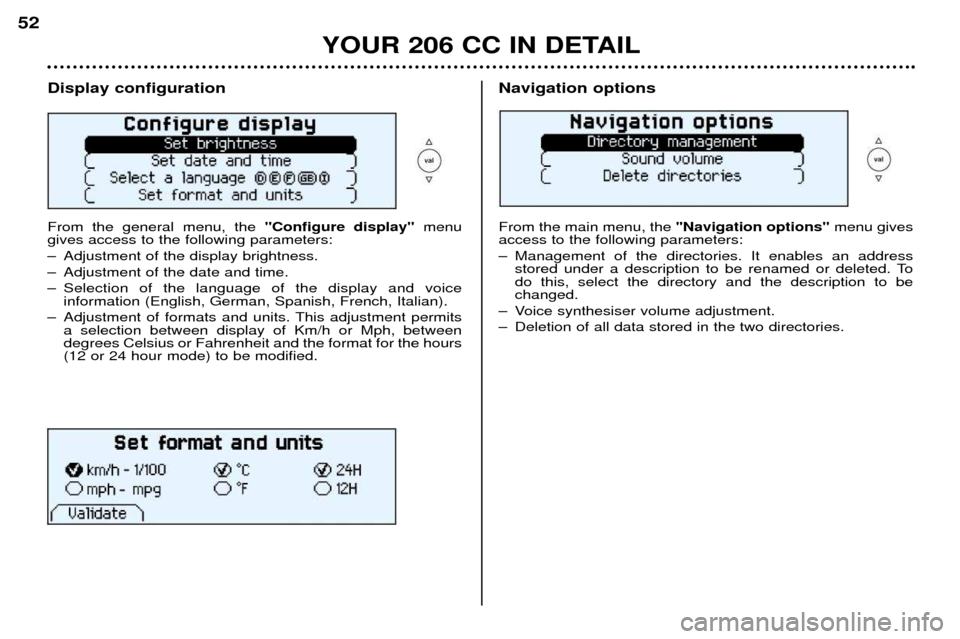

Display configuration From the general menu, the
"Configure display"menu
gives access to the following parameters:
Ð Adjustment of the display brightness.
Ð Adjustment of the date and time.
Ð Selection of the language of the display and voice information (English, German, Spanish, French, Italian).
Ð Adjustment of formats and units. This adjustment permits a selection between display of Km/h or Mph, between degrees Celsius or Fahrenheit and the format for the hours(12 or 24 hour mode) to be modified.Navigation options From the main menu, the "Navigation options"menu gives
access to the following parameters:
Ð Management of the directories. It enables an address stored under a description to be renamed or deleted. To do this, select the directory and the description to be changed.
Ð Voice synthesiser volume adjustment.
Ð Deletion of all data stored in the two directories.

YOUR 206 CC IN DETAIL53

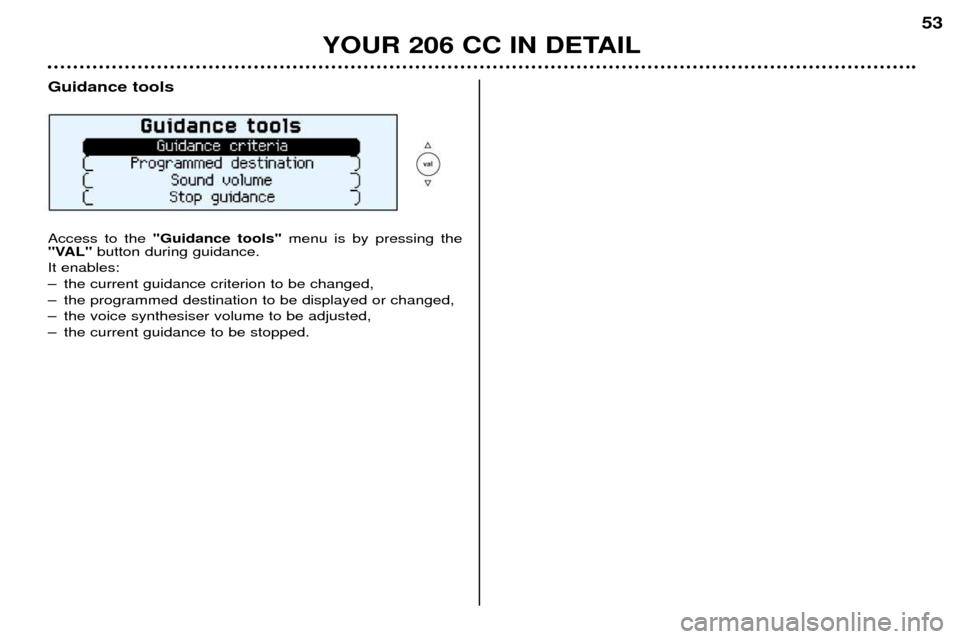

Guidance tools Access to the
"Guidance tools" menu is by pressing the
"VAL" button during guidance.
It enables:
Ð the current guidance criterion to be changed,
Ð the programmed destination to be displayed or changed,
Ð the voice synthesiser volume to be adjusted,
Ð the current guidance to be stopped.

YOUR 206 CC IN DETAIL
54
Ventilation

YOUR 206 CC IN DETAIL55

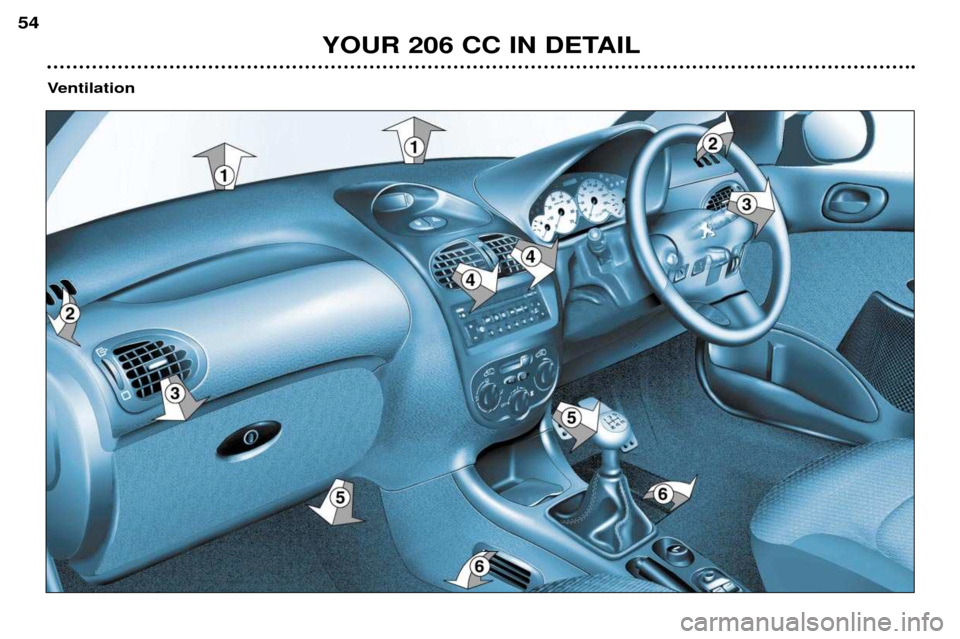

Ventilation 1 . Windscreen demisting or de-icing vents.
2 . Front window demisting or de-icing vents.
3 . Side vents.
4 . Centre vents.
5 . Air outlet to front footwells.
6 . Air outlet to rear footwells*.
Advice on operation
Ð Place the air flow control at a sufficient level to ensure correct renewal of air in the passenger compartment. The "OFF"
position cuts off all the air circulation in the passenger compartment. Note : only use the ''OFF''position occasionally (risk of condensation).
Ð Select the air distribution most suited to your requirements and the climatic conditions.
Ð Gradually adjust the temperature setting for your comfort.
Ð Position the outside air control to the left: the "Outside air" position.
Ð For perfectly even air distribution, take care not to obstruct the exterior air intake grille on the bonnet, the vents and the air ducts under the front seats. Check that the pollen filter is in good condition.
* According to specification.

YOUR 206 CC IN DETAIL
56
Heating/Ventilation
2. Air distribution adjustmentWindscreen and side win- dows (demisting/de-icing). To quickly de-ice or demist the wind-screen and the side windows:
Ð place the outside air intake control
to the left, in "Outside Air" position,
Ð set the temperatur and air flow con- trols to maximum,
Ð close the centre vents.
1. Temperature adjustment
To be adjusted according to your requirements: from blue (exterior tem-perature) to red (hot).

YOUR 206 CC IN DETAIL57
Windscreen ,side window-
sand footwells. Footwells.
These settings are recommended for cold climates. Centre and side vents. This setting is recommended
for hot climates.
3. Air flow adjustment
Turn the control to give a suf- ficient air flow to ensure yourcomfort. 4. Air intake control
Outside air intake.
This is the position for normal use.
Recirculation of interior air.
This position prevents the exteriorodours and smoke from entering thepassenger compartment and increas-es the speed of heating. As soon as possible, place the control in the outside air position, otherwise there is a risk of the windows misting up.
5. De-icing the rear screen
With the engine running, pressing the button de-icesthe rear screen and the mir-rors*.
It switches off automatically afterapproximately twelve minutes. Press-ing the button again starts it again fortwelve minutes. It is possible to stop the de-icing oper- ation by pressing the button before thetwelve minutes have elapsed. Note: this function is disarmed when
the roof is stored in the boot.
* According to specification.

YOUR 206 CC IN DETAIL
58

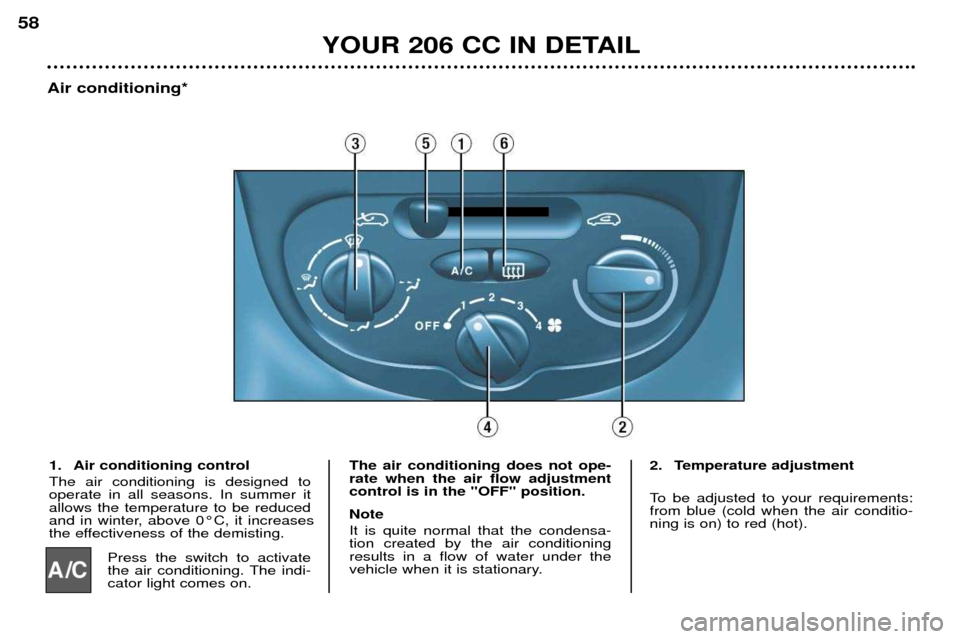

Air conditioning*
1. Air conditioning control The air conditioning is designed to operate in all seasons. In summer itallows the temperature to be reduced
and in winter, above 0¡C, it increases
the effectiveness of the demisting. Press the switch to activate
the air conditioning. The indi-cator light comes on. The air conditioning does not ope-rate when the air flow adjustmentcontrol is in the "OFF" position. Note It is quite normal that the condensa- tion created by the air conditioningresults in a flow of water under the
vehicle when it is stationary.
2. Temperature adjustment
To be adjusted to your requirements: from blue (cold when the air conditio-ning is on) to red (hot).

YOUR 206 CC IN DETAIL59
3. Air distribution adjustment
Windscreen and side win- dows (demisting/de-icing).
To quickly de-ice or demist the wind-screen and the side windows:
Ð place the temperature and air flow controls to maximum,
Ð close the central vents.
Ð place the outside air intake control to the left, in the "Outside air" posi- tion,
Ð operate the air conditioning
Windscreen, side windowsand footwells. Footwells.
These settings are recommended for cold climates.
Central and side vents.
This setting is recommended for hotclimates. 5. Air intake control
Outside air intake.
This is the norma operating position.
Recirculation of interior air.
This position prevents the entry ofunpleasant odours or fumes from theoutside. Used simultaneously with the air conditioning enables both the heatingand cooling performance to be impro-ved. Used without air conditioning, recircu- lation may result in misting the win-dows. As soon as possible, place the control in the outside air position. Important precaution Operate the air conditioning for 5 to 10 minutes, once or twice a month, to
keep it in perfect working order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.4. Air flow adjustment
From position 1to position 4.
Turn the knob to obtain suffi- cient flow to ensure your com-fort.
* According to specification.
6. De-misting the rear screen
With the engine running, pressing the button de-miststhe rear screen and the mir-rors*.
It switches off automatically afterapproximately twelve minutes. Press again to resume de-misting for twelve minutes. It is possible to stop the de-misting operation by pressing the button againbefore the end of the twelve minutes. Note: this function is disarmed when
the roof is stored in the boot.

YOUR 206 CC IN DETAIL
60

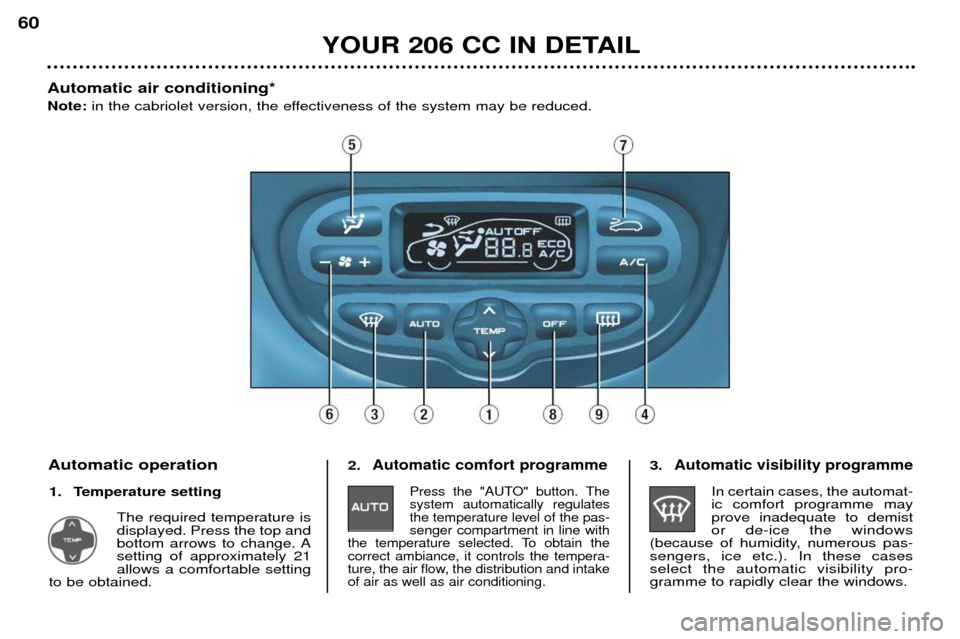

Automatic air conditioning* Note: in the cabriolet version, the effectiveness of the system may be reduced.
2.
Automatic comfort programmePress the "AUTO" button. The system automatically regulatesthe temperature level of the pas-senger compartment in line with
the temperature selected. To obtain thecorrect ambiance, it controls the tempera-
ture, the air flow, the distribution and intakeof air as well as air conditioning.3.Automatic visibility programme
In certain cases, the automat- ic comfort programme mayprove inadequate to demistor de-ice the windows
(because of humidity, numerous pas-sengers, ice etc.). In these casesselect the automatic visibility pro-gramme to rapidly clear the windows.
Automatic operation
1. Temperature setting The required temperature is displayed. Press the top and
bottom arrows to change. Asetting of approximately 21allows a comfortable setting
to be obtained.

YOUR 206 CC IN DETAIL61
5.
Air distribution
Successive presses of this button allow the air flow to bedirected alternately to:
Ð the windscreen,
Ð the windscreen and the footwells,
Ð the central and side vents and the footwells,
Ð the central and side vents.
7. Air intake Press this button to recycle
the interior air. Recirculation,
shown on the display, pre-vents the entry of unpleasant
odours and fumes. from the outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake.
4. Air conditioning
Press this button to stop the
air conditioning. The "ECO"symbol lights up. Press againto return to automatic opera-
tion of the air conditioning. The "A/C"symbol is displayed. 8. Switching the system off
The "OFF" button enablesthe entire system to be
switched off.
9. De-icing the rear window Press this button to de-ice therear screen and the mirrors*.The de-icing system switches
off automatically after a peri-
od which varies depending on the out-side temperature. It is possible to stop
the de-icing before it switches off auto-matically by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot.
Manual operation
If you wish you can make a different
choice from the one offered by the sys-
tem, by changing a setting. The otherfunctions will still be managed auto-
matically. Press the "AUTO" button toreturn to completely automatic opera-tion.
6. Air flowThe air flow may beincreased or reducedby pressing the buttons
+ or - respectively.
* According to specification.
Note
The condensation created by the air con- ditioning causes a normal flow of waterunder the vehicle when it stops.
