PEUGEOT 206 CC DAG 2002 Owners Manual

07-10-2002
TECHNICAL DATA
118

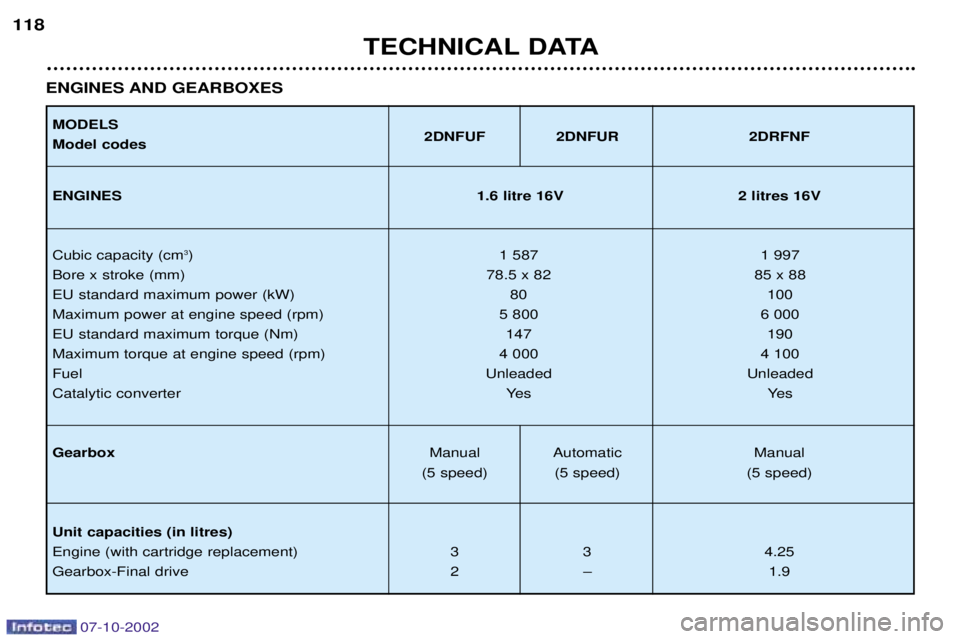

MODELS Model codes
2DNFUF 2DNFUR 2DRFNF
ENGINES 1.6 litre 16V 2 litres 16V
Cubic capacity (cm 3
) 1 587 1 997
Bore x stroke (mm) 78.5 x 82 85 x 88
EU standard maximum power (kW) 80 100
Maximum power at engine speed (rpm) 5 800 6 000
EU standard maximum torque (Nm) 147 190
Maximum torque at engine speed (rpm) 4 000 4 100Fuel Unleaded Unleaded
Catalytic converter Yes Yes
Gearbox Manual Automatic Manual
(5 speed) (5 speed) (5 speed)
Unit capacities (in litres)
Engine (with cartridge replacement) 3 3 4.25Gearbox-Final drive 2 Ð 1.9
ENGINES AND GEARBOXES

TECHNICAL DATA119

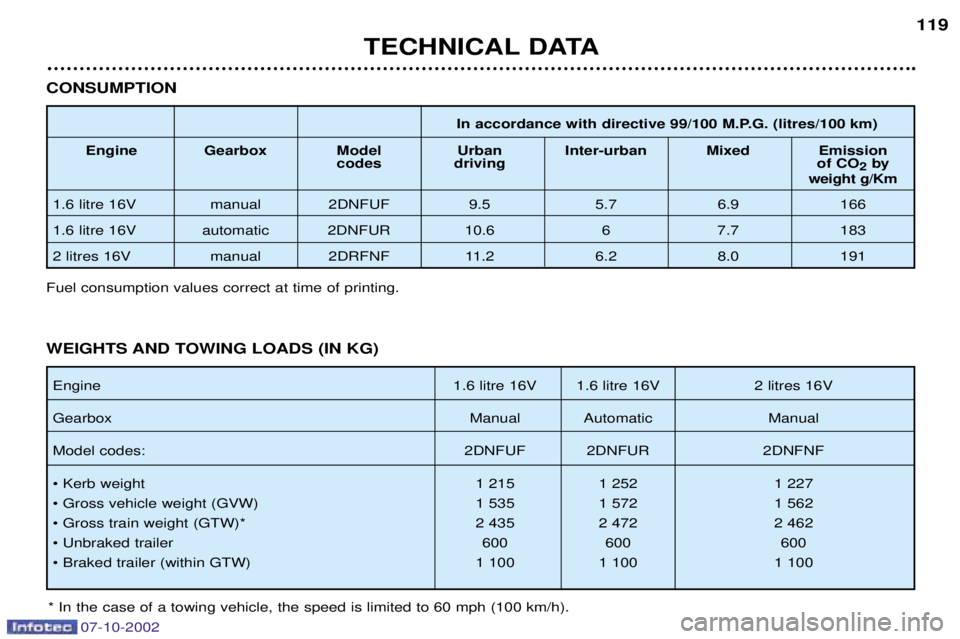

In accordance with directive 99/100 M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter-urban Mixed Emission codes driving of CO
2by
weight g/Km
1.6 litre 16V manual 2DNFUF 9.5 5.7 6.9 166
1.6 litre 16V automatic 2DNFUR 10.6 6 7.7 183
2 litres 16V manual 2DRFNF 11.2 6.2 8.0 191
CONSUMPTION
Fuel consumption values correct at time of printing.
Engine 1.6 litre 16V 1.6 litre 16V 2 litres 16V
Gearbox Manual Automatic Manual
Model codes: 2DNFUF 2DNFUR 2DNFNF
¥ Kerb weight 1 215 1 252 1 227
¥ Gross vehicle weight (GVW) 1 535 1 572 1 562
¥ Gross train weight (GTW)* 2 435 2 472 2 462¥ Unbraked trailer 600 600 600
¥ Braked trailer (within GTW) 1 100 1 100 1 100
WEIGHTS AND TOWING LOADS (IN KG)
* In the case of a towing vehicle, the speed is limited to 60 mph (100 km/h).
07-10-2002

07-10-2002
TECHNICAL DATA
120

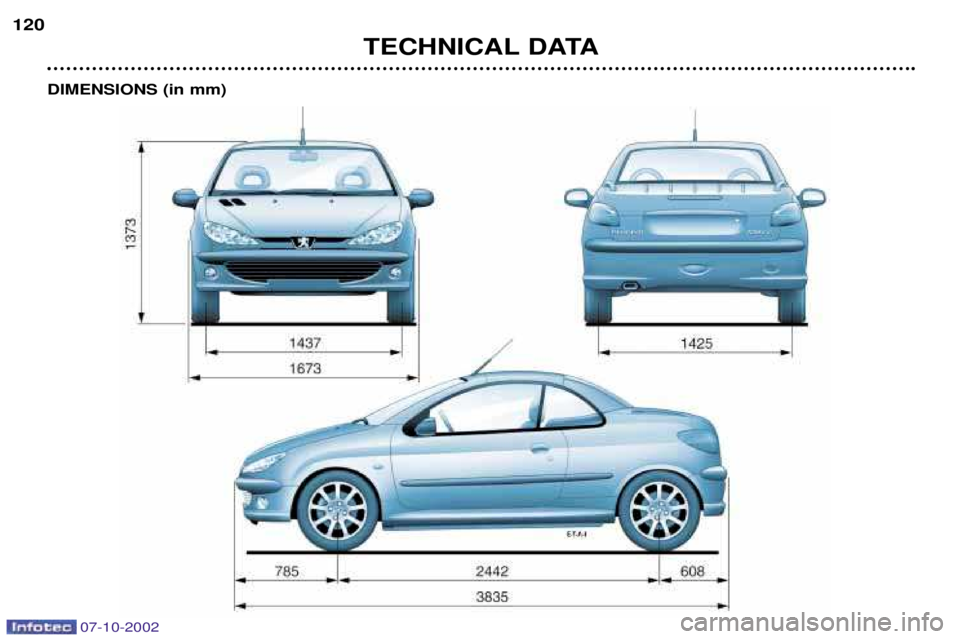

DIMENSIONS (in mm)

07-10-2002
TECHNICAL DATA121

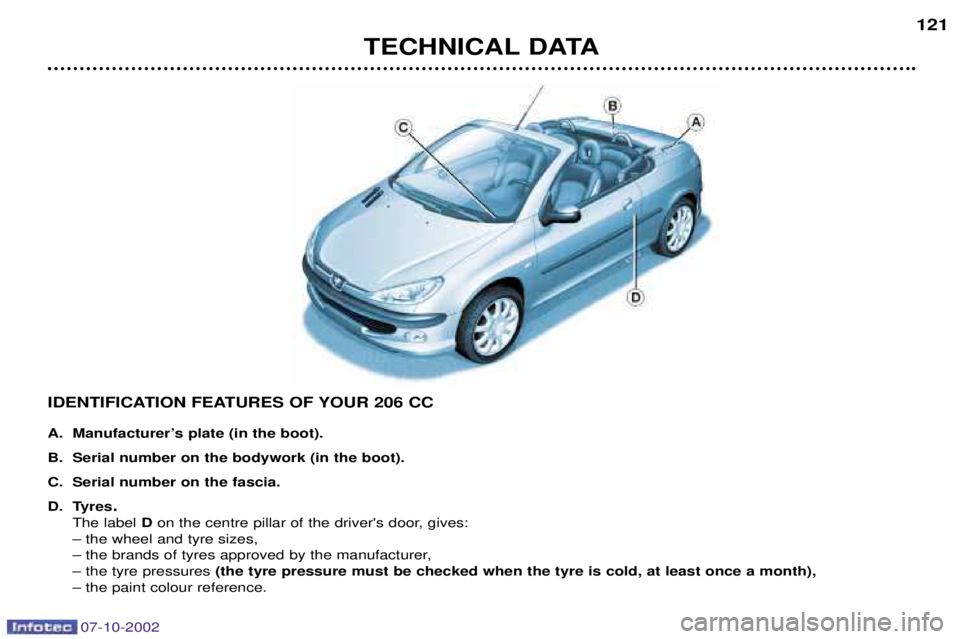

IDENTIFICATION FEATURES OF YOUR 206 CC
A. ManufacturerÕs plate (in the boot).
B. Serial number on the bodywork (in the boot).
C. Serial number on the fascia.
D. Tyres
.
The label Don the centre pillar of the driver's door, gives:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,Ð the tyre pressures (the tyre pressure must be checked when the tyre is cold, at least once a month),
Ð the paint colour reference.
