Peugeot 206 CC Dag 2003 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2003, Model line: 206 CC Dag, Model: Peugeot 206 CC Dag 2003Pages: 131, PDF Size: 1.96 MB
Page 21 of 131
30-06-2003
PEUGEOT SERVICING23
- Engine oil
Level
Operations Operation descriptions 1st service
AC
Intermediate visit
- Oil filter - Fuel filter* - Air filter element - Spark plugs
- Engine oil (check + top-up) - Manual gearbox oil (check + top-up) - Battery (check + top-up) if removable cap - Front windscreen wash (check + top-up) - Coolant level (check + top-up) - Brake fluid (check + top-up) - Power steering fluid (check + top-up according to specification)
- Operation of lights and indicators - Condition of glass, headlamp and light lenses and mirrors - Horn - Windscreen jets - Condition of wiper blades - Condition and tension of the ancillary drive belts - Handbrake - Condition of hydraulic circuits (hoses and covers) and check for leaks - Condition of rubber boots and gaiters - Brake pad wear o- Play in hubs, link rods, ball joints, flexible mountings - Shock absorbers: check for leaks - Rear drum brake lining wear - Condition and pressure of tyres (including spare tyre) - Emission control check according to current legislation - Passenger compartment filter (according to specification) o- Visual check of the whole vehicle by a PEUGEOT dealer
- Courtesy vehicle
All driving conditions.oIf there are specific conditions. * According to destination.
DRAIN AND REFILL
REPLACE
LEVELS
CHECK
SERVICE
ROAD TEST
TYPE A AND C SERVICES AND THE INTERMEDIATE VISIT
Page 22 of 131
30-06-2003
24
ESSENCEESSENCE

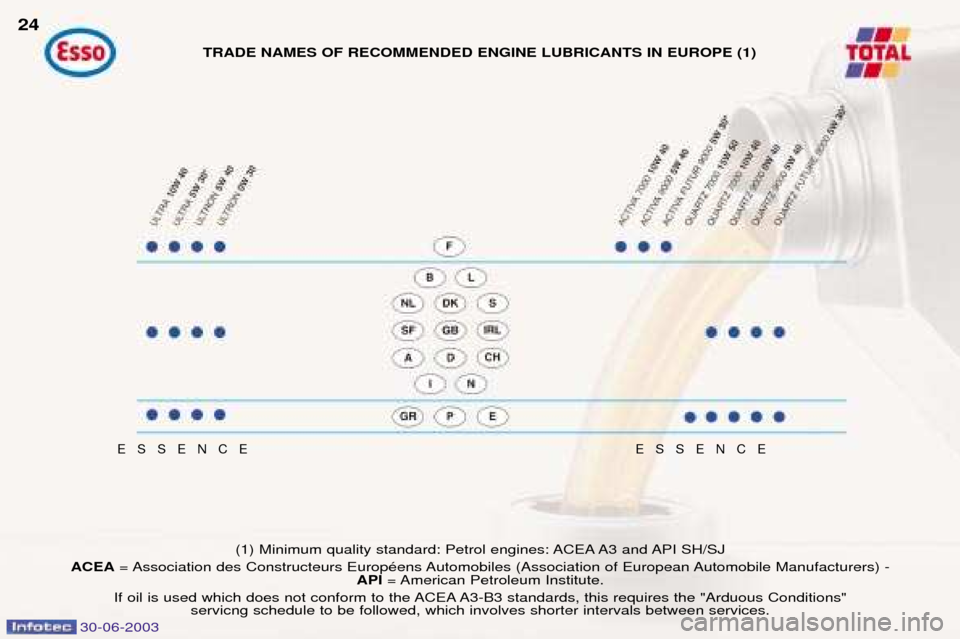

(1) Minimum quality standard: Petrol engines: ACEA A3 and API SH/SJ
ACEA = Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) -
API= American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous Conditions" servicng schedule to be followed, which involves shorter intervals between services.TRADE NAMES OF RECOMMENDED ENGINE LUBRICANTS IN EUROPE (1)
Page 23 of 131
30-06-2003
PEUGEOT SERVICING25
Recommended lubricants The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depend-ing on the temperatures at which theoils are to be used. It is also possible to use 'superior quality' synthetic oils. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ qual-ity may be used by following the'arduous conditions' servicingschedule which specifies shorter ser-vice intervals. Do not hesitate to ask for advice
from an approved PEUGEOT dealerto maintain driving pleasure and tominimise the maintenace cost ofyour vehicle. For vehicles outside Europe, please
contact a local PEUGEOT dealer.
ONLY ONLY
Manual gearbox ESSO GEAR OIL BVTOTAL TRANSMISSION BV75W-80 PR 9736.41 75W-80
ONLY
Automatic ATF 4HP20-AL4
gearbox PR 9736.22
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Brake fluid PEUGEOT DOT4
Coolant PROCOR TM108/GLYSANTIN G33 or REVKOGEL 2000 ONLYProtection to minus -35 ¡C
Other recommended products
Page 24 of 131
30-06-2003
1.Seat belt not fastened warning light*
2. Passenger air bag disarmingindicator light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator 9.
Right-hand direction indicator
10. Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level and electronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and temperature warning light
16. Coolant temperature and lowlevel warning light 17.
Engine oil temperature indicator
18. Total distance recorder button
19. Central (STOP) warning light
20. Speedometer
21. Coolant temperature indicator
22. Rev counter
23. Lighting rheostat button
24. Fuel gauge
25. Low fuel level warning light
26. Dynamic stability control (ESP/ASR) warning light
* According to destination.
INSTRUMENTS AND CONTROLS
26

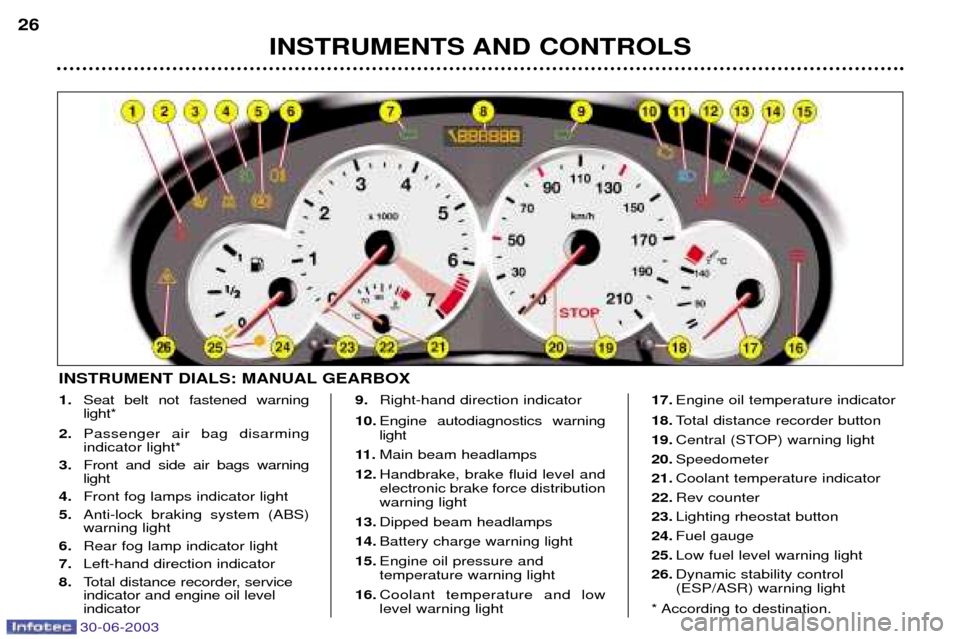

INSTRUMENT DIALS: MANUAL GEARBOX
Page 25 of 131
30-06-2003
INSTRUMENTS AND CONTROLS27
1. Seat belt not fastened warning light*
2. Passenger air bag disarmingindicator light*
3. Front and side air bags warninglight
4. Front fog lamps indicator light
5. Anti-lock braking system (ABS)warning light
6. Rear fog lamp indicator light
7. Left-hand direction indicator
8. Total distance recorder, serviceindicator and engine oil level indicator
9. Right-hand direction indicator 10.
Engine autodiagnostics warning light
11 . Main beam headlamps
12. Handbrake, brake fluid level andelectronic brake force distributionwarning light
13. Dipped beam headlamps
14. Battery charge warning light
15. Engine oil pressure and temperature warning light
16. Coolant temperature and lowlevel warning light
17. Operating programmes 18.
Gear lever position indicator
19. Total distance recorder button
20. Central (STOP) warning light
21. Speedometer
22. Coolant temperature indicator
23. Rev counter
24. Lighting rheostat button
25. Fuel gauge
26. Low fuel level warning light
27. Dynamic stability control (ESP/ASR) warning light
* According to destination.

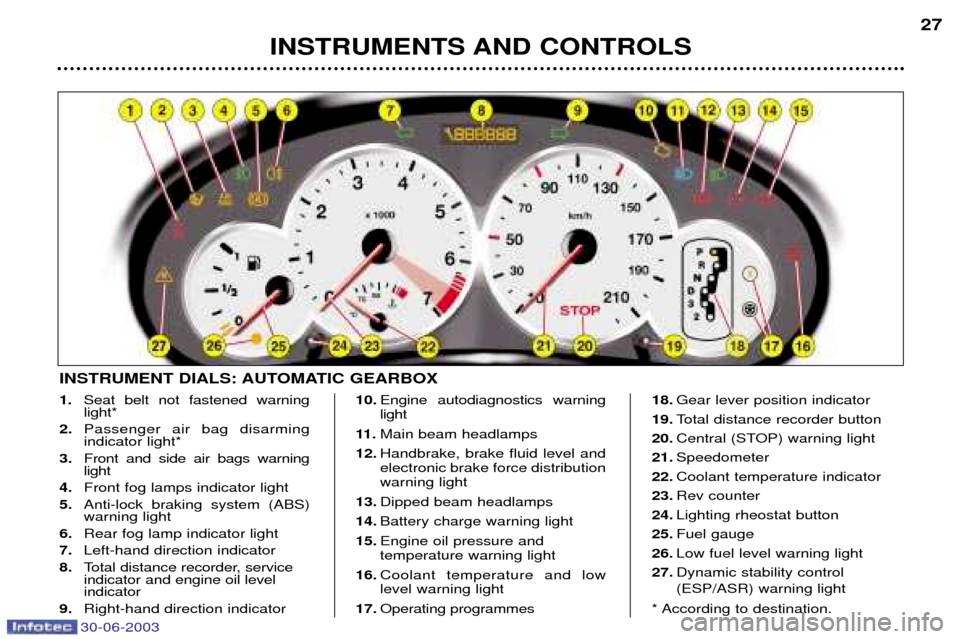

INSTRUMENT DIALS: AUTOMATIC GEARBOX
Page 26 of 131
30-06-2003
INSTRUMENTS AND CONTROLS
28
Handbrake, low brake fluid level and fault inElectronic BrakeForce Distributionsystem warning light
Linked with the central STOP warning light. Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrakereleased),
- a fault in the Electronic Brake Force Distribution system if lit
simultaneously with the ABS warn-ing light.
Stop immediately.
Contact a PEUGEOT dealer.
INSTRUMENTS AND CONTROLS
A permantly lit warning light or one that flashes, with the enginerunning, indicates an operatingfault in the relevant unit. Somewarning lights may be accompa-nied by an audible signal and amessage on the multifunctionscreen. Do not ignore this warning: contact a PEUGEOT dealer as soon as
possible. If the Central STOPwarning light comes on when youare driving, stop immediatelywhere it is safe to do so.
Anti-lock brake system (ABS) warning light This comes on for 3 seconds
each time the ignition is switched on. If the warning light remains on or comes on above 7 mph (12 km/h),
this indicates an ABS malfunction.
However, the vehicle retains con- ventional servo-assisted braking. Lighting of this warning light is accompanied by an audible signaland the message "ABS fault"on
the multifunction display.
Contact a PEUGEOT dealer.
Engine oil pressure warning light Linked with the central
STOP warning light.
Stop immediately.This warning light indicates either:
- insufficient oil pressure,
- lack of oil in the lubrication circuit. Top up the oil level.
- oil temperature which is too high. Switching on of the warning light is accompanied by an audible signal.
To lower the oil temperature,reduce your speed.
Contact a PEUGEOT dealer.
Coolant temperature and low level warninglight
Linked with the central STOP warn- ing light.
Stop immediately.Allow the engine to cool before top- ping up. The cooling system is pressurised.In the event of breakdown and to prevent the risk of scalding , turn
the cap twice to allow the pressureto drop. Once the pressure has dropped, remove the cap and top up the level.
Contact a PEUGEOT dealer.
Central STOP warning light Linked with the warn-
ing light for the "engine oil pressure", the "coolant temperature and lowlevel gauge", the "handbrake", the"brake fluid low level" and ''electro-nic braking system fault''. Stop immediately if the light is flashing with the engine running.
Contact a PEUGEOT dealer.
Page 27 of 131
30-06-2003
INSTRUMENTS AND CONTROLS29
Front and side air bags warning light The warning light comes on
for a few seconds when the ignition is switched on. Switching on of this warning light, with the engine running, is accom-panied by an audible signal and amessage on the multifunction dis-play indicating a fault in the air bags.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light*
When the ignition is switched on,the warning light comes on when
the driver has not fastened his seat belt.
Engine autodiagnos- tics warning light This comes on each time
the ignition is switched on. If it comes on when the engine isrunning, it indicates a malfunction inthe injection, ignition or emission
control system. There is a risk of
damage to your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light
When the warning light first
comes on, you have enough fuel to drive at least 30 miles (50 km) (the tank capacity is
approximately 47 litres (10.3 gallons)).
Coolant temperature indicator light
- When the needle is in zone (A), the
temperature is correct.
- When the needle is in zone ( B), the
temperature is too high. The cen- tral STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to destination.
Dynamic stability control (ESP/ASR)warning light
This comes on for a few seconds each time the ignition is switchedon.
Contact a PEUGEOT dealer if the ESP/ASR switch indicator lightflashes and this warning lightremains on or comes on with theengine running, vehicle moving. With the engine running and the vehicle moving, it flashes if thesystem is activated. It comes on permanently when the system is disarmed.
Passenger air bag disarming indicator light* Switching on of this indica-
tor light is accompanied by an audi- ble signal and the message''Passenger air bag deactivated''
on the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Battery charge warning light
This can indicate any of the follow- ing situations:
- faulty operation of the charging circuit,
- loose battery or starter terminals,- a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 28 of 131
30-06-2003
INSTRUMENTS AND CONTROLS29
Front and side air bags warning light The warning light comes on
for a few seconds when the ignition is switched on. Switching on of this warning light, with the engine running, is accom-panied by an audible signal and amessage on the multifunction dis-play indicating a fault in the air bags.
Contact a PEUGEOT dealer.
Seat belt not fastened warning light*
When the ignition is switched on,the warning light comes on when
the driver has not fastened his seat belt.
Engine autodiagnos- tics warning light This comes on each time
the ignition is switched on. If it comes on when the engine isrunning, it indicates a malfunction inthe injection, ignition or emission
control system. There is a risk of
damage to your catalytic converter.
Contact a PEUGEOT dealer rapidly.
Low fuel level warning light
When the warning light first
comes on, you have enough fuel to drive at least 30 miles (50 km) (the tank capacity is
approximately 47 litres (10.3 gallons)).
Coolant temperature indicator light
- When the needle is in zone (A), the
temperature is correct.
- When the needle is in zone ( B), the
temperature is too high. The cen- tral STOP warning light flashes.
You must stop immediately.
Contact a PEUGEOT dealer.
* According to destination.
Dynamic stability control (ESP/ASR)warning light
This comes on for a few seconds each time the ignition is switchedon.
Contact a PEUGEOT dealer if the ESP/ASR switch indicator lightflashes and this warning lightremains on or comes on with theengine running, vehicle moving. With the engine running and the vehicle moving, it flashes if thesystem is activated. It comes on permanently when the system is disarmed.
Passenger air bag disarming indicator light* Switching on of this indica-
tor light is accompanied by an audi- ble signal and the message''Passenger air bag deactivated''
on the multifunction display. If the passenger air bag is disarmed, the indicator light switches on andremains on. In all cases, if the warning light flashes, contact a PEUGEOT dealer.
Battery charge warning light
This can indicate any of the follow- ing situations:
- faulty operation of the charging circuit,
- loose battery or starter terminals,- a cut or slack alternator belt,- an alternator fault.
Contact a PEUGEOT dealer.
Page 29 of 131
30-06-2003
INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:- service indicator (see corresponding section),
- engine oil level indicator,- total distance recorder (total or trip distances).Note:
the total or trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum oil level If the flashing of the six squares is confirmed by checking using the dipstick, a surplus of oilcan cause damage to the engine.
Consult a PEUGEOT dealer without delay. Lack of oil Flashing of the six segments and "min" on the display indicate a lack of oil which can causedamage to the engine. If the lack of oil is confirmed by checking using the dipstick, it is essential to top up the level. Oil level gauge fault Flashing of the six segments indicates a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.

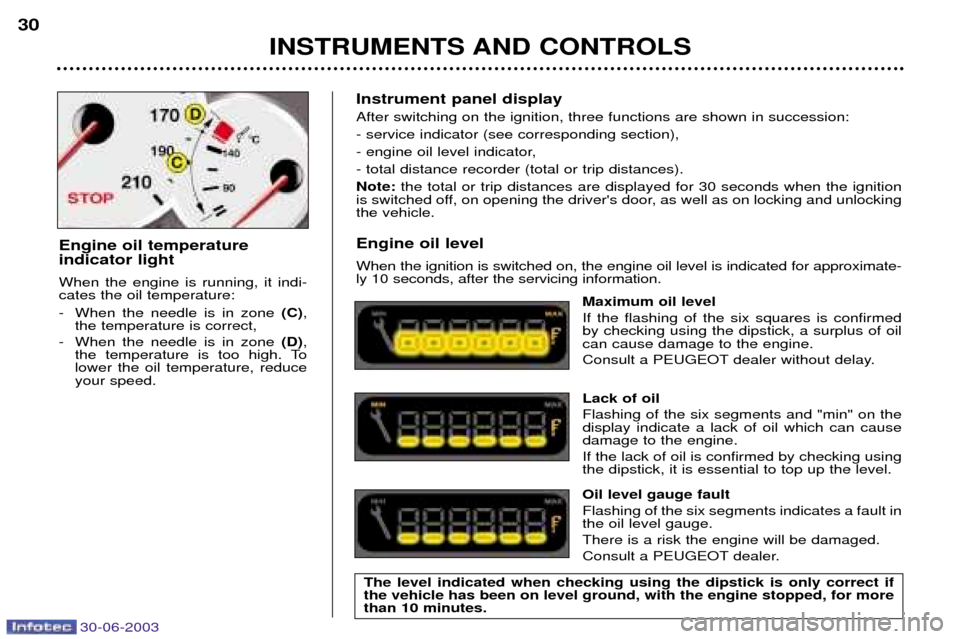

Engine oil temperature indicator light When the engine is running, it indi- cates the oil temperature:
- When the needle is in zone
(C),
the temperature is correct,
- When the needle is in zone (D),
the temperature is too high. To lower the oil temperature, reduceyour speed.
The level indicated when checking using the dipstick is only correct ifthe vehicle has been on level ground, with the engine stopped, for morethan 10 minutes.
Page 30 of 131
30-06-2003
INSTRUMENTS AND CONTROLS
30
Instrument panel display After switching on the ignition, three functions are shown in succession:- service indicator (see corresponding section),
- engine oil level indicator,- total distance recorder (total or trip distances).Note:
the total or trip distances are displayed for 30 seconds when the ignition
is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle. Engine oil level When the ignition is switched on, the engine oil level is indicated for approximate- ly 10 seconds, after the servicing information.
Maximum oil level If the flashing of the six squares is confirmed by checking using the dipstick, a surplus of oilcan cause damage to the engine.
Consult a PEUGEOT dealer without delay. Lack of oil Flashing of the six segments and "min" on the display indicate a lack of oil which can causedamage to the engine. If the lack of oil is confirmed by checking using the dipstick, it is essential to top up the level. Oil level gauge fault Flashing of the six segments indicates a fault in the oil level gauge. There is a risk the engine will be damaged.
Consult a PEUGEOT dealer.
Engine oil temperature indicator light When the engine is running, it indi- cates the oil temperature:
- When the needle is in zone
(C),
the temperature is correct,
- When the needle is in zone (D),
the temperature is too high. To lower the oil temperature, reduceyour speed.
The level indicated when checking using the dipstick is only correct ifthe vehicle has been on level ground, with the engine stopped, for morethan 10 minutes.
