YOUR 206 CC IN DETAIL41

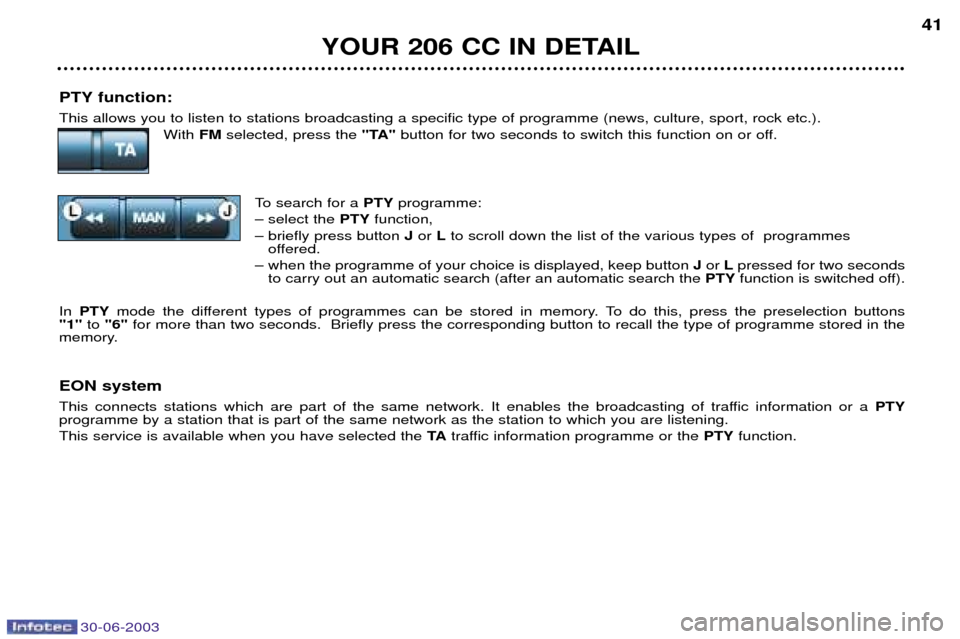

PTY function: This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FMselected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTYprogramme:
Ð select the PTYfunction,
Ð briefly press button Jor Lto scroll down the list of the various types of programmes
offered.
Ð when the programme of your choice is displayed, keep button Jor Lpressed for two seconds
to carry out an automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode the different types of programmes can be stored in memory. To do this, press the preselection buttons
"1" to "6" for more than two seconds. Briefly press the corresponding button to recall the type of programme stored in the
memory.
EON system
This connects stations which are part of the same network. It enables the broadcasting of traffic information or a PTY
programme by a station that is part of the same network as the station to which you are listening. This service is available when you have selected the TAtraffic information programme or the PTYfunction.
Page 42 of 131
30-06-2003
YOUR 206 CC IN DETAIL
42

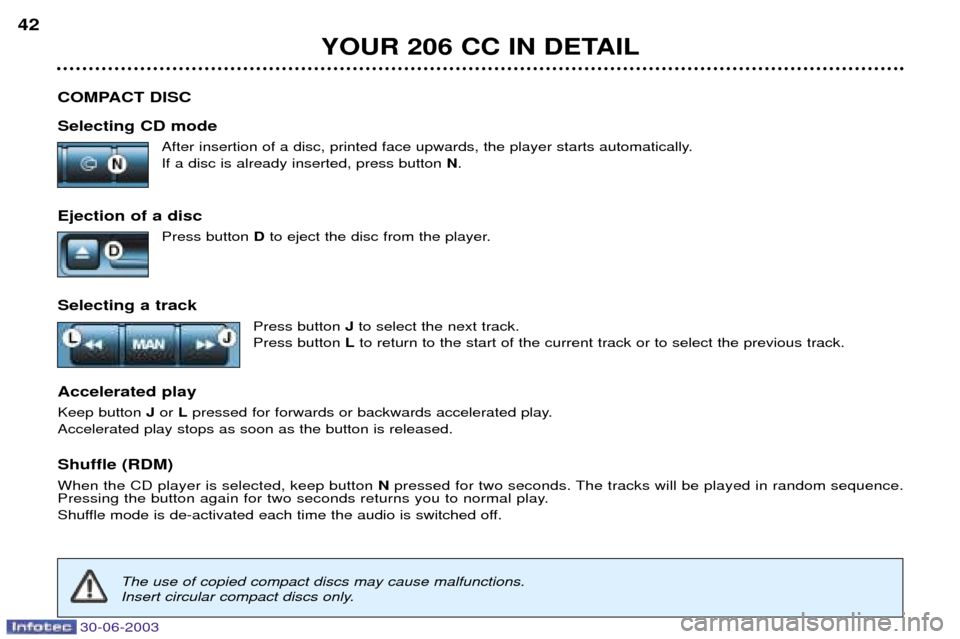

COMPACT DISC Selecting CD mode After insertion of a disc, printed face upwards, the player starts automatically. If a disc is already inserted, press button N.
Ejection of a disc Press button Dto eject the disc from the player.
Selecting a track Press button Jto select the next track.
Press button Lto return to the start of the current track or to select the previous track.
Accelerated play Keep button Jor Lpressed for forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle (RDM) When the CD player is selected, keep button Npressed for two seconds. The tracks will be played in random sequence.
Pressing the button again for two seconds returns you to normal play.
Shuffle mode is de-activated each time the audio is switched off.
The use of copied compact discs may cause malfunctions.
Insert circular compact discs only.
Page 43 of 131
30-06-2003
YOUR 206 CC IN DETAIL43

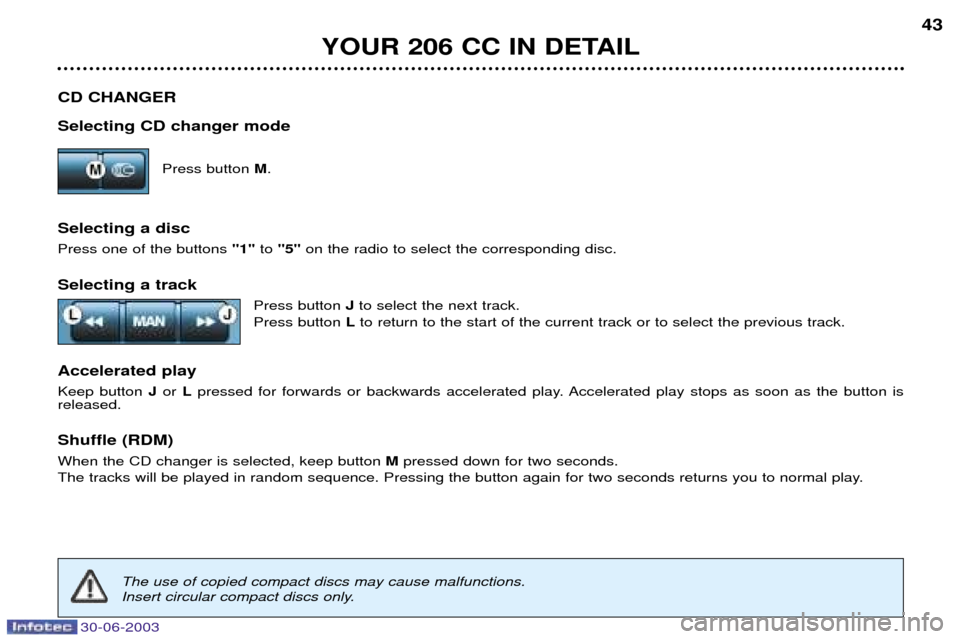

CD CHANGER Selecting CD changer mode Press button M.
Selecting a disc Press one of the buttons "1"to "5" on the radio to select the corresponding disc.
Selecting a track Press button Jto select the next track.
Press button Lto return to the start of the current track or to select the previous track.
Accelerated playKeep button Jor Lpressed for forwards or backwards accelerated play. Accelerated play stops as soon as the button is
released. Shuffle (RDM) When the CD changer is selected, keep button Mpressed down for two seconds.
The tracks will be played in random sequence. Pressing the button again for two seconds returns you to normal play.
The use of copied compact discs may cause malfunctions.
Insert circular compact discs only.
Page 44 of 131
30-06-2003
YOUR 206 CC IN DETAIL
44
5 CD CHANGER*

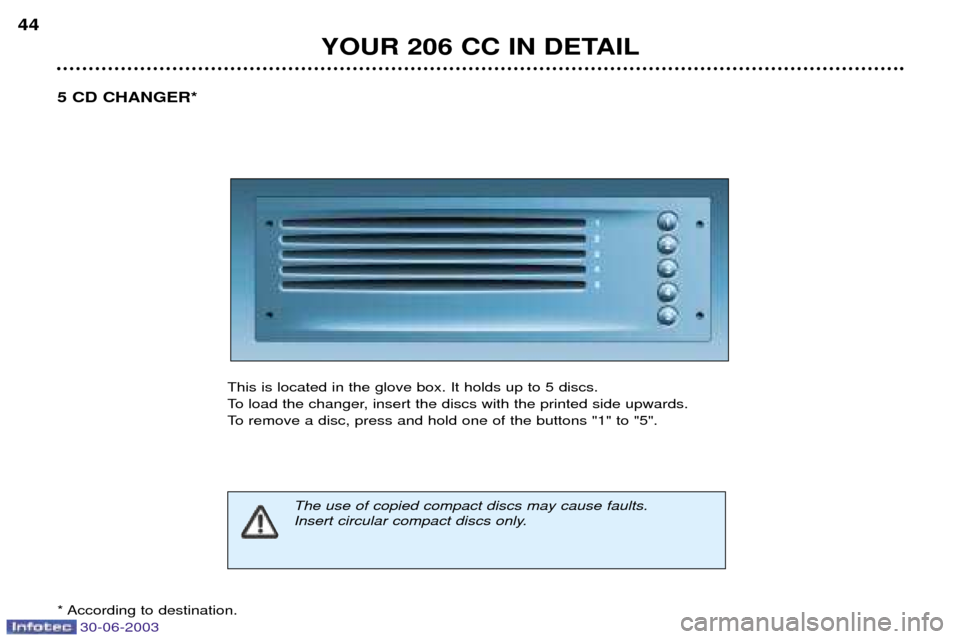

This is located in the glove box. It holds up to 5 discs.
To load the changer, insert the discs with the printed side upwards.
To remove a disc, press and hold one of the buttons "1" to "5".
The use of copied compact discs may cause faults.
Insert circular compact discs only.
* According to destination.
Page 45 of 131
30-06-2003
YOUR 206 CC IN DETAIL
45
Direction arrows: These enable you to move around the screen and thus select a function.
On the welcome screen only, the up and down arrows enable the brightness of the screen to beadjusted. The right and left arrows enable the complete
name of the road to be displayed temporarily, dur-ing guidance, if the name exceeds the capacity ofthe screen.
menu : this button allows access to the main menu. It canbe used at any time.
esc : escape button "Short press": cancels the current operation and returns to the previous screen. "Press for more than 2 seconds": returns to the welcome screen. This button can be used in any menu. It is inactive during guidance.
mod : mode button"Short press": changes between date, navigation,radio and permanent locating.
val : Validation button Confirms the function selected.
Reference of the 2 batteries: 1.5 volts type LR03.
THE SATELLITE NAVIGATION SYSTEM Introduction The satellite navigation system guides you to the destination of your choice bymeans of vocal and visual instructions. The heart of the system lies in the use of a map database and a GPS system.The latter enables your position to belocated by means of several satellites. The satellite navigation system con- sists of the following components:
- the remote control,
- the display,
- the control unit,
- the last voice message recall con- trol,
- the CD ROM,

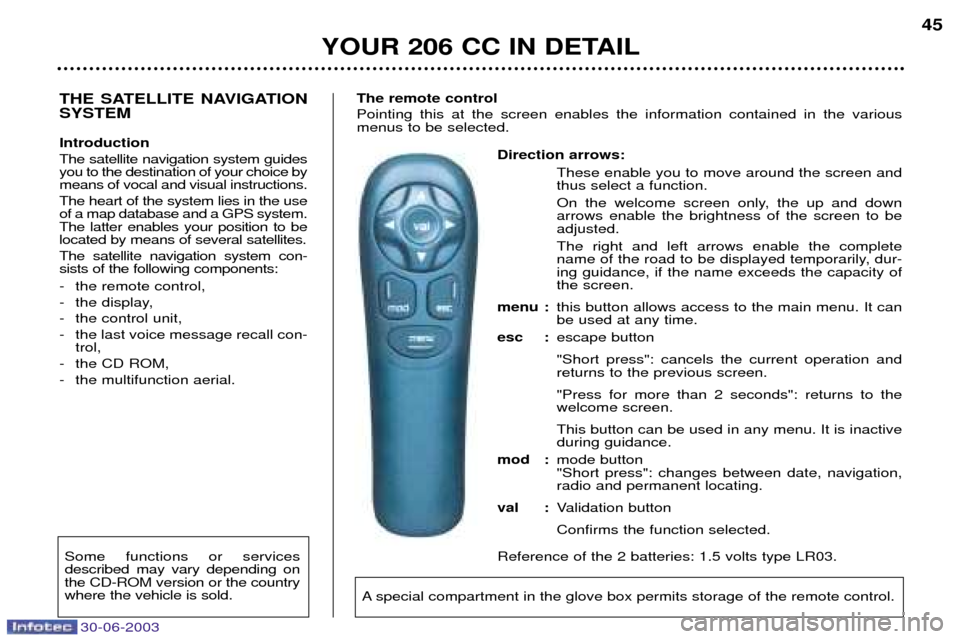

- the multifunction aerial. The remote control Pointing this at the screen enables the information contained in the various menus to be selected.
A special compartment in the glove box permits storage of the remote control.
Some functions or services described may vary depending onthe CD-ROM version or the countrywhere the vehicle is sold.
Page 46 of 131
30-06-2003
YOUR 206 CC IN DETAIL

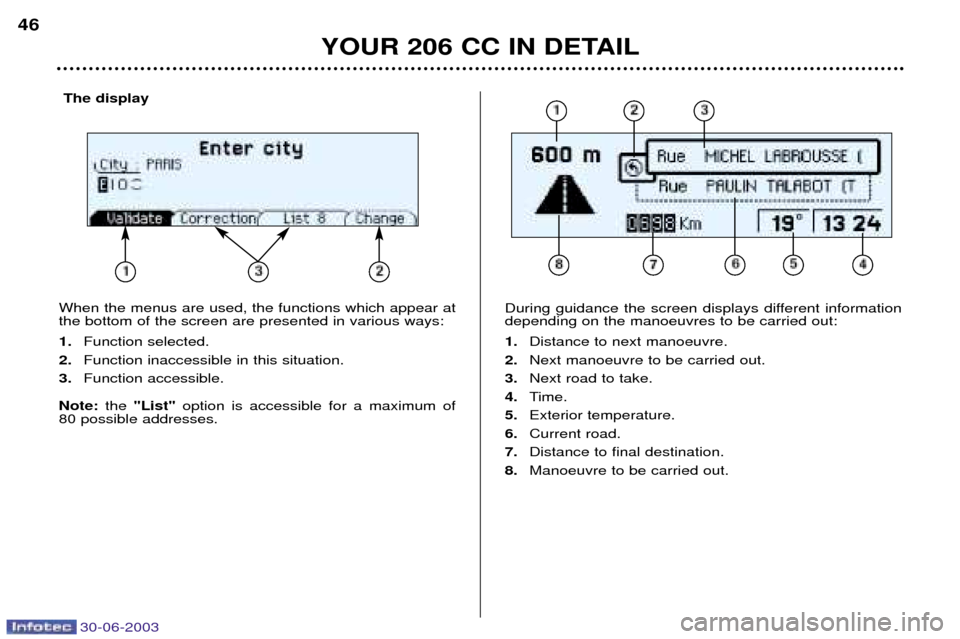

During guidance the screen displays different information depending on the manoeuvres to be carried out: 1.Distance to next manoeuvre.
2. Next manoeuvre to be carried out.
3. Next road to take.
4. Time.
5. Exterior temperature.
6. Current road.
7. Distance to final destination.
8. Manoeuvre to be carried out.
The display
When the menus are used, the functions which appear at the bottom of the screen are presented in various ways: 1. Function selected.
2. Function inaccessible in this situation.
3. Function accessible.
Note: the "List" option is accessible for a maximum of
80 possible addresses.
46
Page 47 of 131
30-06-2003
YOUR 206 CC IN DETAIL
47
The last voice message recall controlPressing the button on the end of the lights stalkallows the last voice mes-
sage to be repeated, or, ifappropriate, a voice mes-sage to be heard and amore detailed display ofthe approaching land-scape to be displayed.
The CD-ROM This contains all the map-ping data. It must be inserted with the printed face upwards.
Use only CD-ROMs approved by PEUGEOT. The satellite navigation system is active when the globe is lit with a full outline.

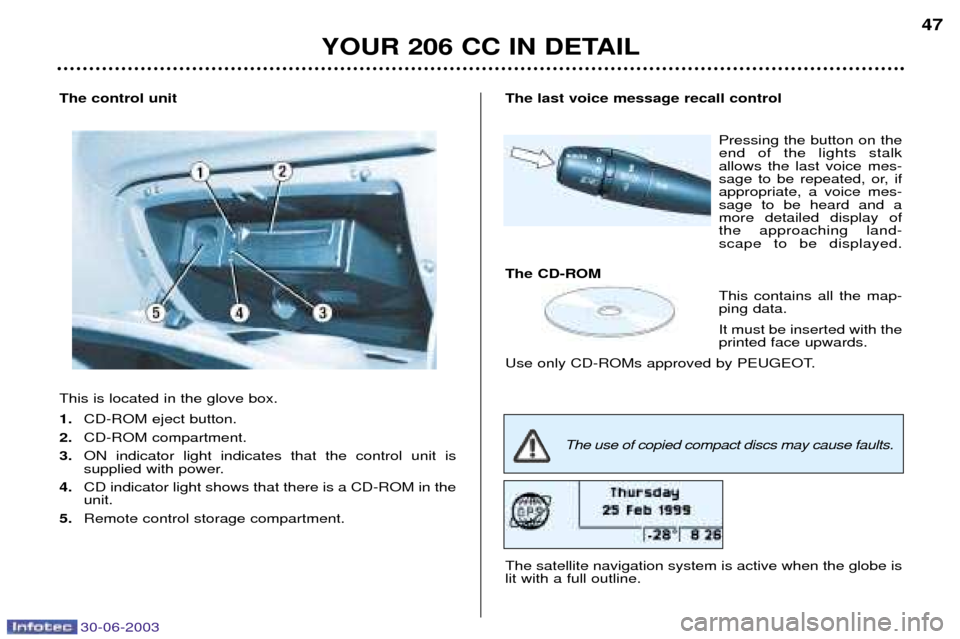

The control unit This is located in the glove box. 1.
CD-ROM eject button.
2. CD-ROM compartment.
3. ON indicator light indicates that the control unit is
supplied with power.
4. CD indicator light shows that there is a CD-ROM in theunit.
5. Remote control storage compartment.
The use of copied compact discs may cause faults.
Page 48 of 131
30-06-2003
YOUR 206 CC IN DETAIL
48

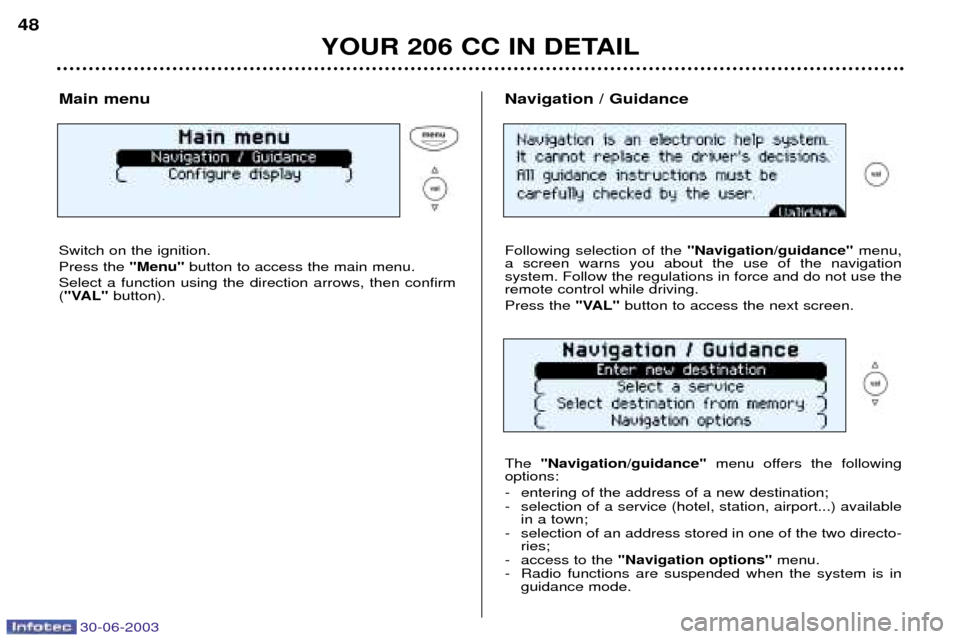

Main menu Switch on the ignition. Press the "Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button). Navigation / Guidance Following selection of the
"Navigation/guidance"menu,
a screen warns you about the use of the navigation system. Follow the regulations in force and do not use theremote control while driving. Press the "VAL"button to access the next screen.
The "Navigation/guidance" menu offers the following
options:
- entering of the address of a new destination;
- selection of a service (hotel, station, airport...) available in a town;
- selection of an address stored in one of the two directo- ries;
- access to the "Navigation options" menu.
- Radio functions are suspended when the system is in guidance mode.
Page 49 of 131
30-06-2003
YOUR 206 CC IN DETAIL
48
Main menu Switch on the ignition. Press the "Menu"button to access the main menu.
Select a function using the direction arrows, then confirm ( "VAL" button). Navigation / Guidance Following selection of the
"Navigation/guidance"menu,
a screen warns you about the use of the navigation system. Follow the regulations in force and do not use theremote control while driving. Press the "VAL"button to access the next screen.
The "Navigation/guidance" menu offers the following
options:
- entering of the address of a new destination;
- selection of a service (hotel, station, airport...) available in a town;
- selection of an address stored in one of the two directo- ries;
- access to the "Navigation options" menu.
- Radio functions are suspended when the system is in guidance mode.
Page 50 of 131
30-06-2003
YOUR 206 CC IN DETAIL
49

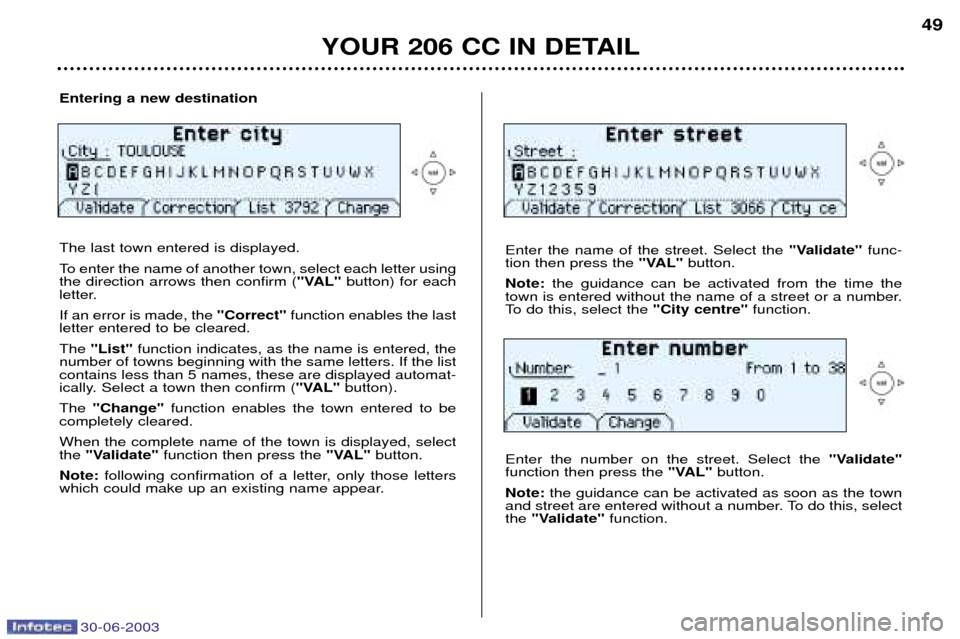

Entering a new destination The last town entered is displayed.
To enter the name of another town, select each letter using the direction arrows then confirm ("VAL"button) for each
letter. If an error is made, the "Correct"function enables the last
letter entered to be cleared.The "List" function indicates, as the name is entered, the
number of towns beginning with the same letters. If the list contains less than 5 names, these are displayed automat-
ically. Select a town then confirm ( "VAL"button).
The "Change" function enables the town entered to be
completely cleared. When the complete name of the town is displayed, select the "Validate" function then press the "VAL" button.
Note: following confirmation of a letter, only those letters
which could make up an existing name appear. Enter the name of the street. Select the
"Validate"func-
tion then press the "VAL"button.
Note: the guidance can be activated from the time the
town is entered without the name of a street or a number.
To do this, select the "City centre"function.
Enter the number on the street. Select the "Validate"
function then press the "VAL"button.
Note: the guidance can be activated as soon as the town
and street are entered without a number. To do this, selectthe "Validate" function.
