YOUR 206 CC IN DETAIL61
Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
3. Air distribution adjustment Windscreen and side win- dows (demisting/de-icing).
To quickly de-ice or demist the wind-screen and the side windows:
- place the temperature and air flow controls to maximum,
- close the central vents,
- place the outside air intake control to the left, in the 'Outside air' posi- tion,
- operate the air conditioning.
Windscreen, side windowsand footwells. Footwells.
These settings are recommended for cold climates.
Central and side vents.
This setting is recommended for hotclimates.
5. Air intake control
Outside air intake.
This is the normal operating posi-tion.
Recirculation of interior air.
This position prevents the entry ofunpleasant odours or fumes fromthe outside. Used simultaneously with the air conditioning enables both the heat-ing and cooling performance to beimproved. Used without air conditioning, recirculation may result in mistingthe windows. As soon as possible, place the control in the outside air position. 6. De-misting the rear screen
and the mirrors
With the engine running,pressing the button de-miststhe rear screen and the mirrors.
It switches off automatically afterapproximately twelve minutes. Press again to resume de-misting for twelve minutes. It is possible to stop the de-misting operation by pressing the buttonagain before the end of the twelveminutes. Note: this function is disarmed when
the roof is stored in the boot.
4. Air flow adjustment
From position 1to position
4 . Turn the knob to obtain a
sufficient flow of air to ensure your comfort.

30-06-2003
YOUR 206 CC IN DETAIL
62
2.
Automatic comfort programme
Press the AUTObutton. The sys-
tem automatically regulates the temperature level of the passen-ger compartment in line with the
temperature that you have selected. Toobtain the correct ambiance, it controls the
temperature, the air flow, the distributionand intake of air as well as air conditioning. Note: for your comfort, the settings are retai-
ned between two start-ups of your vehicle if the temperature in the passenger compart-ment has not changed significantly; otherwise,operation resumes in automatic mode.
3.Automatic visibility programme
In certain cases, the auto- matic comfort programmemay prove inadequate todemist or de-ice the win-
dows (because of humidity, nume-rous passengers, ice etc.). In thesecases select the automatic visibilityprogramme to rapidly clear the win-dows.
To exit this programme and return to the automatic comfort programme,press the AUTObutton.
Automatic operation
1. Temperature setting
The required temperature is displayed. Press the upand down arrows to change
it. A setting of approximate-
ly 21 allows a comfortablesetting to be obtained.
AUTOMATIC AIR CONDITIONING Note: in the cabriolet version, the effectiveness of the system may be reduced.

30-06-2003
YOUR 206 CC IN DETAIL63
5.
Air distribution
Successive presses of this button allow the air flow tobe directed alternately to:
- the windscreen (demisting or de-icing),
- the windscreen and the footwells,
- the footwells,
- the central and side vents and the footwells,
- the central and side vents.
7. Air intake
Press this button to recycle
the interior air. Recircula-
tion, shown on the display,prevents the entry of
unpleasant odours and fumes fromthe outside.
Avoid prolonged recirculation of the
interior air. To do this, press again toreturn the system to automatic pro-cessing of the air intake. Note: To prevent condensation on
the inside of the vehicle in cold or
wet weather, you are advised toavoid using this mode.
4. Air conditioning
Press this button to stop
the air conditioning. TheECOsymbol lights up.
Press again to return to
automatic operation of the air condi-tioning. The A/Csymbol is dis-
played. 8. Switching the system off
TheOFF button enables
the entire system to be
switched off.
Temperature-related comfort is nolonger guaranteed. Pressing the OFF, AUTO or visibili-
ty button again reactivates the sys-
tem with the values set before it was
switched off.
9. De-icing the rear window and the mirrors
Press this button to de-ice the rear screen and the mir-
rors. The de-icing system
switches off automatically.It is possible to stop the de-
icing before it switches off automati-cally by pressing the button again. Note: this function is disarmed when
the roof is stored in the boot. Important precaution Operate the air conditioning system for 5 to 10 minutes, once or twice amonth, to keep it in perfect working
order. If the system does not produce cold
air, do not use it and contact your
PEUGEOT dealer.
Manual operation
If you wish you can make a different
choice from the one offered by the
system, by changing a setting. Theother functions will still be managed
automatically. Press the
AUTObut-
ton to return to completely automaticoperation.
6. Air flowThe air flow may beincreased or reducedby pressing the but-tons +or -respec-
tively.
Notes The condensation created by the air conditioning causes a normal flow ofwater under the vehicle when
stationary.
To prevent condensation on the insi- de of the vehicle in cold or wet wea-
ther, you are advised to avoid usingthe ECO mode.

30-06-2003
YOUR 206 CC IN DETAIL
64

30-06-2003
To lower the head restraint you must simultaneously:
- press the knob on the left-handside at its base,
- press downwards.
To remove the head restraint, press the lug.
4 - Adjusting the seat back angle Push one of the two controls
towards the rear.
Never drive with the head restraints removed.These should be correctlyfitted and adjusted.
YOUR 206 CC IN DETAIL
65
5 - DriverÕs seat height adjustment
Pull the handle upwards. Remove your weight from the seat to raise, or press on the seat
to lower.
6 - Heated seats control Press the switch. The tempera-
ture is controlled automatically. Pressing the switch again stops operation.THE FRONT SEATS
1 - Forwards/backwards adjustmentLift the lever and slide the seat forwards or backwards.
2 - Access to the rear seats Pull one of the two handles to folddown the seat back and move theseat forwards. On repositioning,the seat returns to its initial posi-tion.
It is not possible to gainaccess to the rear seats if thefront seat is in a reclining posi-tion.
No person nor object mustprevent the seat from returning toits initial position. Returning tothis position is necessary for it tobe locked.
3 - Adjusting the height and angle of the head restraint
To raise the head restraint, pull itupwards.
The setting is correct whenthe upper edge of the headrestraint is level with thetop of the head.
The head restraint has a framewith notches which prevents itfrom dropping down (safetydevice in case of impact).

30-06-2003
YOUR 206 CC IN DETAIL67

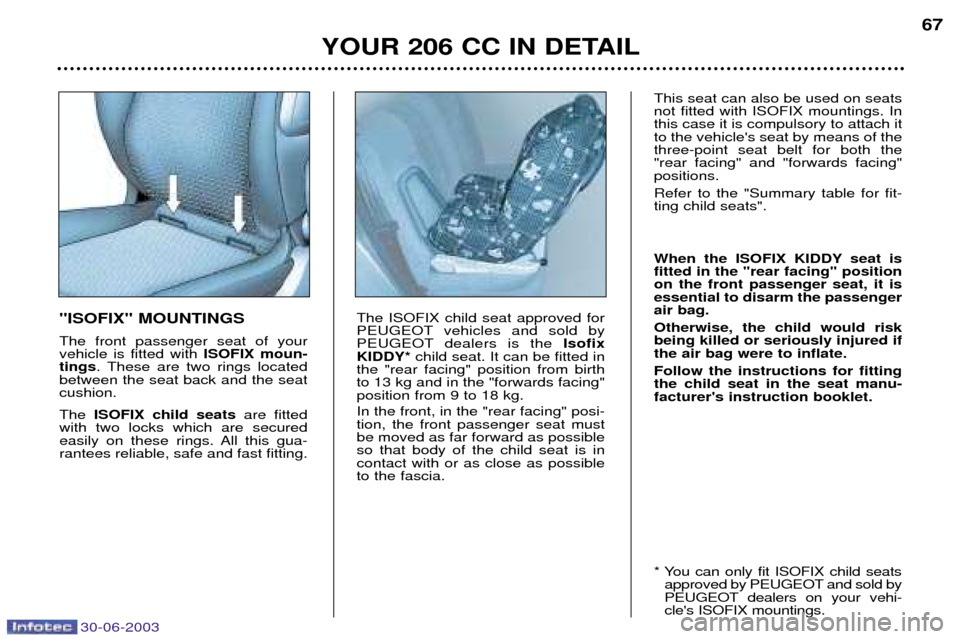

"ISOFIX" MOUNTINGS The front passenger seat of your vehicle is fitted with
ISOFIX moun-
tings . These are two rings located
between the seat back and the seatcushion. The ISOFIX child seats are fitted
with two locks which are secured
easily on these rings. All this gua-rantees reliable, safe and fast fitting. The ISOFIX child seat approved for
PEUGEOT vehicles and sold by
PEUGEOT dealers is the
Isofix
KIDDY* child seat. It can be fitted in
the "rear facing" position from birthto 13 kg and in the "forwards facing"position from 9 to 18 kg. In the front, in the "rear facing" posi- tion, the front passenger seat mustbe moved as far forward as possibleso that body of the child seat is incontact with or as close as possibleto the fascia. This seat can also be used on seatsnot fitted with ISOFIX mountings. Inthis case it is compulsory to attach itto the vehicle's seat by means of thethree-point seat belt for both the"rear facing" and "forwards facing"positions. Refer to the "Summary table for fit- ting child seats".
When the ISOFIX KIDDY seat is fitted in the "rear facing" positionon the front passenger seat, it isessential to disarm the passengerair bag. Otherwise, the child would risk being killed or seriously injured ifthe air bag were to inflate. Follow the instructions for fitting the child seat in the seat manu-facturer's instruction booklet.
* You can only fit ISOFIX child seats
approved by PEUGEOT and sold by
PEUGEOT dealers on your vehi-cle's ISOFIX mountings.

30-06-2003
YOUR 206 CC IN DETAIL
68
CHILD SEATS RECOMMENDED BY PEUGEOT

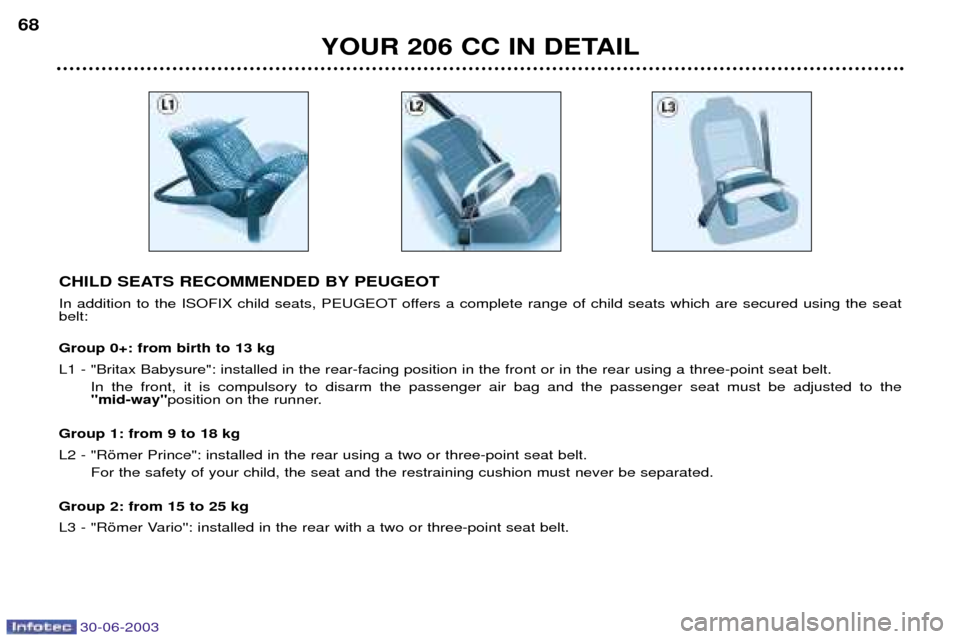

In addition to the ISOFIX child seats, PEUGEOT offers a complete range of child seats which are secured using the seat belt: Group 0+: from birth to 13 kg
L1 - "Britax Babysure": installed in the rear-facing position in the front or in the rear using a three-point seat belt.
In the front, it is compulsory to disarm the passenger air bag and the passenger seat must be adjusted to the "mid-way" position on the runner.
Group 1: from 9 to 18 kg
L2 - "Ršmer Prince": installed in the rear using a two or three-point seat belt. For the safety of your child, the seat and the restraining cushion must never be separated.
Group 2: from 15 to 25 kg
L3 - "Ršmer Vario'': installed in the rear with a two or three-point seat belt.

30-06-2003
YOUR 206 CC IN DETAIL69
Groups 2 and 3: from 15 to 36 kg L4 - ''Recaro Start'': installed in the rear with a three-point seat belt.
The height and width of the seat back and length of the seat cushion must be adjusted according to the age and build of your child.
L5 - "Klippan Optima": installed in the rear with a three-point seat belt. From the age of 6 years (approximately 22 kg), the booster is used on itsown.
Refer to the "Summary table for the installation of child seats".
Never leave one or more children alone and unsuper-vised in a vehicle. Never leave a child or an
animal in a vehicle which is expo- sed to the sun and has the win-dows closed.
To protect your young children from the sun, fit blinds on the rearwindows. Never leave the keys within reach of children inside the vehicle. Disarm the passenger air bag when installing a "rearwardsfacing" child seat on the front pas-senger seat. Otherwise, the childwould risk being killed or seriouslyinjured were the air bag to inflate. Observe strictly the recommenda- tions for assembling and securingthe child seat as shown in the childseat instructions.
To prevent the doors from opening
accidentally, use the child lock*. Also, do not open the rear windows more than a third*.
* According to model.

YOUR 206 CC IN DETAIL
70
SUMMARY TABLE FOR FITTING CHILD SEATS In accordance with the European regulation (Directive 2000/3), the table below indicates the options for the installation of child restraints, depending on the weight group and the seat in the vehicle:
U : universal category
X : no child restraint. According to destination:
L1 : BRITAX Babysure E11 0344117 Universal (birth to 29 lbs or 13 kg).
L2 : ROMER Prince E1 03301058 Universal (20 to 40 lbs or 9 to 18 kg).
L3 : ROMER Vario E1 03301120 Universal (33 to 55 lbs or 15 to 25 kg).
L4 : RECARO Start E1 03301108 Universal (33 to 80 lbs or 15 to 36 kg).
L5 : KLIPPAN Optima E17 030007 Universal (33 to 80 lbs or 15 to 36 kg).
L6 : KIDDY Isofix Rearwards facing
(c)
E1 03301123 and Universal (birth to 29 lbs or 13 kg).
L7 : KIDDY Isofix Forwards facing (c)
E2 030011 Universal (20 to 40 lbs or 9 to 18 kg).
(a) Group 0: from birth to 10 kg.
(b) The rules for transporting children in the front passenger seat are specific to each country. Consult the current legislation in your country.
(c) See section "Seats - Isofix mountings" for use of the KIDDY child seat on the vehicle's Isofix mountings, or failing this with the seat belt. Statutory weight group
Seat Group 0(a)
at 0+ Group 1 Group 2 Group 3
< 13 kg 9 - 18 kg 15 - 25 kg 22 - 36 kg
Front passenger (b)
UU UU
Fixed seat, Height adjustable seat L1, L6 L2, L7 L3, L4, L5 L4, L5
Rear passenger XL2 L3, L4, L5 L4, L5
Side
30-06-2003

30-06-2003
YOUR 206 CC IN DETAIL71
SEAT BELTS

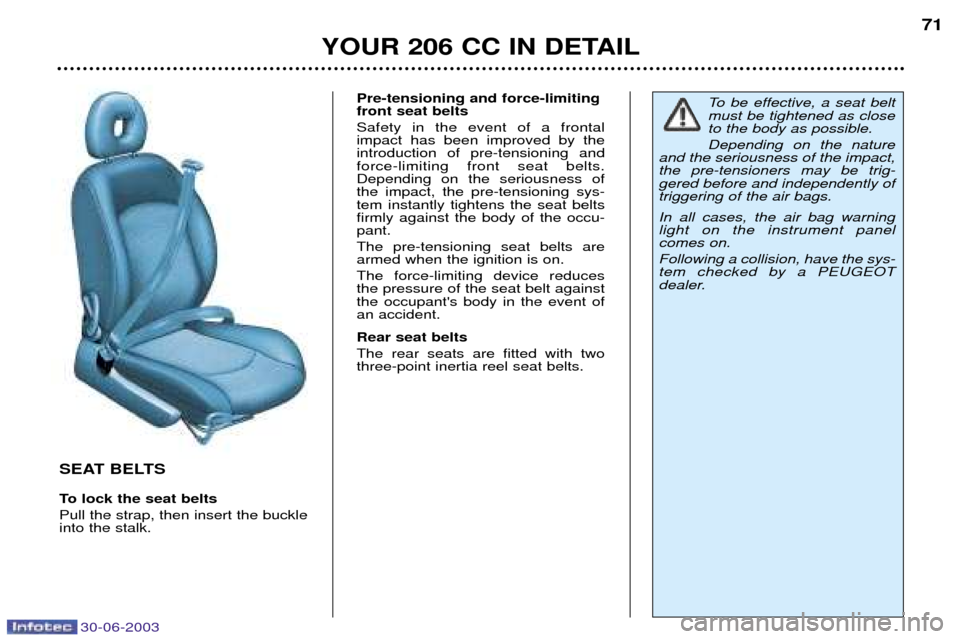

To lock the seat belts Pull the strap, then insert the buckle into the stalk.Pre-tensioning and force-limitingfront seat belts Safety in the event of a frontal impact has been improved by theintroduction of pre-tensioning andforce-limiting front seat belts.Depending on the seriousness ofthe impact, the pre-tensioning sys-tem instantly tightens the seat beltsfirmly against the body of the occu-pant. The pre-tensioning seat belts are armed when the ignition is on. The force-limiting device reduces the pressure of the seat belt againstthe occupant's body in the event ofan accident. Rear seat belts The rear seats are fitted with two three-point inertia reel seat belts.
To be effective, a seat belt must be tightened as closeto the body as possible. Depending on the nature
and the seriousness of the impact, the pre-tensioners may be trig-gered before and independently oftriggering of the air bags. In all cases, the air bag warning light on the instrument panelcomes on. Following a collision, have the sys- tem checked by a PEUGEOT
dealer.
