Peugeot 206 CC Dag 2003 Manual PDF

30-06-2003
YOUR 206 CC IN DETAIL
72

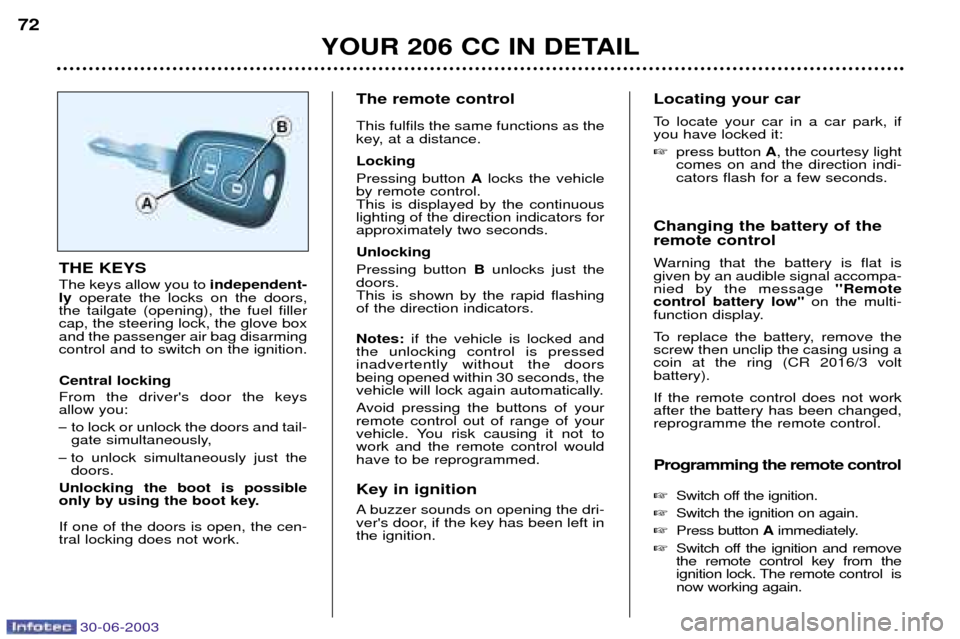

Changing the battery of the remote control
Warning that the battery is flat is given by an audible signal accompa-nied by the message
''Remote
control battery low'' on the multi-
function display.
To replace the battery, remove the screw then unclip the casing using acoin at the ring (CR 2016/3 volt battery). If the remote control does not work after the battery has been changed,reprogramme the remote control.
THE KEYS The keys allow you to
independent-
ly operate the locks on the doors,
the tailgate (opening), the fuel filler cap, the steering lock, the glove boxand the passenger air bag disarmingcontrol and to switch on the ignition. Central locking From the driver's door the keys allow you:
Ðto lock or unlock the doors and tail-
gate simultaneously,
Ð to unlock simultaneously just thedoors.
Unlocking the boot is possible
only by using the boot key. If one of the doors is open, the cen- tral locking does not work. The remote control This fulfils the same functions as the
key, at a distance. Locking Pressing button
Alocks the vehicle
by remote control. This is displayed by the continuouslighting of the direction indicators forapproximately two seconds. Unlocking Pressing button Bunlocks just the
doors. This is shown by the rapid flashingof the direction indicators. Notes: if the vehicle is locked and
the unlocking control is pressed inadvertently without the doorsbeing opened within 30 seconds, the
vehicle will lock again automatically.
Avoid pressing the buttons of your remote control out of range of your
vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left inthe ignition. Locating your car
To locate your car in a car park, if you have locked it:
press button A, the courtesy light
comes on and the direction indi- cators flash for a few seconds.Programming the remote control  Switch off the ignition.
 Switch the ignition on again.
 Press button Aimmediately.
 Switch off the ignition and remove the remote control key from the
ignition lock. The remote control isnow working again.

30-06-2003
YOUR 206 CC IN DETAIL73

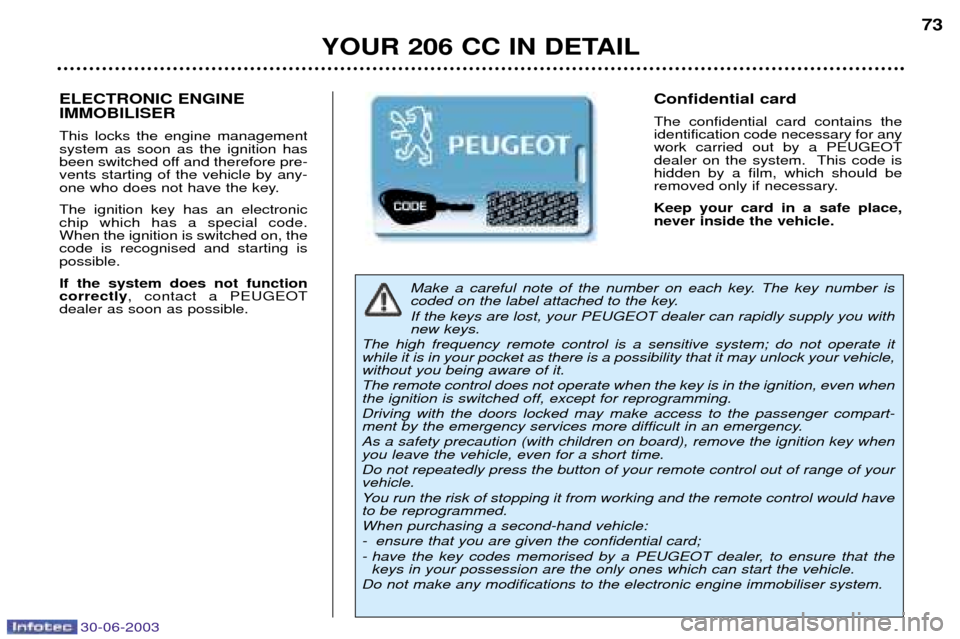

Make a careful note of the number on each key. The key number is
coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote control is a sensitive system; do not operate itwhile it is in your pocket as there is a possibility that it may unlock your vehicle,without you being aware of it. The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for reprogramming. Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more difficult in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film, which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle.ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly , contact a PEUGEOT
dealer as soon as possible.

30-06-2003
YOUR 206 CC IN DETAIL73
Make a careful note of the number on each key. The key number is
coded on the label attached to the key. If the keys are lost, your PEUGEOT dealer can rapidly supply you with new keys.
The high frequency remote control is a sensitive system; do not operate itwhile it is in your pocket as there is a possibility that it may unlock your vehicle,without you being aware of it. The remote control does not operate when the key is in the ignition, even when the ignition is switched off, except for reprogramming. Driving with the doors locked may make access to the passenger compart-
ment by the emergency services more difficult in an emergency. As a safety precaution (with children on board), remove the ignition key when you leave the vehicle, even for a short time. Do not repeatedly press the button of your remote control out of range of your vehicle.
You run the risk of stopping it from working and the remote control would have to be reprogrammed. When purchasing a second-hand vehicle:
- ensure that you are given the confidential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that the keys in your possession are the only ones which can start the vehicle.
Do not make any modifications to the electronic engine immobiliser system.
Confidential card The confidential card contains the identification code necessary for anywork carried out by a PEUGEOT
dealer on the system. This code ishidden by a film, which should be
removed only if necessary. Keep your card in a safe place, never inside the vehicle.ELECTRONIC ENGINE IMMOBILISER This locks the engine management system as soon as the ignition has
been switched off and therefore pre-vents starting of the vehicle by any-
one who does not have the key. The ignition key has an electronic chip which has a special code.When the ignition is switched on, thecode is recognised and starting ispossible. If the system does not function correctly , contact a PEUGEOT
dealer as soon as possible.

30-06-2003
YOUR 206 CC IN DETAIL
74

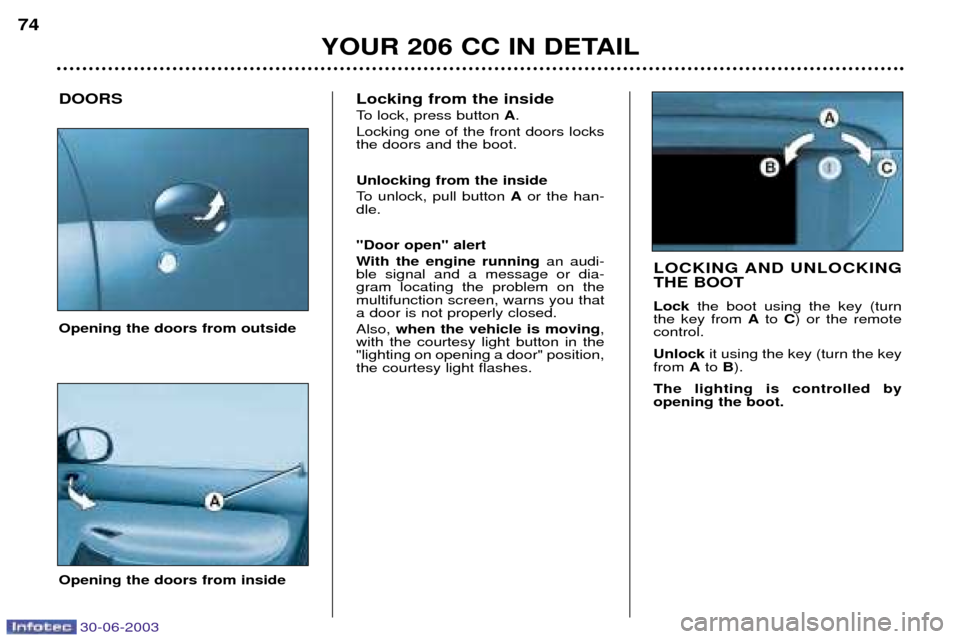

Opening the doors from outside
DOORS
Opening the doors from inside
LOCKING AND UNLOCKING THE BOOT Lock the boot using the key (turn
the key from Ato C) or the remote
control. Unlock it using the key (turn the key
from Ato B).
The lighting is controlled by opening the boot.
Locking from the inside
To lock, press button A.
Locking one of the front doors locks the doors and the boot. Unlocking from the inside
To unlock, pull button Aor the han-
dle. ''Door open'' alert
With the engine running an audi-
ble signal and a message or dia- gram locating the problem on themultifunction screen, warns you thata door is not properly closed. Also, when the vehicle is moving ,
with the courtesy light button in the "lighting on opening a door" position,the courtesy light flashes.

30-06-2003
YOUR 206 CC IN DETAIL75

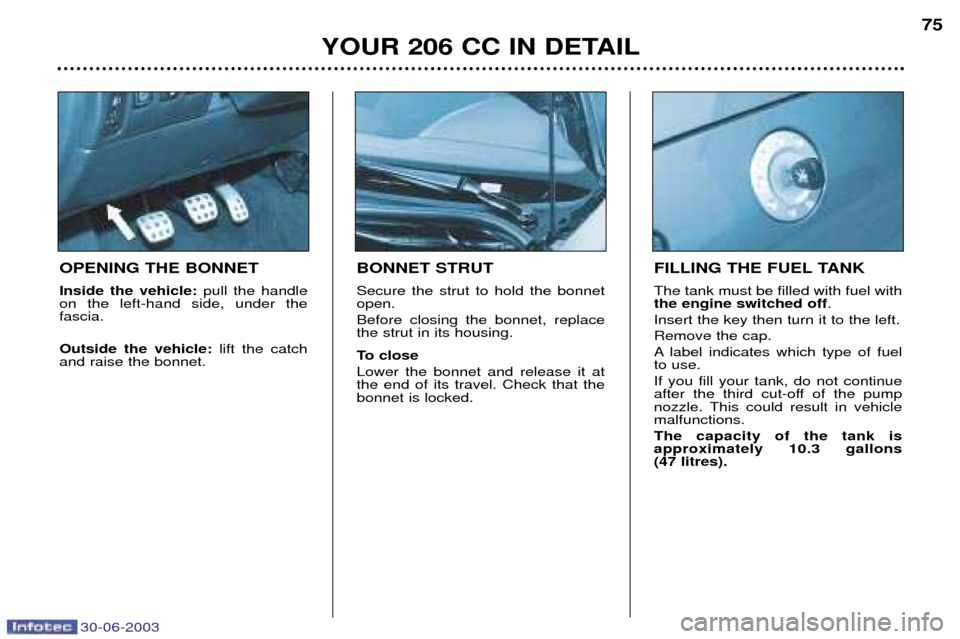

BONNET STRUT Secure the strut to hold the bonnet open. Before closing the bonnet, replace the strut in its housing.
To close Lower the bonnet and release it at the end of its travel. Check that thebonnet is locked.
OPENING THE BONNET Inside the vehicle:
pull the handle
on the left-hand side, under the fascia. Outside the vehicle: lift the catch
and raise the bonnet. FILLING THE FUEL TANK The tank must be filled with fuel with the engine switched off
.
Insert the key then turn it to the left. Remove the cap.
A label indicates which type of fuel to use. If you fill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehiclemalfunctions. The capacity of the tank is approximately 10.3 gallons (47 litres).

30-06-2003
YOUR 206 CC IN DETAIL
76

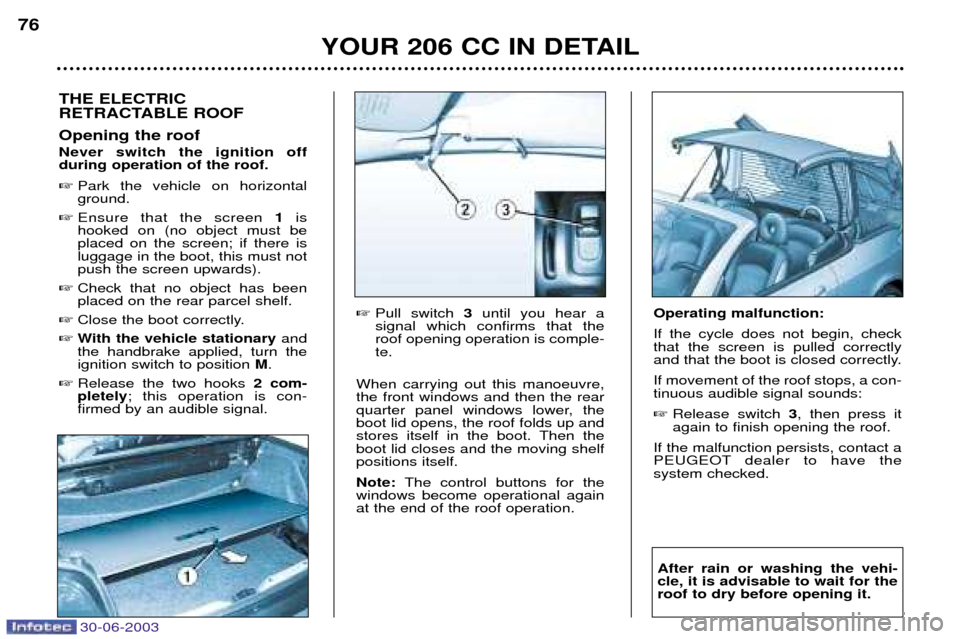

THE ELECTRIC
RETRACTABLE ROOF Opening the roof Never switch the ignition off during operation of the roof.
Park the vehicle on horizontal ground.
 Ensure that the screen 1is
hooked on (no object must beplaced on the screen; if there isluggage in the boot, this must notpush the screen upwards).
 Check that no object has beenplaced on the rear parcel shelf.
 Close the boot correctly.
 With the vehicle stationary and
the handbrake applied, turn theignition switch to position M.
 Release the two hooks 2 com-
pletely ; this operation is con-
firmed by an audible signal.
Pull switch 3until you hear a
signal which confirms that theroof opening operation is comple-te.
When carrying out this manoeuvre,the front windows and then the rear
quarter panel windows lower, theboot lid opens, the roof folds up and
stores itself in the boot. Then theboot lid closes and the moving shelfpositions itself. Note: The control buttons for the
windows become operational again at the end of the roof operation. Operating malfunction: If the cycle does not begin, check that the screen is pulled correctly
and that the boot is closed correctly. If movement of the roof stops, a con- tinuous audible signal sounds:
Release switch 3, then press it
again to finish opening the roof.
If the malfunction persists, contact a
PEUGEOT dealer to have the system checked.
After rain or washing the vehi- cle, it is advisable to wait for theroof to dry before opening it.

30-06-2003
YOUR 206 CC IN DETAIL77
Closing the roof Never switch the ignition off during operation of the roof.
Ensure that the screen 1is hoo-
ked on (no object must be placed on the screen; if there is luggagein the boot, this must not push thescreen upwards).
 Close the boot correctly.
 With the vehicle stationary and
the handbrake applied, turn theignition key to position M.
 Press switch 3until your hear a
signal which confirms that theroof closing operation is complete.
When carrying out this operation,the front windows and then the rearquarter panel windows open, themoving parcel shelf folds up, theboot lid opens, the roof unfolds andpositions itself, then the boot lidcloses again.  Only then, lock the two hooks 2.
Note: The control buttons for the
windows become operational again at the end of the roof operation. Operating malfunction: If the cycle does not begin, check that the screen is pulled correctly
and that the boot is closed correctly. If movement of the roof stops, a con- tinuous audible signal sounds:
Release switch 3, then press it
again to finish closing the roof.
If the problem persists, contact a
PEUGEOT dealer to have the sys-tem checked. When the vehicle is moving, if a con- tinuous audible signal can be heard,this means that the roof or the bootlid, or both, are not locked:  Stop the vehicle and apply the handbrake,
 Open the roof and close it again
completely, in accordance withthe procedure.
If the problem persists, contact a
PEUGEOT dealer to have the system checked.

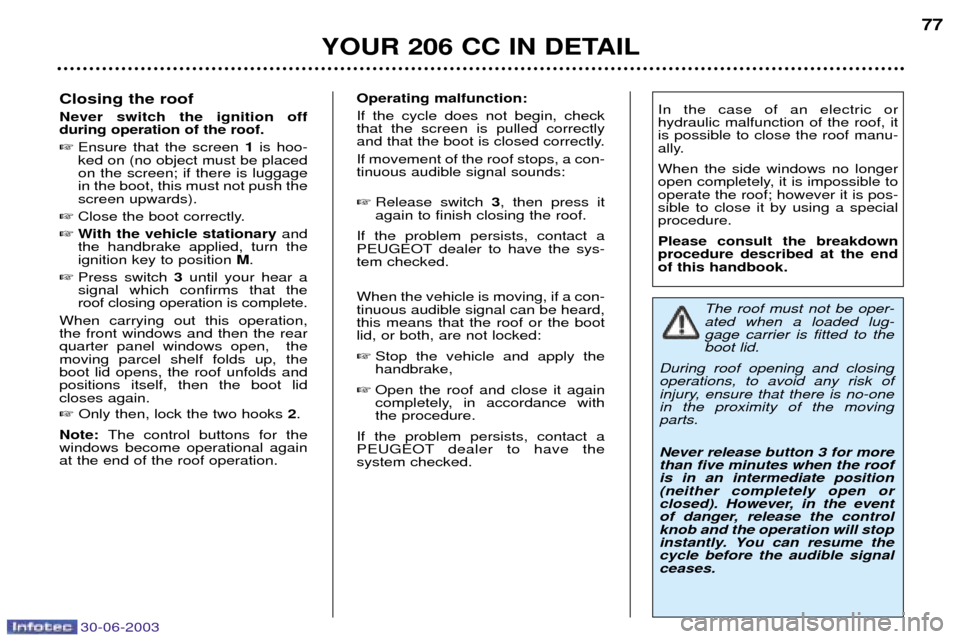

The roof must not be oper- ated when a loaded lug-gage carrier is fitted to theboot lid.
During roof opening and closingoperations, to avoid any risk of
injury, ensure that there is no-onein the proximity of the movingparts. Never release button 3 for more than five minutes when the roofis in an intermediate position(neither completely open or
closed). However, in the event
of danger, release the controlknob and the operation will stop
instantly. You can resume thecycle before the audible signalceases.
In the case of an electric or hydraulic malfunction of the roof, itis possible to close the roof manu-
ally. When the side windows no longer
open completely, it is impossible tooperate the roof; however it is pos-sible to close it by using a specialprocedure. Please consult the breakdown procedure described at the endof this handbook.

30-06-2003
YOUR 206 CC IN DETAIL
78

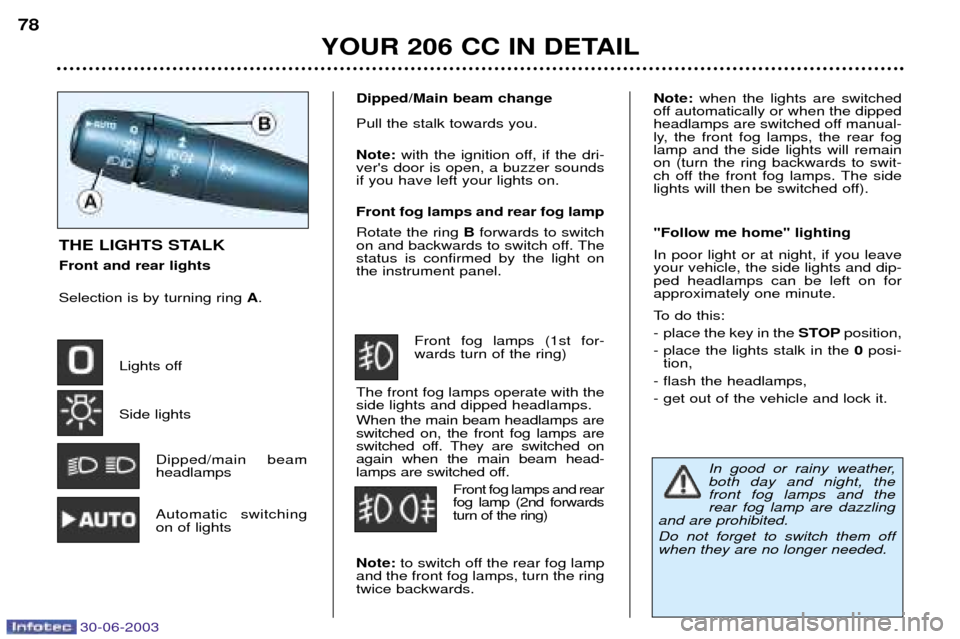

THE LIGHTS STALK Front and rear lights Selection is by turning ring
A.
Lights off Side lights Dipped/main beam headlamps
Automatic switchingon of lights
Dipped/Main beam change Pull the stalk towards you. Note: with the ignition off, if the dri-
ver's door is open, a buzzer sounds if you have left your lights on. Front fog lamps and rear fog lamp Rotate the ring Bforwards to switch
on and backwards to switch off. The status is confirmed by the light onthe instrument panel.
Front fog lamps (1st for-wards turn of the ring)
The front fog lamps operate with theside lights and dipped headlamps. When the main beam headlamps are switched on, the front fog lamps are
switched off. They are switched onagain when the main beam head-
lamps are switched off. Front fog lamps and rearfog lamp (2nd forwardsturn of the ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ringtwice backwards.
In good or rainy weather, both day and night, thefront fog lamps and therear fog lamp are dazzling
and are prohibited. Do not forget to switch them off when they are no longer needed.
Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manual-
ly, the front fog lamps, the rear foglamp and the side lights will remainon (turn the ring backwards to swit-
ch off the front fog lamps. The side
lights will then be switched off). "Follow me home" lighting In poor light or at night, if you leave your vehicle, the side lights and dip-ped headlamps can be left on forapproximately one minute.
To do this:
- place the key in the STOPposition,
- place the lights stalk in the 0posi-
tion,
- flash the headlamps,- get out of the vehicle and lock it.

30-06-2003
Direction indicators (flashers)Left:downwards.
Right: upwards. YOUR 206 CC IN DETAIL
79AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:
In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Press the end of the lights stalk for more than four seconds. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
The brightness sensor, coupled
with the rain sensor, is located inthe centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights.

30-06-2003
Direction indicators (flashers)Left:downwards.
Right: upwards. YOUR 206 CC IN DETAIL
79AUTOMATIC SWITCHING ON OF LIGHTS Side lights and dipped beam head- lamps switch on automatically if thelight is poor and when the wind-
screen wipers operate continuously.
They switch off at the same time when the light becomes brightenough or the windscreen wipers
are switched off. Note:
In foggy weather or in snow
the brightness sensor can detect
sufficient light. As a result, the lights
will not come on automatically. This function is active when the
vehicle is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Press the end of the lights stalk for more than four seconds. Operating check Activation Acivation of this function is accom- panied by an audible signal and themessage
"Automatic lighting
active'' on the multifunction display.
Disarming Disarming of the function is accom- panied by an audible signal. Note: the function is temporarily dis-
armed when the driver uses the manual lighting controls. If the brightness sensor does not function correctly , the system acti-
vates the function (the lights come
on). The driver is alerted by an audi-ble signal, accompanied by the mes-sage "Auto lighting fault" on the
multifunction display.
Contact a PEUGEOT dealer to have the system checked.
The brightness sensor, coupled
with the rain sensor, is located inthe centre of the windscreen,
behind the interior mirror. It isused for automatic switching onof the lights.
