YOUR 206 AT A GLANCE1
Each model may only be fitted with some of the equipment shown, according to its specification and the technical requirements in the country of first registration of the vehicle.
206 SW: version available according to country. Pages
Seats 72 - 81
Instruments and controls 28 - 29
Control panel 35 - 71, 93 - 94
Mirrors 96
Pages
Checks 111 - 118
Access 83 - 88
Changing a wheel 119 - 122
Changing a bulb 123 - 127
24-02-2003
Page 2 of 156
2YOUR 206 AT A GLANCE
24-02-2003
Page 3 of 156
24-02-2003
3YOUR 206 AT A GLANCE

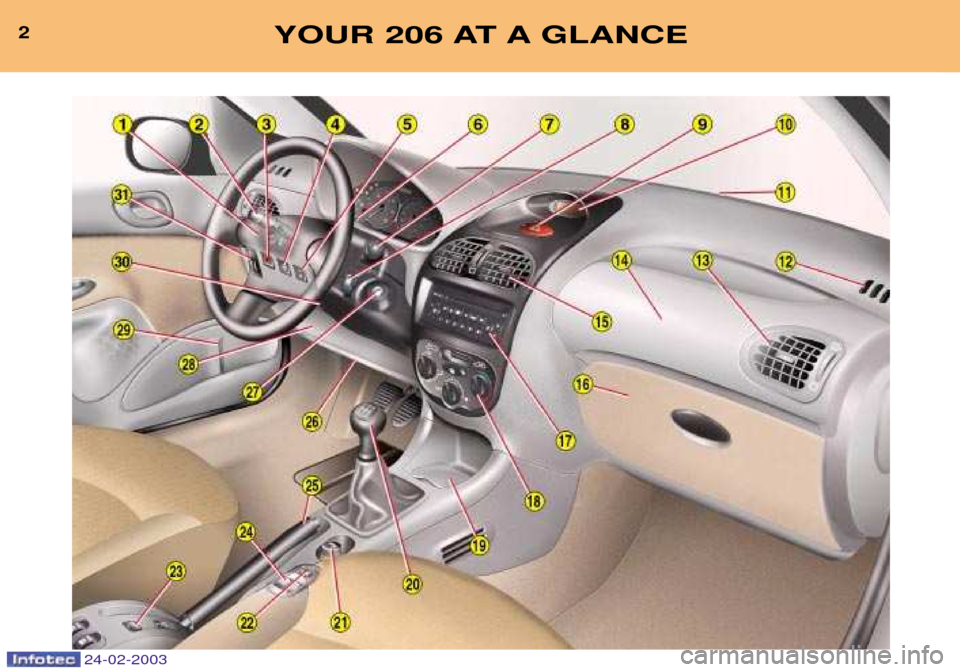

1Driver's air bag Horn
2 Lights and direction indicators stalk
3 Passenger air bag disarmingswitch*
4 Rear electric windows disarming switch
5 Dynamic stability control(ESP/ASR) button
6 Lighting rheostat for instrument dials
7 Windscreen wiper/wind-screen wash/trip computerstalk
8 Audio equipment remotecontrol
9 Hazard warning lights switch
10 Multifunction display 11
Windscreen demisting vents
12 Side window demisting vents
13 Adjustable side vent
14 Passenger air bag
15 Adjustable centre vents
16 Glove box
17 Audio equipment
18 Control for heating, ventilation, air conditioningand heated rear screen andmirrors
19 Front ashtray
20 Gear lever
21 Lighter 22
Electric mirror controls
23 Heated seats switch
24 Front electric window controls
25 Handbrake
26 Bonnet opening control
27 Steering lock
28 Fuse box
29 Storage compartment
30 Steering wheel height adjust-ment control
31 Headlamp height adjustment
* According to destination.
Page 4 of 156
83
4YOUR 206 AT A GLANCE
24-02-2003

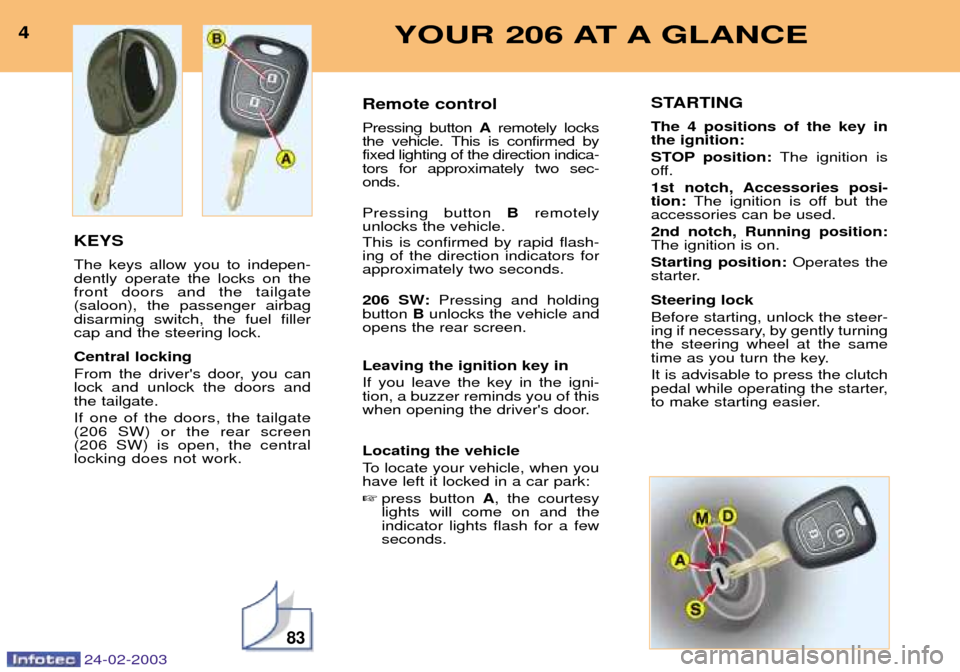

KEYS The keys allow you to indepen- dently operate the locks on thefront doors and the tailgate(saloon), the passenger airbagdisarming switch, the fuel fillercap and the steering lock. Central locking
From the driver's door, you can lock and unlock the doors andthe tailgate. If one of the doors, the tailgate (206 SW) or the rear screen(206 SW) is open, the centrallocking does not work.Remote control Pressing button
Aremotely locks
the vehicle. This is confirmed by fixed lighting of the direction indica-tors for approximately two sec-onds. Pressing button Bremotely
unlocks the vehicle. This is confirmed by rapid flash- ing of the direction indicators forapproximately two seconds.
206 SW: Pressing and holding
button Bunlocks the vehicle and
opens the rear screen. Leaving the ignition key in If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door. Locating the vehicle
To locate your vehicle, when you have left it locked in a car park: press button A, the courtesy
lights will come on and the indicator lights flash for a fewseconds. STARTING The 4 positions of the key in the ignition:
STOP position:
The ignition is
off.
1st notch, Accessories posi- tion: The ignition is off but the
accessories can be used. 2nd notch, Running position: The ignition is on. Starting position: Operates the
starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch
pedal while operating the starter,
to make starting easier.
Page 5 of 156
83
4YOUR 206 AT A GLANCE
24-02-2003
KEYS The keys allow you to indepen- dently operate the locks on thefront doors and the tailgate(saloon), the passenger airbagdisarming switch, the fuel fillercap and the steering lock. Central locking
From the driver's door, you can lock and unlock the doors andthe tailgate. If one of the doors, the tailgate (206 SW) or the rear screen(206 SW) is open, the centrallocking does not work.Remote control Pressing button
Aremotely locks
the vehicle. This is confirmed by fixed lighting of the direction indica-tors for approximately two sec-onds. Pressing button Bremotely
unlocks the vehicle. This is confirmed by rapid flash- ing of the direction indicators forapproximately two seconds.
206 SW: Pressing and holding
button Bunlocks the vehicle and
opens the rear screen. Leaving the ignition key in If you leave the key in the igni- tion, a buzzer reminds you of this
when opening the driver's door. Locating the vehicle
To locate your vehicle, when you have left it locked in a car park: press button A, the courtesy
lights will come on and the indicator lights flash for a fewseconds. STARTING The 4 positions of the key in the ignition:
STOP position:
The ignition is
off.
1st notch, Accessories posi- tion: The ignition is off but the
accessories can be used. 2nd notch, Running position: The ignition is on. Starting position: Operates the
starter. Steering lock Before starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch
pedal while operating the starter,
to make starting easier.
Page 6 of 156
108
5YOUR 206 AT A GLANCE
24-02-2003
Never race a coldengine.
Never run the enginein a confined space.
Do not make any modificationsto the steering lock.
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until theengine turns.Starting a dieselengine Do not press the accele-
rator.
Turn the key to the ''Running''
position. If the engine is warm enough, the pre-heat light does not come on
and you can start immediately. If the pre-heat light comes on, wait for it to go out before
operating the starter. If the engine stalls, it is necessary to return the key to the ''STOP''
position before restarting. FRONT AIR BAGS

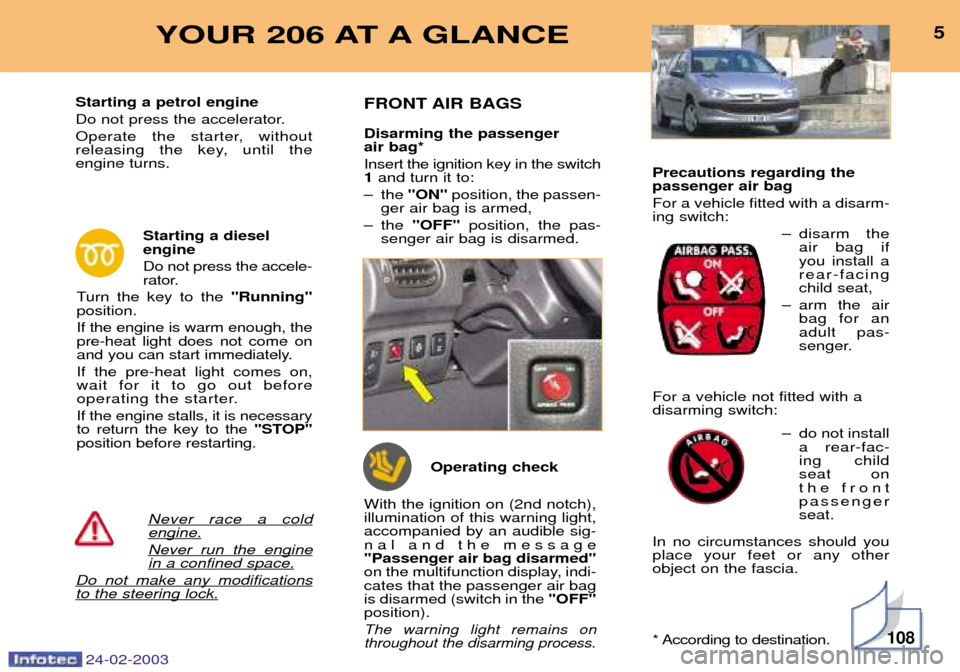

Precautions regarding thepassenger air bag For a vehicle fitted with a disarm- ing switch:Ð disarm theair bag ifyou install arear-facingchild seat,
Ð arm the air bag for anadult pas-
senger.
For a vehicle not fitted with adisarming switch: Ð do not installa rear-fac-ing childseat on
the frontpassengerseat.
In no circumstances should youplace your feet or any otherobject on the fascia.
Operating check
* According to destination.
Disarming the passenger air bag* Insert the ignition key in the switch 1
and turn it to:
Ð the ''ON'' position, the passen-
ger air bag is armed,
Ð the ''OFF'' position, the pas-
senger air bag is disarmed.
With the ignition on (2nd notch),illumination of this warning light,accompanied by an audible sig-
nal and the message"Passenger air bag disarmed"
on the multifunction display, indi-cates that the passenger air bagis disarmed (switch in the "OFF"
position).
The warning light remains onthroughout the disarming process.
Page 7 of 156
24-02-2003
8991
8YOUR 206 AT A GLANCE

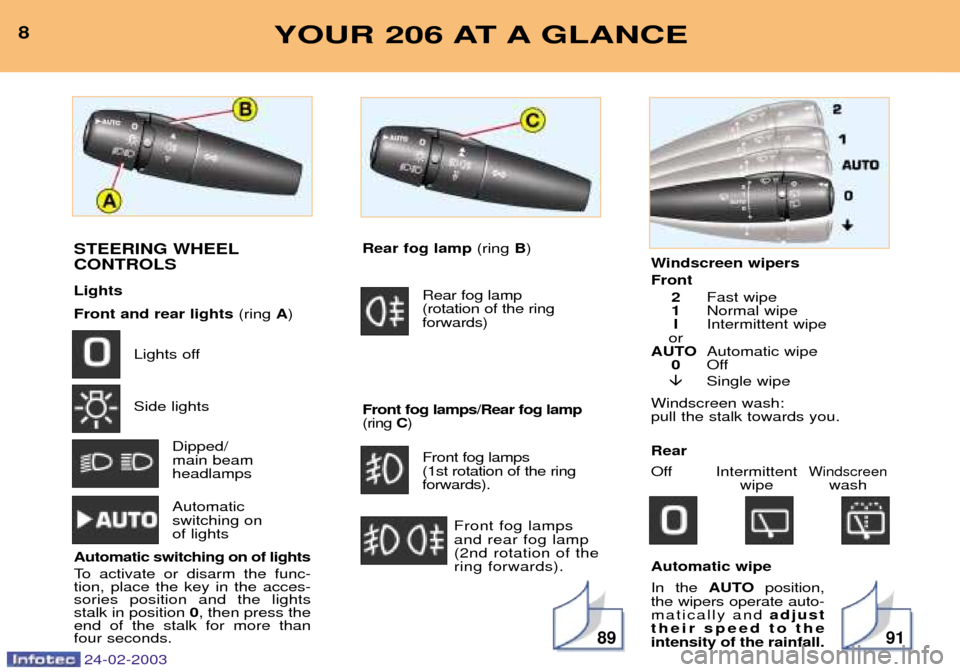

STEERING WHEEL CONTROLS Lights Front and rear lights(ring A)
Lights off Side lights Dipped/ main beam headlamps Automatic switching on of lights
Automatic switching on of lights
To activate or disarm the func- tion, place the key in the acces-sories position and the lightsstalk in position 0, then press the
end of the stalk for more thanfour seconds. Rear fog lamp
(ring B)
Rear fog lamp (rotation of the ring forwards)
Front fog lamps/Rear fog lamp(ring C)
Front fog lamps (1st rotation of the ringforwards).
Front fog lampsand rear fog lamp(2nd rotation of thering forwards). Windscreen wipers Front
2 Fast wipe
1 Normal wipe
I Intermittent wipe
or
AUTO Automatic wipe
0 Off
Single wipe
Windscreen wash: pull the stalk towards you. Rear
Off Intermittent
Windscreenwipe wash
Automatic wipe In the AUTOposition,
the wipers operate auto-
matically and adjust
their speed to theintensity of the rainfall.
Page 8 of 156
72
9YOUR 206 AT A GLANCE

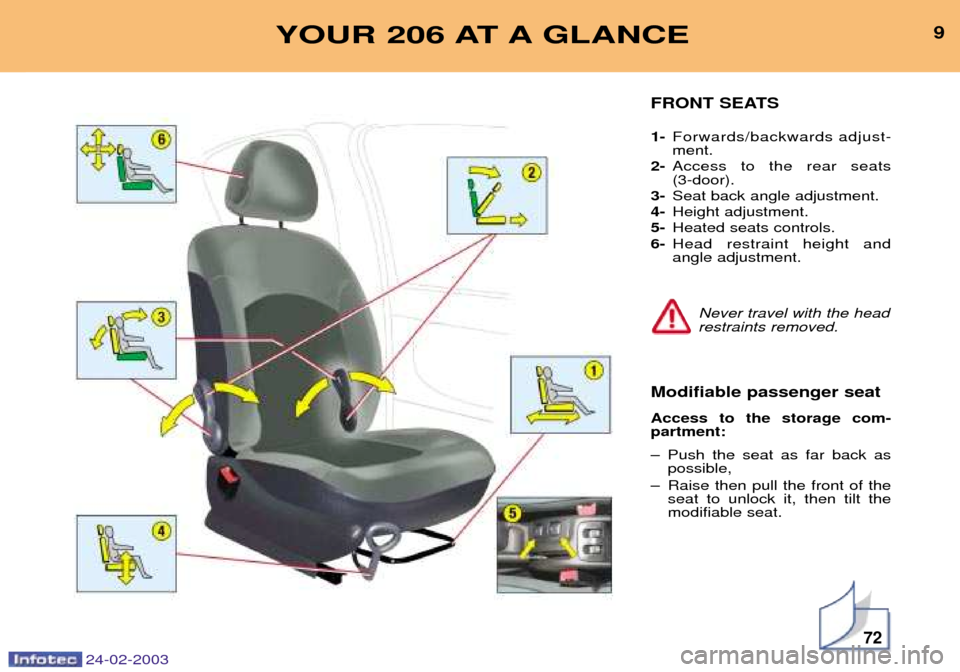

FRONT SEATS 1-Forwards/backwards adjust- ment.
2- Access to the rear seats (3-door).
3- Seat back angle adjustment.
4- Height adjustment.
5- Heated seats controls.
6- Head restraint height andangle adjustment.
Never travel with the head
restraints removed.
Modifiable passenger seat Access to the storage com- partment:
Ð Push the seat as far back as possible,
Ð Raise then pull the front of the seat to unlock it, then tilt the modifiable seat.
24-02-2003
Page 9 of 156
Tonneau

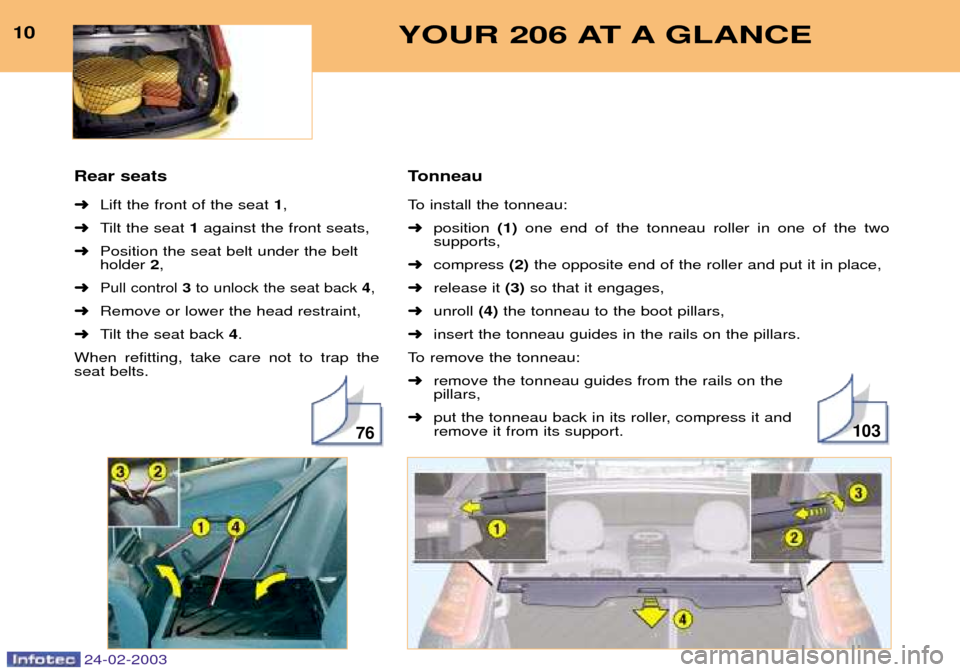

To install the tonneau: ➜position (1)one end of the tonneau roller in one of the two
supports,
➜ compress (2)the opposite end of the roller and put it in place,
➜ release it (3)so that it engages,
➜ unroll (4)the tonneau to the boot pillars,
➜ insert the tonneau guides in the rails on the pillars.
To remove the tonneau:➜ remove the tonneau guides from the rails on the pillars,
➜ put the tonneau back in its roller, compress it andremove it from its support.
Rear seats ➜
Lift the front of the seat 1,
➜ Tilt the seat 1against the front seats,
➜ Position the seat belt under the belt holder 2,
➜
Pull control 3to unlock the seat back 4,
➜ Remove or lower the head restraint,
➜ Tilt the seat back 4.
When refitting, take care not to trap theseat belts.
10376
10YOUR 206 AT A GLANCE
24-02-2003
