Peugeot 206 Dag 2002.5 User Guide

24-02-2003
9596
ELECTRIC WINDOWS
1. Driver's electric windowManual mode : press or pull the switch gently. The
window stops as soon as the switch is released. Automatic mode : press or pull the switch firmly.
One touch completely opens or closes the
window. Automatic opening and closing only operate when the engine is running.
2. Passenger's electric window.
3. Rear left electric window.
4. Rear right electric window. ELECTRIC MIRRORS
Turn knob
5to the right or to the left to select the cor-
responding mirror. Move knob 5in all four directions to adjust.
Electric folding mirrors With the ignition on, turn knob 5to position A. 7
YOUR 206 AT A GLANCE

24-02-2003
8586
LOCKING/UNLOCKING THE TAILGATE AND THE REAR SCREEN (206 SW)
It is not possible to open the tailgate and the rear screen simultaneously.
With the rear screen closed, to open thetailgate, operate the handle A
and lift the tailgate. With the tailgate closed, to open the rear screen , press and hold the
unlocking button on the remote con-trol or operate the handle B, then lift
the rear screen using the windscreenwiper arm (location C).
The lighting is activated on open-ing the tailgate or the rear screen. Note: Close the rear screen using the
windscreen wiper arm or by pressing at the centre of the glass.
DOORS The front doors (saloon and 206 SW) The rear doors (206 SW)
6
YOUR 206 AT A GLANCE

24-02-2003
13VOTRE 307 EN UN COUP DÕÎIL
9788
13YOUR 206 AT A GLANCE
STEERING WHEEL HEIGHT ADJUSTMENT
When stationary, lower the han- dle to unlock the steering wheel. Adjust to the desired height and lift the handle to lock the steeringwheel.OPENING THE BONNET From inside the vehicle:
pull the
handle. From the outside:
lift the catch
and raise the bonnet. Secure the strut to hold the bonnet open.

24-02-2003
104
YOUR 206 AT A GLANCE14P.Park.
R. Reverse.
N. Neutral.
D. Drive: in this position, all four gears change automatically.
3. Automatic changing of the first three gears only.
2. Automatic changing of the first two gears only.
A. Sport programme.
B. Snow programme.
THE AUTOMATIC AUTOADAPTIVE GEARBOX Starting
To start the engine, place the selector lever in position
Nor P.
Press the brake to change out of position P and when selecting for-
ward or reverse gear. Position of the selector lever This is shown by an indicator on the instrument panel.

24-02-2003
66
68
YOUR 206 AT A GLANCE11
N¡ Symbol Function
HEATING/AIR CONDITIONING
Setting the air distribution.
1
Air intake control.
2
Temperature adjustment.
3
Demisting the rearscreen and mirrors.
4
Air flow adjustment.
5
Air conditioning control.
6

24-02-2003
70
YOUR 206 AT A GLANCE12
N¡ Symbol Function
AUTOMATIC AIR CONDITIONING
Air flow adjustment. Setting the air distribution.
1 23 4 56 7 89 Air intake control. Air conditioning control.
Switching off.
Demisting the rear screen and mirrors.
Temperature adjustment. Automatic comfort programme. Automatic visibility programme.

24-02-2003
PEUGEOT SERVICING
Your vehicle benefits from extended service intervals.
¥ For petrol engines: every 30,000 km or every two years.
¥ For direct injection diesel engines: every 20,000 km or every two years.
¥ For indirect injection diesel engines: every 15,000 km or every two years. The extension of the service intervals means that the engine oil level must be checked regularly: topping up of the oil between oil changes is normal. This is why the PEUGEOT network is offering you an intermediate service between regular services.
The date of this visit is not shown by the service indicator. It is to be carried out at least every 15,000 km for petrol engines; every 10,000 km for direct injection diesel engines and every 7,500 km for indirect injection diesel engines.
A Peugeot dealer will carry out a quick check and top up the levels if necessary (oil, coolant, windscreen wash up to 2 litres). If the oil level is too low there is a risk of serious damage to the engine: check the engine oil level at least every 3,000 to 5,000 km, depending on the conditions of use. This extended servicing has been made possible by modifications to our vehicles and to the lubricants:
THUS IT IS ESSENTIAL TO ONLY USE ENGINE LUBRICANTS THAT ARE APPROVED AND RECOMMENDED BY THE
MANUFACTURER.
PEUGEOT SERVICING
18

24-02-2003
SPECIAL FEATURES Some of your vehicle's vital components have specific servicing schedules. The air bags and the pretensioning seat belts must be checked every 10 years.
The brake fluid must be replaced every 60,000 km or every 2 years.
The pollen filter must be checked at each visit to the PEUGEOT dealer (intermediate visits and regular services).
The timing belt : consult your PEUGEOT dealer.
PEUGEOT SERVICING 19

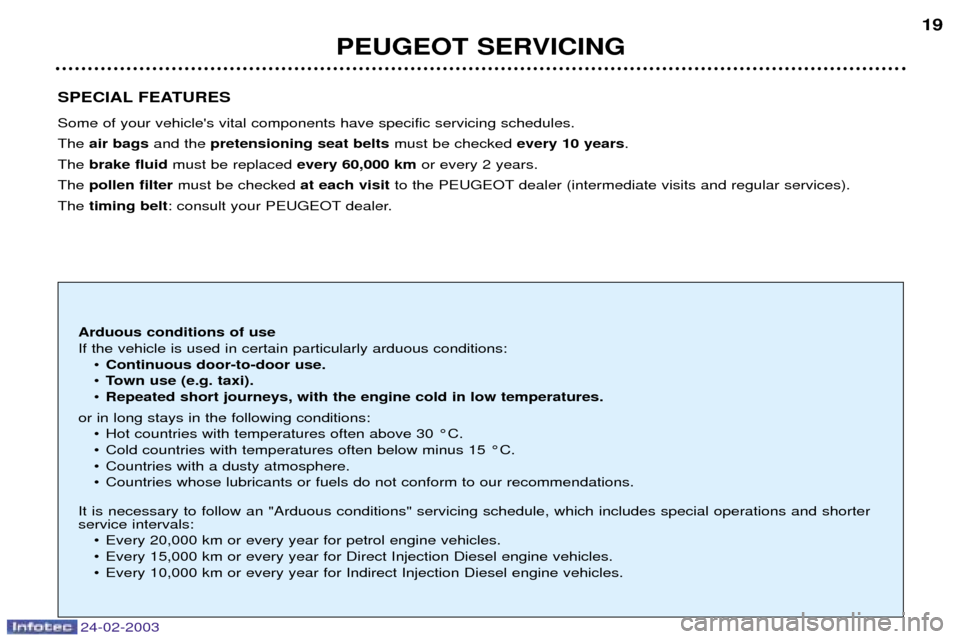

Arduous conditions of use If the vehicle is used in certain particularly arduous conditions:
¥Continuous door-to-door use.
¥ Town use (e.g. taxi).
¥ Repeated short journeys, with the engine cold in low temperatures.
or in long stays in the following conditions: ¥ Hot countries with temperatures often above 30 ¡C.
¥ Cold countries with temperatures often below minus 15 ¡C.
¥ Countries with a dusty atmosphere.
¥ Countries whose lubricants or fuels do not conform to our recommendations.
It is necessary to follow an "Arduous conditions" servicing schedule, which includes special operations and shorter service intervals: ¥ Every 20,000 km or every year for petrol engine vehicles.
¥ Every 15,000 km or every year for Direct Injection Diesel engine vehicles.
¥ Every 10,000 km or every year for Indirect Injection Diesel engine vehicles.

24-02-2003
SERVICE INDICATOR This is a visual reminder of when the
next service is due. This service is to be carried out according to themanufacturer's servicing schedule. Operation As soon as the ignition is switched on and for 5 seconds, the spanner sym-
bolising ''service operation'' is lit. Thetrip recorder display shows you thedistance remaining (in round figures)before the next service. Example:4,800 km remain before
the next service is due.When the ignition comes on and for
5 seconds the display indicates: 5 seconds after the ignition is switched on, the total distance recorder resumesnormal operation and the displayshows the total or trip distances.The distance remaining before thenext service is less than 1,000 km.
Example: 900 km remain before the
next service is due. When switching on the ignition and for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operationand the symbol remains lit. This indicates that a service should
be carried out shortly. The displayshows the total or trip distances. The service is overdue Each time the ignition is switched on and for 5 seconds, the symbol andthe excess distance flash. Example:
the service is overdue by
300 km. The service should be car-
ried out very shortly. When the ignition is switched on and
for 5 seconds, the display shows: 5 seconds after the ignition is switched on, the total distancerecorder resumes normal operation
and the symbol remains lit. Thedisplay shows the total or trip dis-tances.
PEUGEOT SERVICING
20

24-02-2003
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the reset procedure is asfollows:
Ð Switch off the ignition.
Ð Press and hold button 1.
Ð Switch on the ignition. The display begins a 10 second count- down.
Ð Keep button 1pressed for
10 seconds.
The display shows [= 0]and the
service symbol disappears.
PEUGEOT SERVICING 21
