Peugeot 206 Dag 2002.5 Owner's Manual

24-02-2003
TECHNICAL DATA141

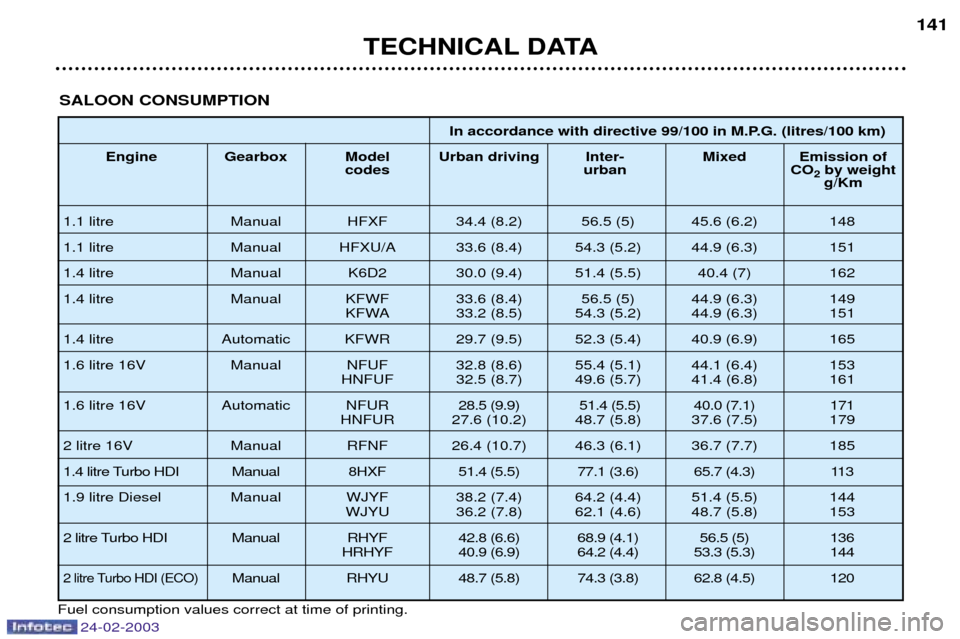

SALOON CONSUMPTION
Fuel consumption values correct at time of printing.
In accordance with directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban driving Inter- Mixed Emission of codes urban CO 2by weight
g/Km
1.1 litre Manual HFXF 34.4 (8.2) 56.5 (5) 45.6 (6.2) 148
1.1 litre Manual HFXU/A 33.6 (8.4) 54.3 (5.2) 44.9 (6.3) 151
1.4 litre Manual K6D2 30.0 (9.4) 51.4 (5.5) 40.4 (7) 162
1.4 litre Manual KFWF 33.6 (8.4) 56.5 (5) 44.9 (6.3) 149 KFWA 33.2 (8.5) 54.3 (5.2) 44.9 (6.3) 151
1.4 litre Automatic KFWR 29.7 (9.5) 52.3 (5.4) 40.9 (6.9) 165
1.6 litre 16V Manual NFUF 32.8 (8.6) 55.4 (5.1) 44.1 (6.4) 153 HNFUF 32.5 (8.7) 49.6 (5.7) 41.4 (6.8) 161
1.6 litre 16V Automatic NFUR 28.5 (9.9) 51.4 (5.5) 40.0 (7.1) 171
HNFUR 27.6 (10.2) 48.7 (5.8) 37.6 (7.5) 179
2 litre 16V Manual RFNF 26.4 (10.7) 46.3 (6.1) 36.7 (7.7) 185
1.4 litre Turbo HDI Manual 8HXF 51.4 (5.5) 77.1 (3.6) 65.7 (4.3) 113
1.9 litre Diesel Manual WJYF 38.2 (7.4) 64.2 (4.4) 51.4 (5.5) 144 WJYU 36.2 (7.8) 62.1 (4.6) 48.7 (5.8) 153
2 litre Turbo HDI Manual RHYF 42.8 (6.6) 68.9 (4.1) 56.5 (5) 136 HRHYF 40.9 (6.9) 64.2 (4.4) 53.3 (5.3) 144
2 litre Turbo HDI (ECO)Manual RHYU 48.7 (5.8) 74.3 (3.8) 62.8 (4.5) 120

24-02-2003
TECHNICAL DATA
142

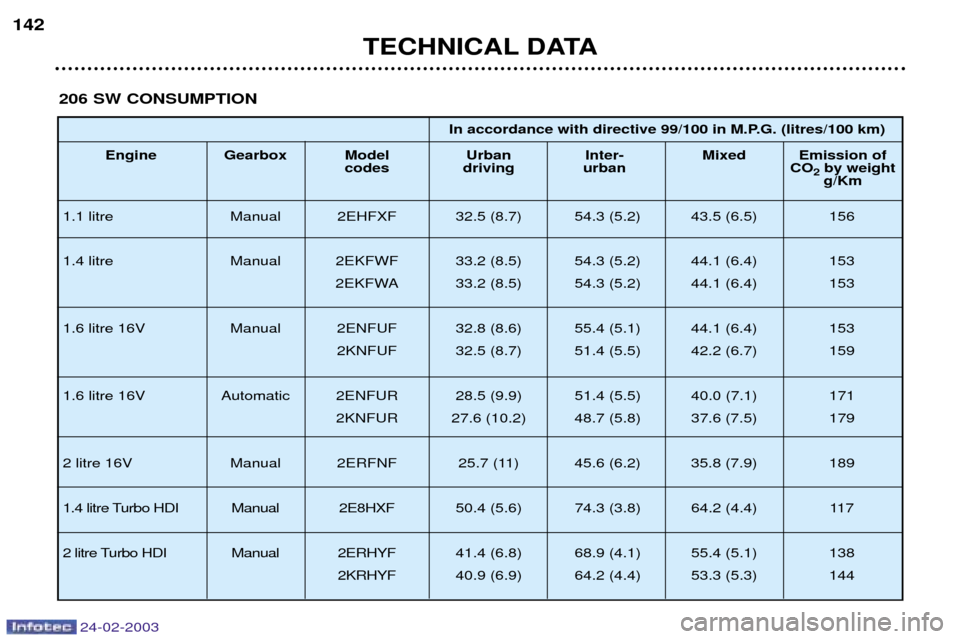

206 SW CONSUMPTION
In accordance with directive 99/100 in M.P.G. (litres/100 km)
Engine Gearbox Model Urban Inter- Mixed Emission of codes driving urban CO 2by weight
g/Km
1.1 litre Manual 2EHFXF 32.5 (8.7) 54.3 (5.2) 43.5 (6.5) 156
1.4 litre Manual 2EKFWF 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 153 2EKFWA 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 153
1.6 litre 16V Manual 2ENFUF 32.8 (8.6) 55.4 (5.1) 44.1 (6.4) 153 2KNFUF 32.5 (8.7) 51.4 (5.5) 42.2 (6.7) 159
1.6 litre 16V Automatic 2ENFUR 28.5 (9.9) 51.4 (5.5) 40.0 (7.1) 171 2KNFUR 27.6 (10.2) 48.7 (5.8) 37.6 (7.5) 179
2 litre 16V Manual 2ERFNF 25.7 (11) 45.6 (6.2) 35.8 (7.9) 189
1.4 litre Turbo HDI Manual 2E8HXF 50.4 (5.6) 74.3 (3.8) 64.2 (4.4) 117
2 litre Turbo HDI Manual 2ERHYF 41.4 (6.8) 68.9 (4.1) 55.4 (5.1) 138
2KRHYF 40.9 (6.9) 64.2 (4.4) 53.3 (5.3) 144

24-02-2003
TECHNICAL DATA143

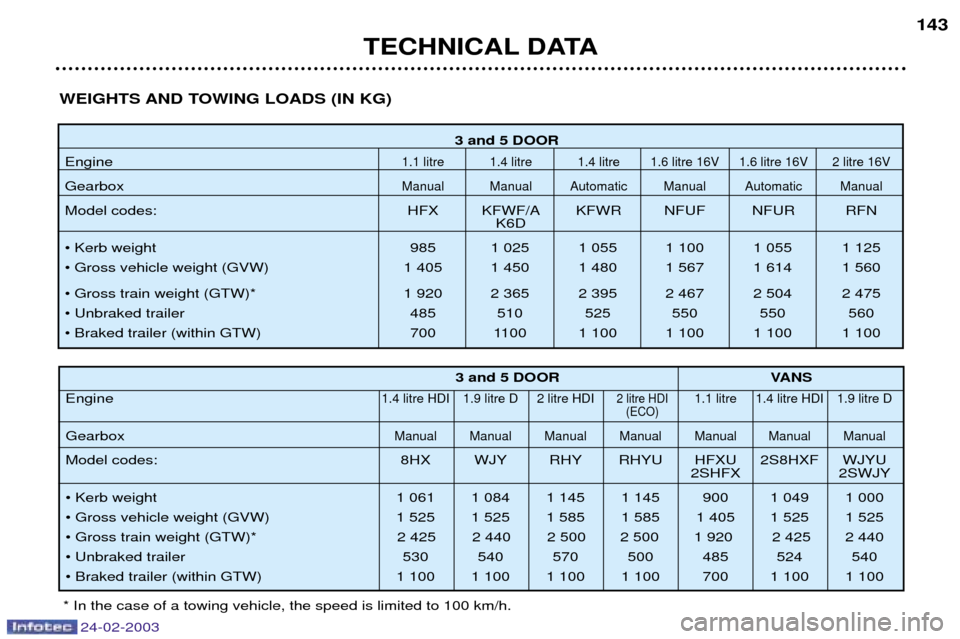

3 and 5 DOOR
Engine
1.1 litre 1.4 litre 1.4 litre 1.6 litre 16V 1.6 litre 16V 2 litre 16V
GearboxManual Manual Automatic Manual Automatic Manual
Model codes: HFX KFWF/A KFWR NFUF NFUR RFN K6D
¥ Kerb weight 985 1 025 1 055 1 100 1 055 1 125
¥ Gross vehicle weight (GVW) 1 405 1 450 1 480 1 567 1 614 1 560
¥ Gross train weight (GTW)* 1 920 2 365 2 395 2 467 2 504 2 475
¥ Unbraked trailer 485 510 525 550 550 560
¥ Braked trailer (within GTW) 700 1100 1 100 1 100 1 100 1 100
WEIGHTS AND TOWING LOADS (IN KG)
* In the case of a towing vehicle, the speed is limited to 100 km/h.
3 and 5 DOOR VANS
Engine
1.4 litre HDI 1.9 litre D 2 litre HDI2 litre HDI 1.1 litre 1.4 litre HDI 1.9 litre D(ECO)
GearboxManual Manual Manual Manual Manual Manual Manual
Model codes: 8HX WJY RHY RHYU HFXU 2S8HXF WJYU 2SHFX 2SWJY
¥ Kerb weight 1 061 1 084 1 145 1 145 900 1 049 1 000
¥ Gross vehicle weight (GVW) 1 525 1 525 1 585 1 585 1 405 1 525 1 525
¥ Gross train weight (GTW)* 2 425 2 440 2 500 2 500 1 920 2 425 2 440
¥ Unbraked trailer 530 540 570 500 485 524 540
¥ Braked trailer (within GTW) 1 100 1 100 1 100 1 100 700 1 100 1 100

24-02-2003
TECHNICAL DATA
144

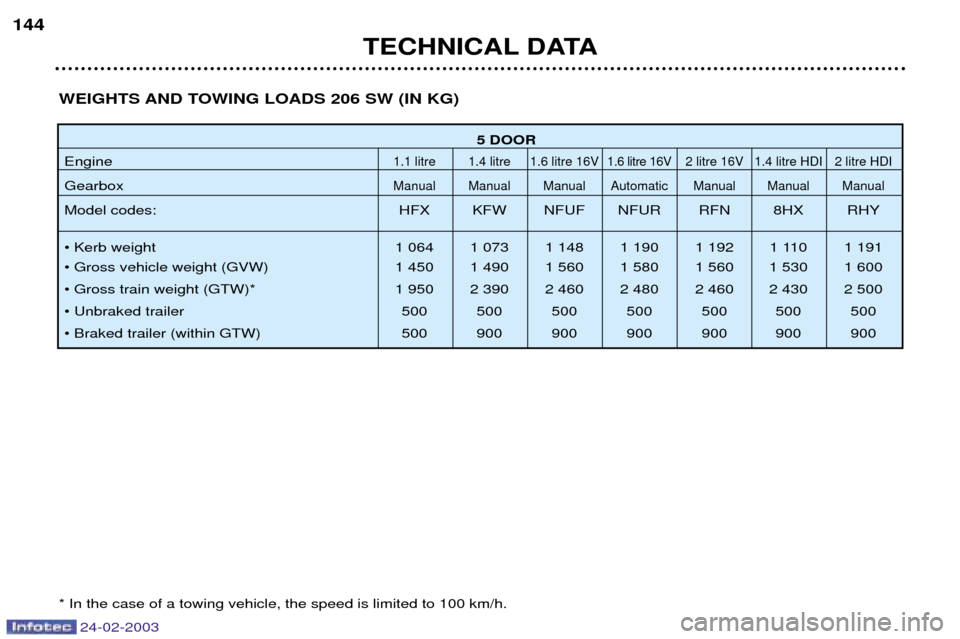

5 DOOR
Engine
1.1 litre 1.4 litre 1.6 litre 16V 1.6 litre 16V 2 litre 16V 1.4 litre HDI 2 litre HDI
GearboxManual Manual Manual Automatic Manual Manual Manual
Model codes: HFX KFW NFUF NFUR RFN 8HX RHY
¥ Kerb weight 1 064 1 073 1 148 1 190 1 192 1 110 1 191
¥ Gross vehicle weight (GVW) 1 450 1 490 1 560 1 580 1 560 1 530 1 600
¥ Gross train weight (GTW)* 1 950 2 390 2 460 2 480 2 460 2 430 2 500
¥ Unbraked trailer 500 500 500 500 500 500 500
¥ Braked trailer (within GTW) 500 900 900 900 900 900 900
WEIGHTS AND TOWING LOADS 206 SW (IN KG) * In the case of a towing vehicle, the speed is limited to 100 km/h.

24-02-2003
TECHNICAL DATA145

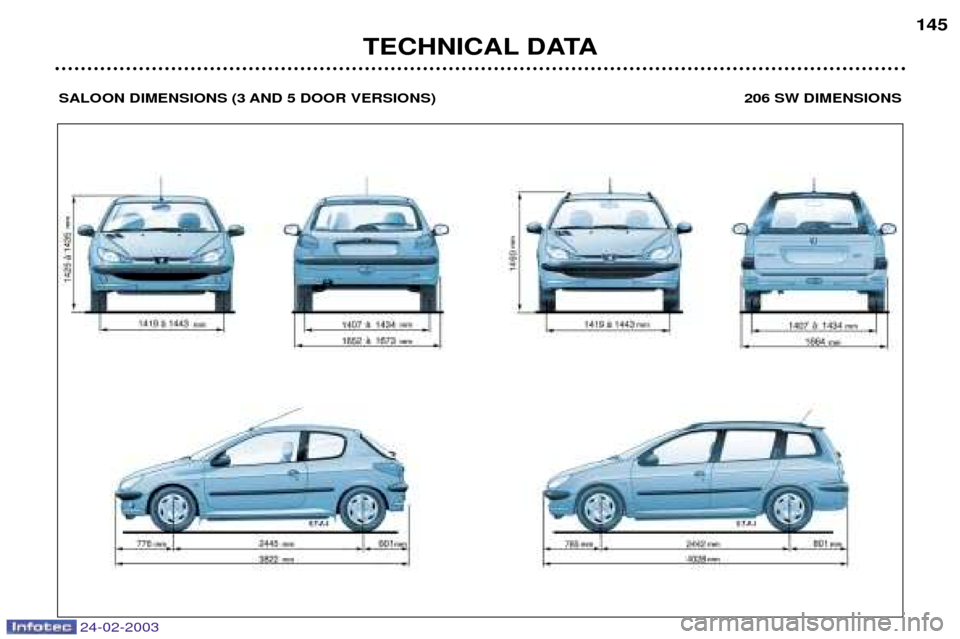

SALOON DIMENSIONS (3 AND 5 DOOR VERSIONS) 206 SW DIMENSIONS

24-02-2003
TECHNICAL DATA
146

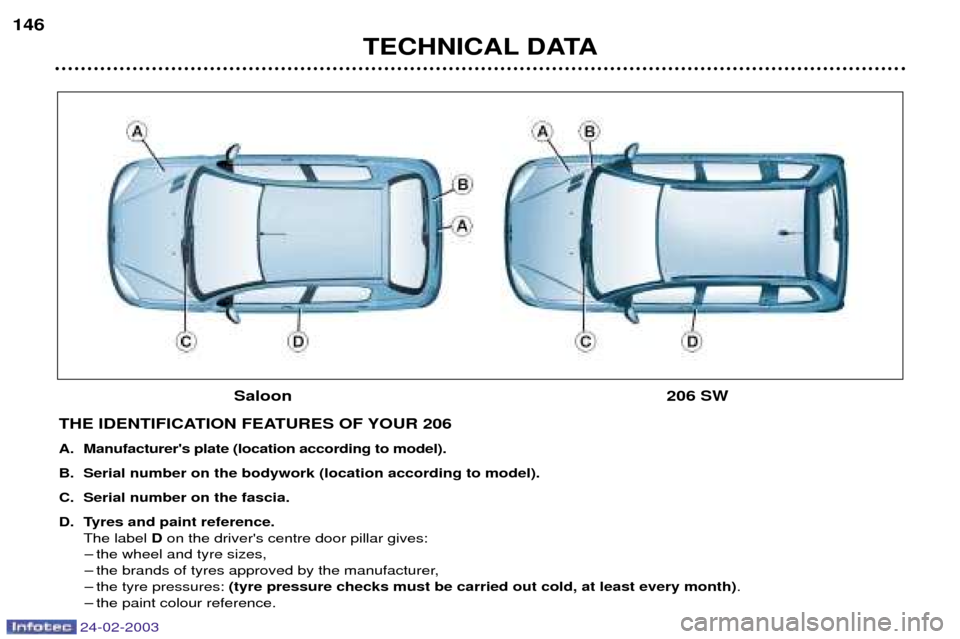

THE IDENTIFICATION FEATURES OF YOUR 206
A. Manufacturer's plate (location according to model).
B. Serial number on the bodywork (location according to model).
C. Serial number on the fascia.
D. Tyres and paint reference.The label Don the driver's centre door pillar gives:
Ð the wheel and tyre sizes,
Ð the brands of tyres approved by the manufacturer,
Ð the tyre pressures: (tyre pressure checks must be carried out cold, at least every month) .
Ð the paint colour reference.
Saloon 206 SW
