49
COMFORT
-

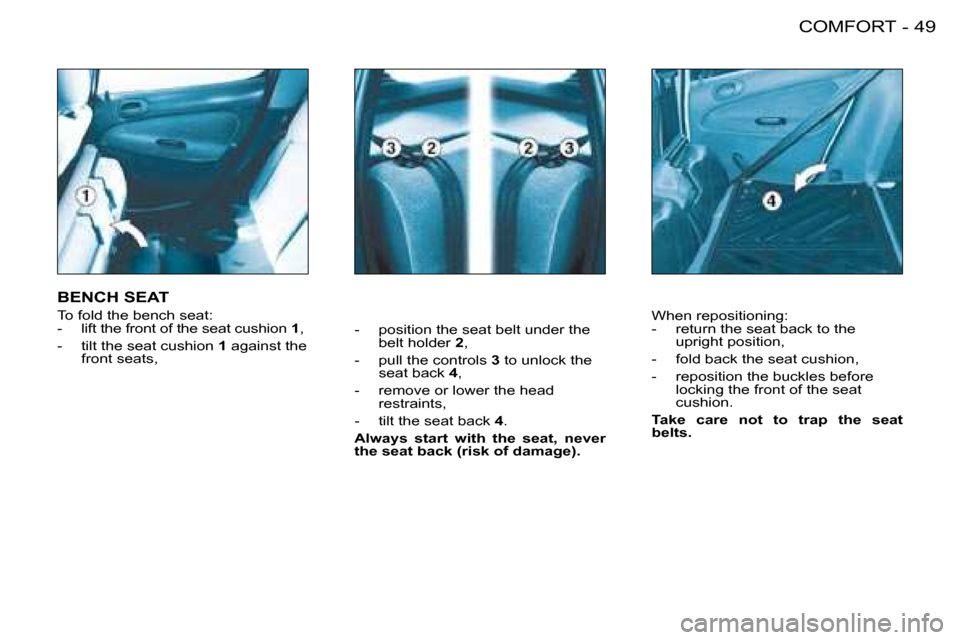

- position the seat belt under the
belt holder 2,
- pull the controls 3 to unlock the
seat back 4,
- remove or lower the head restraints,
- tilt the seat back 4.
A l w a y s s t a r t w i t h t h e s e a t , n e v e r
the seat back (risk of damage).
BENCH SEAT
To fold the bench seat:
- lift the front of the seat cushion 1,
- tilt the seat cushion 1 against the
front seats, When repositioning:
- return the seat back to the
upright position,
- fold back the seat cushion,
- reposition the buckles before locking the front of the seat
cushion.
Take care not to trap the seat
belts.
Page 52 of 123
51
COMFORT
-
" F o r w a r d s - f a c i n g "

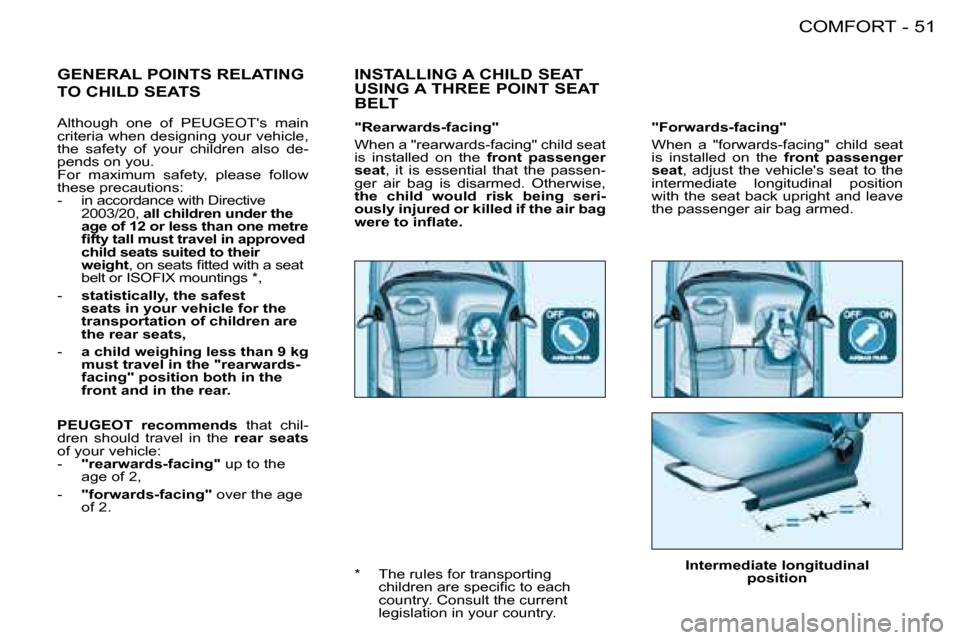

When a "forwards-facing" child seat
is installed on the front passenger
seat , adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger air bag armed.
INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
GENERAL POINTS RELATING
TO CHILD SEATS
* The rules for transporting
c h i l d r e n a r e s p e c i i c t o e a c h
country. Consult the current
legislation in your country. Intermediate longitudinal
position
Although one of PEUGEOT's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.
For maximum safety, please follow
these precautions:
- in accordance with Directive
2003/20, all children under the
age of 12 or less than one metre
i f t y t a l l m u s t t r a v e l i n a p p r o v e d
child seats suited to their
w e i g h t , o n s e a t s i t t e d w i t h a s e a t
belt or ISOFIX mountings *,
- statistically, the safest
seats in your vehicle for the
transportation of children are
the rear seats,
- a c h i l d w e i g h i n g l e s s t h a n 9 k g
m u s t t r a v e l i n t h e " r e a r w a r d s -
facing" position both in the
front and in the rear.
PEUGEOT recommends that chil-
dren should travel in the rear seats
of your vehicle:
- " r e a r w a r d s - f a c i n g " up to the
age of 2,
- " f o r w a r d s - f a c i n g " over the age
of 2. " R e a r w a r d s - f a c i n g "
When a "rearwards-facing" child seat
is installed on the
front passenger
seat , it is essential that the passen-
ger air bag is disarmed. Otherwise,
t h e c h i l d w o u l d r i s k b e i n g s e r i -
ously injured or killed if the air bag
w e r e t o i n l a t e .
Page 53 of 123
COMFORT
52 -
Passenger air bag OFF Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''. L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.

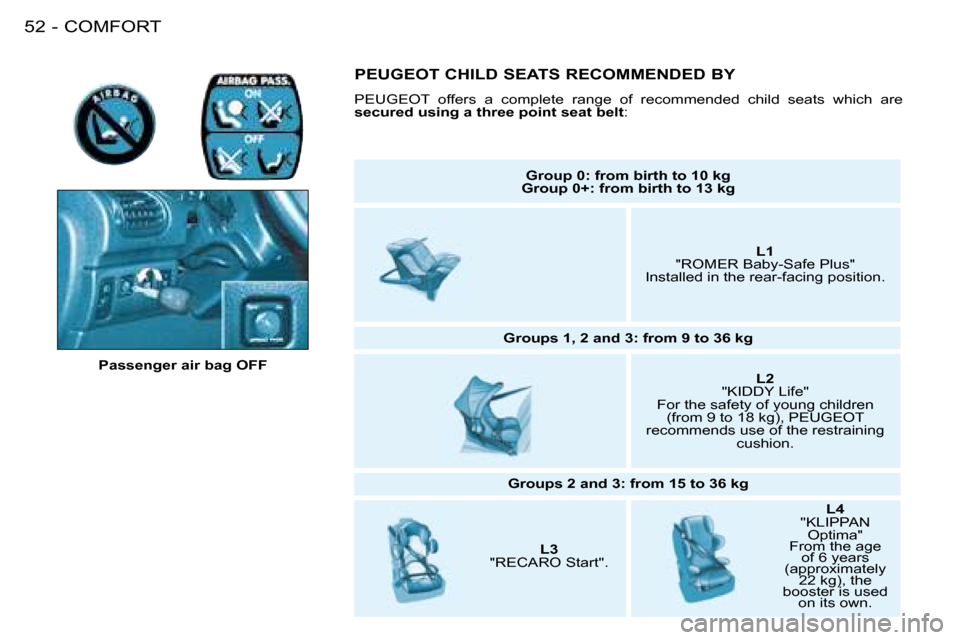

PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt :
Page 54 of 123
COMFORT
56 -
ADVICE ON CHILD
SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n l a t e .
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , i t
-
ted with a seat belt guide at shoulder
level. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , i t s i d e b l i n d s o n t h e
rear windows.
Page 55 of 123
COMFORT
52 -
Passenger air bag OFF Group 0: from birth to 10 kg
Group 0+: from birth to 13 kg
L1
"ROMER Baby-Safe Plus"
Installed in the rear-facing position.
G r o u p s 1 , 2 a n d 3 : f r o m 9 t o 3 6 k g L2
"KIDDY Life"
For the safety of young children (from 9 to 18 kg), PEUGEOT
recommends use of the restraining cushion.
Groups 2 and 3: from 15 to 36 kg
L3
"RECARO Start''. L4
"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg), the
booster is used on its own.
PEUGEOT CHILD SEATS RECOMMENDED BY
PEUGEOT offers a complete range of recommended child seats which are
secured using a three point seat belt :
Page 56 of 123
53
COMFORT
-

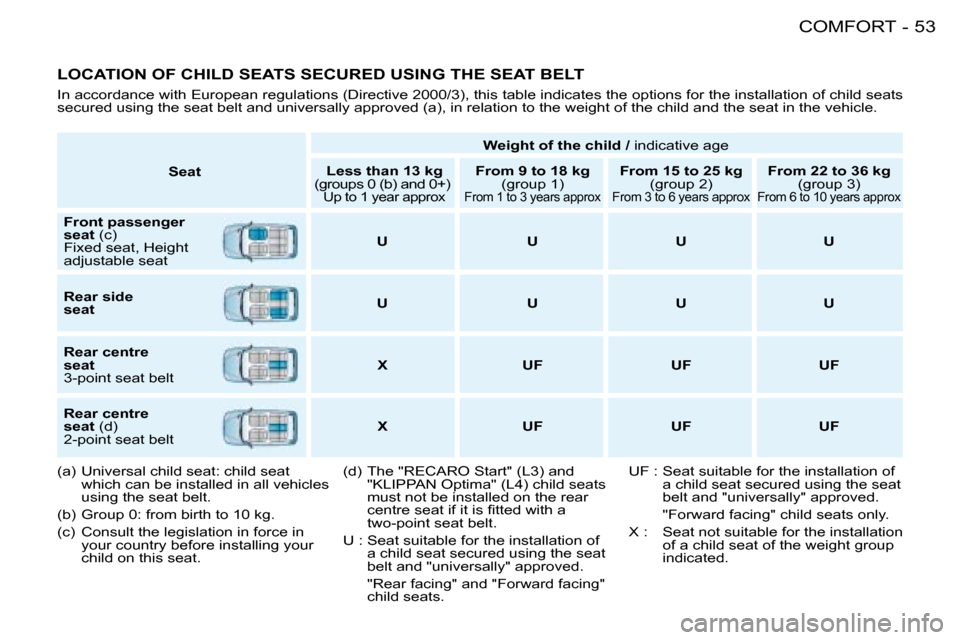

LOCATION OF CHILD SEATS SECURED USING THE SEAT BELT
In accordance with European regulations (Directive 2000/3), this table indicates the options for the installation of child seats
secured using the seat belt and universally approved (a), in rela tion to the weight of the child and the seat in the vehicle.
Seat Weight of the child /
indicative age
Less than 13 kg
(groups 0 (b) and 0+)
Up to 1 year approx
F r o m 9 t o 1 8 k g (group 1)
From 1 to 3 years approx
From 15 to 25 kg (group 2)
From 3 to 6 years approx
From 22 to 36 kg(group 3)
From 6 to 10 years approx
Front passenger
seat (c)
Fixed seat, Height
adjustable seat U U U U
Rear side
seat U U U U
Rear centre
seat
3-point seat belt X UF UF UF
Rear centre
seat (d)
2-point seat belt X UF UF UF
(a) Universal child seat: child seat which can be installed in all vehicles
using the seat belt.
(b) Group 0: from birth to 10 kg.
(c) Consult the legislation in force in your country before installing your
child on this seat. (d) The "RECARO Start" (L3) and
"KLIPPAN Optima" (L4) child seats
must not be installed on the rear
c e n t r e s e a t i f i t i s i t t e d w i t h a
two-point seat belt.
U : Seat suitable for the installation of a child seat secured using the seat
belt and "universally" approved.
"Rear facing" and "Forward facing" child seats. UF : Seat suitable for the installation of
a child seat secured using the seat
belt and "universally" approved.
"Forward facing" child seats only.
X : Seat not suitable for the installation of a child seat of the weight group
indicated.
Page 57 of 123
COMFORT
54 -
These are two rings located between
the seat back and the seat cushion.
The ISOFIX child seats a r e i t t e d
with two locks which are secured
easily on these rings. "ISOFIX" MOUNTINGS
This ISOFIX mounting system gua-
r a n t e e s r e l i a b l e , s a f e a n d f a s t i t t i n g
of the child seat in your vehicle.
T h e s e s e a t s a r e i t t e d w i t h I S O F I X
mountings.
Page 58 of 123
55
COMFORT
-

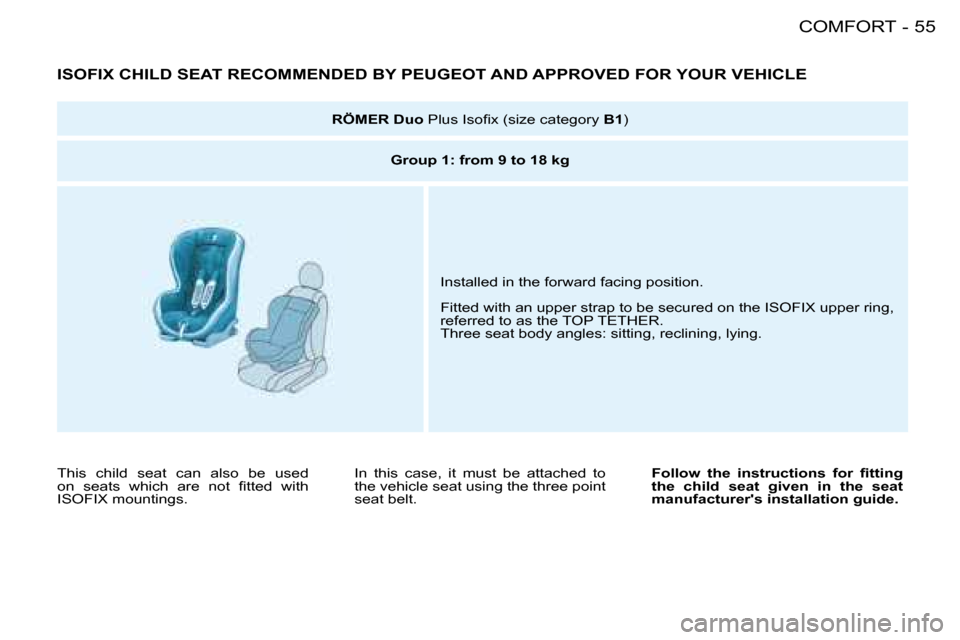

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo P l u s I s o i x ( s i z e c a t e g o r y B1)
G r o u p 1 : f r o m 9 t o 1 8 k g
Installed in the forward facing position.
Fitted with an upper strap to be secured on the ISOFIX uppe r ring,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.
This child seat can also be used
o n s e a t s w h i c h a r e n o t i t t e d w i t h
ISOFIX mountings. In this case, it must be attached to
the vehicle seat using the three point
seat belt. F o l l o w t h e i n s t r u c t i o n s f o r i t t i n g
the child seat given in the seat
manufacturer's installation guide.
Page 59 of 123
57
ACCESS
-
KEYS

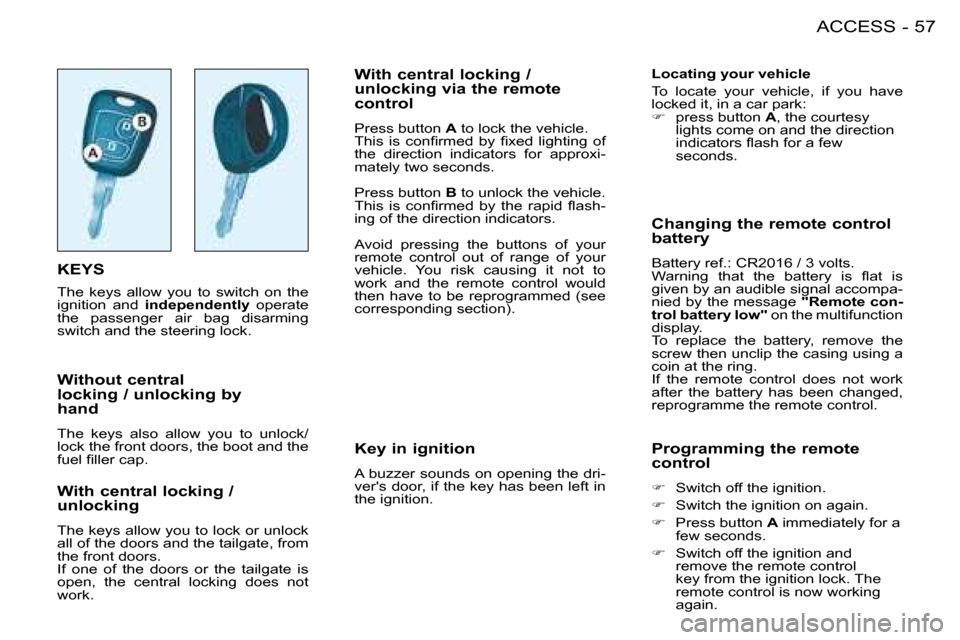

The keys allow you to switch on the
ignition and independently operate
the passenger air bag disarming
switch and the steering lock. Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
F
press button A, the courtesy
lights come on and the direction
i n d i c a t o r s l a s h f o r a f e w
seconds.
Changing the remote control
battery
Battery ref.: CR2016 / 3 volts.
W a r n i n g t h a t t h e b a t t e r y i s l a t i s
given by an audible signal accompa-
nied by the message "Remote con-
trol battery low" on the multifunction
display.
To replace the battery, remove the
screw then unclip the casing using a
coin at the ring.
If the remote control does not work
after the battery has been changed,
reprogramme the remote control.
Key in ignition
A buzzer sounds on opening the dri-
ver's door, if the key has been left in
the ignition. Programming the remote
control
F
Switch off the ignition.
F Switch the ignition on again.
F Press button A immediately for a
few seconds.
F Switch off the ignition and
remove the remote control
key from the ignition lock. The
remote control is now working
again.
Without central
locking / unlocking by
hand
The keys also allow you to unlock/
lock the front doors, the boot and the
f u e l i l l e r c a p .
With central locking /
unlocking
The keys allow you to lock or unlock
all of the doors and the tailgate, from
the front doors.
If one of the doors or the tailgate is
open, the central locking does not
work. With central locking /
unlocking via the remote
control
Press button
A to lock the vehicle.
T h i s i s c o n i r m e d b y i x e d l i g h t i n g o f
t h e d i r e c t i o n i n d i c a t o r s f o r a p p r o x i -
mately two seconds.
Press button B to unlock the vehicle.
T h i s i s c o n i r m e d b y t h e r a p i d l a s h -
ing of the direction indicators.
Avoid pressing the buttons of your
remote control out of range of your
vehicle. You risk causing it not to
work and the remote control would
then have to be reprogrammed (see
corresponding section).
Page 60 of 123
ACCESS
58 -
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine control sys-
tem as soon as the ignition has been
switched off and therefore prevents
starting of the vehicle by anyone who
does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code
must be recognised for starting to be
possible.

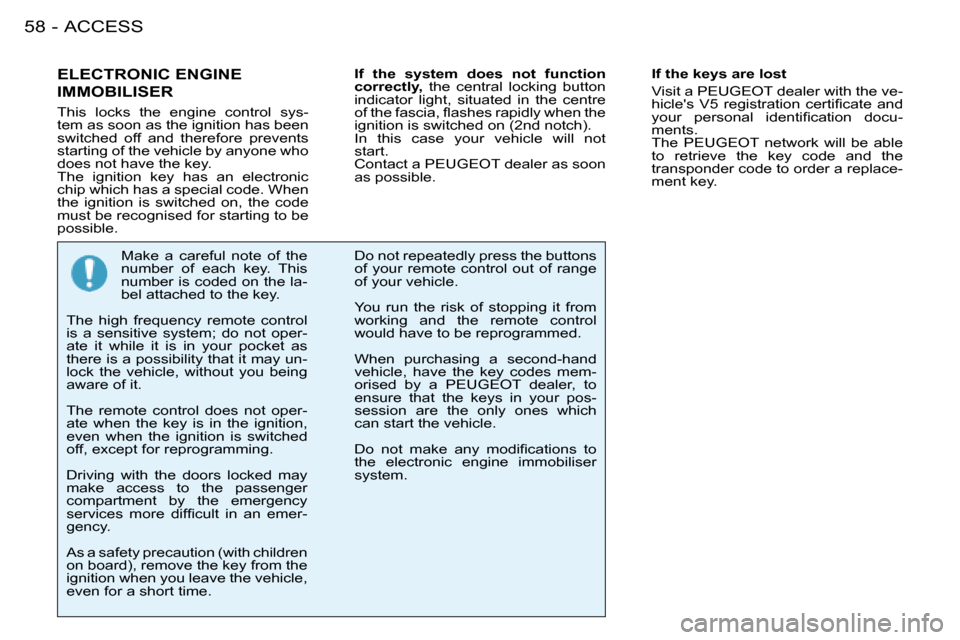

Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
The high frequency remote control
is a sensitive system; do not oper-
ate it while it is in your pocket as
there is a possibility that it may un-
lock the vehicle, without you being
aware of it.
The remote control does not oper-
ate when the key is in the ignition,
even when the ignition is switched
o f f , e x c e p t f o r r e p r o g r a m m i n g .
Driving with the doors locked may
make access to the passenger
compartment by the emergency
s e r v i c e s m o r e d i f i c u l t i n a n e m e r -
gency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle, have the key codes mem-
orised by a PEUGEOT dealer, to
ensure that the keys in your pos-
session are the only ones which
can start the vehicle.
D o n o t m a k e a n y m o d i i c a t i o n s t o
the electronic engine immobiliser
system.
If the system does not function
correctly,
the central locking button
indicator light, situated in the centre
o f t h e f a s c i a , l a s h e s r a p i d l y w h e n t h e
ignition is switched on (2nd notch).
In this case your vehicle will not
start.
Contact a PEUGEOT dealer as soon
as possible. If the keys are lost
Visit a PEUGEOT dealer with the ve-
h i c l e ' s V 5 r e g i s t r a t i o n c e r t i i c a t e a n d
y o u r p e r s o n a l i d e n t i i c a t i o n d o c u
-
ments.
The PEUGEOT network will be able
to retrieve the key code and the
transponder code to order a replace-
ment key.
