Page 51 of 113
49

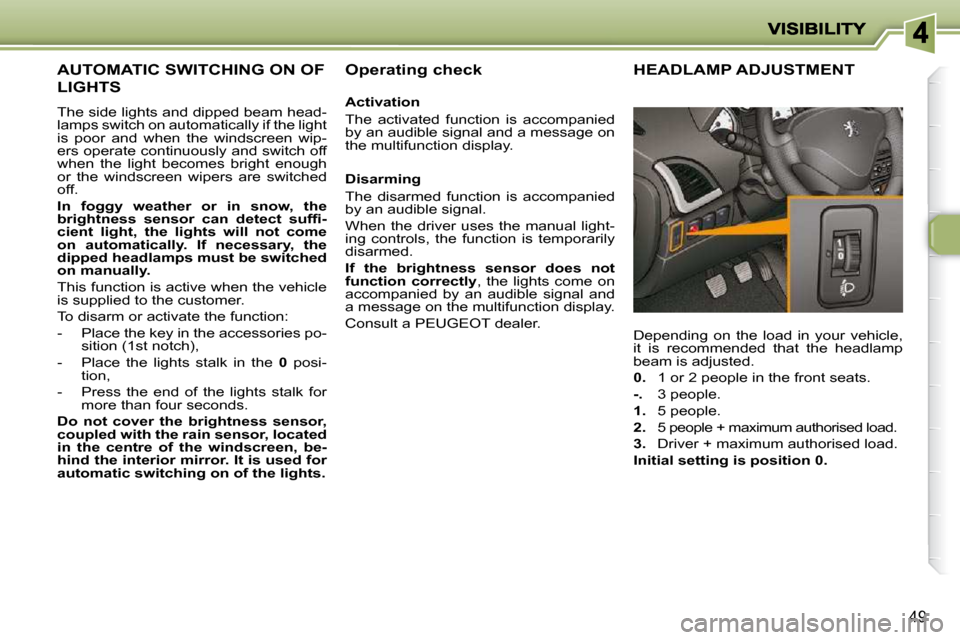

AUTOMATIC SWITCHING ON OF
LIGHTS
The side lights and dipped beam head-
lamps switch on automatically if the light
is poor and when the windscreen wip-
ers operate continuously and switch off
when the light becomes bright enough
or the windscreen wipers are switched
off.
I n f o g g y w e a t h e r o r i n s n o w , t h e
b r i g h t n e s s s e n s o r c a n d e t e c t s u f fi -
c i e n t l i g h t , t h e l i g h t s w i l l n o t c o m e
o n a u t o m a t i c a l l y . I f n e c e s s a r y , t h e
d i p p e d h e a d l a m p s m u s t b e s w i t c h e d
on manually.
This function is active when the vehicle
is supplied to the customer.
To disarm or activate the function:
- Place the key in the accessories po- sition (1st notch),
- Place the lights stalk in the 0 posi-
tion,
- Press the end of the lights stalk for more than four seconds.
D o n o t c o v e r t h e b r i g h t n e s s s e n s o r ,
c o u p l e d w i t h t h e r a i n s e n s o r , l o c a t e d
i n t h e c e n t r e o f t h e w i n d s c r e e n , b e -
hind the interior mirror. It is used for
a u t o m a t i c s w i t c h i n g o n o f t h e l i g h t s . Operating check
Activation
The activated function is accompanied
by an audible signal and a message on
the multifunction display.
Disarming
The disarmed function is accompanied
by an audible signal.
When the driver uses the manual light-
ing controls, the function is temporarily
disarmed.
If the brightness sensor does not
function correctly , the lights come on
accompanied by an audible signal and
a message on the multifunction display.
Consult a PEUGEOT dealer.
HEADLAMP ADJUSTMENT
Depending on the load in your vehicle,
it is recommended that the headlamp
beam is adjusted.
0. 1 or 2 people in the front seats.
- . 3 people.
1. 5 people.
2. 5 people + maximum authorised load.
3. Driver + maximum authorised load.
Initial setting is position 0.
Page 52 of 113
50

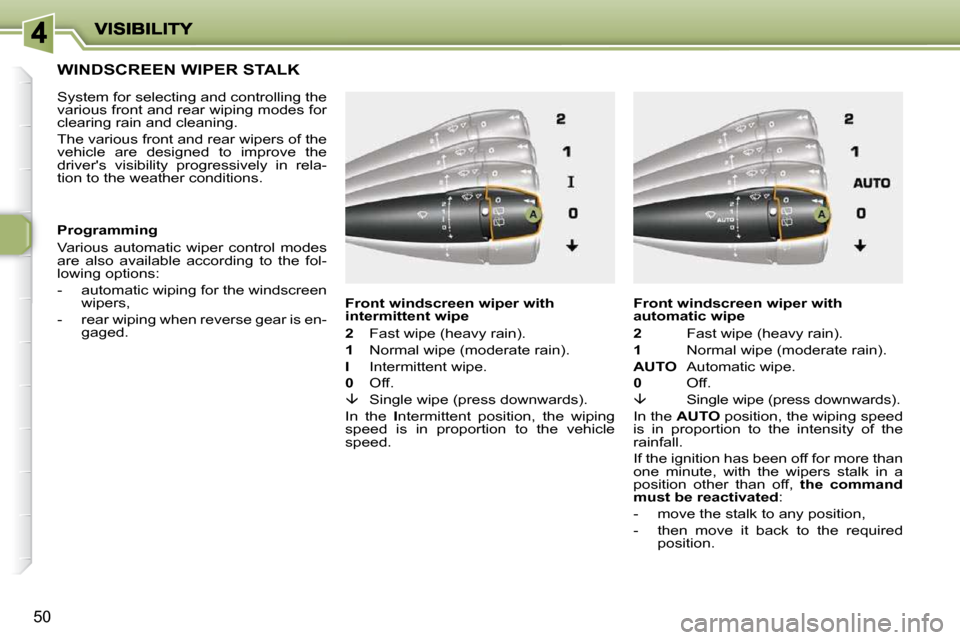

WINDSCREEN WIPER STALK
System for selecting and controlling the
various front and rear wiping modes for
clearing rain and cleaning.
The various front and rear wipers of the
vehicle are designed to improve the
driver's visibility progressively in rela-
tion to the weather conditions.
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic wiping for the windscreen wipers,
- rear wiping when reverse gear is en- gaged. F r o n t w i n d s c r e e n w i p e r w i t h
i n t e r m i t t e n t w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
I Intermittent wipe.
0 Off.
Single wipe (press downwards).
In the I ntermittent position, the wiping
speed is in proportion to the vehicle
speed. F r o n t w i n d s c r e e n w i p e r w i t h
a u t o m a t i c w i p e
2 Fast wipe (heavy rain).
1 Normal wipe (moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe (press downwards).
In the AUTO position, the wiping speed
is in proportion to the intensity of the
rainfall.
If the ignition has been off for more than
one minute, with the wipers stalk in a
position other than off, the command
must be reactivated :
- move the stalk to any position,
- then move it back to the required position.
Page 53 of 113
i
51

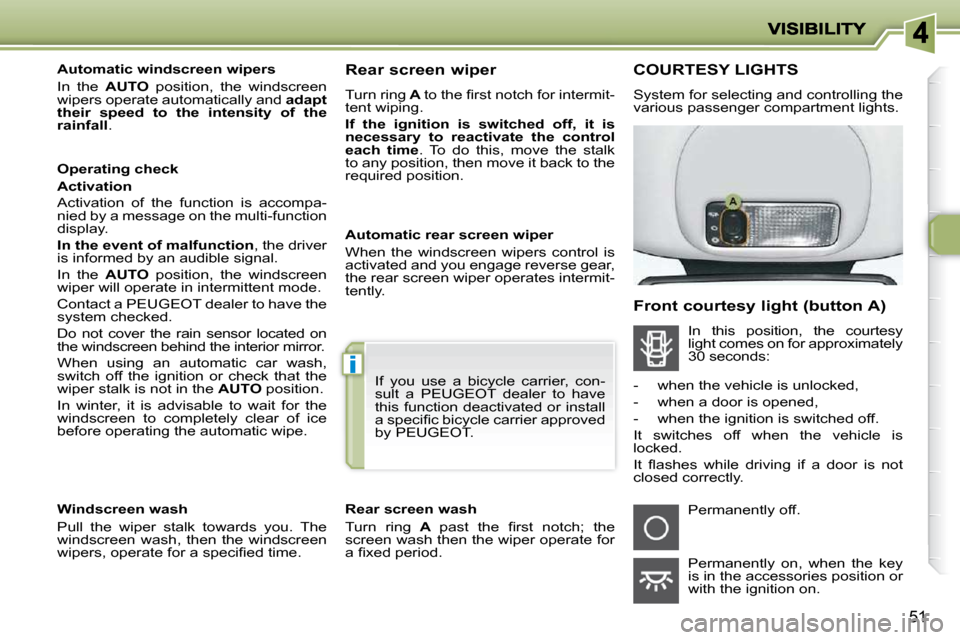

A u t o m a t i c w i n d s c r e e n w i p e r s
In the AUTO position, the windscreen
wipers operate automatically and adapt
their speed to the intensity of the
rainfall .
Operating check
Activation
Activation of the function is accompa-
nied by a message on the multi-function
display.
In the event of malfunction , the driver
is informed by an audible signal.
In the AUTO position, the windscreen
wiper will operate in intermittent mode.
Contact a PEUGEOT dealer to have the
system checked.
Do not cover the rain sensor located on
the windscreen behind the interior mirror.
When using an automatic car wash,
switch off the ignition or check that the
wiper stalk is not in the AUTO position.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.
W i n d s c r e e n w a s h
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e . R e a r s c r e e n w i p e r
Turn ring
A t o t h e fi r s t n o t c h f o r i n t e r m i t -
tent wiping.
I f t h e i g n i t i o n i s s w i t c h e d o f f , i t i s
necessary to reactivate the control
each time . To do this, move the stalk
to any position, then move it back to the
required position.
A u t o m a t i c r e a r s c r e e n w i p e r
When the windscreen wipers control is
activated and you engage reverse gear,
the rear screen wiper operates intermit-
tently.
R e a r s c r e e n w a s h
Turn ring A p a s t t h e fi r s t n o t c h ; t h e
screen wash then the wiper operate for
a fi x e d p e r i o d . If you use a bicycle carrier, con-
sult a PEUGEOT dealer to have
this function deactivated or install
a s p e c i fi c b i c y c l e c a r r i e r a p p r o v e d
by PEUGEOT.
COURTESY LIGHTS
System for selecting and controlling the
various passenger compartment lights.
Front courtesy light (button A)
- when the vehicle is unlocked,
- when a door is opened,
- when the ignition is switched off.
It switches off when the vehicle is
locked.
I t fl a s h e s w h i l e d r i v i n g i f a d o o r i s n o t
closed correctly.
Permanently off.
Permanently on, when the key
is in the accessories position or
with the ignition on.
In this position, the courtesy
light comes on for approximately
30 seconds:
Page 54 of 113
i
51
A u t o m a t i c w i n d s c r e e n w i p e r s
In the AUTO position, the windscreen
wipers operate automatically and adapt
their speed to the intensity of the
rainfall .
Operating check
Activation
Activation of the function is accompa-
nied by a message on the multi-function
display.
In the event of malfunction , the driver
is informed by an audible signal.
In the AUTO position, the windscreen
wiper will operate in intermittent mode.
Contact a PEUGEOT dealer to have the
system checked.
Do not cover the rain sensor located on
the windscreen behind the interior mirror.
When using an automatic car wash,
switch off the ignition or check that the
wiper stalk is not in the AUTO position.
In winter, it is advisable to wait for the
windscreen to completely clear of ice
before operating the automatic wipe.
W i n d s c r e e n w a s h
Pull the wiper stalk towards you. The
windscreen wash, then the windscreen
w i p e r s , o p e r a t e f o r a s p e c i fi e d t i m e . R e a r s c r e e n w i p e r
Turn ring
A t o t h e fi r s t n o t c h f o r i n t e r m i t -
tent wiping.
I f t h e i g n i t i o n i s s w i t c h e d o f f , i t i s
necessary to reactivate the control
each time . To do this, move the stalk
to any position, then move it back to the
required position.
A u t o m a t i c r e a r s c r e e n w i p e r
When the windscreen wipers control is
activated and you engage reverse gear,
the rear screen wiper operates intermit-
tently.
R e a r s c r e e n w a s h
Turn ring A p a s t t h e fi r s t n o t c h ; t h e
screen wash then the wiper operate for
a fi x e d p e r i o d . If you use a bicycle carrier, con-
sult a PEUGEOT dealer to have
this function deactivated or install
a s p e c i fi c b i c y c l e c a r r i e r a p p r o v e d
by PEUGEOT.
COURTESY LIGHTS
System for selecting and controlling the
various passenger compartment lights.
Front courtesy light (button A)
- when the vehicle is unlocked,
- when a door is opened,
- when the ignition is switched off.
It switches off when the vehicle is
locked.
I t fl a s h e s w h i l e d r i v i n g i f a d o o r i s n o t
closed correctly.
Permanently off.
Permanently on, when the key
is in the accessories position or
with the ignition on.
In this position, the courtesy
light comes on for approximately
30 seconds:
Page 55 of 113
ii
SAFETY
52
DIRECTION INDICATORS
Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
Lower the lights stalk when moving
to the left.
Raise the lights stalk when moving
to the right.
HAZARD WARNING LAMPS
A visual warning by means of the direc-
tion indicators to alert other road users to
a vehicle breakdown, towing or accident.
A s a s a f e t y p r e c a u t i o n i n a t r a f fi c j a m ,
switch on the hazard warning lamps
if you are the last in the queue.
Press the button, the direction indi-
c a t o r s fl a s h .
They can operate with the ignition off.
Automatic lighting of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on.
They will switch off automatically the
fi r s t t i m e y o u a c c e l e r a t e .
If they do not, press button A to
switch the direction indicators off.
HORN
Press one of the spokes of the
steering wheel.
Use the horn moderately and only
in the following cases:
- immediate danger,
- when passing a cyclist or pe- destrian,
- when approaching an area where there is no visibility.
Audible warning to alert other road
users to an imminent danger.
Page 56 of 113
!
i
53
When braking in an emergency,
p r e s s v e r y fi r m l y w i t h o u t r e l e a s i n g
the pressure. When replacing wheels (tyres and
rims), ensure that they conform to the
manufacturer's recommendations.
BRAKING ASSISTANCE
SYSTEMS
Anti-lock braking system and
electronic brake force distribution
Linked systems which improve the sta-
bility and manoeuvrability of your vehicle
when braking, in particular on poor or
slippery surfaces.
Activation
The anti-lock braking system comes
into operation automatically when there
is a risk of wheel lock.
Normal operation of the ABS may make
itself felt by slight vibration of the brake
pedal. Operating fault
Emergency braking assistance
System which, in an emergency, ena-
bles you to obtain the optimum braking
pressure more quickly, thus reducing
the stopping distance.
Activation
It is triggered by the speed at which the
brake pedal is pressed.
The effect of this is a reduction in the
resistance of the pedal and an increase
i n b r a k i n g e f fi c i e n c y .
When braking in an emergency, press
fi r m l y w i t h o u t r e l e a s i n g t h e p r e s s u r e .
Group of supplementary sys-
tems which help you to obtain
optimum braking in complete
safety in emergency situations:
- the anti-lock braking system (ABS),
- the electronic brake force distribu- tion (EBFD),
- the emergency braking assistance (EBA). If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the multi-
function screen, it indicates a
malfunction of the anti-lock braking sys-
tem which could result in loss of control
of the vehicle when braking.
If this warning light comes on, togeth-
er with the STOP and ABS warning
lamps, accompanied by an audible sig-
nal and a message on the multifunction
screen, it indicates a malfunction of the
electronic brake force distribution which
could result in loss of control of the ve-
hicle when braking.
You MUST stop as soon as it is safe
to do so.
In both cases, contact a PEUGEOT
dealer.
Page 57 of 113
!
SAFETY
54
TRAJECTORY CONTROL
SYSTEMS
Anti-skid regulation (ASR) and
electronic stability programme (ESP)
The anti-skid regulation (also known as
Traction Control) optimises traction to
prevent skidding of the wheels, by act-
ing on the brakes of the driving wheels
and on the engine.
The electronic stability programme acts
on the brake of one or more wheels and
on the engine to keep the vehicle on the
t r a j e c t o r y r e q u i r e d b y t h e d r i v e r .
Activation
These systems are activated automati-
cally each time the vehicle is started. They come into operation in
t h e e v e n t o f a g r i p o r t r a j e c t o r y
problem.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp on the instru-
ment panel. Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the ASR and ESP
systems, so that the wheels can move
freely and regain grip.
Press the "ESP OFF" button, located
on the left below the steering wheel.
Reactivation
These systems are reactivated automat-
ically each time the ignition is switched
back on or from 30 mph (50 km/h).
Press the "ESP OFF" button again
to reactivate them manually. If this warning lamp comes on
in the instrument panel and the
indicator lamp on the button
comes on, this indicates that the
ASR and ESP systems are deactivated. Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the multi-
function screen, this indicates a
malfunction of these systems.
Have the systems checked by a
PEUGEOT dealer.
The ESP/ASR systems offer ex-
ceptional safety in normal driving,
but this should not encourage the
driver to take extra risks or drive at
high speed.
The correct functioning of these
systems depends on observation
of the manufacturer's recommen-
dations regarding the wheels (tyres
and rims), the braking components,
the electronic components and the
PEUGEOT assembly and opera-
tion procedures.
After an impact, have these sys-
tems checked by a PEUGEOT
dealer.
Page 58 of 113
55

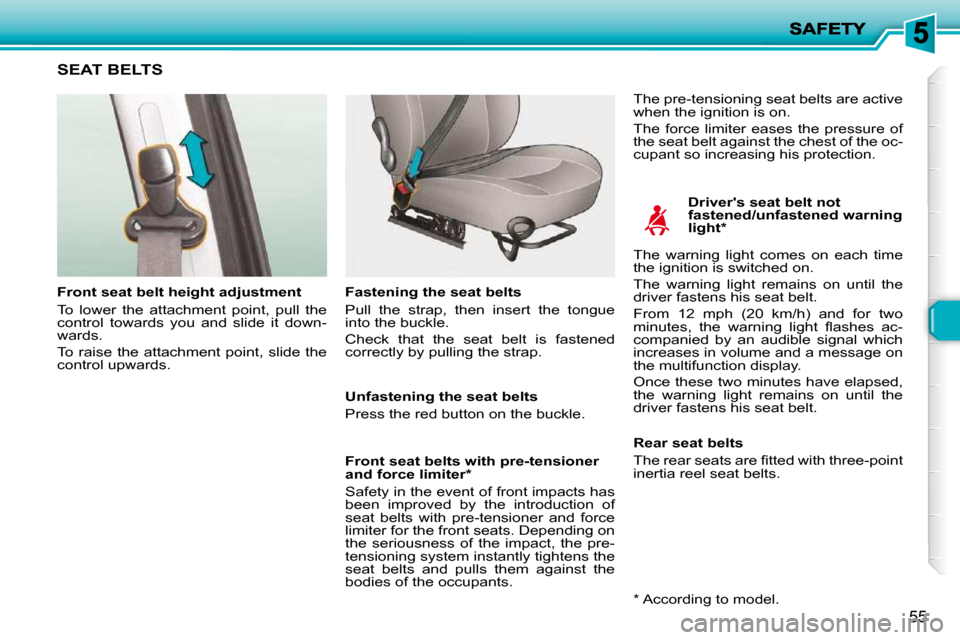

SEAT BELTS
Driver's seat belt not
fastened/unfastened warning
light *
Front seat belt height adjustment
To lower the attachment point, pull the
control towards you and slide it down-
wards.
To raise the attachment point, slide the
control upwards. Fastening the seat belts
Pull the strap, then insert the tongue
into the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening the seat belts
Press the red button on the buckle.
Front seat belts with pre-tensioner
and force limiter *
Safety in the event of front impacts has
been improved by the introduction of
seat belts with pre-tensioner and force
limiter for the front seats. Depending on
the seriousness of the impact, the pre-
tensioning system instantly tightens the
seat belts and pulls them against the
bodies of the occupants. Rear seat belts
T h e r e a r s e a t s a r e fi t t e d w i t h t h r e e - p o i n t
inertia reel seat belts.
The pre-tensioning seat belts are active
when the ignition is on.
The force limiter eases the pressure of
the seat belt against the chest of the oc-
cupant so increasing his protection.
* According to model.
The warning light comes on each time
the ignition is switched on.
The warning light remains on until the
driver fastens his seat belt.
From 12 mph (20 km/h) and for two
m i n u t e s , t h e w a r n i n g l i g h t fl a s h e s a c -
companied by an audible signal which
increases in volume and a message on
the multifunction display.
Once these two minutes have elapsed,
the warning light remains on until the
driver fastens his seat belt.
Page 59 of 113
i
SAFETY
56
The driver must ensure that passen-
gers use the seat belts correctly and
that they are all restrained securely
before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n e r t i a
r e e l p e r m i t t i n g a u t o m a t i c a d j u s t m e n t
of the length of the strap to your size.
The seat belt is stored automatically
when not in use.
Before and after use, ensure that the
seat belt is rolled up correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. * According to model.
In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult size only,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- must not be transformed or modi- fi e d t o a v o i d a l t e r i n g i t s p e r f o r m -
ance.
In accordance with current safety reg-
ulations, all repairs and checks must
be carried out by a PEUGEOT dealer
who guarantees that the work is car-
ried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and rolled up correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
s h o r t e r t h a n o n e m e t r e fi f t y .
Never use the same seat belt to
secure more than one person.
Never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device * may be triggered
before and independently of the air
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the air bag warning light
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 60 of 113
!!
57
AIR BAGS
Front air bags
Impact detection zones
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts.
If a collision occurs, the electronic
detectors record and analyse the front
and side impacts sustained in the
impact detection zones:
- in the case of a serious impact, the air bags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility or
the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
air bags will not be triggered; the seat
b e l t a l o n e i s s u f fi c i e n t t o p r o v i d e o p t i -
mum protection in these situations.
The air bags do not operate
when the ignition is switched
off.
This equipment will only operate
once. If a second impact occurs
(during the same or a subsequent
accident), the air bag will not
operate.
A. Front impact zone.
B. Side impact zone. System which protects the driver and
front passenger in the event of a seri-
o u s f r o n t i m p a c t t o l i m i t t h e r i s k o f i n j u r y
to the head and chest.
The air bags are incorporated in the
centre of the steering wheel for the
driver and in the fascia for the front pas-
senger.
Activation
They are deployed simultaneously in
the event of a serious front impact ap-
plied to all or part of the front impact
zone
A in the longitudinal centreline of
the vehicle on a horizontal plane direct-
ed from the front towards the rear of the
vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the fas-
cia to cushion his forward movement.
Triggering of the air bag(s) is ac-
companied by a slight emission
of harmless smoke and a noise,
due to the activation of the pyro-
technic cartridge incorporated in
the system.
This smoke is not harmful, but sen-
sitive individuals may experience
slight irritation.
The noise of the detonation may
result in a slight loss of hearing
for a short time.
